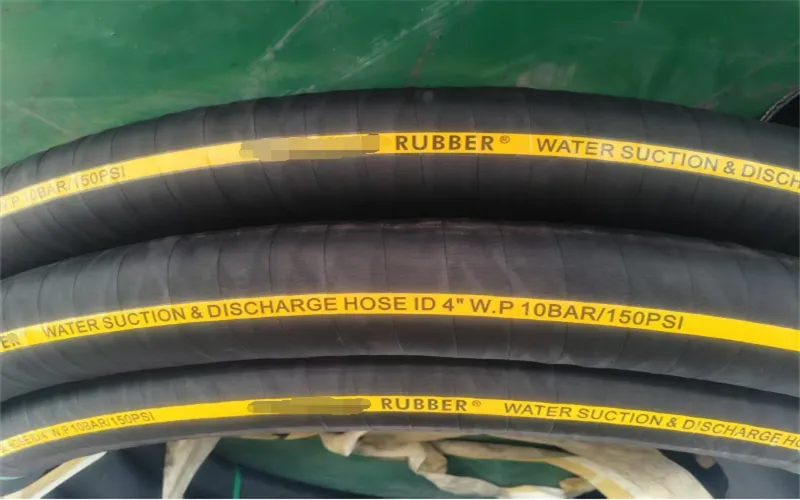

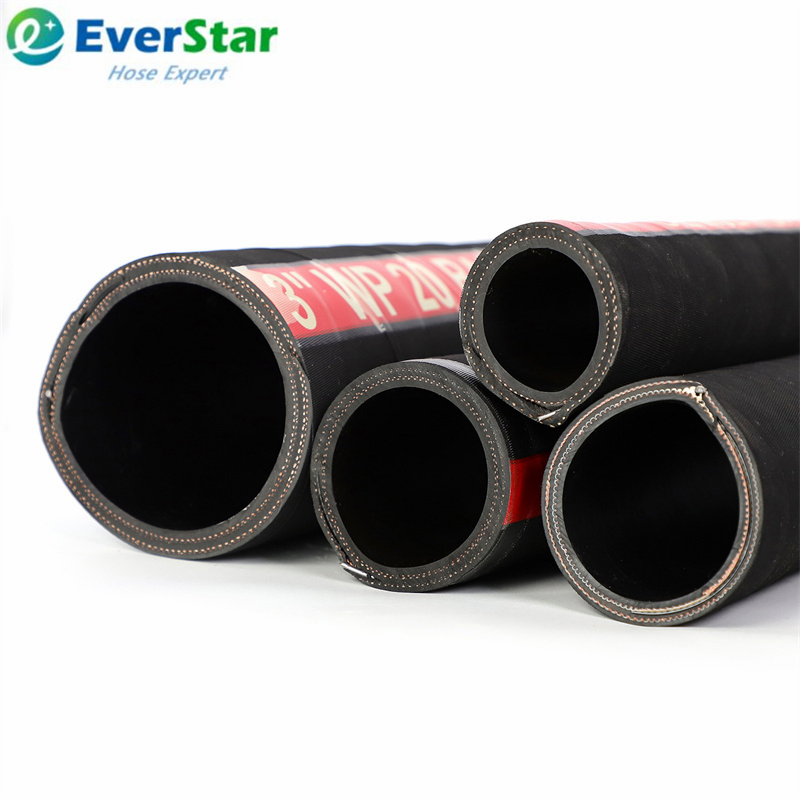

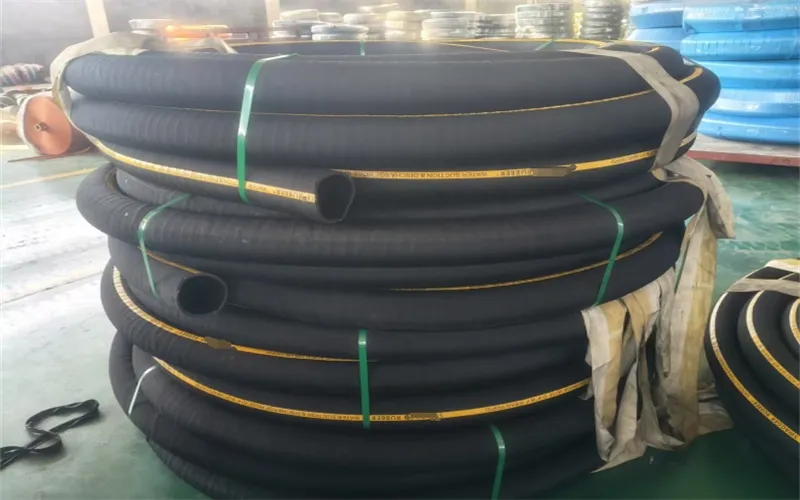

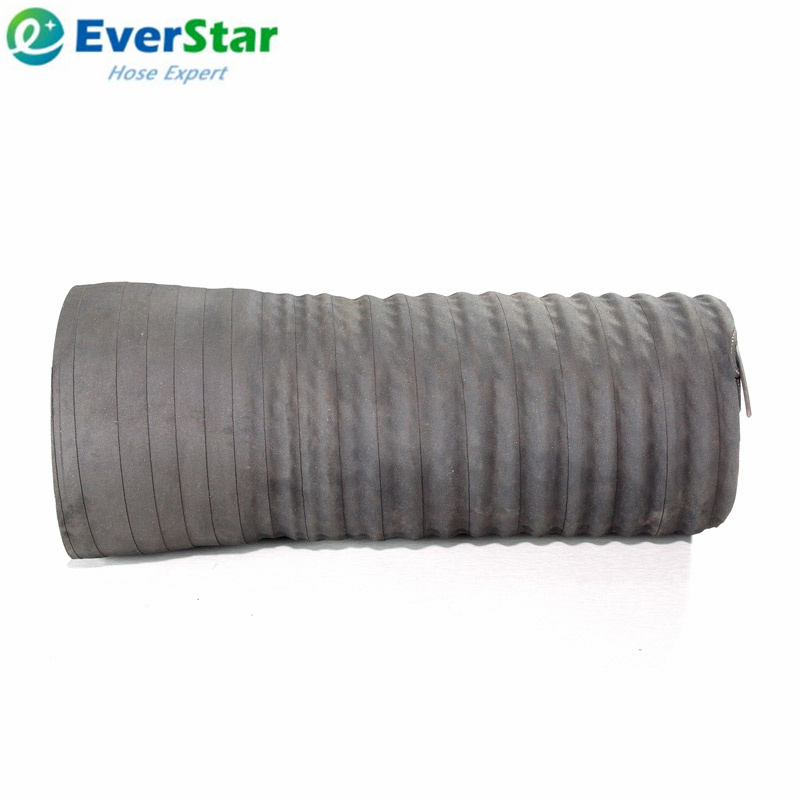

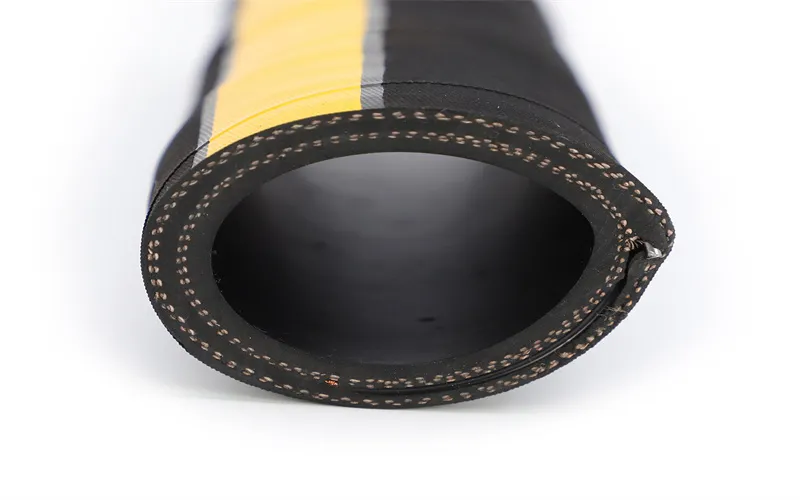

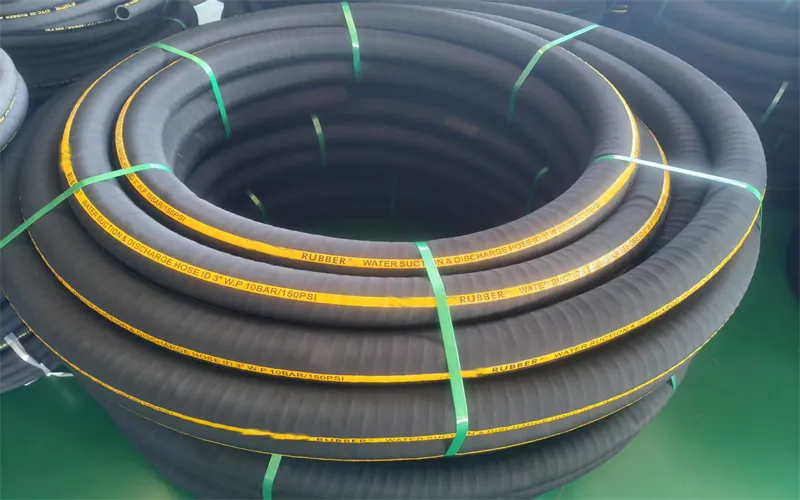

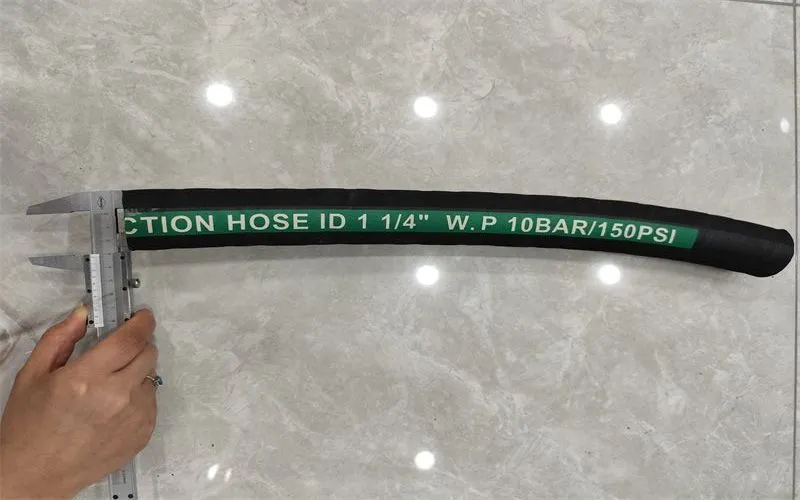

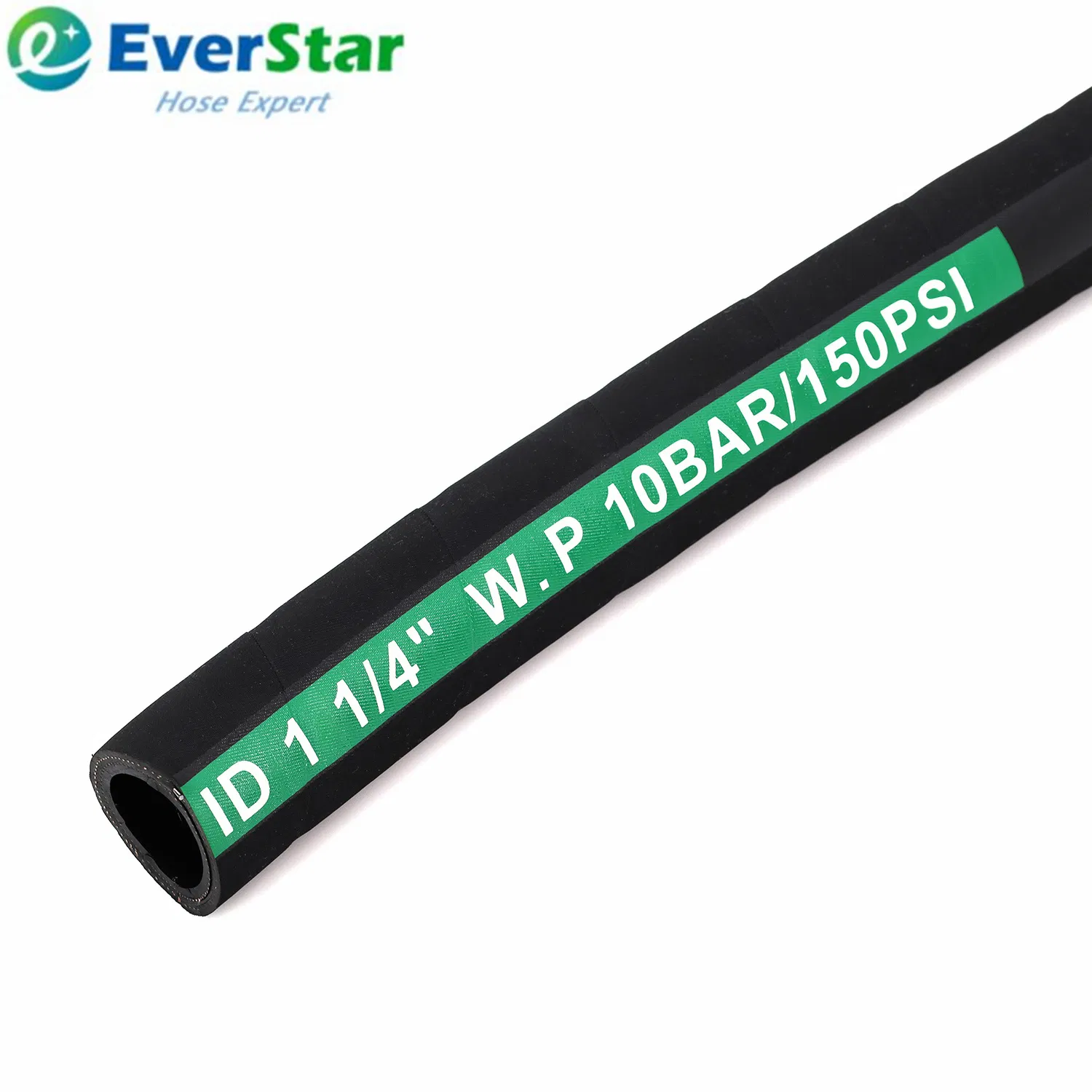

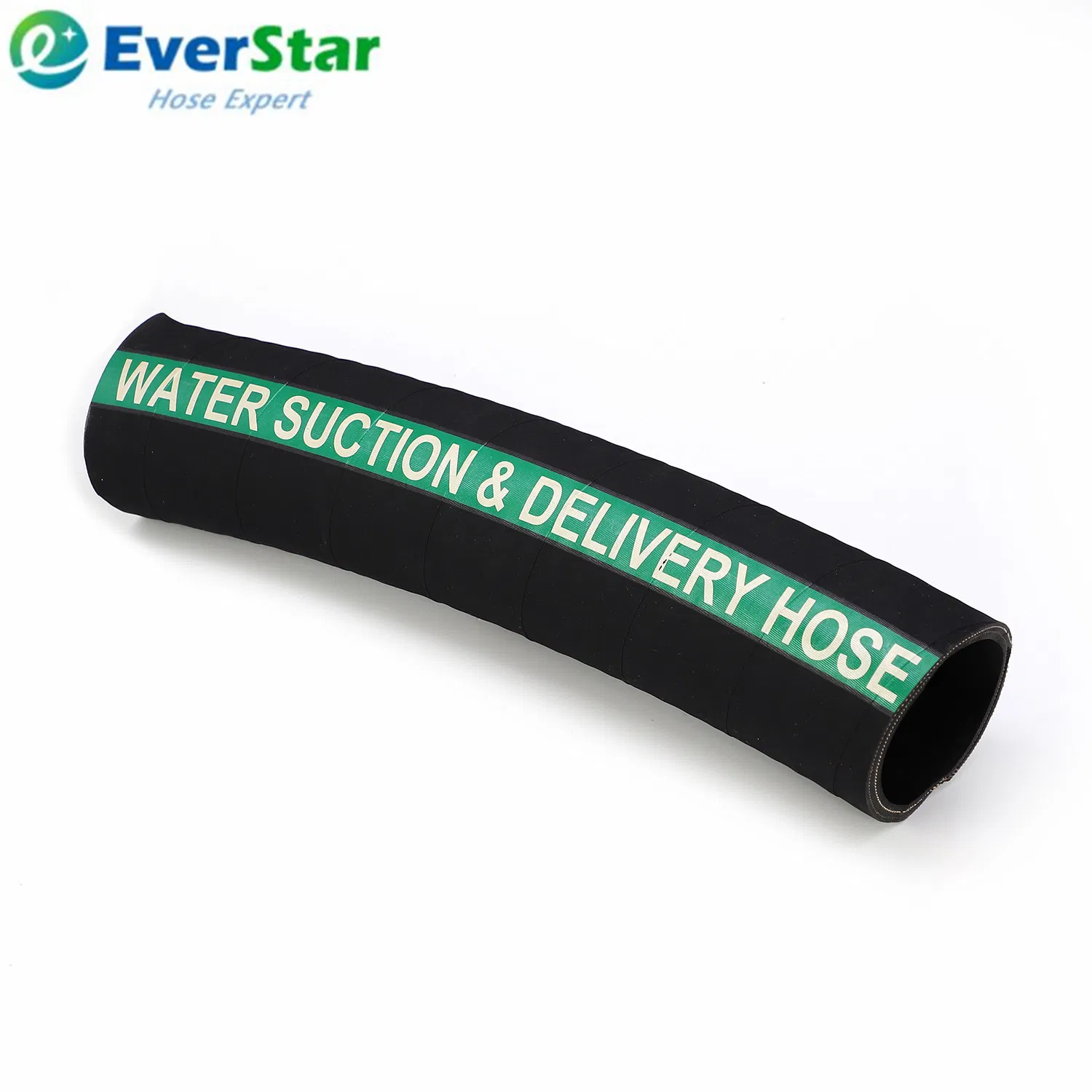

Our Water Suction Hose is fabricated using high grade raw materials following high definition engineering principles. It is known for its dimensional accuracy, high strength, corrosion resistance, compact design, high pressure bearing capacity, low maintenance and reliability.

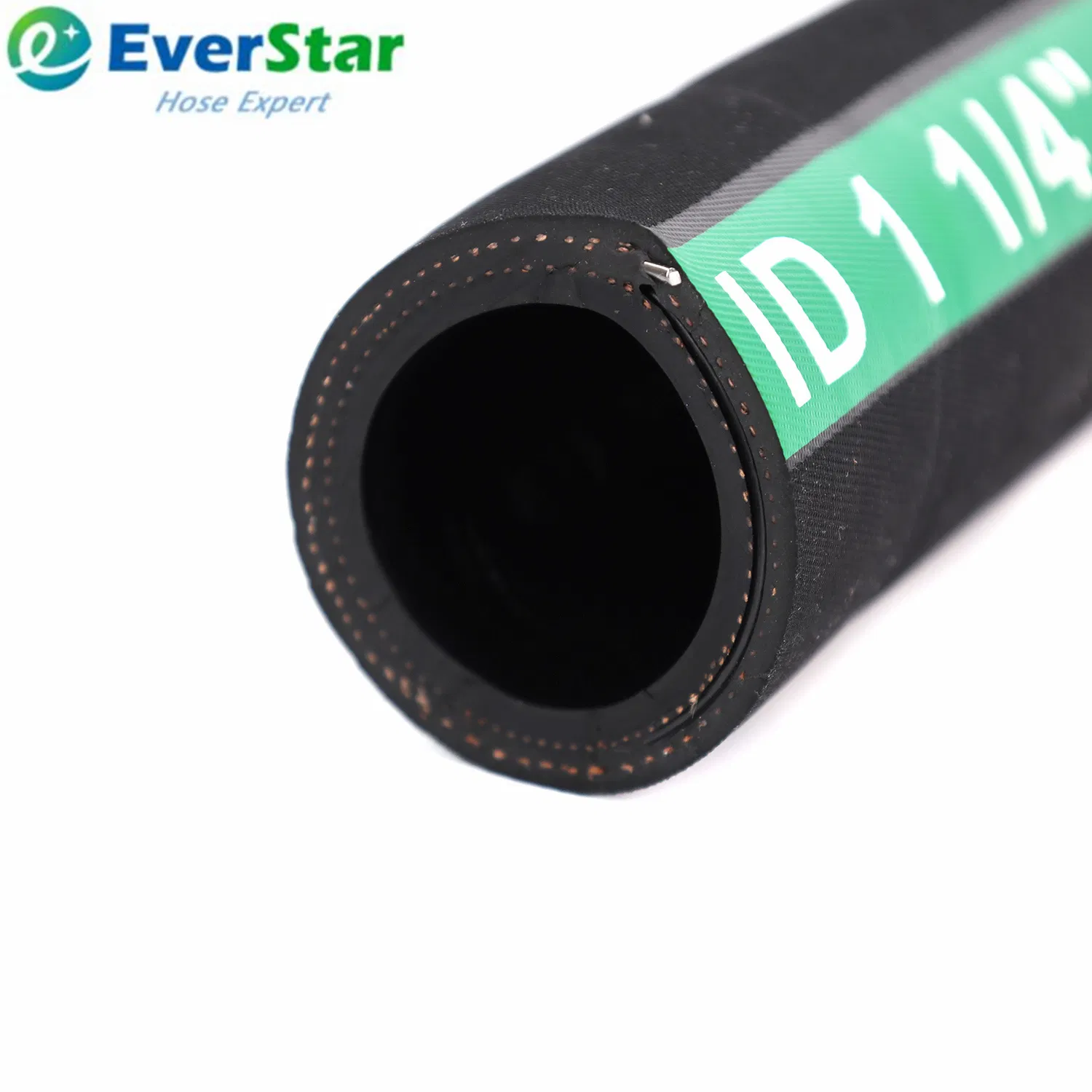

| Construction Details | |
|---|---|
| Tube | Smooth, black, synthetic rubber |

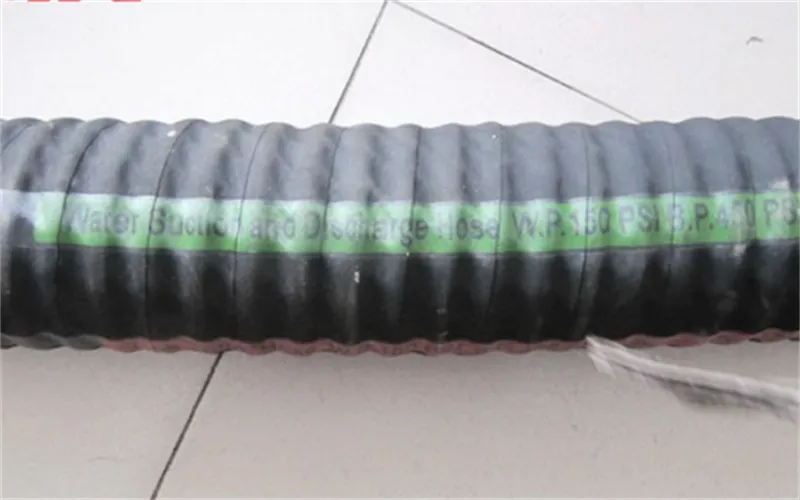

| Reinforcement | Synthetic yarn with a high tensile wire helix |
| Cover | Black, wrapped, fabric impression, weather and abrasion resistant |
| Temperature | -20° C to +80° C |
| Application | Suction and delivery of weak acids, alkalis, oil and water. Multipurpose hard wall hose with embedded twin wire helix to prevent kinking. |
| Inside Ø (Inch) | Inside Ø (mm) | Outside Ø (mm) | WP (Bar) | BP (Bar) | Length (m) |
|---|---|---|---|---|---|
| 3/4 | 19 | 30.4 | 10 | 30 | 40/60 |
| 1 | 25 | 36.4 | 10 | 30 | 40/60 |
| 2 | 51 | 64.4 | 10 | 30 | 40/60 |
| 4 | 102 | 119.6 | 10 | 30 | 40/60 |
| 6 | 152 | 171.6 | 10 | 30 | 30 |
| 8 | 203 | 224.8 | 10 | 30 | 30 |
| 12 | 304 | 332.6 | 10 | 30 | 10 |
We are a professional manufacturer and exporter of various hydraulic hoses and industrial hoses. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution. Since 2012, we have been complying with ISO 9001:2015 requirements. Our products are used globally in agriculture, construction, coal mining, garden industry, and petroleum fields.
