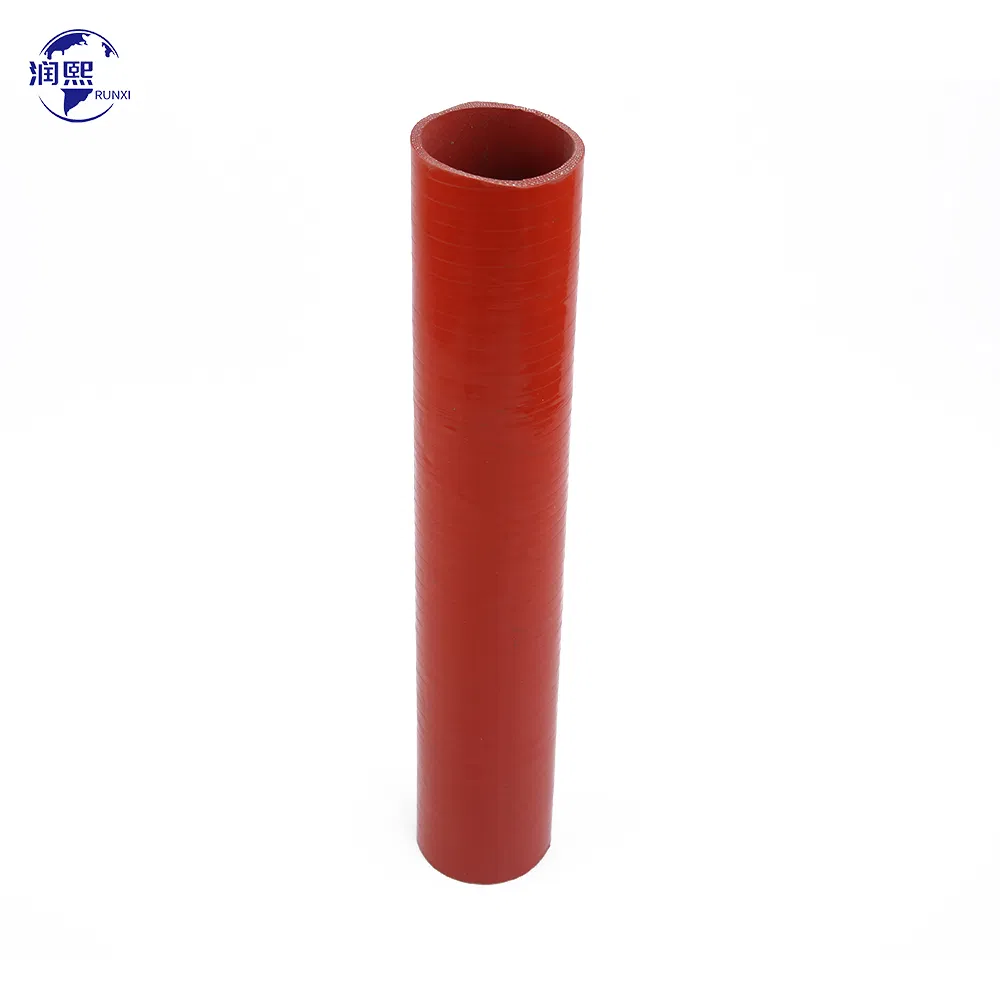

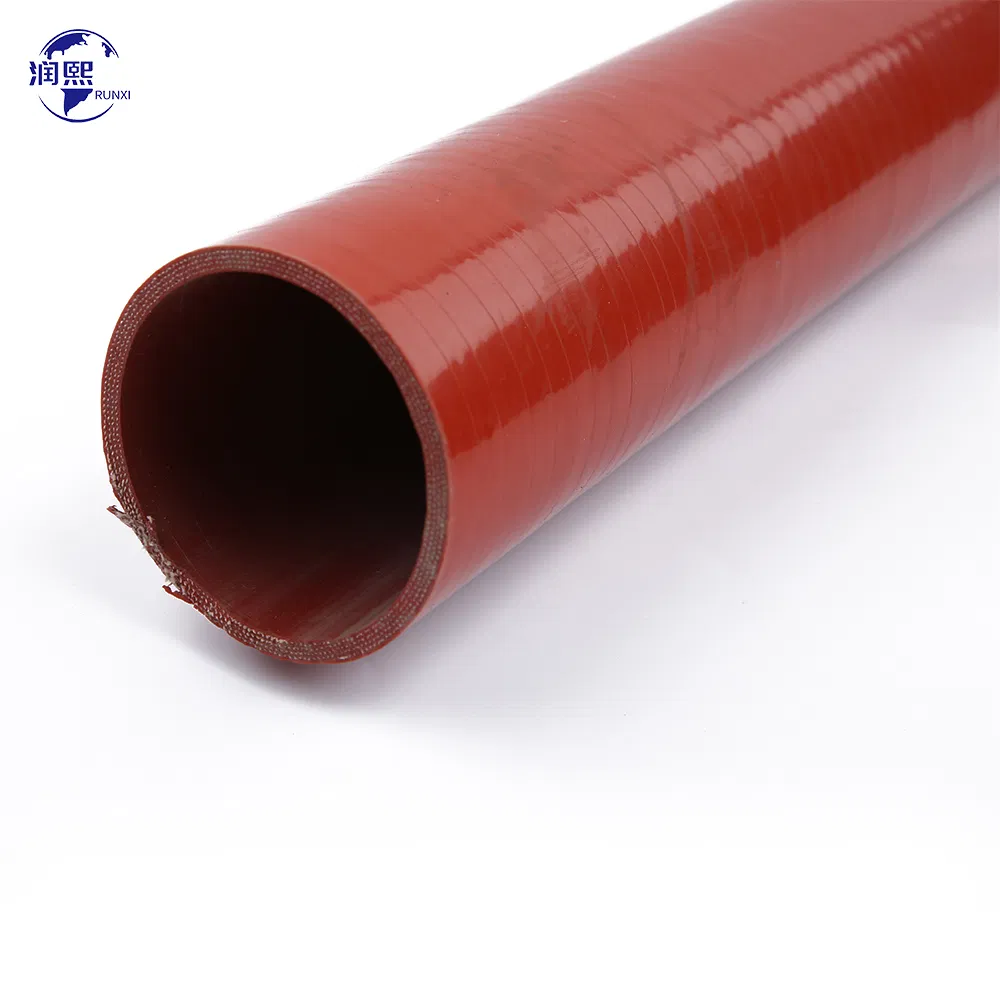

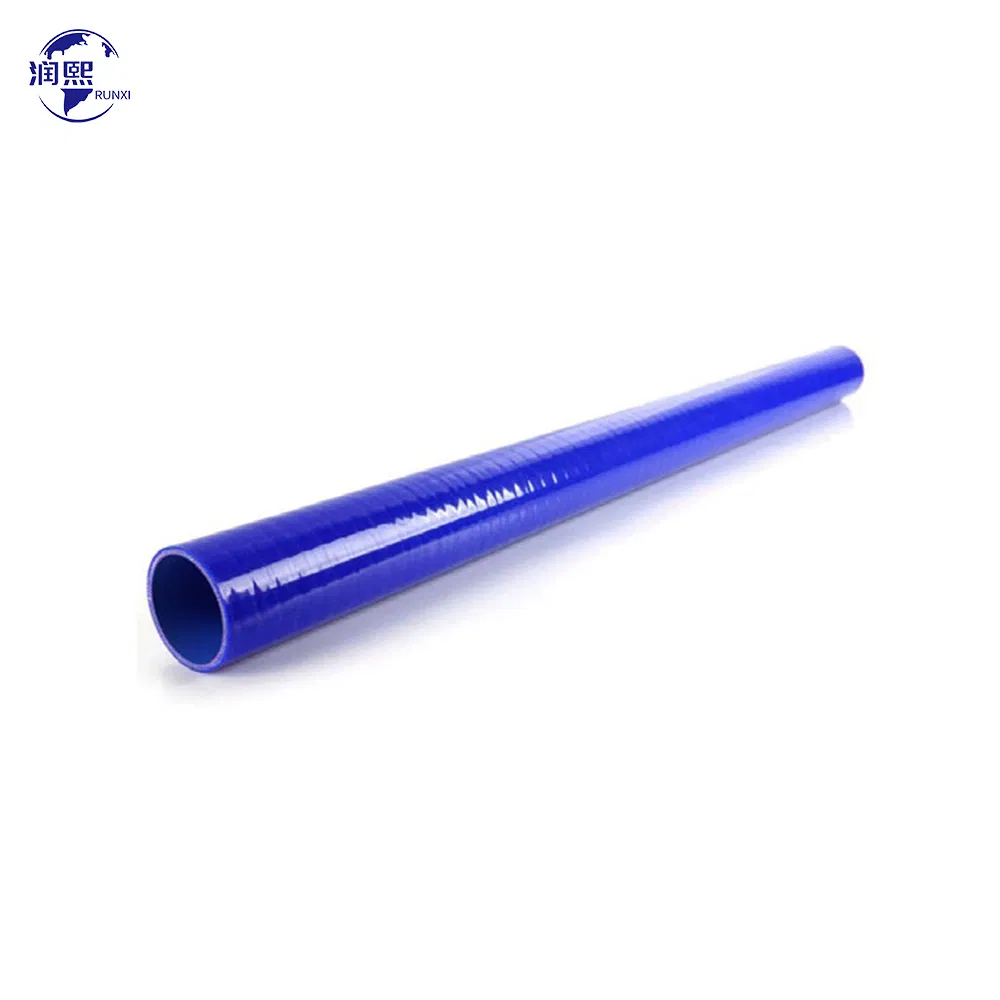

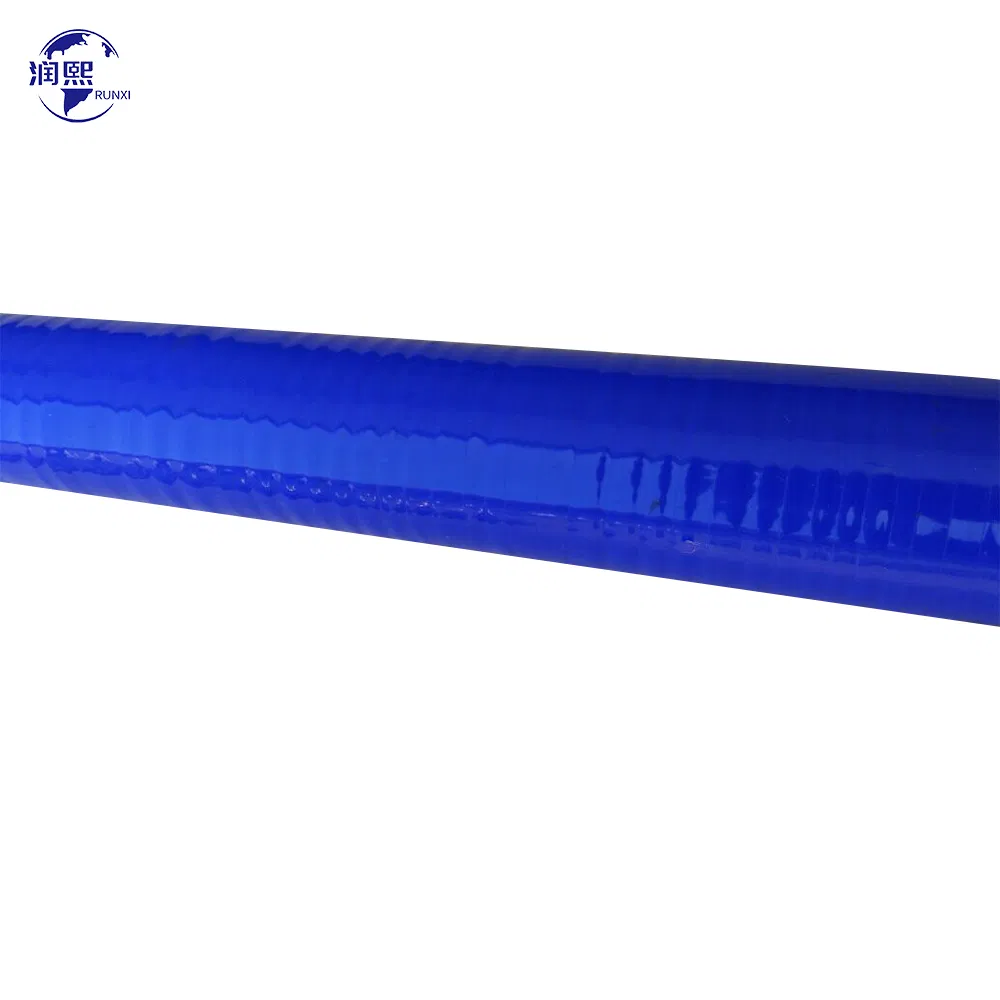

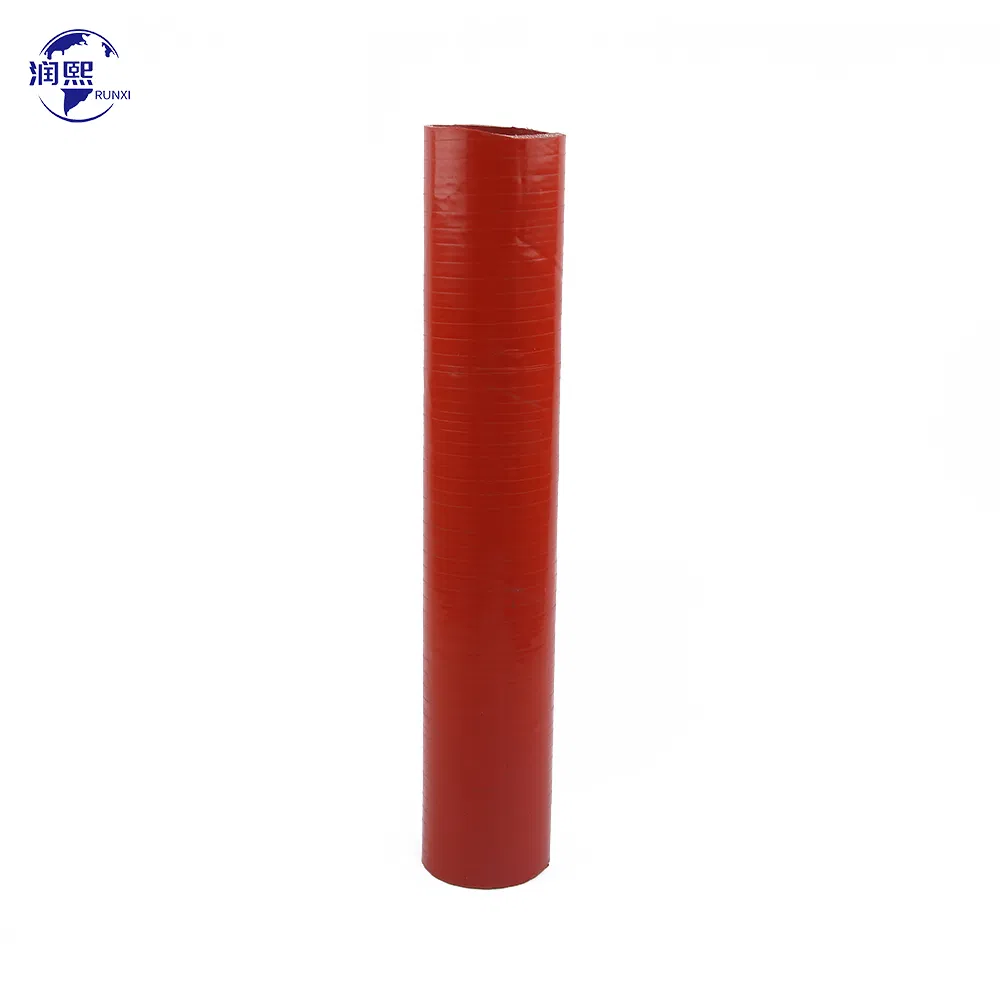

Custom High Temp Silicone Rubber Air Intake Coolant Cooling Hose Tubing

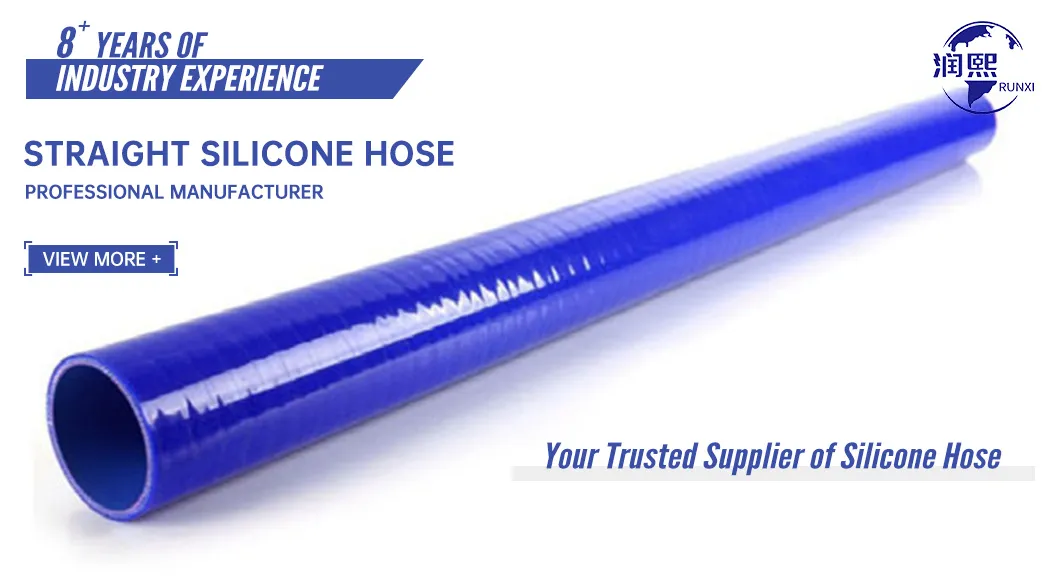

Owing to high quality raw materials and fabrics, our straight silicone hoses with small diameters enjoy excellent flexibility and can make various bend radiuses. It is frequently used for water connecting, breathers, heater matrix, etc. Bigger diameters are allowed to cut to any lengths.
Construction:
Features:
| I.D | O.D | Thickness | Burst Pressure | Length | |
|---|---|---|---|---|---|
| Inch | mm | mm | mm | MPa | mm |
| 1/4 | 6 | 16 | 5 | 3.5 | 1000 |
| 3/8 | 10 | 20 | 5 | 2.9 | 1000 |
| 1/2 | 13 | 23 | 5 | 2.7 | 1000 |
| 5/8 | 16 | 26 | 5 | 2.4 | 1000 |
| 3/4 | 19 | 29 | 5 | 2.2 | 1000 |
| 1 | 25 | 35 | 5 | 2 | 1000 |
| 2 | 51 | 61 | 5 | 1.2 | 1000 |
| 3 | 76 | 86 | 5 | 0.8 | 1000 |
| 4 | 102 | 112 | 5 | 0.5 | 1000 |
Silicone hose solves application requirements that many other plastic or rubber materials cannot, namely combining temperature usage with flexibility. They often use reinforcements or special liner to improve their working performance. Polyester, Nomex (aramid) or Fluoro are the frequent materials.

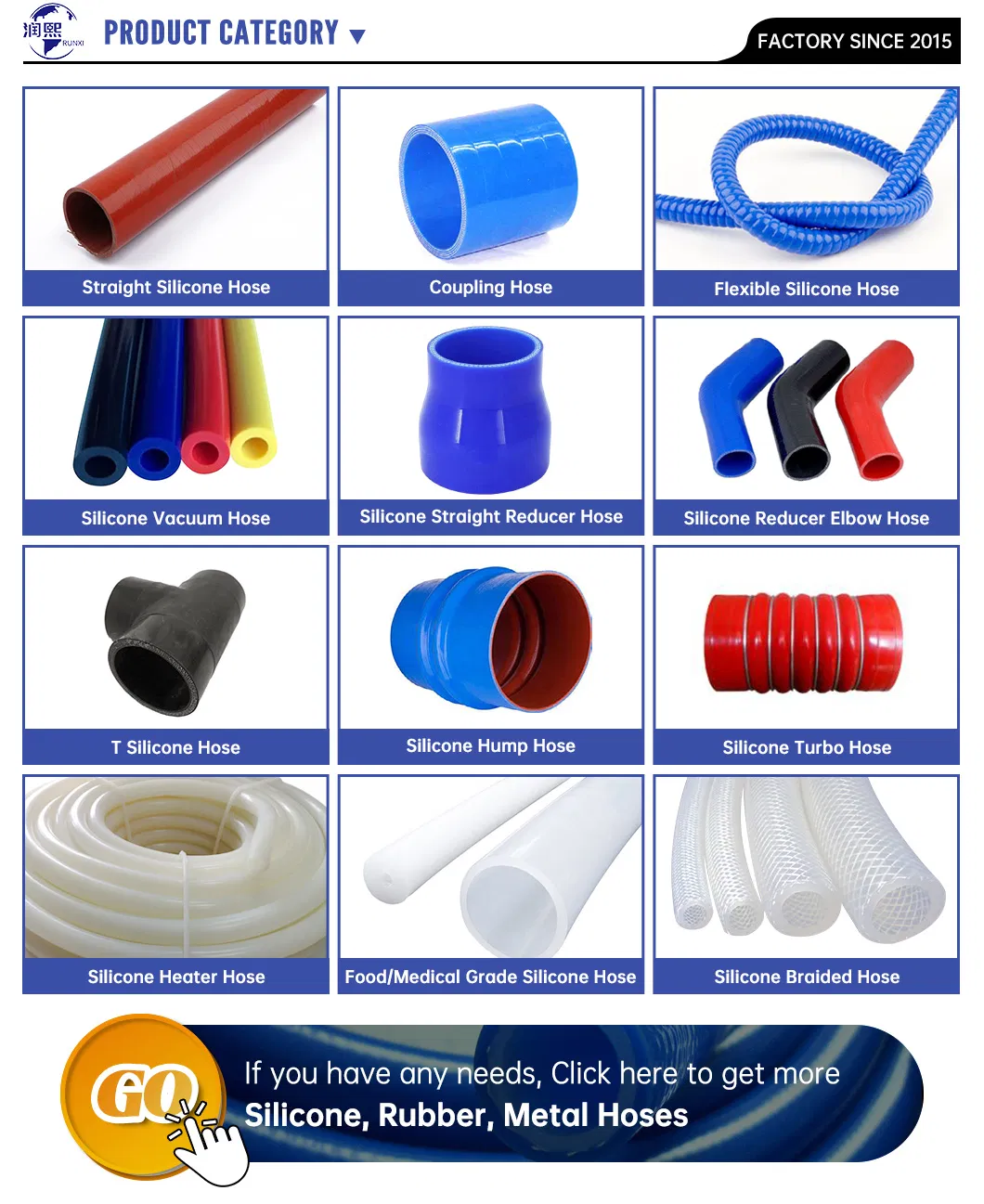

| Products | ID/mm | ID/inch |
|---|---|---|
| Straight Silicone Hose | 6mm-102mm | 1/4''-4'' |
| Flexible Silicone Hose | 13mm-63mm | 1/2''-2-1/2'' |
| Silicone Vacuum Hose | 13mm-63mm | 1/2''-2-1/2'' |
| 90 Degree Elbow Silicone Hose | 6mm-102mm | 1/4''-4'' |
| Silicone Hump Hose | 32mm-350mm | 1-1/4''-14'' |
Our products are exported to more than 30 countries, such as Russia, USA, The UK, UAE, Korea, Vietnam, Singapore, and Japan, etc. We have obtained high praise from clients domestic and abroad due to the excellent quality and competitive price.

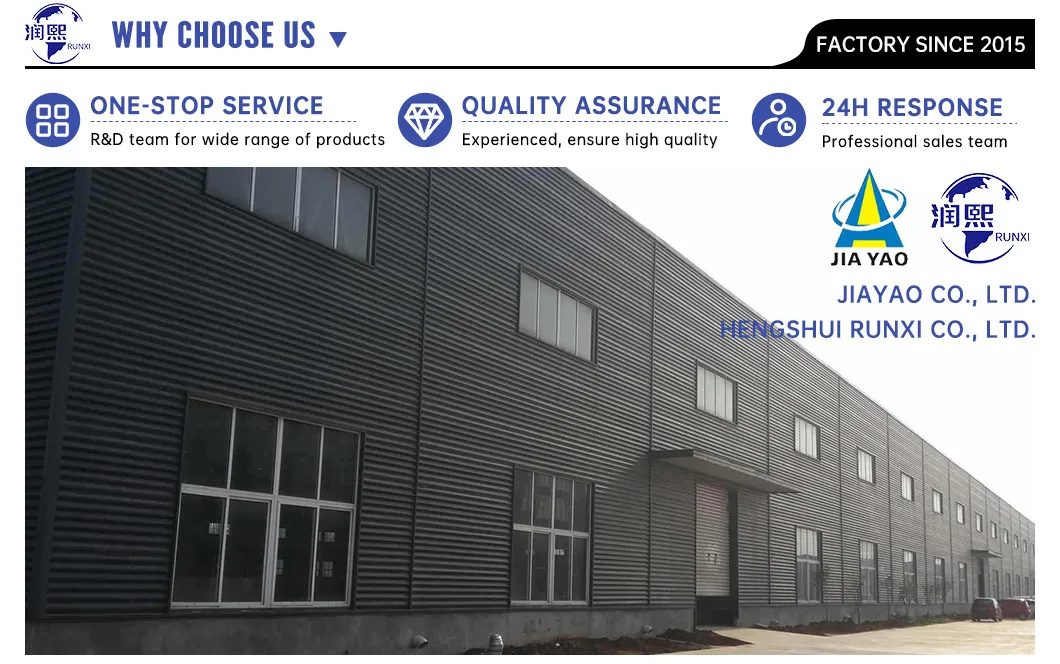

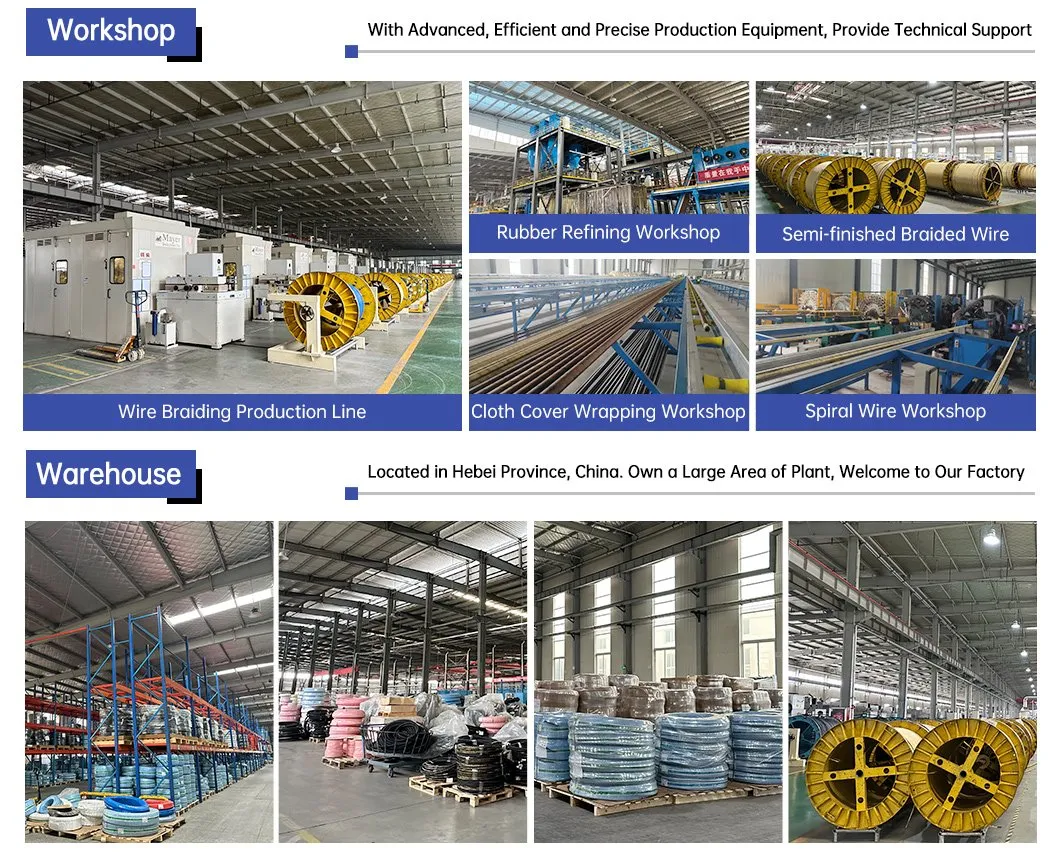

Our company is a technology-based enterprise which is specialized in the area of R&D and marketing of multiple rubber products. We specialize in High pressure hoses, Hydraulic hoses, Drilling Rotary hose, Suction and Discharge hose, Metal Flexible hose, Silicone hose, and Hose Assembly.
