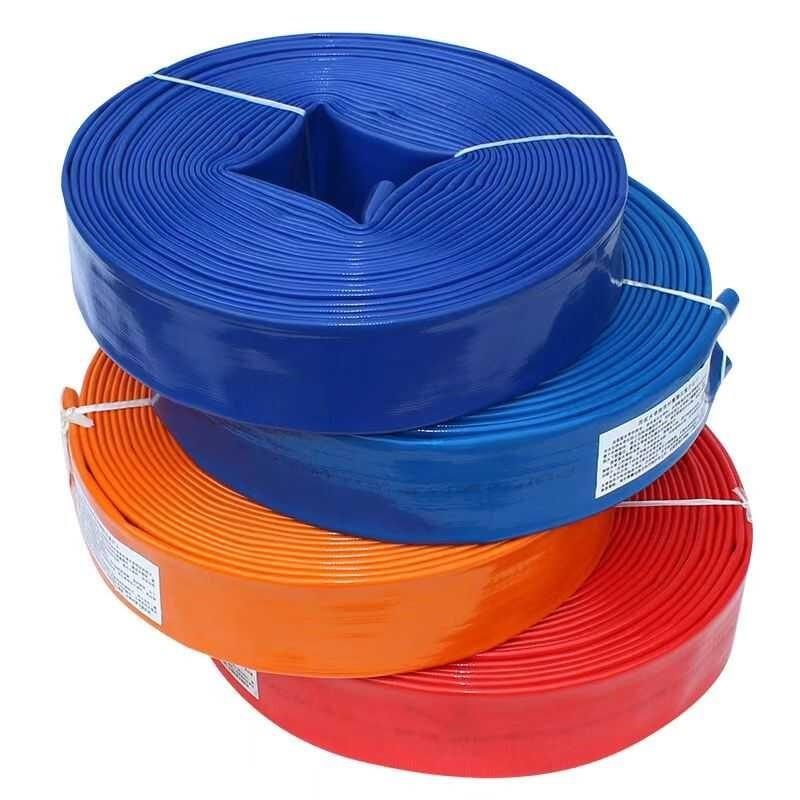

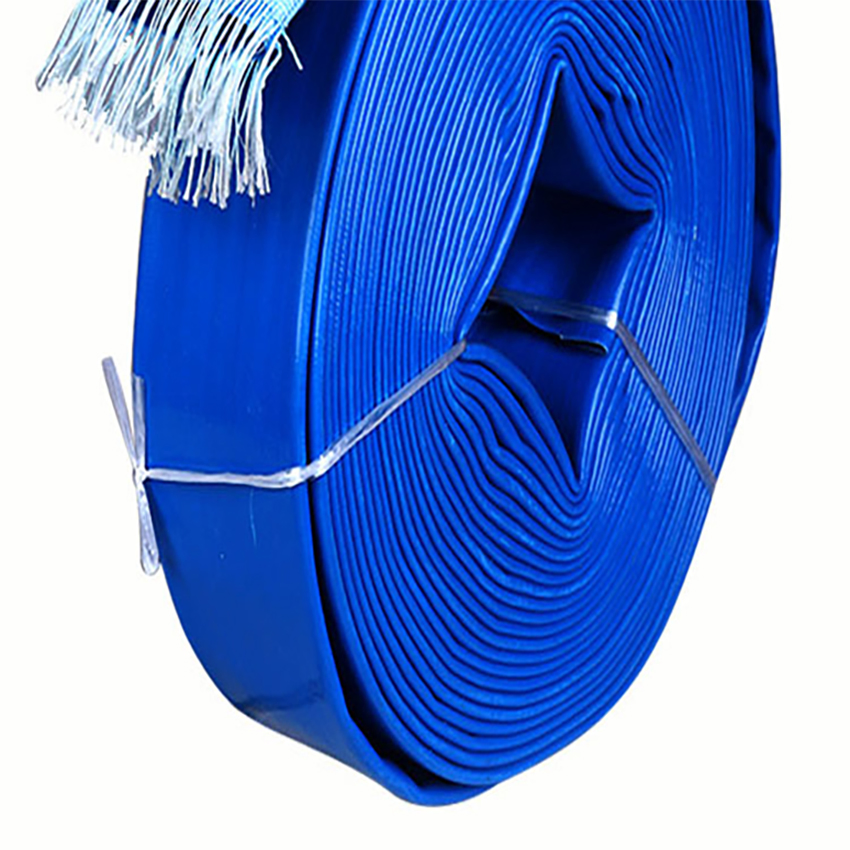

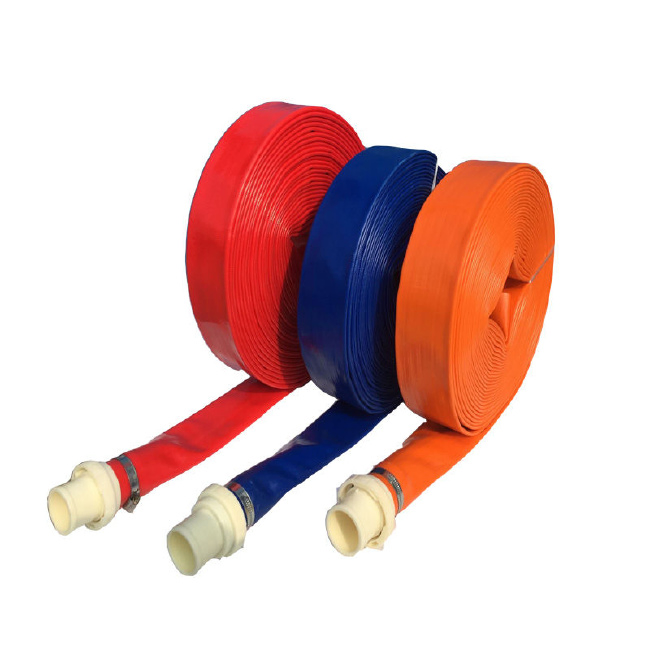

4 Inch Flexible Agricultural Irrigation Water Pump PVC Lay Flat Hose

Basic Information

Model NO.

HSD2110

Type

Thermosetting Plastic Pipe

Shape

Round

Usage

Drainpipe, Water Supply, Agricultural Irrigation, Corrugated Pipe

Thickness

0.38mm - 0.6mm

Diameter

060/090/0110/0150

Character

Non-Toxic, Durable, Flexible, Waterproof, Anti-UV

Color

Blue/Orange/Yellow/Red/Green (Customized)

Application

Garages, Leaking Tanks, Construction, Irrigation

Authentication

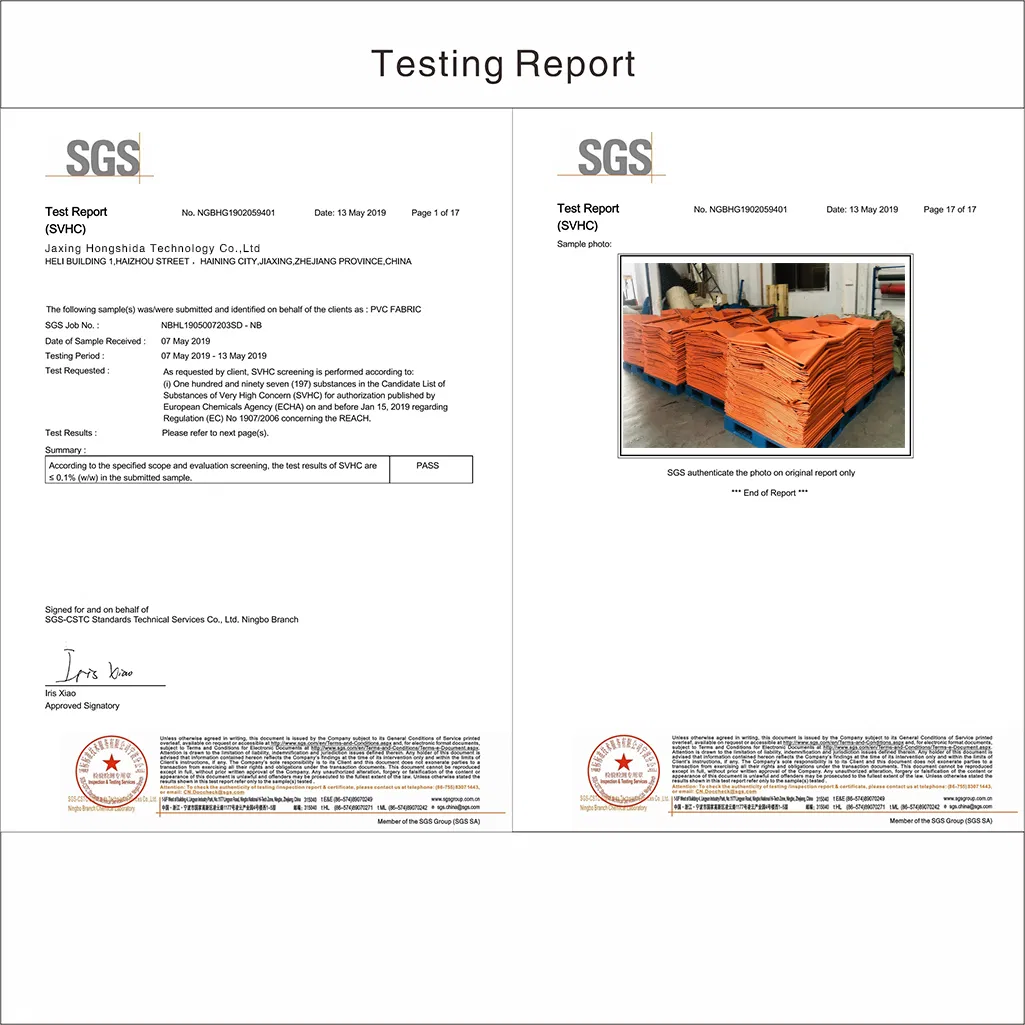

SGS & SVHC Certificated

Product Description

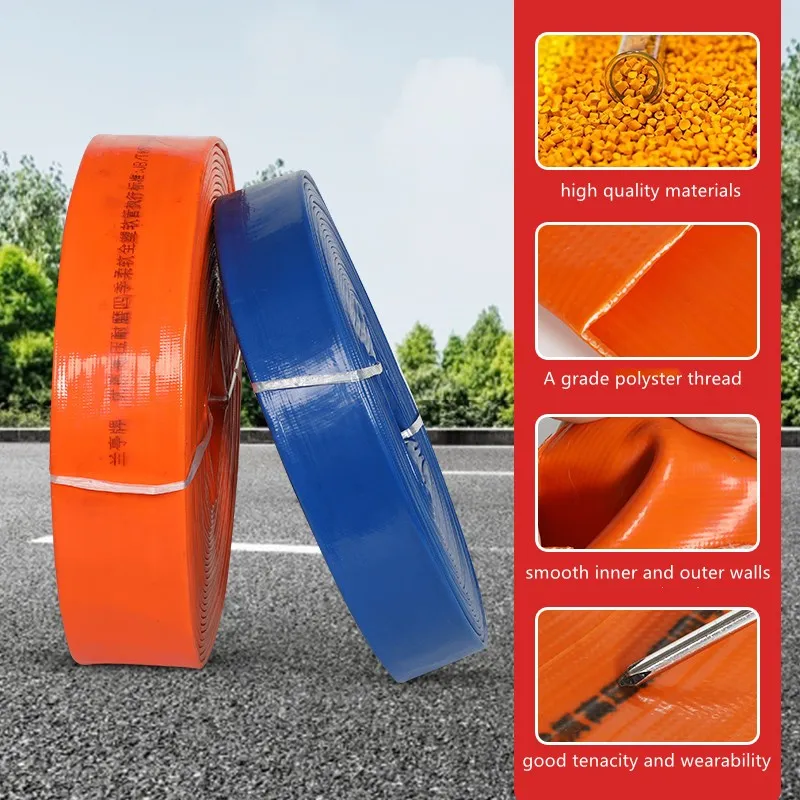

Construction Details

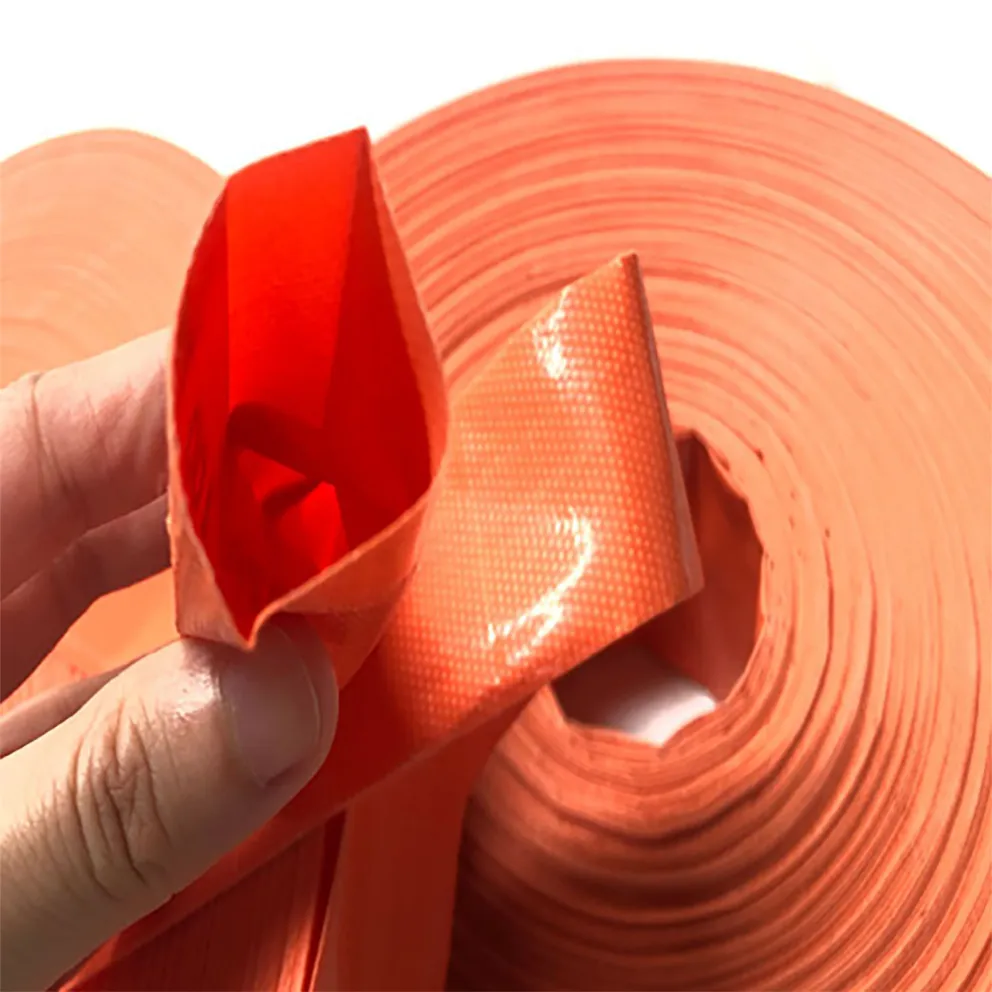

Tube and Cover: Made of durable PVC material, available in high-visibility colors including blue, orange, and red for easy identification.
Reinforcement: Integrates high-tensile polyester yarn spirally embedded throughout the hose structure, providing exceptional burst pressure resistance.

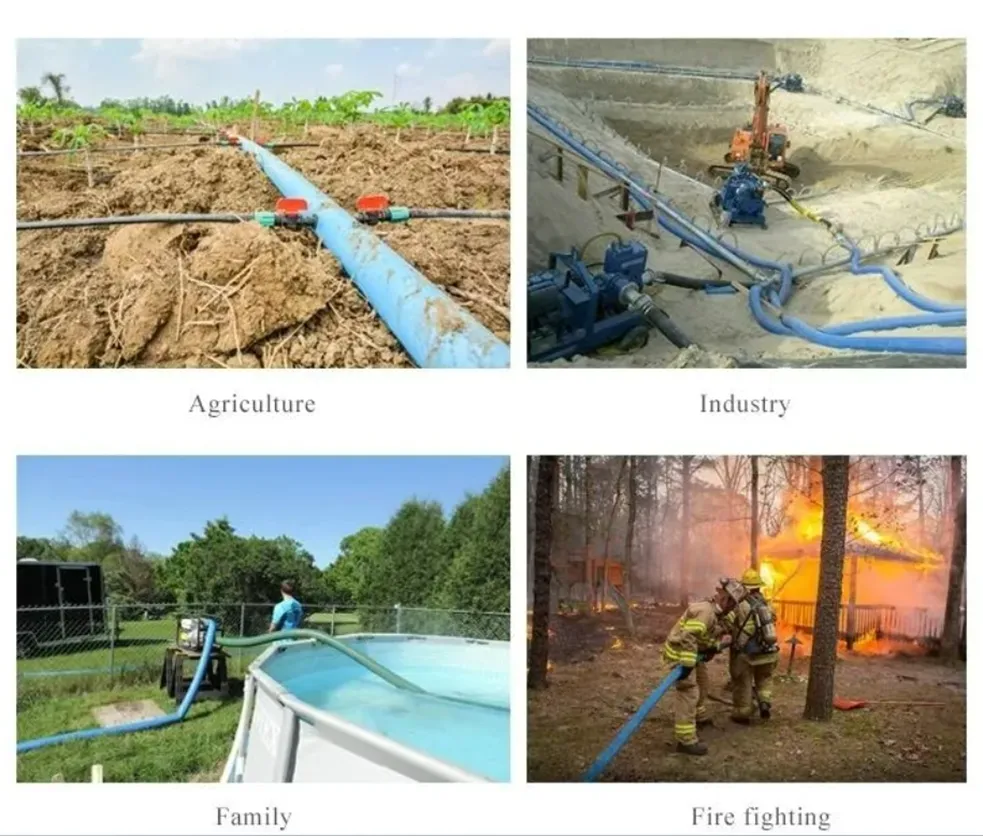

Primary Applications

Designed for both light and heavy-duty uses, these PVC layflat hoses are widely applied in:

Agricultural irrigation systems and field water transfer.
Water pumping and drainage projects.
Pool & spa water management.
Construction site dewatering and mine water handling.
Marine and shoreline applications.

Key Characteristics

Lightweight and highly flexible for easy transport and deployment.
Excellent corrosion resistance and UV protection for extended outdoor life.
Simple to handle, roll, and store, minimizing labor and space requirements.
Operational temperature range: -5°C to +65°C.

Technical Parameters

Product Number	Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
Product Number	inch	mm	mm	bar	psi	bar	psi	g/m	m
GS-025	1	25	27.4	4	60	16	240	140	100
GS-038	1-1/2	38	40.2	4	60	16	240	180	100
GS-051	2	51	53	4	60	12	180	220	100
GS-076	3	76	78.2	4	60	12	180	360	100
GS-102	4	102	104.5	4	60	12	180	550	100
GS-153	6	153	155.7	3	45	9	135	900	100
GS-203	8	203	207	3	45	9	135	1600	100

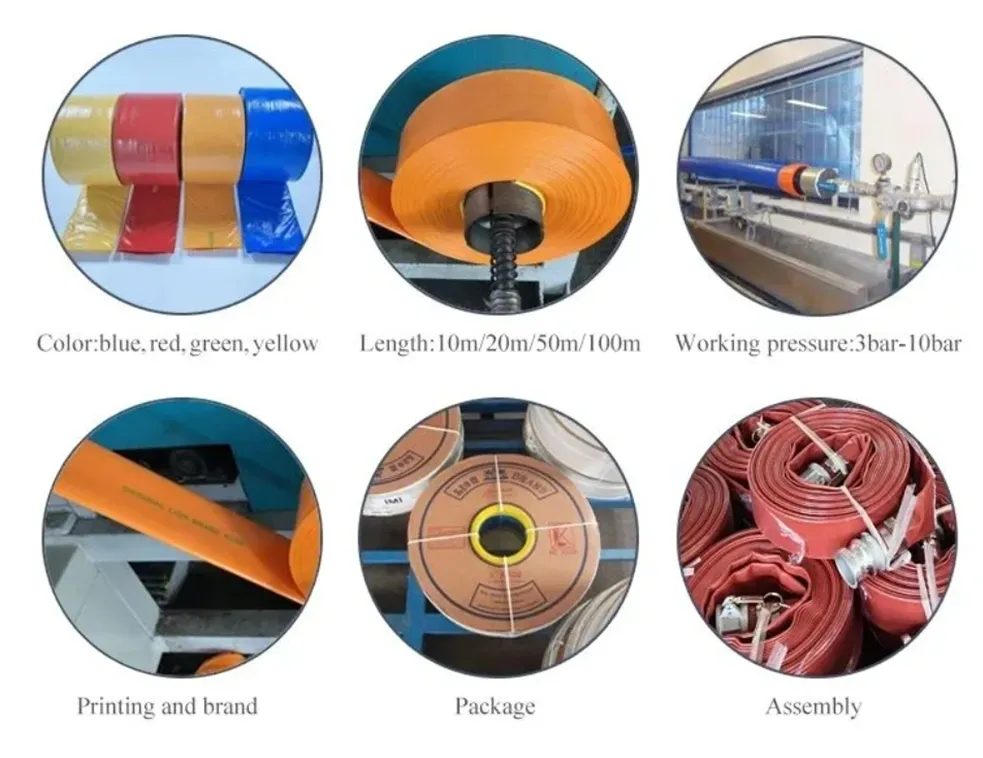

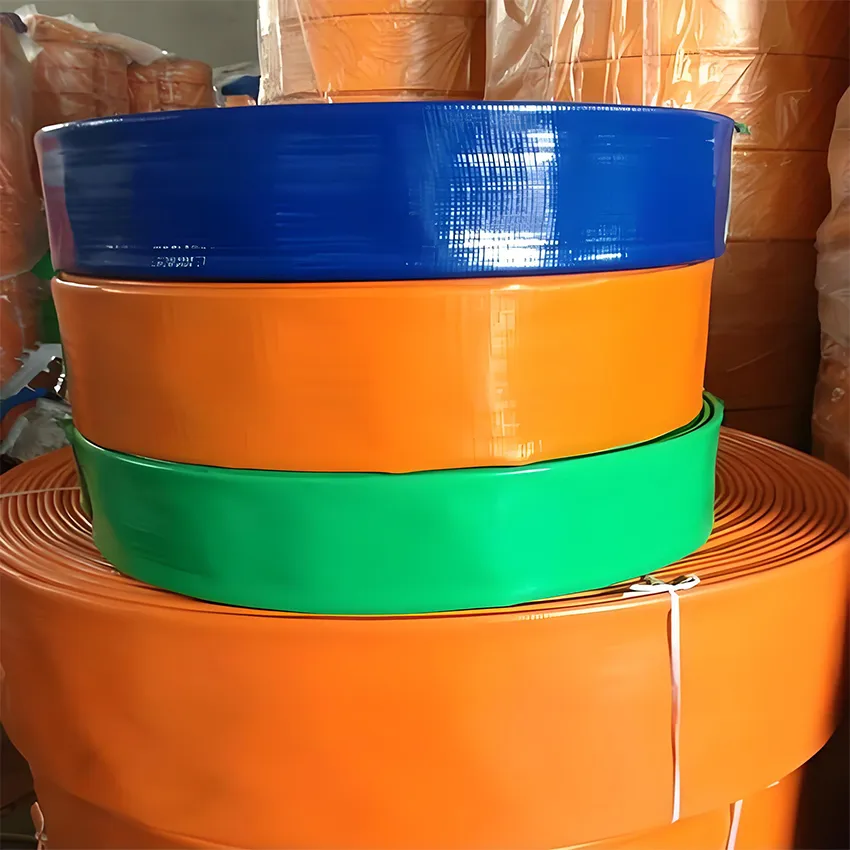

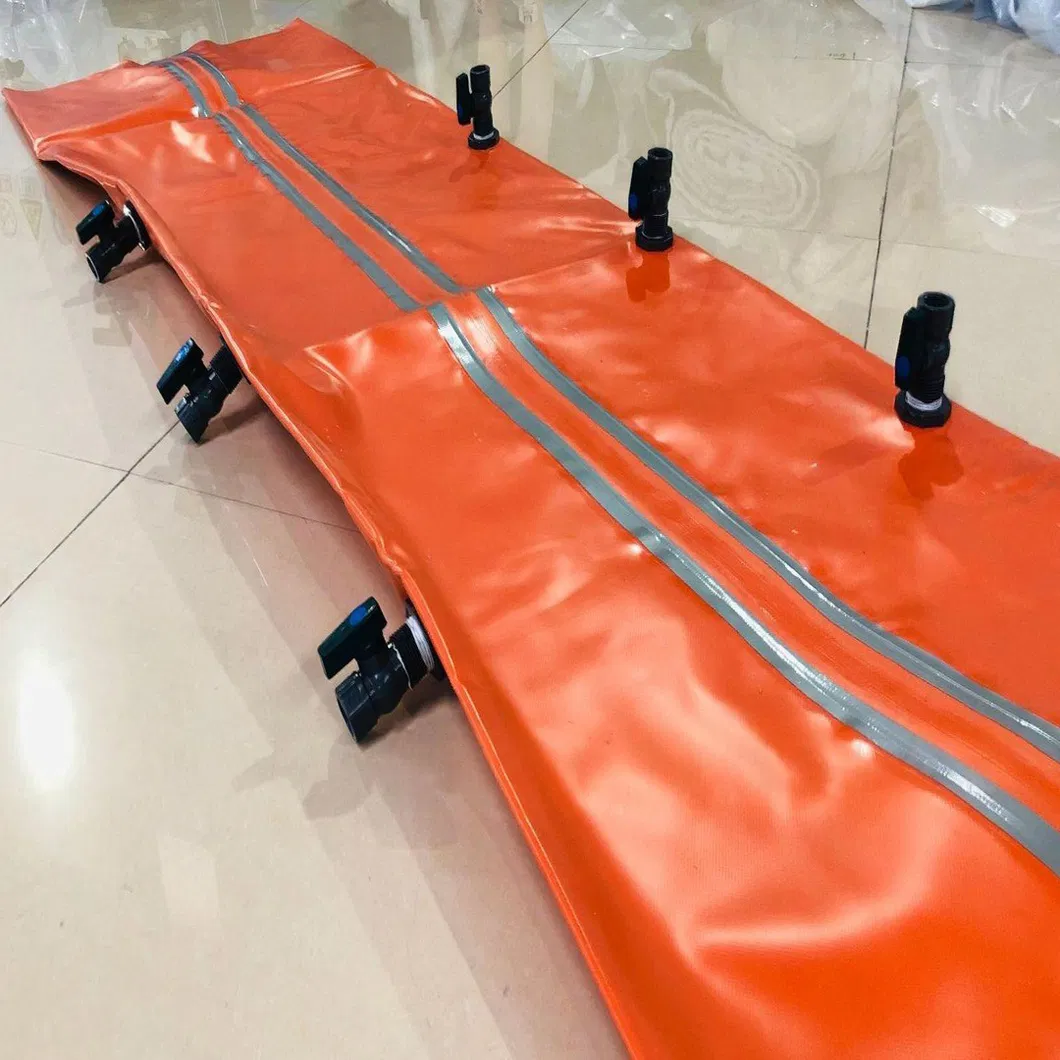

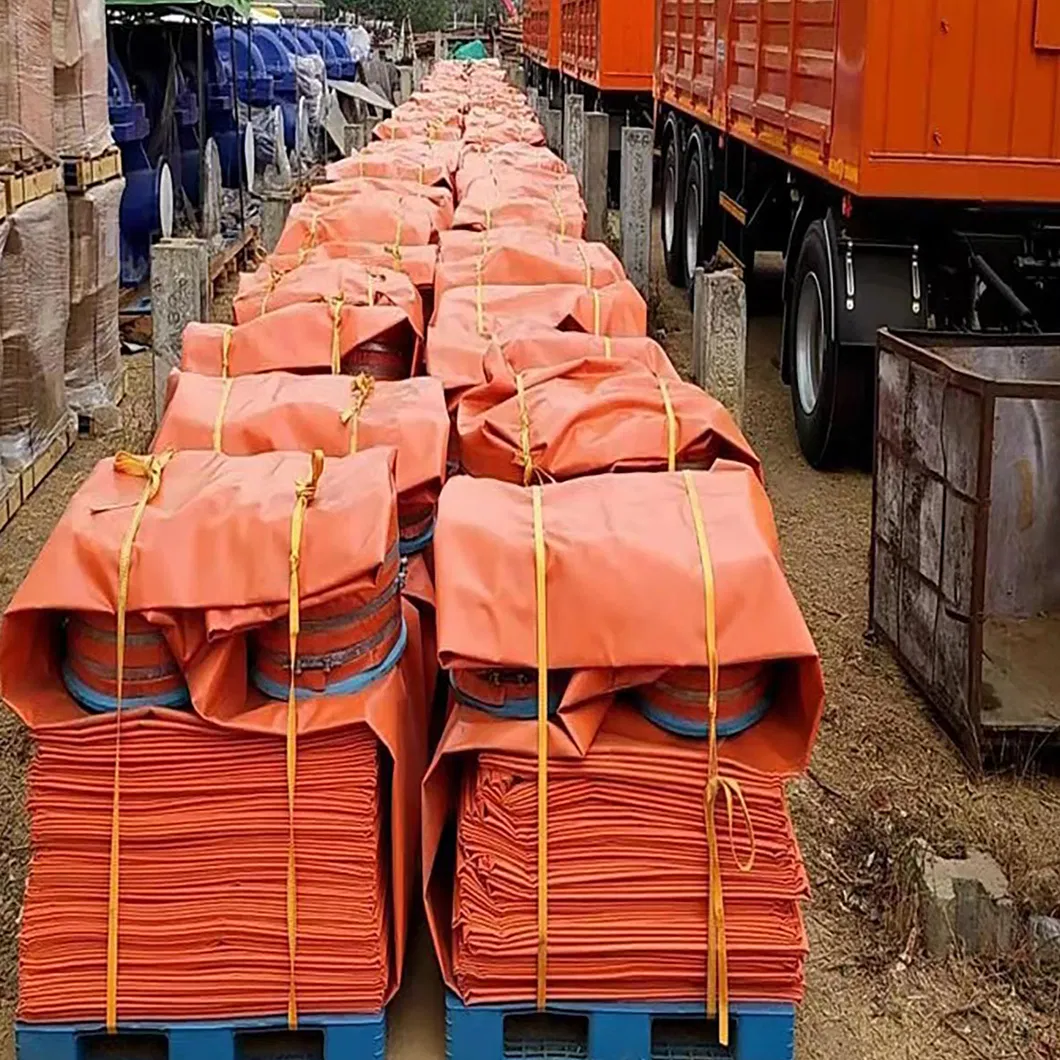

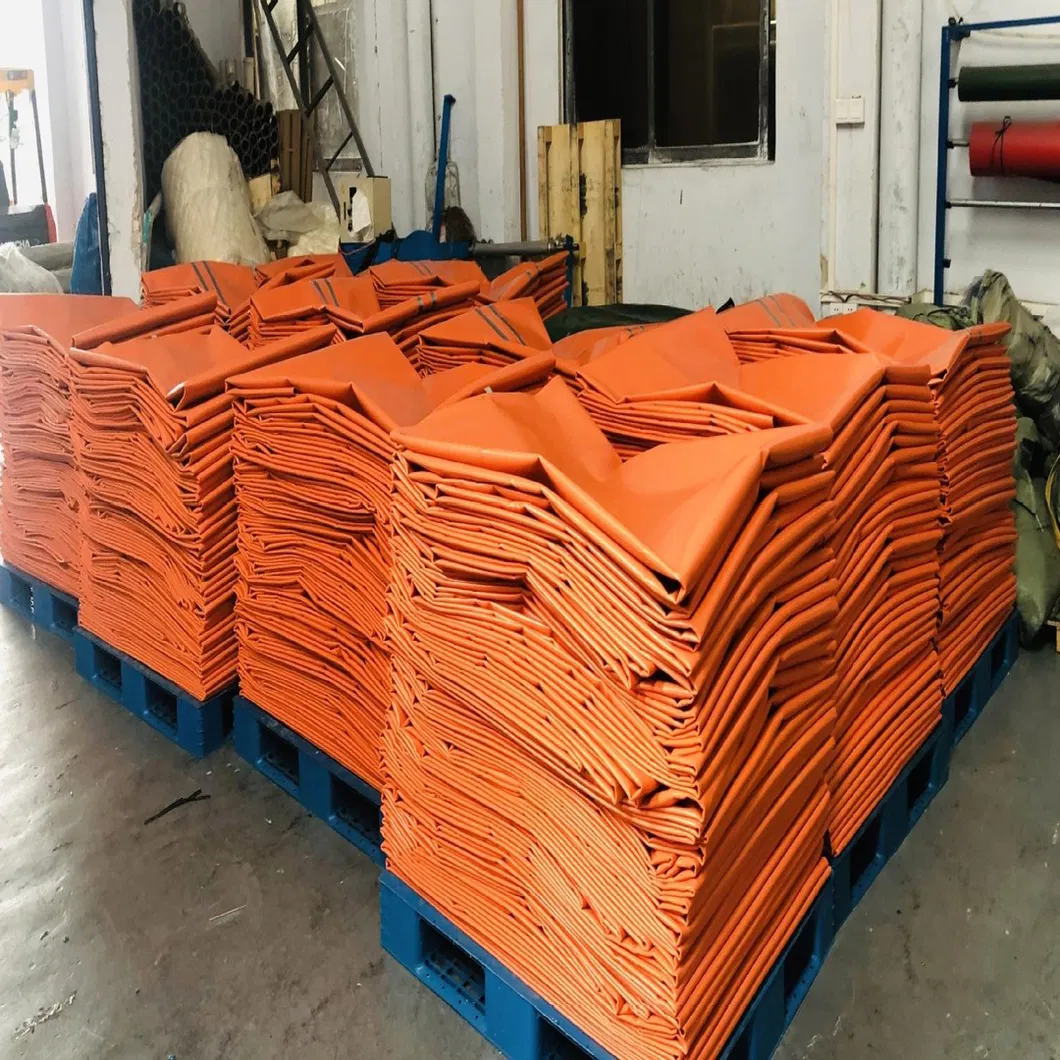

Detailed Product Gallery

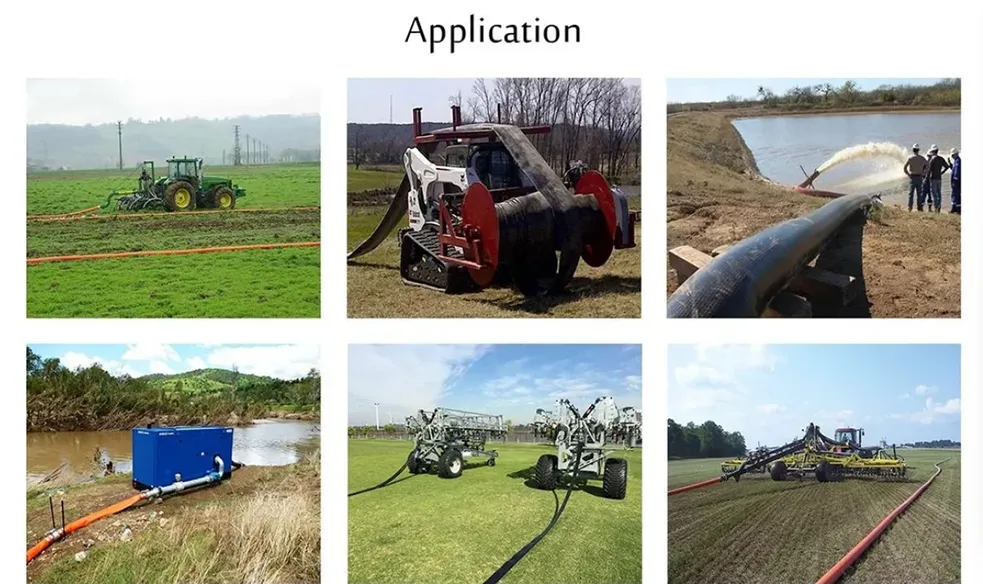

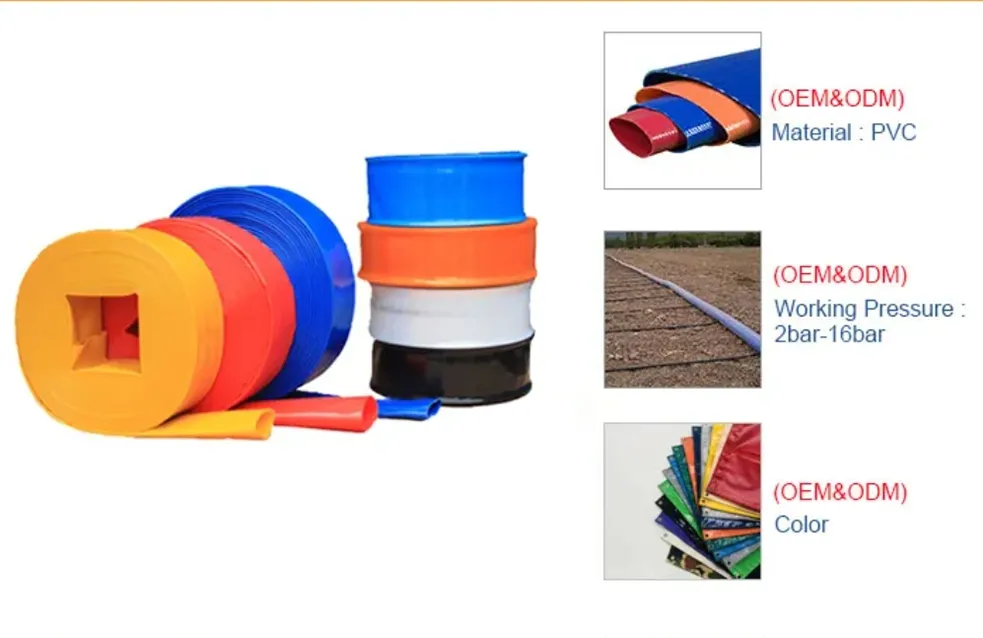

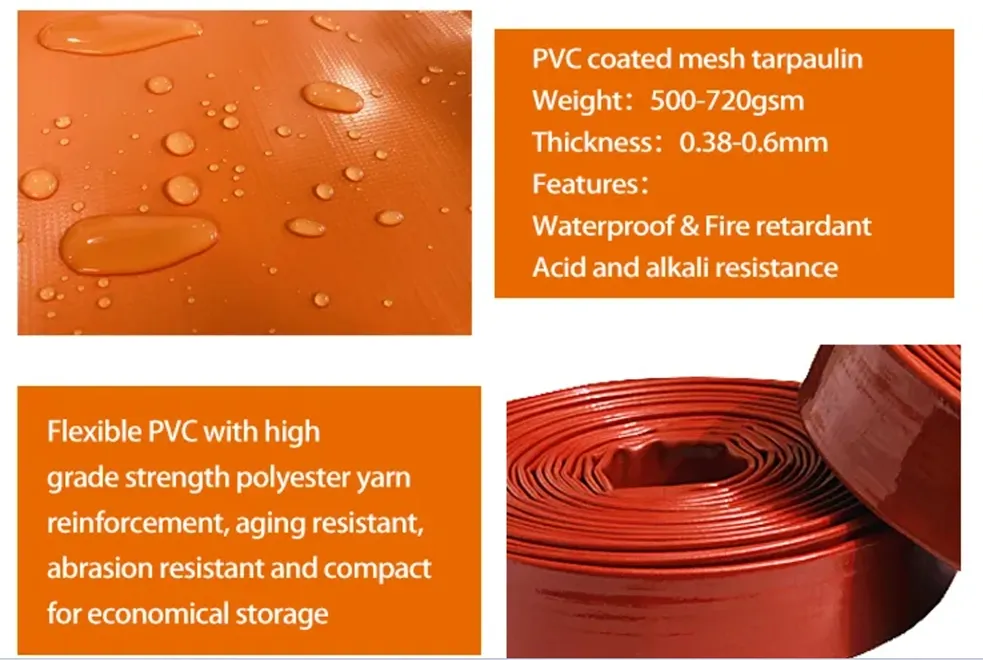

Application & Parameters

Installation Guide

Frequently Asked Questions

Q1: What materials are used to construct the lay flat hose?

The hose is constructed from high-quality, durable PVC material reinforced with high-tensile polyester yarn for maximum pressure resistance.

Q2: What is the operating temperature range for this hose?

The operational temperature range for our PVC lay flat hose is between -5°C and +65°C.

Q3: Is the hose resistant to outdoor elements?

Yes, it features excellent UV protection and corrosion resistance, making it ideal for extended outdoor service in agriculture and construction.

Q4: Can the hose be used for chemical or mine water handling?

Yes, the durable construction and material properties make it suitable for mine water handling and various dewatering projects.

Q5: Is it easy to store after use?

Absolutely. The lightweight and flexible design allow it to be easily rolled up and stored, minimizing required storage space.

Q6: Are custom colors and lengths available?

Yes, we offer multiple color options like blue, orange, yellow, and red, and we can provide OEM lengths based on your specific requirements.
