🛠️ Construction Details:
🌡️ Working Temperature: -40 ºC ~ +135ºC (-40 ºF ~ +275 ºF)
📋 Standard Compliance: SAE J 30R9, DIN 73379 3E
| NO | I.D | O.D Reference | Working Pressure | Burst Pressure | Approx. Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (inch) | (mm) | (inch) | (mm) | MPa | Psi | MPa | Psi | kg/m | lbs/ft | |
| 1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
| 2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
| 3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
| 4 | 1/4 | 6.3±0.3 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.2 |
| 5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
| 6 | 3/8 | 9.5±0.3 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
| 7 | 15/32 | 12±0.3 | 0.75 | 19±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.238 | 0.35 |
| 8 | 1/2 | 12.7±0.4 | 0.78 | 20±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.262 | 0.39 |
| 9 | 5/8 | 16±0.4 | 0.94 | 24±0.5 | 1.03 | 150 | 4.12 | 600 | 0.351 | 0.52 |
| 10 | 3/4 | 19±0.4 | 1.13 | 28.8±0.5 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |
| 11 | 1 | 25.4±0.5 | 1.38 | 35±0.6 | 1.03 | 150 | 4.12 | 600 | 0.637 | 0.95 |

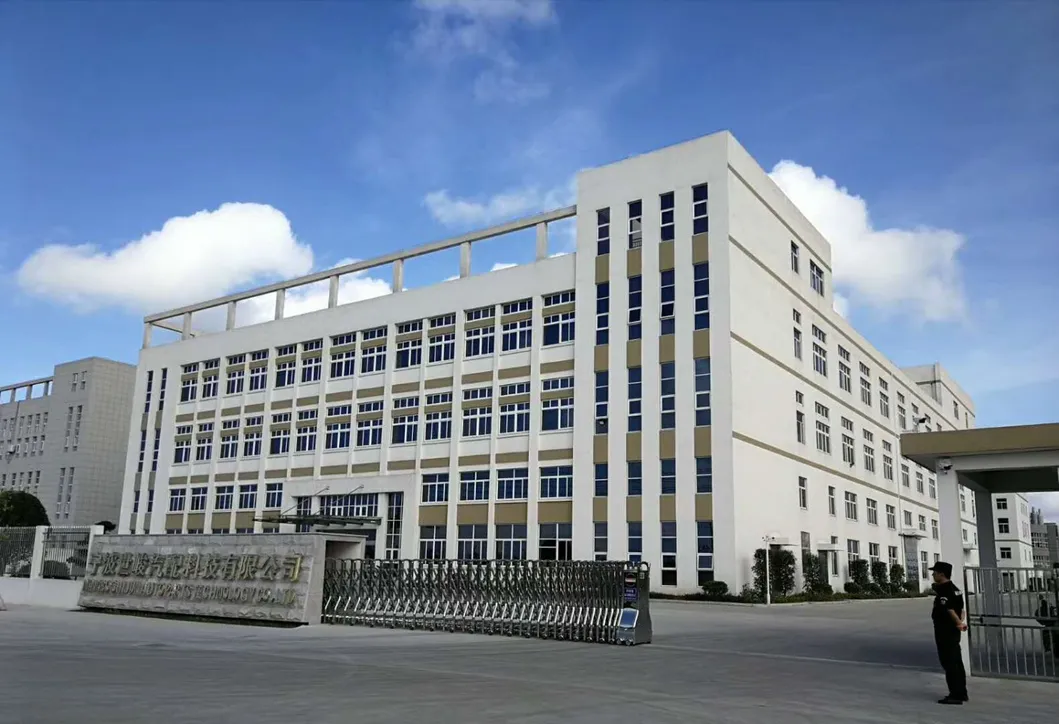

A national high-tech enterprise specializing in rubber hose manufacturing and exporting to customers worldwide. King products include Air Brake Hose, Hydraulic Brake Hose, Fuel Hose, Radiator Hose, Refrigerant Charging Hose, and Air Hose. These are widely used in Automotive, AC Refrigeration, and Industrial Tools. The enterprise has passed the IATF 16949 quality management system, ensuring all production processes strictly follow quality control procedures.

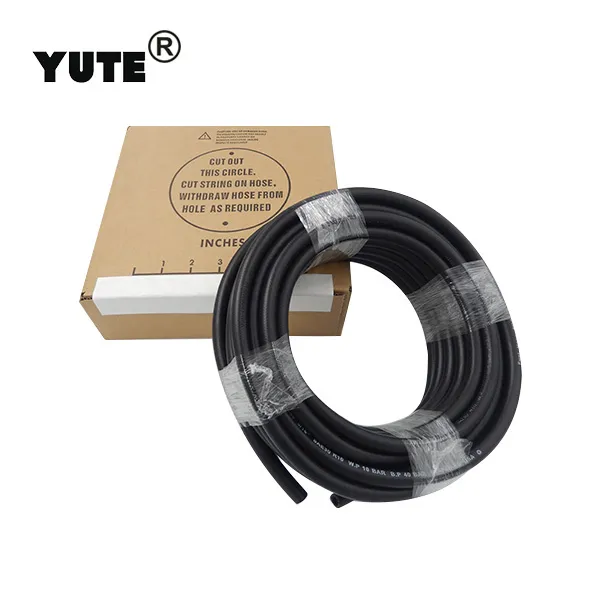

SAE R7 Fuel Hose
Apply to convey gasoline, diesel, and lubricating oil.
