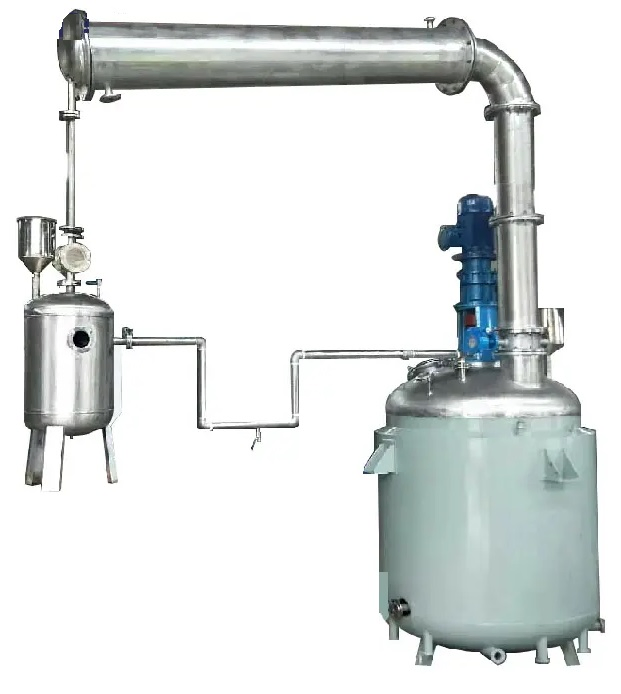

Alkyd Resin Polyester Resin Acrylic Emulsion Mixing Vessel Reactor Production Line

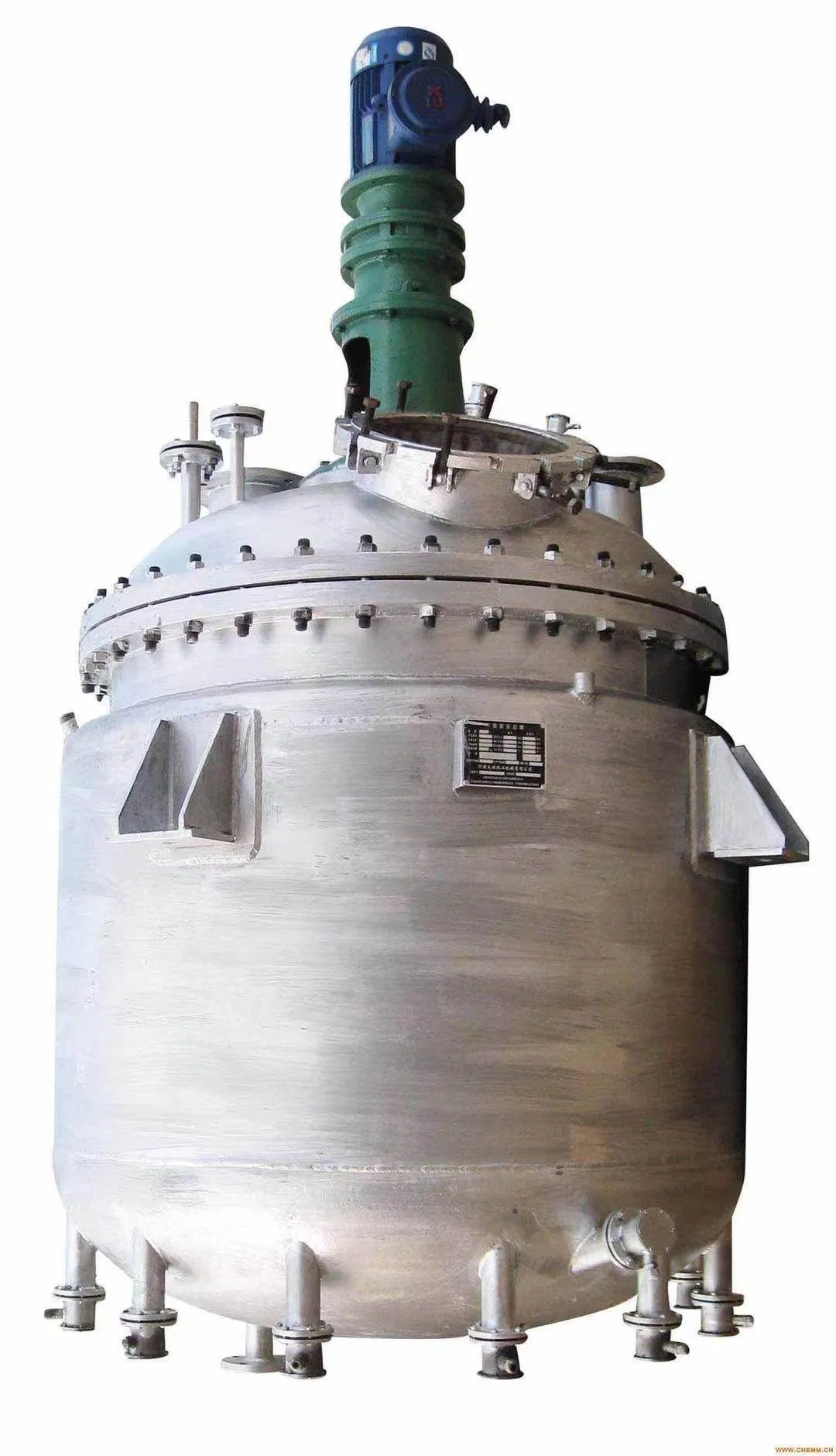

Overview of Reactor

The reactor offers significant advantages including high temperature resistance, corrosion resistance, and robust production capacity. It is primarily utilized for hydrolysis, neutralization, crystallization, distillation, evaporation, and germicidal storage across industries such as medicine, chemicals, food, natural flavoring, and light industry.

Technical Requirements for Clients:

• Hourly capacity/output requirements.
• Pressure requirements (positive or negative pressure).
• Material specifications (Carbon steel, SUS304, or SUS316 stainless steel).
• Heating and cooling temperature requirements.
• Vacuum requirements for bubble removal.
• Mixing type preferences (Paddle or Anchor stirring).

We provide chemical process consultation, project drawings, and equipment modeling. Please advise on working volume, temperature, pressure, medium, and mixer requirements for an accurate design.

Full status reporting during manufacture, including inspection videos for quality checks and a full set of engineering documents (User Manual, General Drawing, Test Reports, and Certificates).

After-Sale Stage

Life-long service for all equipment, including free spare parts during the warranty period and discounted parts thereafter. Technical consulting is always free of charge.

Training & Installation

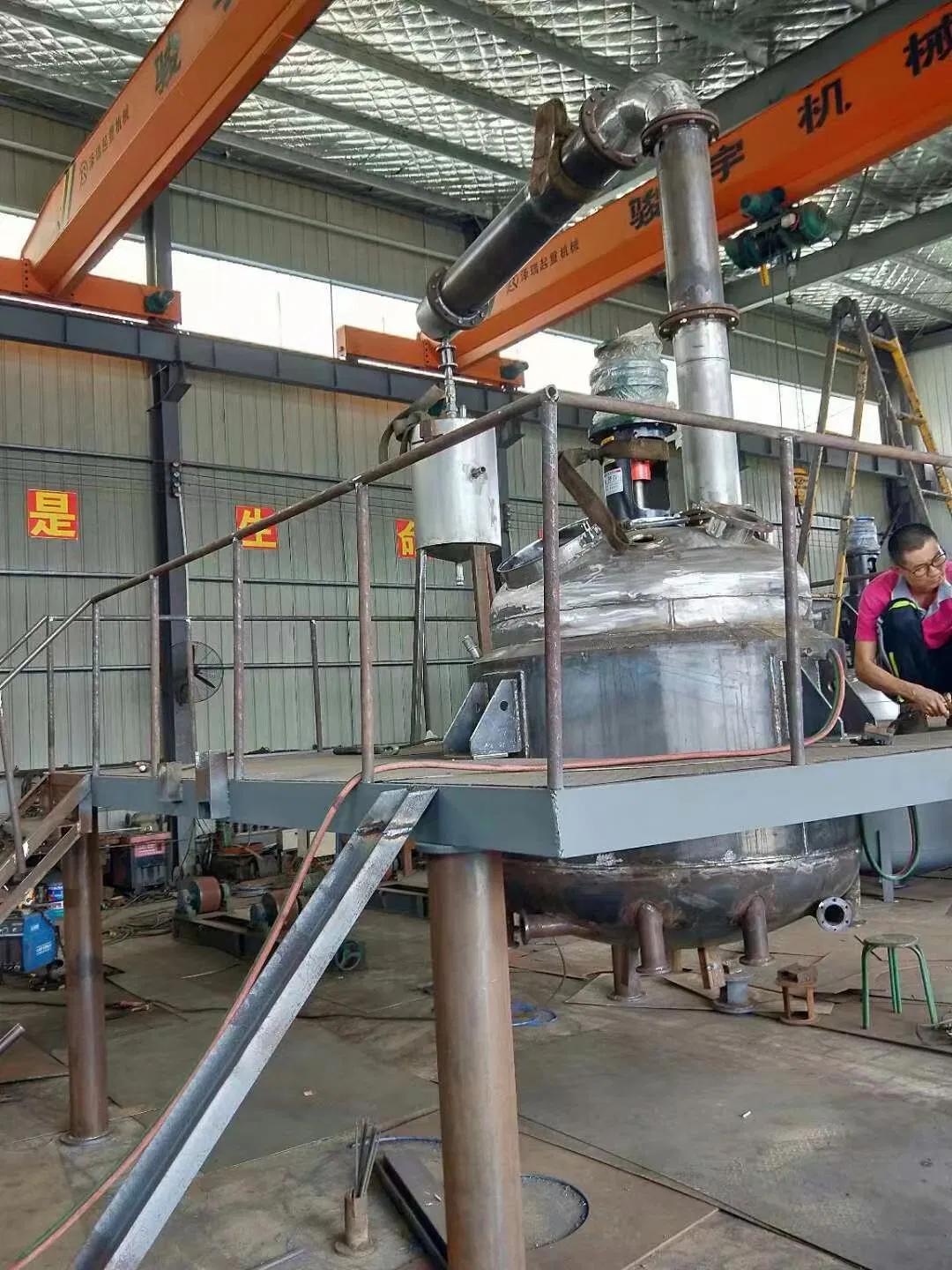

Engineers are available to assist with assembly and installation, alongside comprehensive worker training for proper machine operation.

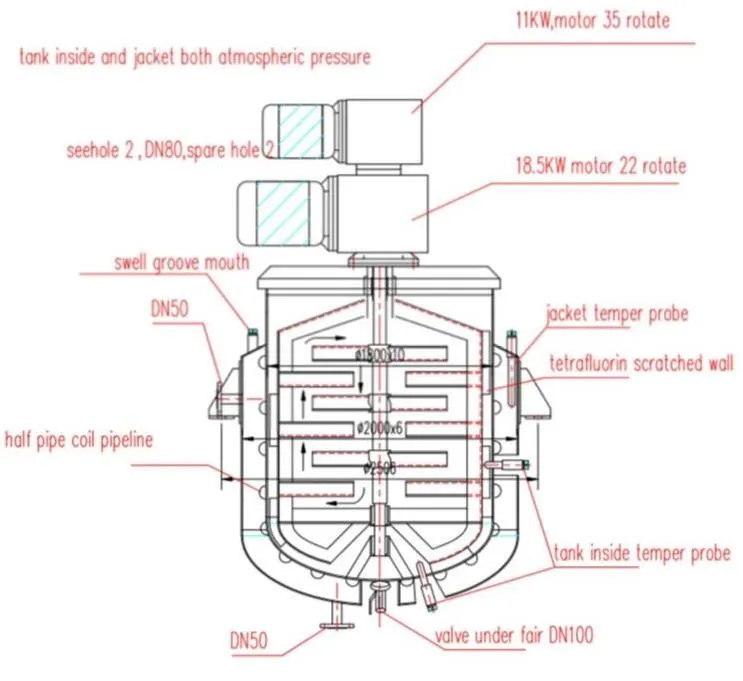

Technical Specifications (Half-Pipe Coil Reactor)

Type	500L	1000L	2000L	5000L	10000L	20000L	35000L
Cylinder Size (mm)	900×800	1100×1200	1400×1530	1800×2000	2200×2500	2800×3000	3200×4000
Actual Capacity (L)	699	1400	3000	6600	12300	24205	40725
Heating Area (m²)	1.7	2.6	4.5	7.5	13.2	21	33
Motor Power (kw)	3	4	5.5	11	18.5	30	55

Frequently Asked Questions

What materials can the reactor be constructed from?

The reactors can be manufactured using SUS304, SUS316L, or Carbon Steel (Q235-B) depending on your chemical process and corrosion resistance needs.

What types of heating methods are supported?

We support multiple heating methods including steam, electric heating, and heat conduction oil, utilizing structures like jackets, half-pipes, or internal coils.

Can the agitator type be customized for high-viscosity materials?

Yes, we offer various agitator designs such as anchor, frame, paddle, turbine, and scraper types to handle different material viscosities and mixing requirements.

What is the typical production capacity for your facility?

Our facility has a production capacity of approximately 200 sets per month, with delivery times usually ranging between 1 to 2 months.

Do you provide technical support for installation?

Yes, we can arrange for engineers to assist with onsite assembly and equipment installation, as well as providing operational training for your staff.

What documentation is provided with the equipment?

Every reactor comes with a full set of engineering documents, including a User Manual, General Drawings, Electric Circuit Drawings, and all relevant Test Reports and Approval Certificates.
