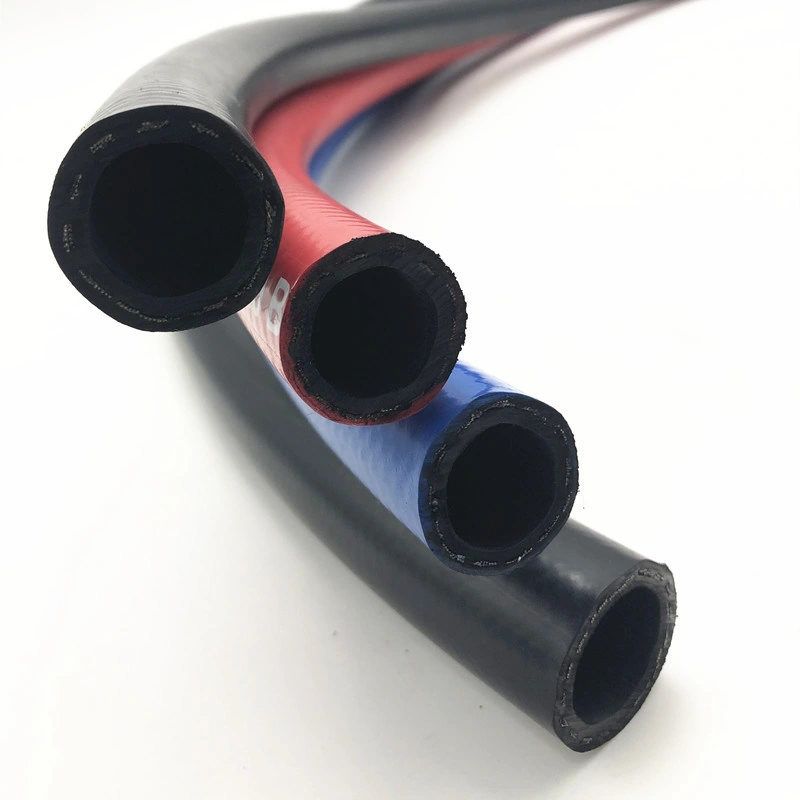

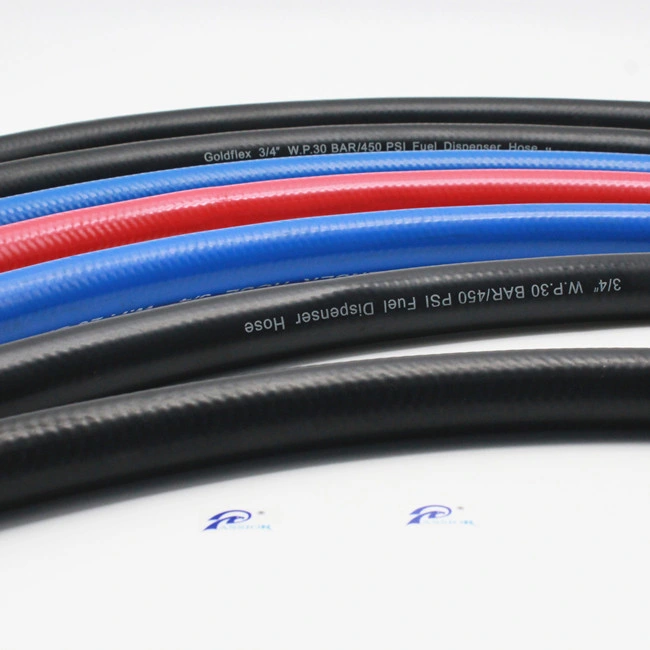

3/4" and 1" Anti-Static Flexible Fuel Injection Hose for Gas Station

1 / 5

3/4" and 1" Anti-Static Flexible Fuel Injection Hose for Gas Station

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

Fuel Delivery Hose

Type

Fuel Dispenser Hose

Surface

Smooth

Inner Tube

NBR

Reinforcement

One Braid of Steel Wire

Cover

NBR

Temperature

-40c~80c

Size

5/8", 3/4", 1"

Length

20m, 50m

Certification

Ce TUV ISO9001

MOQ

500 Meters

Leadtime

20 Days

Shipment

by Sea

Package

Well Packed by Braided Straps

HS Code

40092100

Production Capacity

400000 Meters / Month

⛽ Product Description

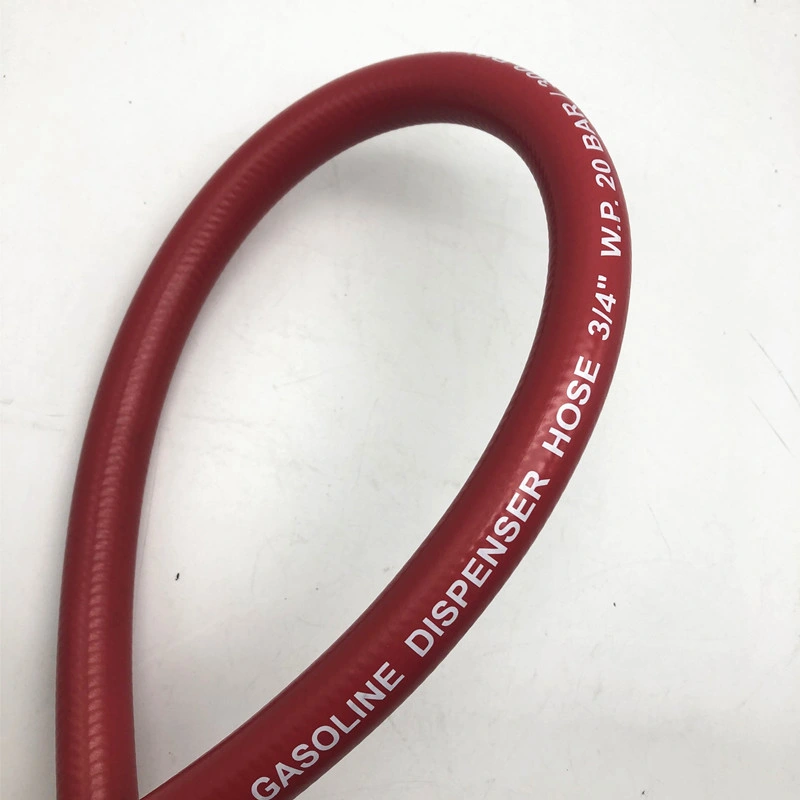

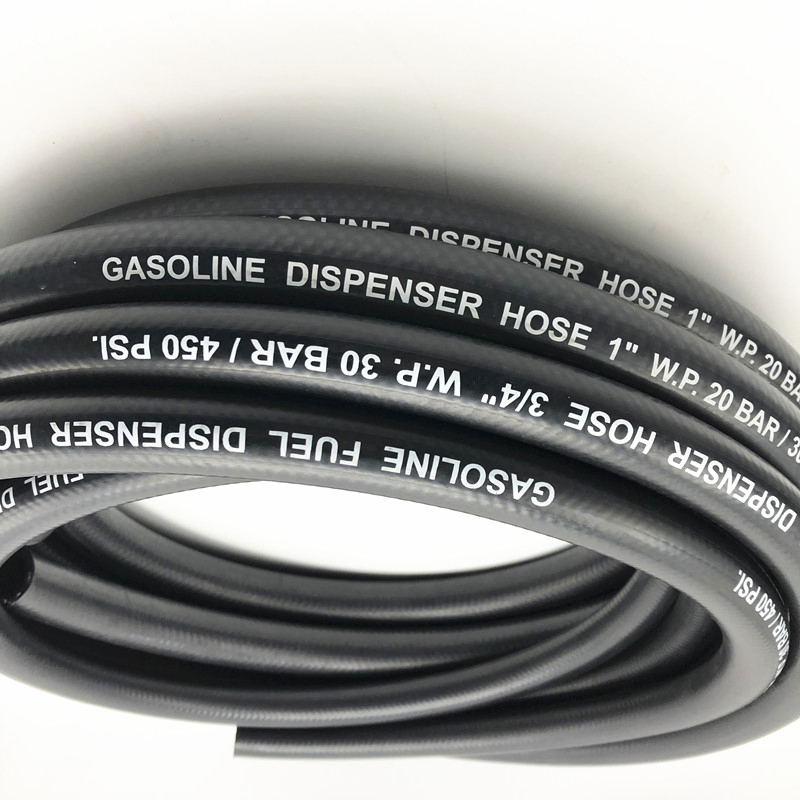

GASOLINE DISPENSER HOSE is manufactured with modern technology, withstands high pressure (W.P. 20 BAR / 300 PSI). These pipes are specially used for gasoline, diesel and other petroleum fuels.

Our gasoline pipes have many advantages compared to metal pipes or other similar products thanks to good elasticity, high durability, no abrasion, easy installation, and reasonable cost.

Double-layer petrol conduit features internal and external layer structure, ensuring that the oil is not leaked by being protected by 2 consecutive layers.

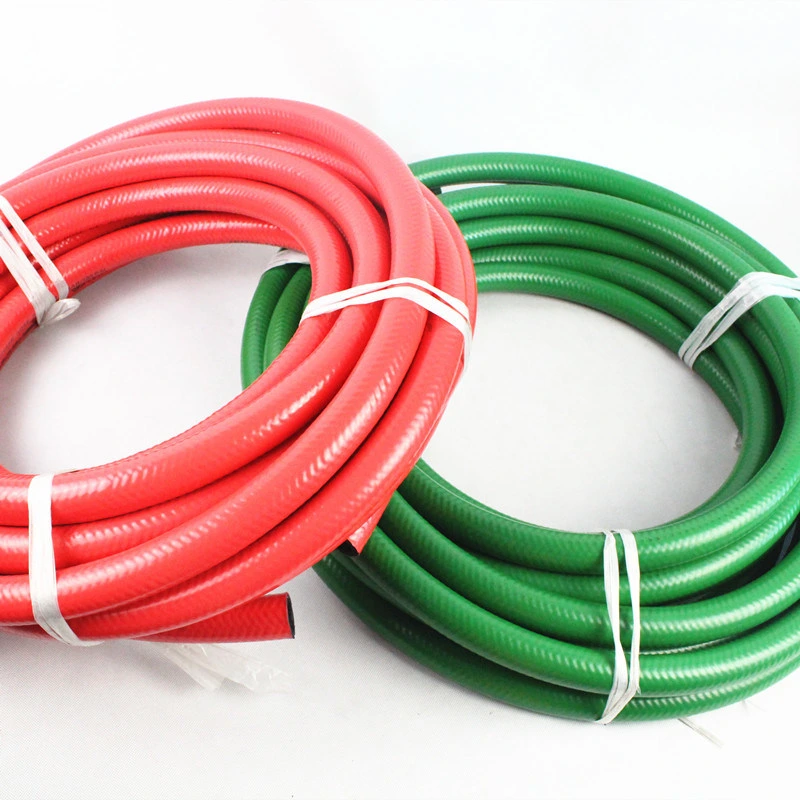

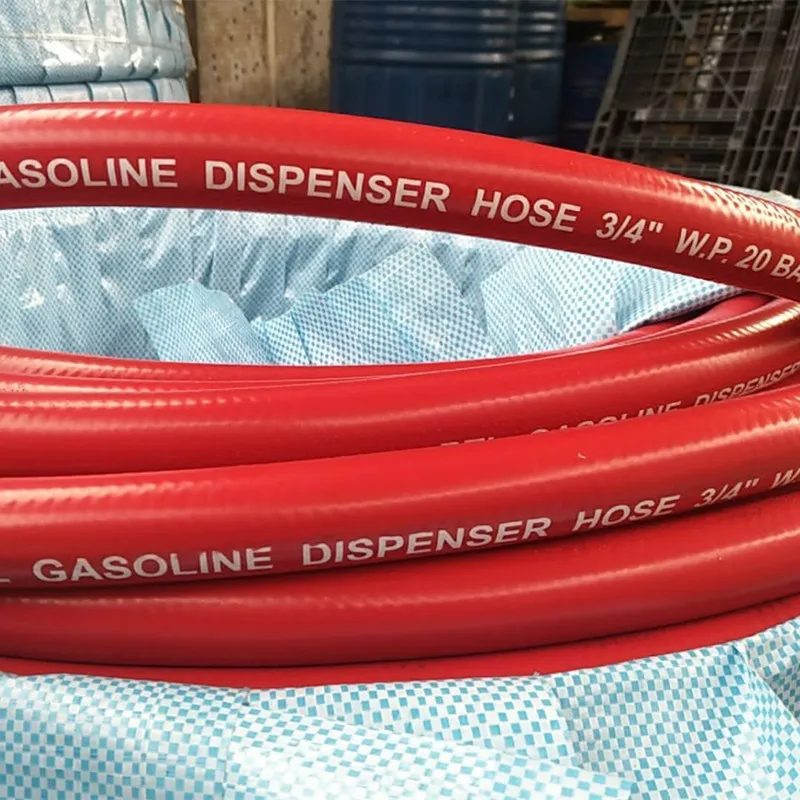

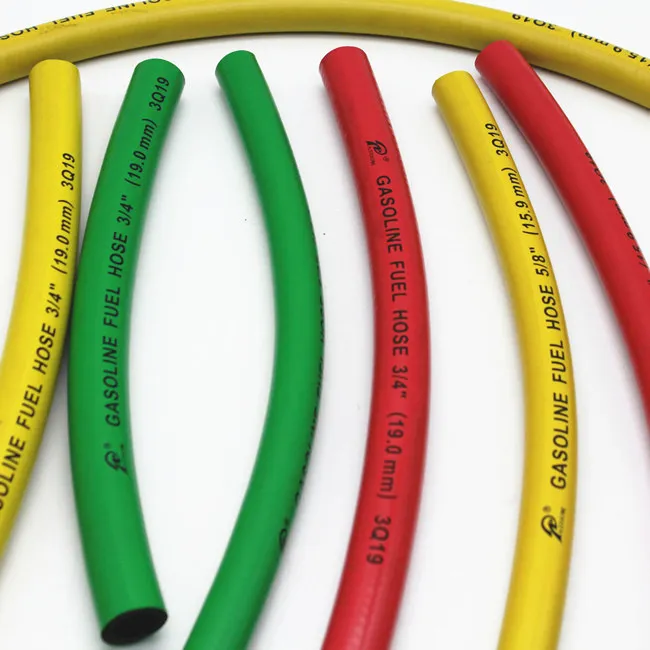

RED Specialized for gasoline A95

BLACK Specialized for A92

GREEN Specialized for E5 bio-gasoline

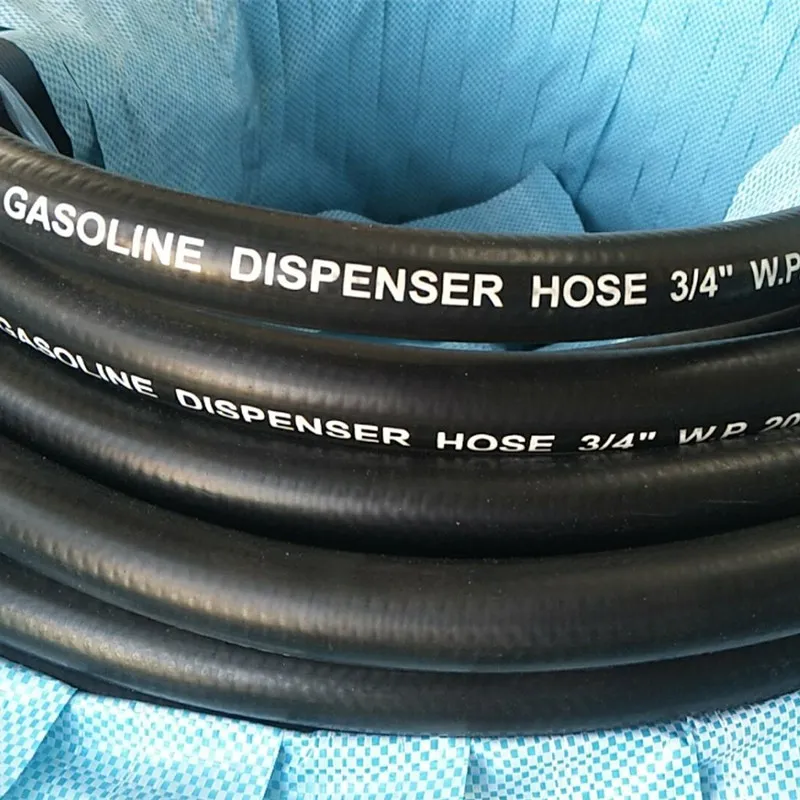

Construction Details:
• Tube: NBR (Nitrile Butadiene Rubber)
• Reinforcement: Single High-strength wire braided.
• Cover: NBR
• Temperature Range: -40ºC to +80ºC
• Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to 15%), lubricating oil, and other mineral oils.

Inner Diameter		Outer Diameter	Max Working Pressure		Min Burst Pressure		Length	Measurement	Weight
inch	mm	mm	bar	psi	bar	psi	m	cbm/roll	kg/m
5/8	16	24	30	450	120	1740	50	0.052	0.46
3/4''	19	28	30	450	120	1740	50	0.073	0.550
1''	25	35.5	30	450	120	1740	50	0.124	0.820

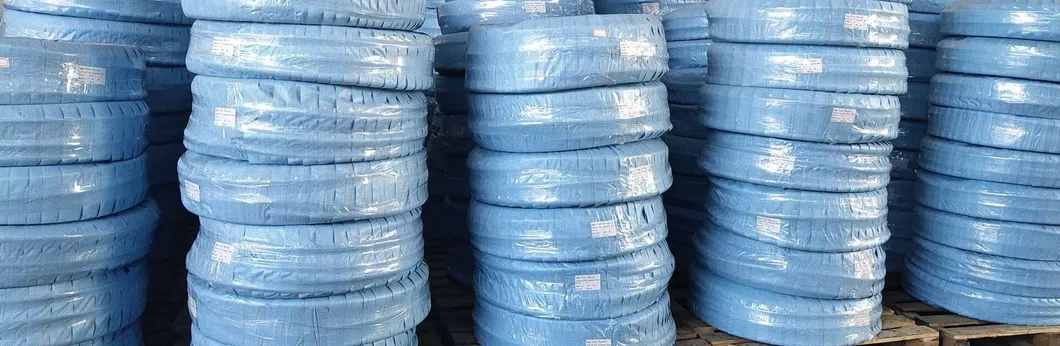

📦 Packaging & Quality

❓ Frequently Asked Questions

1. What is the temperature range for this fuel delivery hose?

The hose is designed to operate effectively in temperatures ranging from -40ºC to +80ºC, making it suitable for various climates.

2. Can this hose be used for diesel and bio-fuels?

Yes, it is specifically designed for fuel dispensing pump applications including gasoline, diesel, and oxygenated fuels (up to a maximum of 15% oxygenated compounds).

3. What is the reinforcement structure of the hose?

The hose features a single high-strength steel wire braided reinforcement to ensure durability and high-pressure resistance.

4. What are the available sizes and lengths?

Standard sizes include 5/8", 3/4", and 1" inner diameters. Standard lengths are available in 20m and 50m rolls.

5. Does the hose prevent oil leakage?

Yes, the double-layer NBR conduit structure provides a consecutive layer of protection to minimize the risk of oil leakage.

6. What is the maximum working pressure?

The hose has a maximum working pressure of 30 Bar (450 PSI) and a minimum burst pressure of 120 Bar (1740 PSI).
