Automatic Transmission Control Shift Cable Heatshield Tube Engine Fuel Injection Pre Heat Hose

1 / 5

Automatic Transmission Control Shift Cable Heatshield Tube Engine Fuel Injection Pre Heat Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

BST-HPT

Material

Fiberglass

Maximum Voltage

Thermal Rating

250 250

Near Port

Shanghai, Ningbo

Type

Insulation Sleeve & Tube

Chemistry

Hybrid Insulation

Classification

Hybrid Insulation Materials

Certification

ISO9001

Transport Package

Carton Box

Specification

8-140 MM ID

Origin

China

HS Code

701959

Production Capacity

1000000m/Day

Product Description

Automatic Transmission Control Shift Cable heatshield tube Engine Fuel Injection Pre Heat Hose

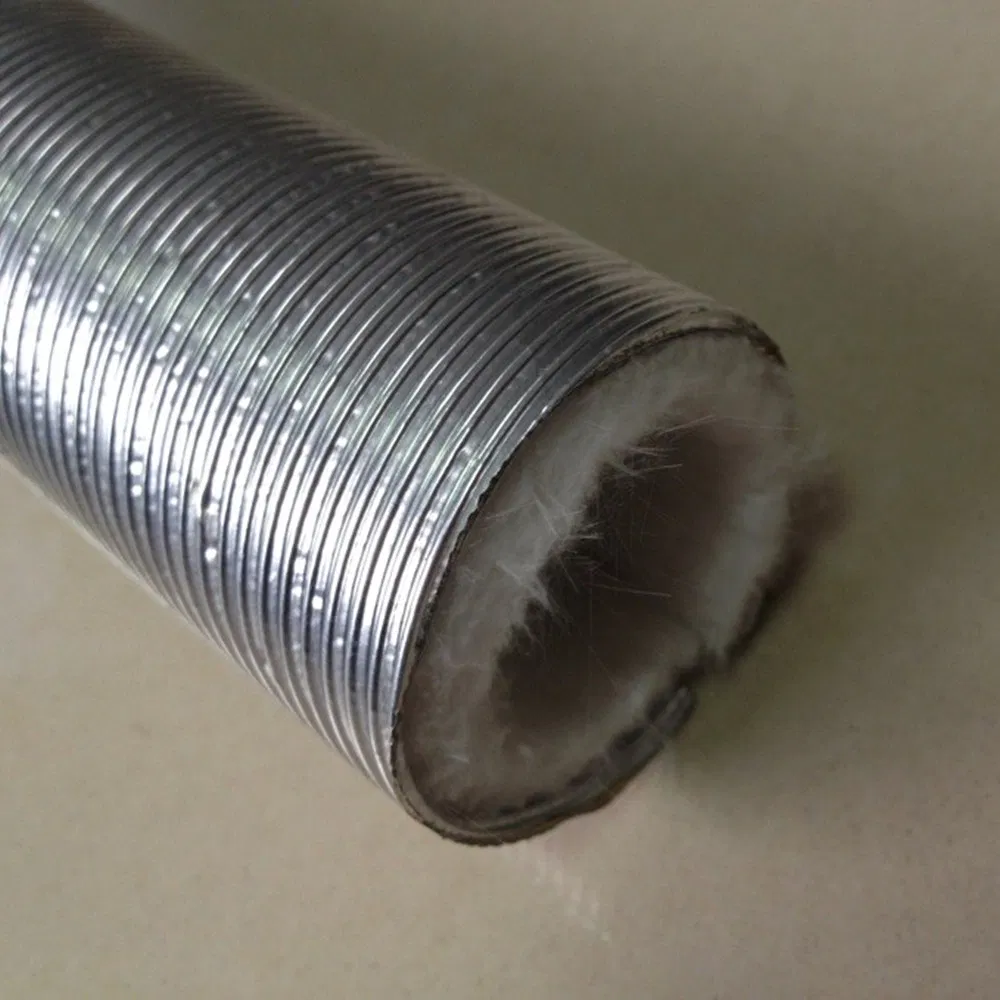

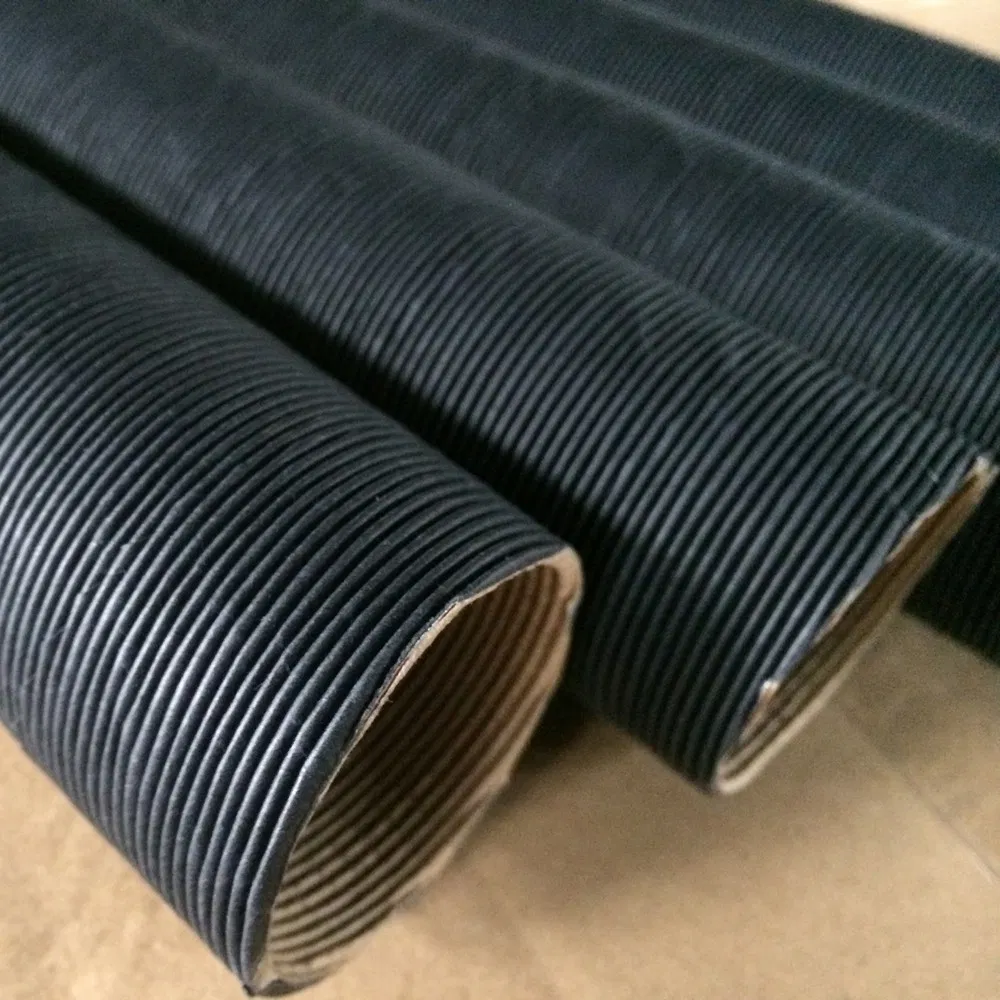

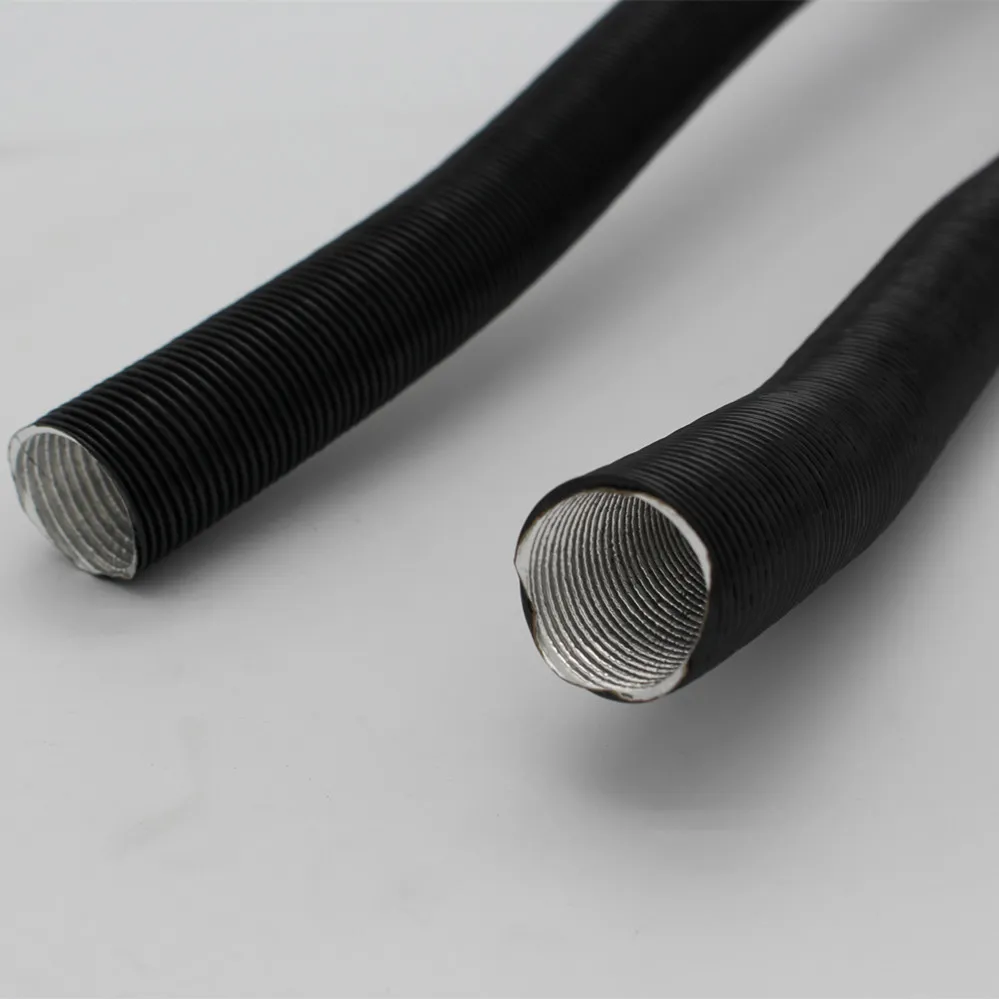

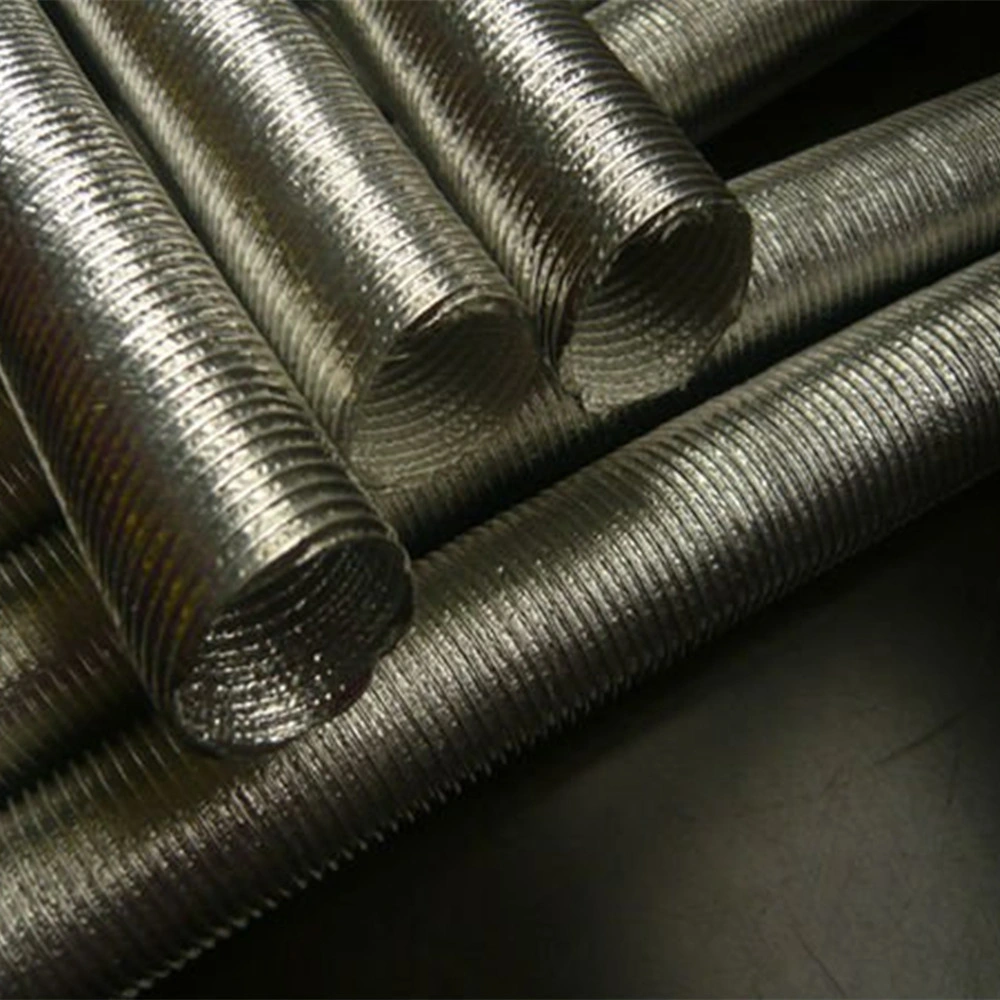

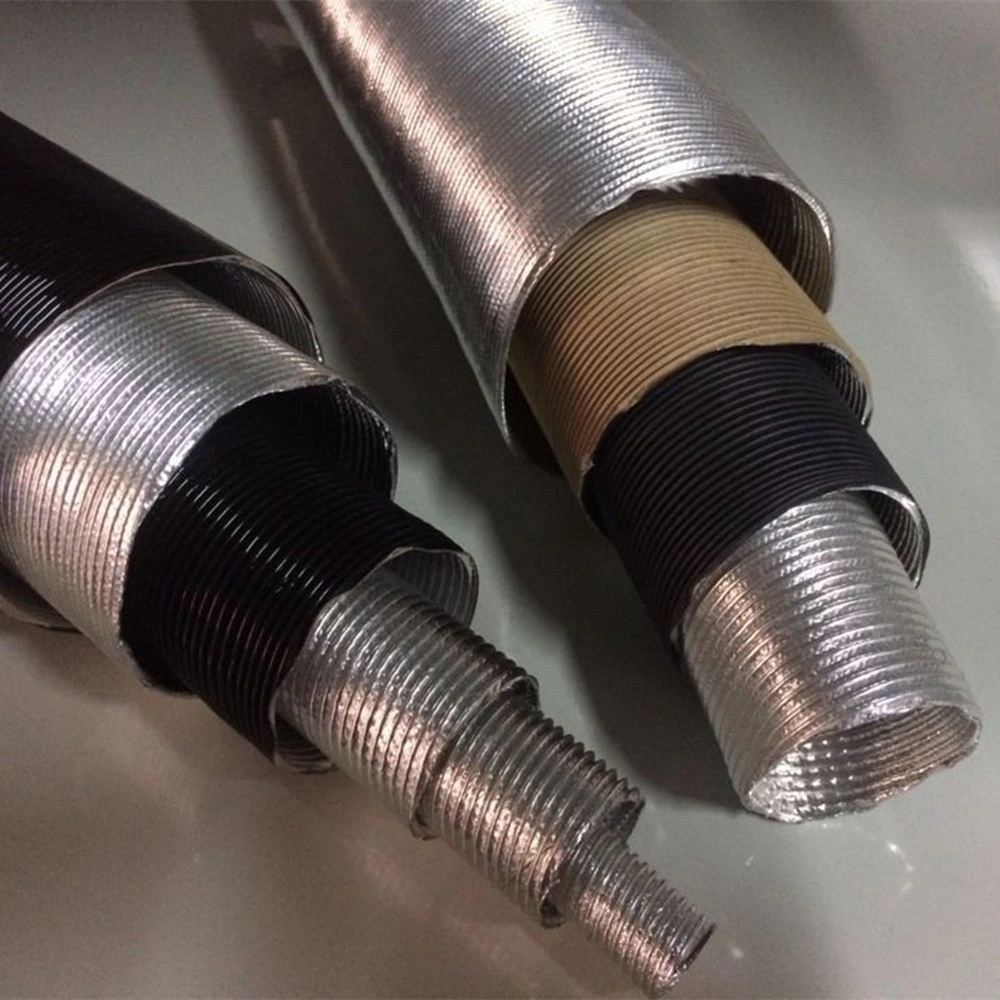

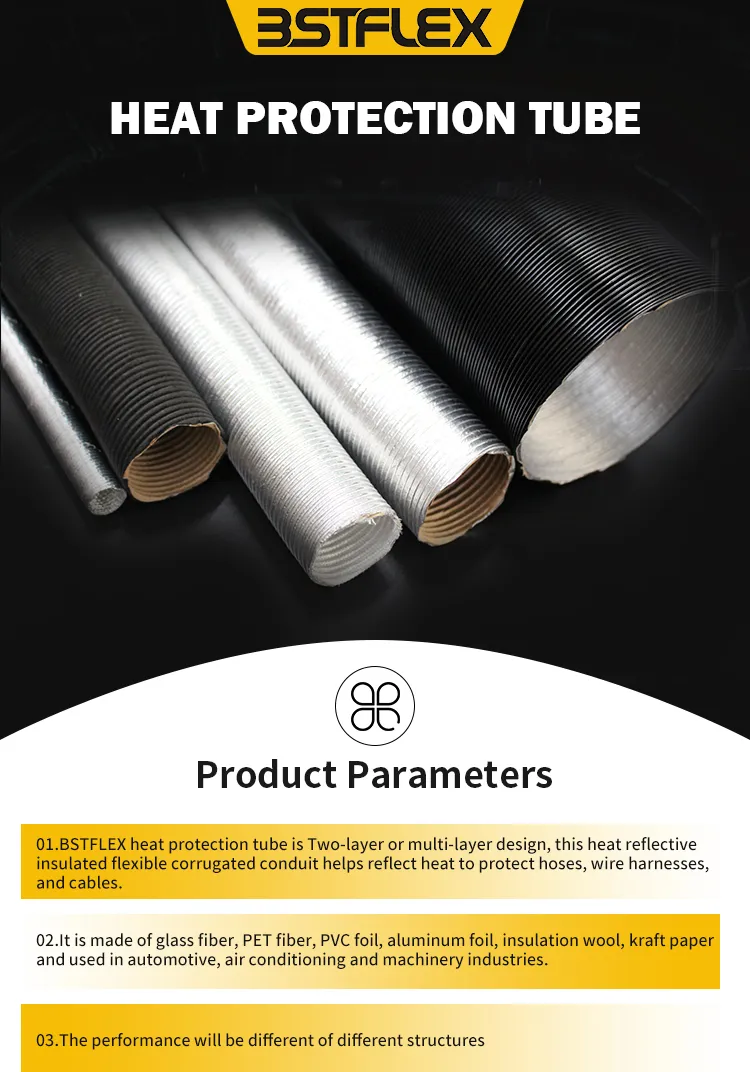

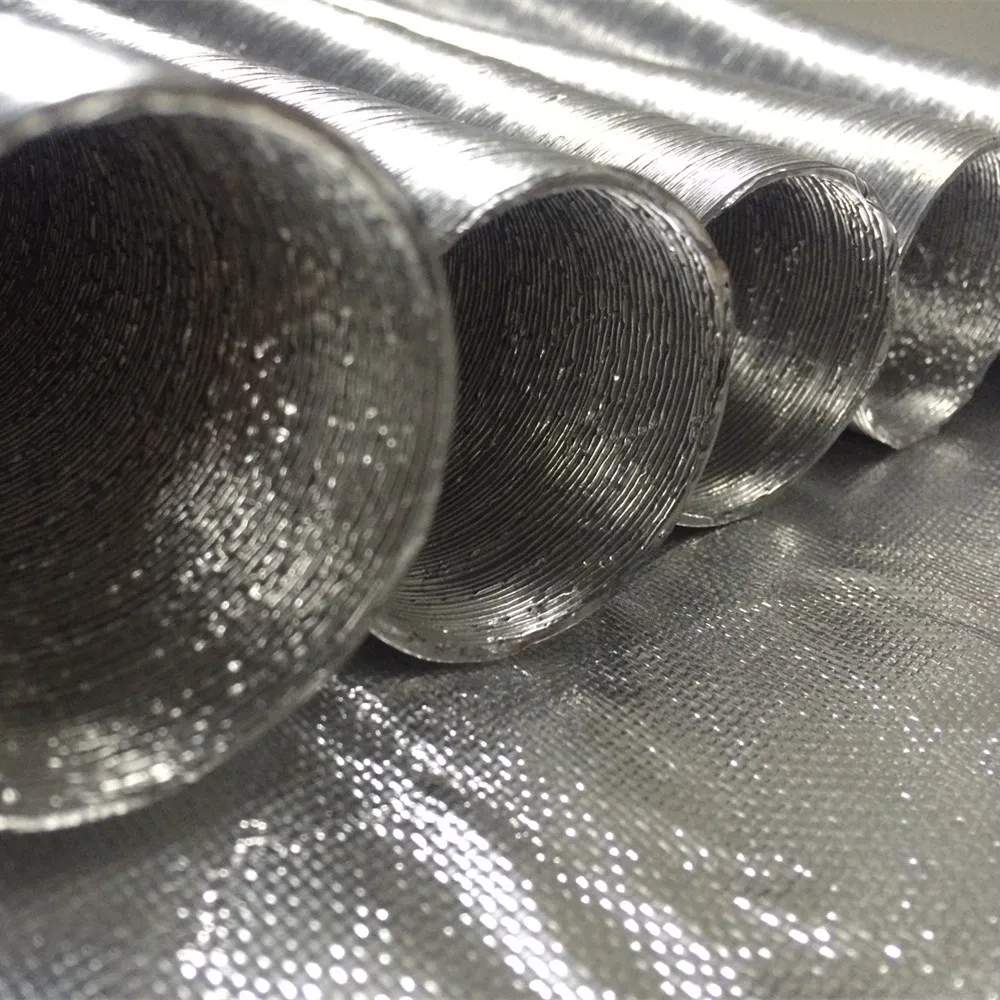

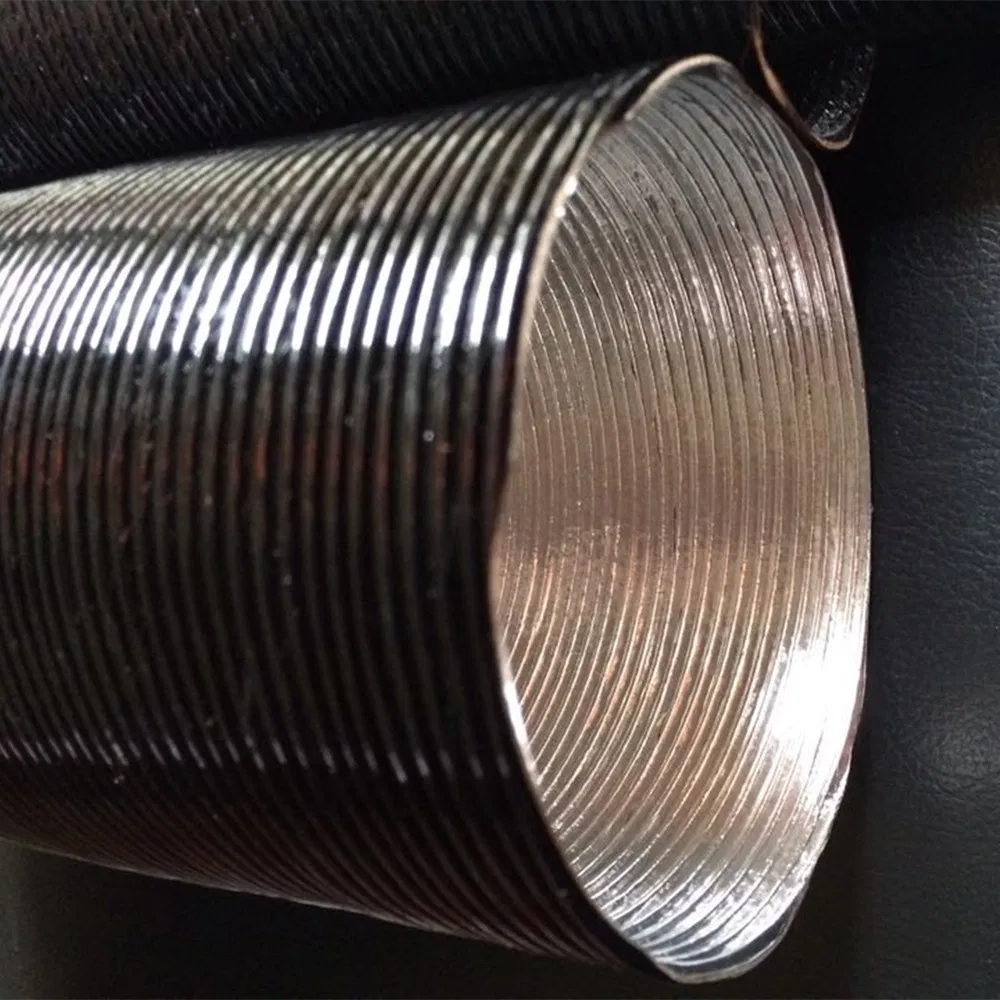

🛡️ This corrugated heat protection tube features an aluminum outer layer that reflects at least 90% of radiant heat.

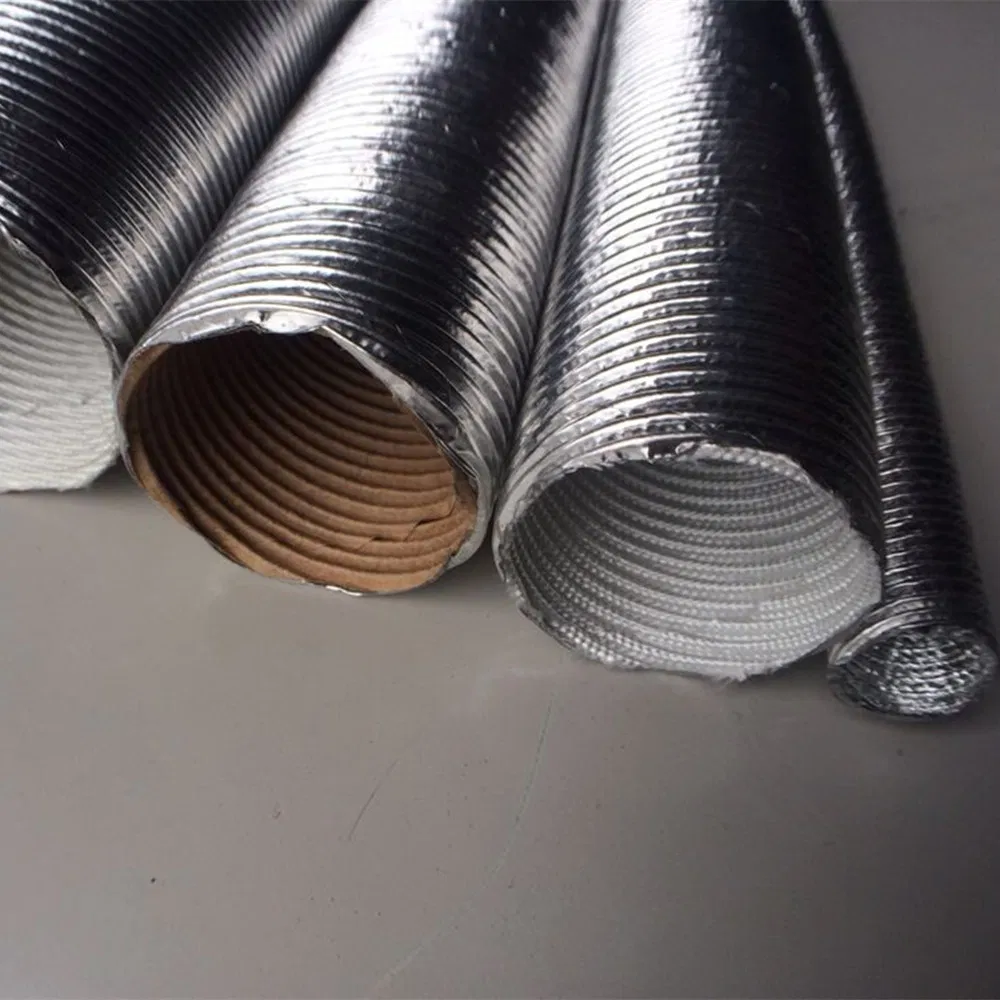

🧪 The inner layer is made of glass fiber to prevent metal contact (e.g., with copper pipes), providing protection even at high temperatures.

🚗 Ideal for control cables, gear cables, cooling tubes, air conditioning, fuel hoses, and wire sets.

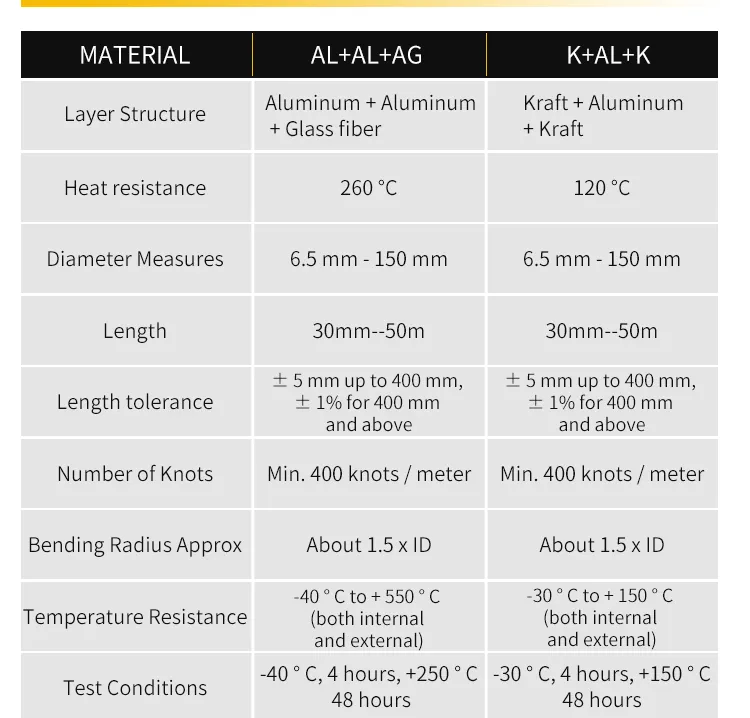

Technical Specifications

Outer Layer Material	Aluminum
Inner Layer Material	Fiberglass
Heat Resistance	250-350 °C
Diameters	Ø8 mm - Ø140 mm
Length	MAX 5m per roll, custom length upon request.
Length Tolerance	±5 mm until 400mm., ± 1% for 400mm. and more
Nodes	Min. 400 nodes / meter
Bending Radius	Approximately 1.5 x ID
Thermal Resistance	-40 C to + 350 C

Frequently Asked Questions (FAQ)

🔹 What materials are used in the construction of this tube?

The tube consists of an aluminum outer layer for heat reflection and a fiberglass inner layer for thermal insulation and protection.

🔹 What is the maximum temperature this heatshield can withstand?

This protection tube can withstand temperatures ranging from -40°C to +350°C.

🔹 Can the tube reflect radiant heat?

Yes, the aluminum outer layer is designed to reflect at least 90% of radiant heat.

🔹 What are the common applications for this product?

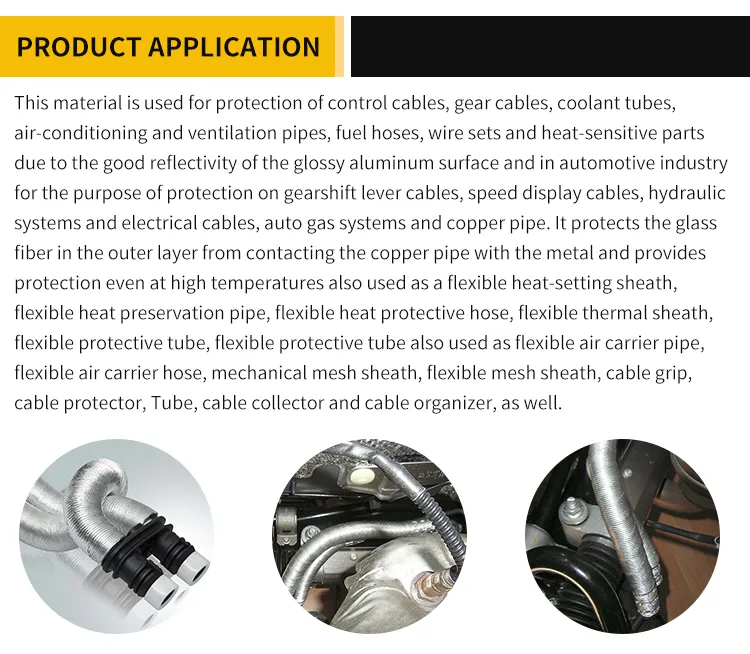

It is widely used in the automotive sector for shifter cables, fuel hoses, speed indicator cables, hydraulic systems, and air conditioning pipes.

🔹 What sizes and lengths are available?

The diameters range from 8mm to 140mm. Standard rolls are up to 5 meters, but custom lengths can be provided upon request.

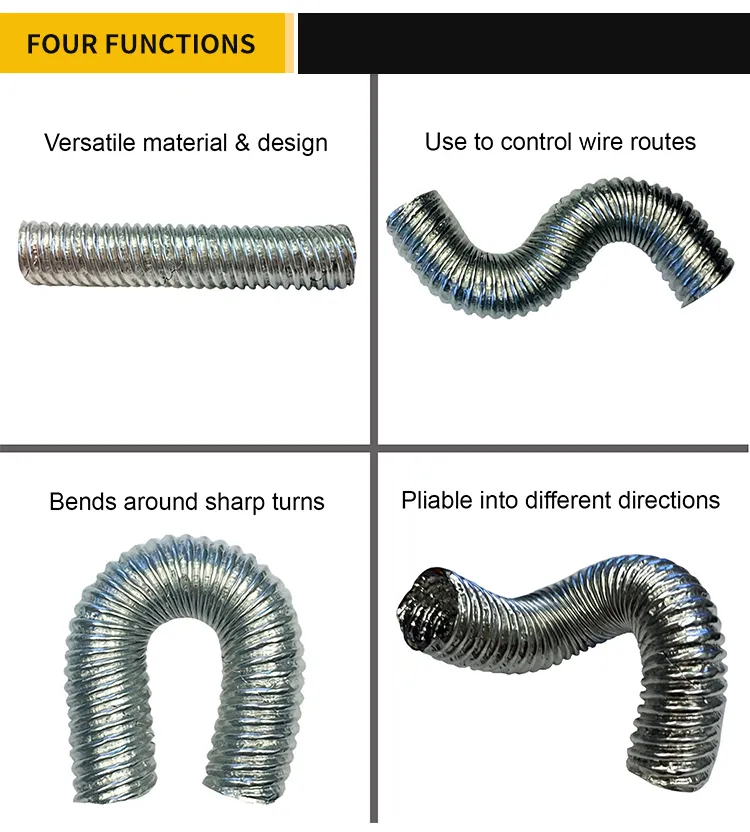

🔹 Is the tube flexible enough for tight spaces?

Yes, it has a bending radius of approximately 1.5 times the internal diameter (ID), making it suitable for various routing requirements.
