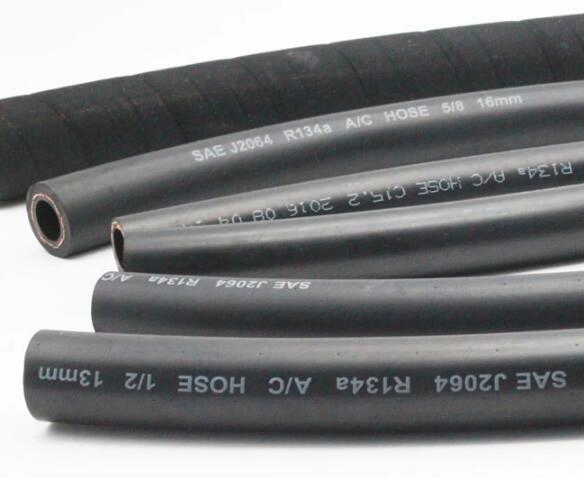

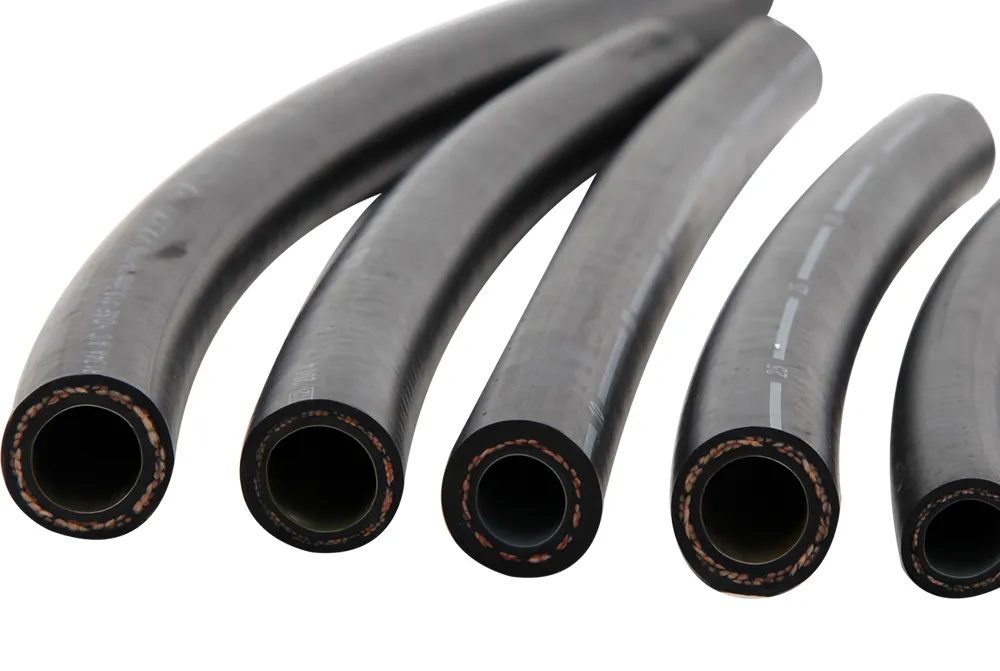

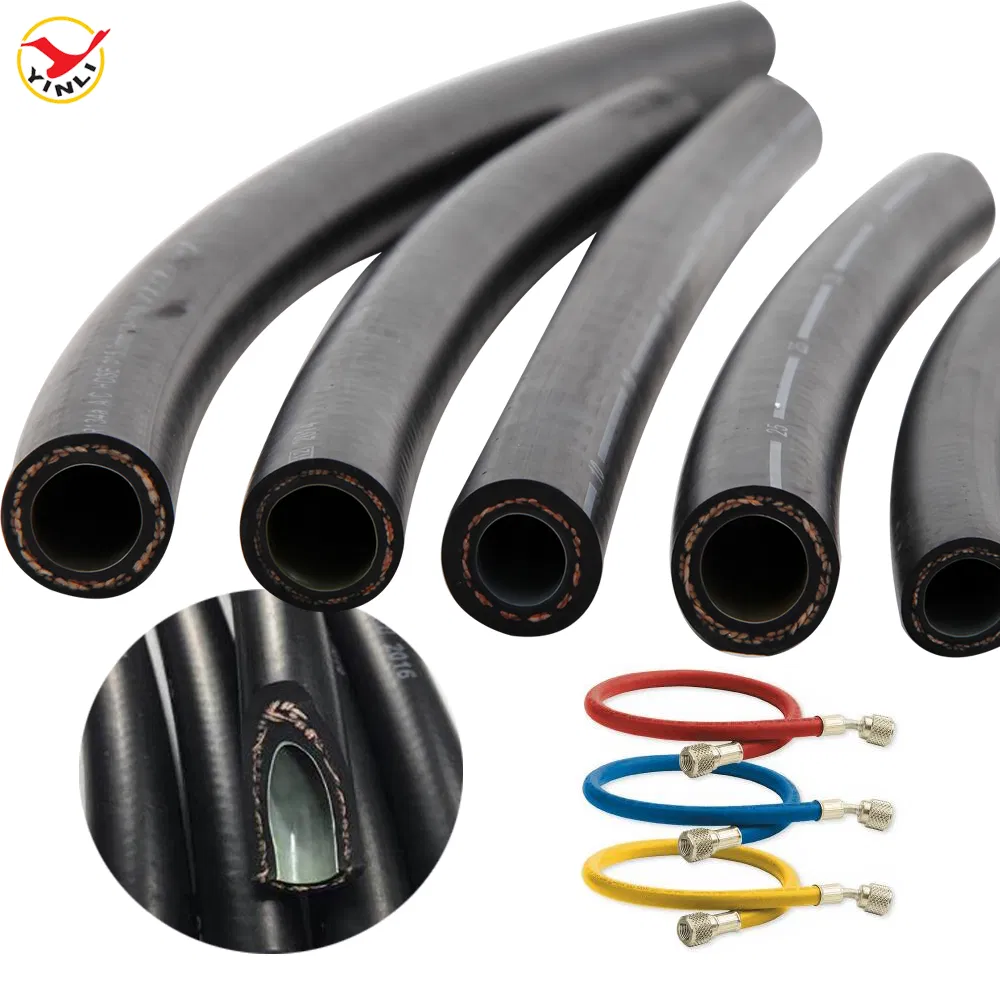

Black A/C Refrigerant R410A R134A Galaxy Discharge Charging Air Conditioning Hose
Application: Air Conditioning Hose, also called refrigerant pipe, is used in automotive cooling, air-conditioning systems, industrial air conditioners filling and refrigerant conveying.

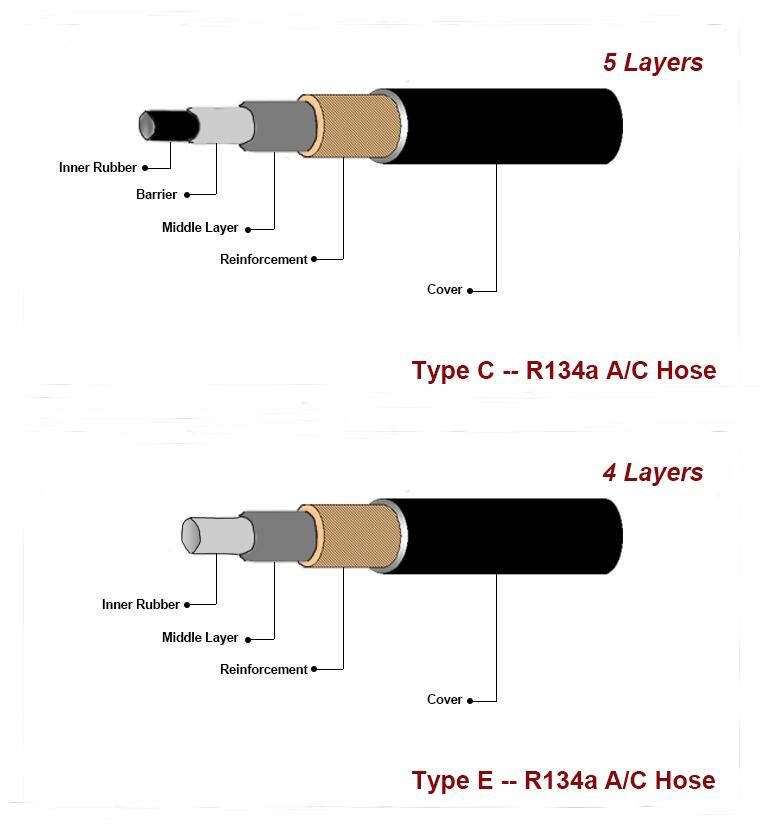

Tube: CSM/EPDM | Barrier: Nylon alloy | Buffer: EPDM/NBR
Reinforcement: High tensile fiber | Cover: EPDM
| Size (Inch) | ID (mm) | OD (mm) | W.P. (Max Mpa) | B.P. (Min Mpa) | Weight (g/m) |
|---|---|---|---|---|---|
| 5/16 | 8.2±0.4 | 15.2±0.5 | 3.5 | 28 | 146 |
| 13/32 | 10.2±0.4 | 17.2±0.5 | 3.5 | 22 | 172 |
| 7/16 | 11.5±0.4 | 18.4±0.5 | 3.5 | 23 | 196 |
| 1/2 | 13.2±0.4 | 20.8±0.5 | 3.5 | 20 | 231 |
| 5/8 | 15.5±0.4 | 22.8±0.5 | 2.0 | 18 | 257 |
| 3/4 | 18.5±0.4 | 27.5±0.5 | 1.5 | 18 | 367 |

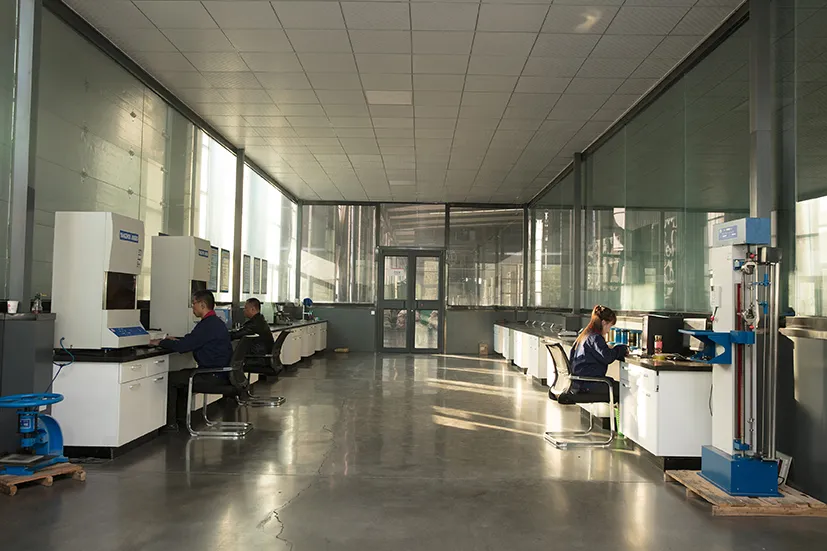

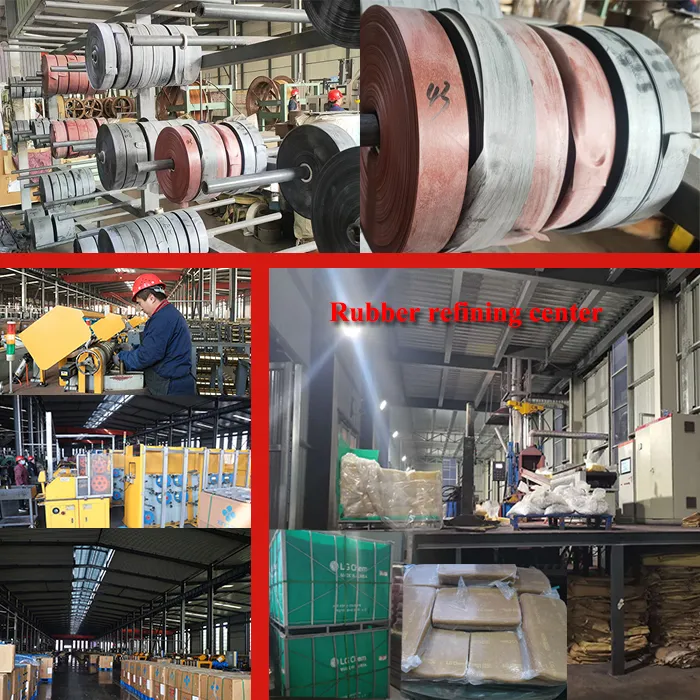

Control the quality from the beginning to the end:
Steel wire braided hydraulic hose: SAE 100R1AT, DIN EN853 1SN, SAE 100R2AT, DIN EN853 2SN, Pressure washer hose.
Multi spiral hydraulic hose: DIN EN856 4SP, SAE 100R12, DIN EN856 4SH, SAE 100R13, SAE 100R15.
Industrial rubber hose: Steam hose, Dredging hose, Air/Water hose, Fuel/oil hose, Chemical rubber hose, Food hose.
