Car Braided Transmission Oil Cooler Hose Kit
Car Braided Transmission Oil Cooler Hose Kit
Car Braided Transmission Oil Cooler Hose Kit
Car Braided Transmission Oil Cooler Hose Kit
Car Braided Transmission Oil Cooler Hose Kit
1 / 5
Car Braided Transmission Oil Cooler Hose Kit
Car Braided Transmission Oil Cooler Hose Kit
Car Braided Transmission Oil Cooler Hose Kit
Car Braided Transmission Oil Cooler Hose Kit
Car Braided Transmission Oil Cooler Hose Kit

Car Braided Transmission Oil Cooler Hose Kit

Customization: Available
Material: Synthetic Rubber
Capability: Transmission Fluid Systems
Send Inquiry

Product Description

ℹ

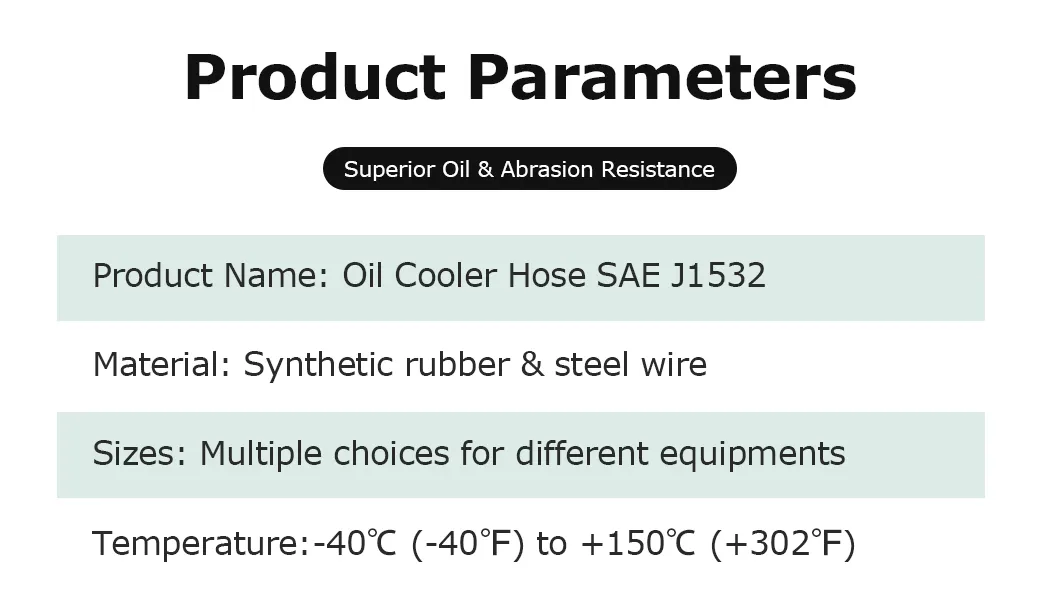

Basic Information

Model NO.
SAE J1532
Product Name
Oil Cooler Hose SAE J1532
Color
Black
Tube
Synthetic Rubber
Reinforcement
Braided, High-Tensile Steel Wire
Cover
Synthetic Rubber
W.P
5.2/7 MPa
B.P
17.5-42 MPa
Length
As Your Requirement
Specification
5.56mm-28.5mm
Origin
China
HS Code
3917310000
Capacity
500,000 Meters Per Month
Oil Cooler Hose Kit
Braided Transmission Hose
⚙

Product Description

The oil cooler hose circulates oil between the oil cooler and engine. This essential auto hose helps prevent engine overheating. If the hose fails, symptoms may include oil leaking or a low oil warning light activation.

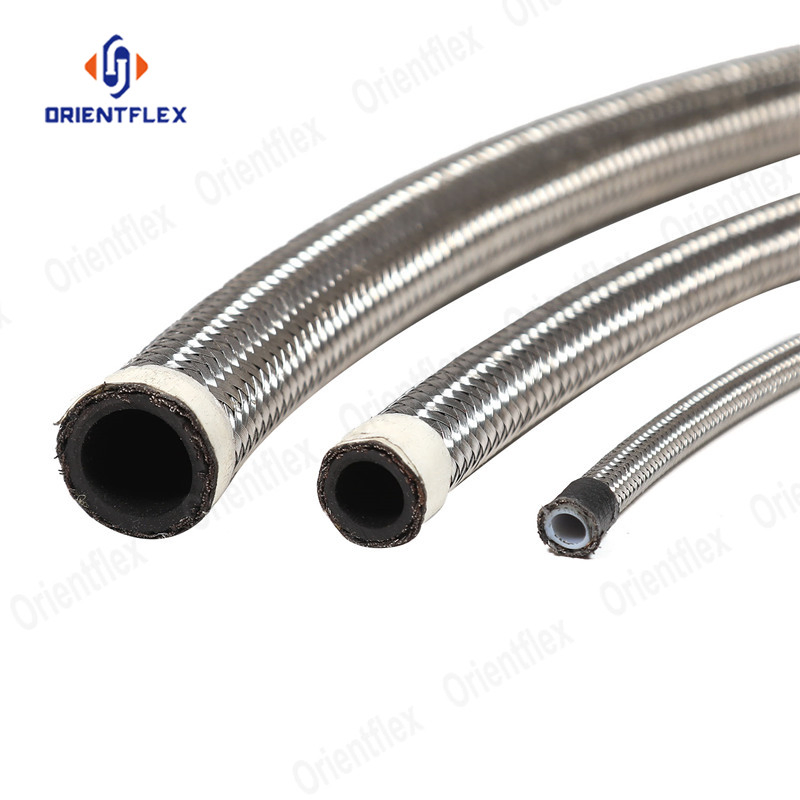

Structure: The oil cooler hose consists of a synthetic rubber inner tube with a partial stainless steel reinforcement inner braid. A stainless steel (SS) braid on the exterior provides exceptional lightweight flexibility, durability, and extra protection against abrasion.

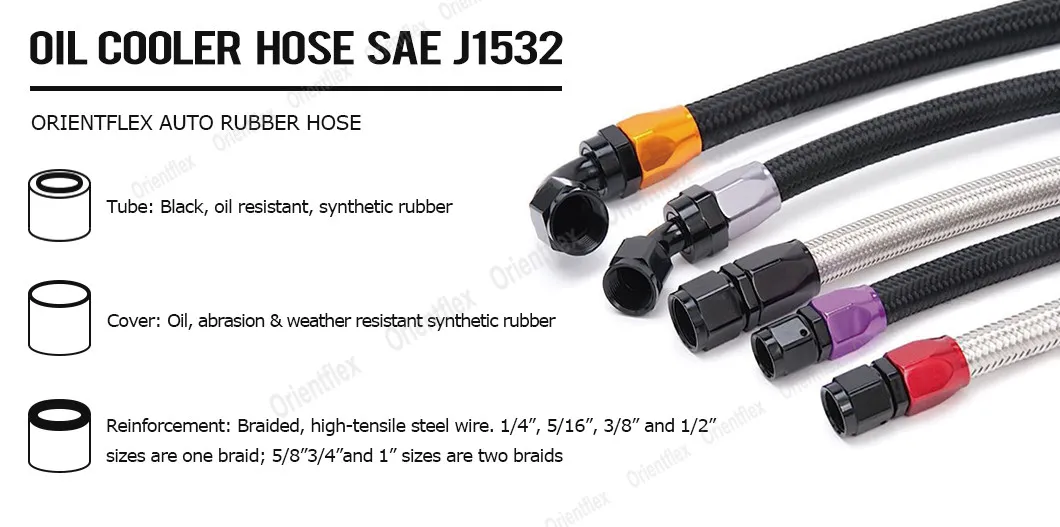

Construction Details:

  • Tube: Black, oil resistant, synthetic rubber.
  • Reinforcement: Braided, high-tensile steel wire. 1/4", 5/16", 3/8" and 1/2" sizes feature one braid; 5/8", 3/4" and 1" sizes feature two braids.
  • Cover: Black, oil, abrasion, and weather resistant, thin synthetic rubber.

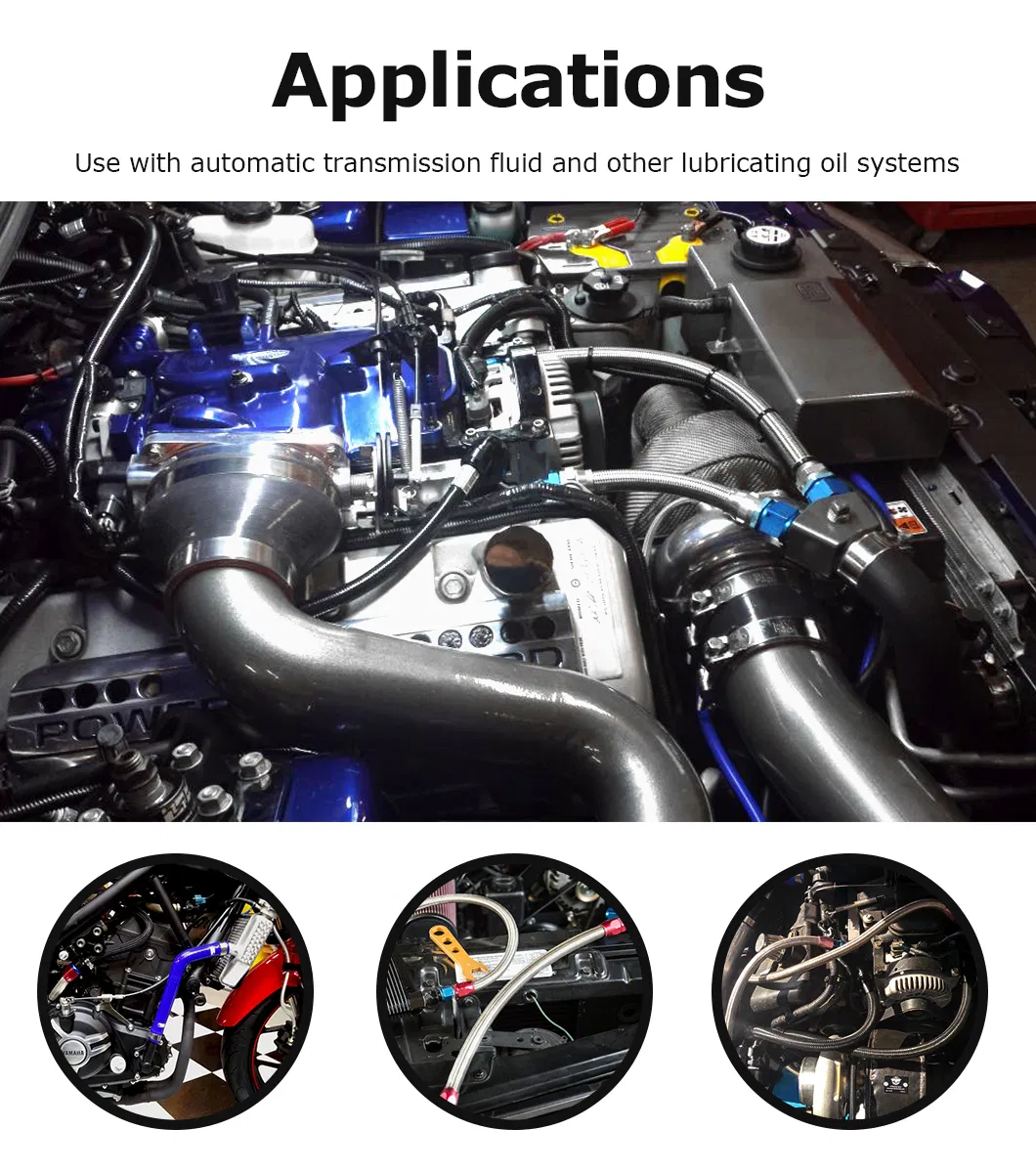

Applications: Designed for use with automatic transmission fluid and other lubricating oil systems.

Key Characteristics:

  • Superior Oil and Aging resistance
  • Excellent Corrosion resistance
  • High-efficiency heat dissipation
  • Wide temperature tolerance: -40ºC to +150 ºC (-104 ºF to + 302 ºF)
📊

Technical Specifications

Item Code I.D (mm) O.D (mm) W.P (Mpa) B.P (Mpa)
An045.5611.13742
An068.7313.89742
An0811.1216.28735
An1014.2720.24735
An1217.4723.82726.3
An1622.2229.965.217.5
An2028.535.815.217.5

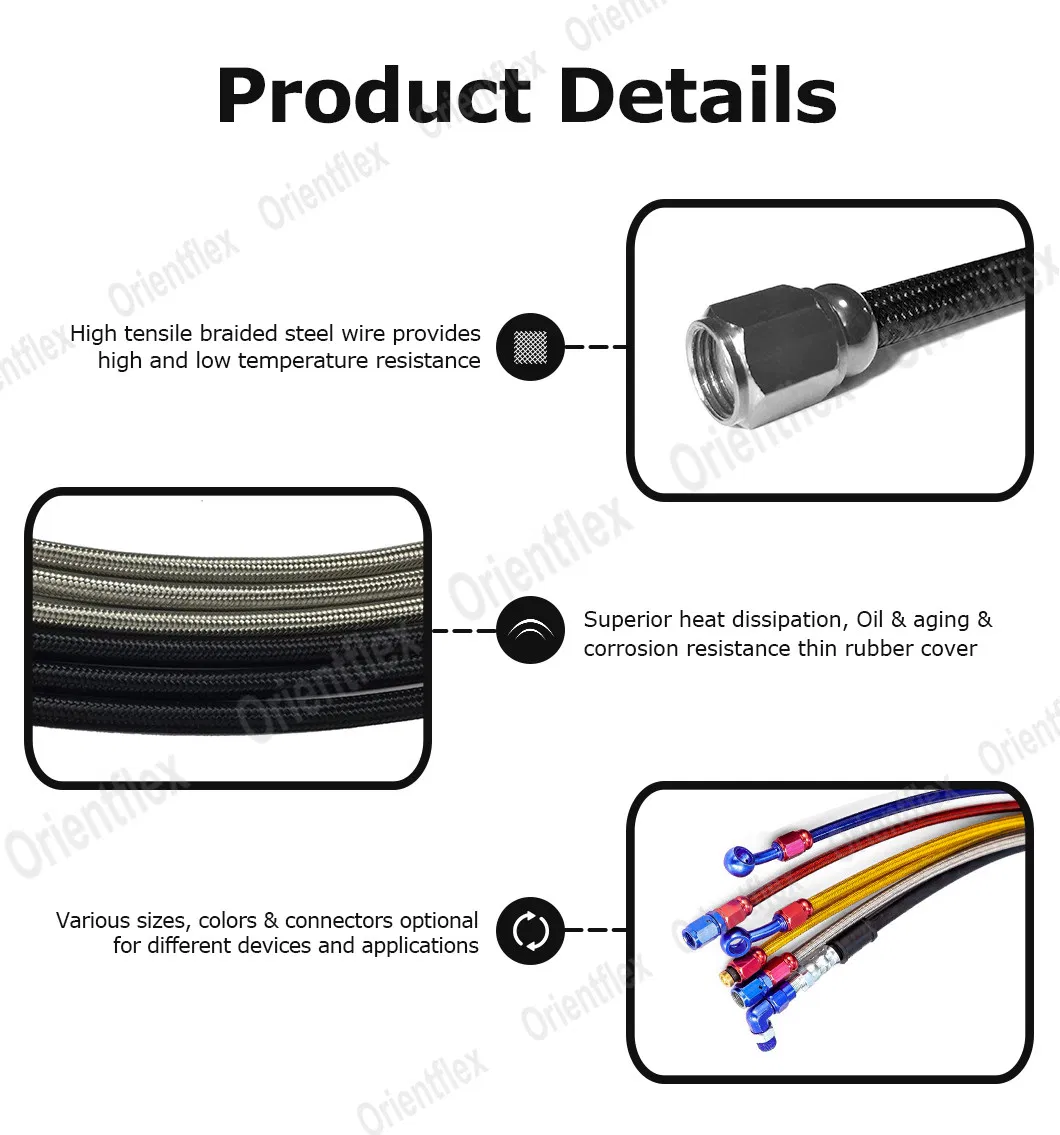

Hose Detail 1
Hose Detail 2
Hose Detail 3
Hose Detail 4

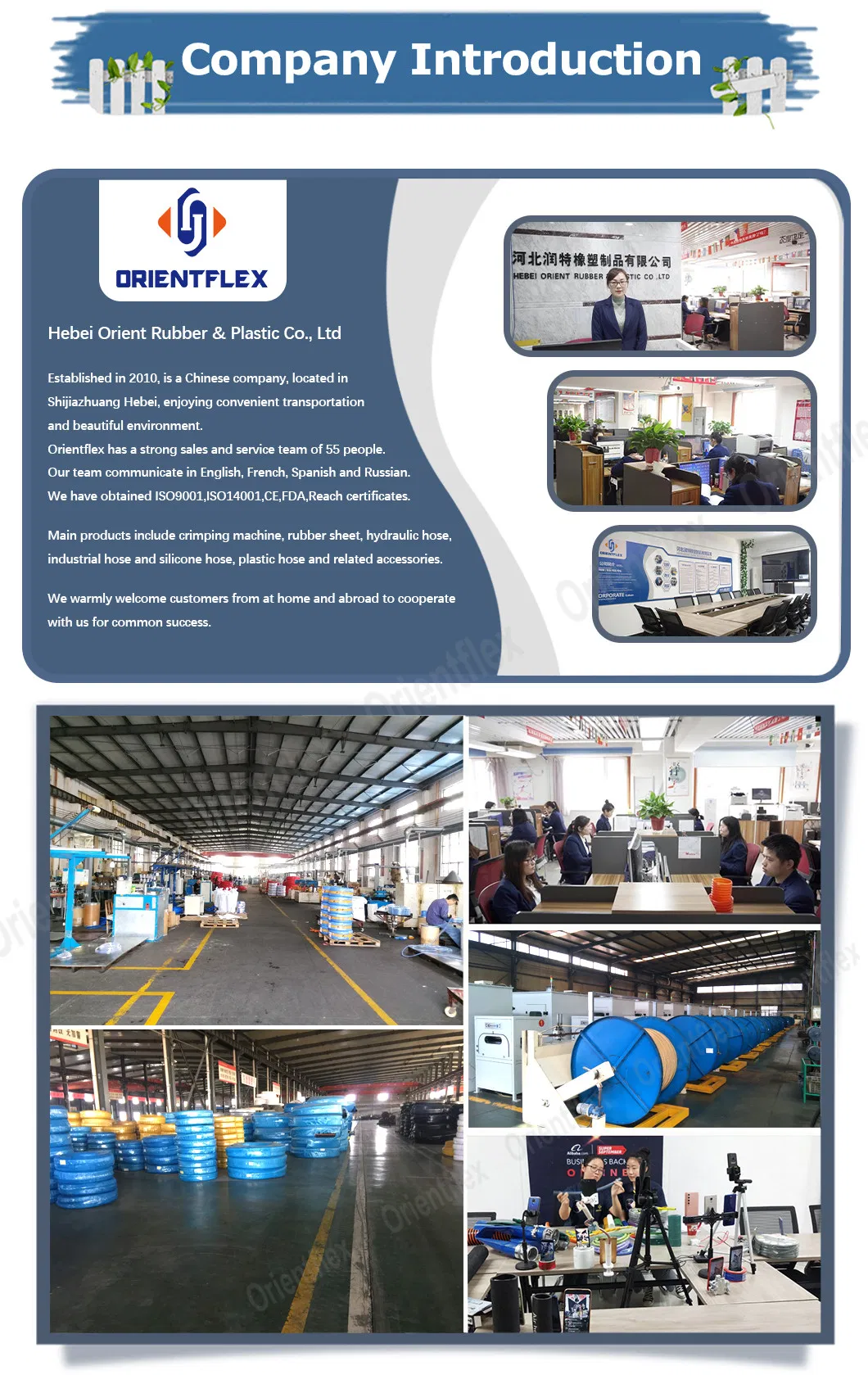

Production Process
Hose Application
Hose Structure
Packaging
Warehouse
❓

Frequently Asked Questions

What is the standard compliance for this oil cooler hose?
This hose is manufactured to meet the SAE J1532 standard, ensuring reliability for transmission oil cooling applications.
What is the operating temperature range?
The hose is designed to withstand extreme conditions, ranging from -40ºC to +150 ºC (-104 ºF to + 302 ºF).
Is this hose resistant to abrasion?
Yes, it features a synthetic rubber cover that is resistant to oil, abrasion, and weather, often supplemented by a stainless steel overbraid for extra protection.
What type of reinforcement does the hose use?
It utilizes braided, high-tensile steel wire. Smaller sizes use one braid, while larger sizes (5/8" and above) use two braids for enhanced strength.
What are the primary applications for the SAE J1532 hose?
It is primarily used for automatic transmission fluids and various lubricating oil systems in vehicles to prevent engine overheating.
Can I customize the length of the hose?
Yes, the hose length can be supplied according to your specific requirements.
