| Model NO. | customized | Water Absorption | ＜0.01% |
|---|---|---|---|
| Contraction Percentage | ＜0.4% | Tensile Strength | 30~40MPa |
| Tube and Cover | Transparent PVC | Reinforcement | Steel Wire Spiral |
| Application | Equipment, Engine Parts, Heavy Machine | Characteristics | Light Weight, Flexible, Elastic |
| Temperature | -29℃ to 80℃ | Transport Package | Roll |
| Origin | China | Production Capacity | 5,000,000 meters/Month |

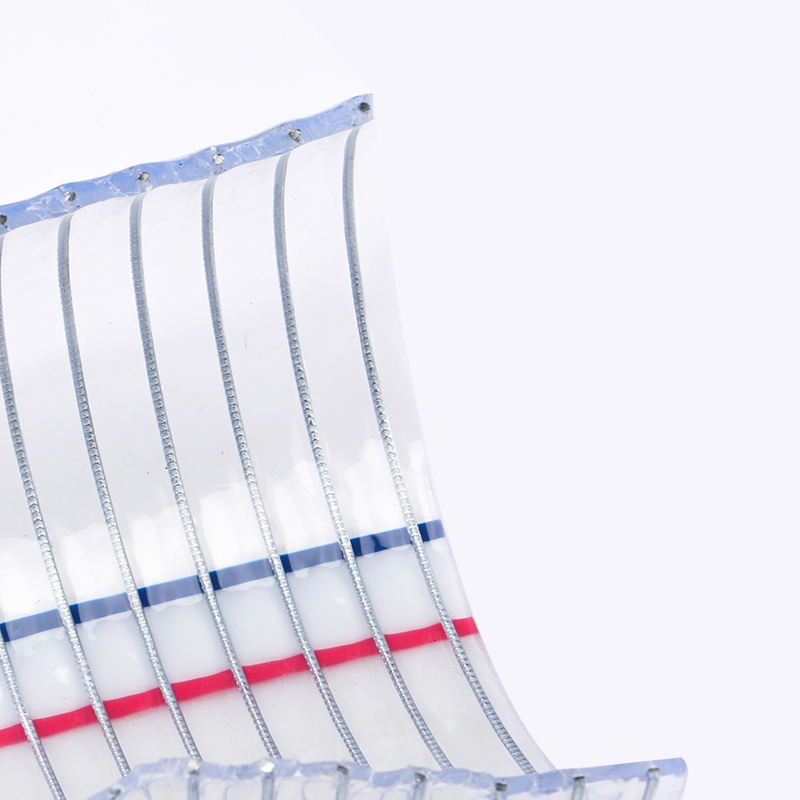

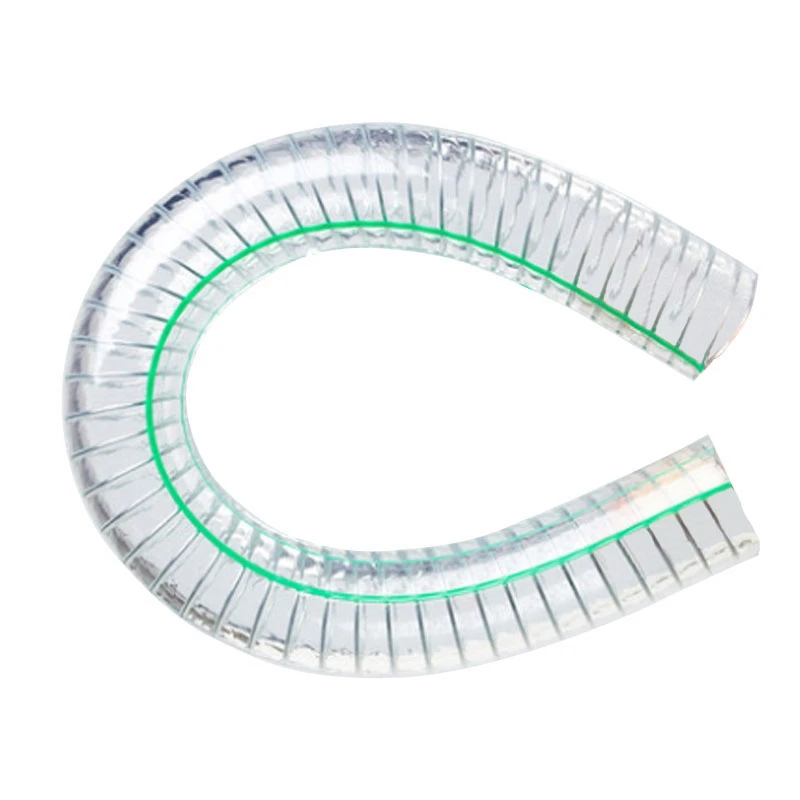

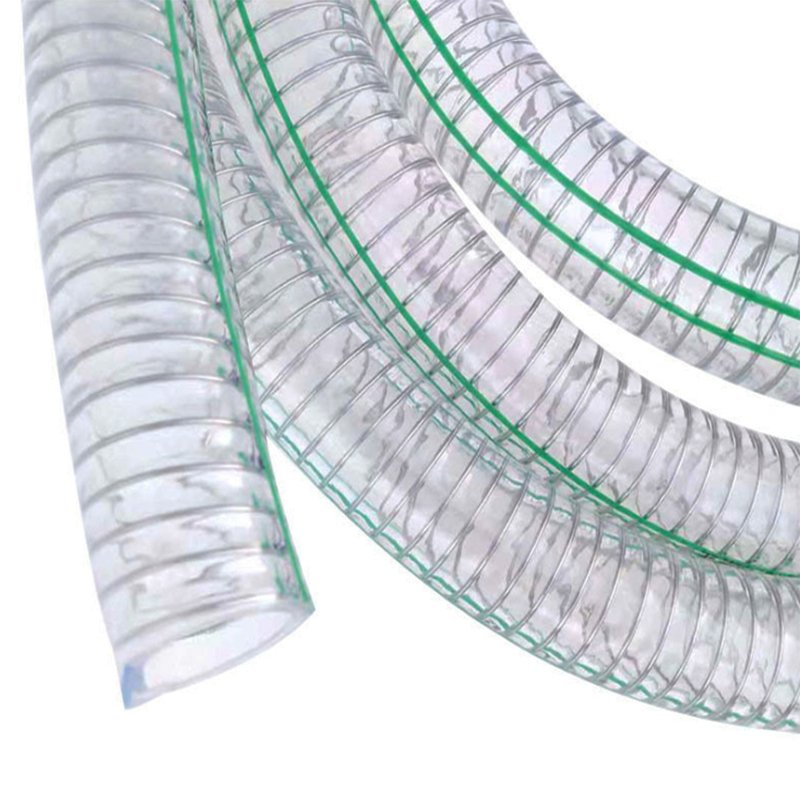

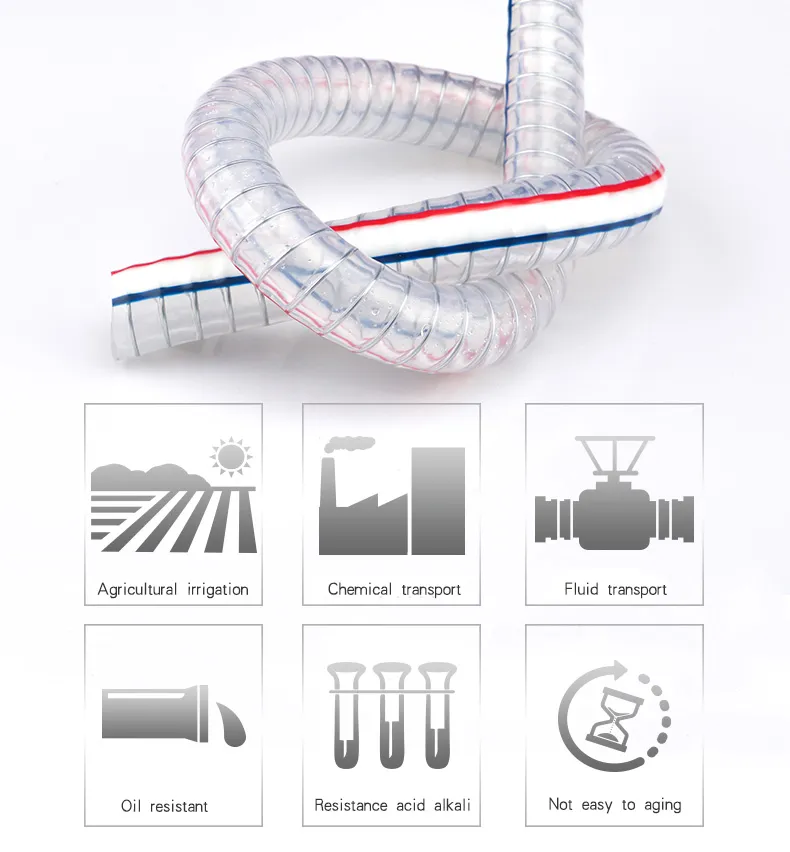

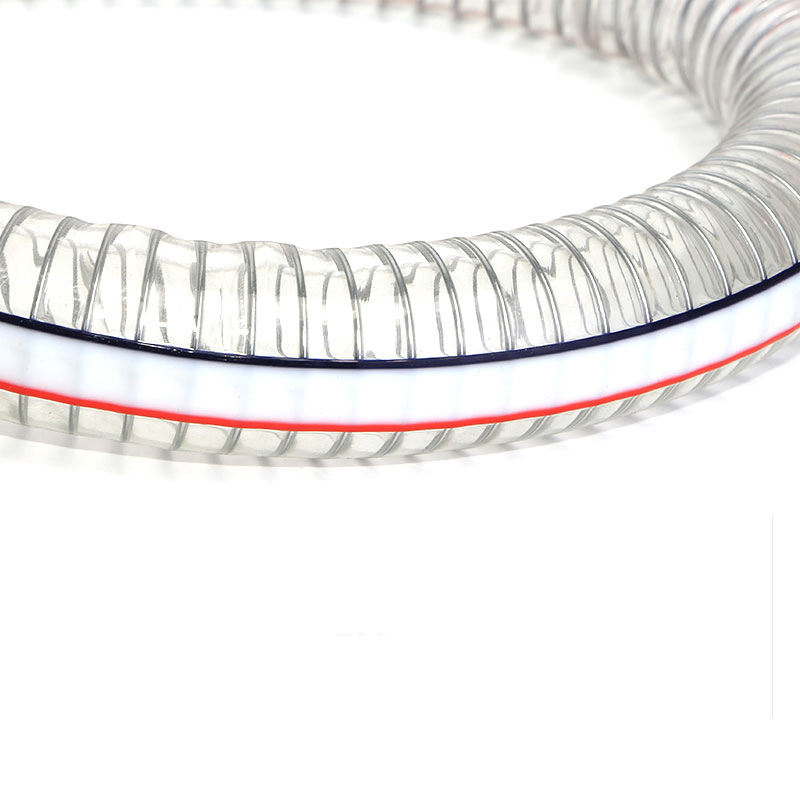

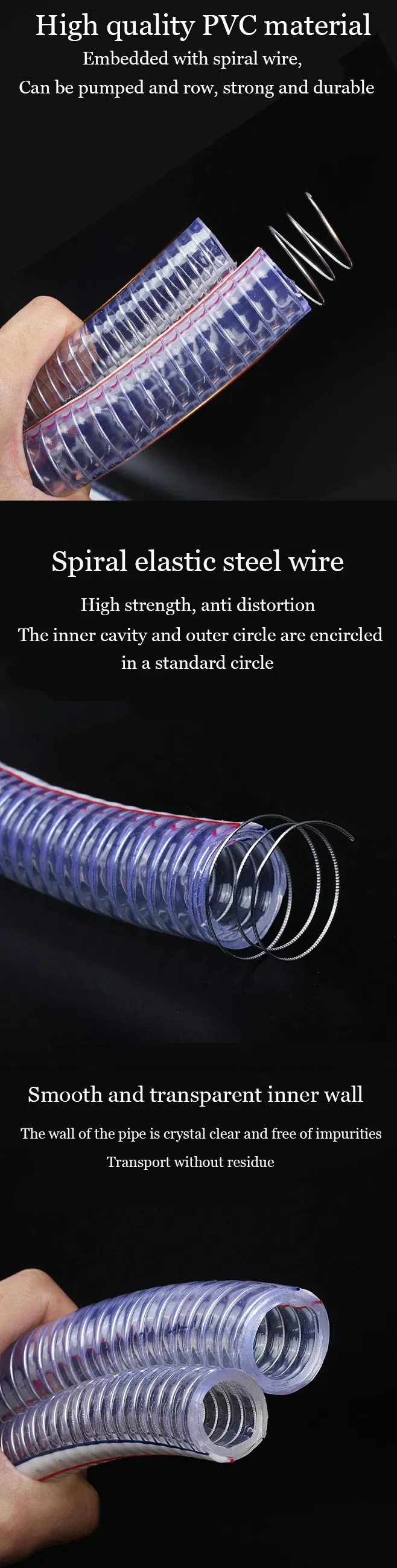

Wire reinforced PVC Hose is suitable for a range of applications including delivery of food, water chemicals or other waste materials. Constructed from clear PVC with a high tensile steel helix and is water resistant, durable, smooth bore, good abrasion, rot and chemical resistance, good crush and kink resistance. Preferable for the suction and delivery of water, and dilute chemicals.

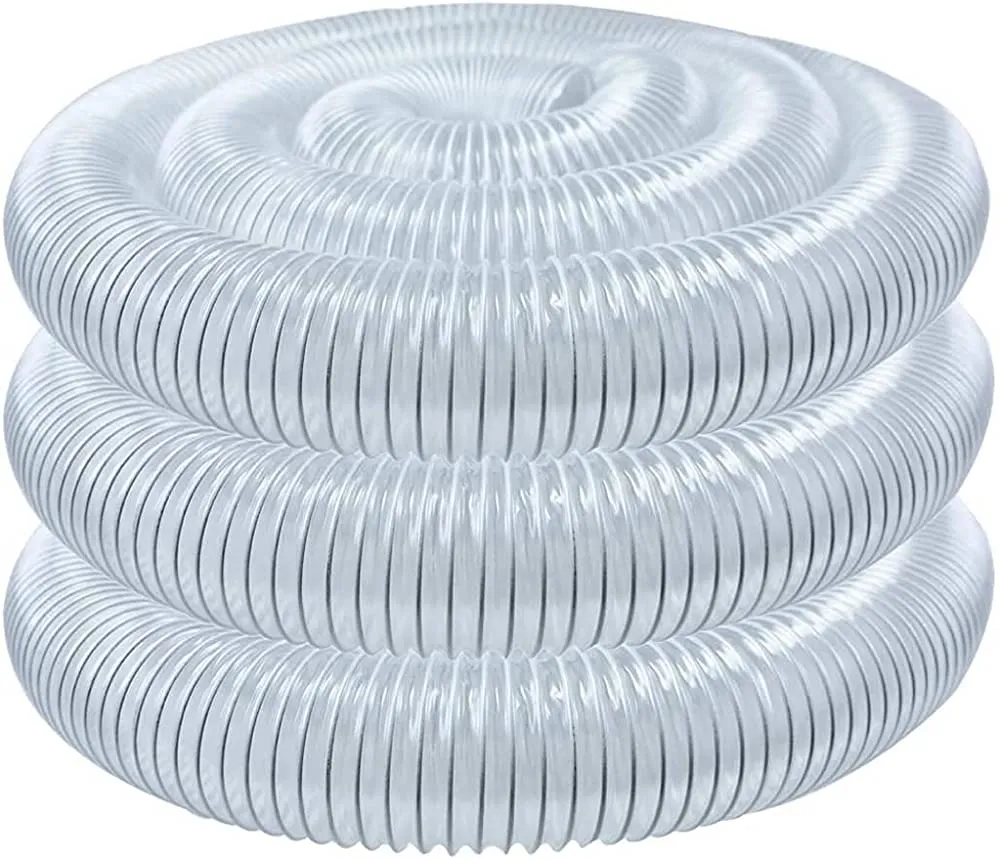

Suction and delivery hoses, otherwise simply known as S&D hoses or suction and discharge hoses, can not only transfer media from one location to another via gravity, but they also use negative pressure to act more like a vacuum without collapsing, crushing or kinking under the pressure. Manufactured from flexible PVC with a high-tensile carbon steel wire helix, this suction and delivery hose is suitable for transferring industrial liquids and food products.
| Size | ID (mm) | OD (mm) | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (g/m) | Length (m/roll) |
|---|---|---|---|---|---|---|
| 1/2'' | 12 | 18 | 8 | 24 | 210 | 100 |
| 3/4'' | 19 | 25 | 6 | 18 | 320 | 50 |
| 1'' | 25 | 31 | 6 | 18 | 450 | 50 |
| 2'' | 50 | 58 | 5 | 15 | 1200 | 50 |
| 3'' | 76 | 86 | 4 | 12 | 2000 | 30 |
| 4'' | 102 | 112 | 4 | 12 | 3000 | 30 |
| Size | ID (mm) | OD (mm) | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (g/m) |
|---|---|---|---|---|---|
| 3/8'' | 10 | 15 | 6 | 18 | 160 |
| 1/2'' | 12 | 17 | 6 | 18 | 170 |
| 1'' | 25 | 30 | 4 | 12 | 350 |
| 2'' | 50 | 56 | 3 | 10 | 850 |
| Size | ID (mm) | OD (mm) | Working Pressure (Bar) | Weight (g/m) |
|---|---|---|---|---|
| 1/4'' | 6 | 11 | 8 | 115 |
| 1'' | 25 | 32 | 6 | 500 |
| 2'' | 50 | 62 | 5 | 1600 |
| 4'' | 102 | 116 | 4 | 3800 |
| 6'' | 152 | 168 | 3 | 6000 |

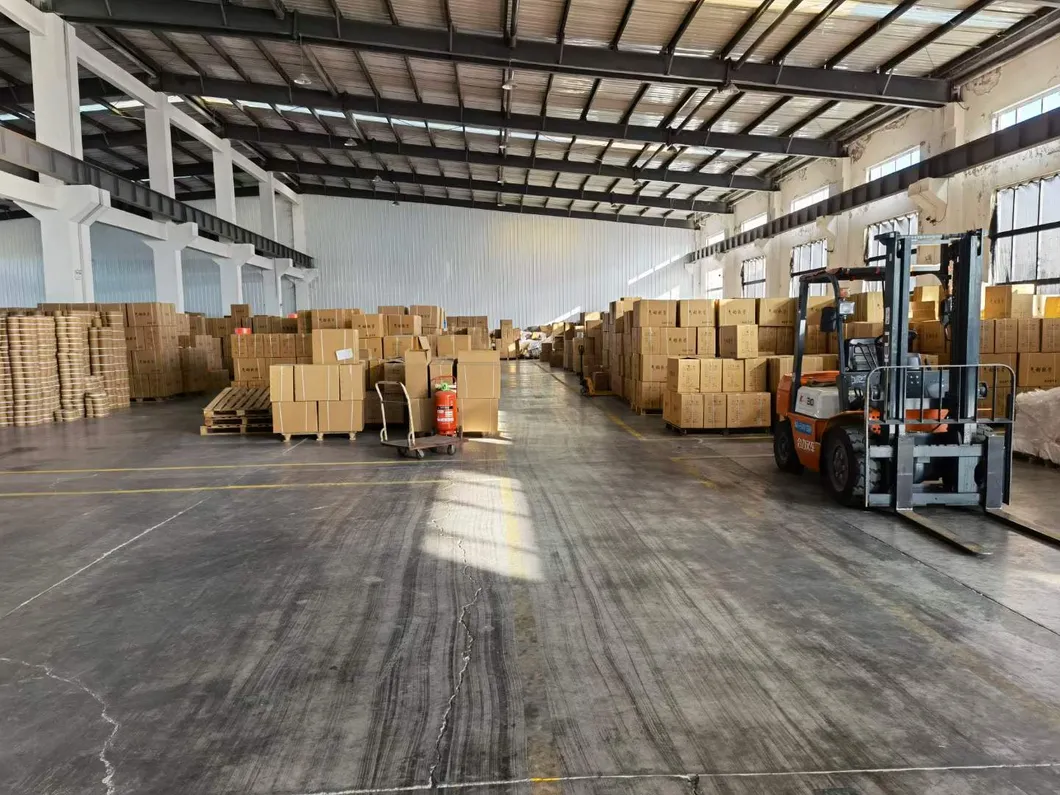

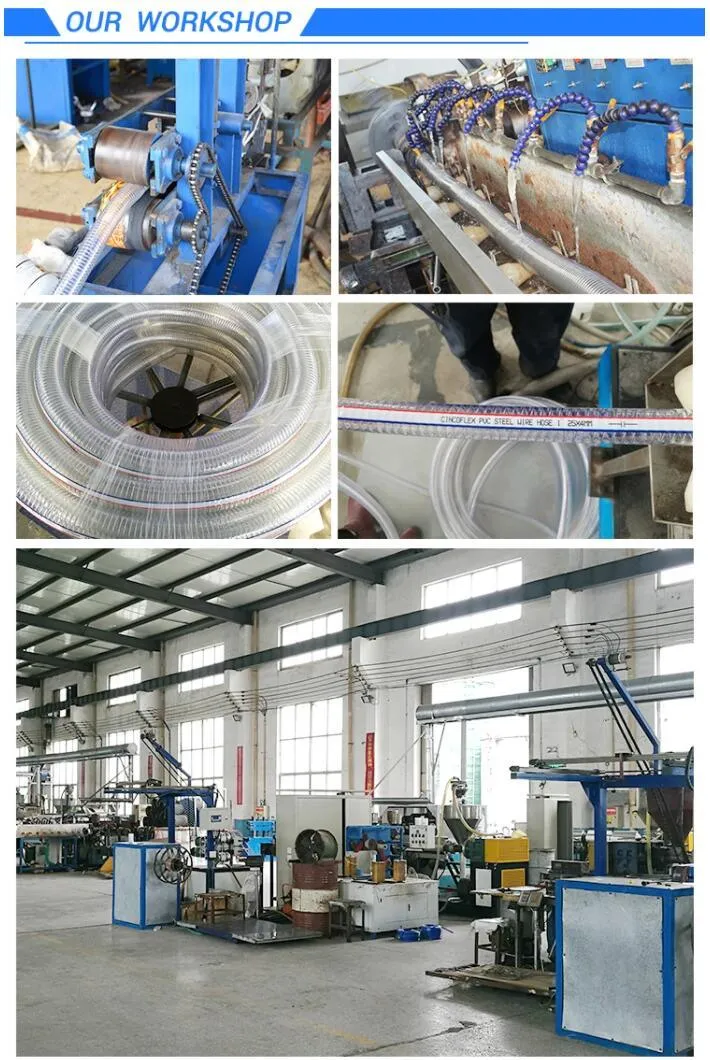

Focused on professional hose development, the facility integrates production, sales, and research as a high-tech polymer composite manufacturer. The product range includes hundreds of varieties such as pneumatic hoses, high-pressure fluid hoses, garden hoses, steel wire hoses, and ventilation pipes. We adhere to the principle of "quality first, service first" for management and target "zero defects" as our quality objective.
A PVC steel wire fiber composite hose is a versatile industrial solution. It combines the strength of a steel wire helix with the flexibility of PVC and the durability of synthetic fibers.
