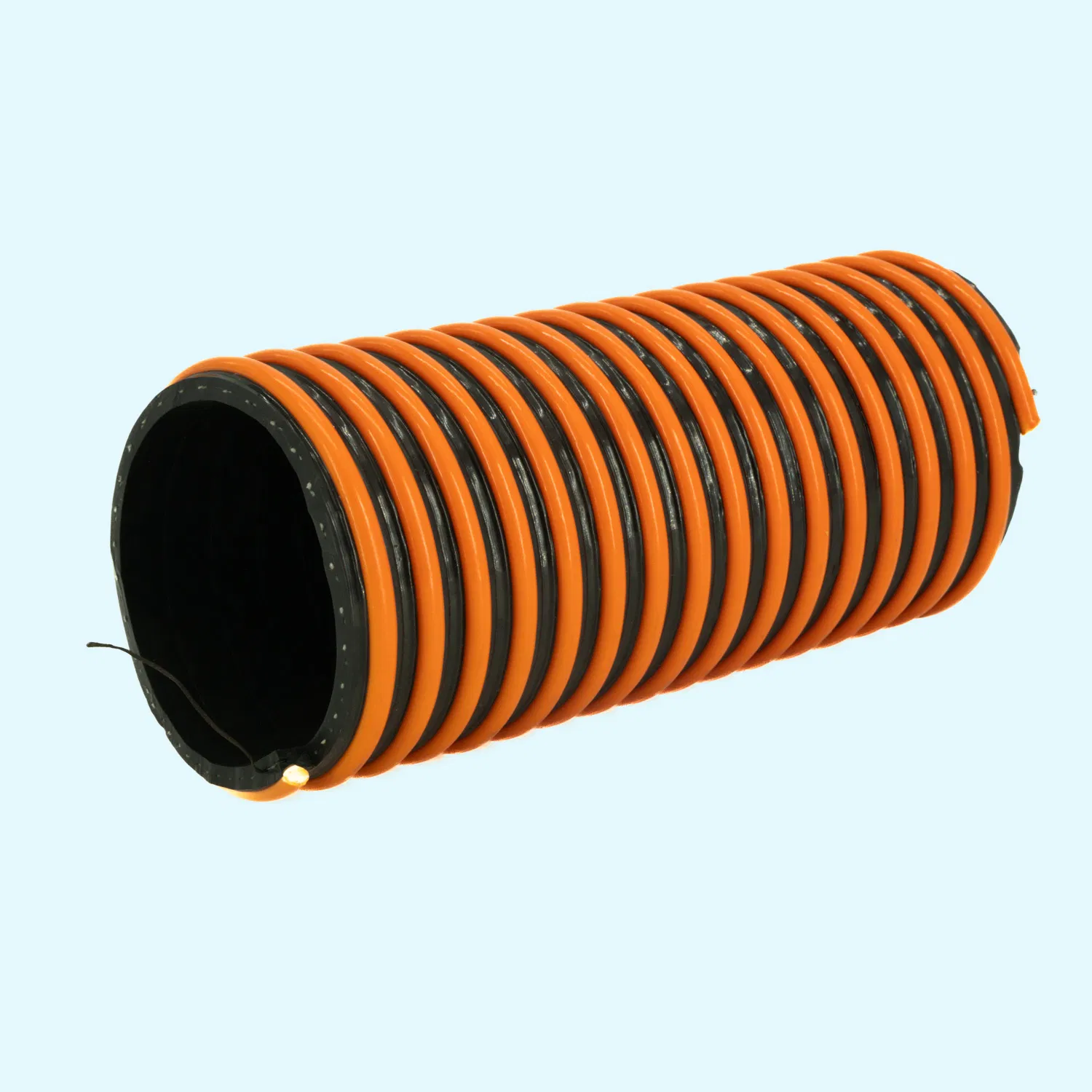

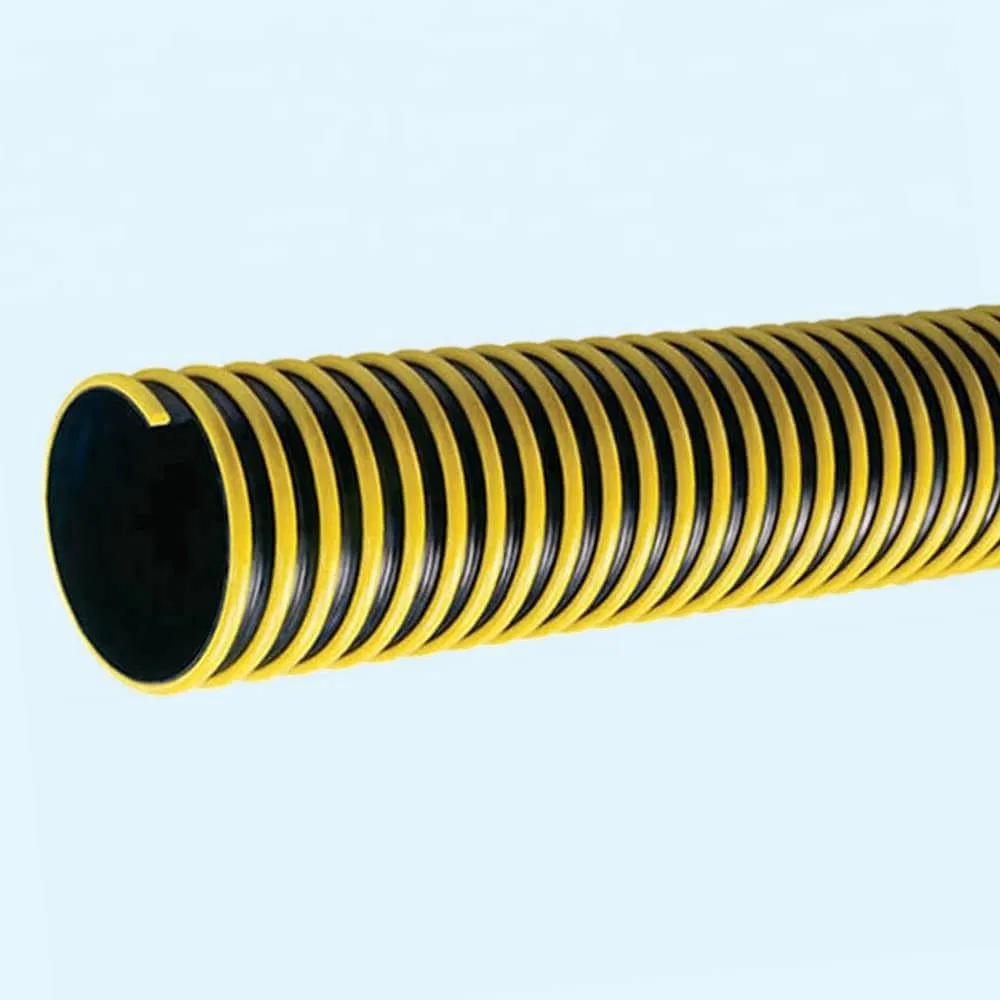

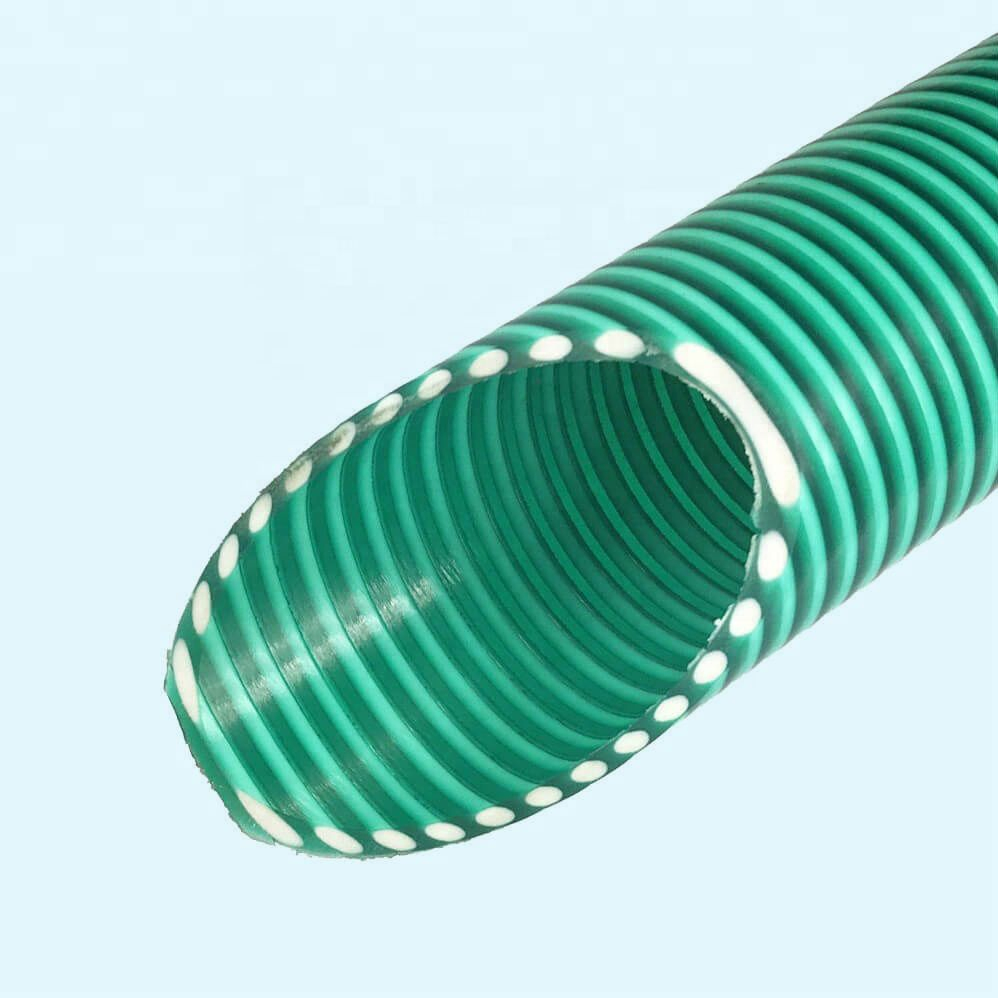

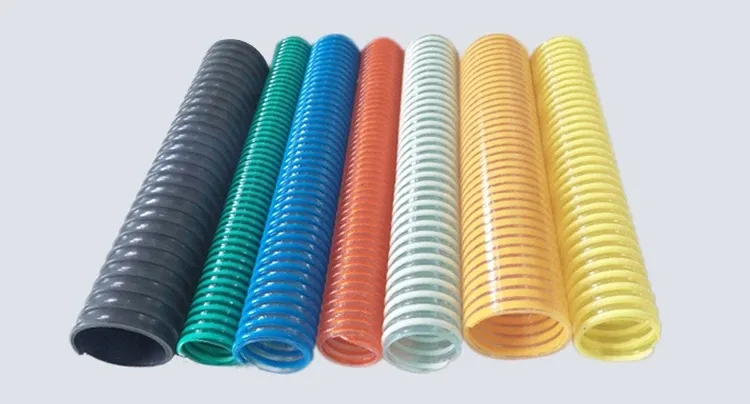

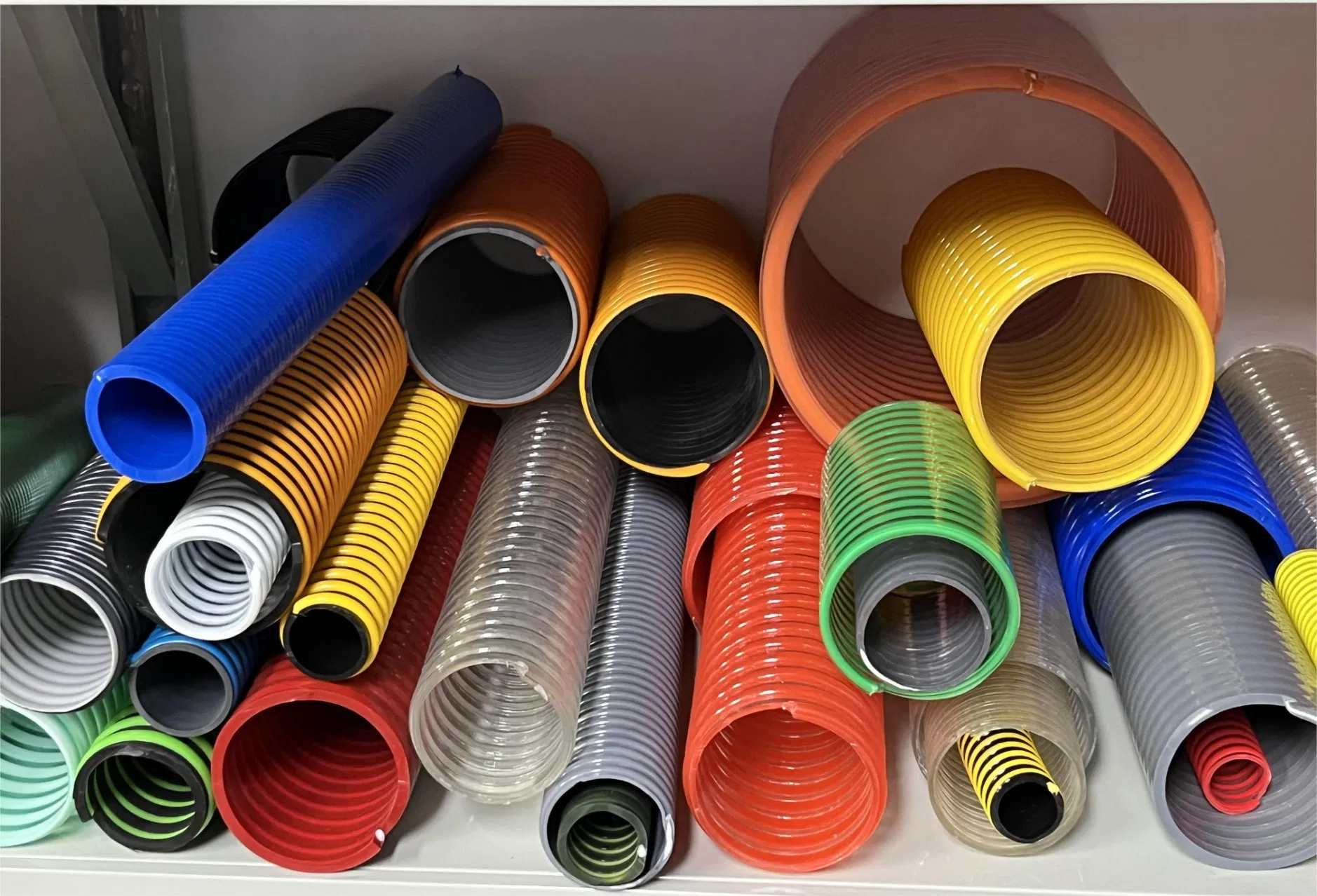

Corrugated Flexible PVC Suction Reinforced Hose 3/4'' 1'' 2'' 3'' 4'' 5'' 6'' 8'' for Water Oil Pump SPA Duct Grit Sewage Mining Vacuum Use

1 / 5

Corrugated Flexible PVC Suction Reinforced Hose 3/4'' 1'' 2'' 3'' 4'' 5'' 6'' 8'' for Water Oil Pump SPA Duct Grit Sewage Mining Vacuum Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

pvc suction hose

Color

Hollow

Shape

Round

Usage

Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe

Application

Oil Suction and Delivery

Characteristic

High Pressure

Feature

Corrosion Resistant

Function

Industrial Drainage

Sample

Free-Provide

Thickness

4mm-24mm

MOQ

1000 Meters

Certification

CE ISO

HS Code

3917390000

Production Capacity

2000tons/Year

Packaging & Delivery

Package Size

40.00cm * 40.00cm * 25.00cm

Gross Weight

25.000kg

Transport Package

Woven Plastic Cloth Wrapped

Product Description

Corrugated Flexible PVC Suction Reinforced Hose 3/4'' to 16'' for Water Oil Pump Spa Duct Grit Sewage Mining Vacuum Use

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	19	23	6	90	18	270	230	50
1	25	29	6	90	18	270	290	50
1-1/4	32	38	6	90	18	270	400	50
1-1/2	38	46	6	90	18	270	650	50
2	50	56	5	75	15	225	700	50
2-1/2	63	71	4	60	12	180	1170	30
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
5	125	137	3	45	9	135	3300	30
6	152	166	2	30	6	90	5500	20
8	200	216	2	30	6	90	6700	10
10	254	270	2	30	6	90	10000	10
12	305	329	2	30	6	90	18000	10
14	358	382	2	30	6	90	20000	10
16	408	432	2	30	6	90	23000	10

Frequently Asked Questions

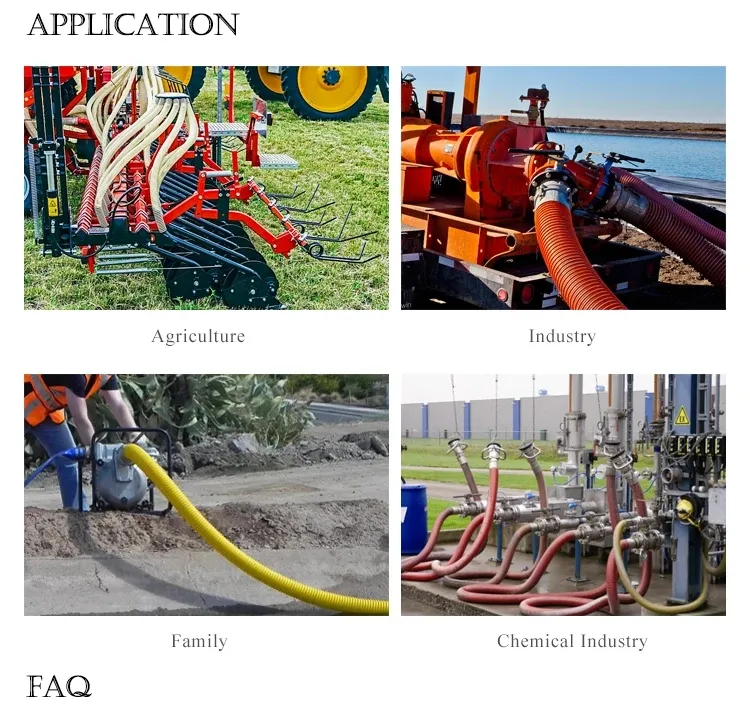

What are the primary applications for this PVC suction hose?

This hose is versatile and designed for water and oil pumps, spa ducts, grit, sewage, mining, and various vacuum applications. It is also suitable for agricultural irrigation and industrial drainage.

What size range do you offer for the corrugated flexible hose?

We provide a wide range of specifications, starting from 3/4" up to 16" in diameter, catering to both small-scale and large industrial needs.

Is the hose resistant to chemicals and corrosion?

Yes, the hose is specifically manufactured to be corrosion-resistant, making it ideal for handling various fluids in industrial and agricultural environments.

What is the working pressure capacity of these hoses?

The working pressure varies by size, ranging from 2 bar for larger diameters up to 6 bar for smaller sizes, with a burst pressure safety factor of 3:1.

Can I request a sample before placing a bulk order?

Absolutely. We offer free-provide samples so you can verify the quality and suitability of the hose for your specific project requirements.

How is the product packaged for international transport?

To ensure safe delivery, the hoses are wrapped in durable woven plastic cloth, protecting them from environmental factors during shipping.
