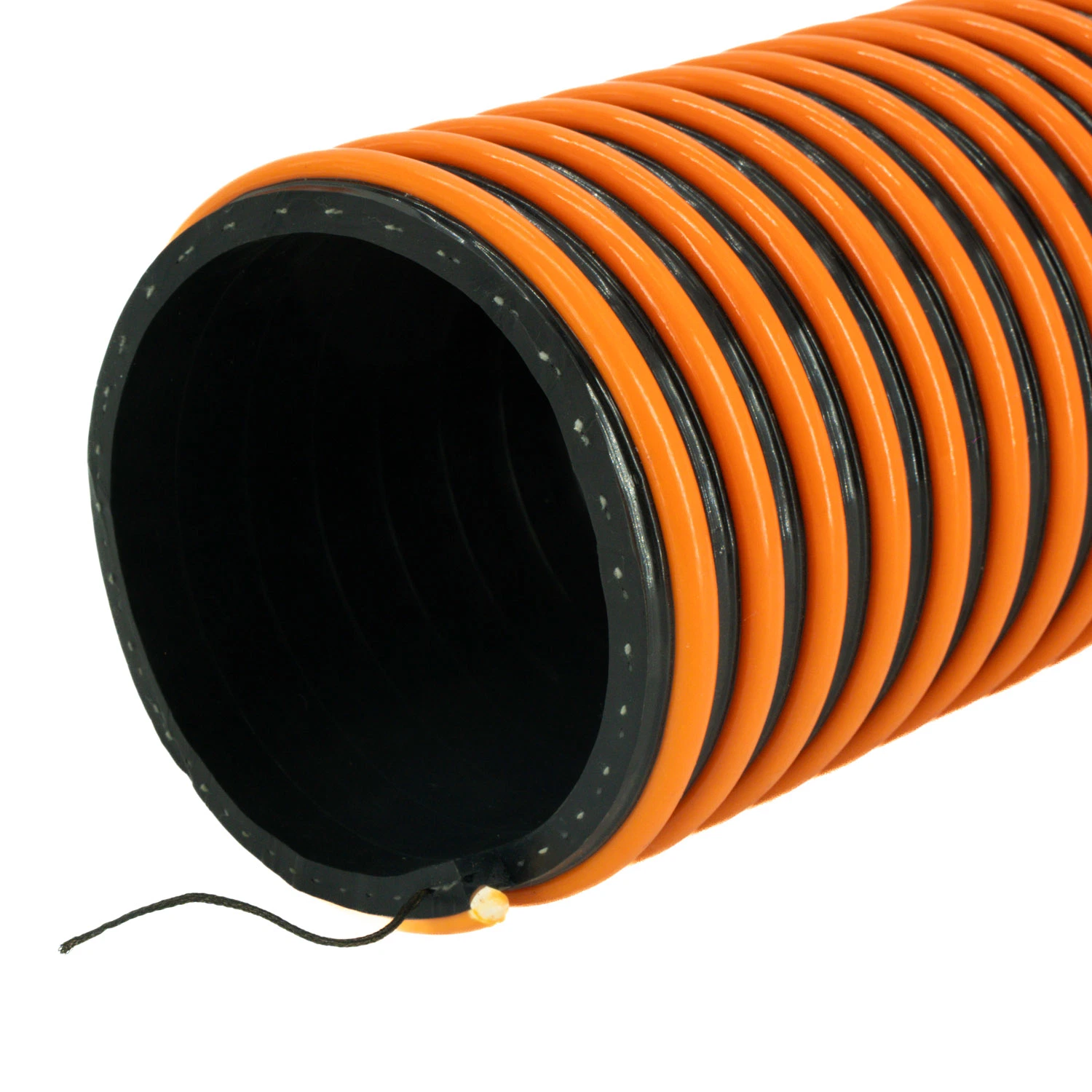

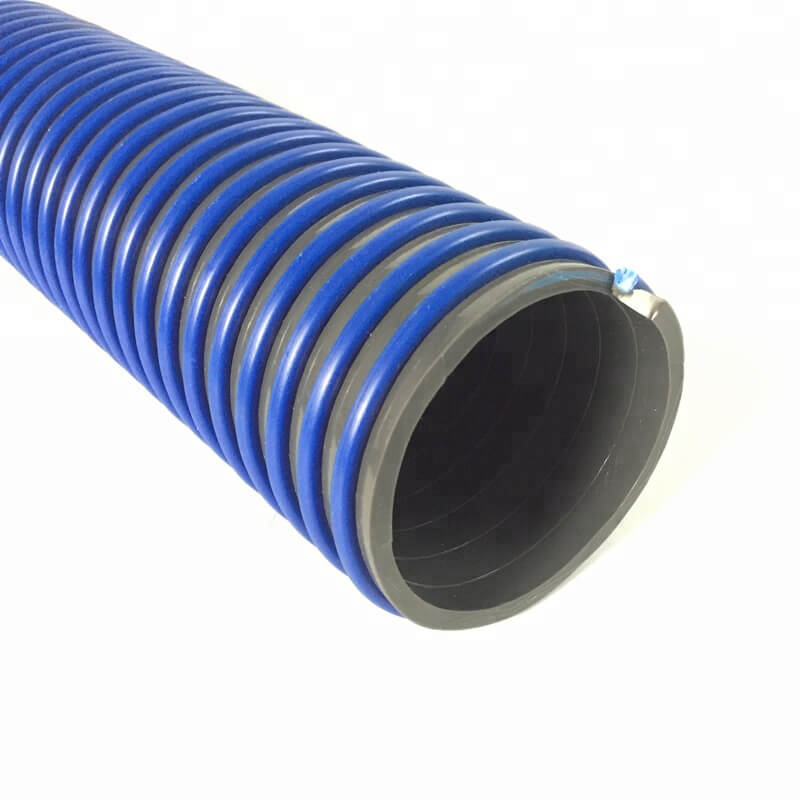

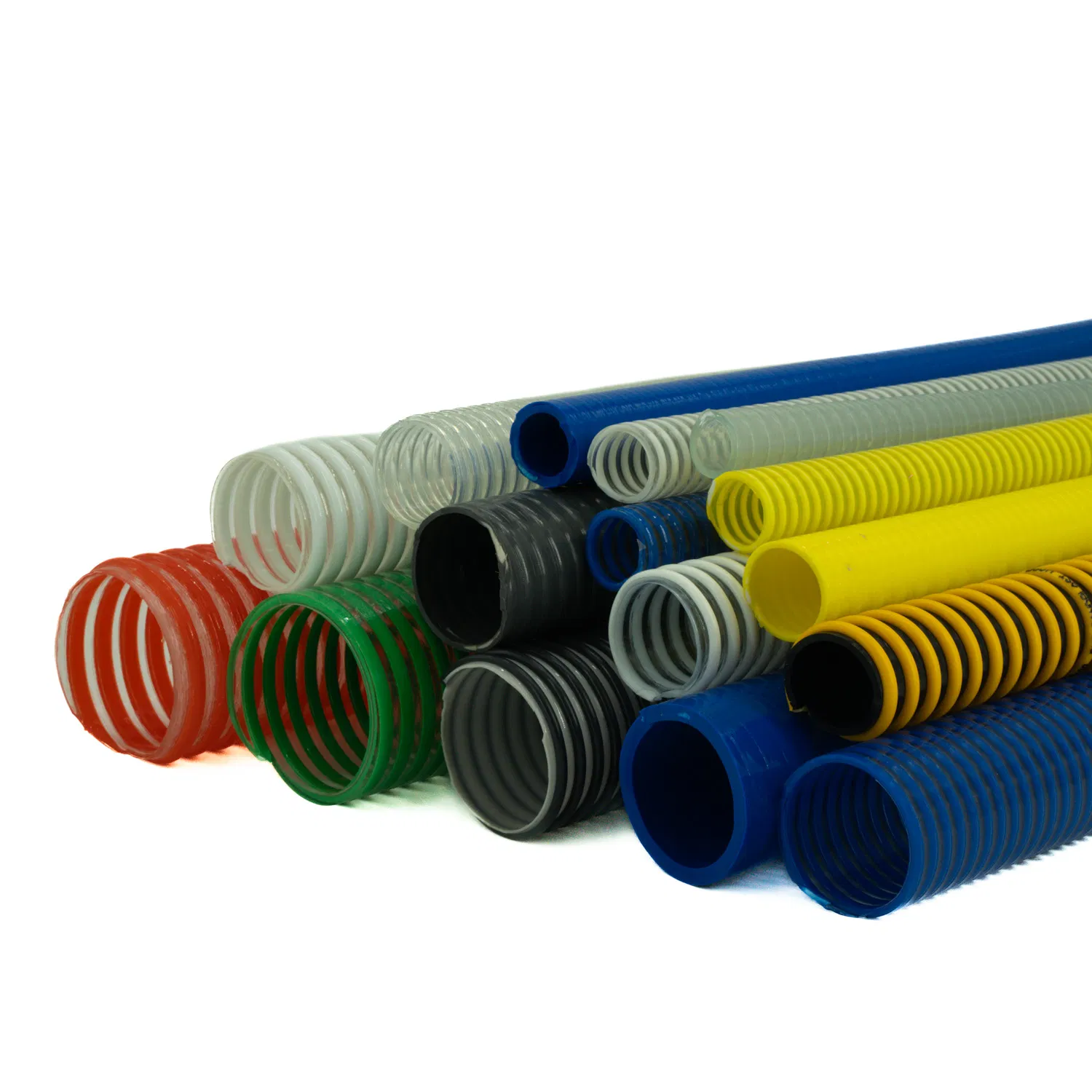

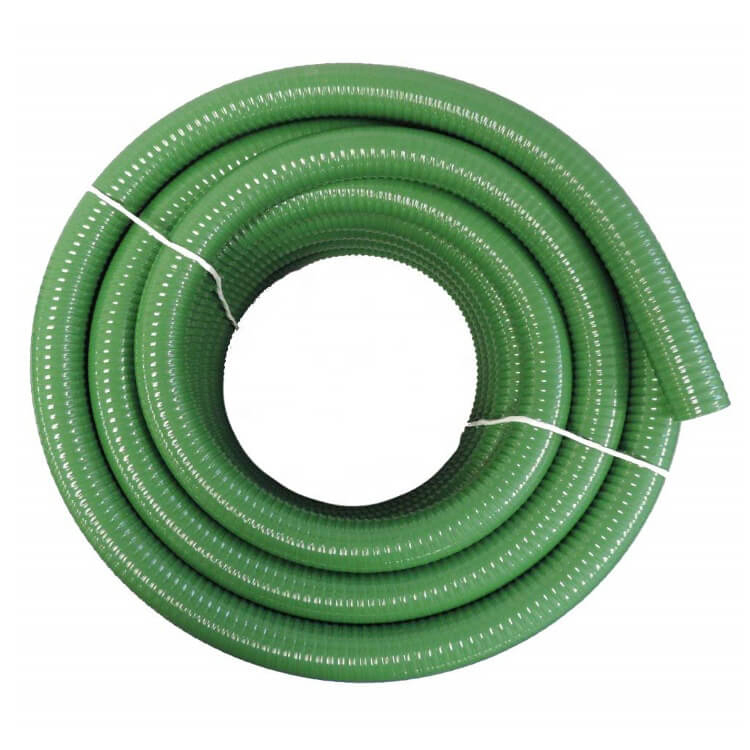

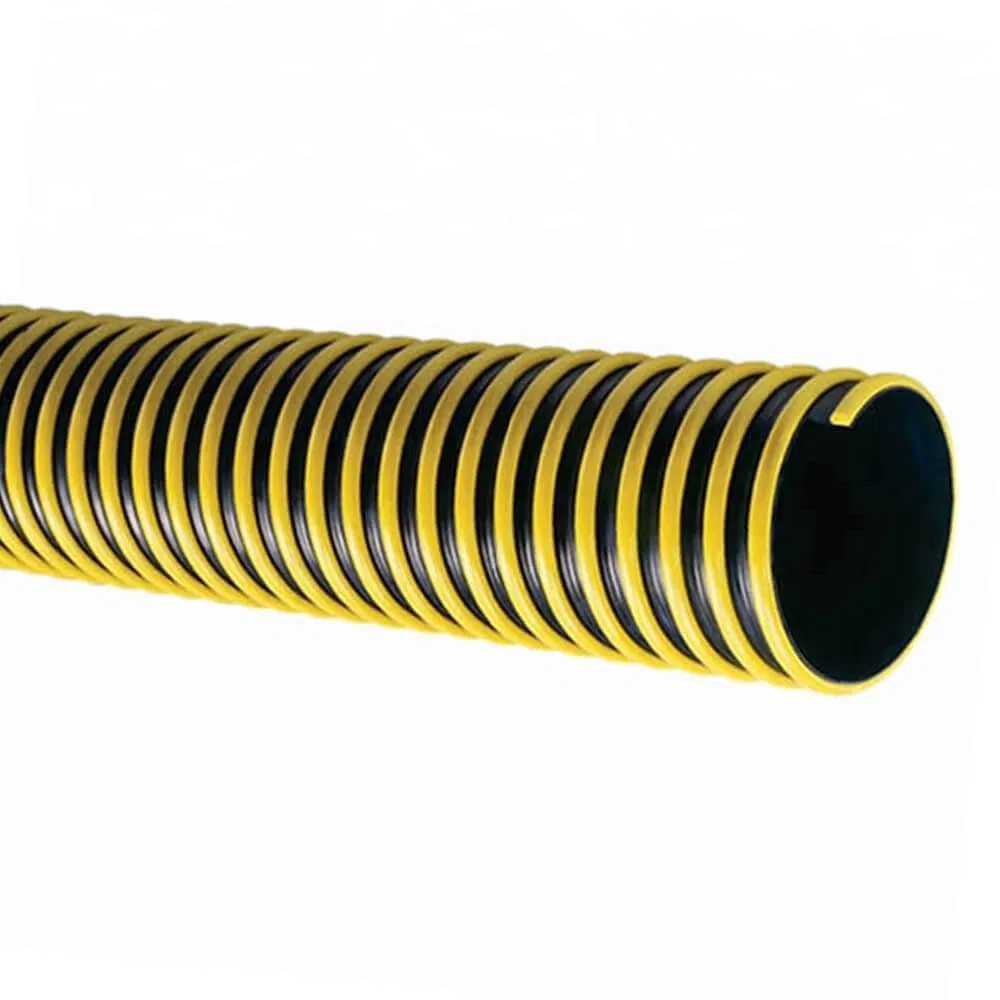

Durable Spiral PVC Water Suction Hose Reinforced Wire 1 2 3 4 6 10 12 14 16 Inch for Mining Vacuum Water Oil Pump SPA Duct Grit Sewage Plastic Tubes

1 / 5

Durable Spiral PVC Water Suction Hose Reinforced Wire 1 2 3 4 6 10 12 14 16 Inch for Mining Vacuum Water Oil Pump SPA Duct Grit Sewage Plastic Tubes

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

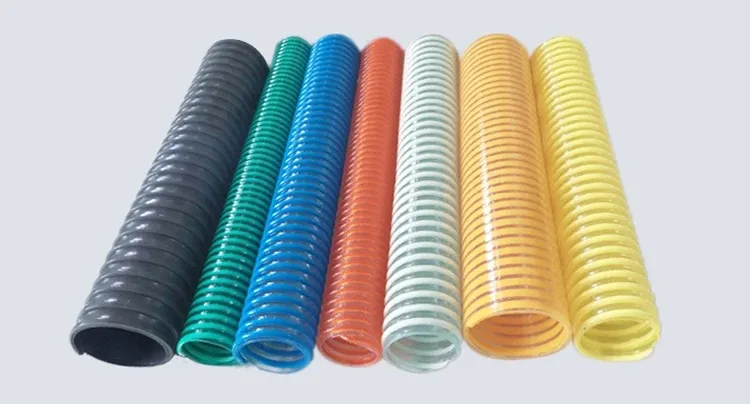

Model NO.:PVC Suction Hose

Color:Color

Usage:Drainpipe, Water Supply Pipe, Agricultural Irrigation, etc.

Characteristic:High Pressure

Feature:Corrosion Resistant

Sample:Free-Provide

Thickness:4mm-24mm

MOQ:1000 Meters

Certification:CE ISO

Specification:3/4"-16"

Capacity:2000tons/Year

Origin:Shandong, China

Product Description

Durable Spiral PVC Water Suction Hose Reinforced Wire 1 2 3 4 6 10 12 14 16 Inch

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	19	23	6	90	18	270	230	50
1	25	29	6	90	18	270	290	50
1-1/4	32	38	6	90	18	270	400	50
1-1/2	38	46	6	90	18	270	650	50
2	50	56	5	75	15	225	700	50
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
6	152	166	2	30	6	90	5500	20
8	200	216	2	30	6	90	6700	10
12	305	329	2	30	6	90	18000	10
16	408	432	2	30	6	90	23000	10

Logistics Information

Package Size:40.00cm * 40.00cm * 25.00cm

Gross Weight:25.000kg

Transport Package:Woven Plastic Cloth Wrapped

Frequently Asked Questions

What are the primary applications for this PVC suction hose?

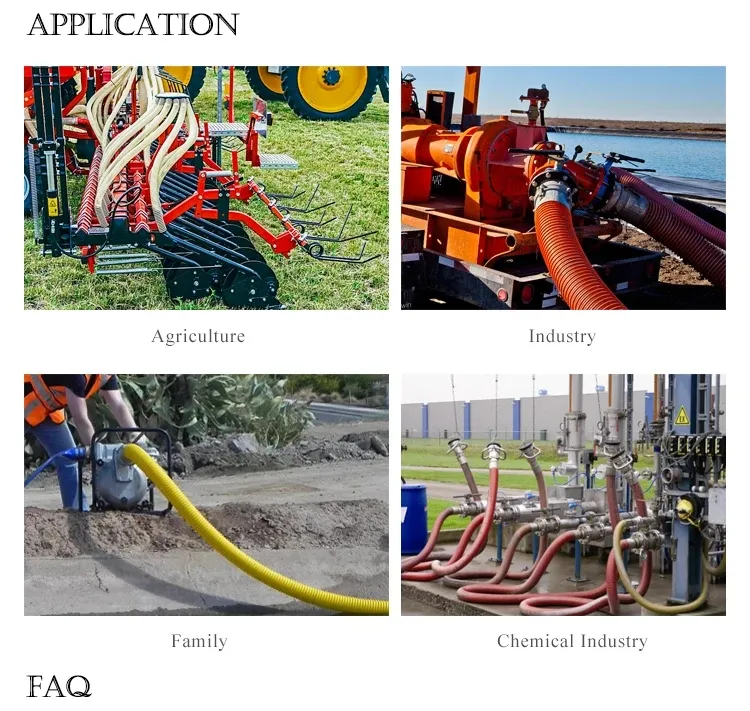

This hose is widely used for industrial drainage, agricultural irrigation, mining vacuum systems, and for pumping water, oil, and grit.

What is the pressure capacity of the reinforced spiral hose?

The working pressure ranges from 2 bar to 6 bar, with burst pressures reaching up to 270 psi (18 bar) for smaller diameters.

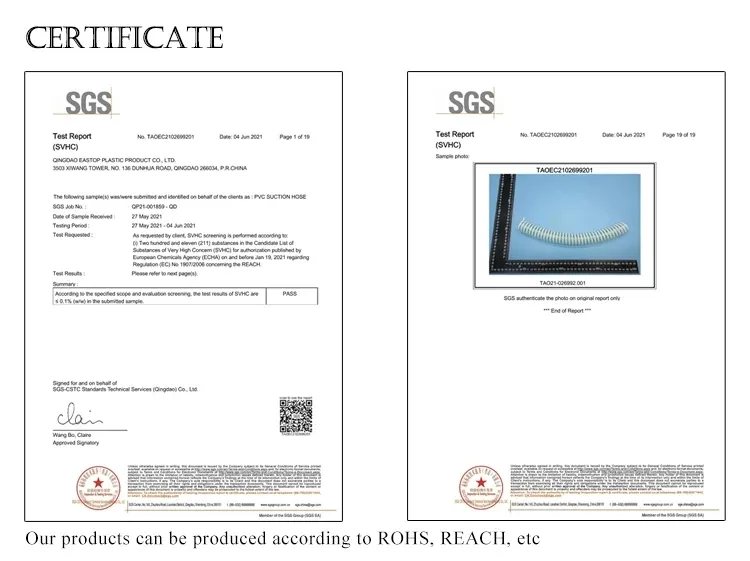

Does the product come with any certifications?

Yes, our PVC Suction Hoses are CE and ISO certified, ensuring high quality and safety standards.

Can I request a sample before placing a bulk order?

We provide free samples for quality testing. Please contact our support to arrange the shipping details.

What range of sizes are available for purchase?

We offer a comprehensive range of sizes from 3/4 inch up to 16 inches in diameter to meet various industrial needs.

What is the Minimum Order Quantity (MOQ)?

The standard minimum order quantity for our PVC suction hose is 1000 meters.
