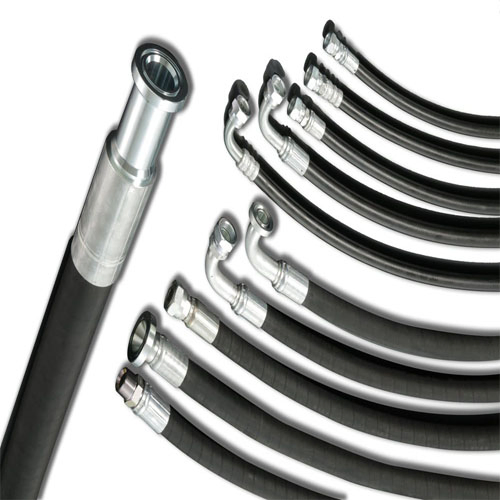

E10 Rubber Reinforced Fuel Hose Pipe for Engines Oil Unleaded Fuel Injection UK Hydraulic Hose Cutting Toolharga Mesin Press Hose Hydraulic

Customization:	Available
Material:	Silicone Rubber
Capability:	Heat-resistant Rubber Hose

Send Inquiry

Product Description

Overview

Model NO.	LT SA5993
Color	Black
Inner Layer	Suitable for Hydraulic Oil That Can Be Degraded
Reinforcement	Four Layers of Steel Wire Winding
Outer Layer	Non-Stripping, Wear-Resistant
Weight(Kg/M)	0.384-6.33
Temperature Range	-40°c to +121°c
Transport Package	Pallet or Wooden Box
Origin	China
Production Capacity	50,000,000 meters/Year

Packaging & Delivery

Package Size	100.00cm * 100.00cm * 100.00cm
Package Gross Weight	20.000kg

Product Description

Product application: Suitable for large-scale long-range machinery such as excavators or demanding environmental use requirements.
Inner rubber layer: Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded.
Reinforcement: Four layers of steel wire winding (1/4"-1"), pulse ≥1 million; six layers of steel wire winding (1 1/4"-2"), pulse ≥1 million times.
Outer layer: Non-stripping, wear-resistant, weather-resistant synthetic rubber.
Temperature range: -40°C to +121°C (-40°F to +250°F).
Low bending: Bending radius is reduced by 27% compared with ISO18752 standard; reduced by 37% compared with SAE standard.
High pressure: Pressure conforms to ISO18752 DC standard.

Product Parameters

Model	ISO18752			Inner Diameter (mm)	Outer Diameter (mm)	Working Pressure (MPa)	Min. Burst Pressure (MPa)	Min. Bending Radius (mm)	Weight (kg/m)	Connector Series
Model	5993 Standard	5993AR Wear-Resistant	5993SAR Super Wear	Inner Diameter (mm)	Outer Diameter (mm)	Working Pressure (MPa)	Min. Burst Pressure (MPa)	Min. Bending Radius (mm)	Weight (kg/m)	Connector Series
SA5993-1/4"-4	BC	CC	CC	6.3	13	42	168	50	0.384	41 series
SA5993-1/4"-4	DC	DC	DC	6.3	15	45	180	50	0.428	41 series
SA5993-5/16"-4	DC	DC	DC	8	16.3	45	180	60	0.479	41 series
SA5993-3/8"-4	DC	DC	DC	10	18.7	45	180	70	0.591	41 series
SA5993-1/2"-4	DC	DC	DC	13	22.8	45	180	140	0.701	41 series
SA5993-5/8"-4	DC	DC	DC	16	27	45	180	180	1.017	41 series
SA5993-3/4"-4	DC	DC	DC	19	30.8	42	168	220	1.383	41 series
SA5993-1"-4	DC	DC	DC	25	38	42	168	250	1.928	41 series
SA5993-11/4"-6	DC	DC	DC	32	44.5	42	168	400	3.626	61 series
SA5993-11/2"-6	DC	DC	DC	38	52.5	42	168	480	4.404	61 series
SA5993-2"-6	DC	DC	DC	51	66.5	42	168	650	6.33	61 series

Packaging & Shipping

International Exhibition

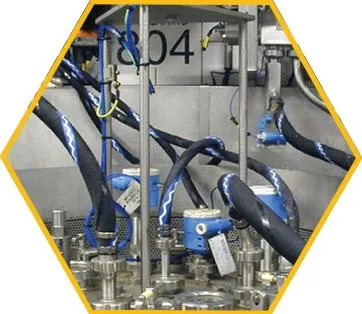

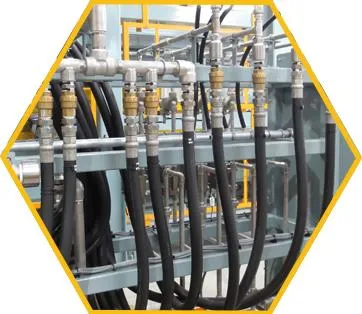

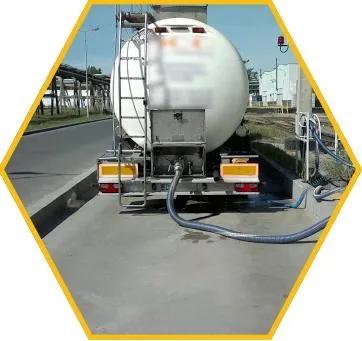

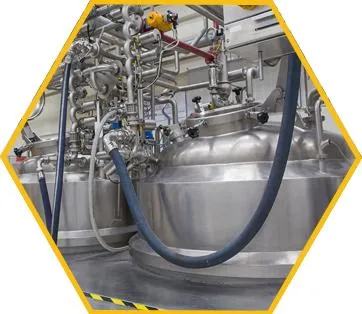

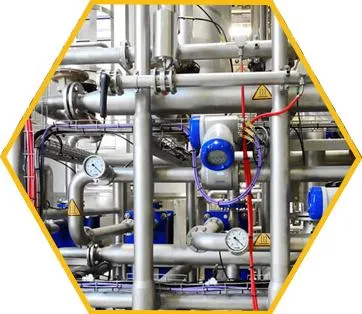

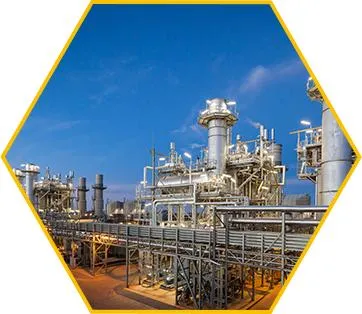

Application Scenario

Industry Presence

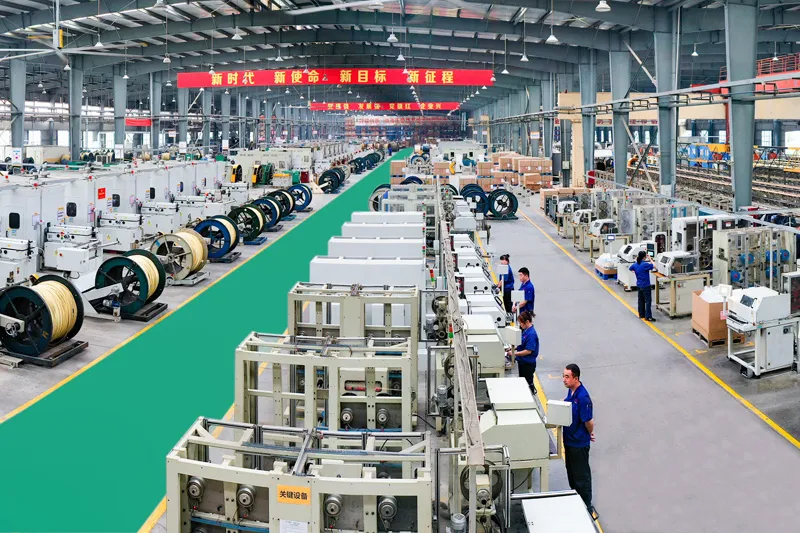

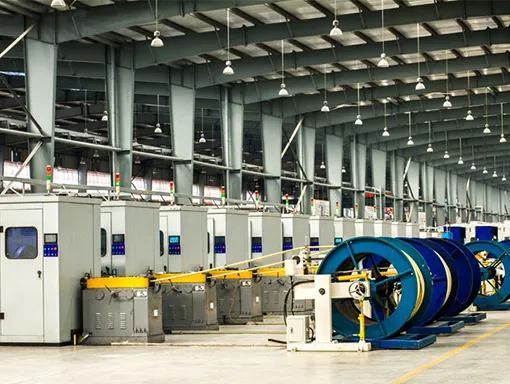

Established in 2003, the company is an industry-recognized high-quality rubber hose manufacture and service provider, devoting to R&D and sale of rubber compounds, hydraulic hoses, and fluid connectors. The facility features 46 high-speed steel wire braiders, 12 steel wire spiral production lines, and 200 CNC lathes.

Annual production capacity has increased to 30 million meters for hydraulic and industrial hoses, alongside 15,000 tons of rubber compounds. The quality management systems include ISO14001:2015, ISO9001:2015, and IATF 16949:2016.

Certifications

Professional certifications obtained include the Safety Certificate of Approval for Mining Products, MSHA, API Type Approval (API 16C and API 7K), ABS Type Approval, GOST, and Lloyd's Fire Test Certificate. The testing center holds CNAS accreditation with over 20 laboratories for impulse, burst, and salt spray tests.

Success Case

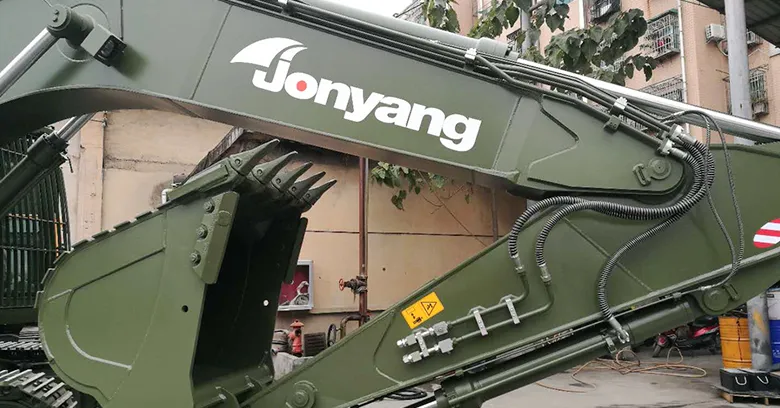

Application case of excavator hose in construction machinery:
Widely used in various types of construction machinery. Features long life, high pressure resistance (25% higher than SAE/DIN standard), and excellent pulse resistance. Suitable for demanding excavator operations.

More Products

Frequently Asked Questions

Q1: What is the main application of the SA5993 hydraulic hose? A1: It is primarily designed for large-scale long-range machinery like excavators and other construction equipment operating in demanding environments.

Q2: What is the temperature range this hose can withstand? A2: The hose operates effectively in temperatures ranging from -40°C to +121°C (-40°F to +250°F).

Q3: How does the bending radius compare to standard hoses? A3: The SA5993 features a low bending radius, reduced by 27% compared to ISO18752 and 37% compared to SAE standards, allowing for easier installation in tight spaces.

Q4: Is the outer layer of the hose durable? A4: Yes, the outer layer is made of non-stripping, wear-resistant, and weather-resistant synthetic rubber to ensure a long service life.

Q5: What certifications do your hydraulic hoses carry? A5: Our products meet multiple international standards including MSHA, API Type Approval, ABS Type Approval, and ISO9001/ISO14001 quality management systems.

Q6: What is the pulse resistance of the reinforcement layers? A6: Both the four-layer and six-layer steel wire winding reinforcements are tested to withstand over 1 million pulses.
