| Model NO. | TFM097 | Certification | ISO 9001:2008, CE |
| Product Name | Gypsum Powder Production Line | Raw Material | Gypsum Rock |
| Control Type | CNC / PLC Siemens Control | Automatic Grade | High Automatic |
| Crushing Degree | Fine Grinding Machine | Fuel Type | Coal, Gas, Oil |
| Calcination System | Vertical Boiling Furnace | Power Required | 220kw |
| Land Area Required | 30m X 18m | Labour Required | 5-7 Persons |
The Gypsum Powder Production Line is a state-of-the-art processing system engineered for the efficient production of high-quality building gypsum powder. This line integrates advanced crushing, grinding, and calcination technologies to deliver stable, fine powder ideal for various construction applications.
SEO Keywords: gypsum powder production line, gypsum powder plant, gypsum grinding mill, gypsum processing equipment, gypsum powder machine, gypsum powder making line.

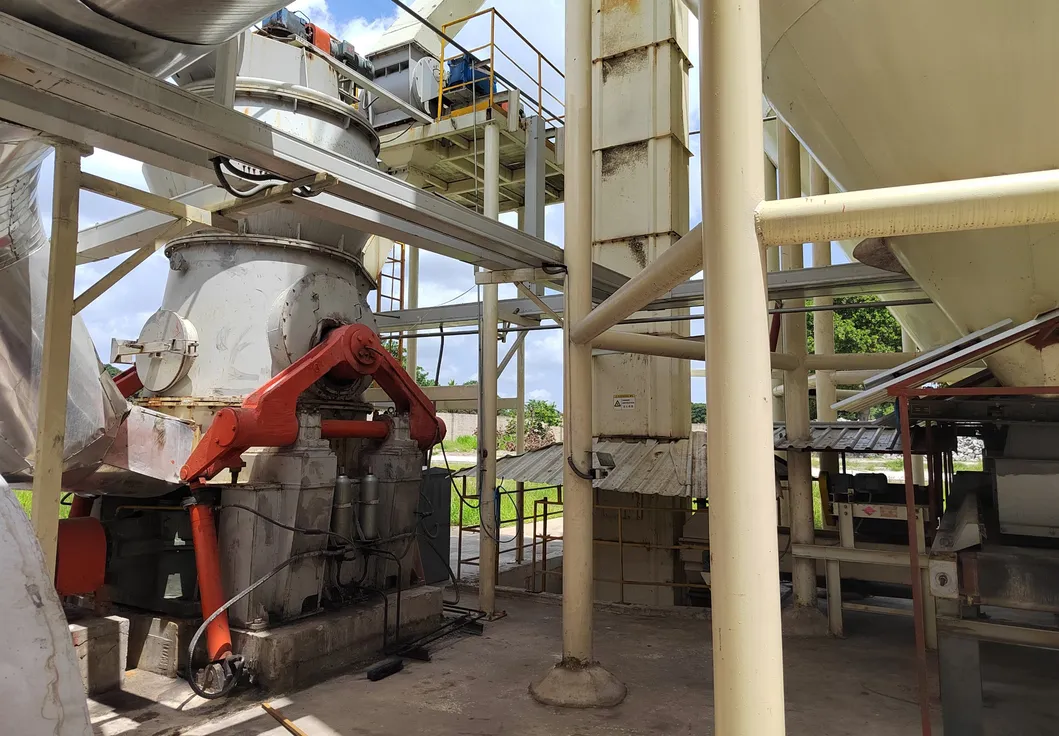

Equipped with a high-capacity jaw crusher and Raymond mill for uniform crushing and fine grinding up to 80-325 mesh.
Employs a fluidized furnace for stable calcination, delivering consistent product quality across large volumes.
Hot air process eliminates the need for heat transfer oil, resulting in higher energy efficiency and lower operating costs.
| Capacity per Year | Capacity per Hour | Rock Consumption / Yr | Calcinor Dimension |
|---|---|---|---|
| 30,000 tons | 4.2 tons | 36,000 tons | 4.5 x 1.2 x 1.4 m |
| 50,000 tons | 6.9 tons | 60,000 tons | 4.5 x 1.4 x 1.6 m |
| 100,000 tons | 13.88 tons | 120,000 tons | 4.5 x 2.0 x 2.2 m |
| 150,000 tons | 20.83 tons | 180,000 tons | 4.5 x 2.2 x 2.4 m |
| 200,000 tons | 27.77 tons | 240,000 tons | 4.5 x 2.4 x 2.6 m |
Production of high-quality gypsum powder for boards, wall plasters, and ceiling tiles.
Key raw material supply for paper-faced gypsum board production lines.
Ideal for manufacturing factories serving domestic and international markets.
