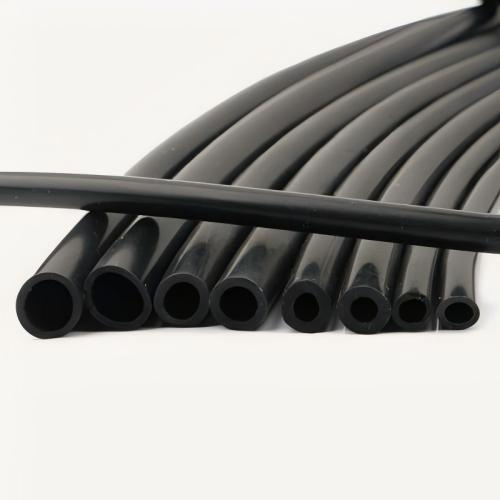

Ezchill 18oz Air Conditioning Refrigerant W Oil AC Cooling Hose Acpro R 134A a C Air Compressors Hose

Customization:	Available
Material:	Nitrile Rubber
Capability:	Rubber Air Hose

📋 Basic Information

Model NO.:

LT801

Color:

Black

Inner Tube:

Black Nr&SBR Synthetic Rubber

Reinforcement:

One Braid of High Tensile Super Flexible Steel Wire

Outer Layer:

Black or Yellow Nr&SBR Synthetic Rubber

Temperature:

-30°c~82°c (-22°f~180°f)

W.T(Kg/M):

0.42-5.16

Package:

Pallet or Wooden Box

Origin:

China

Capacity:

50,000,000 meters/Year

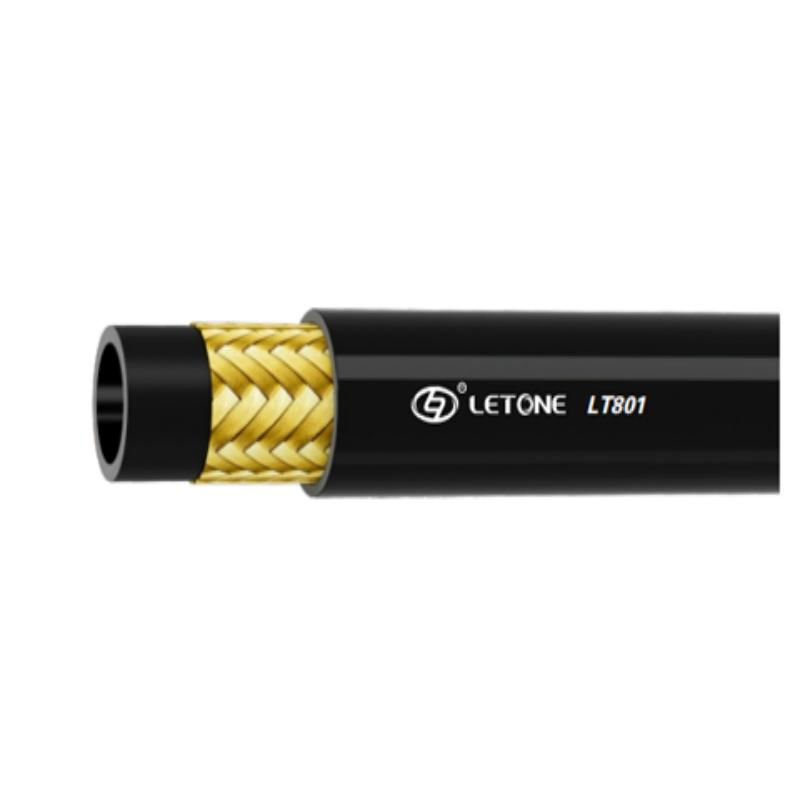

🚀 Product Description - LT801 WIRE BRAID AIR HOSE

🔍

Application: Designed for higher pressure air transfer services in construction and mining industries, suitable for extreme environments because of its abrasion resistant characteristic.

🛠

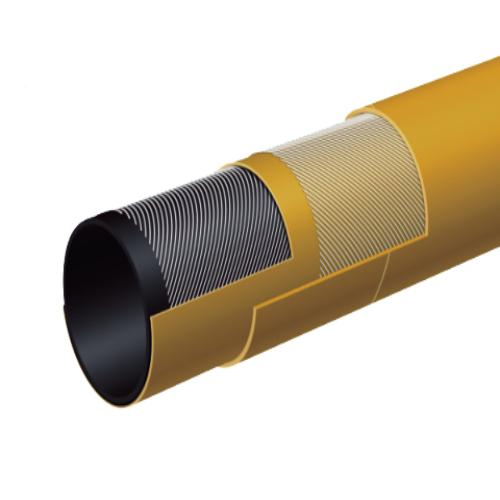

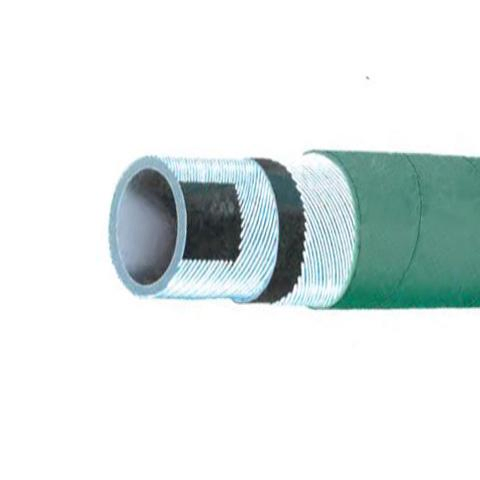

Construction: Inner tube of black NR&SBR synthetic rubber, reinforced with one braid of high tensile super flexible steel wire, and an outer layer of black or yellow NR&SBR synthetic rubber.

🌡

Temperature Range: -30°C to 82°C (-22°F to 180°F).

⚙

Customization: Hose dimension, pressure, and color can be customized based on requirements.

📊 Product Parameters

I.D.		O.D.		W.P	Min.B.P	Min.B.R.	W.T
in	mm	in	mm	psi	psi	mm	kg/m
1/2	13	0.87	22	600	2400	180	0.42
3/4	19	1.10	28	600	2400	240	0.55
1	25	1.34	34	600	2400	300	0.70
1-1/4	32	1.65	42	600	2400	420	1.07
1-1/2	38	1.89	48	600	2400	500	1.28
2	51	2.52	64	600	2400	630	1.99
2.5	64	3.26	77	450	1800	800	2.44
3	76	3.54	90	450	1800	920	2.90
4	102	4.65	118	450	1800	1300	5.16

📦 Packaging & Shipping

🌍 International Exhibition

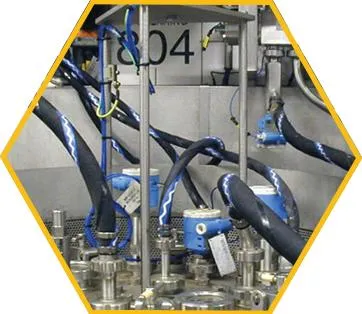

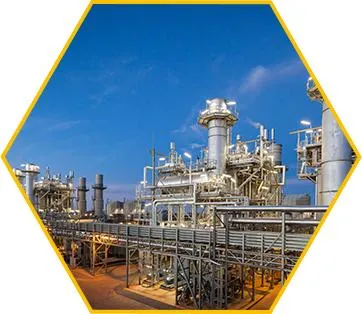

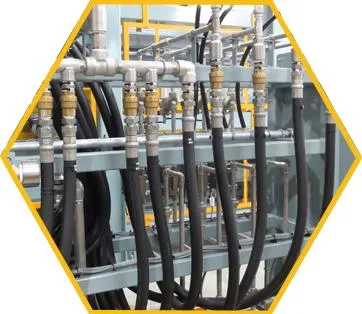

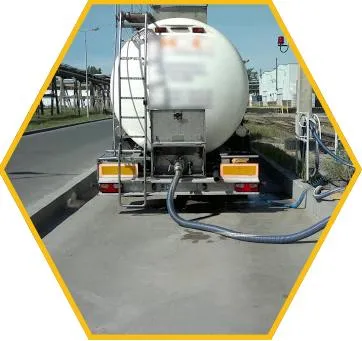

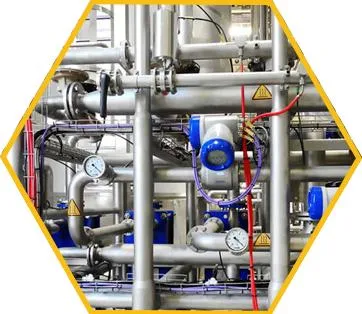

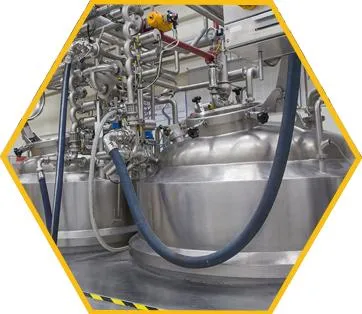

🏗 Application Scenario

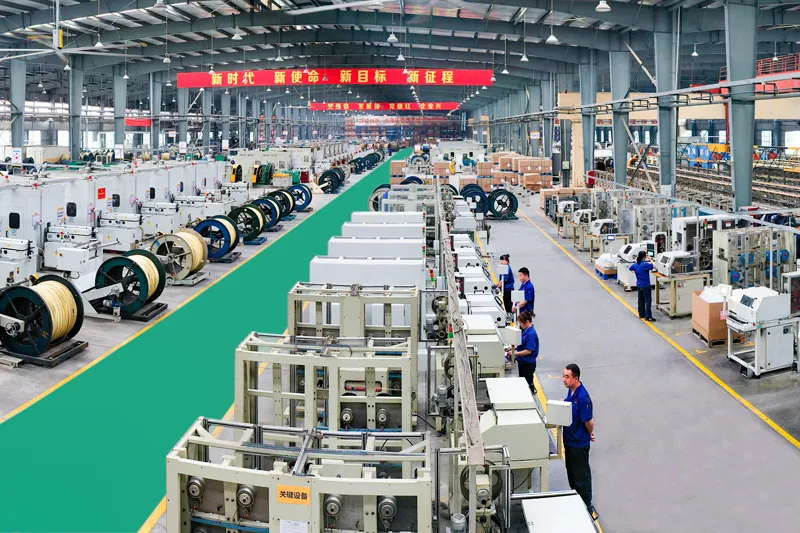

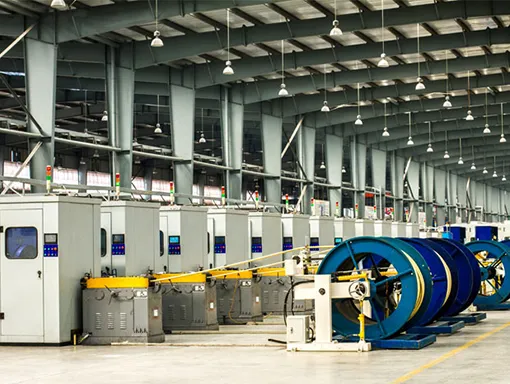

🏭 Manufacturing Capabilities

Established in 2003, the manufacturer is an industry-recognized high-quality rubber hose manufacture and service provider, devoting to R&D and sale of rubber compounds, hoses, fluid connectors, and seals. Recognized as a top ten rubber hose enterprise in China, the company maintains advanced production facilities.

Equipped with 46 high-speed steel wire braiders, 12 spiral production lines, 8 industrial hose lines, and 200 CNC lathes. Annual capacity includes 15,000 tons of rubber compounds and 30 million meters of hydraulic and industrial hoses.

🎖 Certifications & Testing

Holders of Safety Certificate for Mining Products, MSHA, API Type Approval (16C and 7K), ABS Type Approval, GOST, and Lloyd's Fire Test Certificate. Compliant with ISO14001:2015, ISO9001:2015, API Q1, and IATF 16949:2016.

The testing center is CNAS accredited, featuring impulse, burst, fire, and salt spray laboratories to ensure authority and accuracy.

✅ Success Case

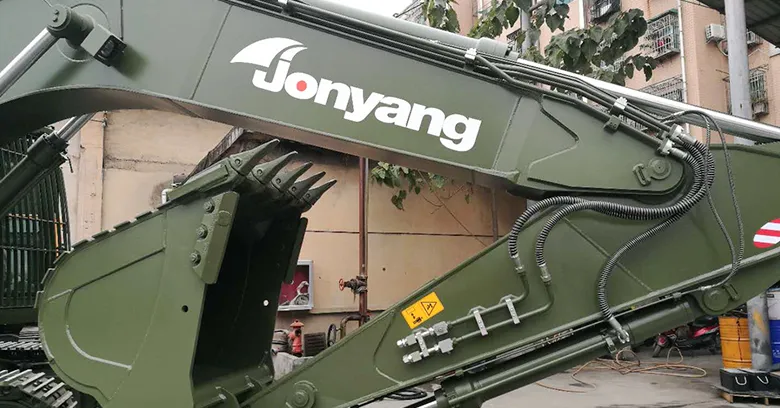

Excavator Hose in Construction Machinery

Widely used in various construction machinery. Key features: 5-year weather resistance, 2-year warranty, high pressure (25% higher than SAE/DIN standards), pulse resistance, and low bending radius.

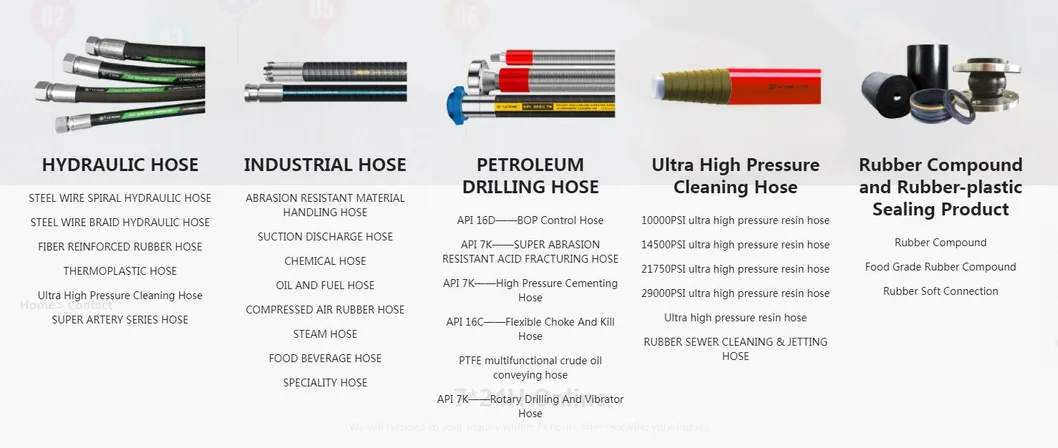

📦 More Products

❓ Frequently Asked Questions

What are the primary applications for the LT801 air hose?

The LT801 is specifically designed for high-pressure air transfer services in the construction and mining industries, particularly in extreme environments requiring high abrasion resistance.

What is the temperature tolerance of this hose?

The hose can safely operate within a temperature range of -30°C to 82°C (-22°F to 180°F).

Can I request customized dimensions or colors?

Yes, the hose dimensions, pressure ratings, and colors can be fully customized according to your specific project requirements.

What materials are used in the construction of the LT801 hose?

It features an inner tube of black NR&SBR synthetic rubber, reinforced by one braid of high tensile super flexible steel wire, and an outer layer of black or yellow NR&SBR synthetic rubber.

What quality certifications does the manufacturer hold?

The manufacturing processes are certified under ISO9001:2015, ISO14001:2015, API Q1, and IATF 16949:2016, among other international mining and safety standards.

How does this hose compare to standard SAE/DIN hoses?

Our hoses are engineered for high performance, offering pressure resistance that is 25% higher than standard SAE/DIN specifications, alongside superior pulse resistance.
