FKM Low Temperature Bisphenol Curable Rubber Fuel Injection Rubber High Tensile Strength Hose

Basic Information

Model NO.	DHF Series
Shore A	65-90
Compression Set	17

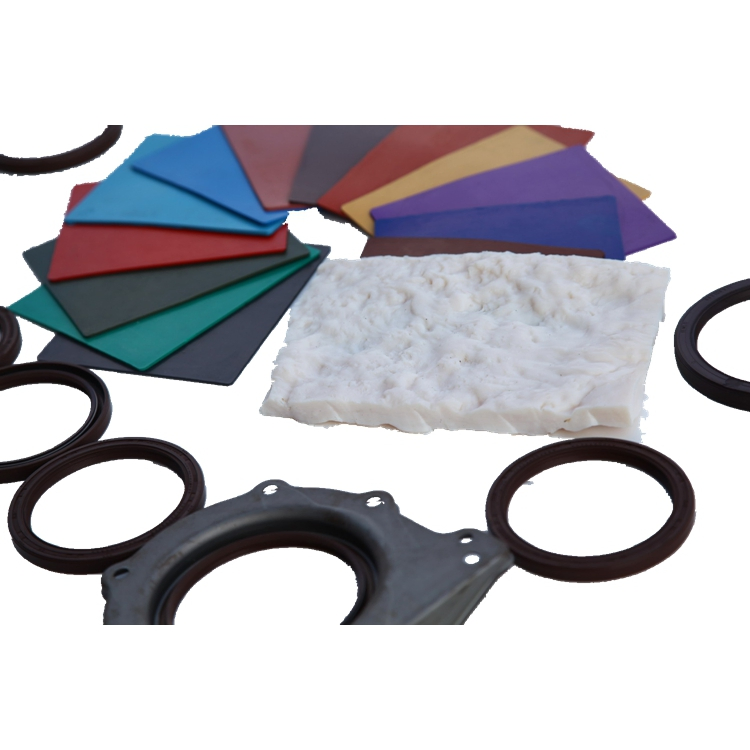

Final Products	O-rings, Gaskets, Oil Seals, Fuel Hoses
Industry	Automotive Industry
Thickness	2mm-8mm
HS Code	39046900
Production Capacity	14,000 MT/Year

Company Profile

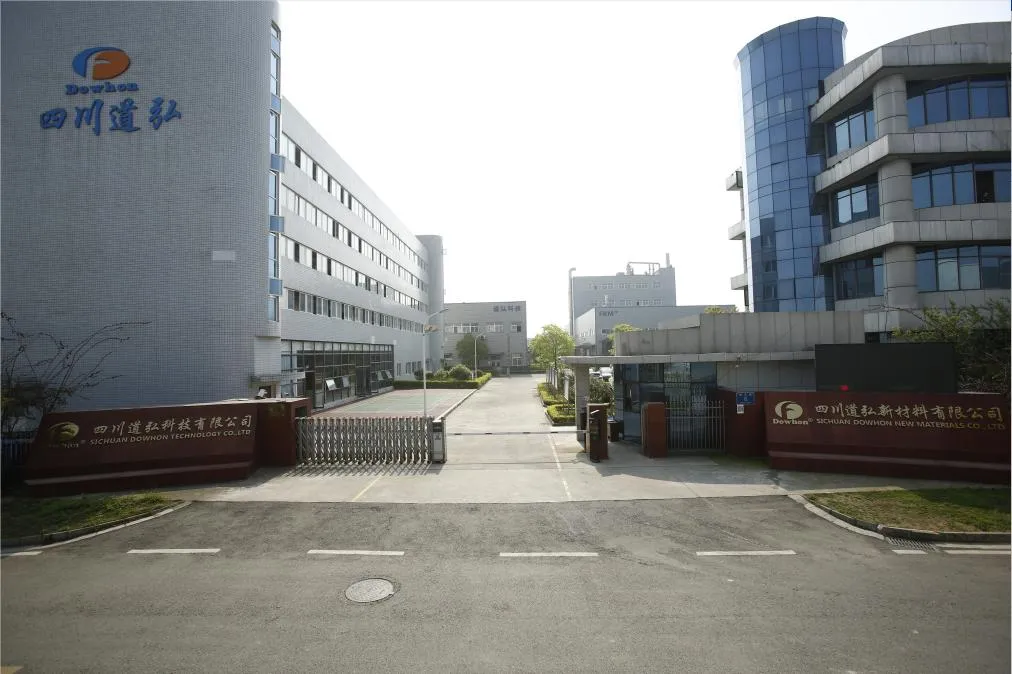

Founded in 2002, headquartered in National Industrial Park.

Largest FKM manufacturer, with actual output of 5,500mt in 2022.
2 CNAS approved labs.

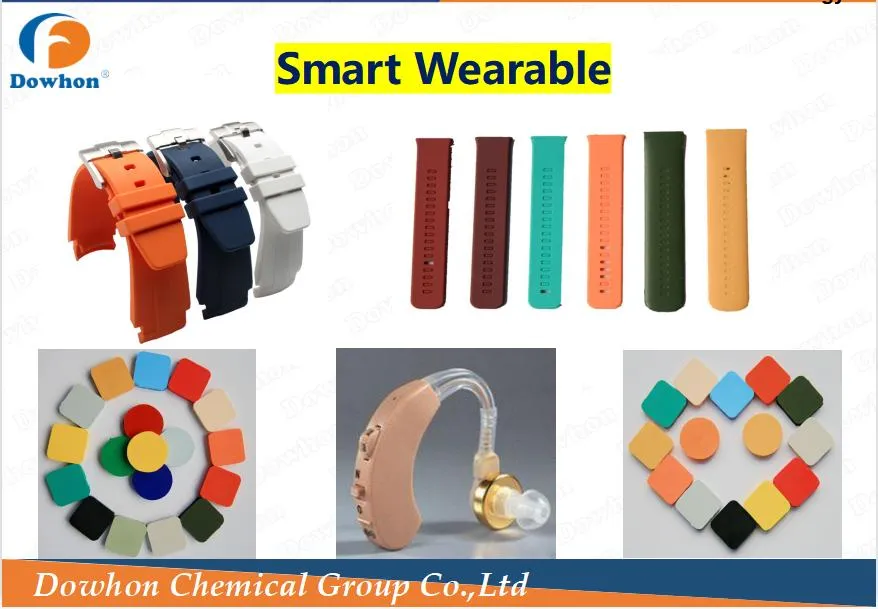

10,000 clarification workshop for smart-wearable devices.
100,000 clarification workshop for FKM precompounds and compounds.

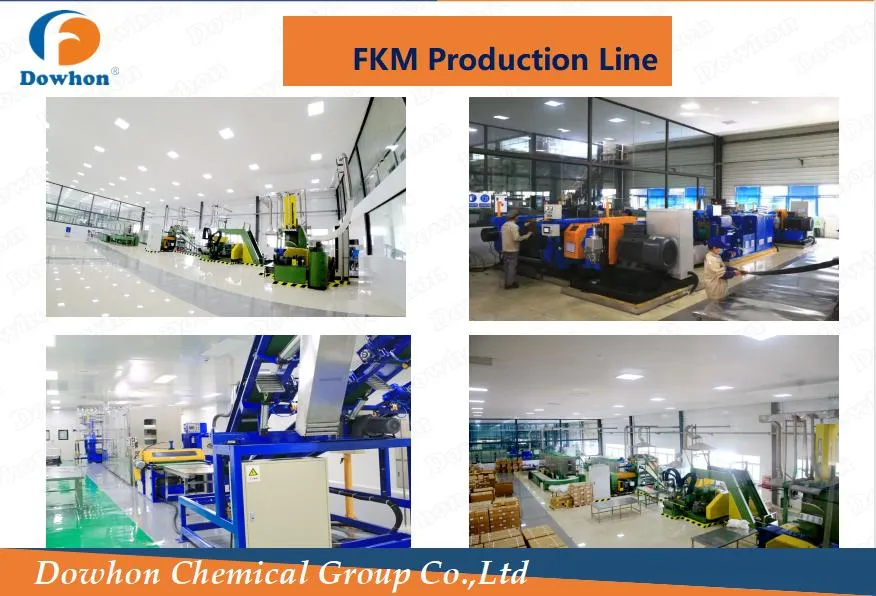

13 producing lines for FKM precompounds and compounds.
Full producing capacity is 14,000mt per year.

Product Description: Fluoroelastomer DHF-75611F

Instruction: DHF-75611F is a fluoroelastomer compound which includes copolymer of hexa-fluoropropylene and vinylidene-fluoride, curatives and fillers.

Applications: Designed for gaskets and O-rings, this compound allows for direct final product manufacturing.

Typical Properties

F Content	Min 66%
Specific Gravity	Min 1.92
Physical Form	Slab
Color	Various
Hardness (Shore A)	75 ± 5

Key Features

Excellent mold release
Excellent hot tear resistance
Good mold flow
Low compression set

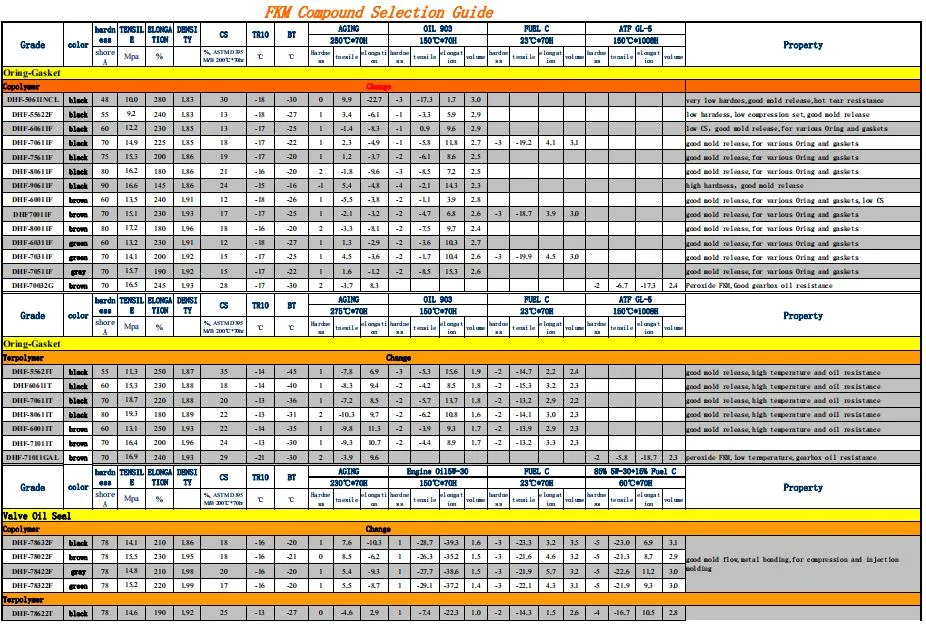

Physical Testing Data

Hardness, Shore A	75±5
Elongation at Break, %	Min 200
Tensile Strength, MPa	Min 11.0
Compression Set (200ºC@70h)	Max 15%
Brittleness Temp, ºC	-26

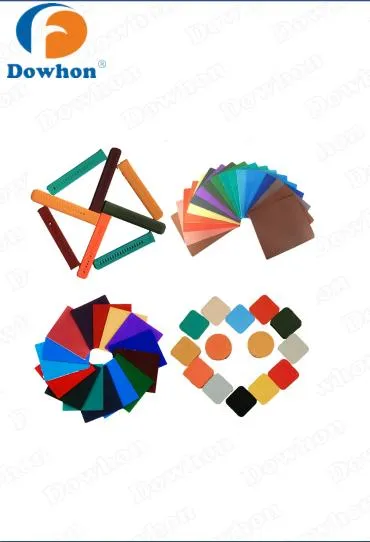

Detailed Photos

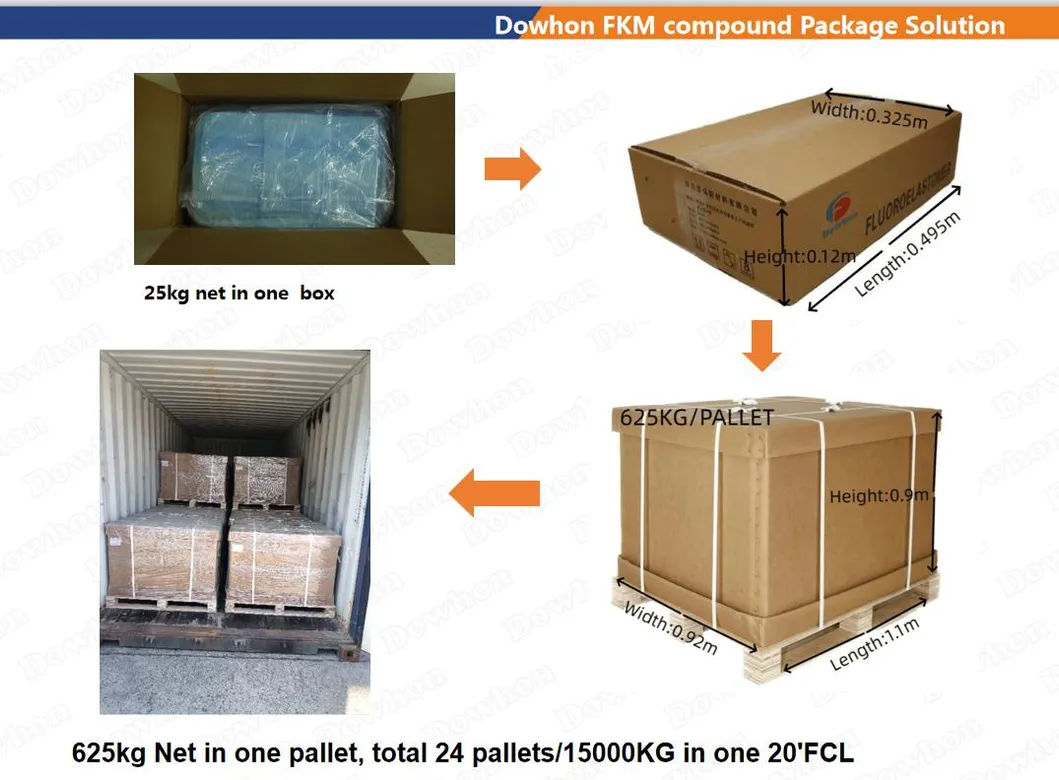

Packaging & Shipping

Carton Packing: 20kg/25kg per carton by courier (FedEx, DHL, etc.)

Pallet Shipping: 500kg/625kg/700kg per pallet for bulk shipping.

Installation Instructions

Certifications & Patents

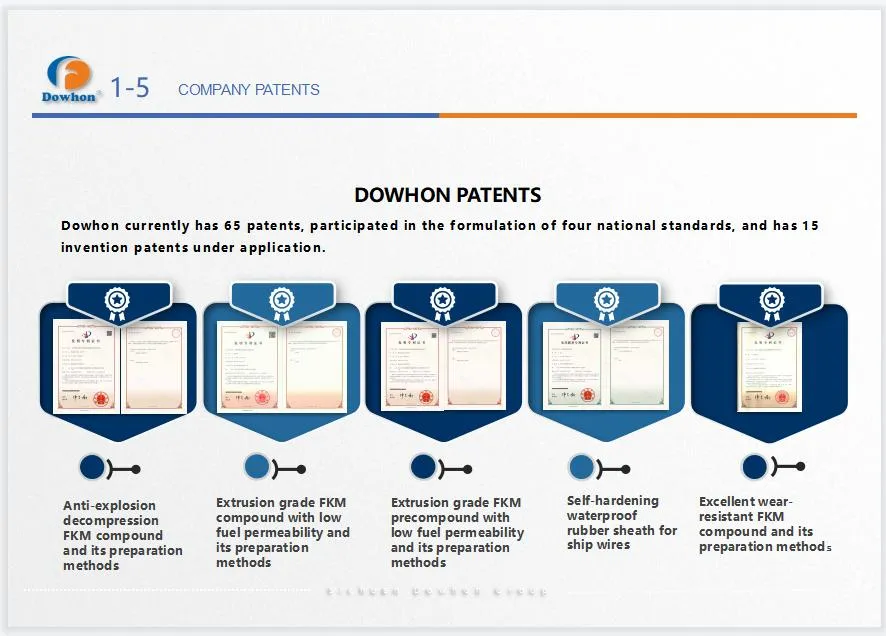

ISO9001, ISO14001, ISO16949. Currently holding 65 patents with 15 invention patents under application.

Gazelle Enterprise status
Technologically Advanced Little Giant Enterprise
National High-Tech Enterprise
Key Cultivation New Material Enterprise
Enterprise Technology Center

Safety and Handling

Store in a well-ventilated place.
Smoking is strictly forbidden in working areas.
Avoid eye contact.
Wash thoroughly any contacted skin and clothing after handling.

Frequently Asked Questions

1. What is your Minimum Order Quantity (MOQ)? For air shipment, the MOQ is 20-25KG. For sea shipment, the MOQ is 100KG.

2. What is the standard delivery time? For stock goods, delivery can be arranged within 3 working days. Otherwise, the lead time is approximately 7-14 working days.

3. How is the product packaged? Usually, goods are packaged with PE film in cartons (20-25kg net). Bulk orders are packed at 500kg-700kg per pallet.

4. How can I select the correct grade for my application? Please consult our technical team; we will recommend the suitable grade based on your required physical properties and specific usage requirements.

5. What certifications do your products hold? Our processes and products comply with ISO9001, ISO14001, and ISO16949 quality standards.

6. Is this compound suitable for low-temperature resistance? Yes, the DHF-75611F grade features a brittleness temperature of -26ºC per ASTM D 1329 testing standards.
