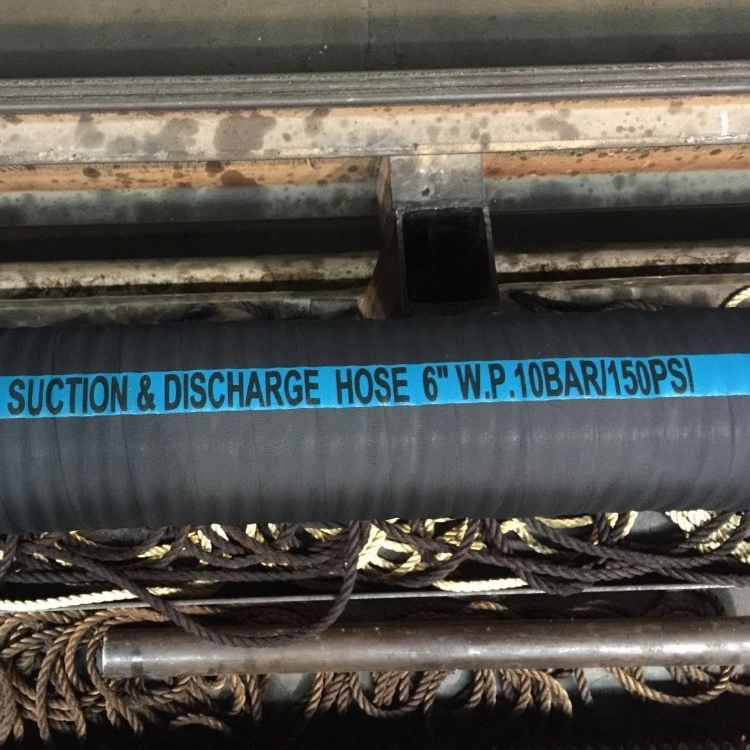

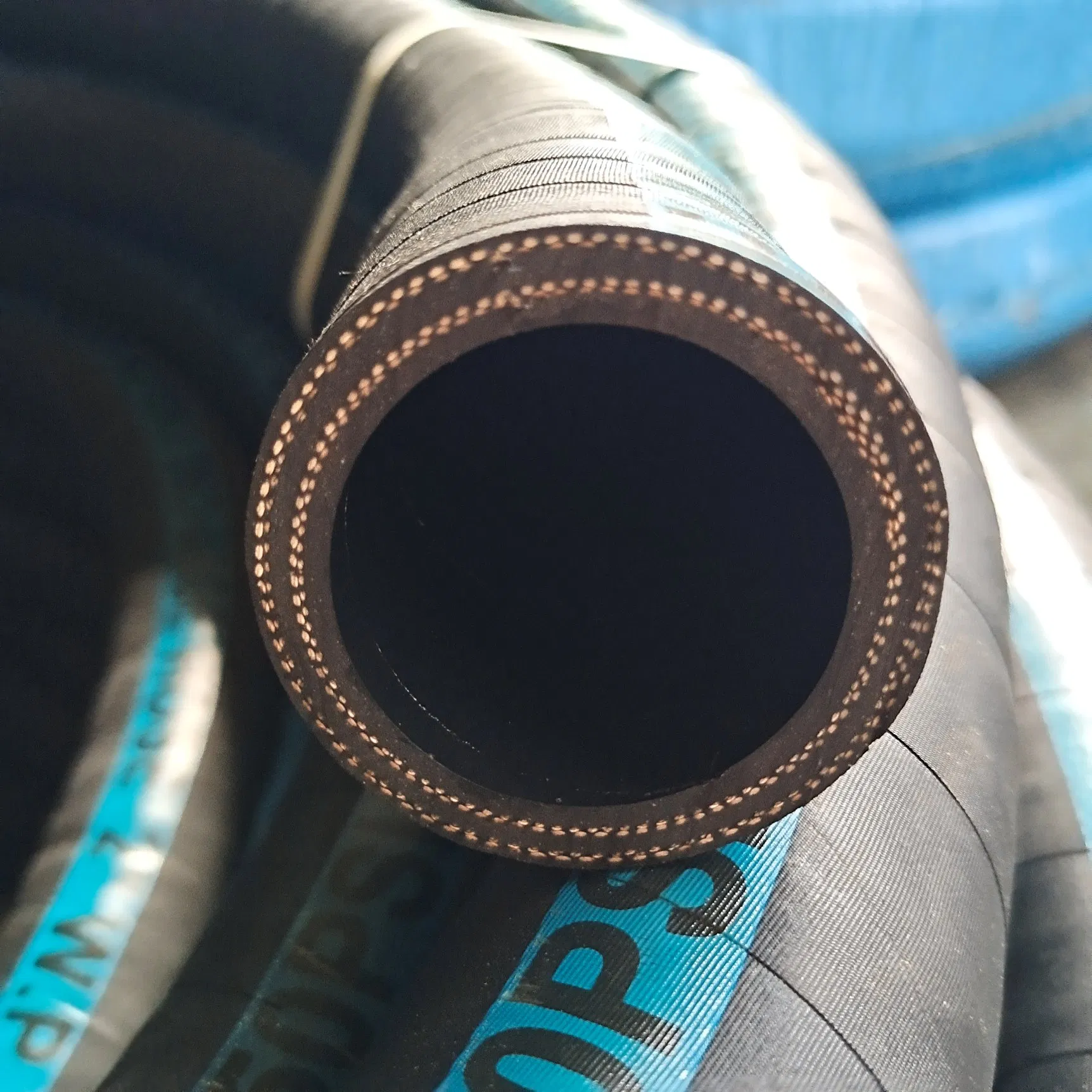

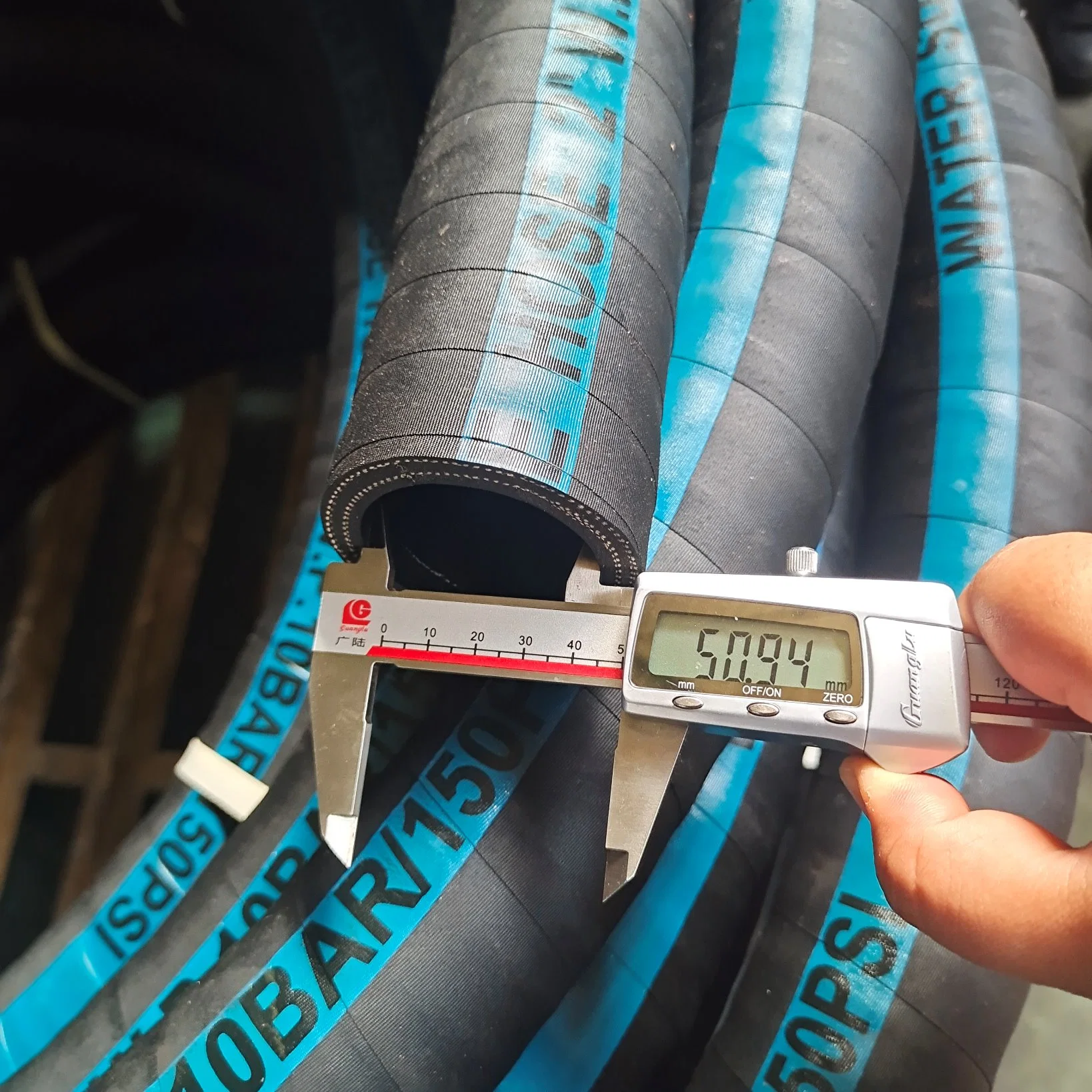

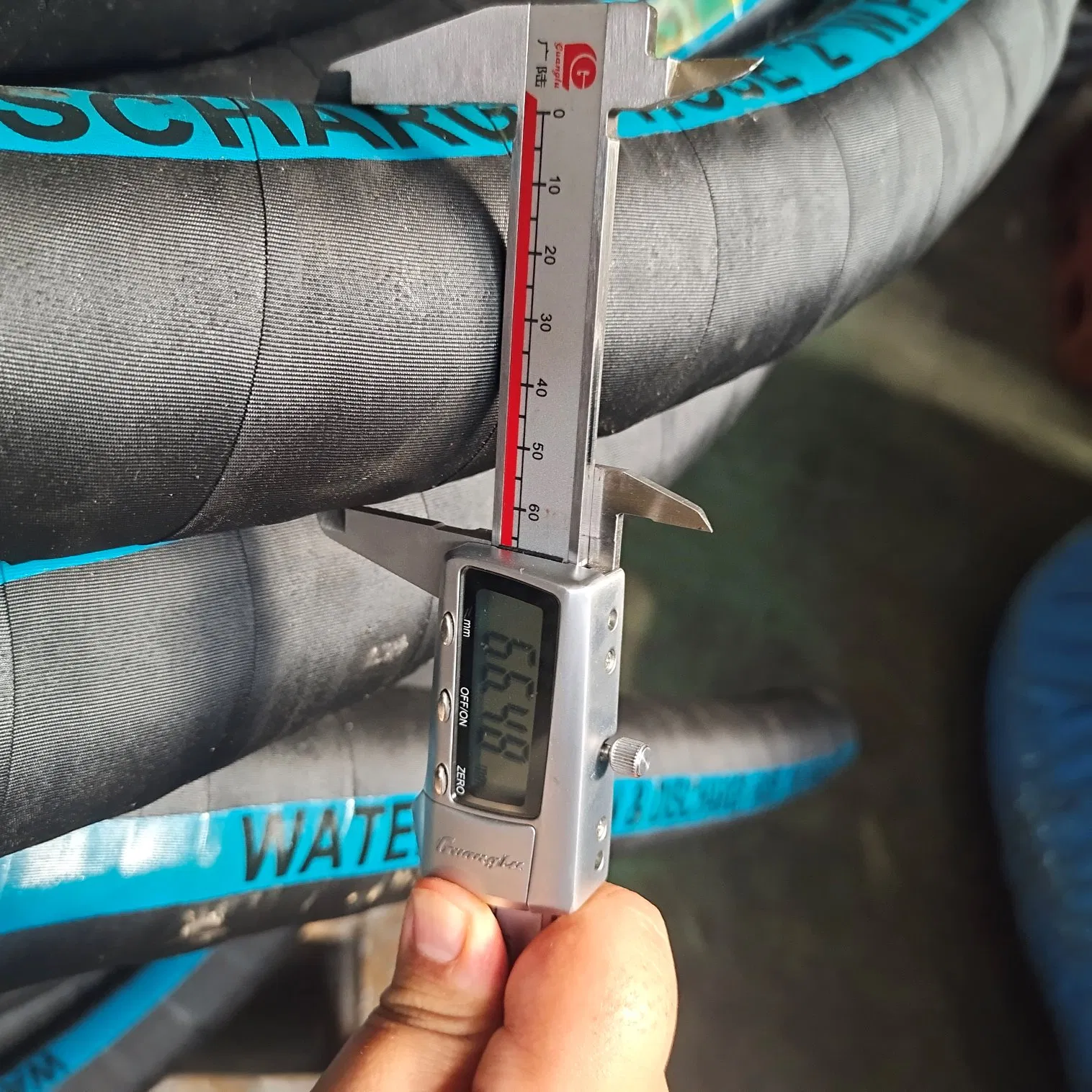

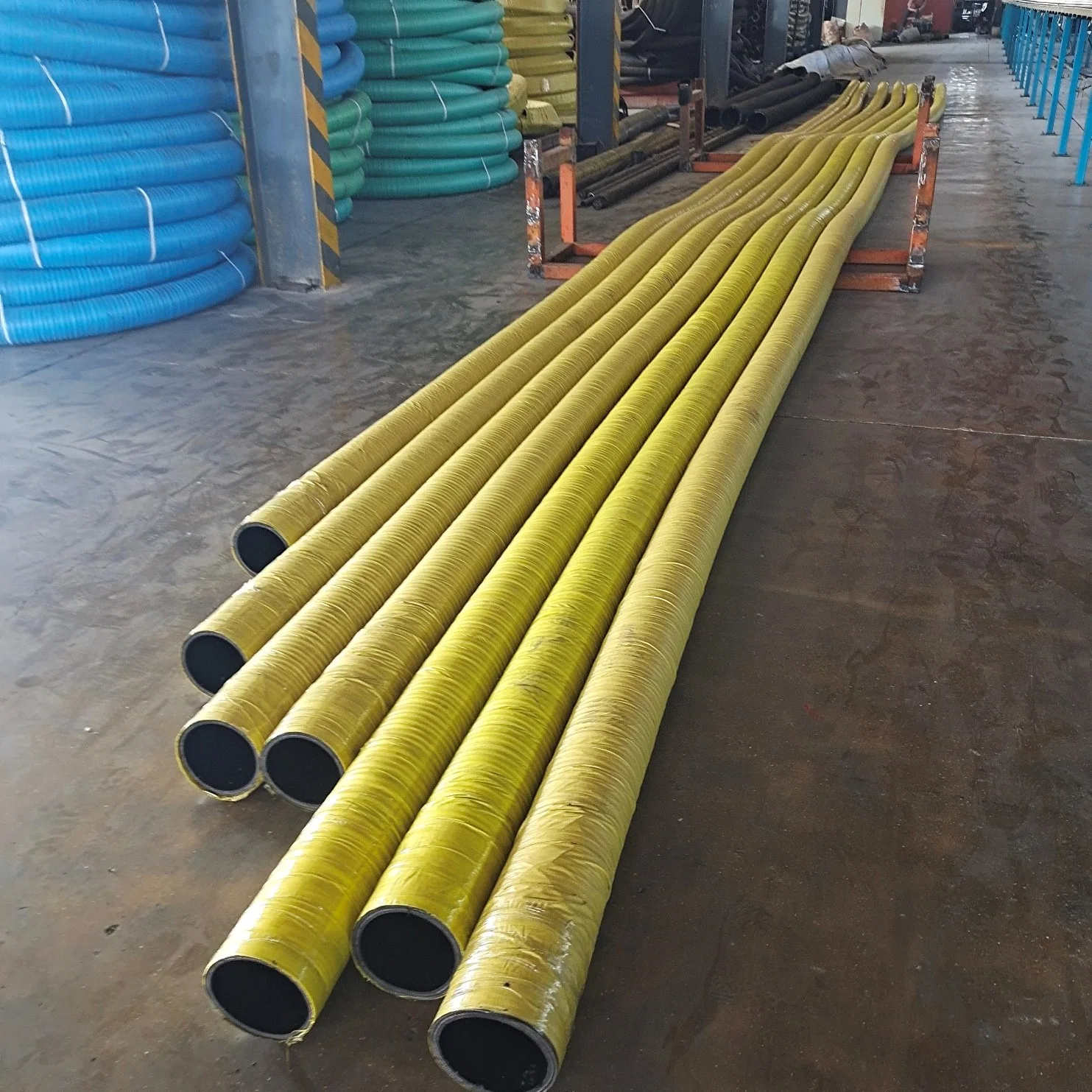

Flexible 6 Inches Pump Rubber Water Suction and Discharge Hose

Still deciding? Get samples of $ !
Order Sample

Product Description

🔹 Basic Information
Model NO.
S&D Water Hose
Color
Black
Certification
ISO9001 : 2008
Cover
Black SBR-Abrasion and Ozone Resistant
Application
Construction Industries & Agriculture
Tube
Black SBR
Reinforcement
High Tensile Textile Cords with Embedded Wire
Temperature
-30℃ - +80℃
Type
Radiator Upper Hose
Specification
3/4"-20"
Capacity
800,000 Meters Per Month
Origin
China
📦 Packaging & Delivery
Package Size
50.00cm * 20.00cm * 20.00cm
Gross Weight
5.000kg

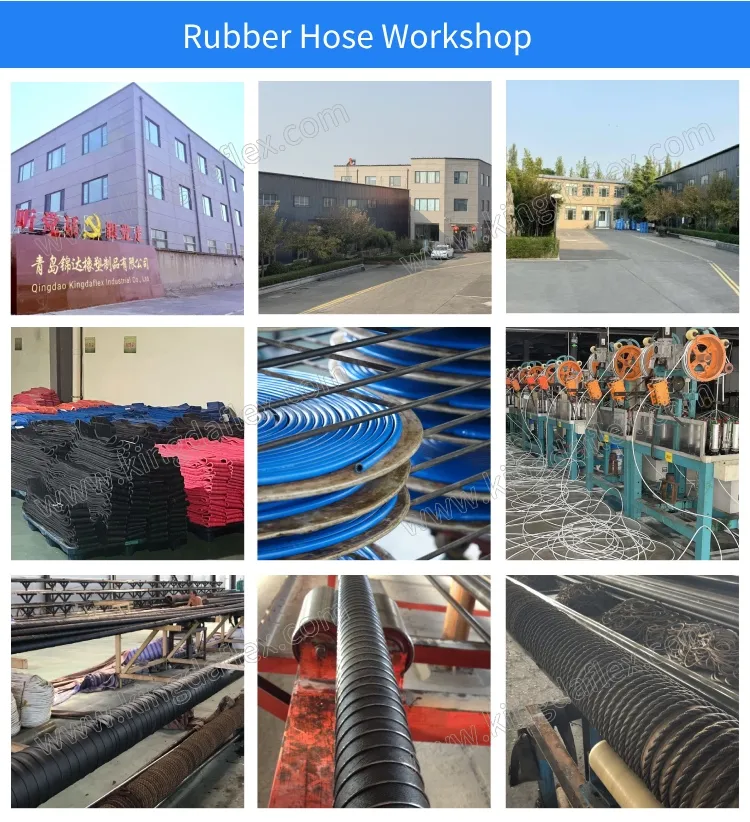

🏢 Profile & Facilities

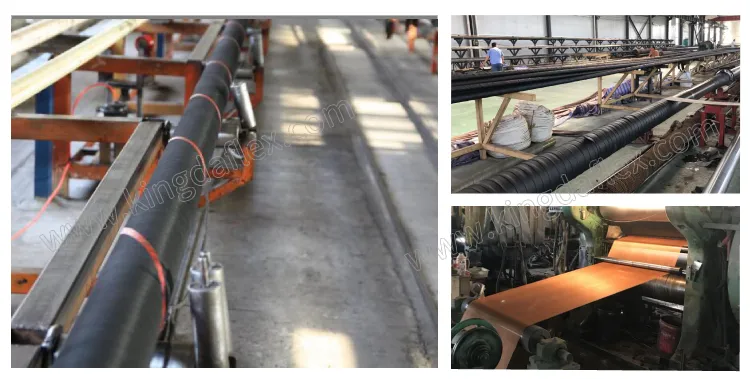

Facility 1

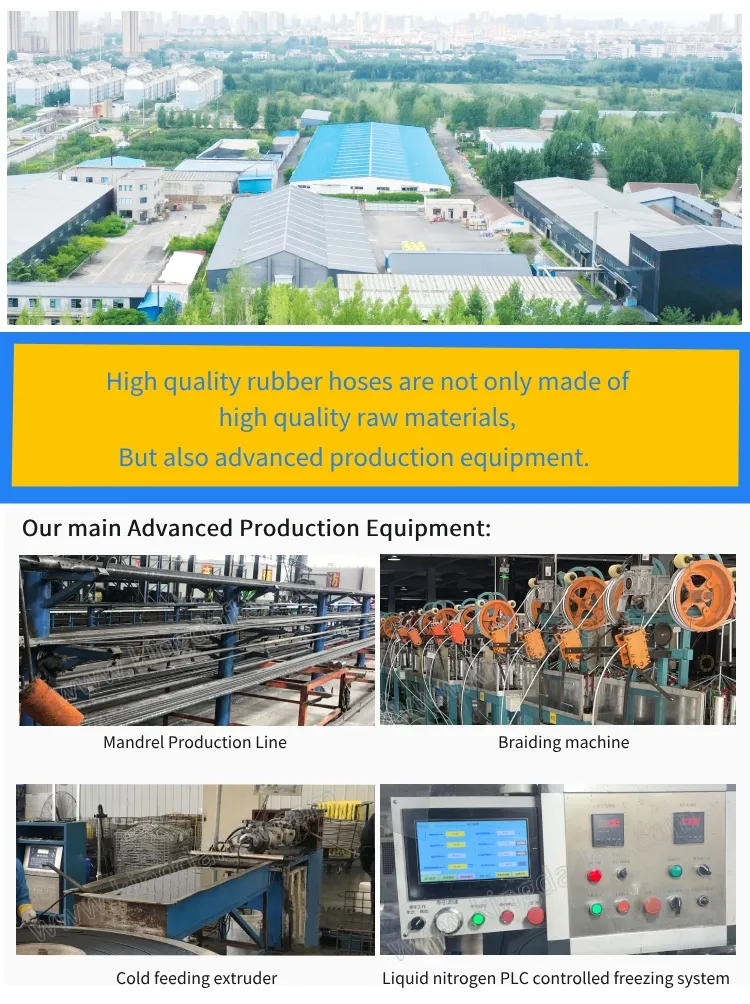

Facility 2
Facility 3
🛠️ Suction & Discharge Water Hose

Tube: Black synthetic rubber

Reinforcement: Plies of synthetic cords with helix wire

Cover: Black synthetic rubber, wrapped type, abrasion, and weather-resistant

Temperature: -30°C ~ +80°C

Application: Mandrel built heavy-duty suction and discharge hose for the handling of water, inert fluid, sewerage, and waste water, where optimum flexibility is required.

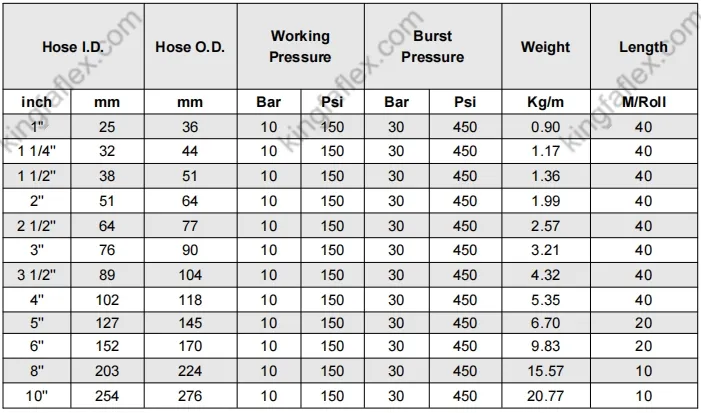

Water Hose Detail

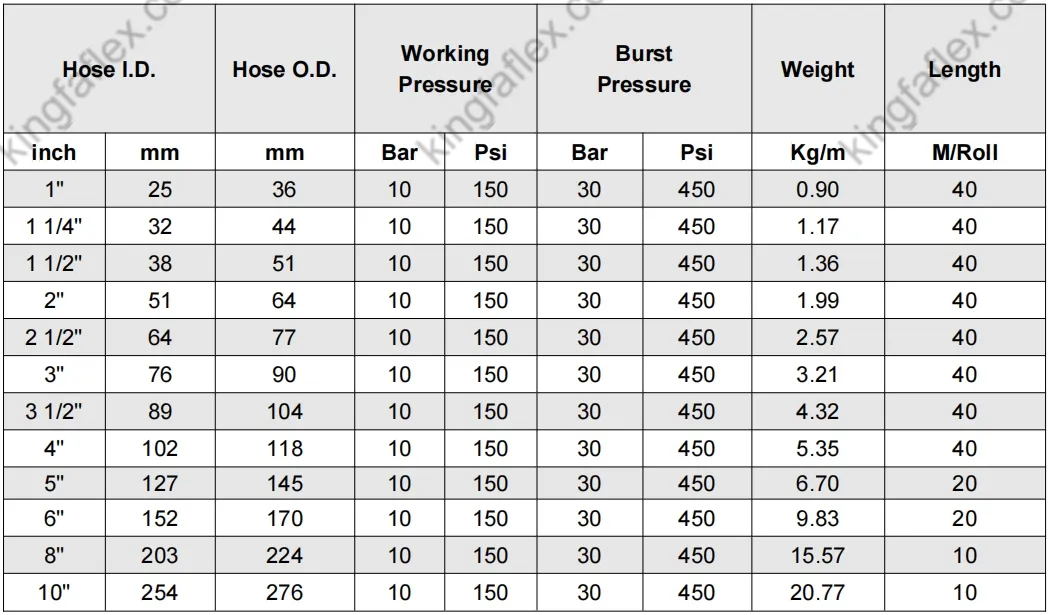

🛢️ Suction & Discharge Oil Hose

Tube: Black synthetic rubber

Reinforcement: Plies of synthetic cords with helix wire and cross anti-static copper wire

Cover: Black synthetic rubber, wrapped type, abrasion, and weather-resistant

Temperature: -30°C ~ +80°C

Application: Mandrel built heavy-duty oil suction and discharge hose for handling grades of gasoline or petroleum oils of aromatic content up to 50% from tank truck, in dispensing station etc, during winter/summer seasons and withstands full vacuum.

Oil Hose Detail 1

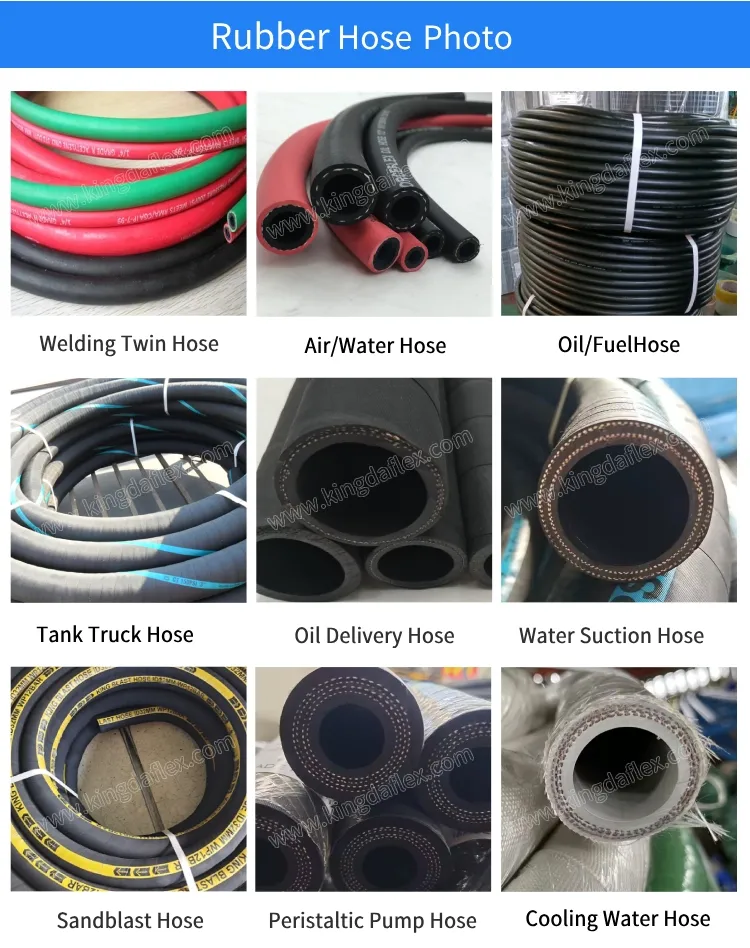

Oil Hose Detail 2
Oil Hose Detail 3

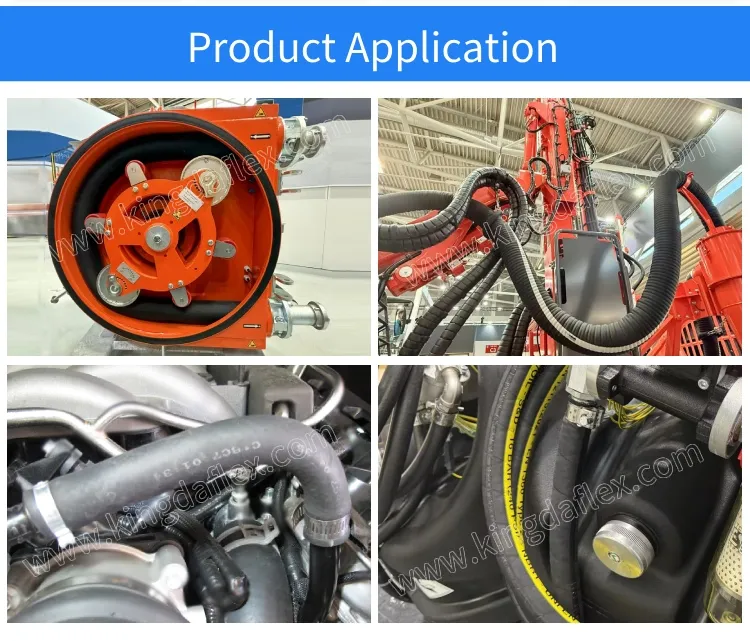

🔍 Product Applications & Gallery

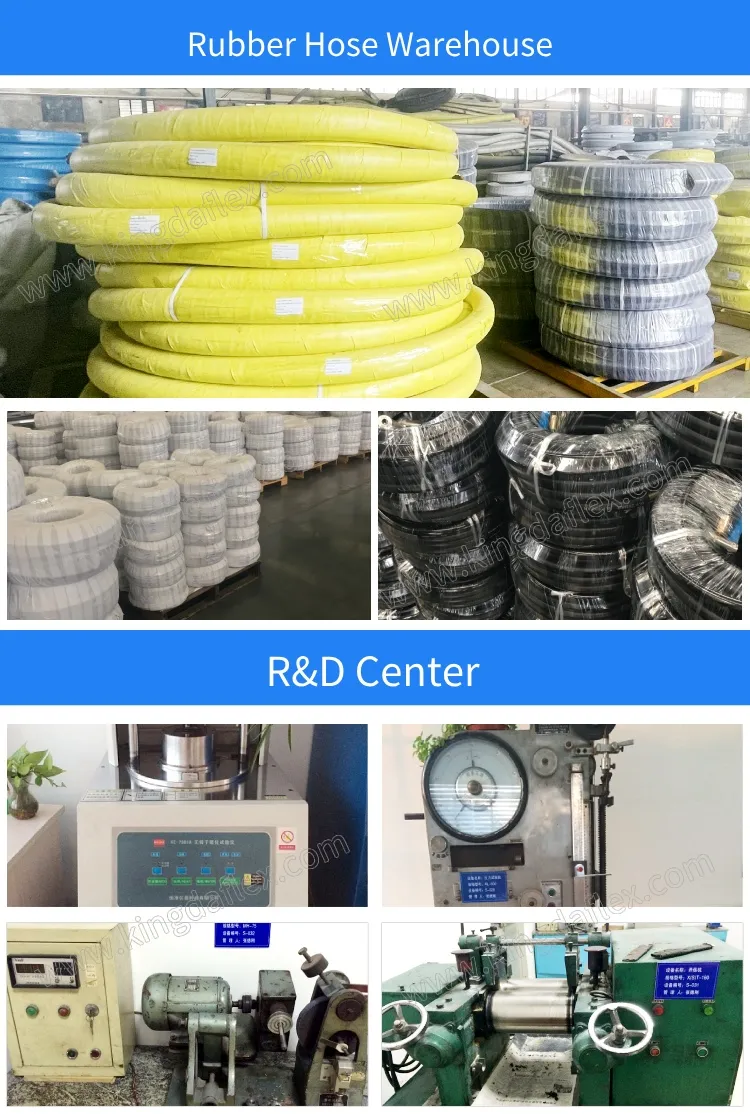

Application 1
Application 2
Application 3
Application 4
⭐ Professional Services
✔ OEM Services:  Custom branding and printing on hose covers; custom lengths provided.
✔ Packaging:  Hoses packed by PE film or weaving belts; reels or pallets available upon request.
✔ Assembly:  Professional crimping machines available for full hose assembly in our workshop.
✔ Logistics:  Complete process history tracking from production to final destination.
✔ Samples:  Free samples available for quality evaluation.
❓ Frequently Asked Questions
Can you produce products with our own logo?
Yes, full OEM services are available to accommodate your branding requirements.
What is the typical delivery lead time for an order?
Delivery time depends on the order quantity, but typically it takes about 30 working days for a 20' container.
What is the warranty period for your hose products?
All our hose products come with a standard one-year warranty period.
What types of hoses do you specialize in?
We offer a wide range including hydraulic hoses (R1AT, R2AT, 4SP, etc.), rubber hoses (Air, Water, Oil, Sandblast), and various PVC hoses.
Are free samples available for new customers?
Yes, we can provide free samples to our customers to ensure the product meets their quality standards.
Can you handle custom assembly and specific lengths?
Absolutely. We have specialized crimping machines and can produce specific hose lengths and assemblies according to your particular needs.
