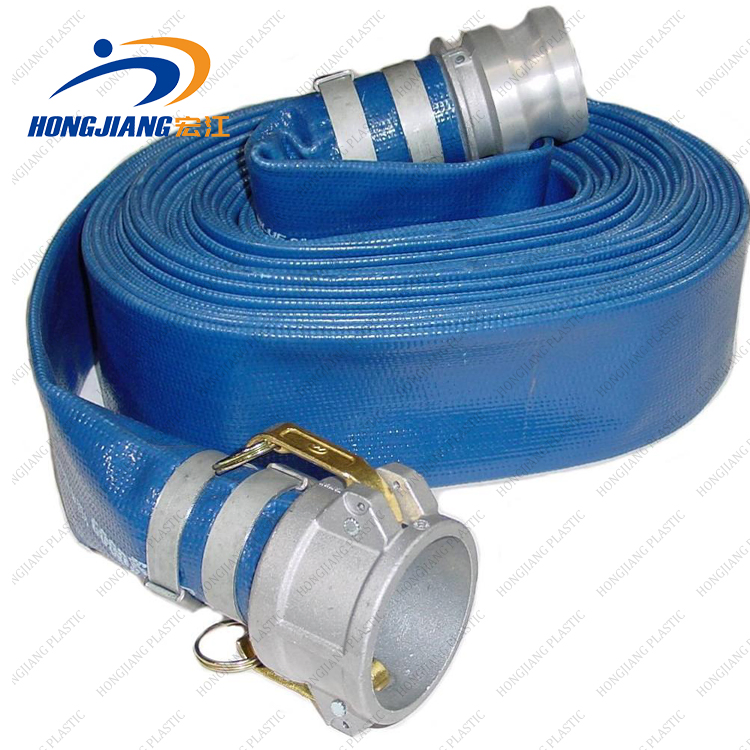

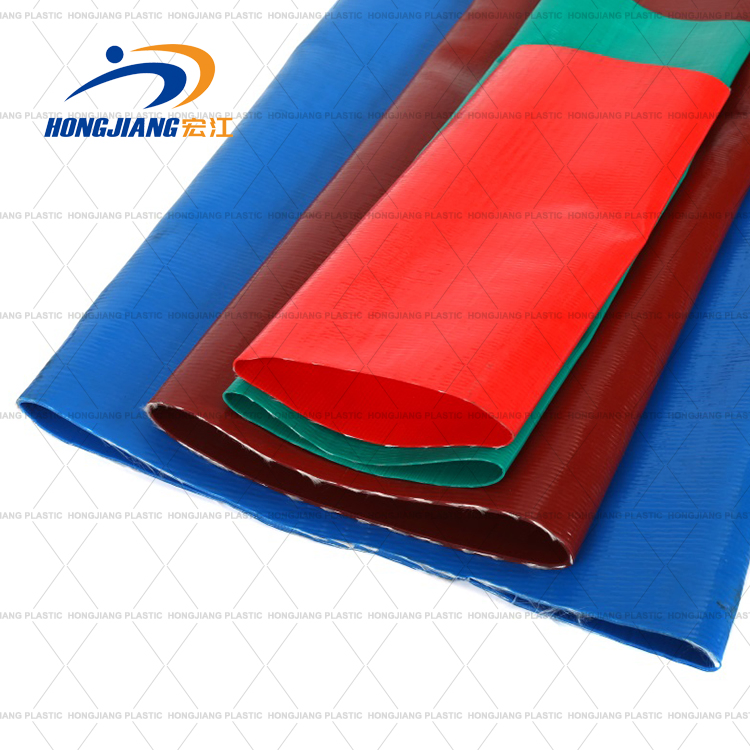

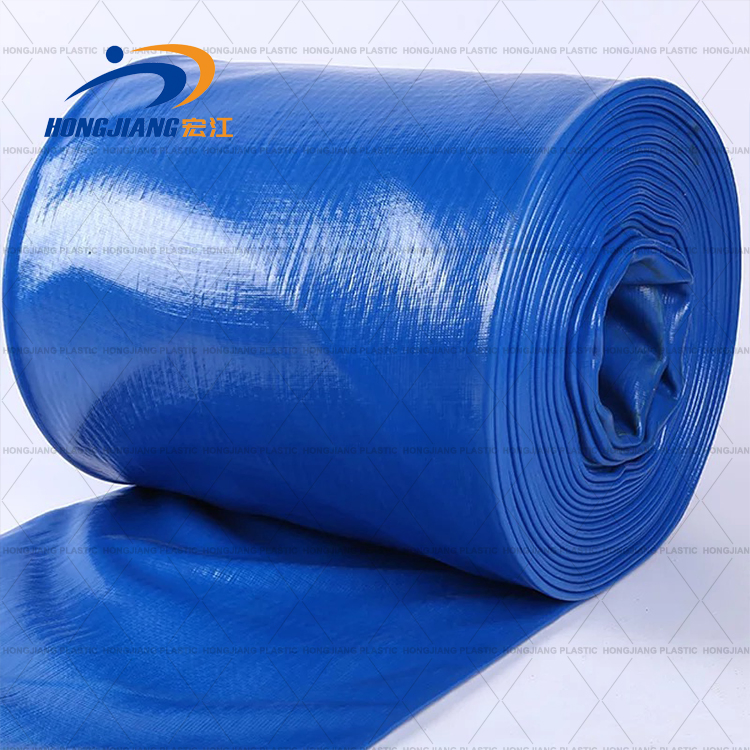

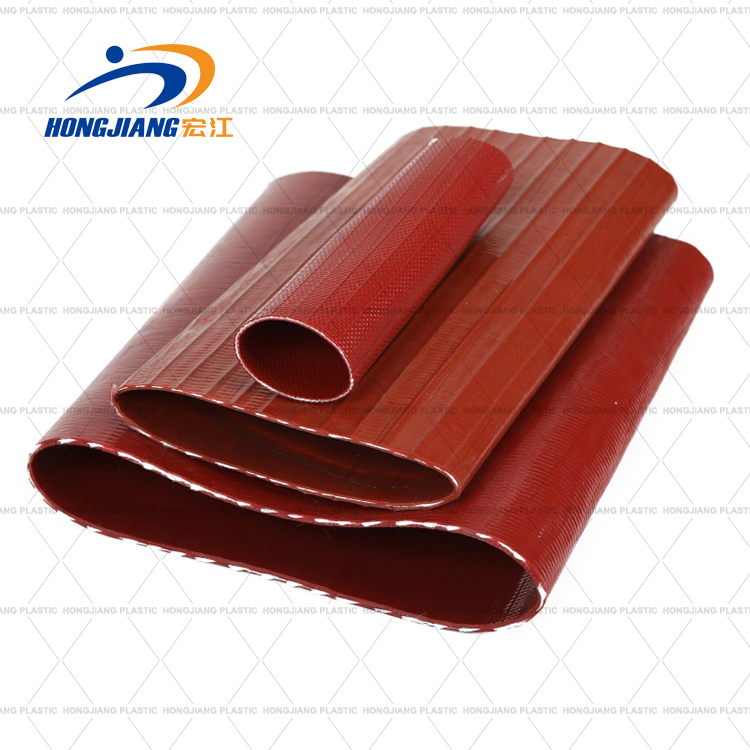

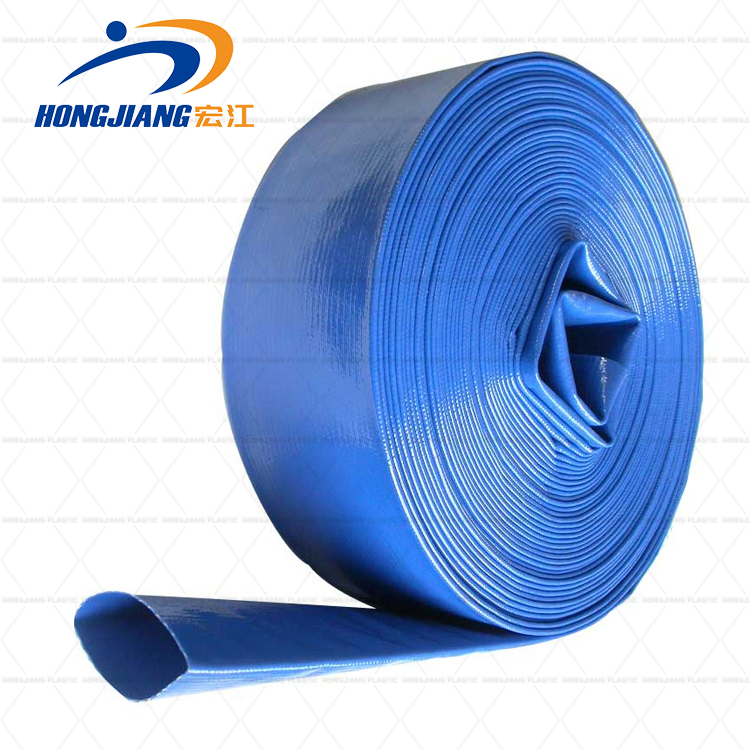

Flexible PVC Hose PVC Lay Flat Hose 2inch 4 6 8 10inch Water Discharged Sunny Hose for Water Pump

1 / 5

Flexible PVC Hose PVC Lay Flat Hose 2inch 4 6 8 10inch Water Discharged Sunny Hose for Water Pump

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🟦 Basic Information

Model NO.

Type

Thermosetting Plastic Pipe

Usage

Drainpipe, Water Supply, Irrigation

Materials

High Quality PVC

Size

1-20 Inch

Thickness

1.8-3.5mm

Pressure

2bar-10bar

Working Temp

-20 to +65 Degree

💧 Product Overview

The lay flat hose is designed as a standard duty hose for water discharge in agricultural Irrigation, industrial and construction applications. It is economical, rolls up flat for easy storage, and specifically resists kinking and twisting.

🛠️ Technical Structure

🧪 Tube & Cover
PVC Compound

🧶 Reinforcement
High strength polyester yarn jacket

📏 Length
50m / 100m Standard

✨ Key Features

✅ Light weight and excellent flexibility.
✅ Corrosion resistant and anti-aging properties.
✅ Non-toxic and non-smell materials.
✅ High Pressure: Burst pressure is 3 times the working pressure.
✅ Versatile: Various colors and custom lengths available.

📊 Technical Specifications

Code	Inch	I.D. (mm)	Thickness (mm)	m/roll	W.P. (Bar)	B.P. (Bar)
HJ121	1''	25	1.3	100	4	15
HJ124	2''	51	1.0	100	4	12
HJ126	3''	76	1.1	100	4	12
HJ127	4''	103	1.25	100	4	12
HJ129	6''	153	1.35	100	3	9
HJ130	8''	203	2.0	100	3	9
HJ131	10''	255	2.4	100	3	7
HJ132	12''	305	2.35	100	2	6

📸 Product Gallery

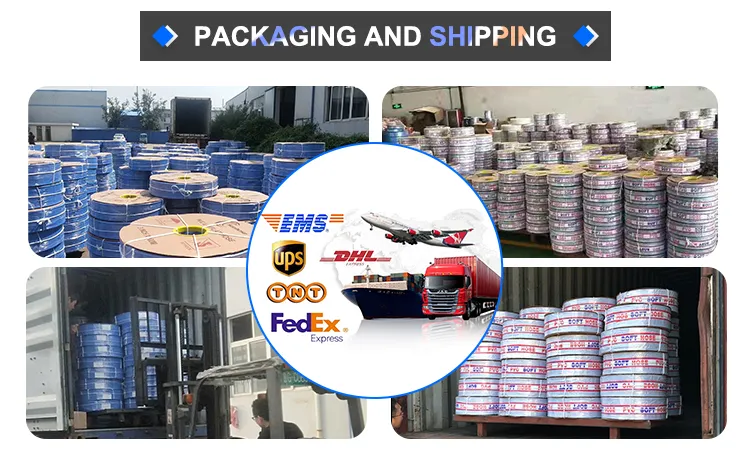

📦 Packaging & Shipping

All PVC layflat hoses are securely packed in rolls for efficient transport and space-saving storage.

❓ Frequently Asked Questions

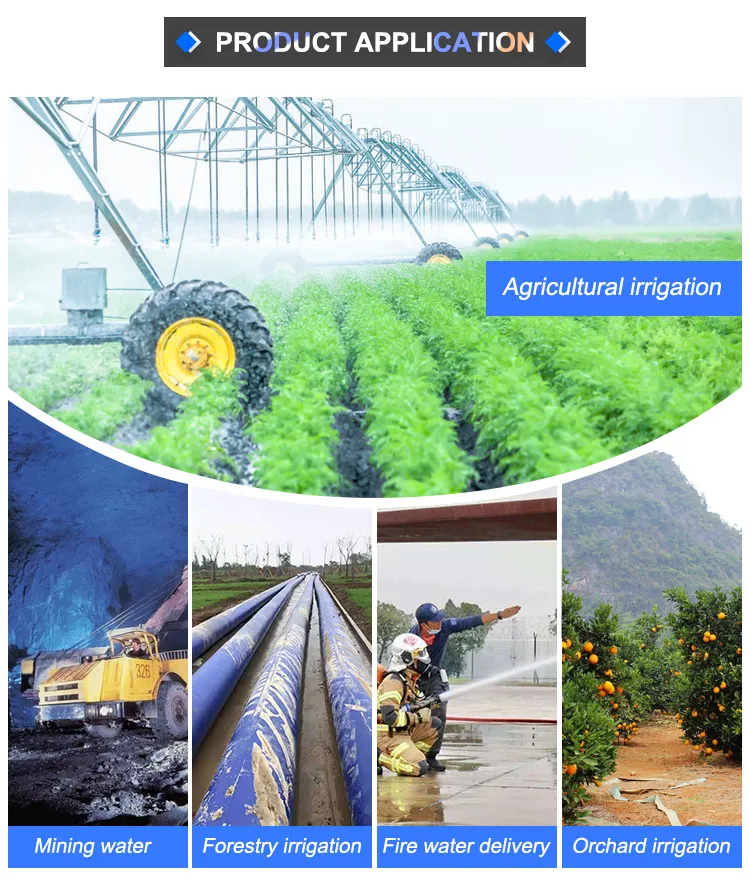

Q1: What are the primary applications for this PVC layflat hose?

A: It is ideal for water discharge in agricultural irrigation, construction sites, industrial drainage, and mining applications.

Q2: What is the service temperature range of the hose?

A: The hose can operate safely in temperatures ranging from -20°C to +65°C.

Q3: Is the hose resistant to chemical corrosion?

A: Yes, the PVC compound material is designed to be corrosion-resistant and anti-aging, ensuring a long service life.

Q4: How strong is the reinforcement in the hose?

A: The hose features a high-strength polyester yarn jacket, providing a burst pressure that is typically three times the working pressure.

Q5: Can I get custom lengths or sizes?

A: While standard lengths are 50m and 100m, we offer sizes from 1 to 20 inches and can accommodate customized length requirements.

Q6: Is the material safe and non-toxic?

A: Yes, our PVC layflat hoses are manufactured using non-toxic and non-smell high-quality PVC materials.
