Basic Info.
Crushing Degree
Fine Grinding Machine
Land Area Required
30m X 18m
Capacity
100ton/Day--1000ton/Day
Control System
PLC Siemens Control
Calcination System
Vertical Boiling Furnace
Professional Solutions
Our company is an integrated science and technology enterprise capable of designing, manufacturing, installing, and commissioning gypsum board and gypsum powder machinery. We have the expertise to design and manufacture gypsum board production lines with annual capacities from 2 Million M² to 50 Million M², and gypsum block production lines from 100,000 M² to 1.5 Million M². Additionally, we specialize in phosphogypsum, FGD gypsum, and fluorine gypsum powder production lines with annual capacities ranging from 30,000 to 500,000 tons.
Product Description

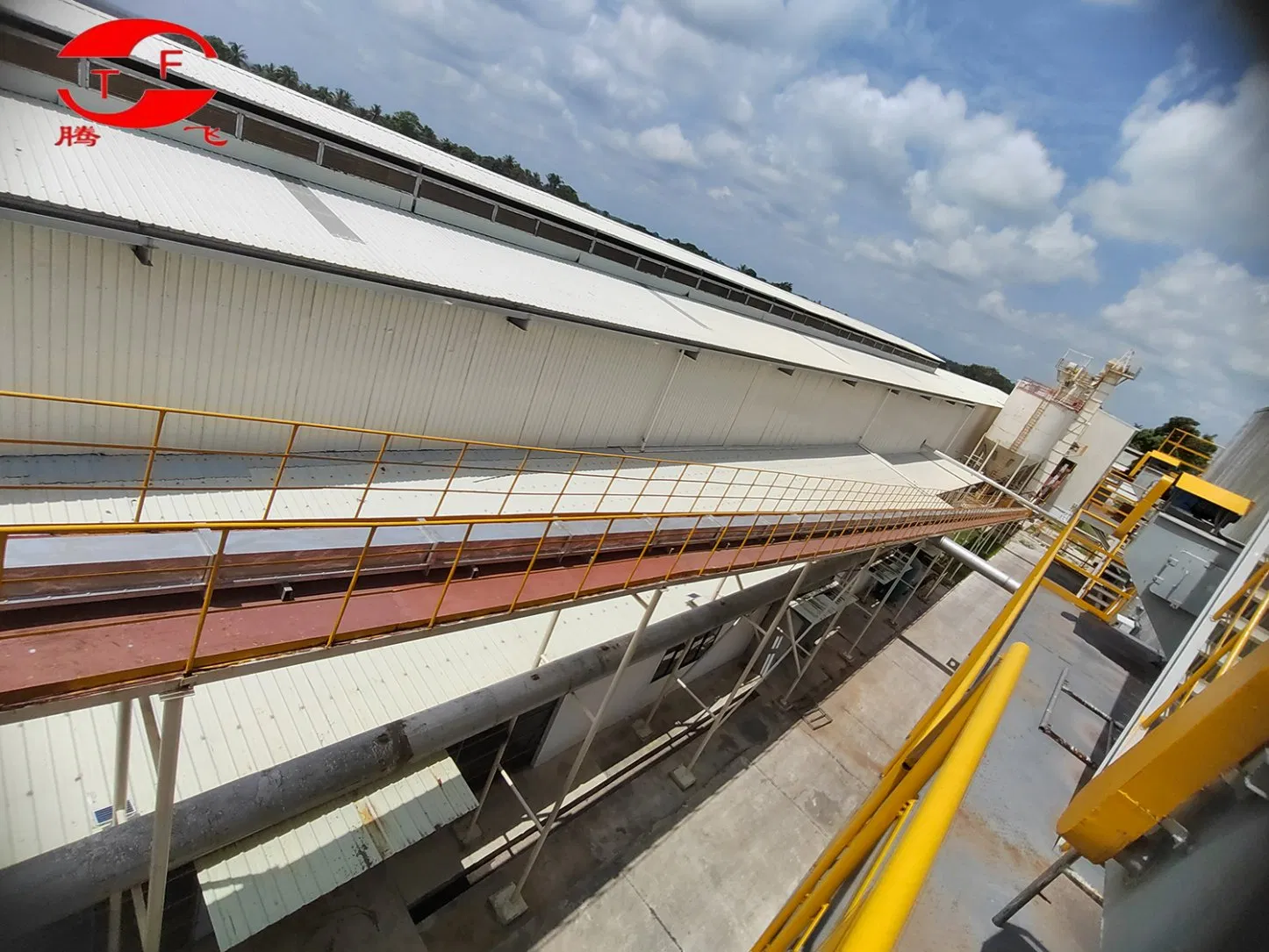

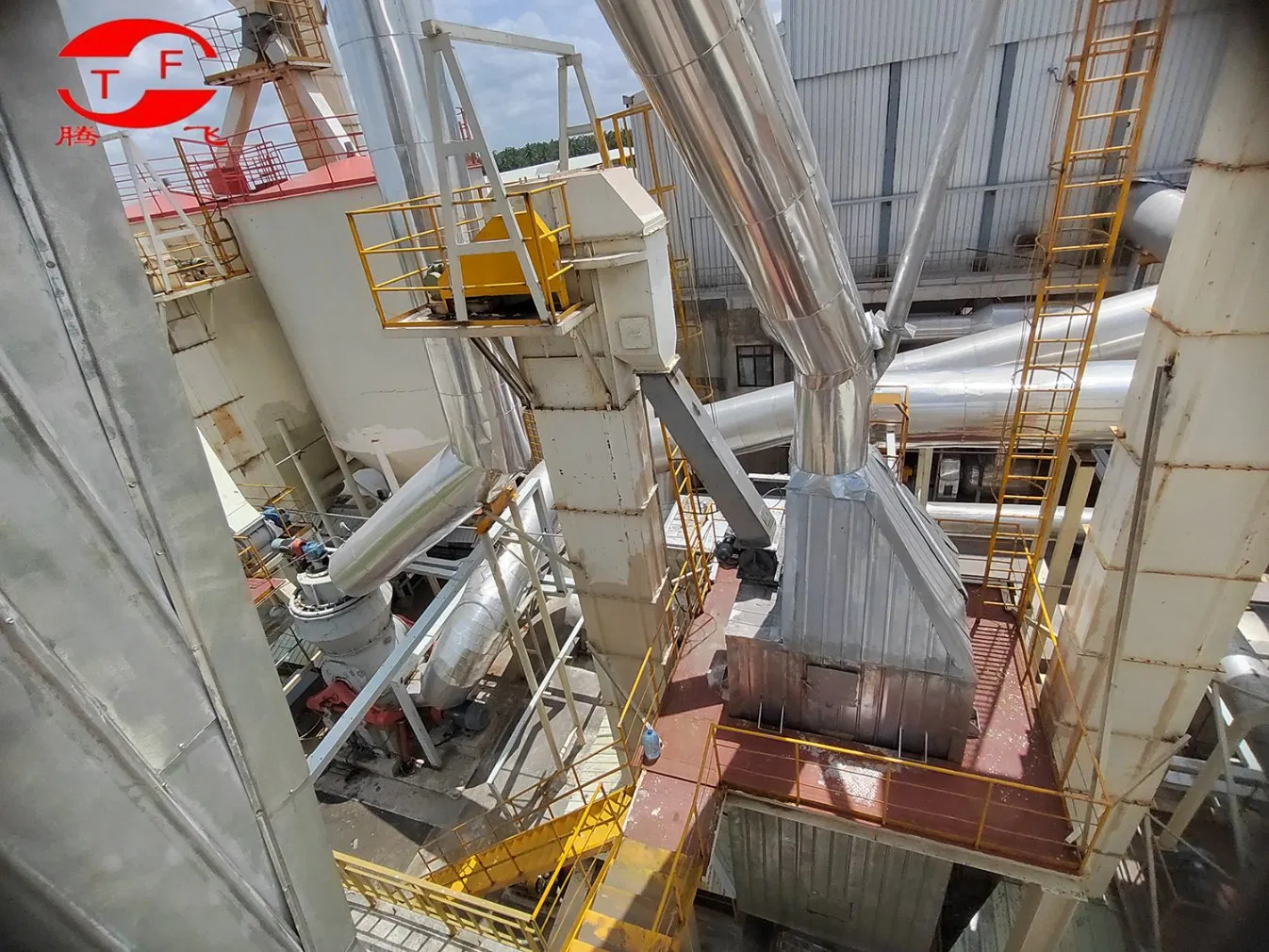

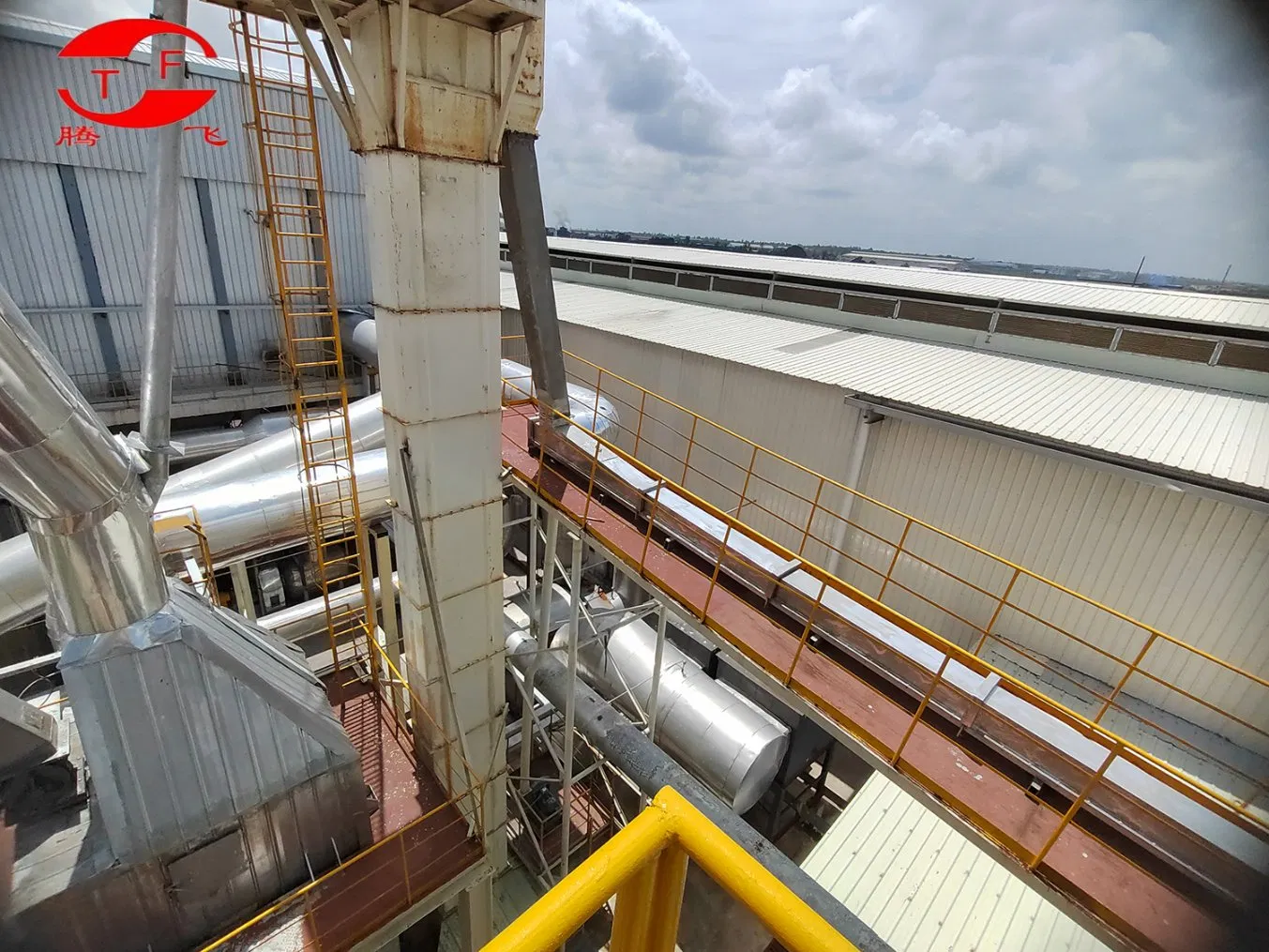

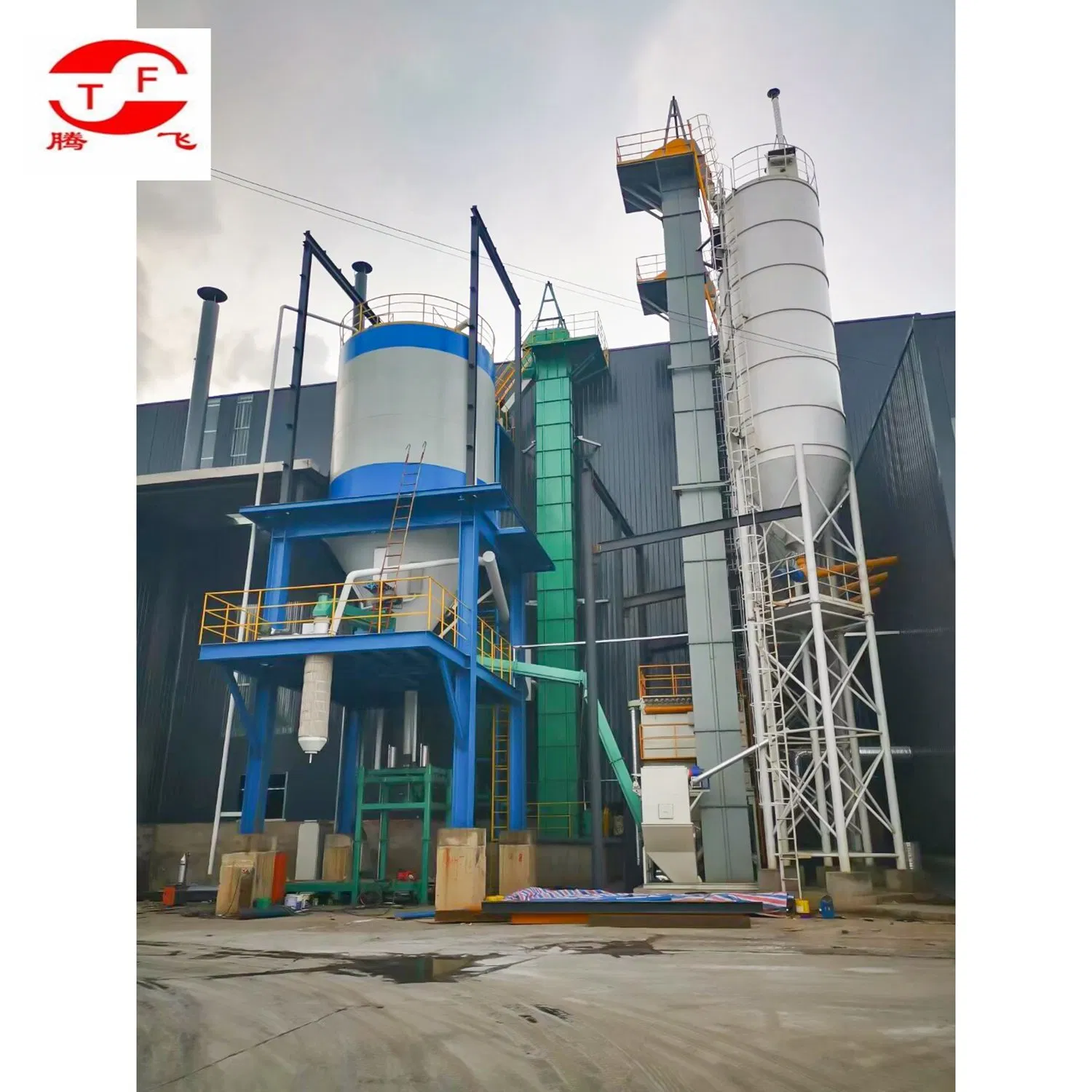

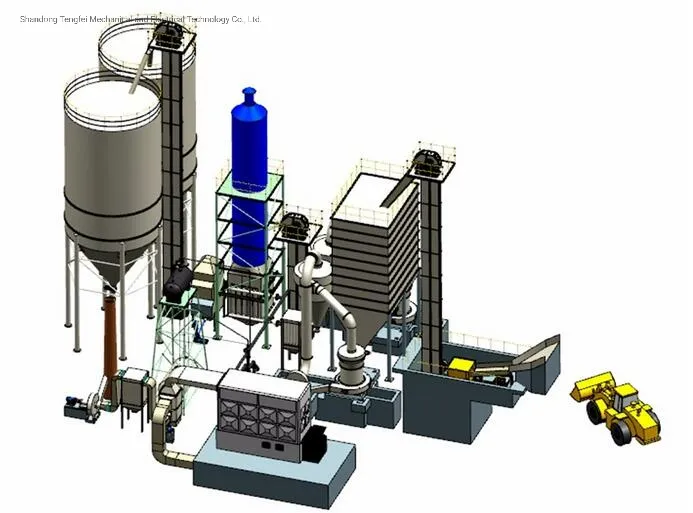

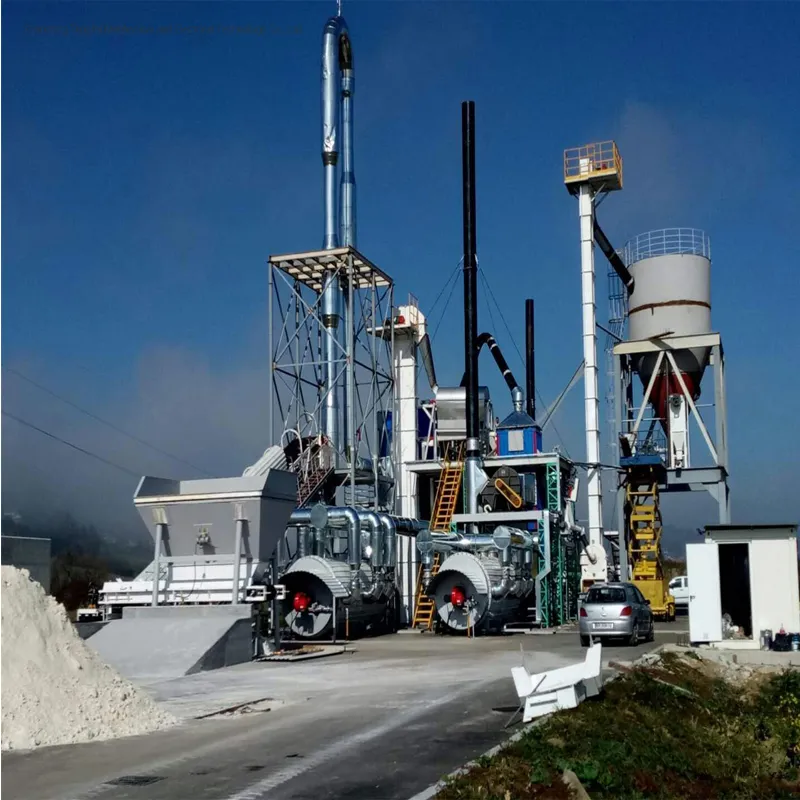

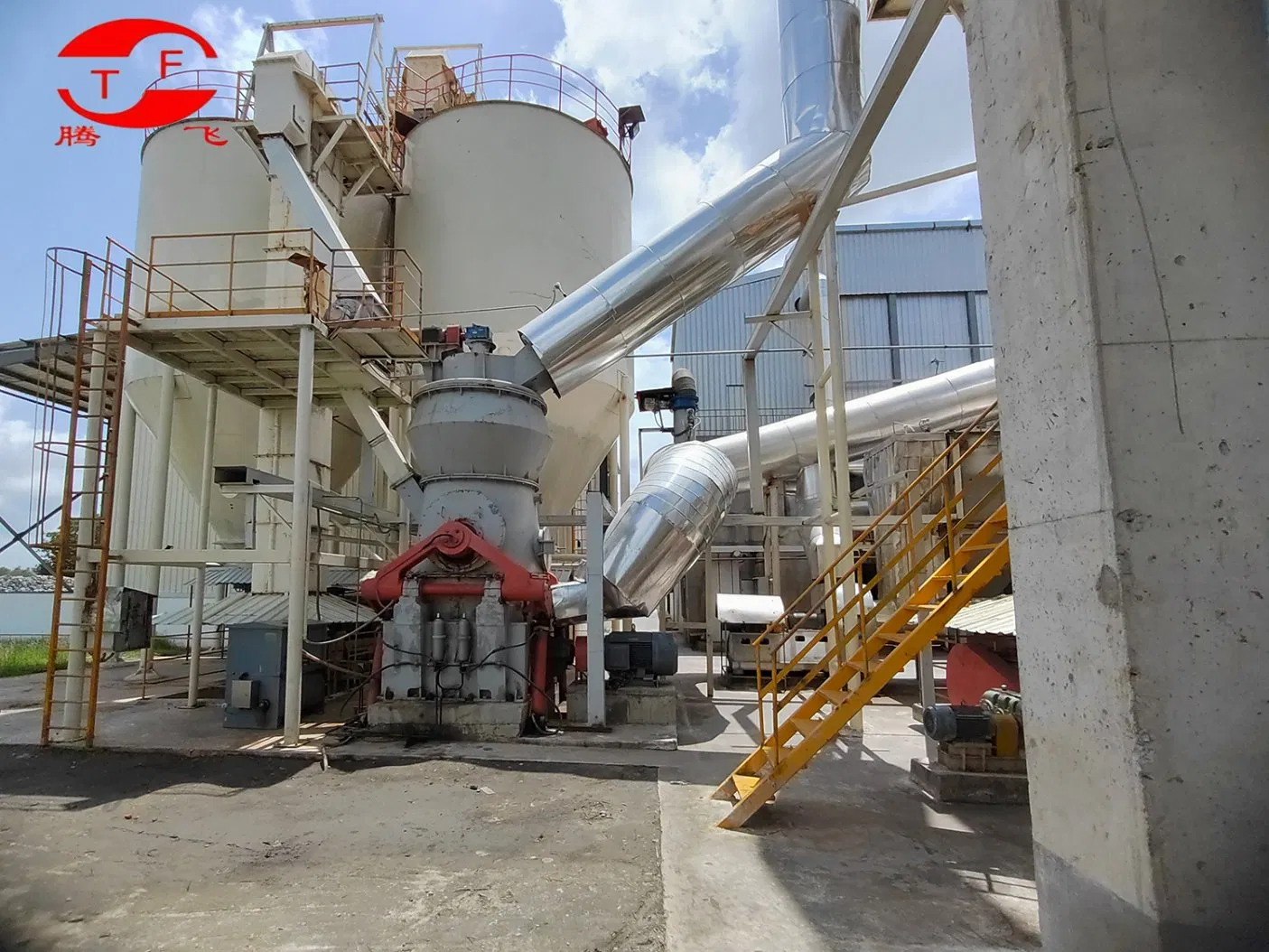

The main process of this gypsum powder machine includes a crushing system, grinding system, calcining system, energy supply system, and packing system. The design is highly competitive and optimized for efficiency.
- Capacity ranges from 30,000 to 600,000 tons per year.
- Low energy consumption and high automatic level.
- Compact installation space and easy operation.
Product Parameters
| Capacity Per Year |
Capacity Per Hour |
Rock Consumption (Year) |
Calcinor Dimension |
| 20,000 tons | 2.7 tons | 24,000 tons | 4.5 x 1.0 x 1.2 m |
| 30,000 tons | 4.2 tons | 36,000 tons | 4.5 x 1.2 x 1.4 m |
| 50,000 tons | 6.9 tons | 60,000 tons | 4.5 x 1.4 x 1.6 m |
| 100,000 tons | 13.88 tons | 120,000 tons | 4.5 x 2.0 x 2.2 m |
| 200,000 tons | 27.77 tons | 240,000 tons | 4.5 x 2.4 x 2.6 m |
Quality Standards:
1. Fineness: ≥100 mesh;
2. Flexural Strength: ≥1.8Mpa; Antipressure Strength: ≥3.0Mpa;
3. Hemihydrate Content: ≥80% (Adjustable);
4. Initial Setting Time: 3-8min; Final Setting Time: 6-15min.

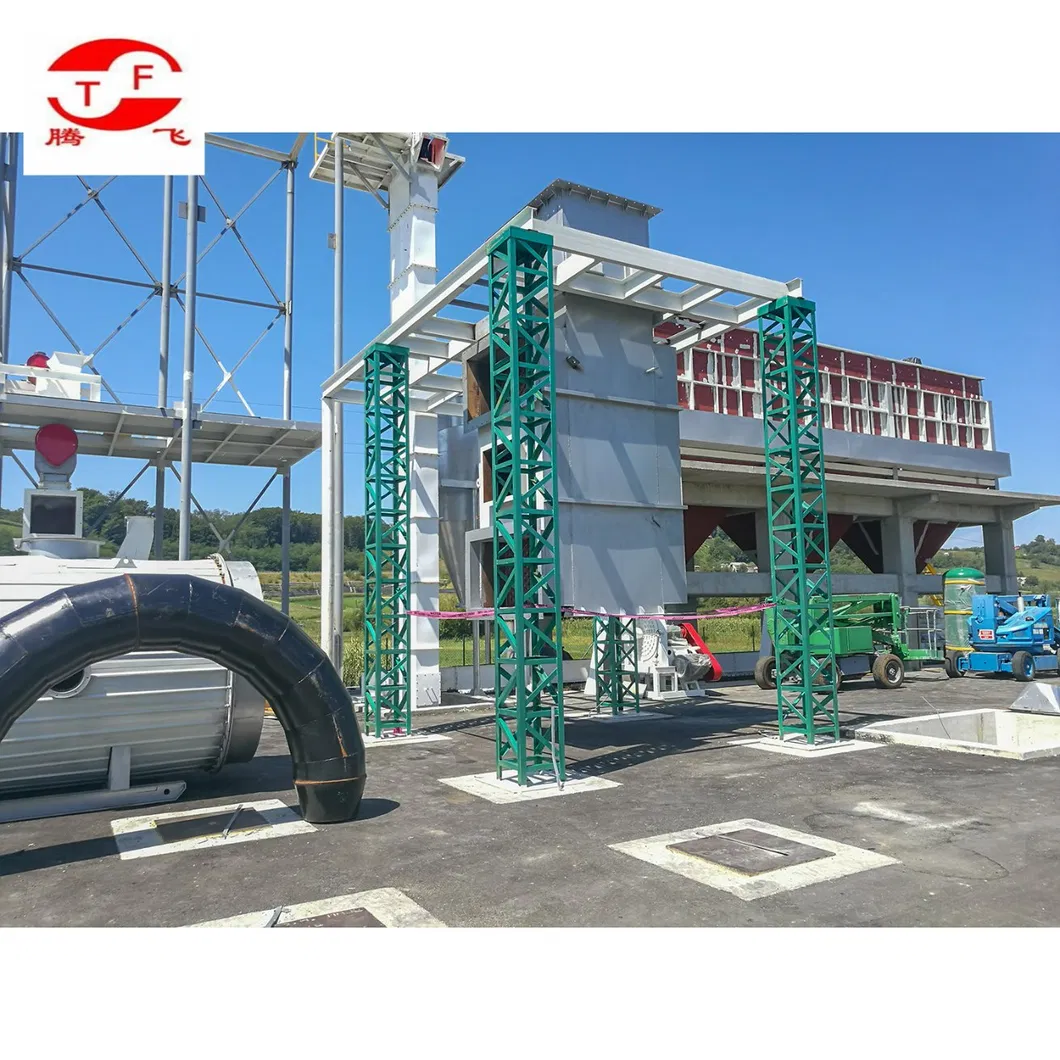

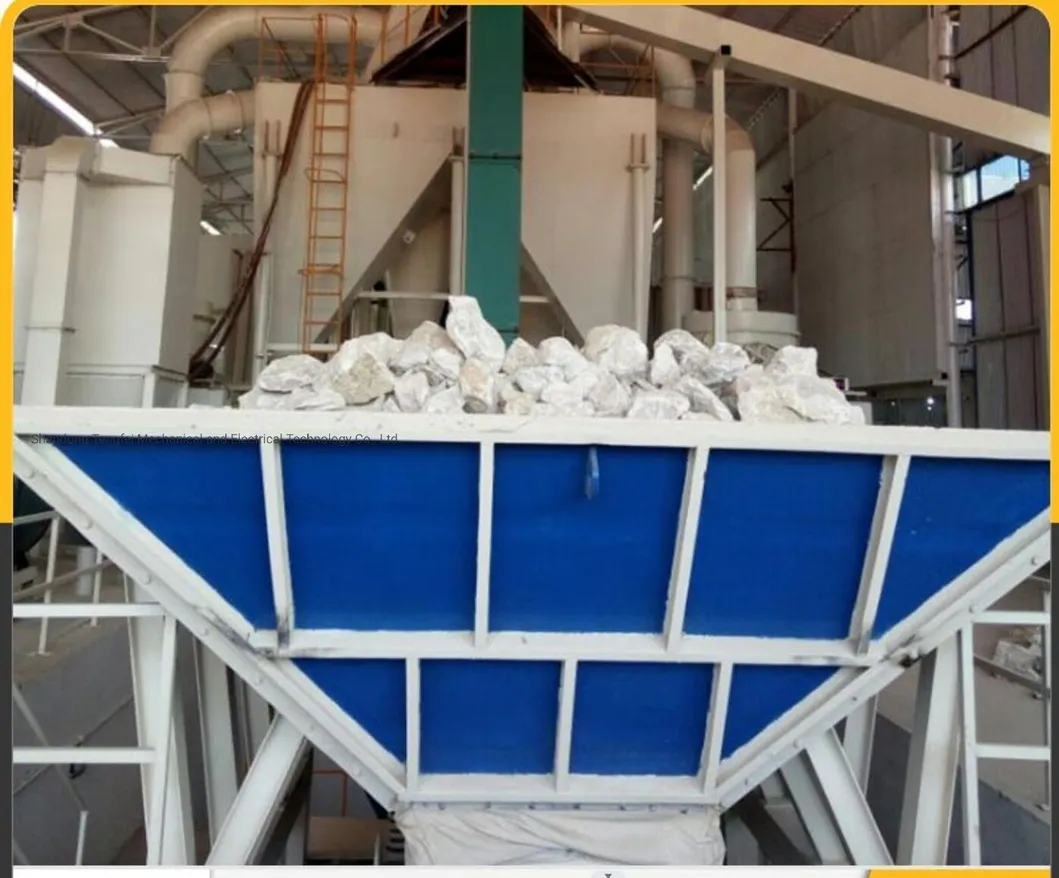

Detailed Photos

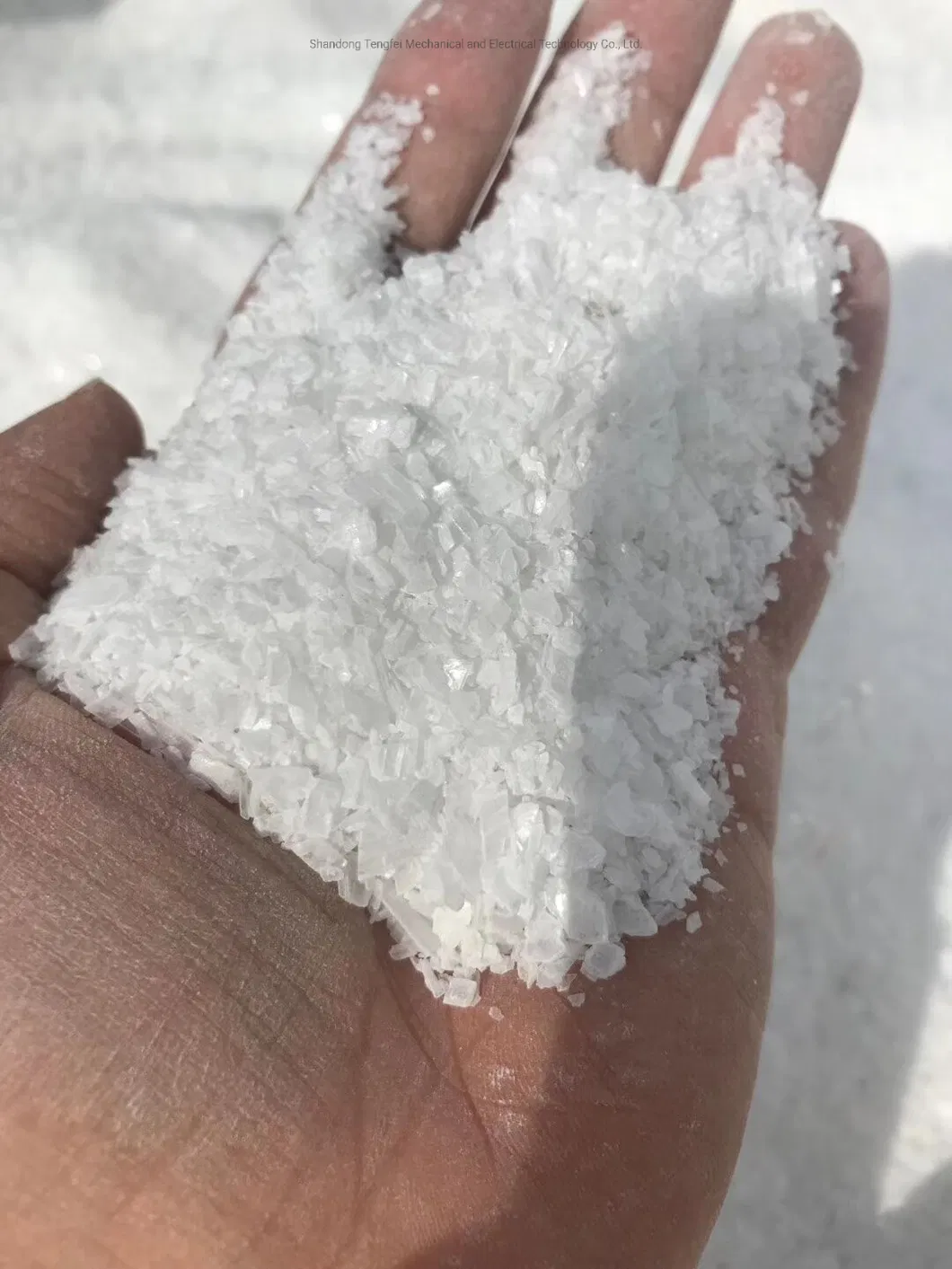

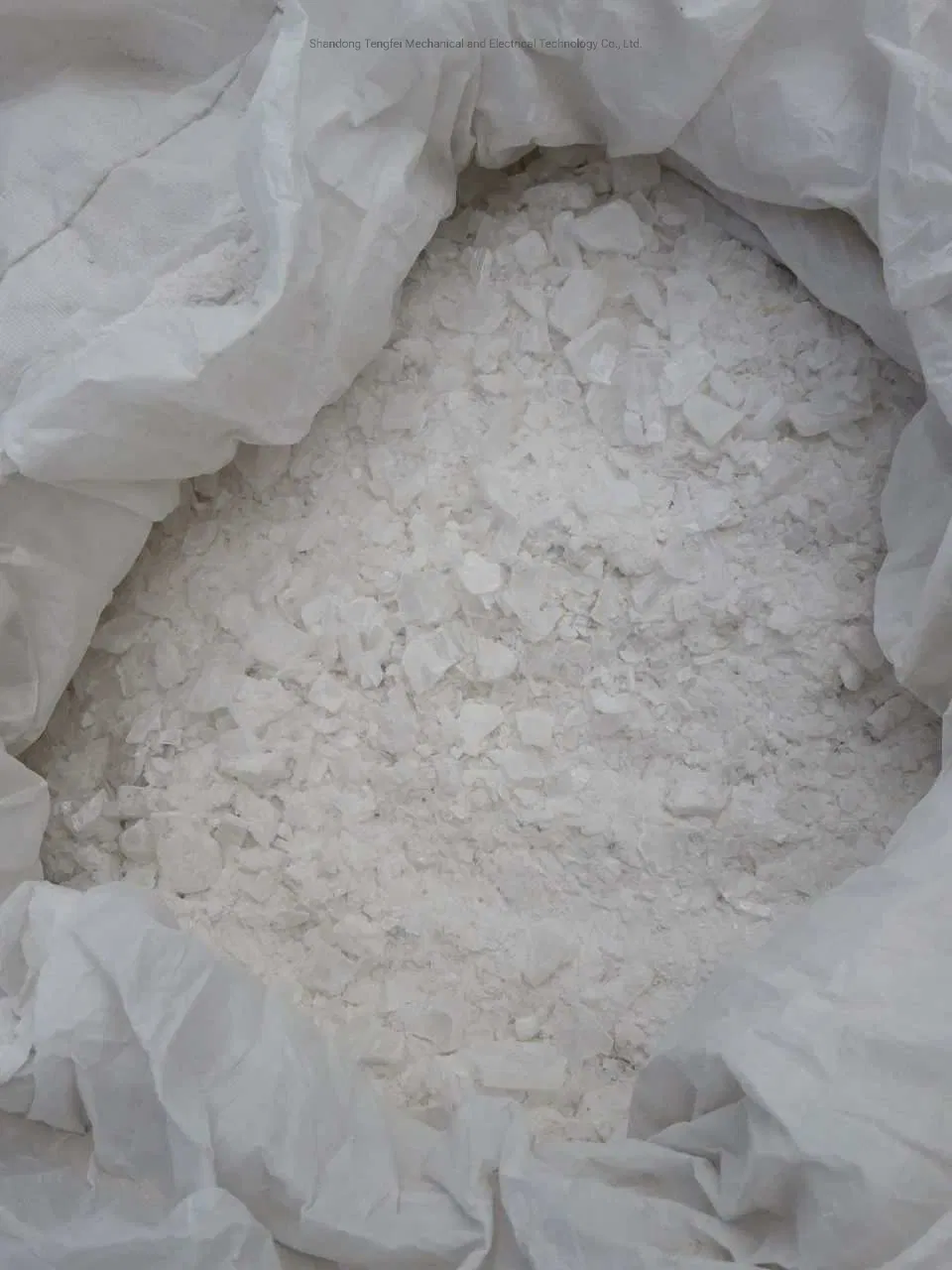

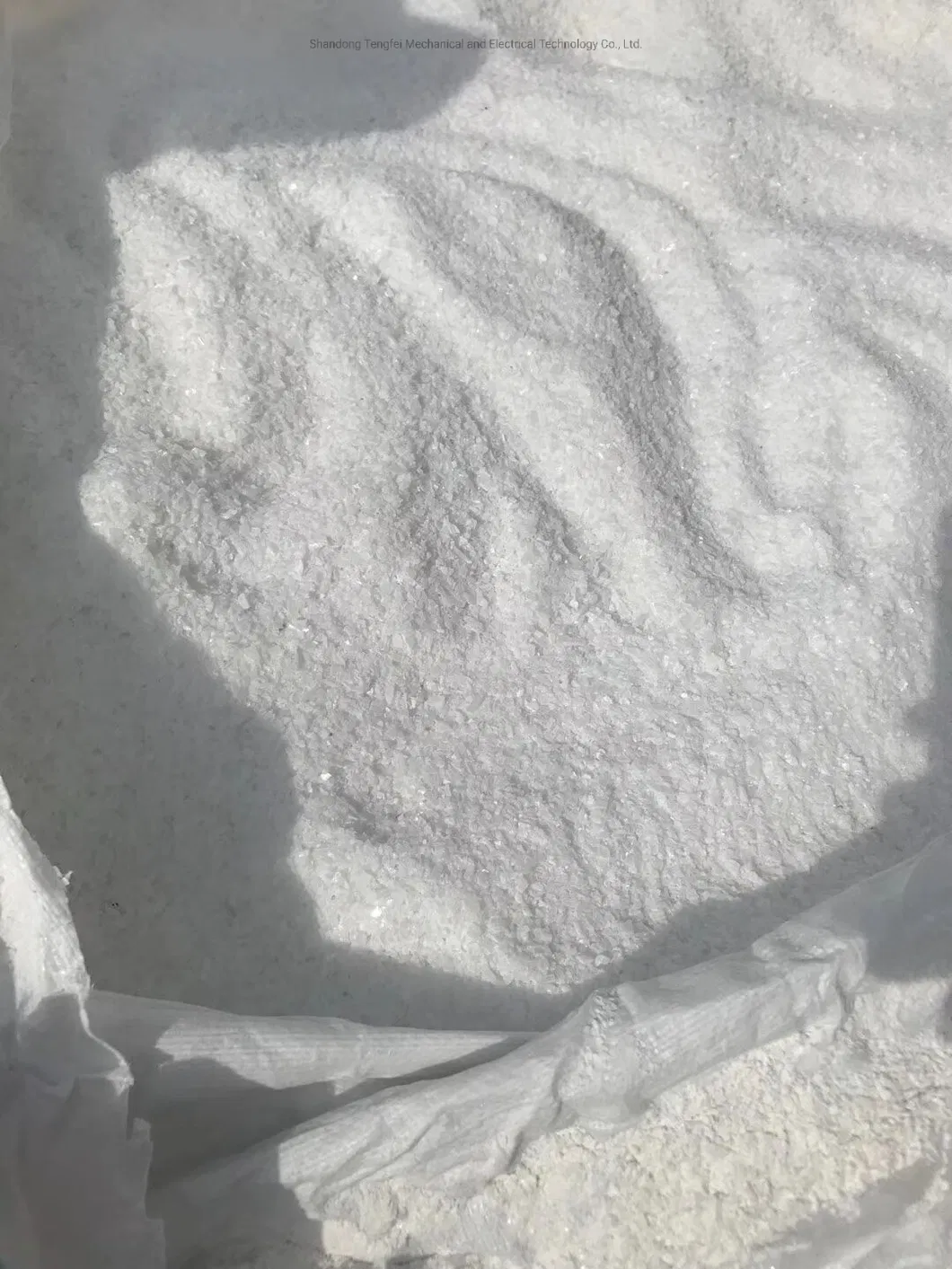

Crystal Gypsum Stone (1mm-5mm)
Factory Inspection
Packaging & Shipping
FAQ
Are you a manufacturing factory?
Yes, we are a manufacturing factory with 30 years of experience in the industry.
What is the price of the equipment?
The price varies significantly based on production capacity. Please confirm your required annual capacity for a specific quotation.
How long is the warranty period?
We provide a 1-year warranty and lifetime maintenance for all our machinery.
Do you provide installation services?
We provide one-stop service, covering design, manufacturing, installation, and commissioning until high-quality production is achieved.
How do I build a factory if I lack experience?
We specialize in turnkey projects. As long as you have the investment and vision, we can deliver a fully profitable factory for you.
Do you have successful cases?
We have successfully built gypsum factories for customers in many countries worldwide. Detailed case studies are available upon request.
