Gypsum Powder Machine Line Manufacture

Customization:	Available
Certification:	ISO 9001:2008, ISO 9001:2000, CE
Control Type:	CNC

Basic Information

Model NO.

TF20220901

Crushing Degree

Fine Grinding Machine

Automatic Grade

Automatic

Raw Material

Gypsum Rock

Land Area Required

30m X 18m

Labour Required

5-7

Fuel

Coal, Gas, Oil

Capacity

100ton/Day--1000ton/Day

Power Required

220kw

Control System

PLC Siemens Control

Calcination System

Vertical Boiling Furnace

Delivery Time

2months

Company Profile

Located at the foot of the famous Mountain Tai, near the Beijing to Shanghai high-speed and 104 State Road, we are an integrated science and technology joint-stock enterprise. We design, manufacture, install, and commission gypsum board, gypsum powder, and gypsum block machines. We have the capability to design production lines with annual capacities ranging from 2 Million M² to 50 Million M² for gypsum board, and 30,000 tons to 500,000 tons for various gypsum powder types (phosphogypsum, FGD, fluorine).

Product Description

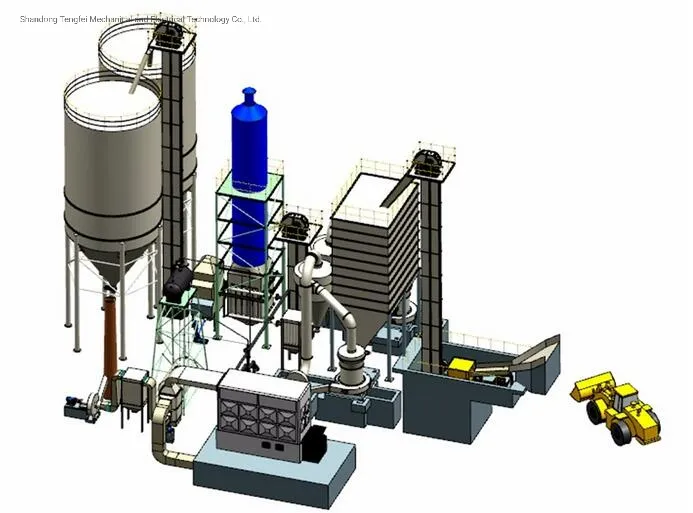

The main process of the gypsum powder machine includes crushing, grinding, calcining, energy supply, and packing systems. Our machine is competitively priced and suitable for developing countries. With over 20 years of manufacturing experience, our lines offer low energy consumption, high automation, and small installation footprints.

Product Parameters

Capacity per Year	Capacity per Hour	Gypsum Rock Consumption	Calcinor Dimension
20,000 tons	2.7 tons	24,000 tons	4.5 x 1.0 x 1.2 m
50,000 tons	6.9 tons	60,000 tons	4.5 x 1.4 x 1.6 m
100,000 tons	13.88 tons	120,000 tons	4.5 x 2.0 x 2.2 m
200,000 tons	27.77 tons	240,000 tons	4.5 x 2.4 x 2.6 m

Fineness: ≥100 mesh

Flexural Strength: ≥1.8Mpa; Antipressure Strength: ≥3.0Mpa

Main Contents: Hemihydrate ≥80% (Adjustable)

Initial Setting Time: 3-8min; Final Setting Time: 6-15min

Consistency: 65%~75% (Adjustable)

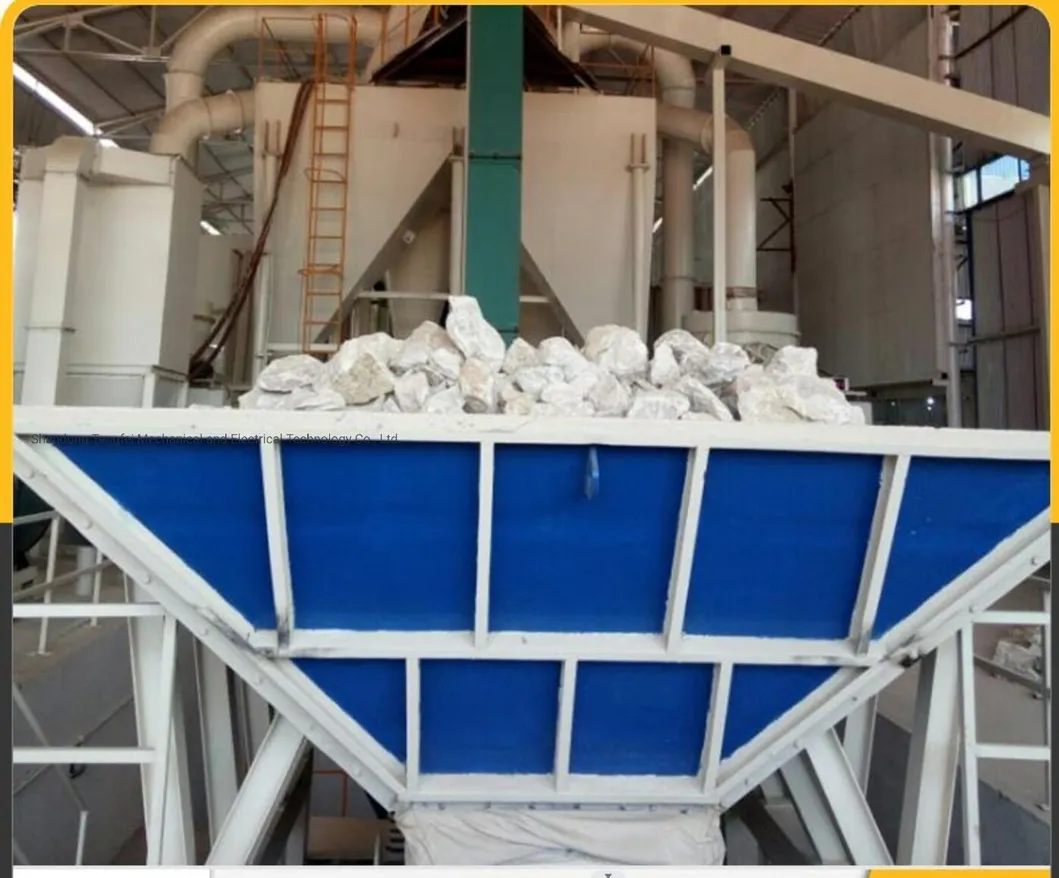

Detailed Photos

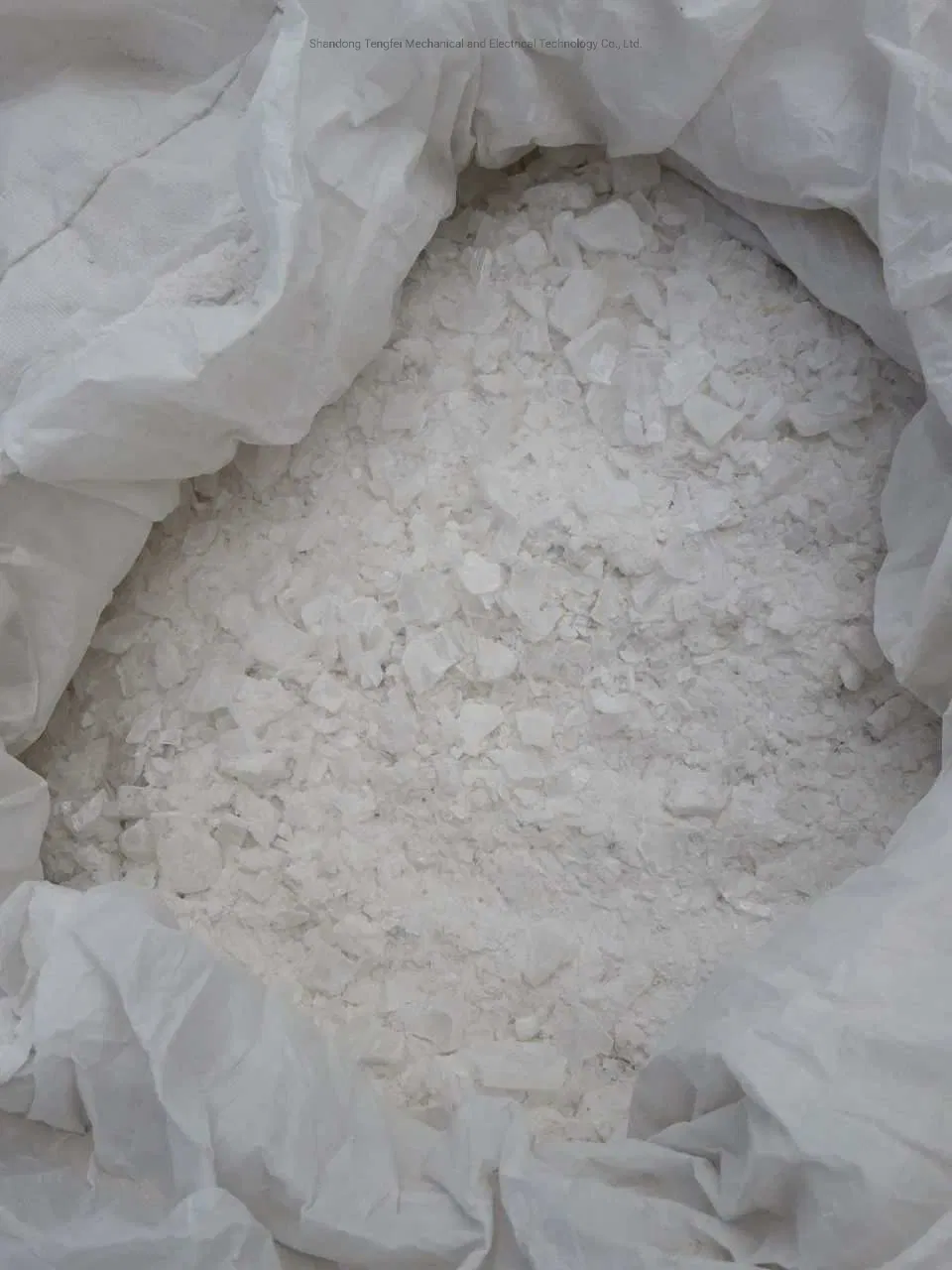

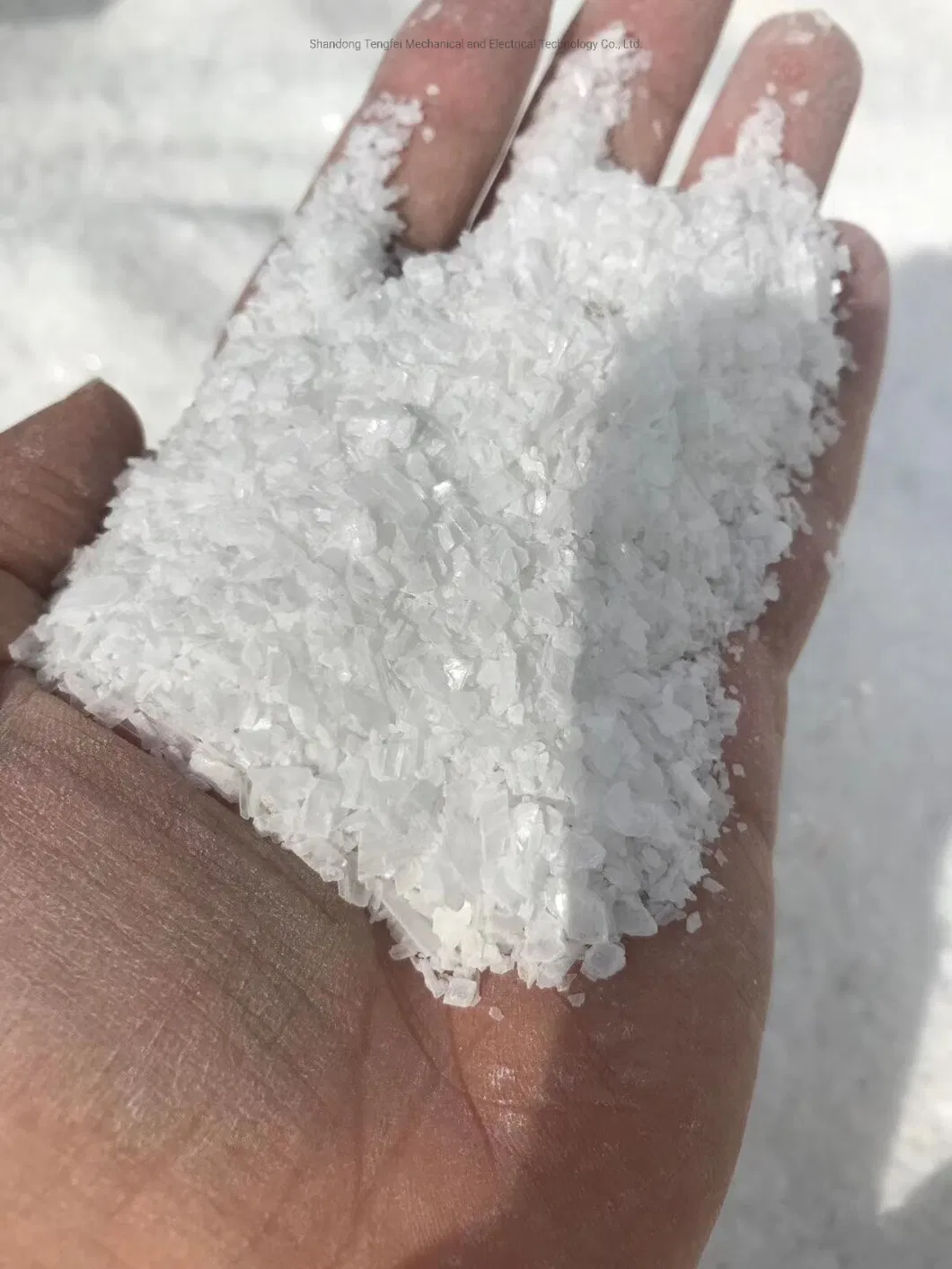

Crystal Gypsum Stone 1mm-5mm

Customer Factory Visit

Packaging & Shipping

Frequently Asked Questions

Q1: Are you a manufacturing factory? A1: Yes, we are a manufacturing factory with 30 years of experience in the industry.

Q2: What is the price of the equipment? A2: The price varies significantly based on production capacity. Please confirm your required annual capacity to receive a detailed quotation.

Q3: How long is the warranty period? A3: We provide a 1-year warranty on core components and offer lifetime maintenance services.

Q4: Do you provide installation and commissioning services? A4: Yes, we provide one-stop service from design and manufacturing to onsite installation and training.

Q5: What if I don't know how to build a gypsum factory? A5: We specialize in turnkey projects. As long as you have the investment and requirements, we handle the entire process to deliver a profitable factory.

Q6: Do you have successful project cases? A6: We have built gypsum board factories for customers in many countries globally. Contact us for specific case details.
