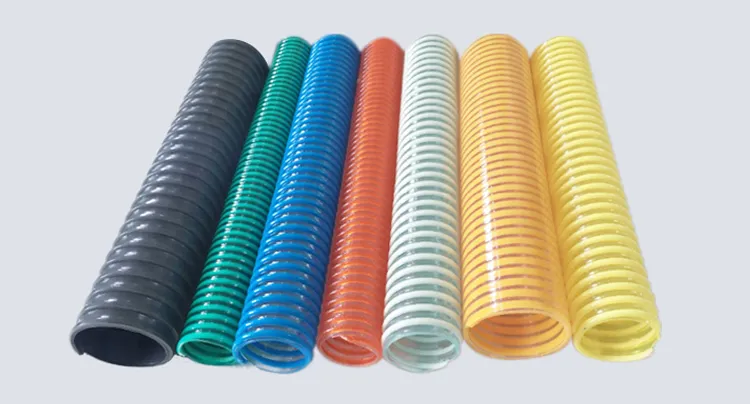

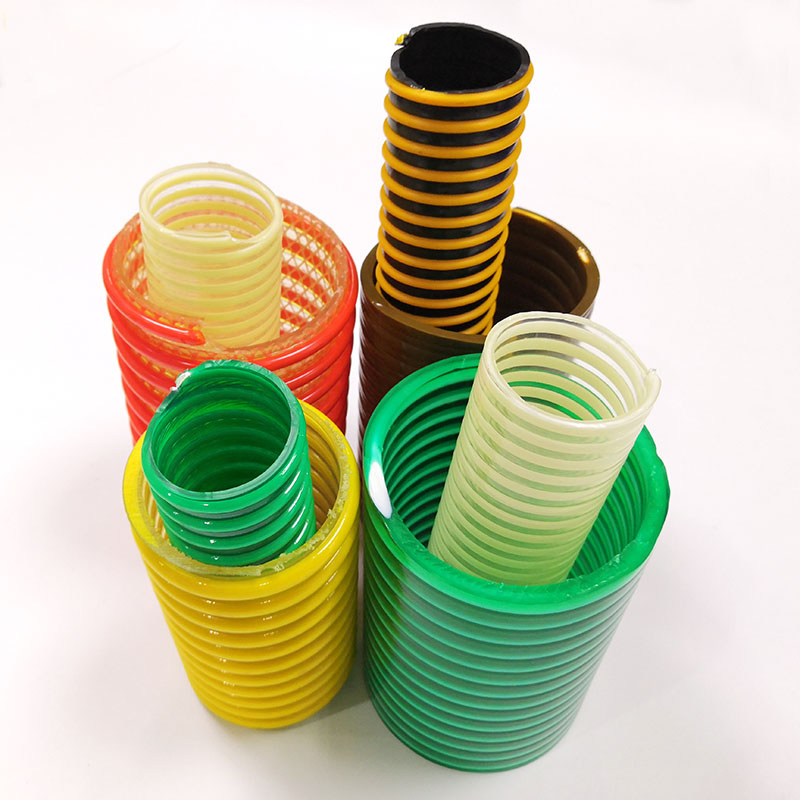

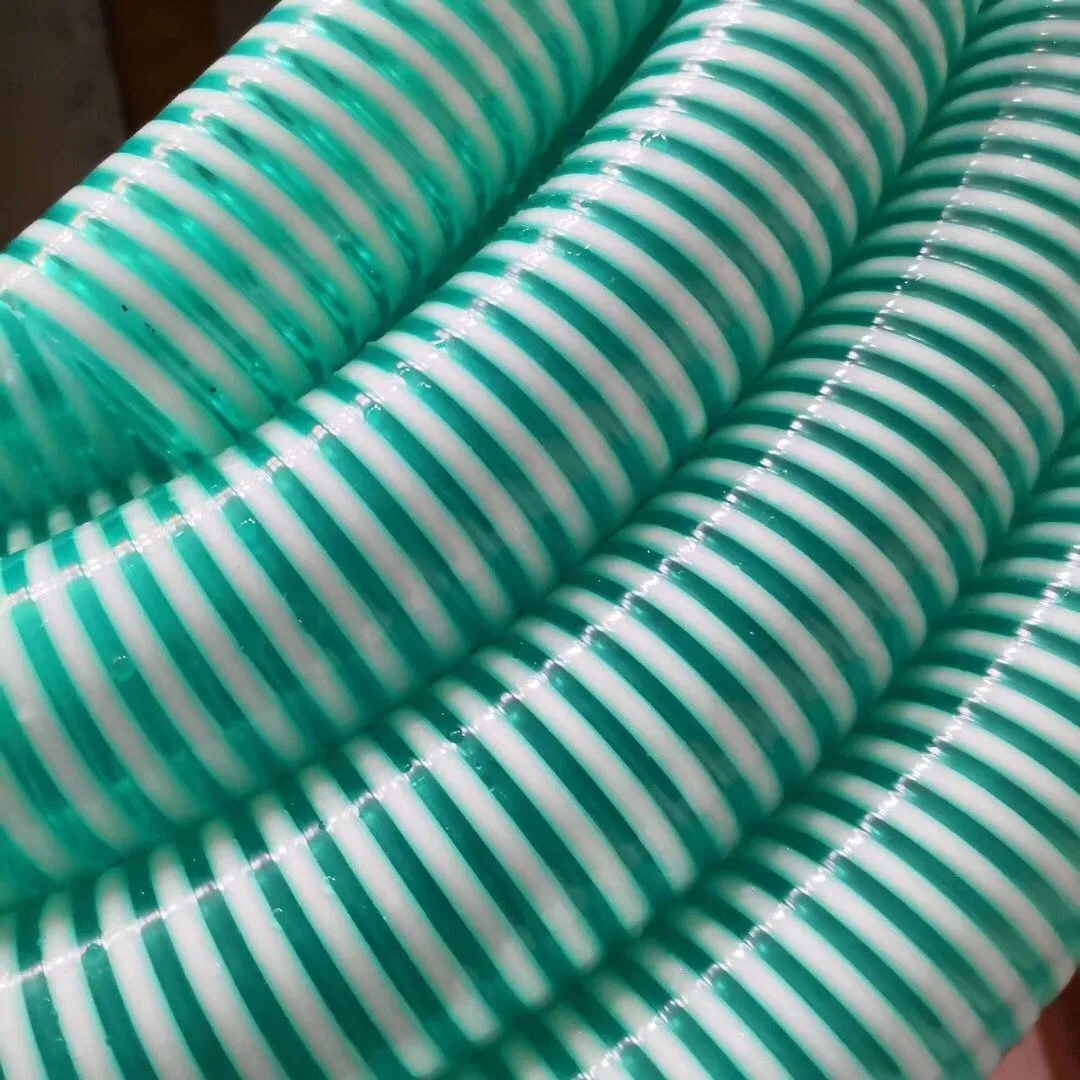

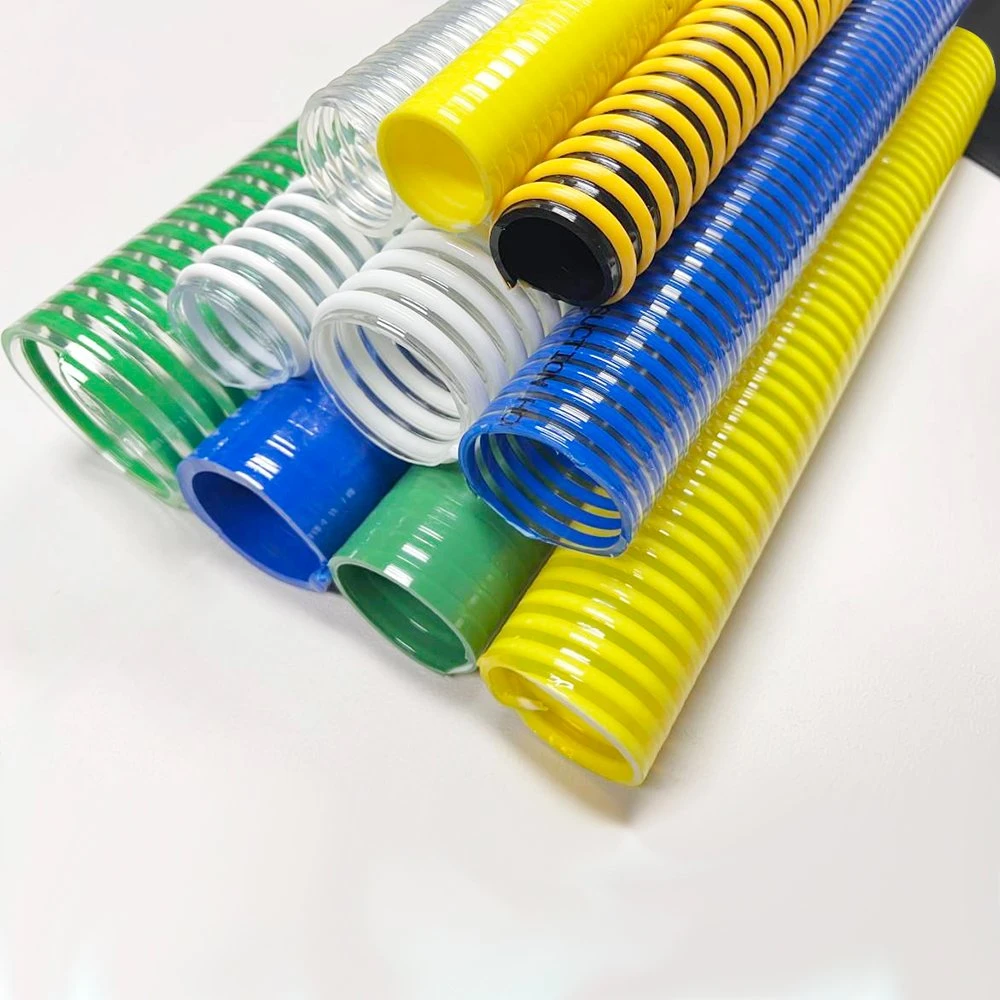

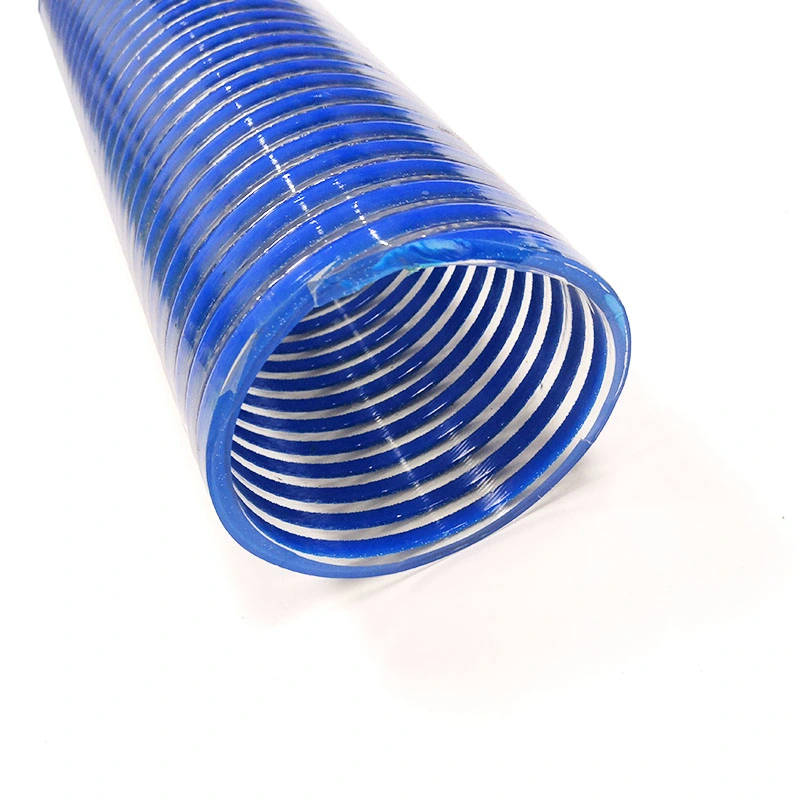

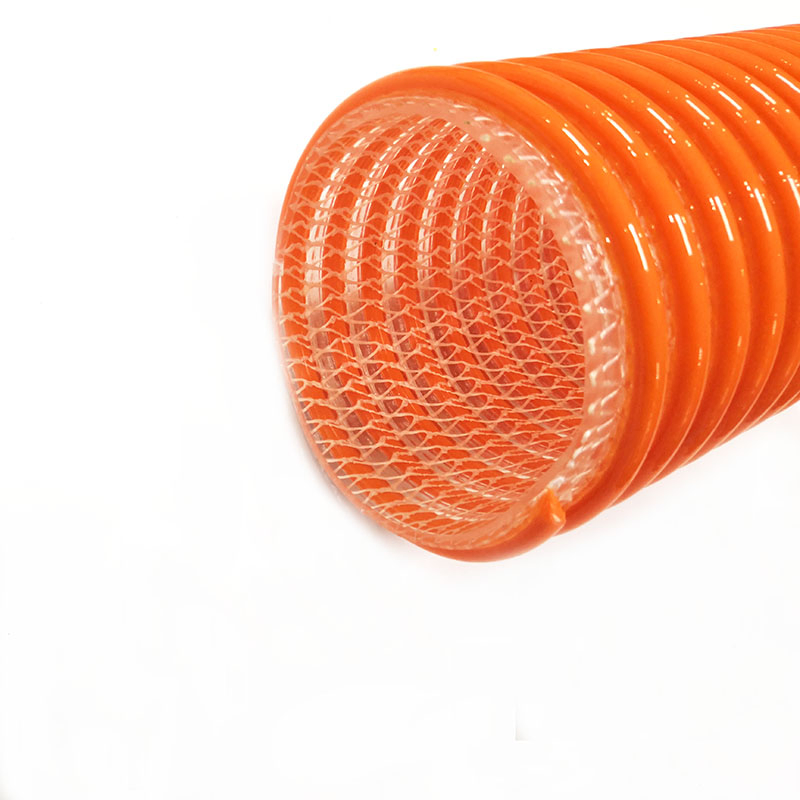

Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump

1 / 5

Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.suction hose

TypeThermosetting Plastic Pipe

ColorBlue, Orange, Yellow, Red, etc

ShapeRound

UsageDrainpipe, Irrigation, Mining, Construction

Length10m/20m/30m/50m

Thickness3mm-12mm

Working Pressure3bar-10bar

Temperature-5℃ to +65℃

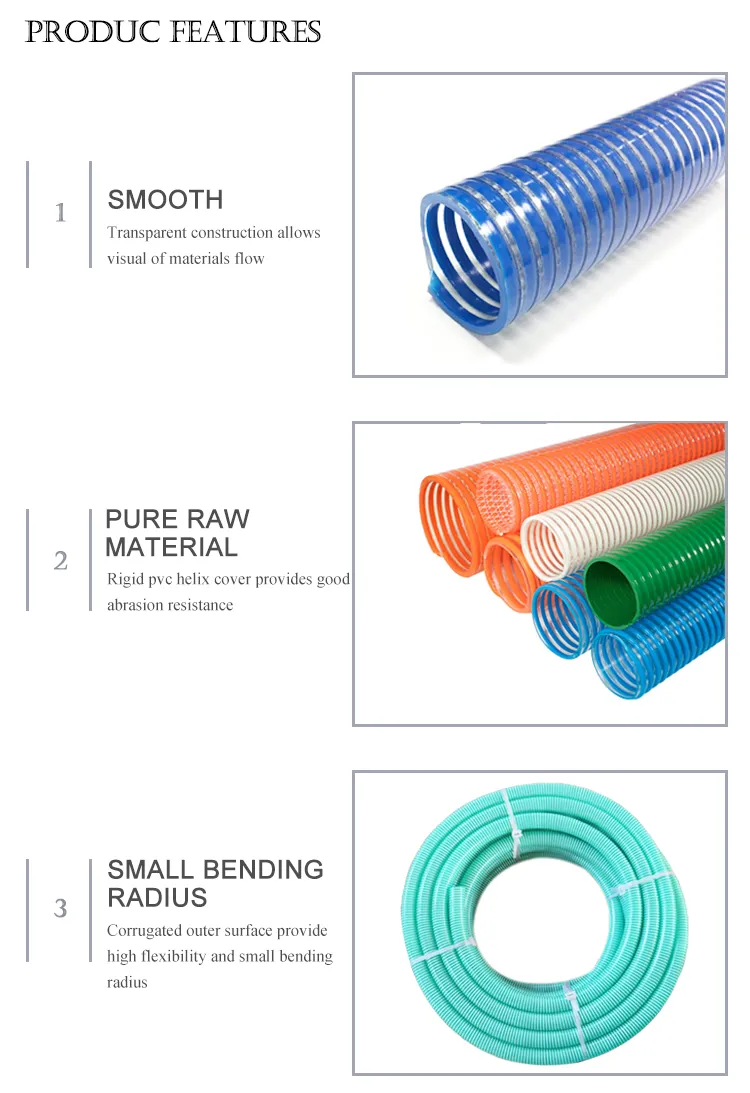

FeaturesAbrasion and Chemical Resistant

ReinforcedIntegral Helix Rigid PVC

HS Code3917390000

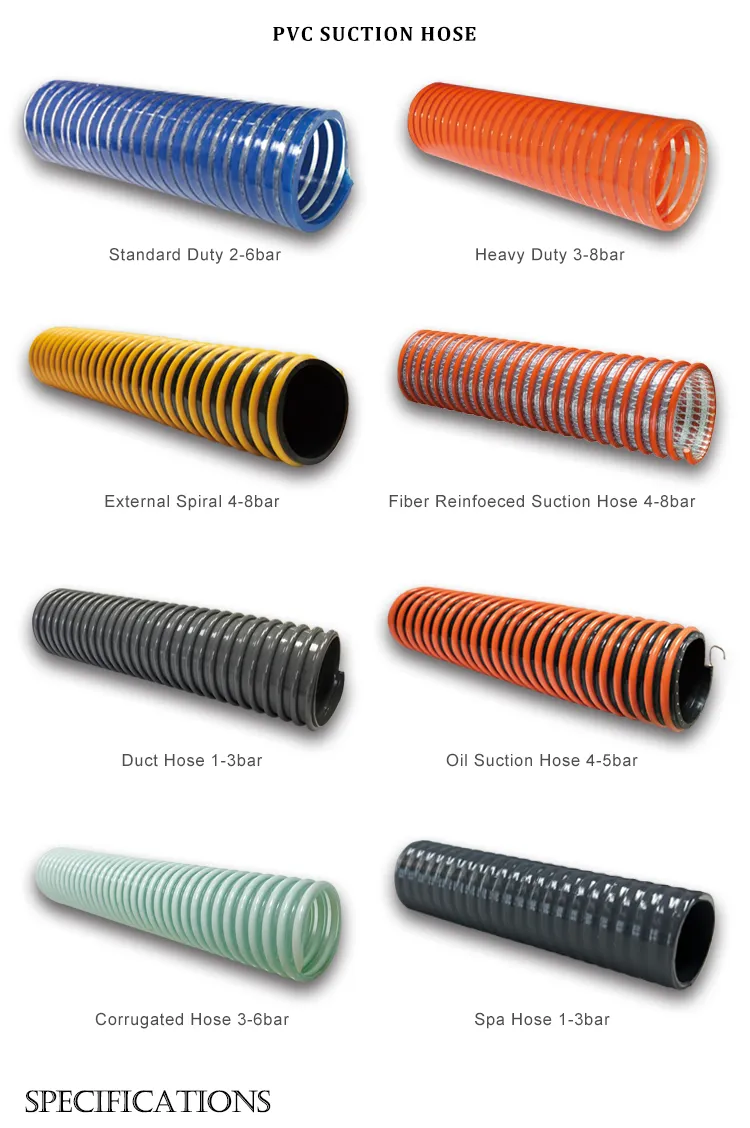

Product Overview

HEAVY DUTY PVC FLEXIBLE HELIX SUCTION HOSE PIPE

Technical Parameters

ID (in/mm)		OD (mm)	WP (bar/psi)		BP (bar/psi)		W/A (g/m)	COIL (m)
3/4	19	23	6	90	18	270	230	30
1	25	29	6	90	18	270	290	30
1-1/2	38	46	6	90	18	270	650	30
2	50	56	5	75	15	225	700	30
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
6	152	166	2	30	6	90	5500	10
8	200	214	2	30	6	90	6300	10
12	305	329	2	30	6	90	18000	10

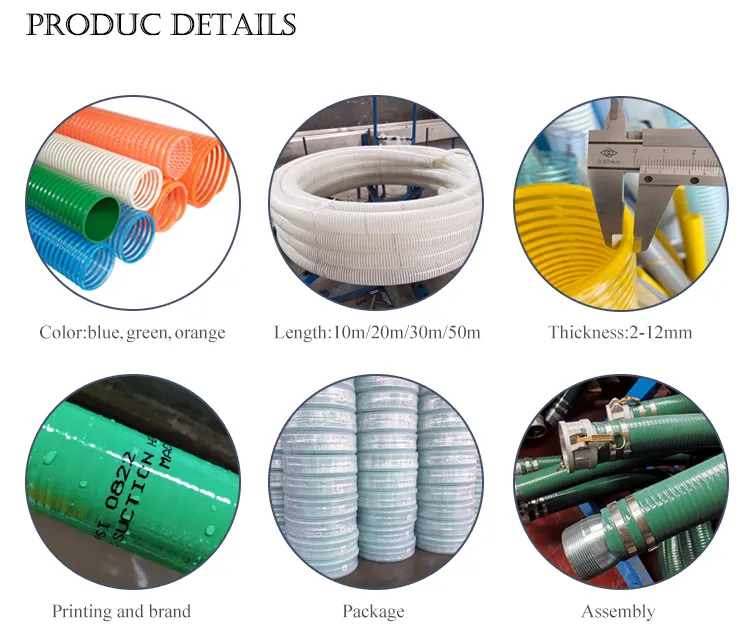

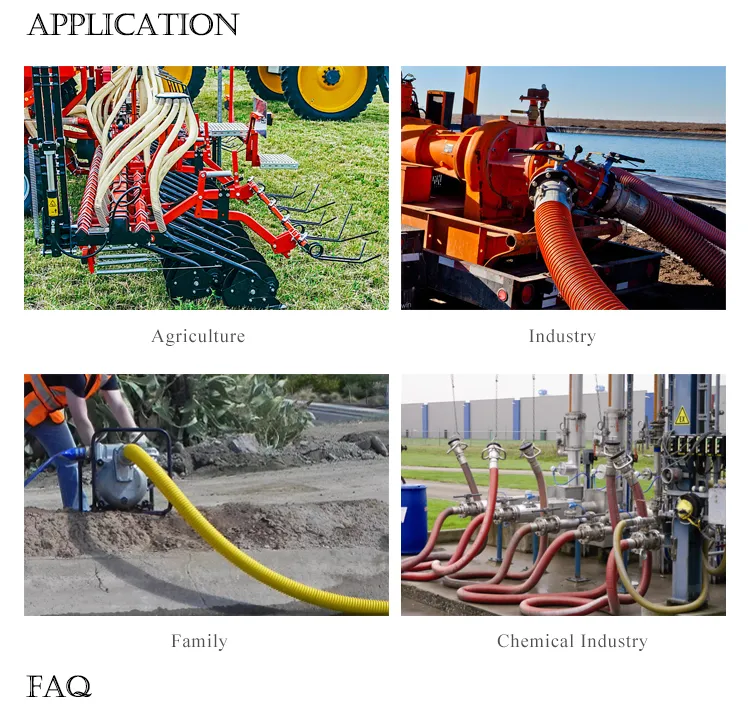

Application & Details

Frequently Asked Questions

What is the standard length per roll?

The standard length is 100m, but we can also provide custom lengths such as 10m, 20m, 30m, or 50m based on your requirements.

What is the size range you can produce?

We produce sizes ranging from a minimum of 3/4" (19mm) up to a maximum of 16" (406mm).

Is the hose UV resistant?

Yes, our suction hoses are designed to be UV resistant, making them suitable for outdoor applications.

What is the typical service life of this hose?

With proper preservation and usage, the service life is typically 2-3 years.

What is the maximum working pressure?

The maximum working pressure for our standard range is up to 10 bar.

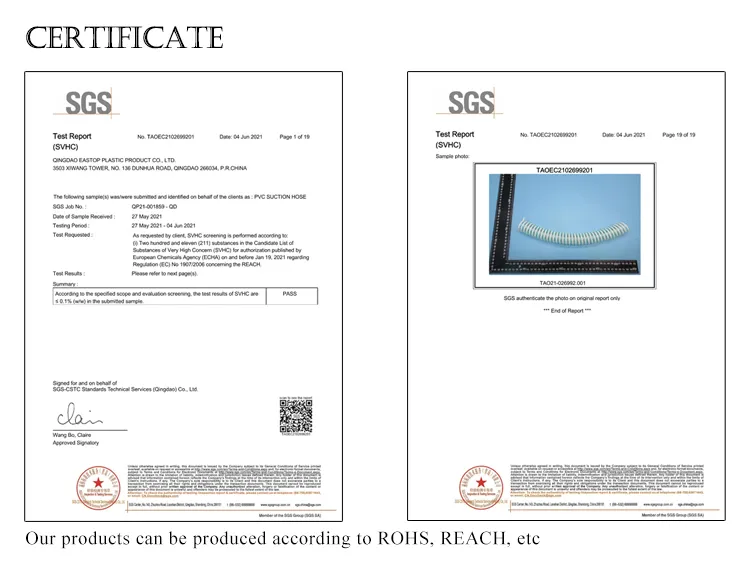

Do you offer quality guarantees?

We test the quality of every production shift. If any quality issues are found, we provide free replacements.
