High Performance Stainless Steel Braided Fuel Hose SAE J1532 for High Pressure Fuel Injection and Racing Automotive Systems

Material:	Synthetic Rubber
Capability:	Rubber Hose for Sand and Grit Blasting
Color:	Black

Basic Information

Product Name Super Artery Exceeds ISO18752 DC

Usage Industrial Work, Construction Machinery, Vehicle

Weight 0.2~7kg/M

I.D 25-300mm

Diameter 1/4 Inch to 4 Inch

Temperature Range -40°C to +121°C / -40°F to +250°F

Reinforcement Layer One Layer, Two Layers, Three Layers, Four Layers

Cover Oil and Weather Resistant Synthetic Rubber

Strong Point Corrosion Resistance for Chemical Liquid Medium

Characteristics Good Adhesion, Wear Resistant, Flexible

Specification R1, R2, R3, 4SP, 4SH, 6SH etc

Production Capacity 120,000,000 Meters/Year

Product Description

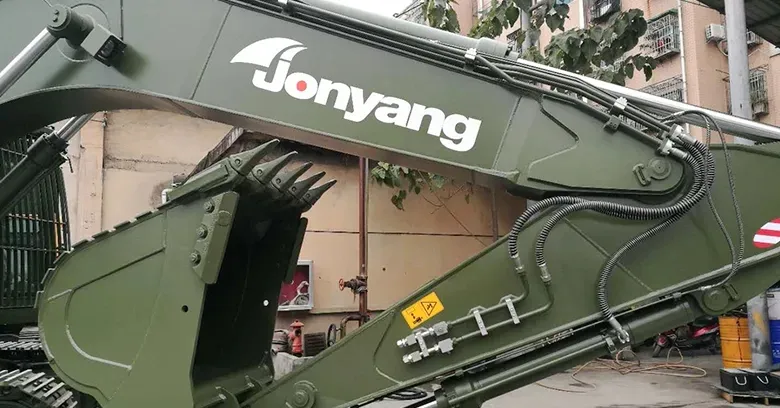

Application: Suitable for large-scale long-range machinery such as excavators or demanding environmental use requirements.
Inner Rubber Layer: Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded.
Reinforcement: Four layers of steel wire winding (1/4"-1"), pulse ≥1 million; six layers of steel wire winding (1 1/4"-2"), pulse ≥1 million times.
Outer Layer: Standard abrasion and weather resistant synthetic rubber. AR cover (highly abrasion resistant) and SAR cover (super abrasion resistant UHMWPE) available.
Performance: Bending radius reduced by 27% compared with ISO18752 and 37% compared with SAE standard. Pressure conforms to ISO18752 DC standard.

Specifications

Model	ISO18752			Inner Dia. (mm)	Outer Dia. (mm)	Working Pressure (MPa)	Min. Burst Pressure (MPa)	Min. Bending Radius (mm)	Weight (kg/m)
Model	5993 Standard	5993AR Wear-resistant	5993SAR Super Wear-resistant	Inner Dia. (mm)	Outer Dia. (mm)	Working Pressure (MPa)	Min. Burst Pressure (MPa)	Min. Bending Radius (mm)	Weight (kg/m)
SA5993-1/4"-4	DC	DC	DC	6.3	15.5	45	180	55	0.428
SA5993-5/16"-4	DC	DC	DC	8.0	17.0	45	180	60	0.479
SA5993-3/8"-4	DC	DC	DC	10.0	19.0	45	180	70	0.591
SA5993-1/2"-4	DC	DC	DC	13.0	22.2	45	180	140	0.701
SA5993-5/8"-4	DC	DC	DC	16.0	26.5	45	180	180	1.017
SA5993-3/4"-4	DC	DC	DC	19.0	30.5	42	168	200	1.383
SA5993-1"-4	DC	DC	DC	25.4	37.5	42	168	250	1.928
SA5993-1 1/4"-6	DC	DC	DC	32.0	49.5	42	168	400	3.626
SA5993-1 1/2"-6	DC	DC	DC	38.0	56.0	42	168	480	4.404
SA5993-2"-6	DC	DC	DC	51.0	70.0	42	168	650	6.33

Manufacturing Excellence

Professional manufacturer of petroleum drilling hoses and hydraulic hoses.

Dedicated to delivering high-quality rubber solutions since 2003, our production focuses on reliability and market credibility. We specialize in developing and producing rubber compounds, hoses, fluid connectors, and rubber-plastic seals.

Innovation-Driven Development

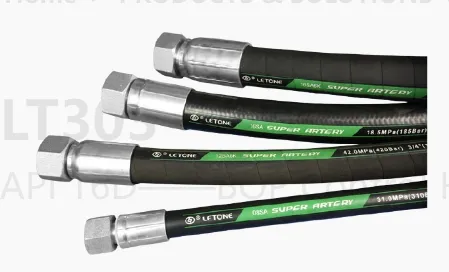

The Super Artery (SA) Series combines flexibility and high pressure resistance, withstanding 1 million+ impulse cycles.

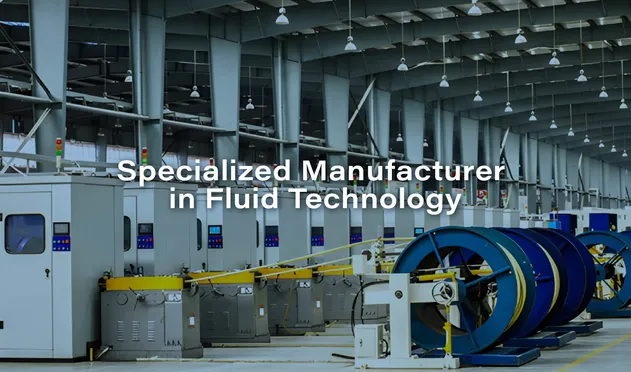

Fluid Technology Specialist

Offering high-performance hydraulic and drilling hoses—including AP I/ABS-certified and abrasion-resistant types.

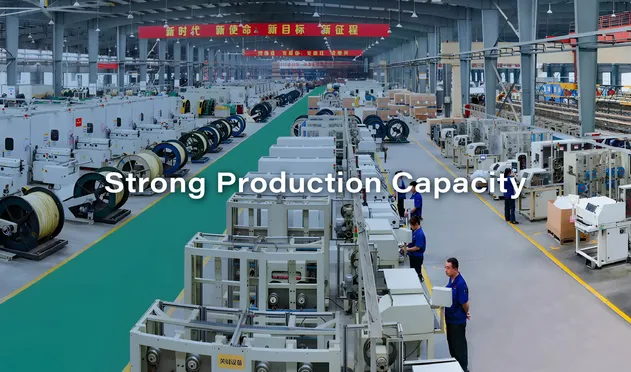

Strong Production Capacity

Modern 130,000 sqm production base with an annual output of 30 million meters of hose.

Main Product Types

STEEL WIRE SPIRAL HYDRAULIC HOSE
STEEL WIRE BRAID HYDRAULIC HOSE
FIBER REINFORCED RUBBER HOSE
THERMOPLASTIC HOSE
SUPER ARTERY SERIES HOSE

BOP Control Hose (AP I 16D)
High Pressure Cementing Hose (AP I 7K)
Flexible Choke And Kill Hose (AP I 16C)

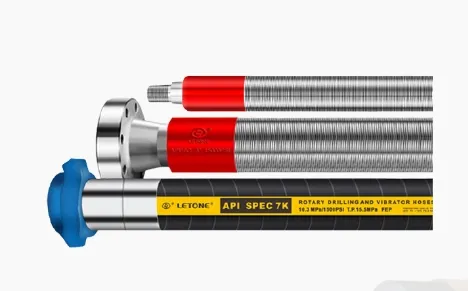

Rotary Drilling And Vibrator Hose (AP I 7K)
Multi-Purpose Crude Oil Hose

Application & Certifications

Holding major certifications including AP I Type Approvals (16C & 7K), ABS Type Approval, MSHA safety, and Lloyd's Fire Test. Testing Center is accredited by CNAS, featuring 20+ specialized laboratories for impulse, burst, and fire resistance testing.

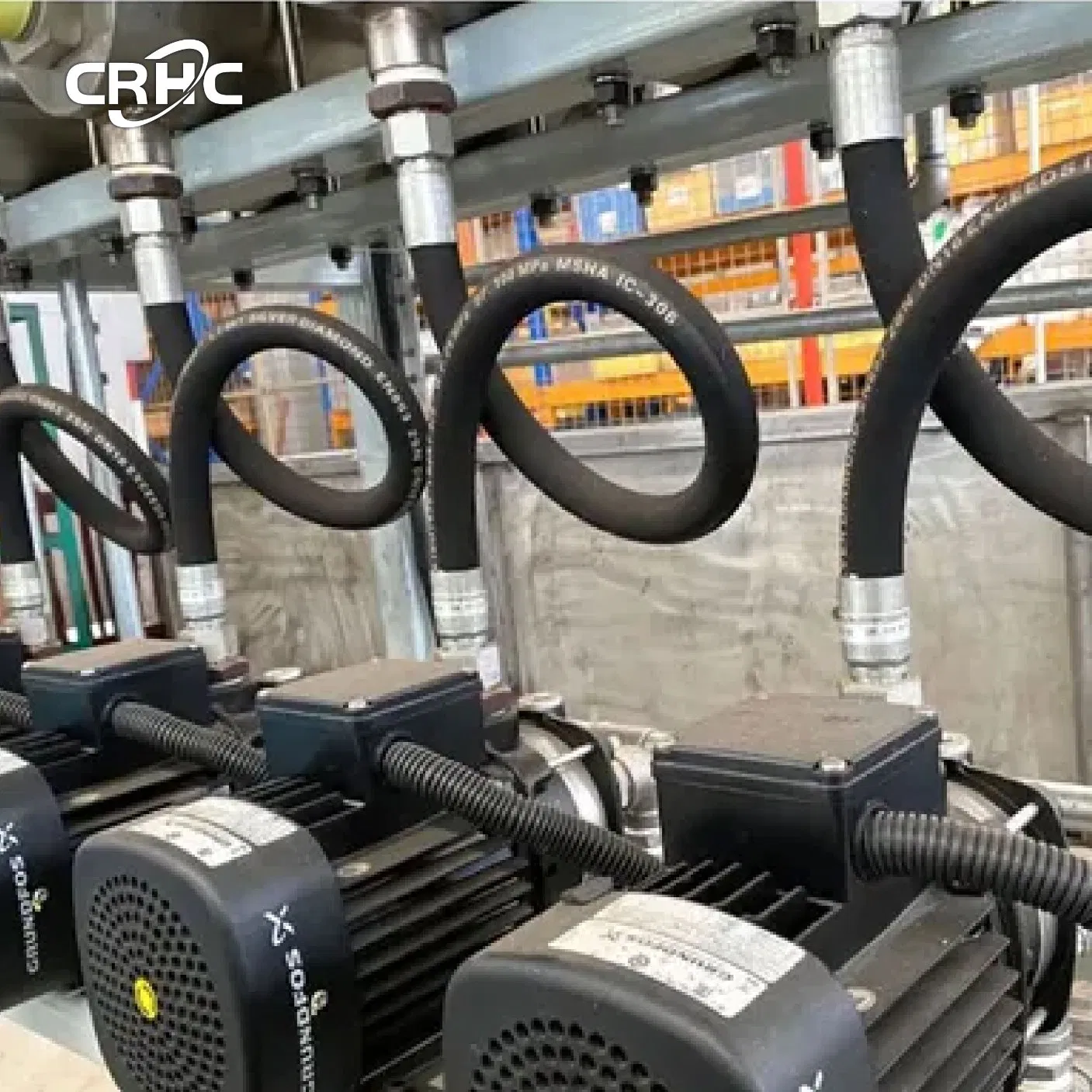

Success Cases & Assembly

Premium Hydraulic Hoses for Heavy Machinery: Pressure ratings 25% above standards, low bending radius for tight spaces, and 5-year expected service life.

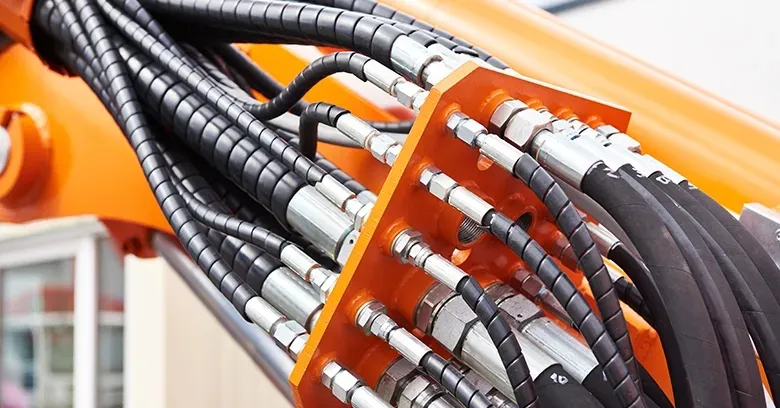

Hose Assembly Steps: Mark the outer cover at specified depth, insert fitting until flush, and crimp after confirming alignment.

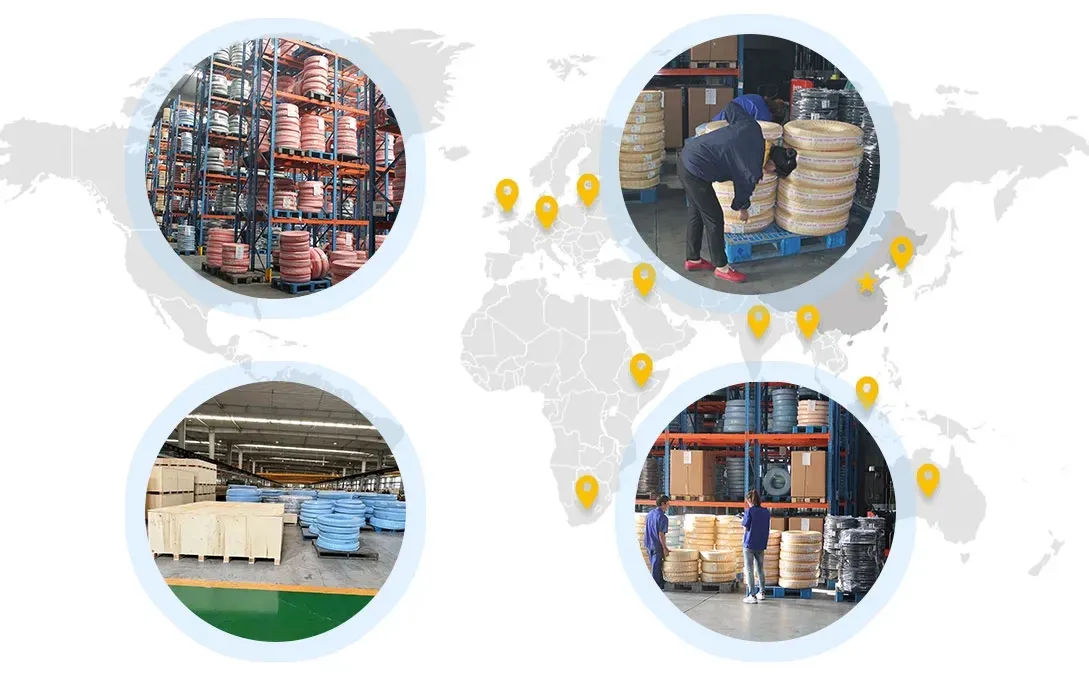

Packaging & Shipping

Frequently Asked Questions

What is the temperature range for these hydraulic hoses?

The temperature range is from -40°C to +121°C (-40°F to +250°F).

How does the bending radius compare to standard hoses?

The bending radius is reduced by 27% compared with the ISO18752 standard and by 37% compared with the SAE standard, allowing for easier installation in tight spaces.

What kind of reinforcement does the SA5993 series use?

It uses four layers of steel wire winding for sizes 1/4" to 1", and six layers of steel wire winding for sizes 1 1/4" to 2".

What certifications do your products hold?

Our products hold AP I (16C & 7K), ABS Type Approval, MSHA safety certification, Lloyd's Fire Test certificate, and ISO 9001:2015.

What is the expected service life and warranty?

The hoses have a 5-year expected service life and are typically backed by a 2-year warranty for heavy machinery applications.

Which outer covers are available for abrasion resistance?

We offer the Standard cover, the AR cover (high abrasion resistance), and the SAR cover (super abrasion resistance using UHMWPE).
