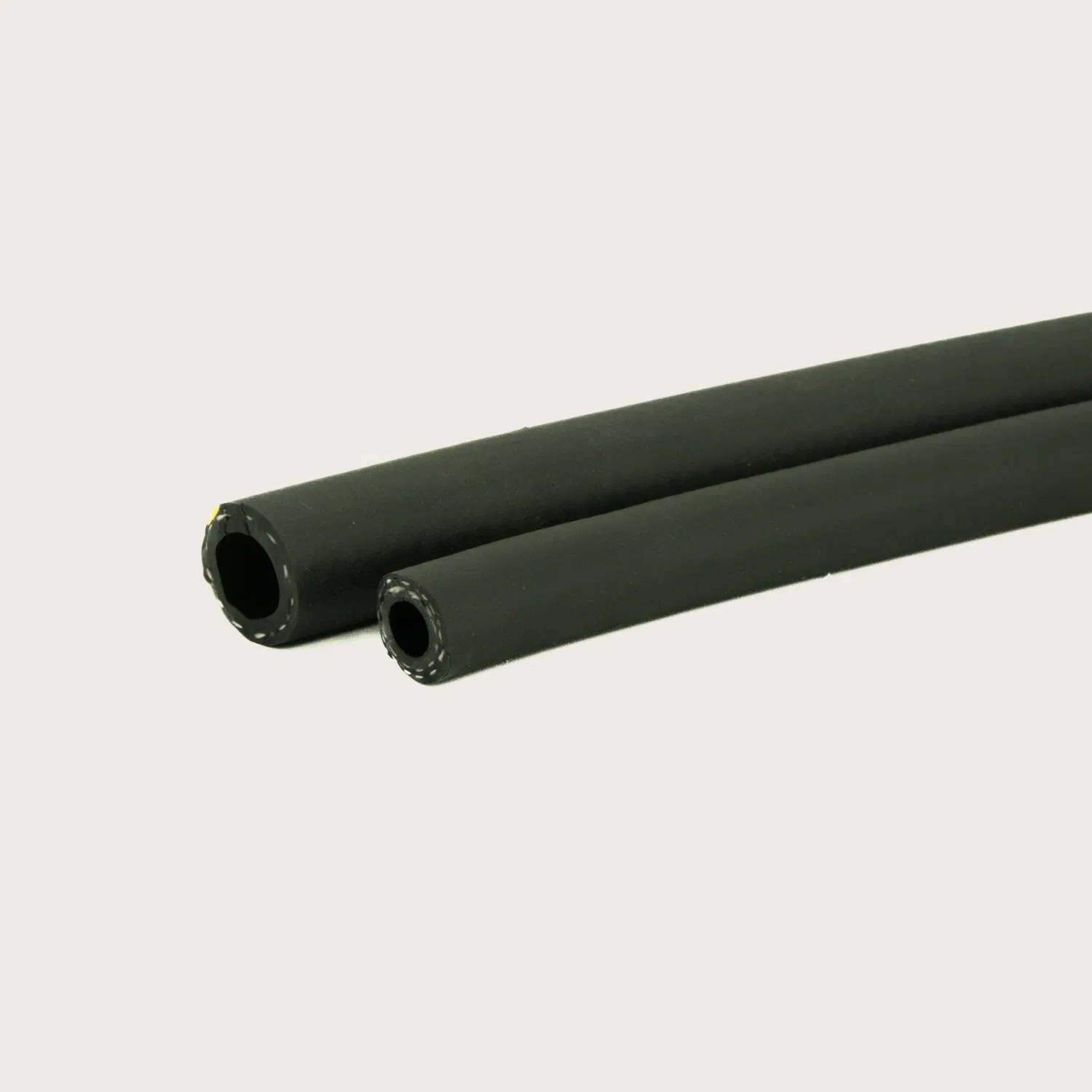

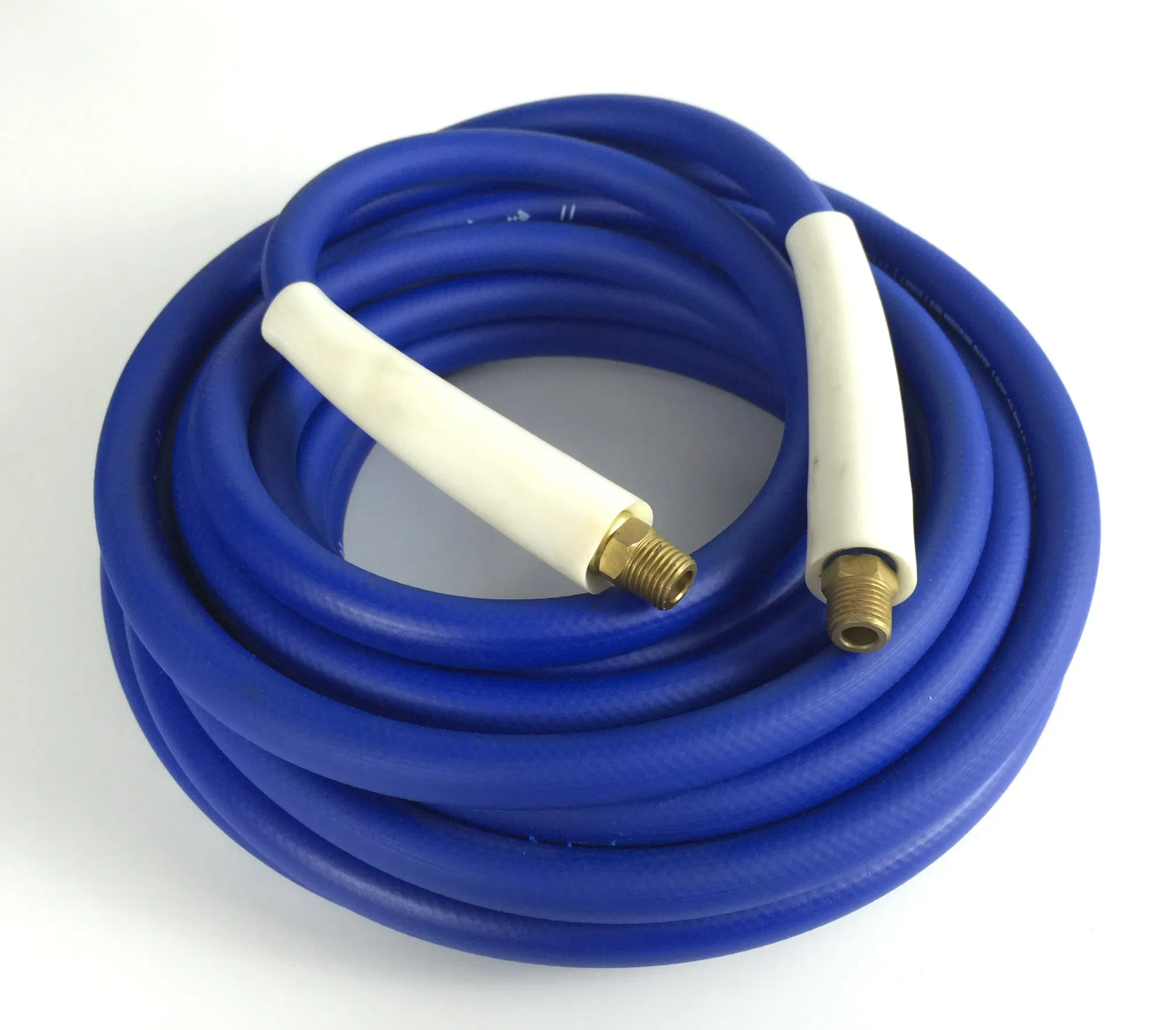

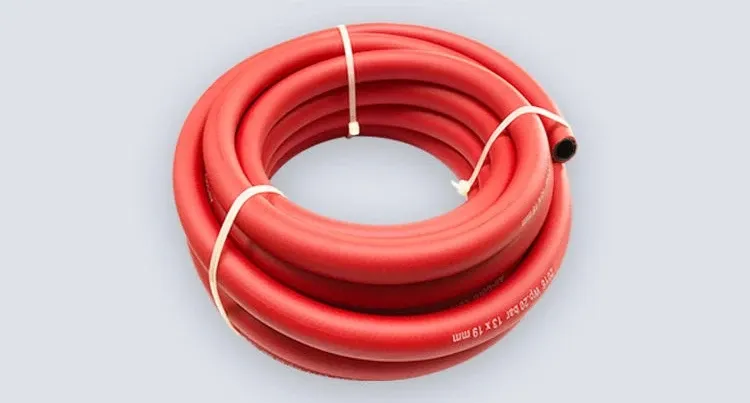

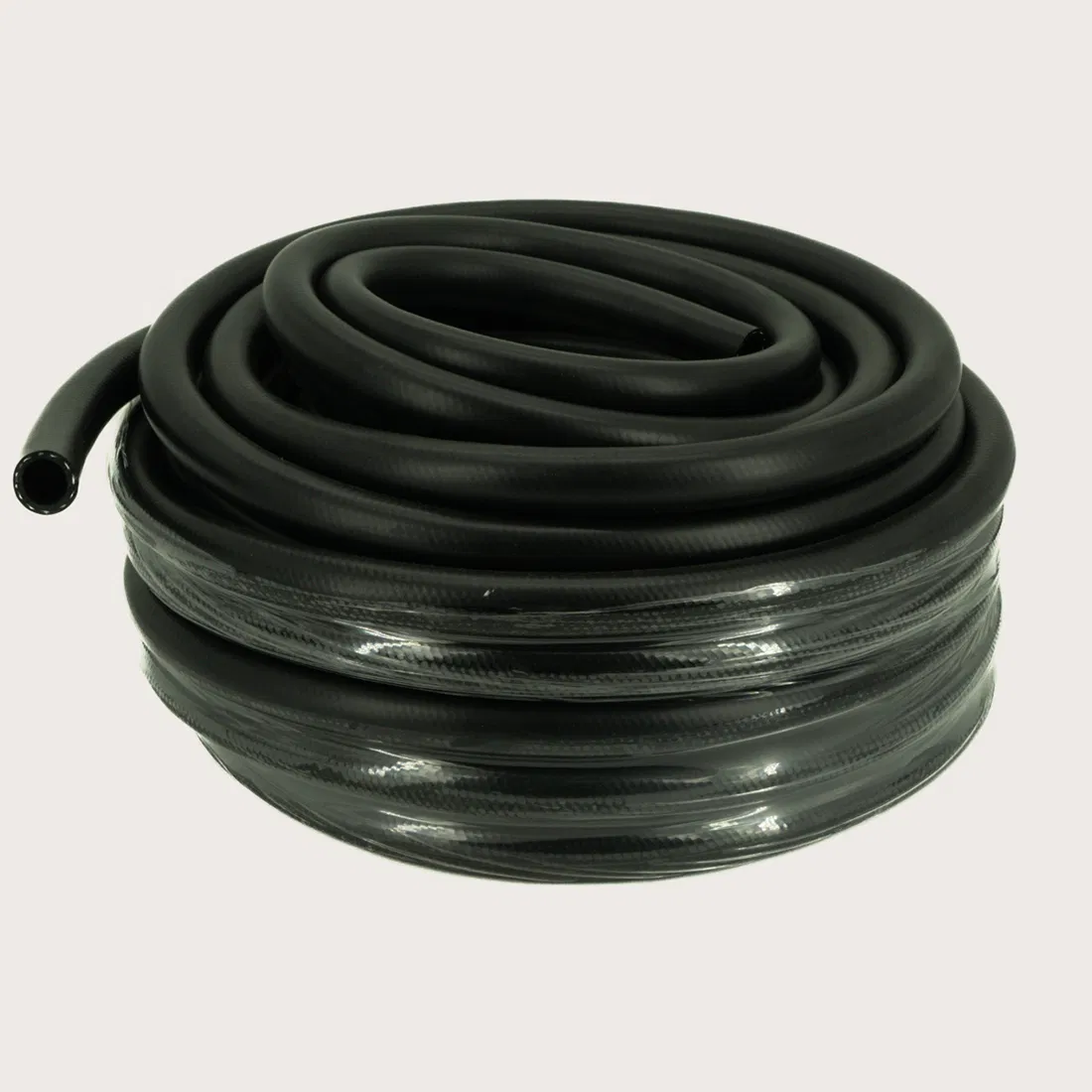

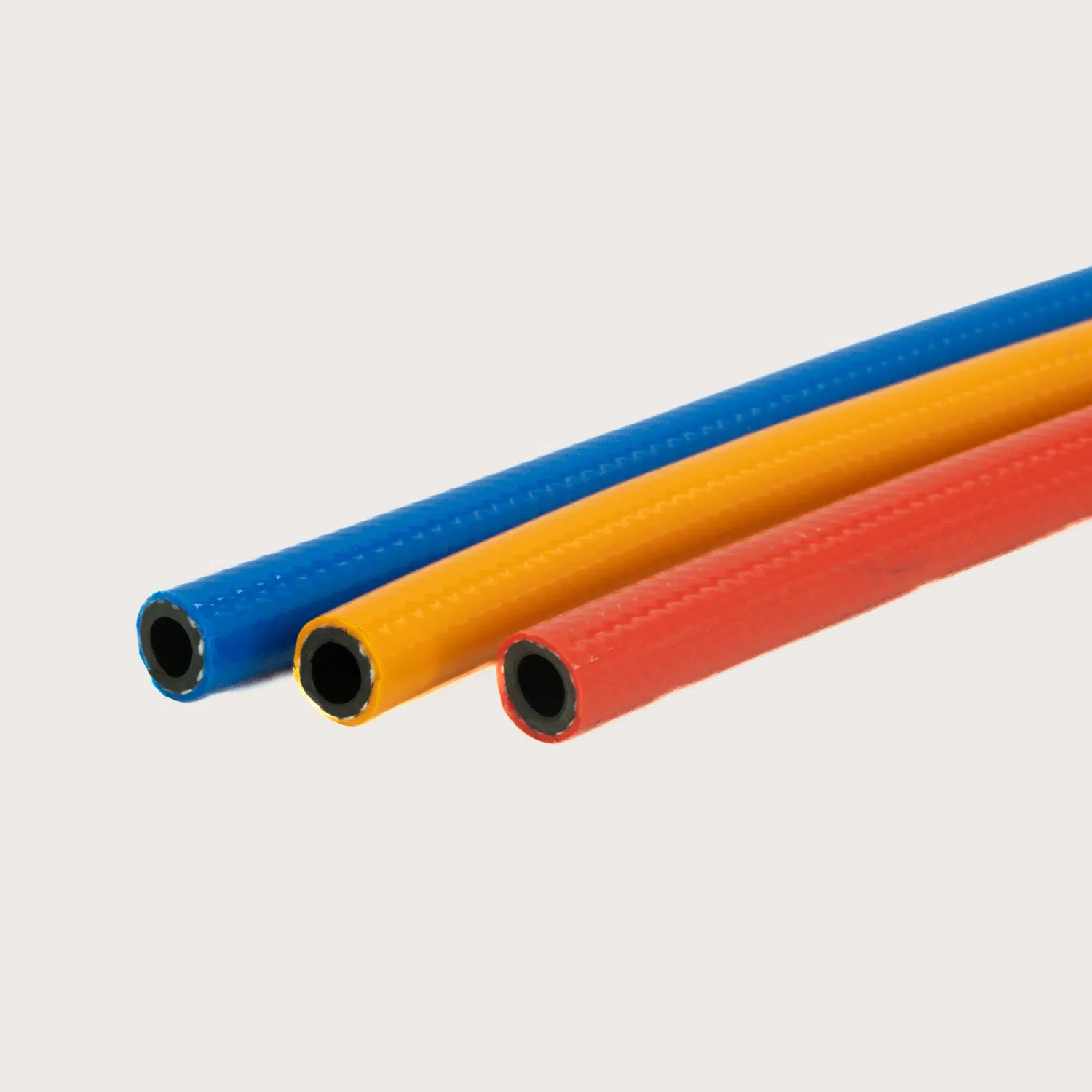

20/30/40 Bar High Pressure Multipurpose Rubber Air Hose PVC Air Hose Pipe 1/4'' 3/8'' 1/2'' 3/4'' 1'' for Water Fuel Oil Compressor Pump

1 / 5

20/30/40 Bar High Pressure Multipurpose Rubber Air Hose PVC Air Hose Pipe 1/4'' 3/8'' 1/2'' 3/4'' 1'' for Water Fuel Oil Compressor Pump

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

pvc air hose

Shape

Round

Usage

Gas Transfer

Feature

High Pressure, Anti-UV

Application

Supply Water, Oil, Gas

Length

50m/100m

Thickness

5.5mm-10mm

Reinforcement

High Strength Fiber

Working Pressure

20 - 40 bar

Certification

CE ISO

MOQ

1000 Meters

Sample

Free Sample

Package Size

40.00cm * 40.00cm * 25.00cm

Gross Weight

25.000kg

Capacity

3000 tons/Year

HS Code

39173900

✓

Product Description

20/30/40 Bar High Pressure Multipurpose Rubber Air Hose PVC Air Hose Pipe 1/4'' 3/8'' 1/2'' 3/4'' 1'' for Water Fuel Oil Compressor Pump

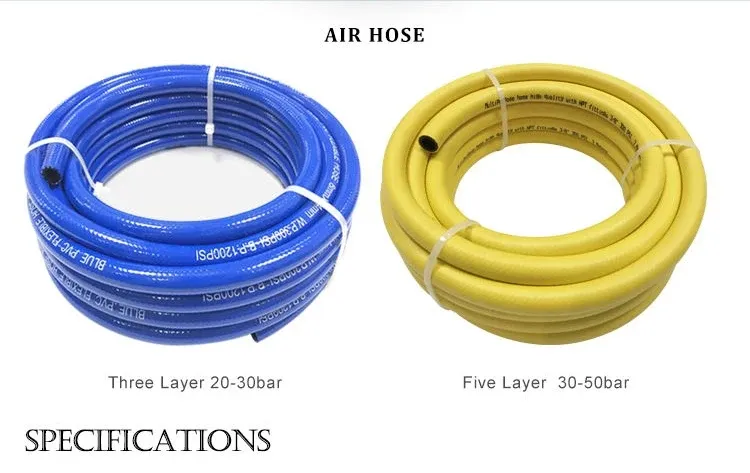

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
1/4	6	11.5	20	300	60	900	102	100
1/4	6	12	40	600	120	1800	115	100

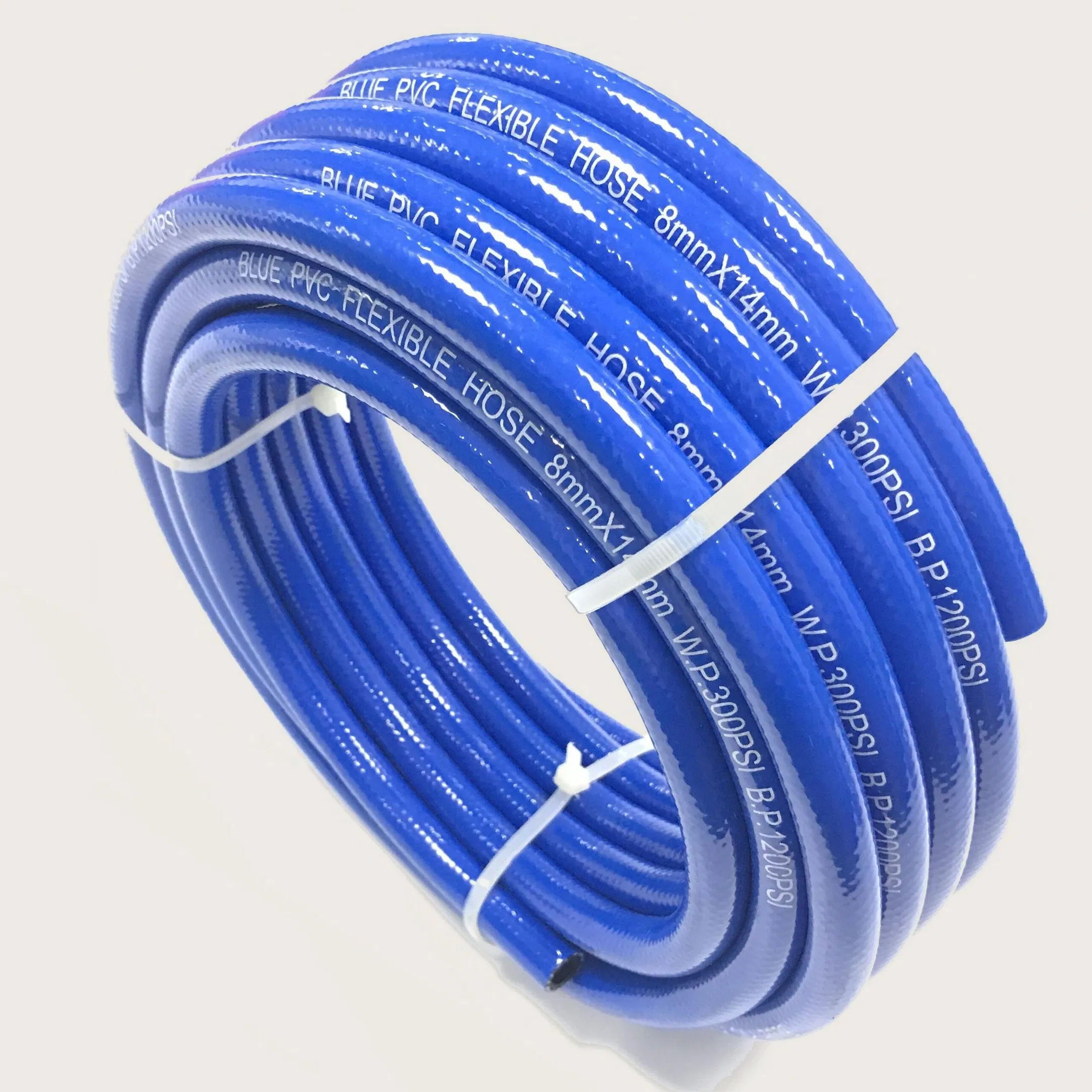

5/16	8	14	20	300	60	900	140	100
5/16	8	15	40	600	120	1800	170	100
3/8	10	16	20	300	60	900	165	100
3/8	10	17	40	600	120	1800	200	100
1/2	13	19	20	300	60	900	203	100
1/2	13	20	40	600	120	1800	245	100
5/8	16	24	20	300	60	900	340	50
5/8	16	25	40	600	120	1800	390	50
3/4	19	28	20	300	60	900	450	50
3/4	19	29	30	450	90	1350	510	50
1	25	34	20	300	45	675	560	50
1	25	35	30	450	90	1350	640	50

Frequently Asked Questions

What is the maximum working pressure for this PVC air hose?

The hose is designed to handle high-pressure applications with a working pressure ranging from 20 bar (300 psi) up to 40 bar (600 psi), depending on the specific model and size.

What materials are used in its construction?

The hose is manufactured using high-quality PVC reinforced with high-strength fiber to ensure durability and resistance to high pressure.

Is this hose suitable for outdoor use?

Yes, it features Anti-UV properties, making it resistant to sunlight exposure and ideal for various outdoor industrial and agricultural applications.

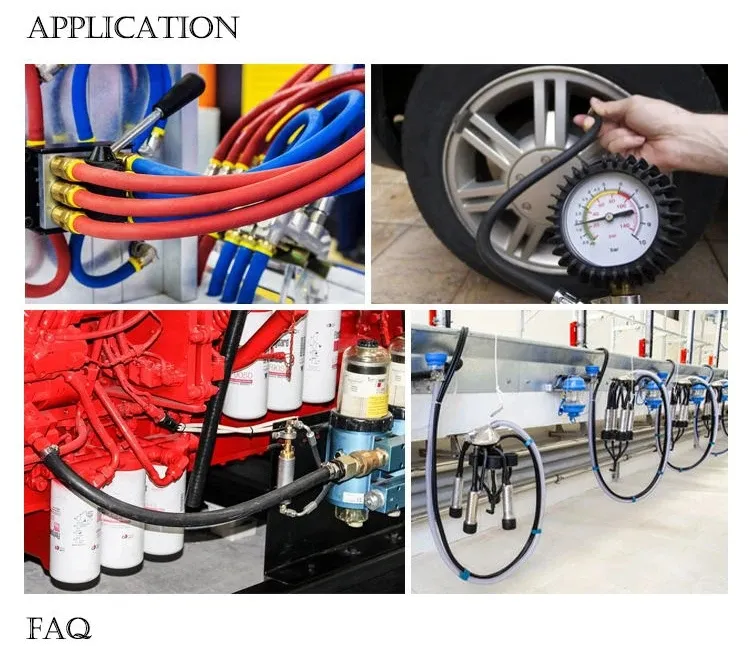

What are the primary applications for this multipurpose hose?

It is versatile and can be used for transferring water, fuel, oil, and gas, and is commonly used with air compressors and pumps.

Can I request a sample before placing a bulk order?

Yes, we provide free samples for quality evaluation. The minimum order quantity (MOQ) for bulk production is 1000 meters.

What sizes are available for the PVC air hose?

We offer a wide range of specifications including internal diameters from 1/4", 3/8", 1/2", 3/4" up to 1" to fit various equipment requirements.
