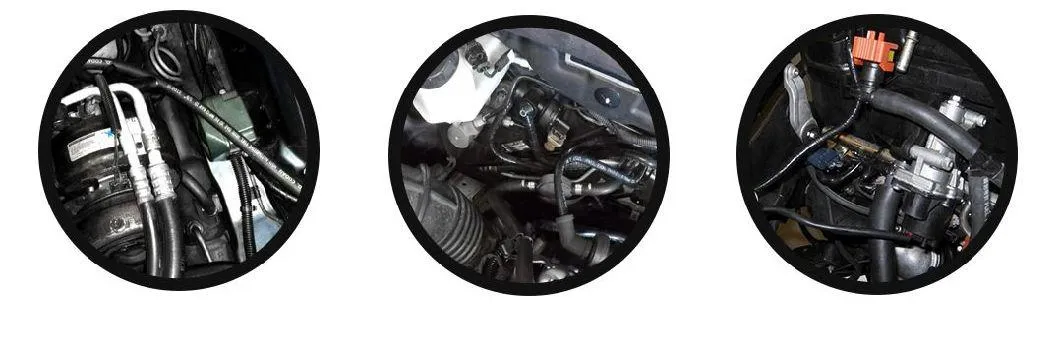

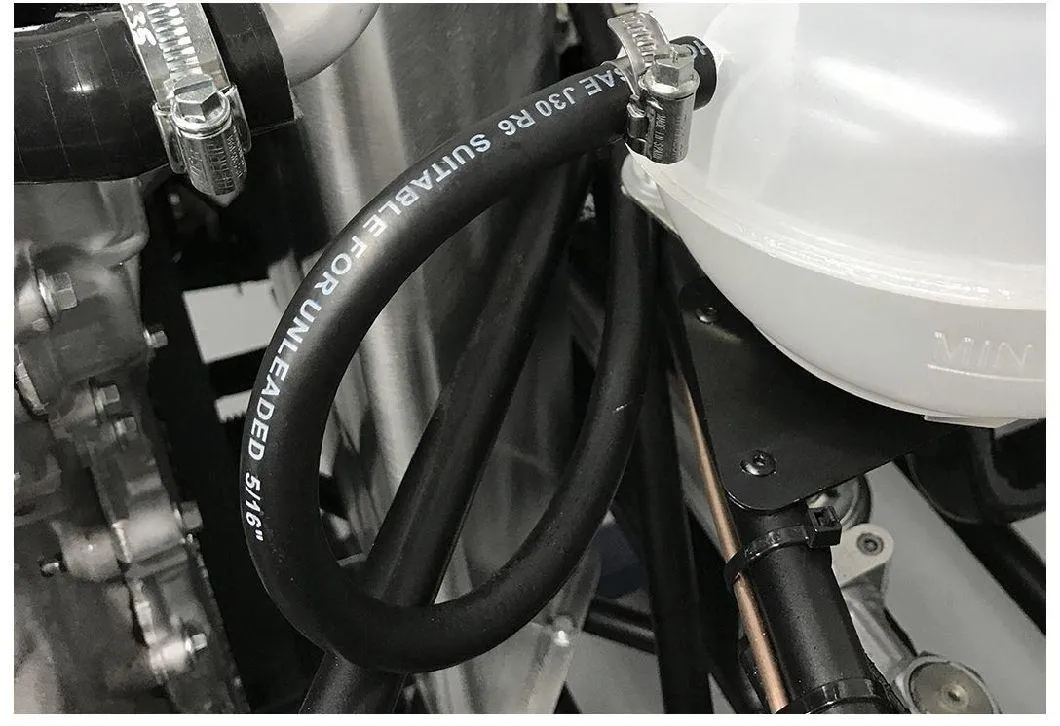

Application: Used for trucks, trailer, semi-trailer, automotive fuel system to transport diesel gasoline and lubricants.
• Working Temperature: -40ºC to +125ºC (-40ºF to 257ºF)
• Standard: SAE J30R7
• W.P.: 300PSI

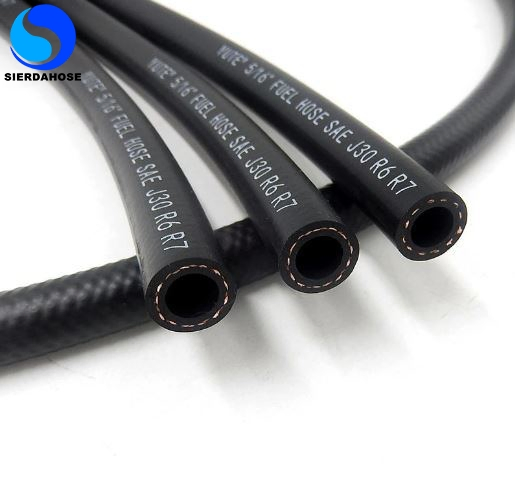

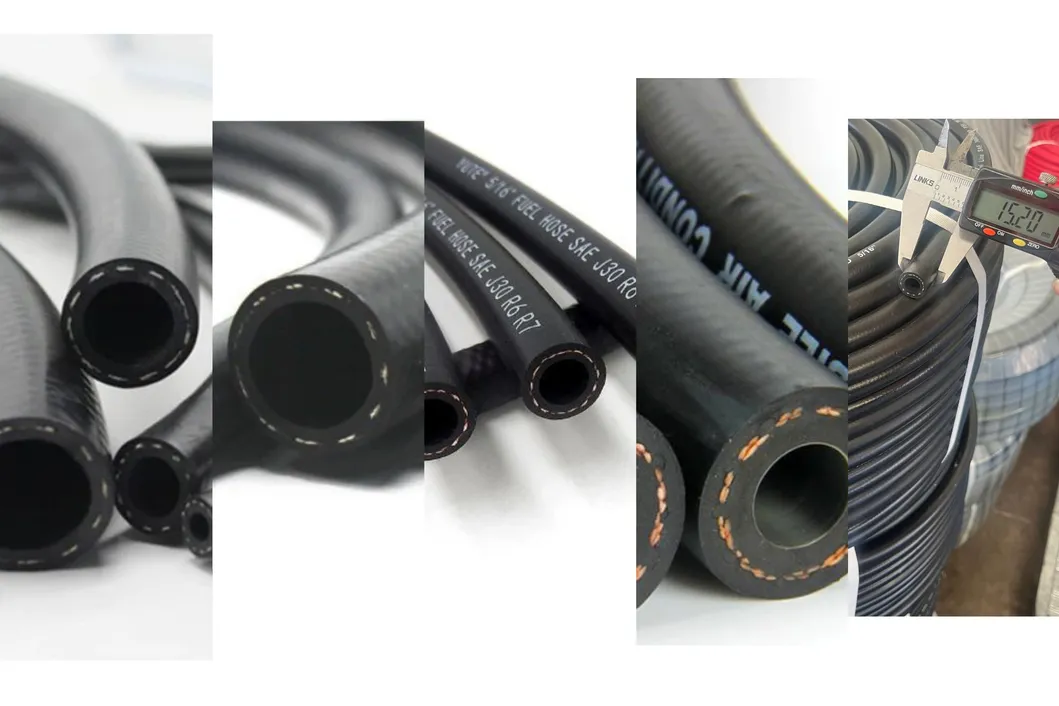

Construction:
• Tube: Fuel-resistant, IRM 900# good performance synthetic rubber.
• Reinforcement: High tensile braided fiber with strong adhesion.
• Cover: EPDM
Features:
• Resistant to fluids found underhood in vacuum brake applications.
• Available straight or formed.
• Meets SAE J1403 VH Dimension.
| Part No. (Smooth) | Part No. (Concave-convex) | I.D. | Description |
|---|---|---|---|
| SD11-10101 | S011-10102 | 1/8" | W.P. 300Psi B.P. 900Psi |
| S011-10301 | S011-10302 | 5/32" | |
| S011-10501 | S011-10502 | 3/16" | |
| S011-10801 | S011-10802 | 1/4" | |
| S011-11101 | S011-11102 | 5/16" | |
| SD11-11301 | S011-11302 | 3/8" | W.P. 150Psi B.P. 600Psi |
| S011-11701 | S011-11702 | 1/2" | |
| SD11-12001 | S011-12002 | 3/4" | |
| SD11-12201 | S011-12202 | 1" |
