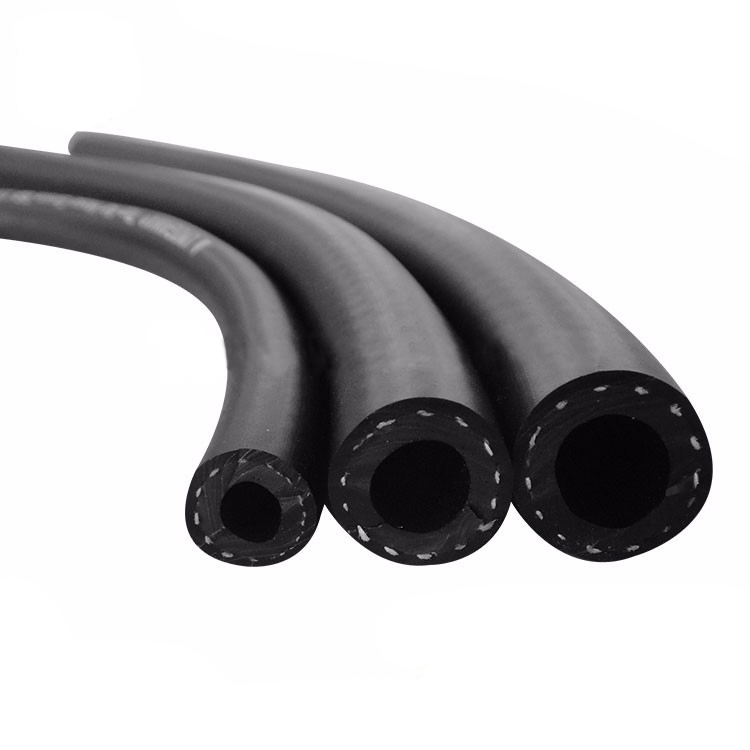

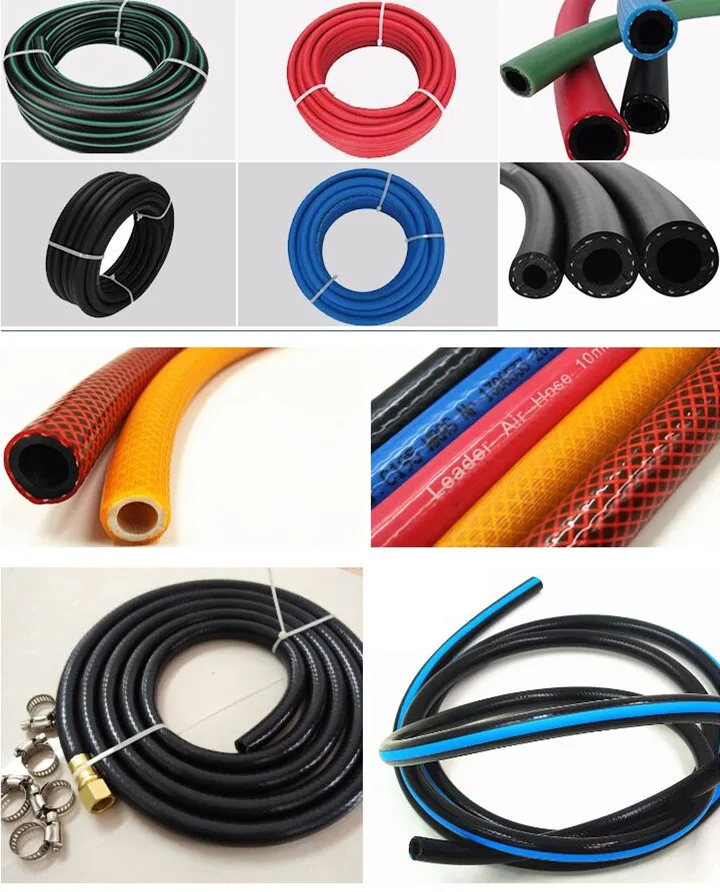

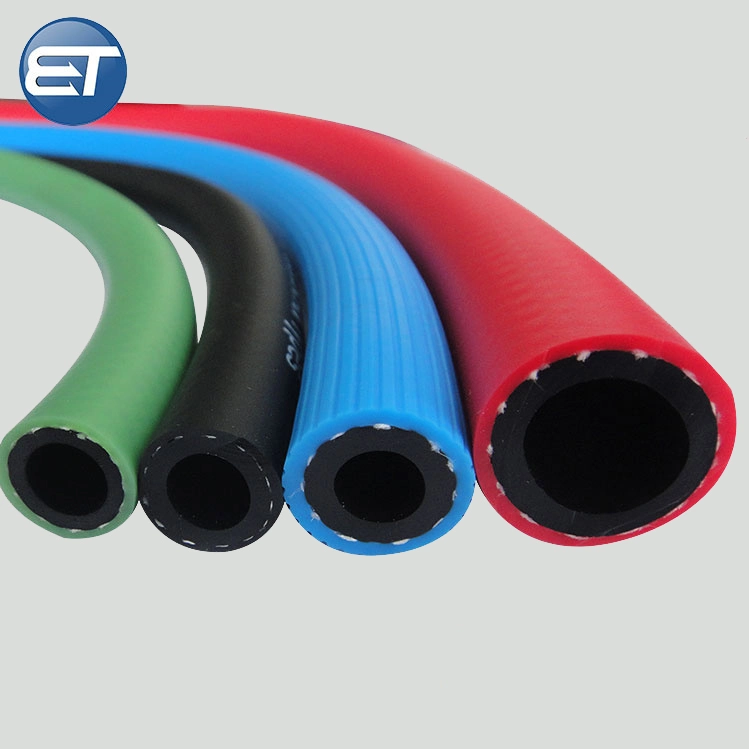

High Pressure PVC & Rubber Hybrid Black Air Hose Pipe (3/8, 3/4, 1 Inch)

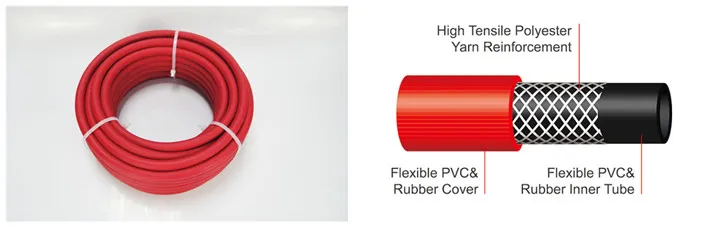

The PVC and Rubber Composite Multipurpose Utility Hose is engineered for high performance in air, water, oil, and light chemical applications. It serves as an excellent replacement for traditional rubber hoses in various industrial sectors.
★ Key Features:
★ Applications:
| Inner Diameter | Outer Diameter | Weight | W.P. (at 23ºC) | Std Length | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/4 | 6.5 | 0.472 | 12 | 0.11 | 20 | 300 | 100 | 300 |
| 5/16 | 8.5 | 0.551 | 14 | 0.13 | 20 | 300 | 100 | 300 |
| 3/8 | 10 | 0.629 | 16 | 0.17 | 20 | 300 | 100 | 300 |
| 1/2 | 13 | 0.787 | 20 | 0.25 | 20 | 300 | 100 | 300 |
| 5/8 | 16 | 0.984 | 25 | 0.39 | 20 | 300 | 100 | 300 |
| 3/4 | 19 | 1.102 | 28 | 0.45 | 20 | 300 | 50 | 150 |
| 1 | 25 | 1.338 | 34 | 0.56 | 20 | 300 | 50 | 150 |

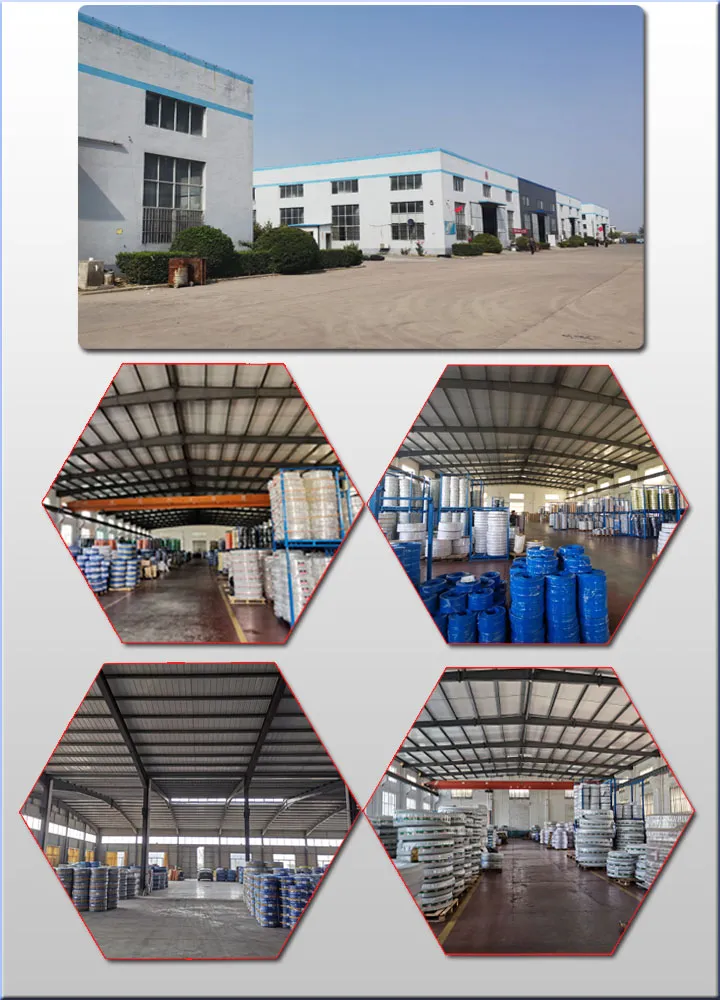

Our professional manufacturing facility specializes in PVC flexible hoses with over 14 years of production experience. The product range covers PVC layflat hoses, fiber reinforced hoses, steel wire reinforced hoses, and garden hoses. Our facility spans 70,000 square meters with 10 standard workshops and 80 production lines, ensuring an annual output of 20,000 tons. All products are manufactured following strict QC processes and comply with PAHS, RoHS 2, REACH, and FDA standards.
