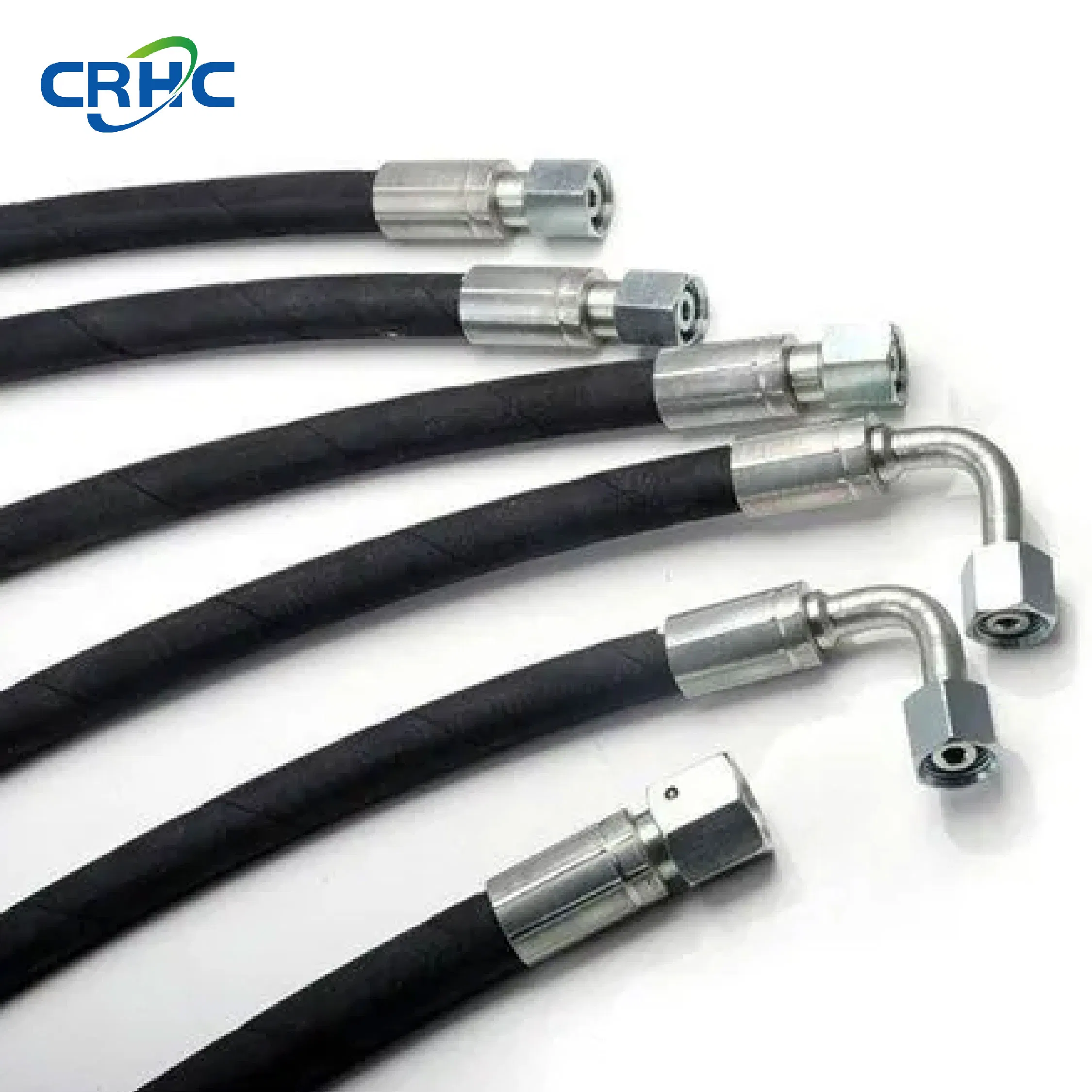

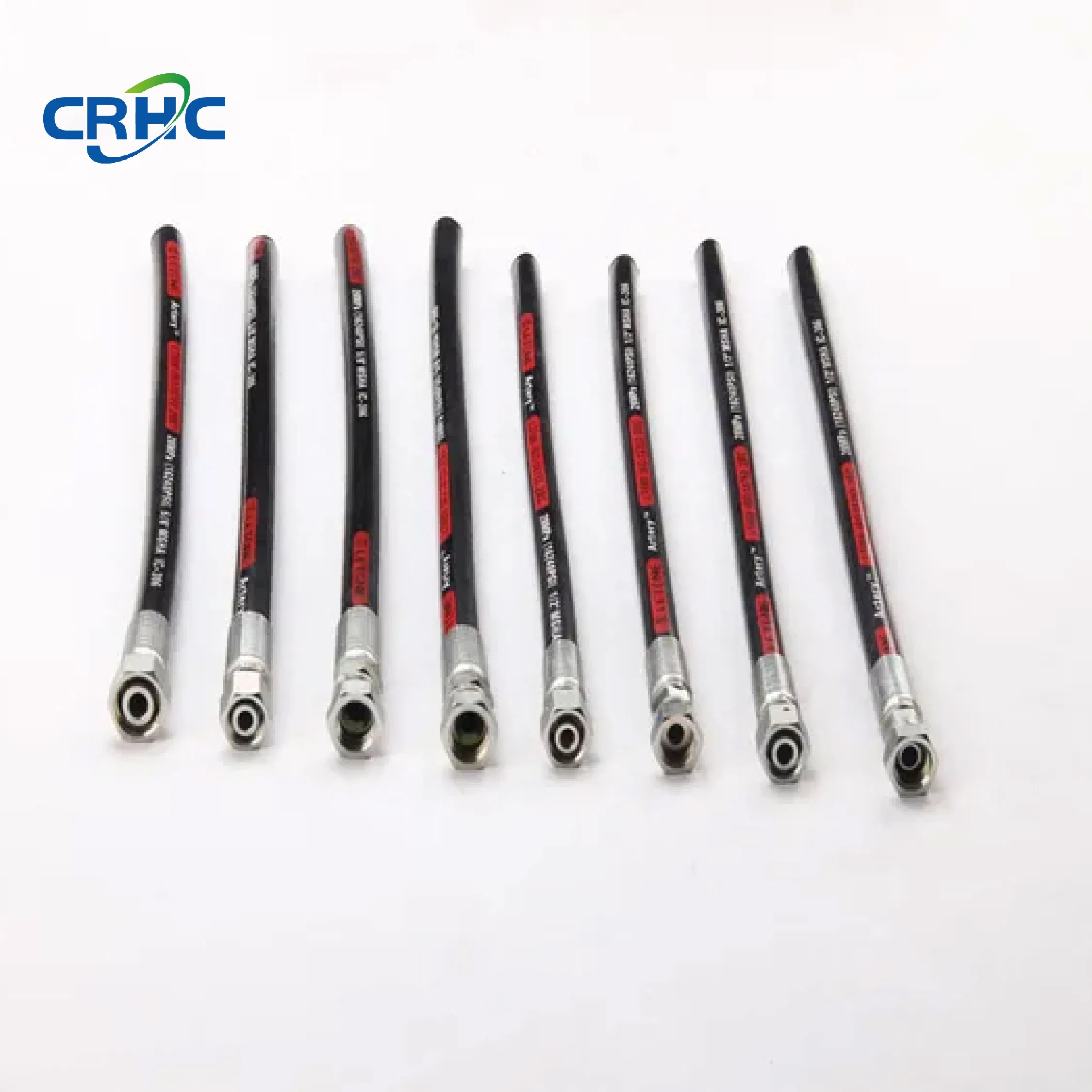

Hydraulic Cooler, Oil Cooler, and Heat Exchanger for Cooling Hydraulic Fluid, Transmission Oil, and Process Water Hose

1 / 5

Hydraulic Cooler, Oil Cooler, and Heat Exchanger for Cooling Hydraulic Fluid, Transmission Oil, and Process Water Hose

Material:	Synthetic Rubber
Capability:	Rubber Hose for Sand and Grit Blasting
Color:	Black

Send Inquiry

Product Description

Basic Information

Product Name:

Super Artery Exceeds ISO18752 DC

Usage:

Industrial Work, Construction Machinery, Vehicle

Weight:

0.2~7kg/M

I.D:

25-300mm

Diameter:

1/4 Inch to 4 Inch

Temp Range:

-40°C to +121°C / -40°F to +250°F

Reinforcement:

One to Four Layers

Cover:

Oil and Weather Resistant Synthetic Rubber

Characteristics:

Good Adhesion, Wear Resistant, Flexible

Capacity:

120,000,000 Meters/Year

Product Description

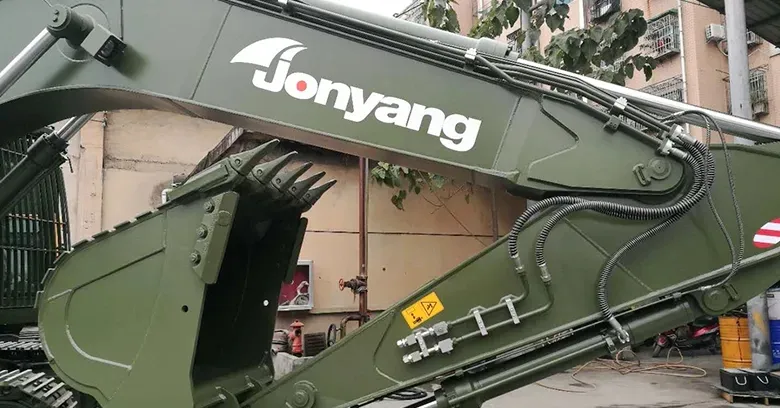

Product Application: Suitable for large-scale long-range machinery such as excavators or demanding environmental use requirements.

Inner Rubber Layer: Neoprene synthetic rubber, suitable for degradable hydraulic oil.

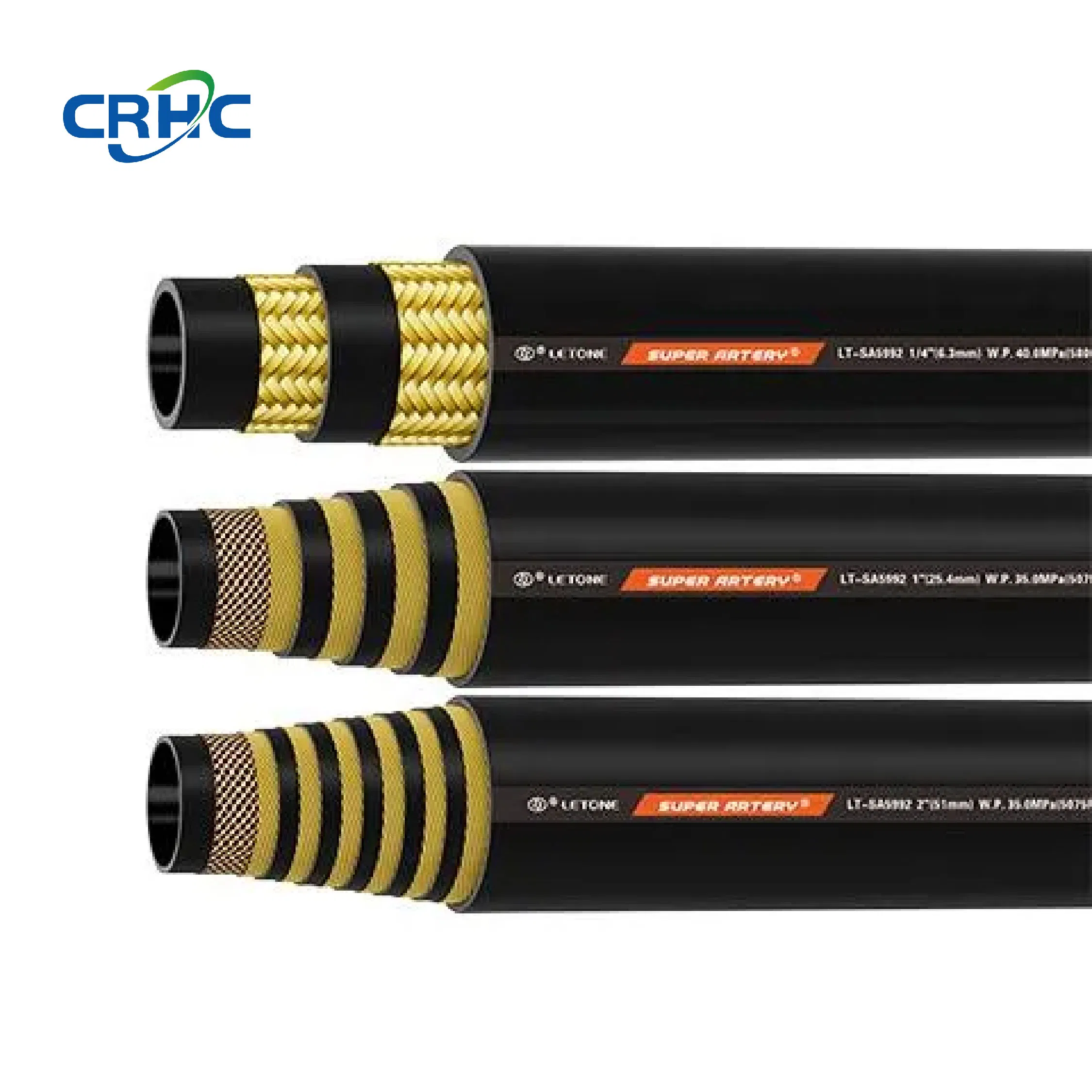

Reinforcement: Four layers of steel wire winding (1/4"-1") or six layers (1 1/4"-2"), pulse ≥1 million cycles.
Outer Layer: Standard, AR (highly abrasion resistant), or SAR (super abrasion resistant UHMWPE) covers available.
High Performance: Bending radius reduced by 27% compared to ISO18752 and 37% compared to SAE standards.

Technical Specifications

Model	ISO18752 Standard			Inner Dia (mm)	Outer Dia (mm)	Working Pressure (MPa)	Min. Burst (MPa)	Min. Bend Radius (mm)
Model	Standard	AR Wear	SAR Super	Inner Dia (mm)	Outer Dia (mm)	Working Pressure (MPa)	Min. Burst (MPa)	Min. Bend Radius (mm)
SA5993-1/4"-4	DC	DC	DC	6.3	15.5	45	180	55
SA5993-3/8"-4	DC	DC	DC	10.0	19.0	45	180	70
SA5993-1/2"-4	DC	DC	DC	13.0	22.2	45	180	140
SA5993-3/4"-4	DC	DC	DC	19.0	30.5	42	168	200
SA5993-1"-4	DC	DC	DC	25.4	37.5	42	168	250
SA5993-2"-6	DC	DC	DC	51.0	70.0	42	168	650

Manufacturing Excellence

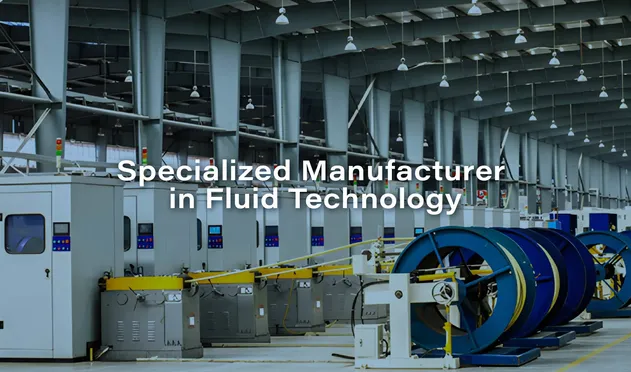

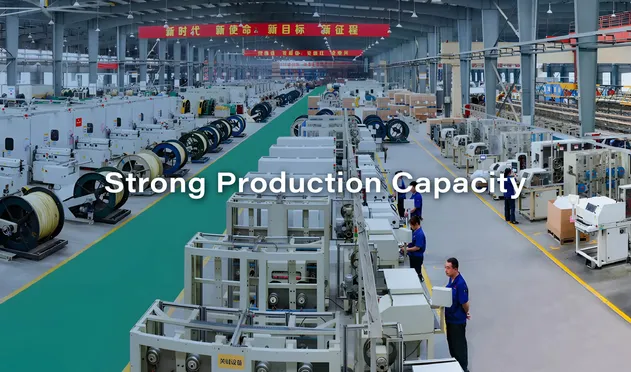

The manufacturing facility operates across 130,000 square meters, featuring advanced braiding, spiral winding, and automated lines. With an annual output of 30 million meters, the production system is built for scalability and high efficiency.

Main Product Types

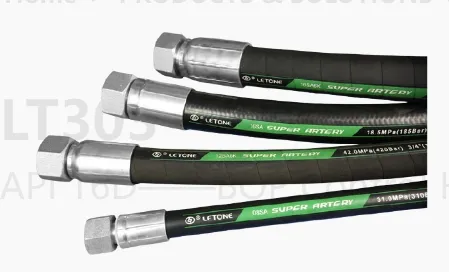

Steel Wire Spiral Hydraulic Hose
Steel Wire Braid Hydraulic Hose
Fiber Reinforced Rubber Hose
Ultra High Pressure Cleaning Hose

BOP Control Hose (API 16D)

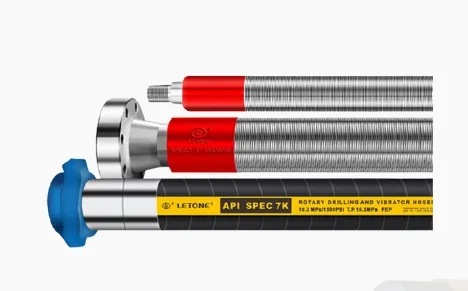

High Pressure Cementing Hose (API 7K)
Flexible Choke and Kill Hose (API 16C)
Rotary Drilling and Vibrator Hose

Application Scenarios

Quality Certifications

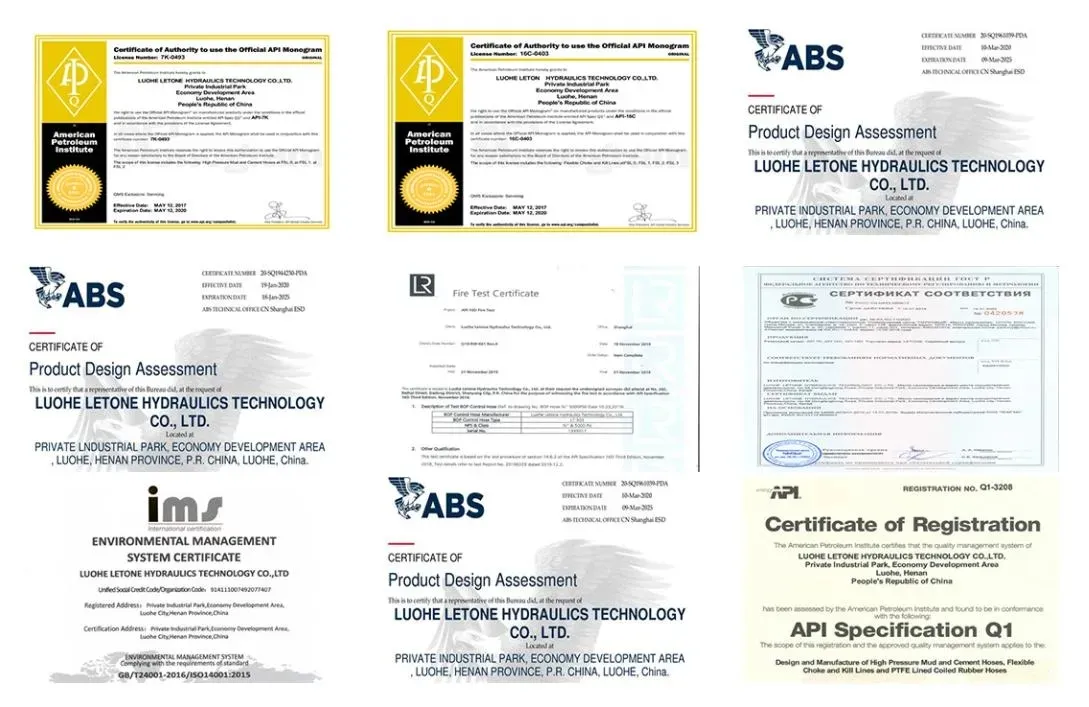

Our products hold major industry certifications including API Type Approvals (16C & 7K), ABS Type Approval, MSHA safety certification, Lloyd's Fire Test, and GOST compliance. Management systems are certified to ISO 9001:2015, IATF 16949:2016, and ISO 14001:2015.

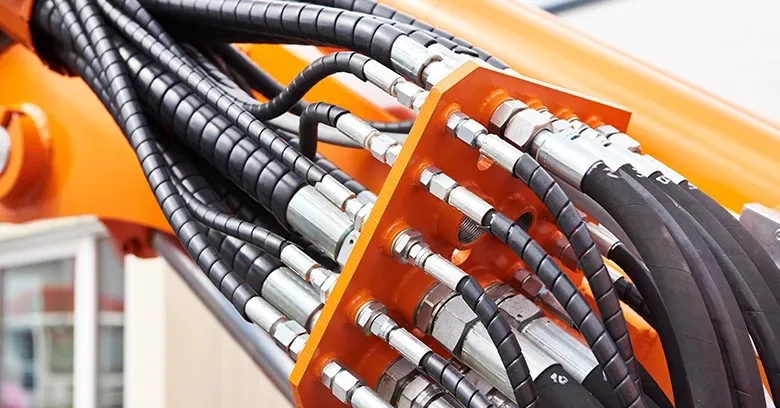

Success Case & Assembly Guide

Assembly Steps:

Mark: Mark the outer cover at the specified insertion depth.
Insert: Push the hose into the fitting until flush.
Crimp: Proceed with crimping once alignment is confirmed.

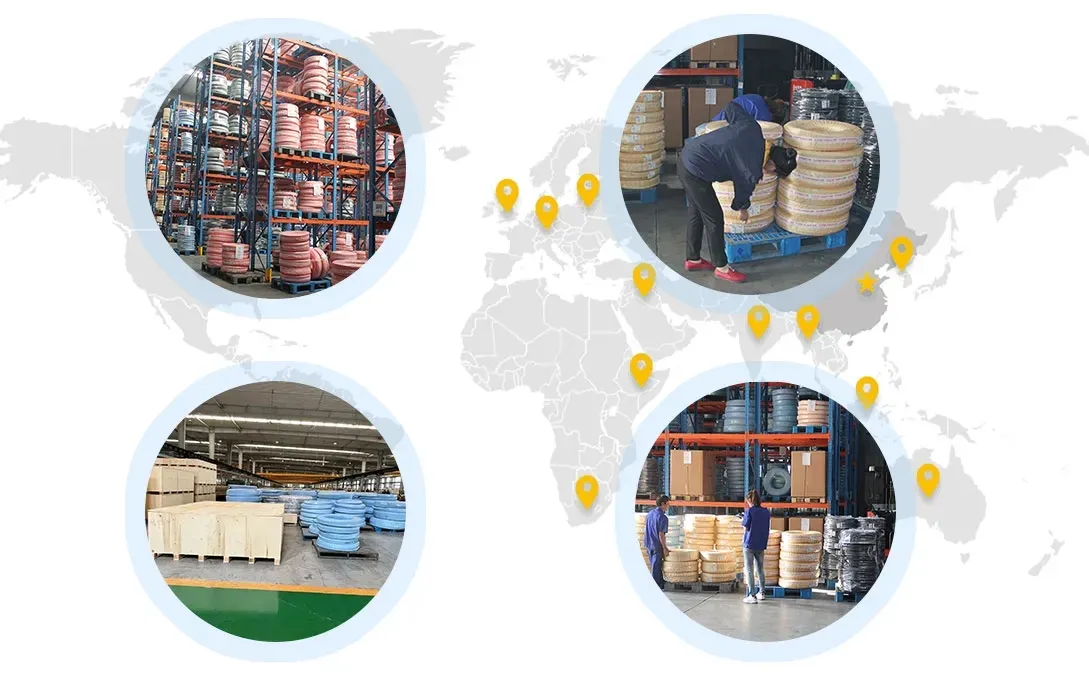

Packaging & Shipping

Frequently Asked Questions

Q1: What is the main advantage of the Super Artery series?

It offers extreme flexibility with a bending radius 27% to 37% smaller than standard ISO and SAE requirements, making it ideal for tight spaces in heavy machinery.

Q2: What are the temperature limits for these hydraulic hoses?

The hoses are designed to operate reliably in a temperature range from -40°C to +121°C (-40°F to +250°F).

Q3: How many pulse cycles can the reinforcement layers withstand?

The steel wire reinforcement is engineered to withstand over 1 million impulse cycles, ensuring long-term durability under high-pressure conditions.

Q4: Are these hoses resistant to abrasion?

Yes, we offer specialized AR and SAR covers made of weather-resistant synthetic rubber and UHMWPE for superior abrasion resistance.

Q5: Which industries commonly use these hoses?

They are widely used in construction machinery (like excavators), petroleum drilling, mining, and industrial chemical transport.

Q6: What certifications do your products carry?

Our hoses meet API 16C/7K, ABS Type Approval, MSHA safety standards, and various ISO quality management certifications.
