Applications:
Used in the transportation of gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel injection system or the crankcase of internal combustion engines.

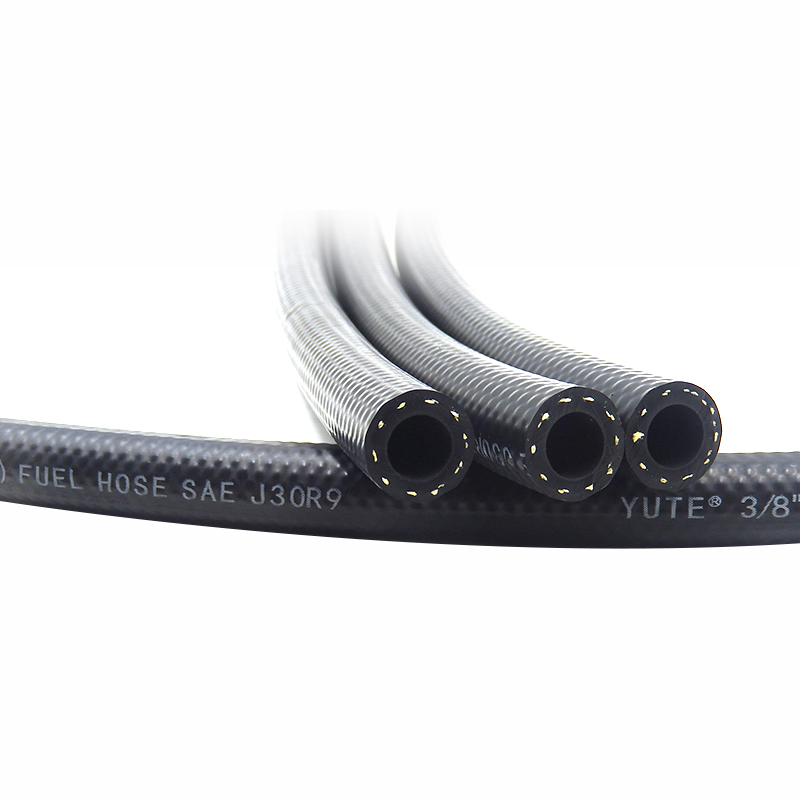

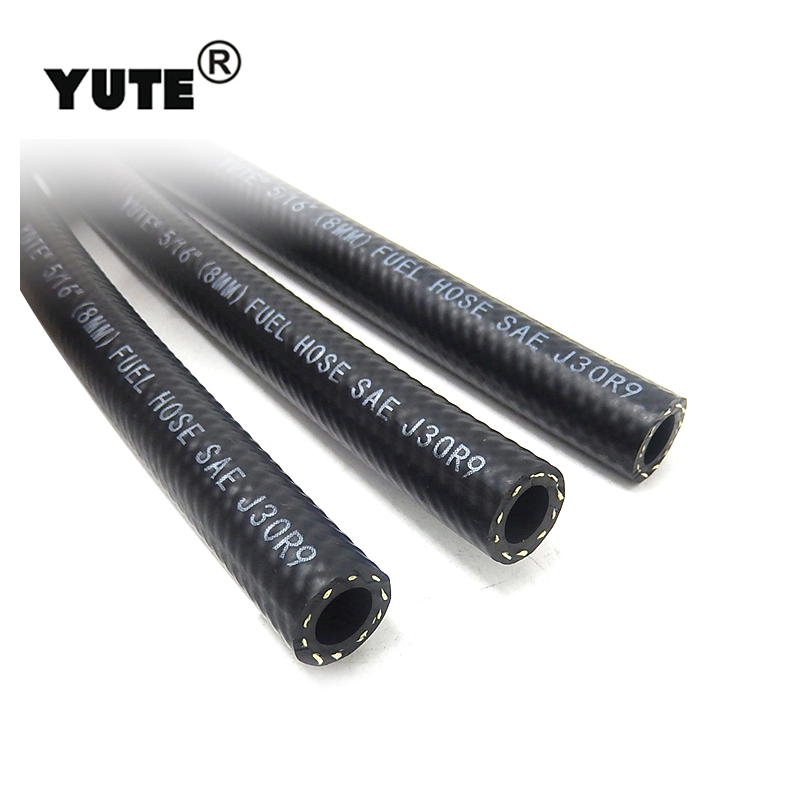

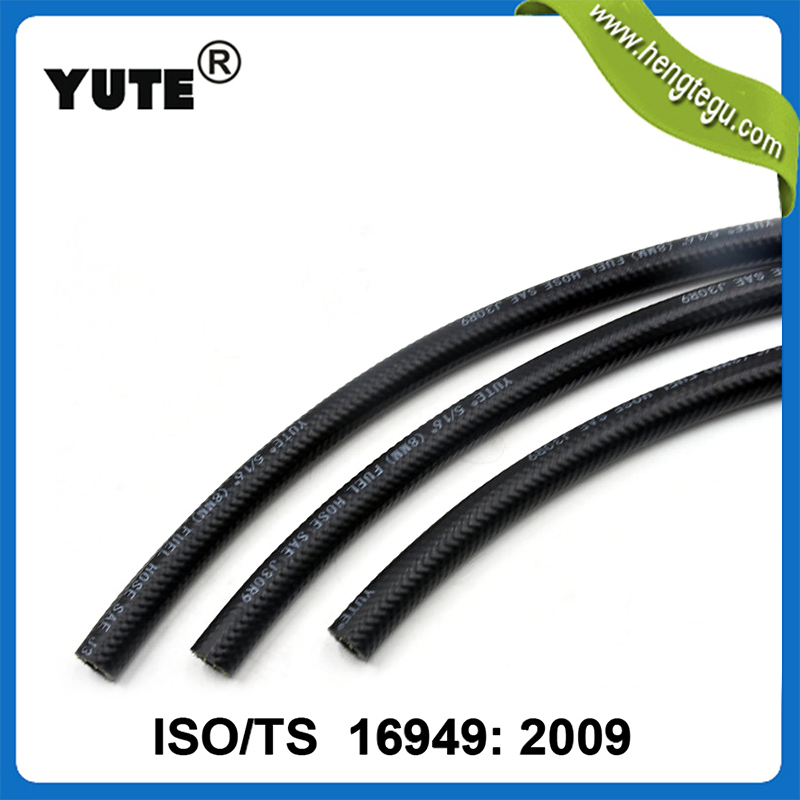

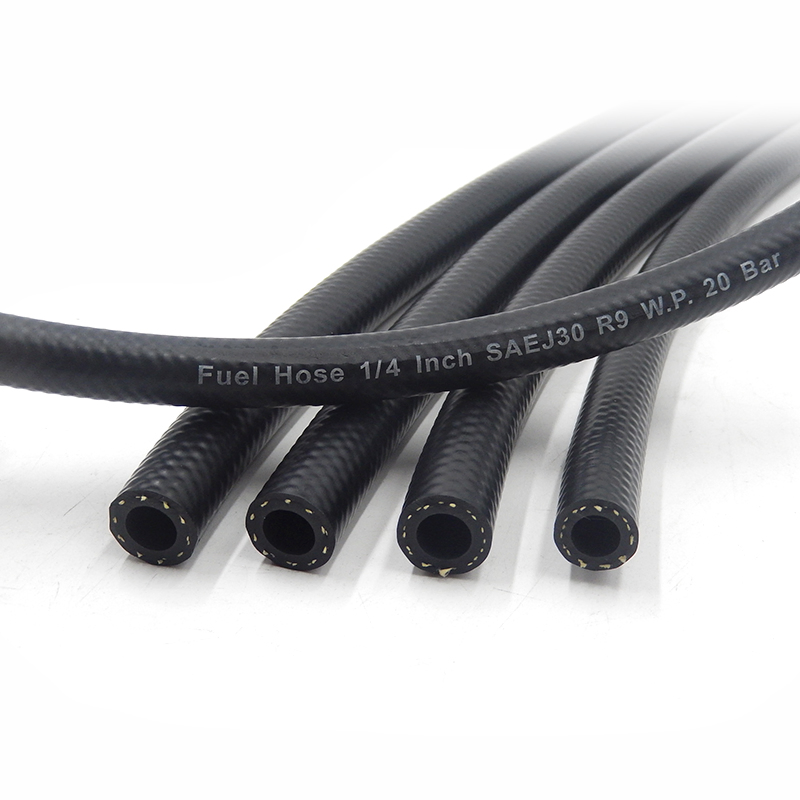

Construction:
• Permeation Barrier: Special rubber with perfect oil- and fuel-resistant performance (FKM)
• Tube: Oil- and fuel-resistant synthetic rubber compound (ECO)
• Reinforcement: High tensile braided fiber (AR)
• Cover: Suitable oil-, ozone-, and heat-resistant synthetic rubber compound (FKM)
Working Temperature: -40 ºC to +135ºC (-40 ºF to +275 ºF)
Standard: SAE J 30R9, DIN 73379 3E
| NO | I.D (inch/mm) | O.D (inch/mm) | Working Pressure | Burst Pressure | Weight (kg/m) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | MPa | Psi | MPa | Psi | kg/m | lbs/ft | |
| 1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
| 2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
| 3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
| 4 | 1/4 | 6.3±0.3 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.2 |
| 5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
| 6 | 3/8 | 9.5±0.3 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
| 10 | 3/4 | 19±0.4 | 1.13 | 28.8±0.5 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |

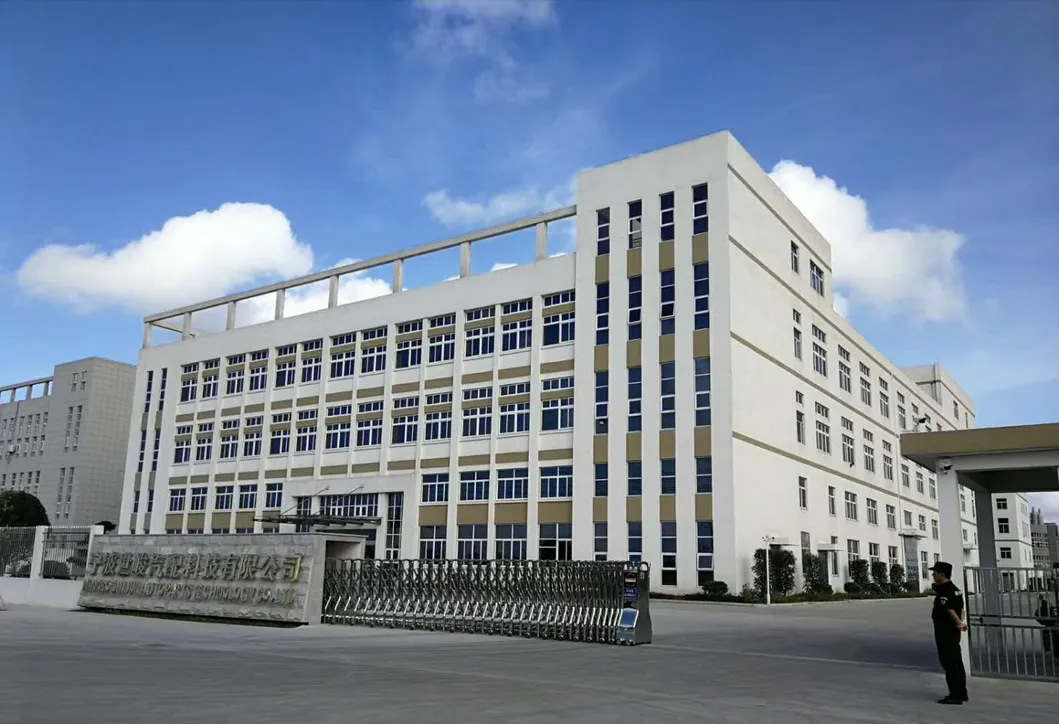

The company is a national high-tech enterprise specializing in rubber hose manufacturing and exporting to customers worldwide. Key products include Air Brake Hoses, Hydraulic Brake Hoses, Fuel Hoses, Radiator Hoses, Refrigerant Charging Hoses, and Air Hoses, which are widely used in Automotive, AC Refrigeration, and Industrial Tools.
We have passed the IATF 16949 quality management system. All production processes strictly follow quality control procedures. Quality is the cornerstone of the company's development, and our staff continuously strives to meet customer requirements.
