Multipurpose Industrial Flexible Water Pump Rubber Suction Hose

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO. JSY-SH Color Black
Working Pressure 10 20 30 Bar etc Reinforcement High Tensile Cords with Steel Wire Spiral
Length 20m or Customized Application Dewatering, Pumps, Watermanagements, Dredging
Certification ISO9001 Specification 4 inch, 6 inch, 8 inch
Production Capacity 50,000 pieces/Year Origin China

Detailed Product Gallery

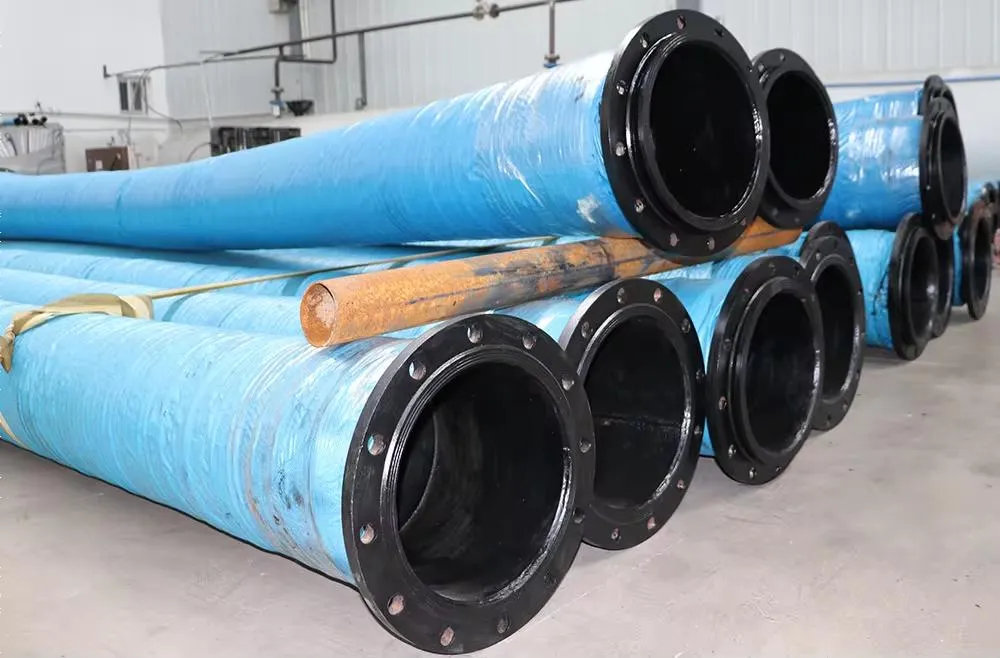

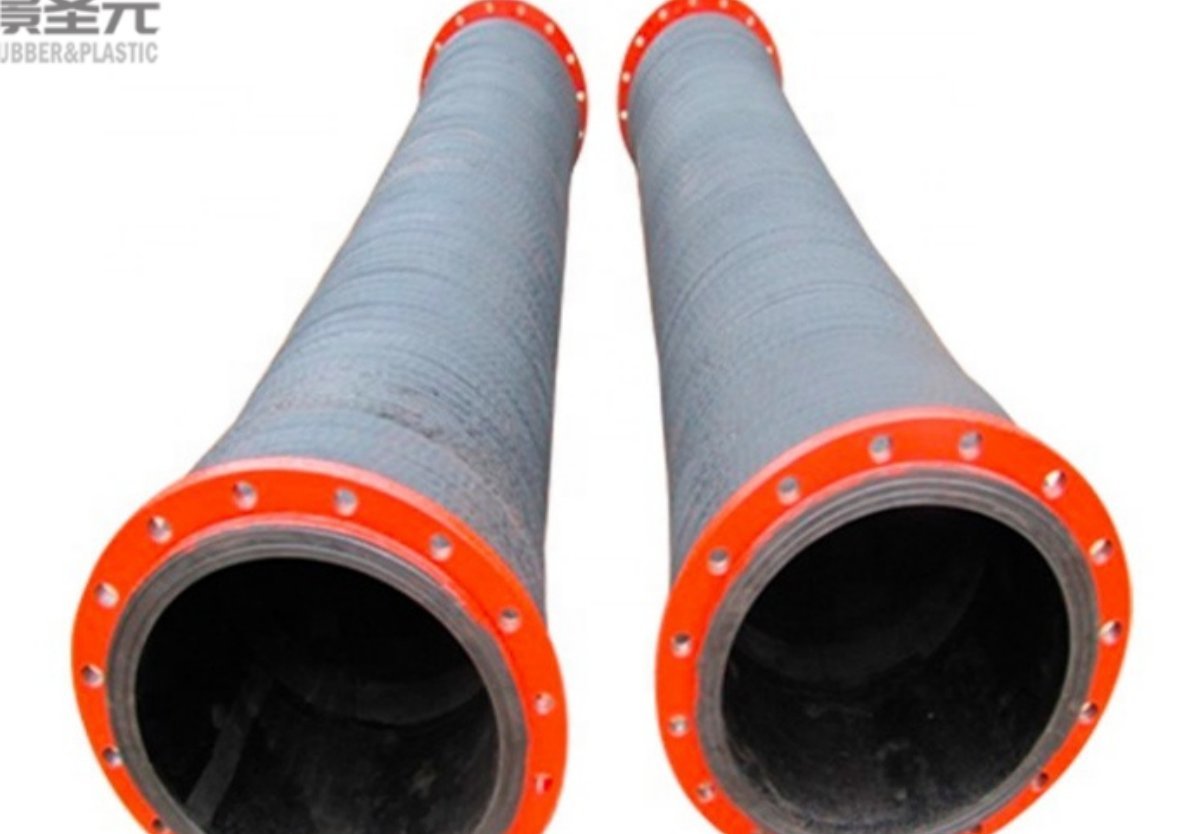

Dredging Hose with Flanges

4 6 inch high abrasion resistant dredging hose with ANSI flanges

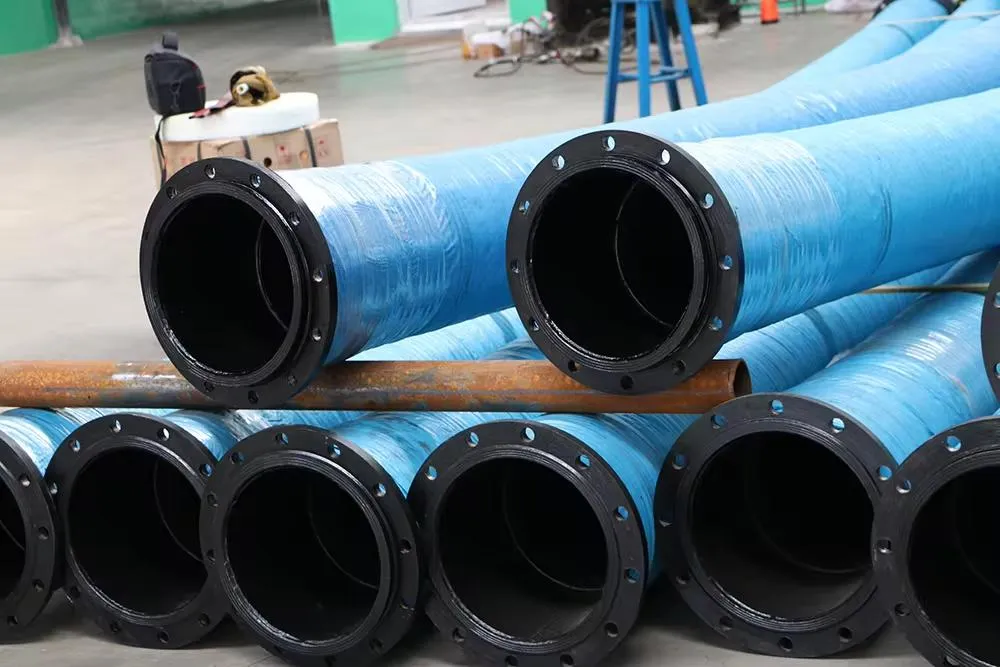

Flexible Water Pump Suction Hose

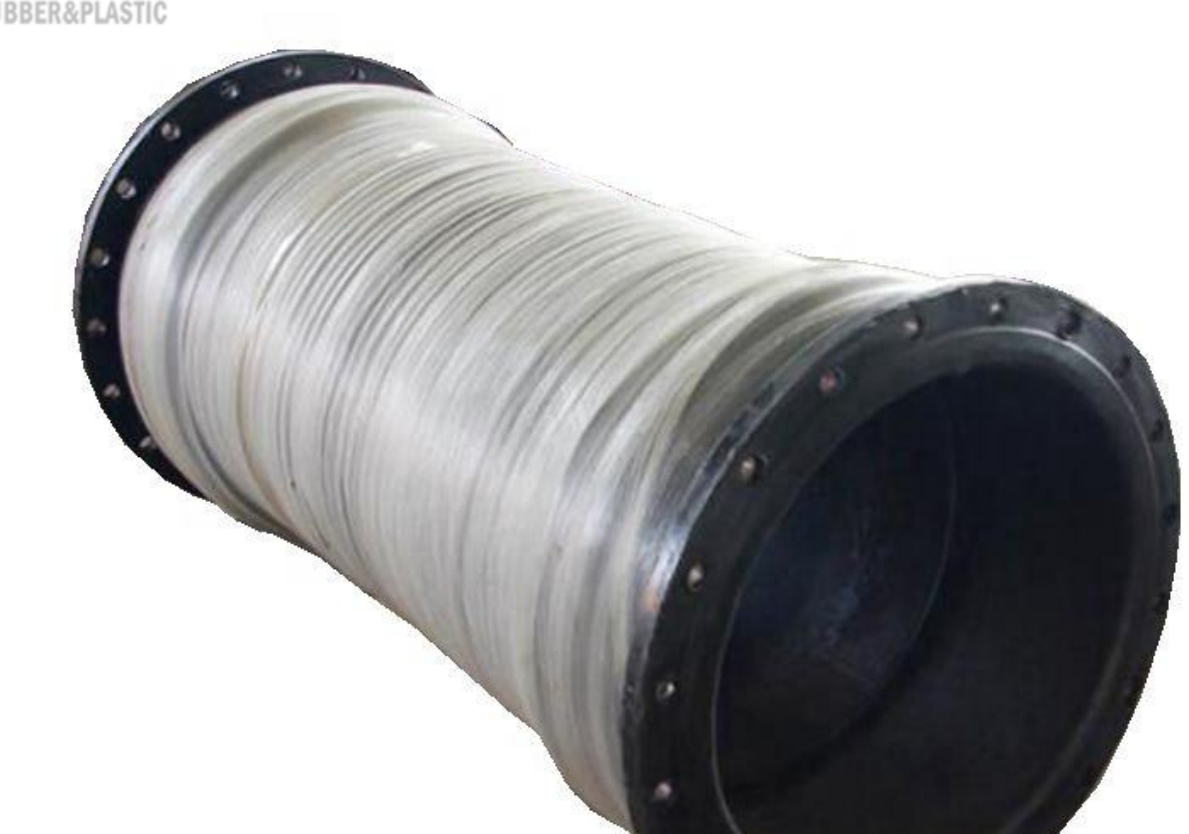

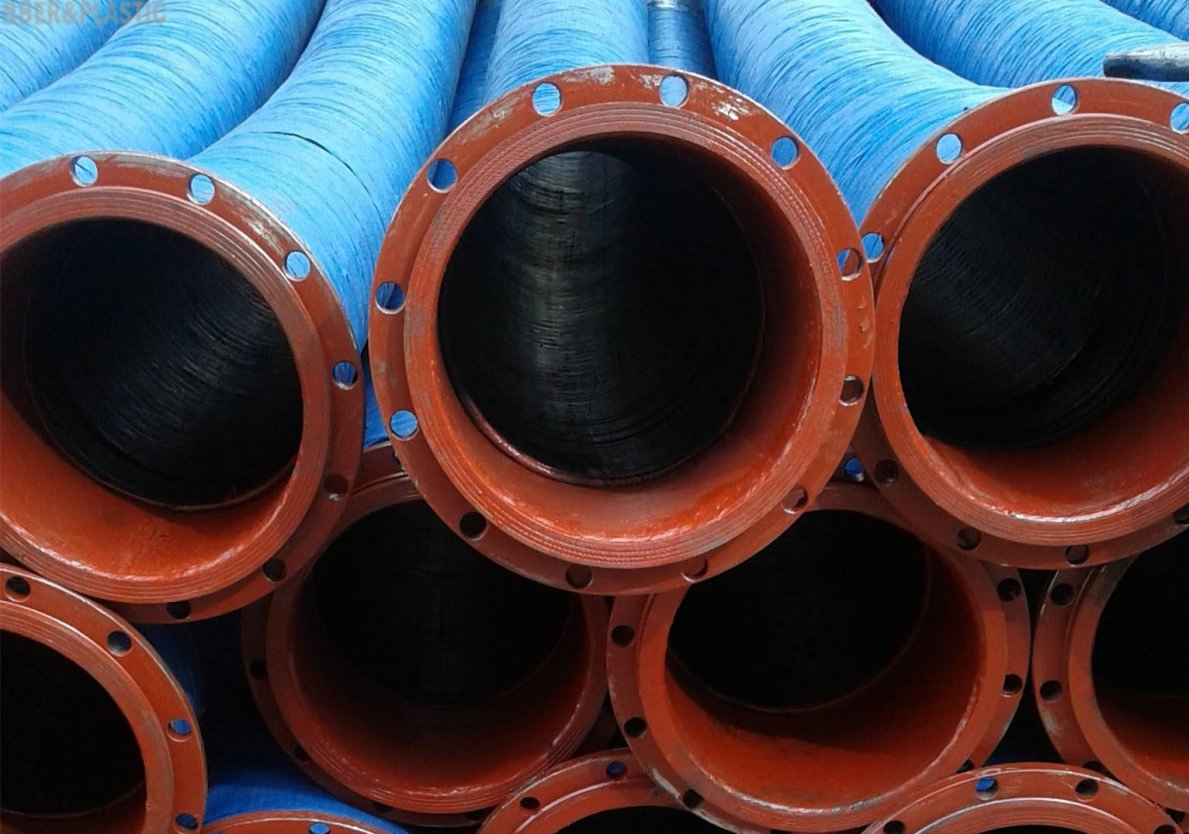

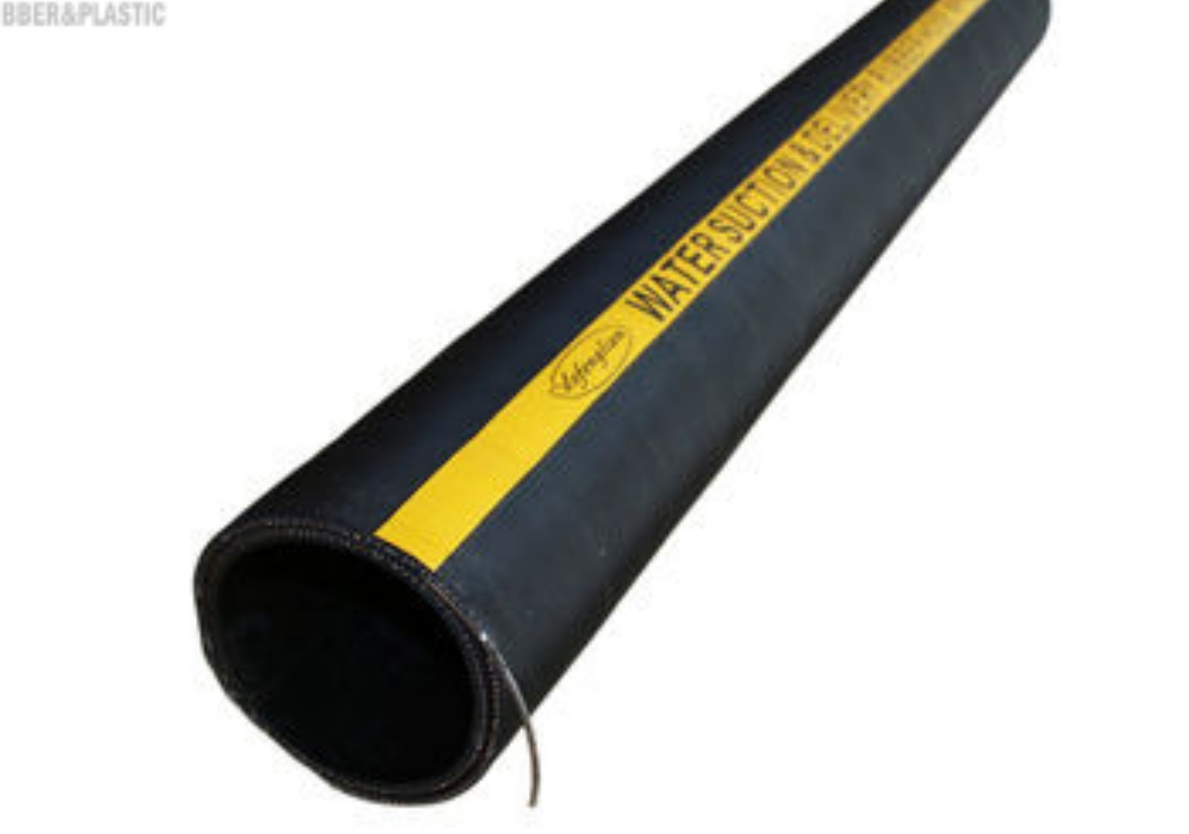

Multipurpose Industrial Flexible Water Pump Rubber Suction Hose

Wear resistant dredging suction hoses are conveying all types of material handling applications like slurry, mud, Silica Sand, Metal, Dry Cement or hard handling materials in the industry of mining, dewatering, tailings, fly ash, waste and refuse etc.

Product Specifications & Parameters

Construction: Internal Rubber-based Inner Tube for hydrocarbons and alcohols.
Reinforcement: Multiple textile layers for tensile and twist reinforcement, built-in steel spiral.
Pressure: Working pressure up to 25bar; Test pressure 1.5 times working pressure.
Thermal Range: -20°C to +82°C; Safety factor 1:5.
Resistance: Vacuum resistance 0.7 Bar at room temperature.
I.D (mm/inch) Working Pressure (bar) Length (M) Fitting Standard
102 4" 10 20 3/11 ANSI 150L/300L
150 6" 10 20 3/11 ANSI 150L/300L
200 8" 10 20 3/11 ANSI 150L/300L
300 12" 10 20 3/11 ANSI 150L/300L
500 20" 10 20 3/11 ANSI 150L/300L
1000 40" 10 20 3/11 ANSI 150L/300L

Note: The color, sizes, thickness, pressure and length all can be customized.

Manufacturing Excellence

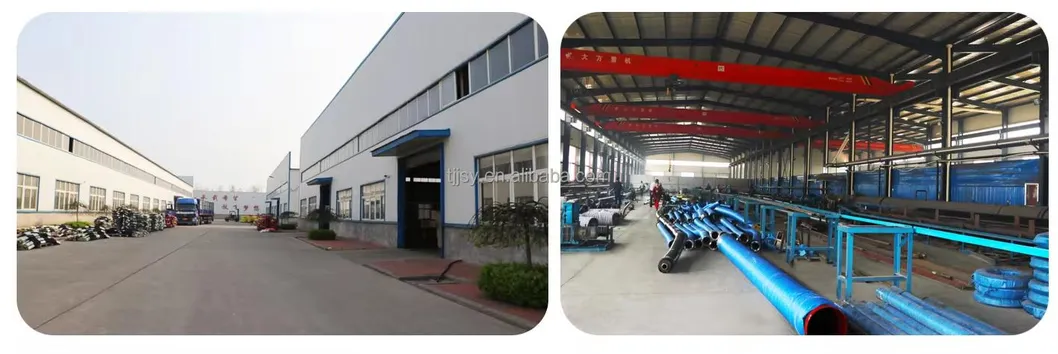

Factory Overview

As experts in the field of industrial hoses with rich experience, we serve a wide range of industries including offshore engineering, oil industry, tunneling, water treatment, chemical, mining and quarrying, aerospace, shipbuilding, machine manufacturing, and agriculture.

Our main products include Dredging Hose, Floating Hose, Marine LPG Hose, Marine Oil Delivery Hose, Oil Suction & Discharge Hose, Chemical Hose, Tank Truck Hose, and Cement Hose. You can count on us for high-quality products, solid technical advice, and fast, reliable service.

Applications & Logistics

Hose Application

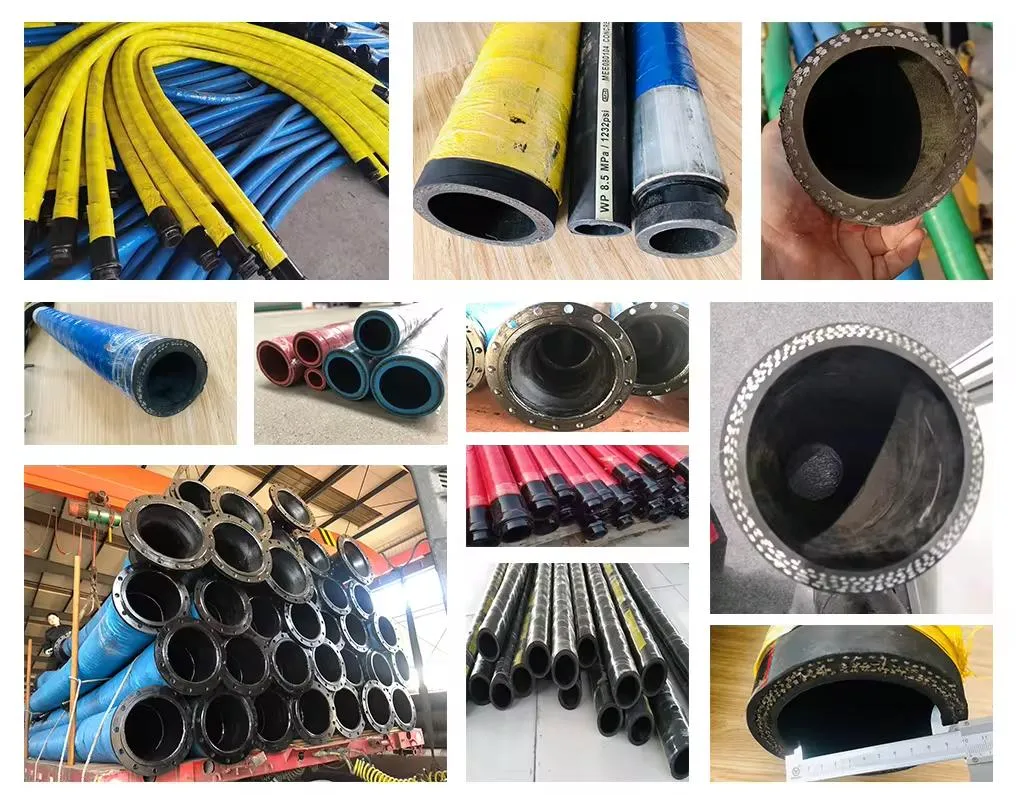

Packaging and Delivery

Our hoses are designed for extreme conditions. Whether it's dredging, dewatering, tailings, or fly ash, our products ensure smooth material flow. We provide secure packaging in plastic bags, wooden boxes, or pallets to ensure safe transit globally.

Quality Certifications

Product Certifications

Frequently Asked Questions

Is it possible to visit your factory?
We warmly welcome you to visit our factory at any of your convenient time to inspect our production lines.
What are the advantages of your rubber hoses?
Our hoses are certified by API and ISO quality management systems. They are known for high quality, abrasion resistance, and reasonable pricing across global markets.
What is your monthly production capacity?
As an OEM factory with over 30 production lines, we can typically supply up to 300,000 meters of hose within one month.
How long does order delivery take?
Sea orders usually take 30 days. Smaller quantities via air freight can be delivered globally within 10 days, depending on stock availability.
How do you ensure product quality?
We control quality from raw materials, working only with stable enterprises. Advanced machinery and strict QC inspections are performed before packaging.
Can product parameters be customized?
Yes, we can customize the color, sizes, thickness, pressure ratings, and lengths based on specific project requirements.
