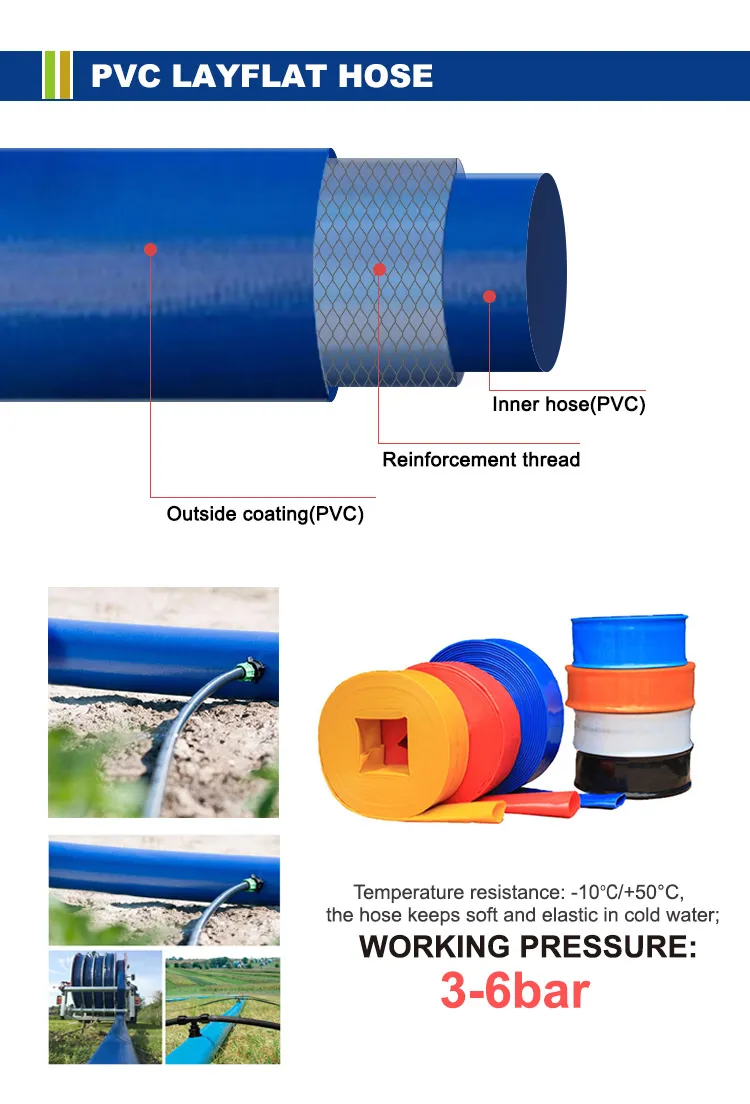

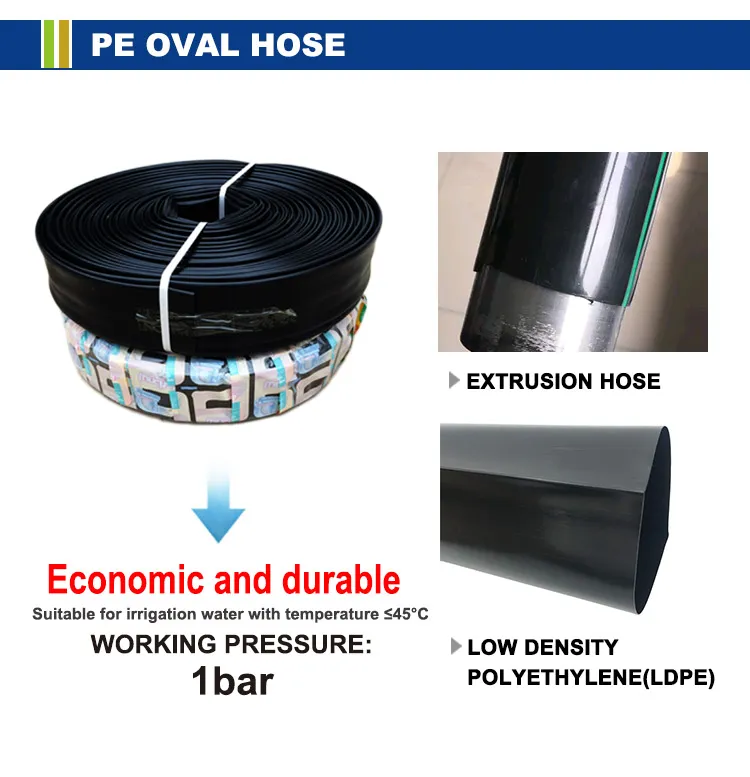

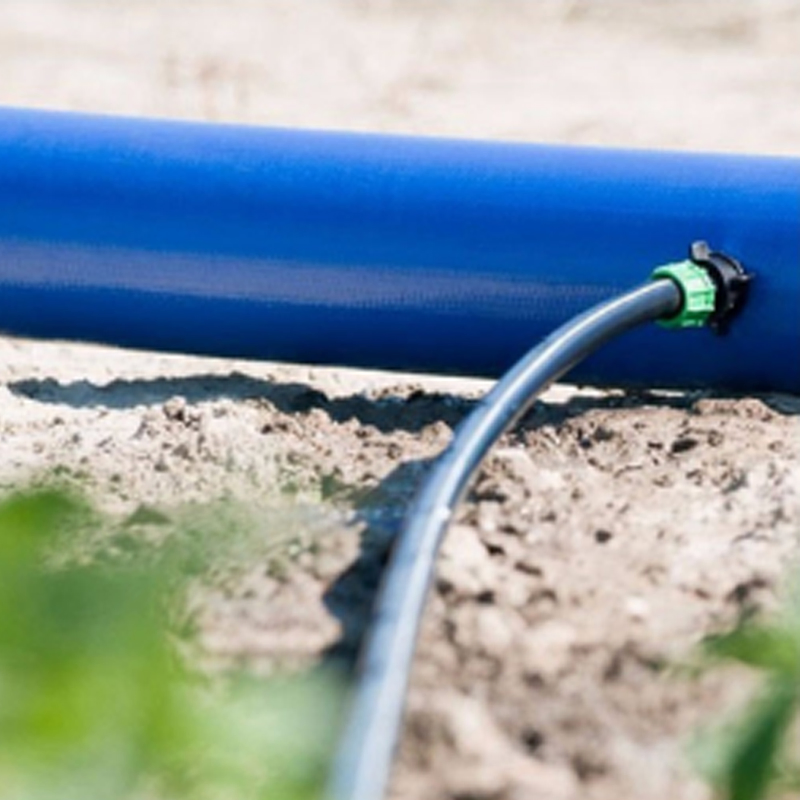

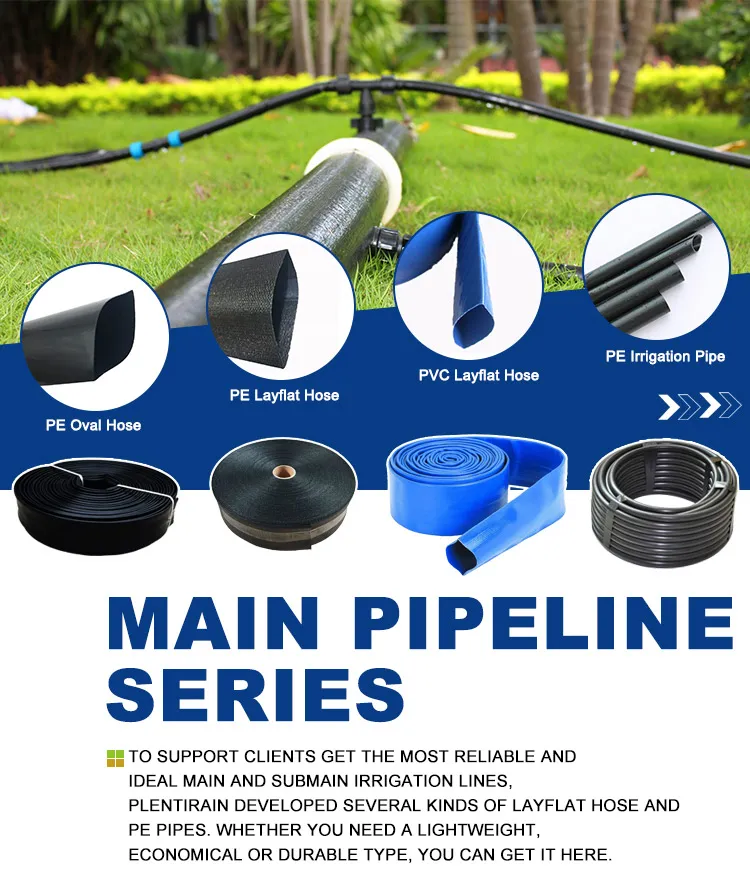

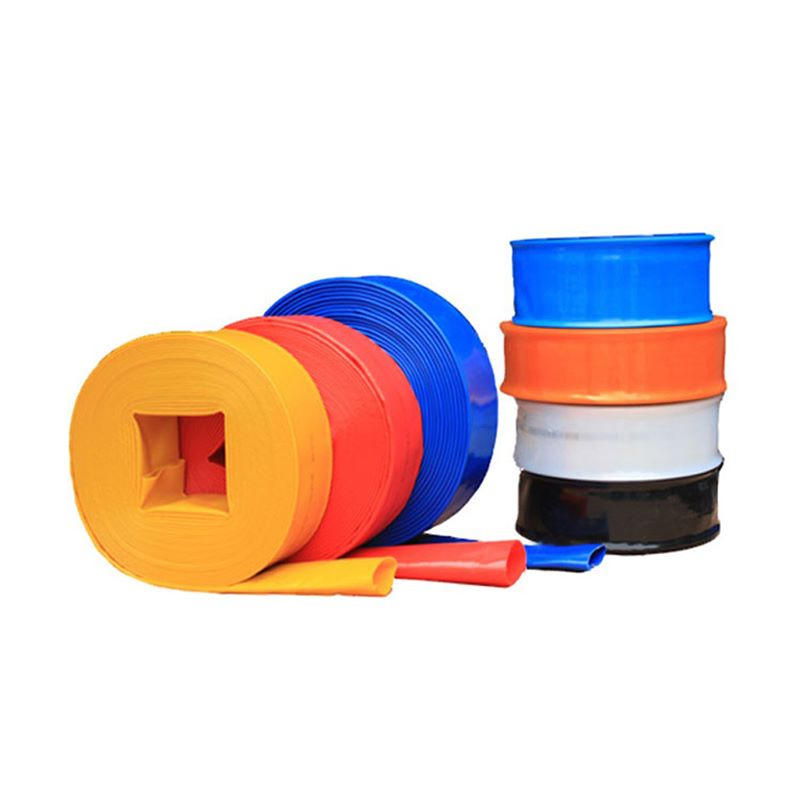

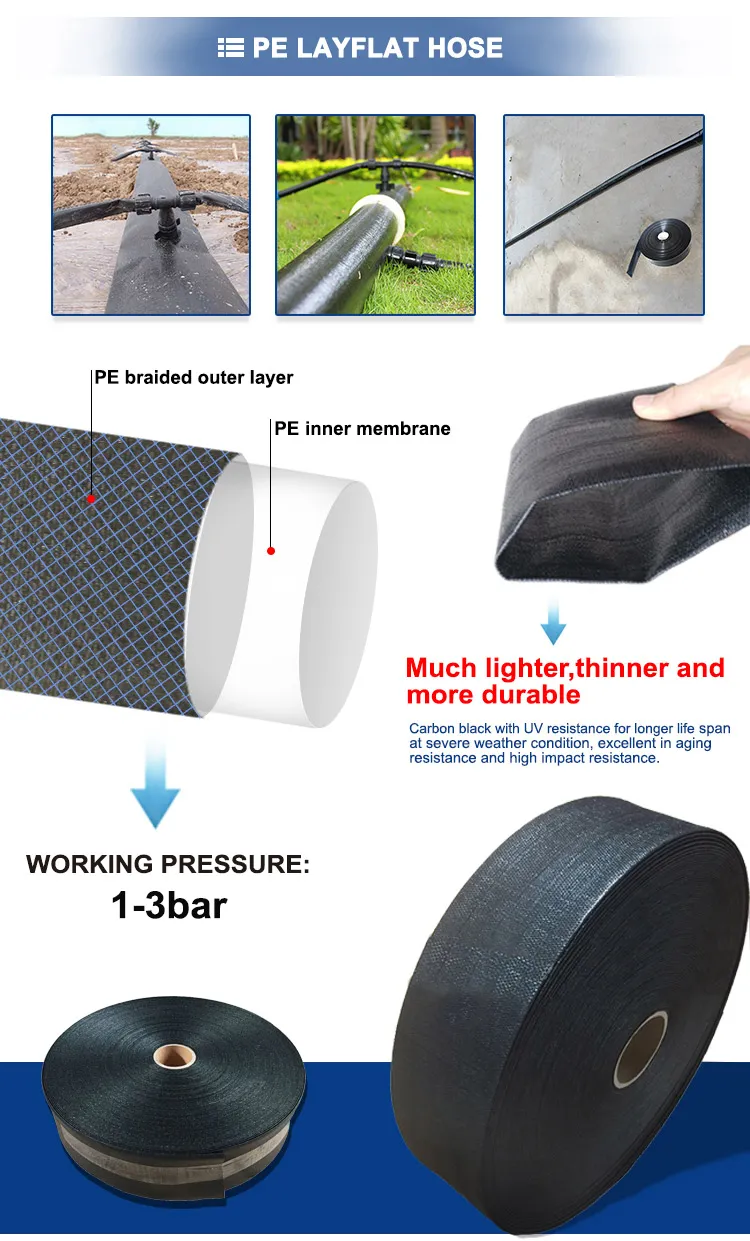

High quality PE/PVC layflat hose for agriculture irrigation
| Product code | Diameter (mm) | Inner dia (mm±1) | Wall thickness (mm) | Weight (kg/100m) | Roll length (m) | Work Pressure (Bar) | Burst Pressure (Bar) |
|---|---|---|---|---|---|---|---|
| PRPEIH50 | 2'' | 51.4 | 0.6 | 9.9 | 100 | 3 | 9 |
| PRPEIH63 | 2.5'' | 64.5 | 0.6 | 11.8 | 100 | 3 | 8.5 |
| PRPEIH75 | 3'' | 76.8 | 0.6 | 13.7 | 100 | 2.5 | 8 |
| PRPEIH90 | 3.5'' | 90.4 | 0.6 | 14.9 | 100 | 2.5 | 7 |
| PRPEIH100 | 4'' | 102.9 | 0.6 | 17.5 | 100 | 2 | 6 |
| PRPEIH110 | 4.5'' | 113.5 | 0.6 | 18.5 | 100 | 2 | 5 |
| PRPEIH125 | 5'' | 128.3 | 0.6 | 21.2 | 100 | 1.5 | 4.5 |
| PRPEIH150 | 6'' | 153.7 | 0.6 | 25 | 100 | 1.5 | 3.5 |
| PRPEIH200 | 8'' | 204.5 | 0.6 | 32.5 | 100 | 1 | 3 |
Remarks: Production standard: GB/T19812.3-2008 (Equal to ISO 9261:2004). Other specifications can be customized.
1. Pre-sales: "Beyond your expectation always" is our promise. We strictly control each production process.
2. In-sales: We provide drip irrigation project design and installation guidance free of charge.
3. After-sales: Product quality warranty is 1 year after shipment. We replace defected products due to manufacturing issues.
