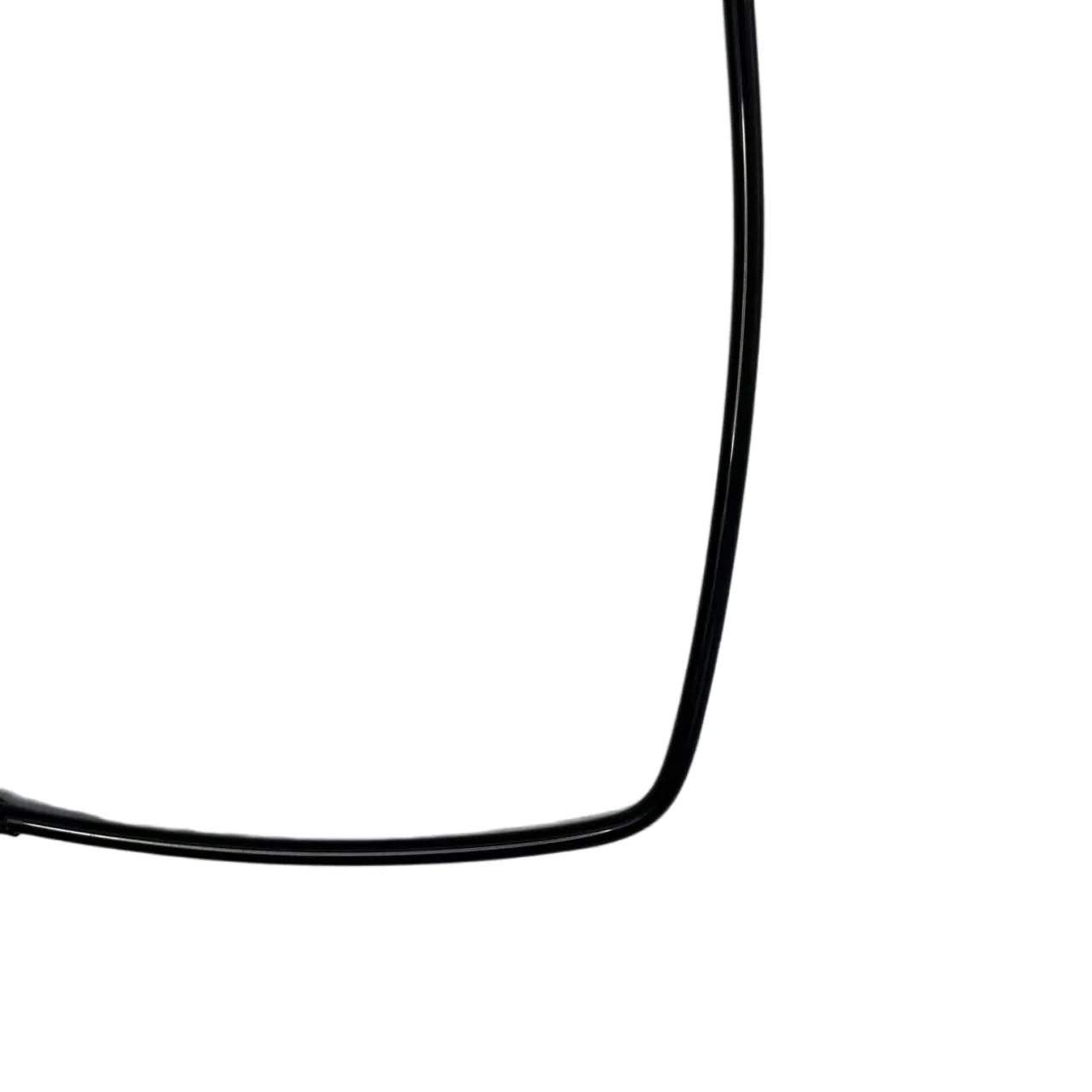

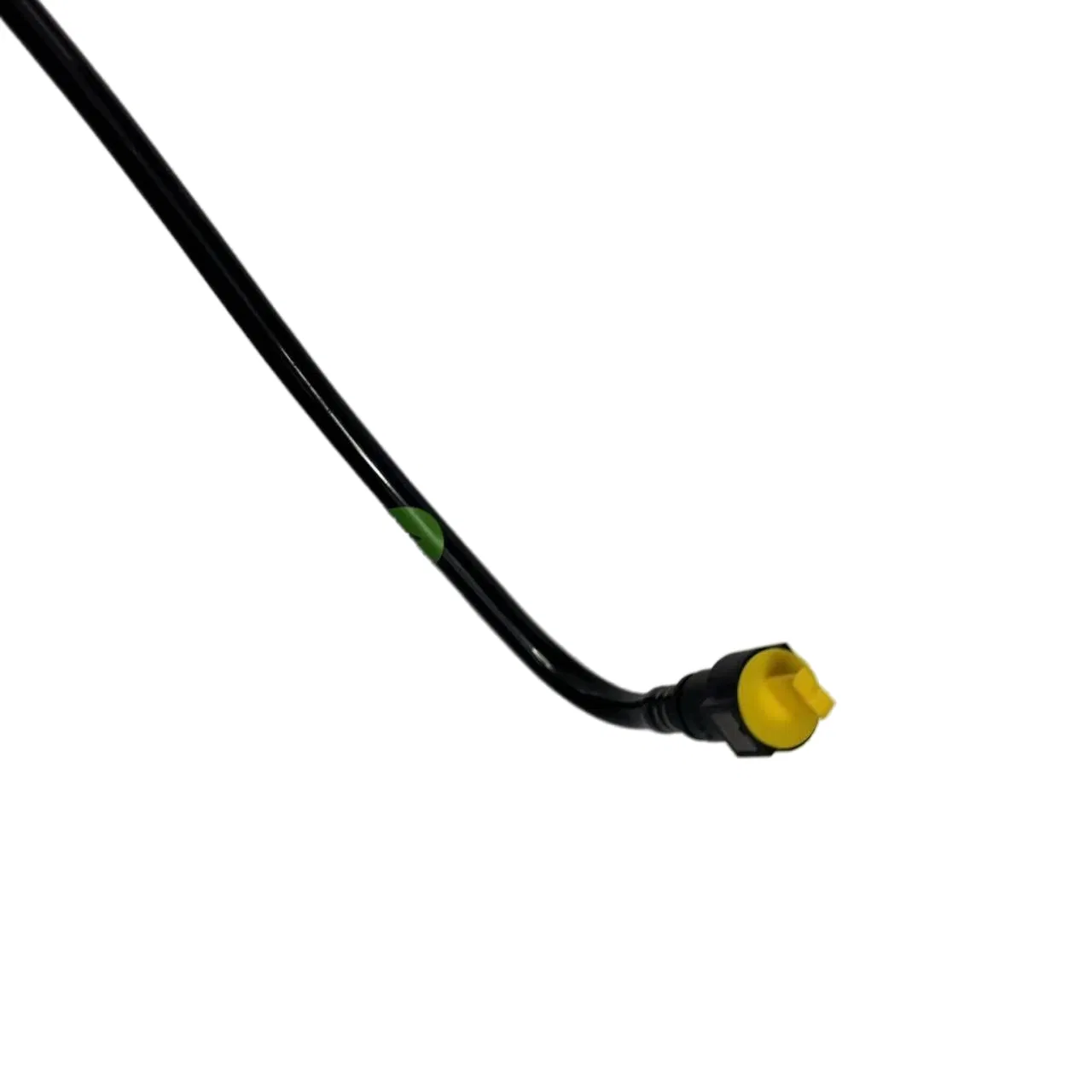

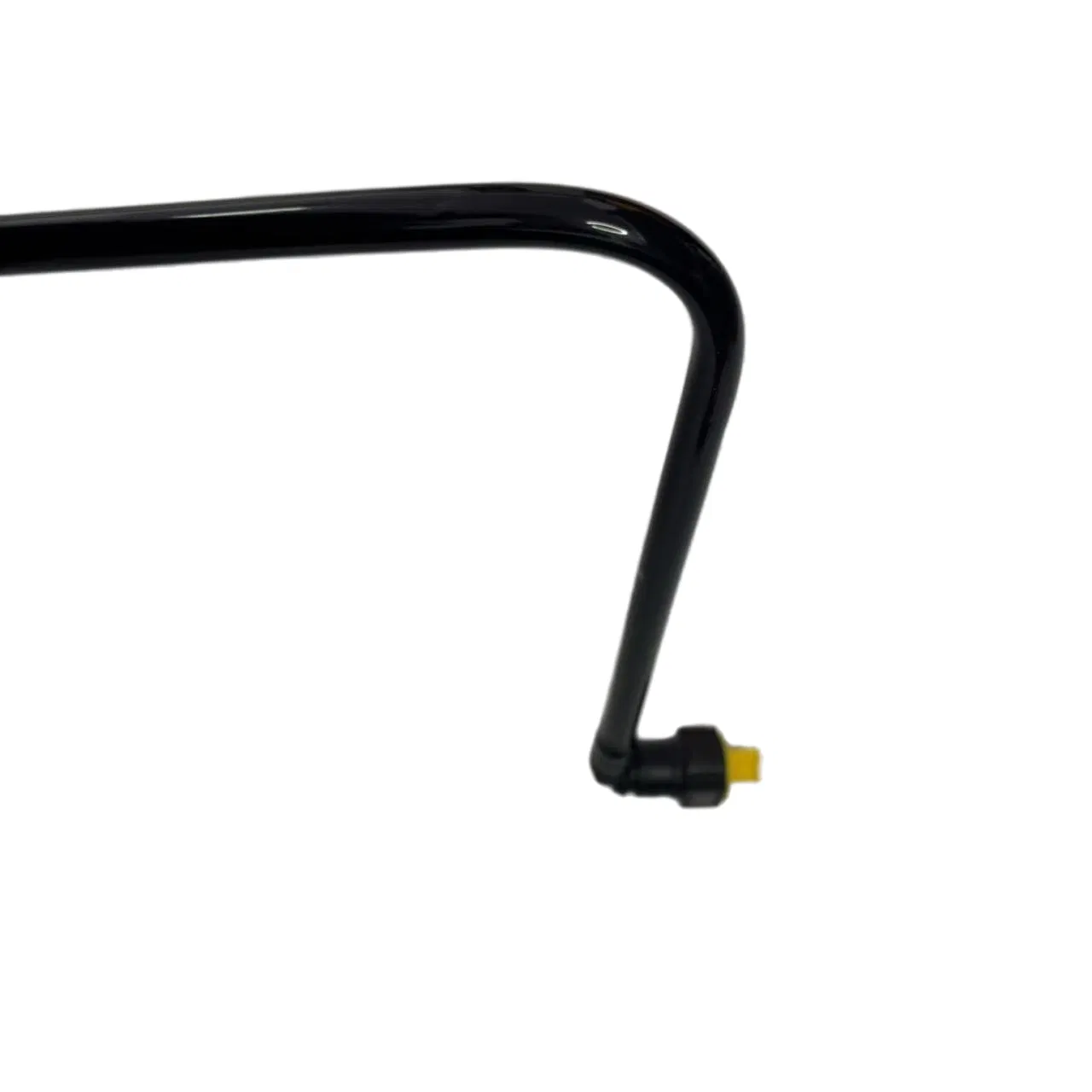

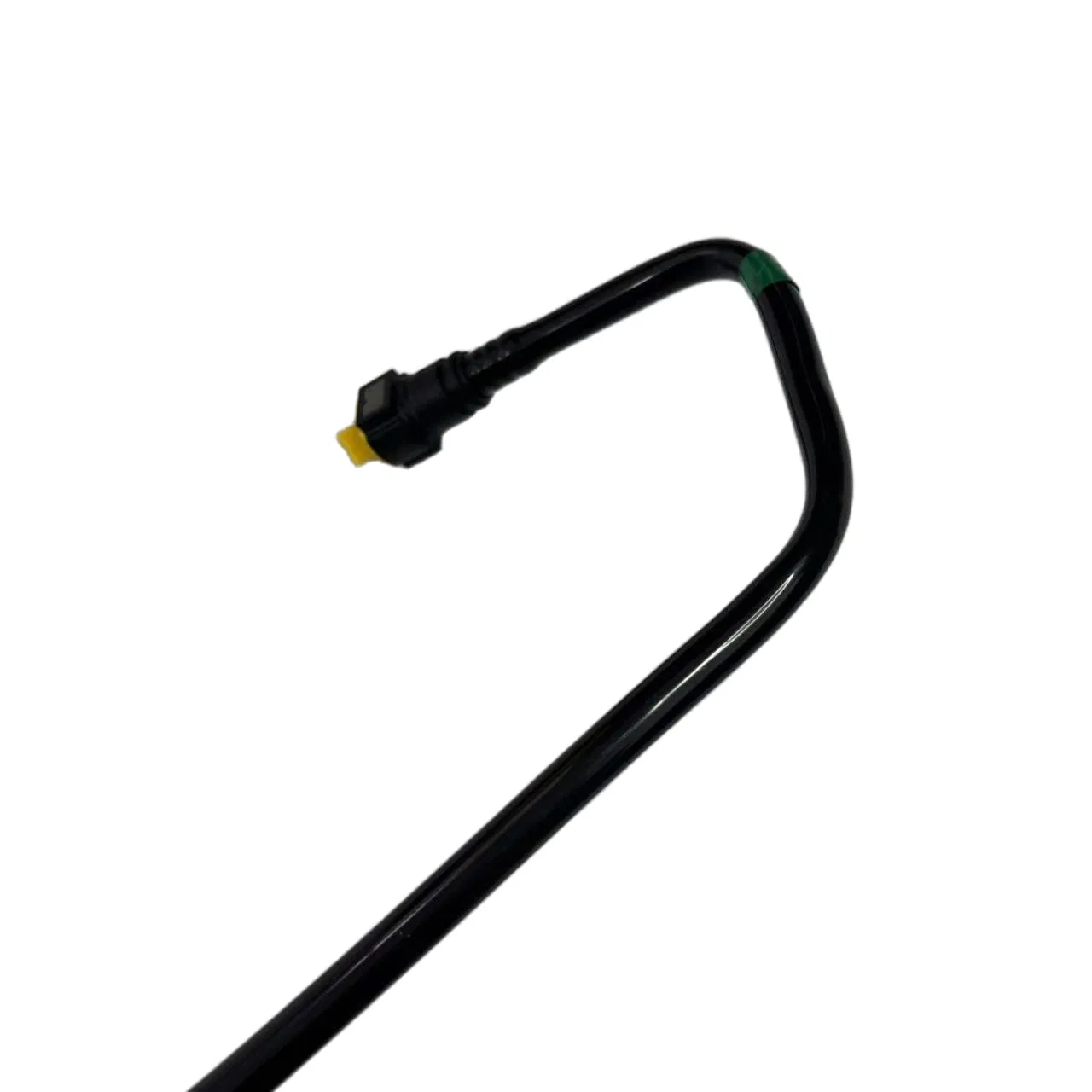

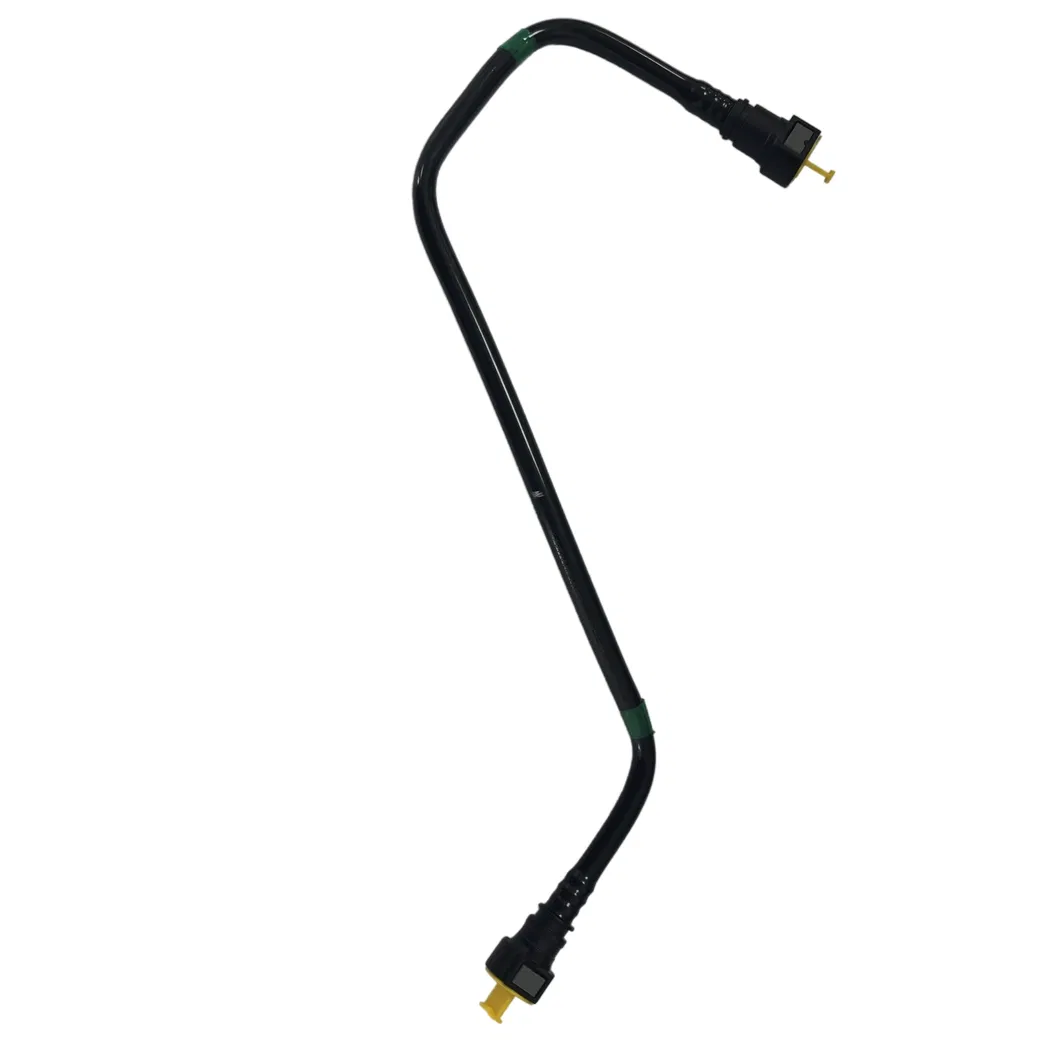

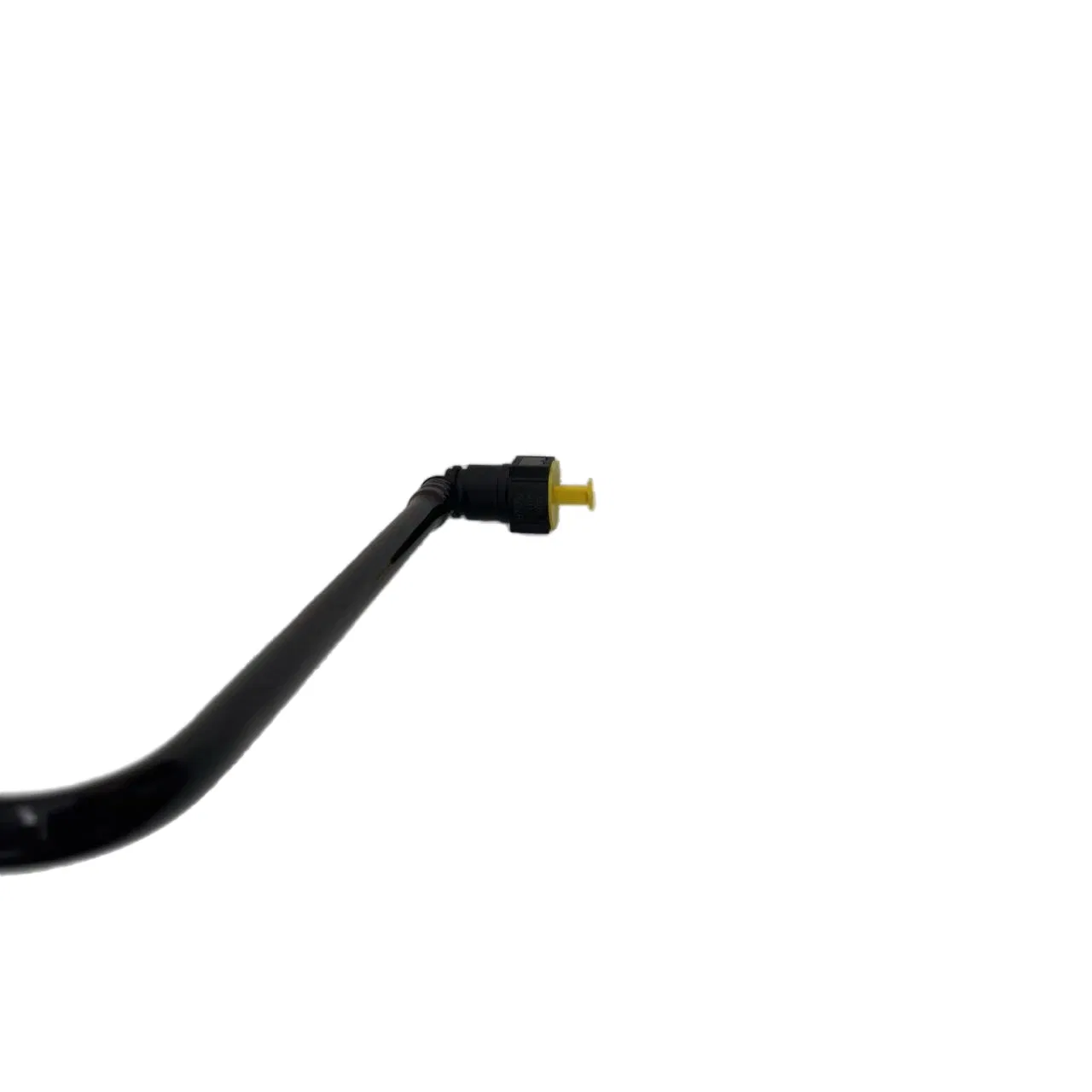

Multilayer nylon tubes are crafted from advanced materials like PA66 and PA12, offering lightweight properties, high-temperature tolerance, and superior chemical corrosion resistance.
Featuring a multi-layer structure design, these tubes combine the benefits of different materials to replace traditional rubber and metal pipes, balancing lightweight needs with extreme pressure resistance.
| Parameter Name | Description / Value | Parameter Name | Description / Value |
|---|---|---|---|
| Product Name | Multilayer reinforced nylon pipe | Working Pressure | 0.5Mpa - 20Mpa |
| Structure | Inner (Nylon) + Reinforcement (Fiber) + Outer (Nylon) | Blasting Pressure | ≥ 2 times working pressure |
| Inner Diameter | 4mm / 6mm / 8mm / 10mm (Customizable) | Operating Temp | -40ºC ~ +120ºC (Instant +150ºC) |
| Outer Diameter | 8mm / 12mm / 16mm / 20mm | Low Temp Resistance | No cracking at -40ºC |
| Wall Thickness | 1.5mm - 3.5mm | Medium Resistance | Mineral oil, hydraulic oil, ethanol |
| Bending Radius | ≤ 4x OD (Dynamic) / ≤ 2x OD (Static) | Connection Type | Quick insert, threaded, flange |
