Complete Lubricants Grease Product Line for Making Grease

1 / 5

Complete Lubricants Grease Product Line for Making Grease

Customization:	Available
After-sales Service:	for Life After Sale Service
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

1ton - 10ton

Condition

New / Customized

Certification

ISO9001, QS

Tank Material

Stainless Steel / Metal Tank

Storage Objects

Solid, Liquid, Gas

Material Grade

SUS304, SUS316, Carbon Steel

Heating Method

Oil/Steam/Electric Heating

Guarantee

One Year

Production Capacity

200 sets/Month

HS Code

8419899090

Product Description & Summary

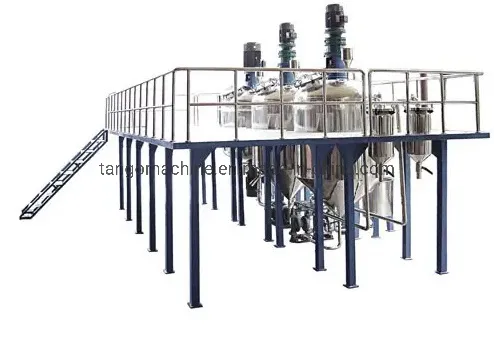

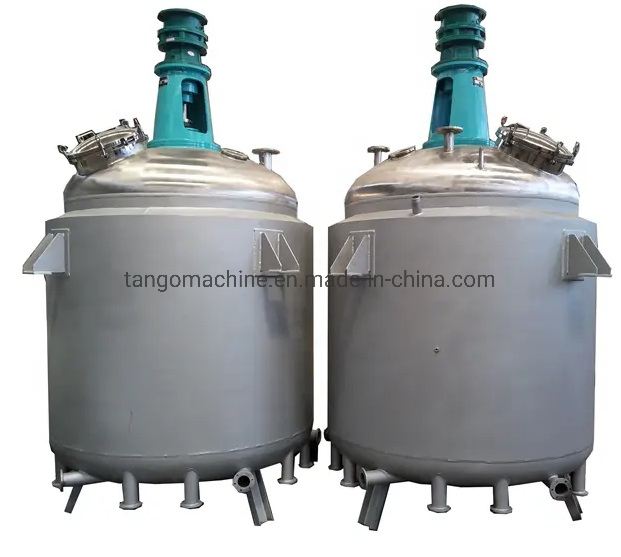

The reactor equipment is primarily designed for high-efficiency production chains including hydrolysis, neutralization, crystallization, distillation, evaporation, and storage. It serves vital roles in medicine, chemical processing, food manufacturing, and light industries.

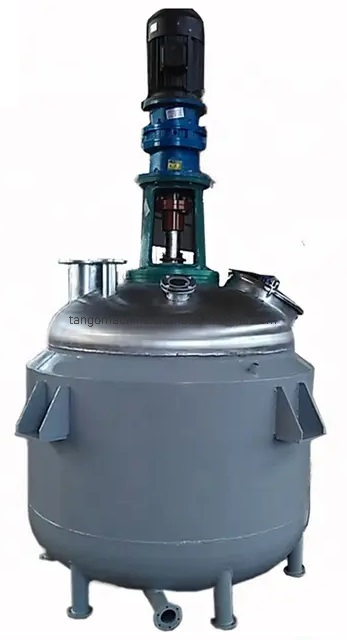

Our reaction kettles are constructed using high-grade SUS304 and SUS316L stainless steel. Mixing systems are highly versatile, offering anchor, frame, oar, and turbo types to suit specific viscosity requirements. Sealing mechanisms utilize advanced mechanical seals to ensure integrity under varying pressures.

Main Features:

Diverse Materials: Stainless steel, carbon steel, zirconium, and nickel base alloys.
Gland Equipment: Reliable packing and mechanical seals.
Agitation Flexibility: Paddle, turbine, propelled, or gated combinations.
Advanced Structure: Outer jacket, semi-pipe, or inner coil configurations.
Heating Versatility: Electric, steam, and thermal oil options.

Technical Specifications:

High Finish: Mirror or Matt Polish (Ra < 0.4um).
Full GMP Compliance for hygienic production.
Dual Functionality: Integrated heating and cooling capabilities.
Easy Discharge: Bottom direct discharge or transfer pump integration.
Capacity Range: 0.1 to 30M3+.

Technical Parameter List

Model	50L	100L	300L	500L	1000L	2000L	3000L	5000L
Mixing Motor Power	0.75KW	1.1KW	2.2KW	2.2KW	4KW	5.5KW	7.5KW	15KW
Heating Power	8KW	12KW	24KW	36KW	48KW	60KW	75KW	90KW
Inner Plate Thickness	5mm	5mm	5mm	5mm	6mm	6mm	8mm	8mm
Jacket Plate Thickness	5mm	5mm	5mm	5mm	6mm	6mm	8mm	8mm
Heating Type	Electric, Steam, or Oil Circulation Heating
Agitator Type	Anchor, Paddle, Frame, etc. (Customizable)

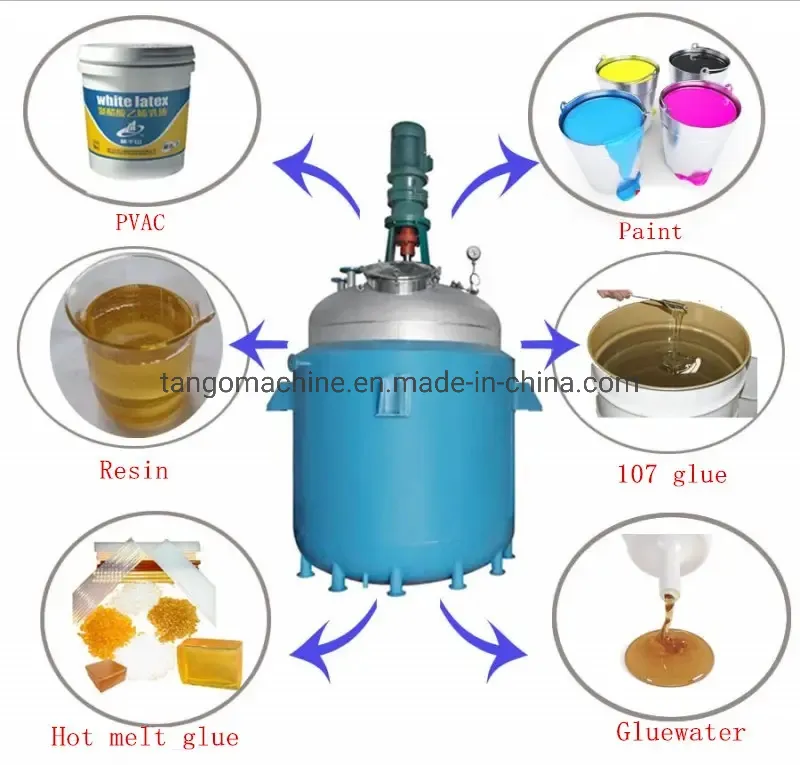

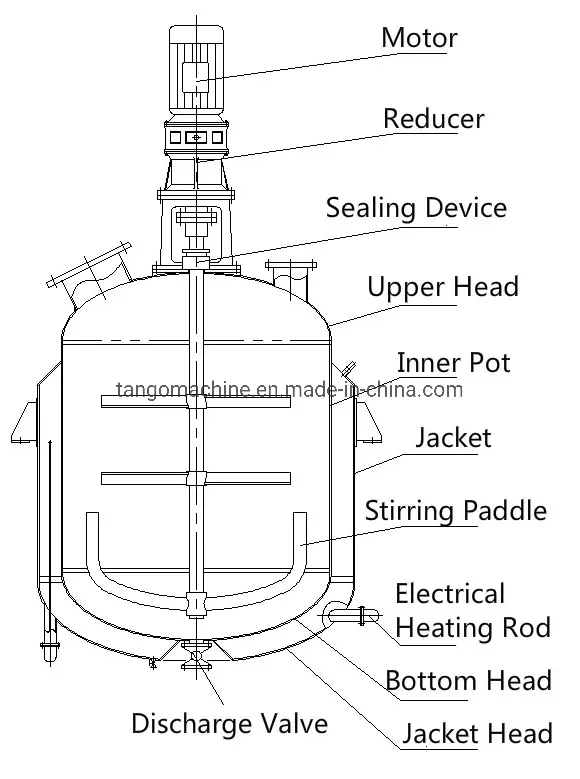

Usage Range & Technical Drawings

Professional Service Support

Pre-install Service

24/7 online response for technical inquiries.
Expert guidance on machine model selection.
Detailed specifications and competitive pricing.

Contract Implementation

Strict adherence to contract manufacturing.
Production inspection photos provided.
Comprehensive document management and updates.

After-sale Service

12-month warranty (excluding wear parts).
Free spare parts for quality-related issues.
Timely technical support and product updates.

Full Supply Range

Adhesive Glue Production Line
Unsaturated Resin Production Line
Acrylic Resin Production Line
Urea-formaldehyde Resin Production Line
Polyurethane Resin Production Line
Epoxy Resin Production Line
Silicone Sealant Production Line
White Latex Glue Production Line
Hot Melt Glue Production Line
Paint Production Line
Silicone Rubber Production Line

Frequently Asked Questions

What materials are the reactor tanks made of?

We primarily use high-quality SUS304 and SUS316L stainless steel. Carbon steel and PTFE-lined options are also available for specific chemical requirements.

What heating methods do you support?

Our systems support electric heating, steam heating, and thermal oil circulation heating, depending on your facility's infrastructure.

Is the equipment customizable?

Yes, we support full OEM customization. We can adjust the motor power, plate thickness, agitation type, and sealing method to meet your specific production needs.

What is the standard warranty period?

We provide a 12-month warranty on all machinery, excluding standard wear parts. Free spare parts are provided for any quality-related issues during this period.

What is the typical delivery time?

Standard production and delivery time usually ranges from 1 to 2 months, depending on the complexity and customization of the order.

Does the equipment meet GMP requirements?

Yes, our stainless steel reactors are designed with a mirror or matt polish finish (Ra < 0.4um) and fully conform to international GMP standards.
