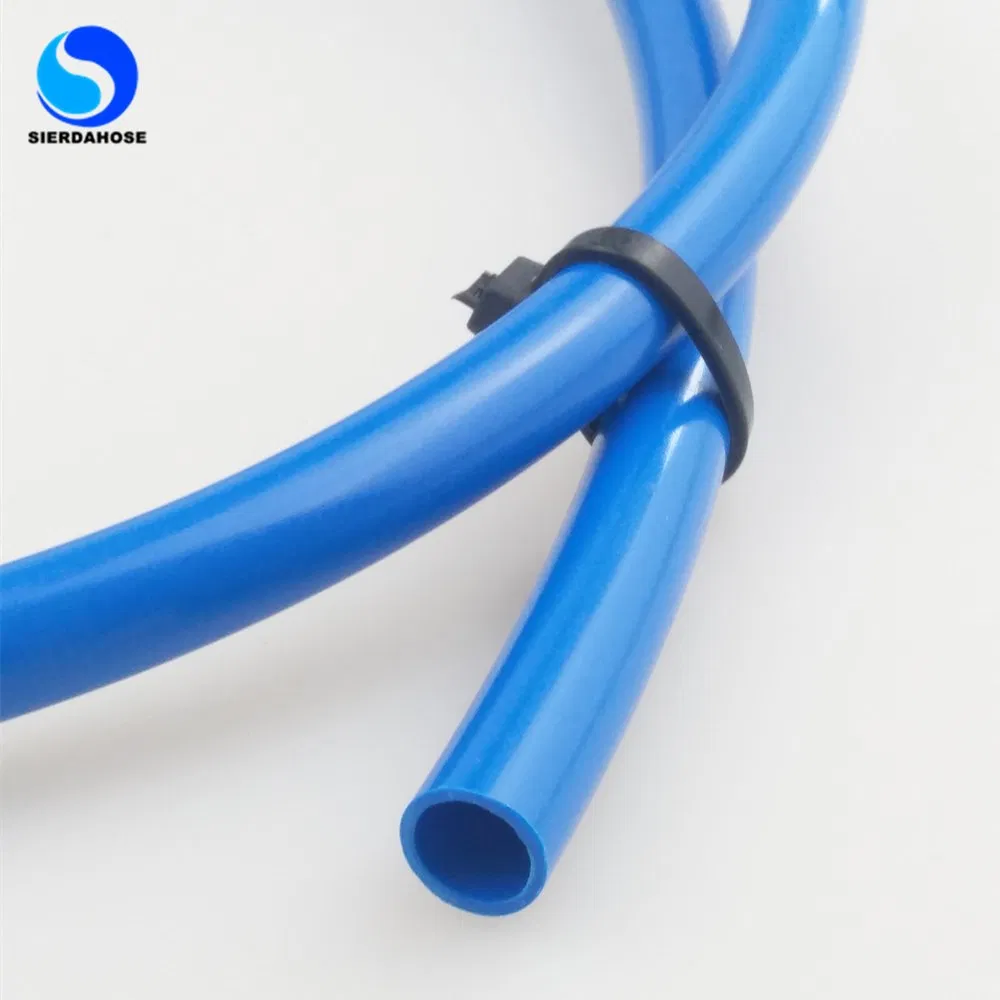

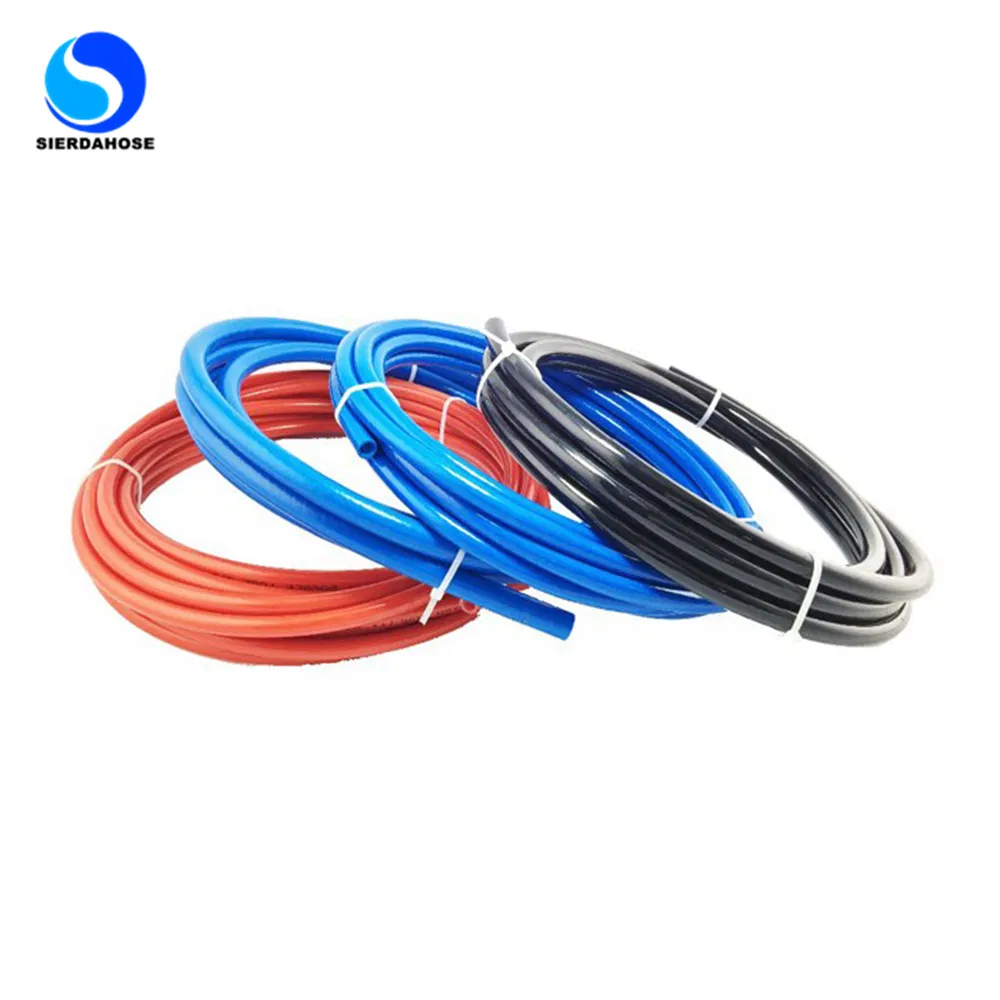

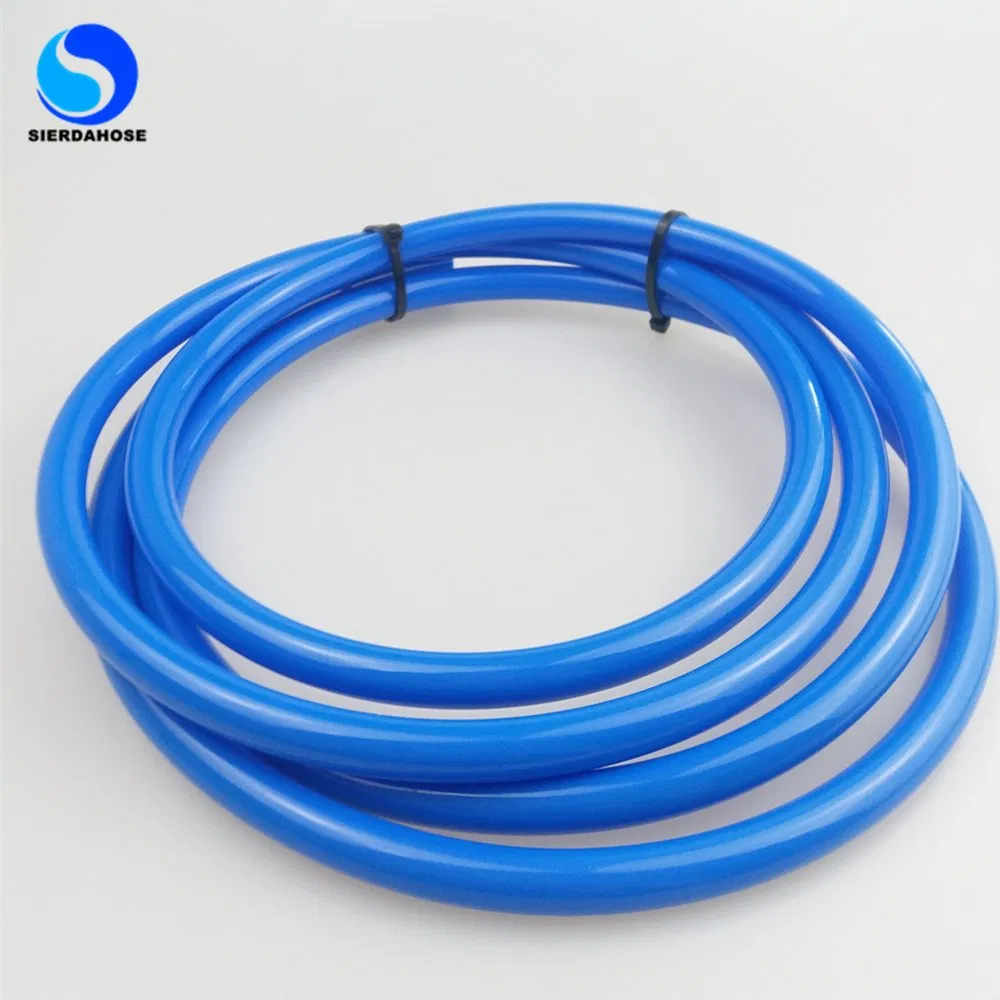

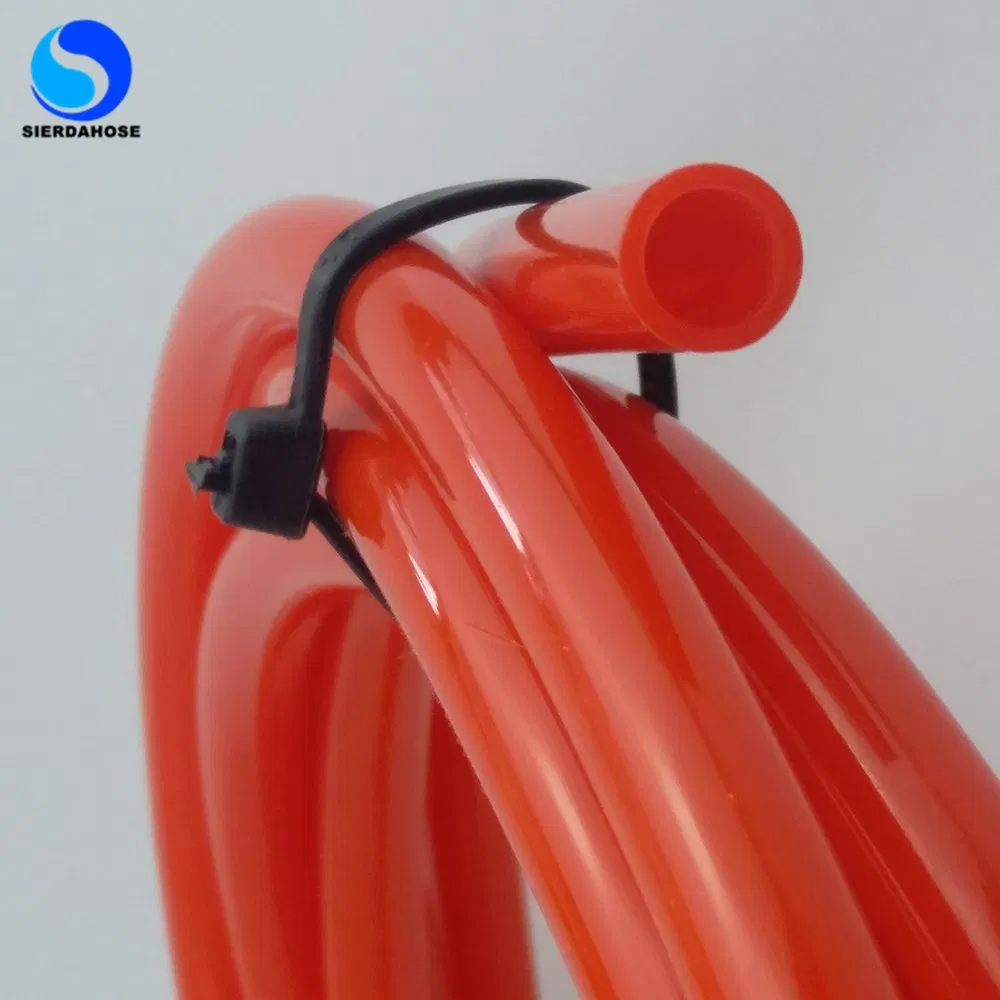

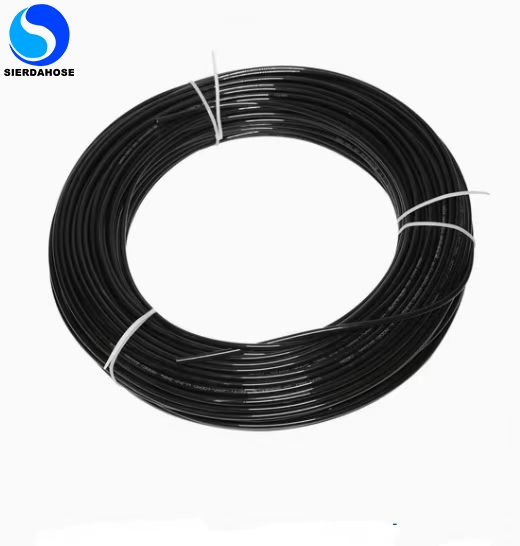

PA/Nylon Multi-Purpose Hose for Industrial Fluid & Air Transmission
Characteristics:
Temperature Range:
-40ºC to 100 ºC

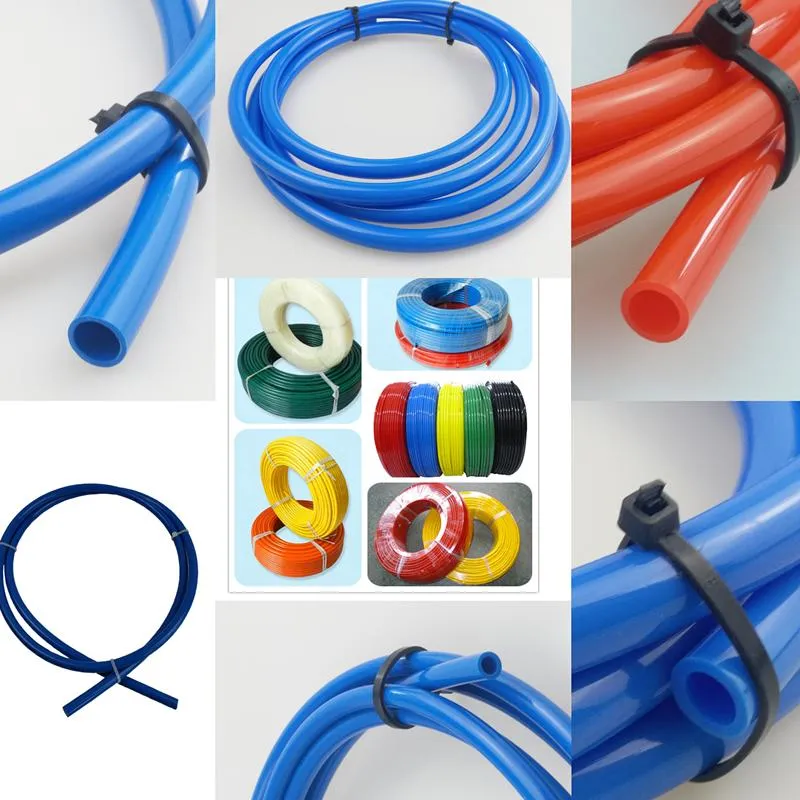

Available Colors:
Clear, Black, Blue, Red, Yellow, Green, White, Orange.
| Model | O.D. (mm) | Thickness (mm) | W.P. | B.P. | Tolerance (mm) | |||
|---|---|---|---|---|---|---|---|---|
| psi | Mpa | psi | Mpa | O.D. | I.D. | |||
| SDPA-40750 | 4 | 0.75 | 334 | 2.30 | 1334 | 9.2 | ±0.1 | ±0.1 |
| SDPA-40100 | 4 | 1 | 483 | 3.33 | 1929 | 13.3 | ±0.1 | ±0.1 |
| SDPA-60100 | 6 | 1 | 290 | 2.00 | 1160 | 8 | ±0.1 | ±0.1 |
| SDPA-80125 | 8 | 1.25 | 334 | 2.30 | 1334 | 9.2 | ±0.15 | ±0.1 |
| SDPA-10150 | 10 | 1.5 | 258 | 1.78 | 1030 | 7.1 | ±0.15 | ±0.1 |
| SDPA-12150 | 12 | 1.5 | 207 | 1.43 | 827 | 5.7 | ±0.15 | ±0.1 |

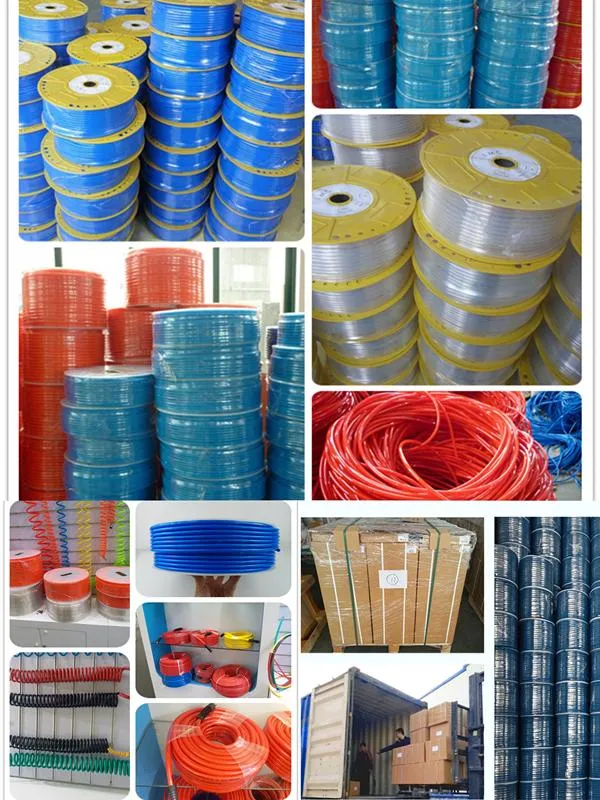

Standard packing: Woven bags and plastic film. Special customized packing is available upon request.

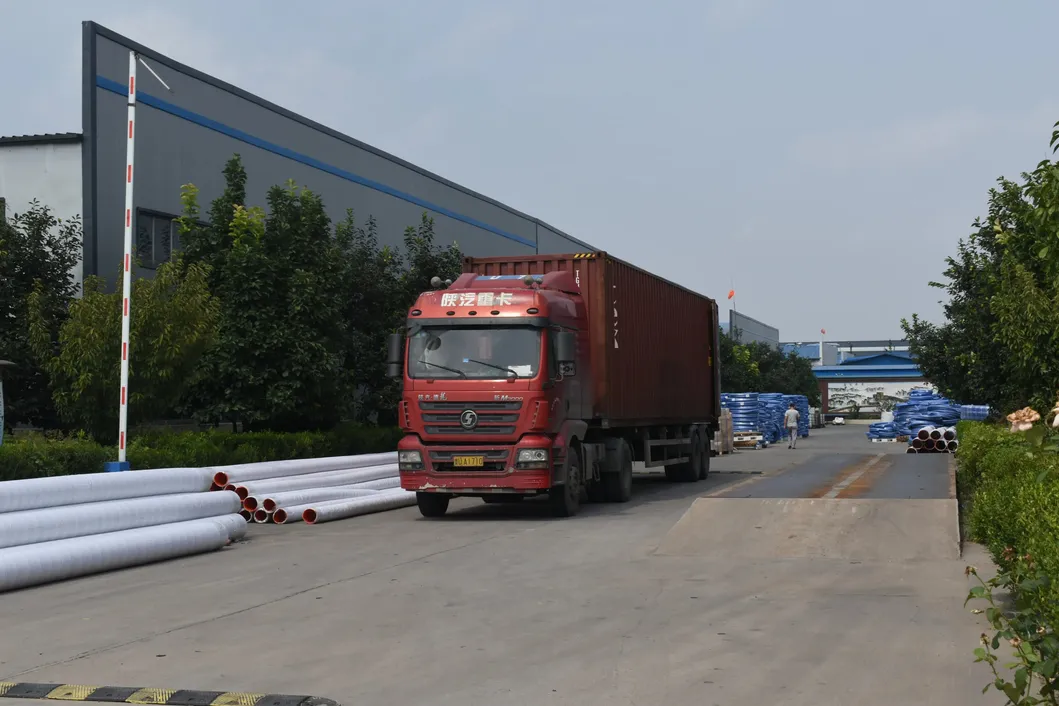

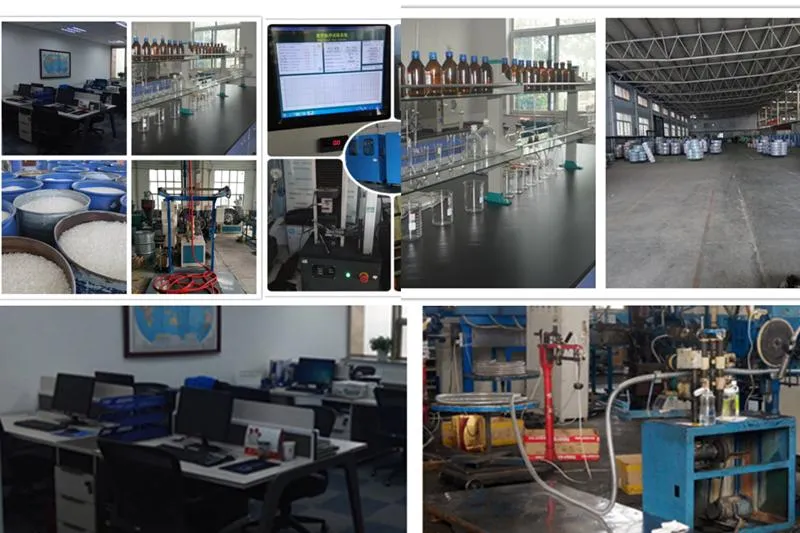

Established in 2009, we are a rapidly growing enterprise integrating the production and marketing of high-quality PVC hoses, pneumatic hoses, duct hoses, and related accessories. After a decade of development, we have become one of the leading manufacturers and suppliers in the region.
