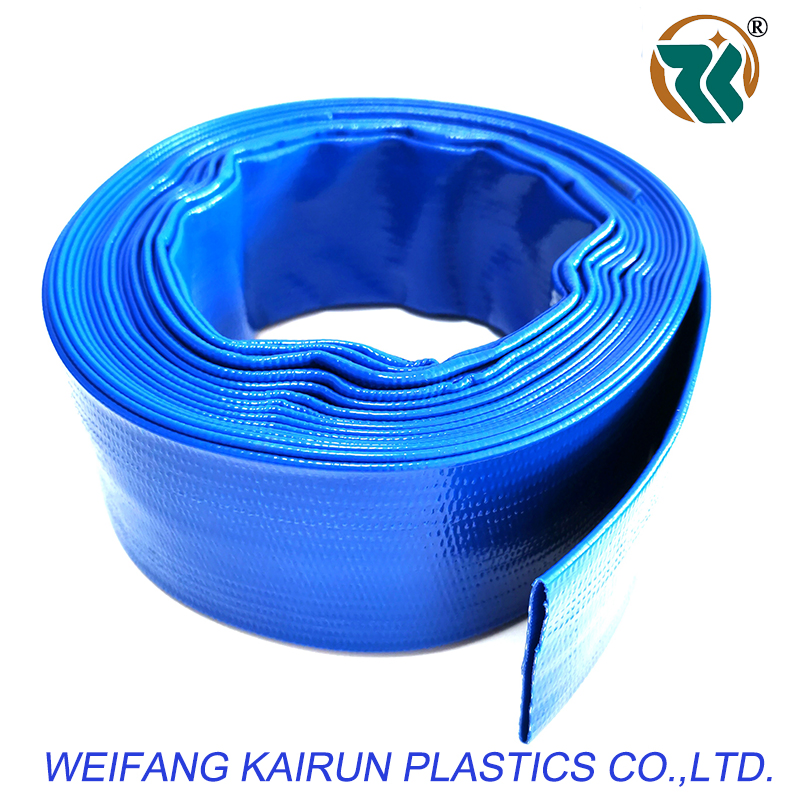

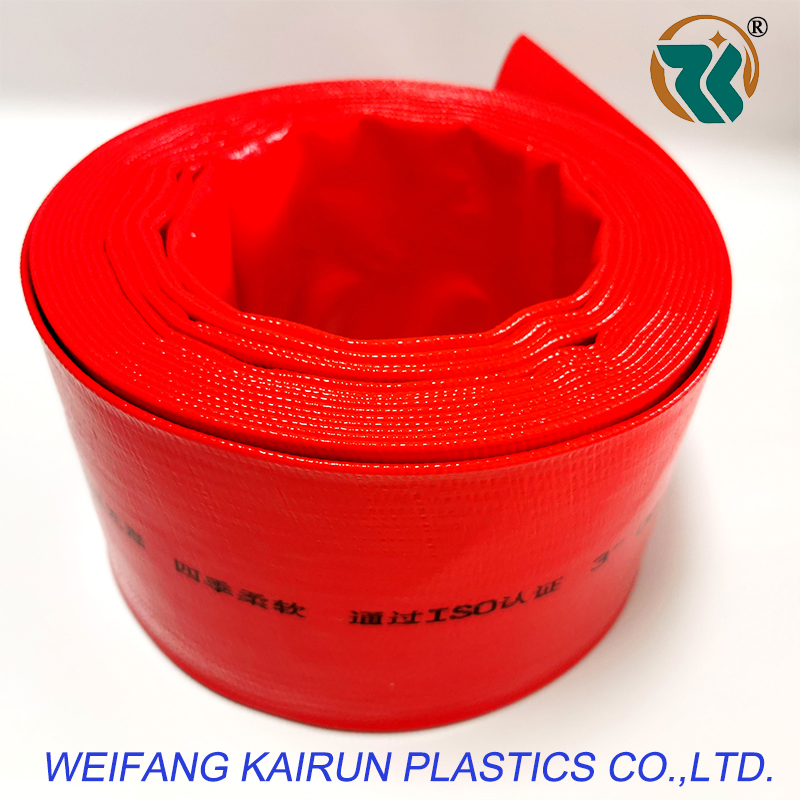

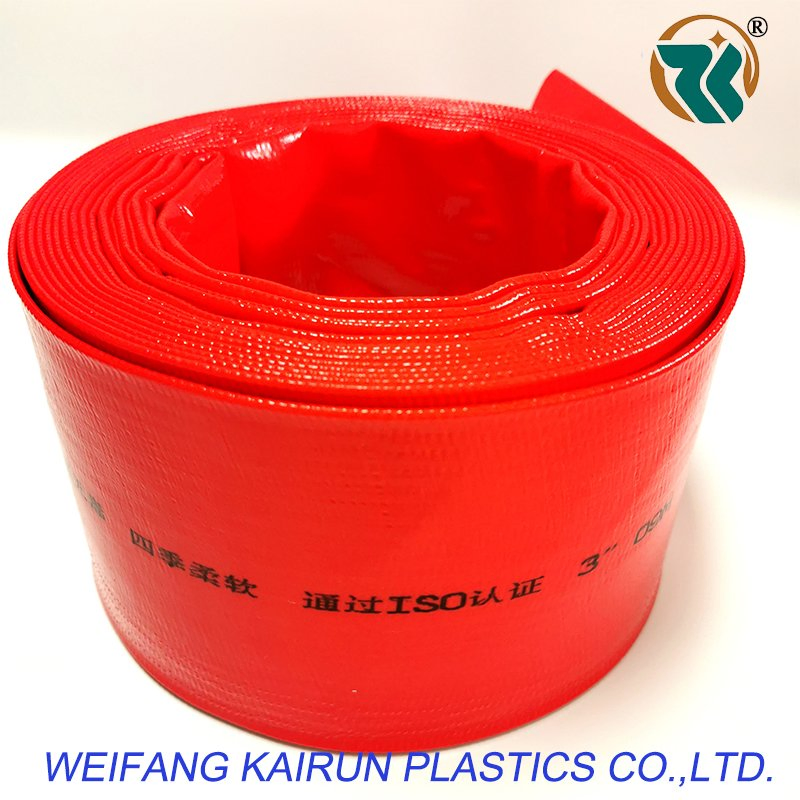

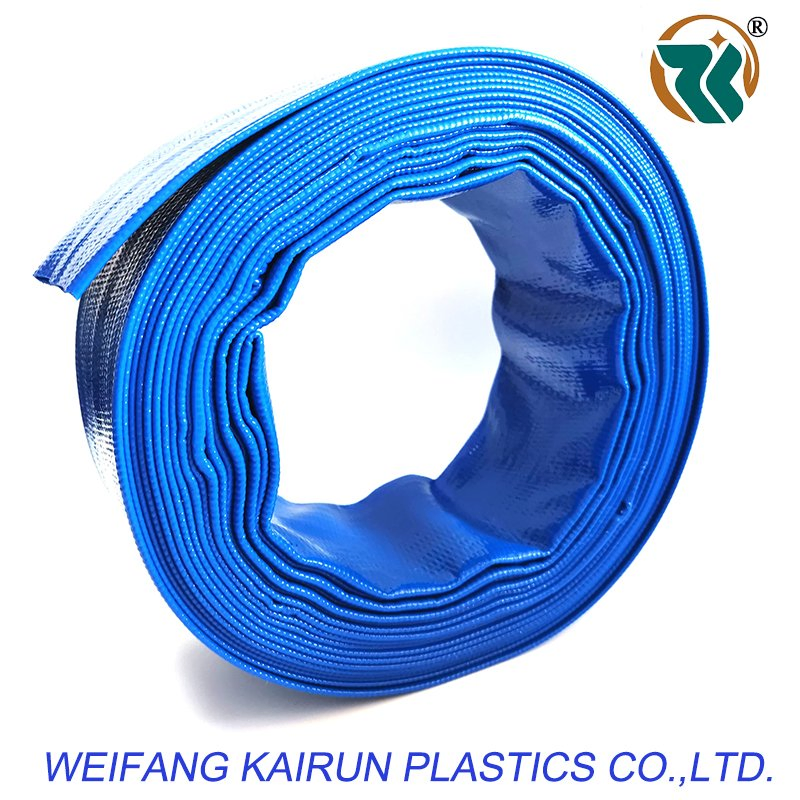

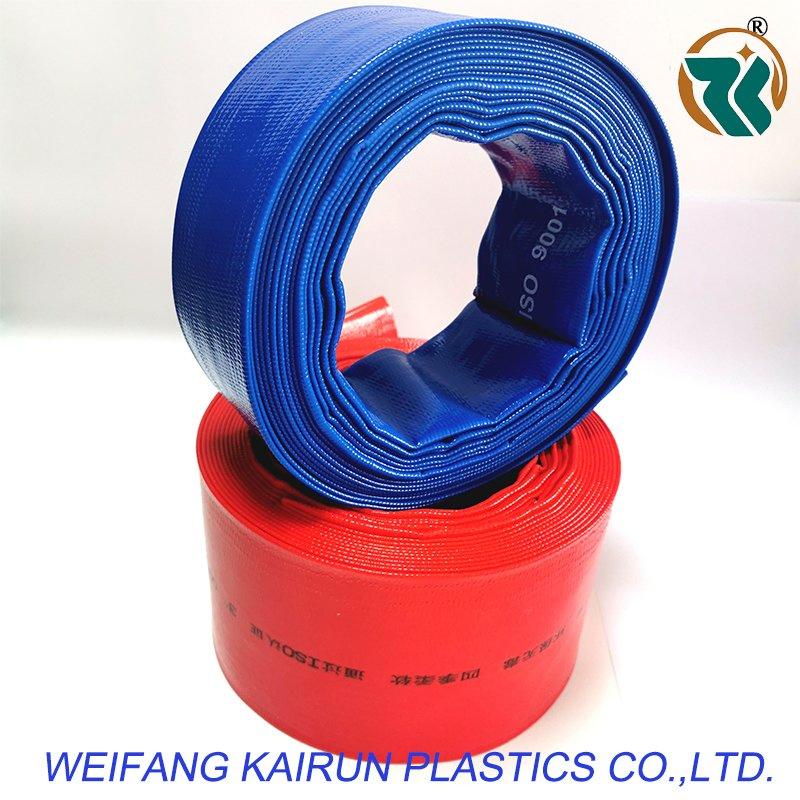

OEM Colourful PVC Agricultural Irrigation Water Pump Layflat Discharge Pipe Hose

📊 Basic Information

Model NO.

KR-LH

Material

Plastic / PVC

Color

Red, Blue, Yellow, Green, White etc.

Length

15m, 20m, 30m, 50m, 60m, 100m

Working Pressure

2bar, 3bar, 4bar, 6bar, 8bar, 10bar

Bursting Pressure

6bar - 30bar

Certification

ISO9001:2015

Wall Thickness

0.9mm - 2.5mm

Size Range

1 inch - 16 inch

Lead Time

10 - 20 Days

📝 Product Description

1/ 2/ 2.5/ 3/ 4 inch Red/ Blue/ Yellow Color PVC Agricultural Pipe Pump Layflat Discharge Water Garden Hose.

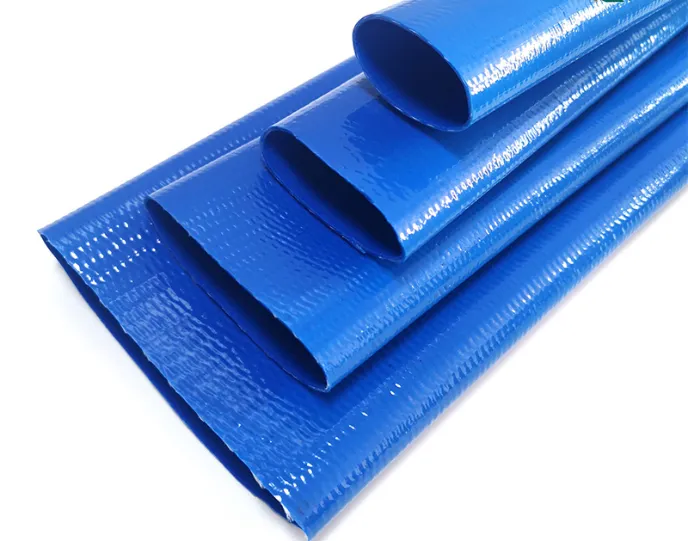

PVC Agricultural Irrigation Water Pump Hose

Key Specifications
Product size ID	1" to 16"
Color Options	Red, Blue, Yellow, White, Custom
Working Pressure	2bar(30psi) - 15bar(225psi)
Temp. Range	-5°C to 65°C
Standard Length	50m/roll, 100m/roll

🚀 Main Characteristics

Made from high-quality PVC material using unique knitting technology to prevent twisting.
Lightweight, flexible, elastic, and durable.
Adaptable to high pressure and harsh weather conditions.
Anti-freezing properties and non-torsion design.
Optional colorful symbol lines on the surface for enhanced aesthetics.

📏 Technical Specifications

Item No.	Size (Inch)	I.D. (mm)	O.D. (mm)	Length (m/roll)	W.P. (Mpa)	B.P. (Mpa)	Weight (kg/roll)
KRSD-25	1	25	27.8	100	0.7	3.5	16
KRSD-38	1-1/2	38	40.8	100	0.6	3.0	24
KRSD-50	2	50	53.8	100	0.6	3.0	30
KRSD-75	3	75	77.9	50	0.5	2.5	24
KRSD-102	4	102	104.9	50	0.4	2.0	32.5
KRSD-150	6	150	155.1	50	0.4	2.0	50
KRSD-205	8	205	208.4	50	0.3	1.0	85

* Other specifications can be customized according to requirements.

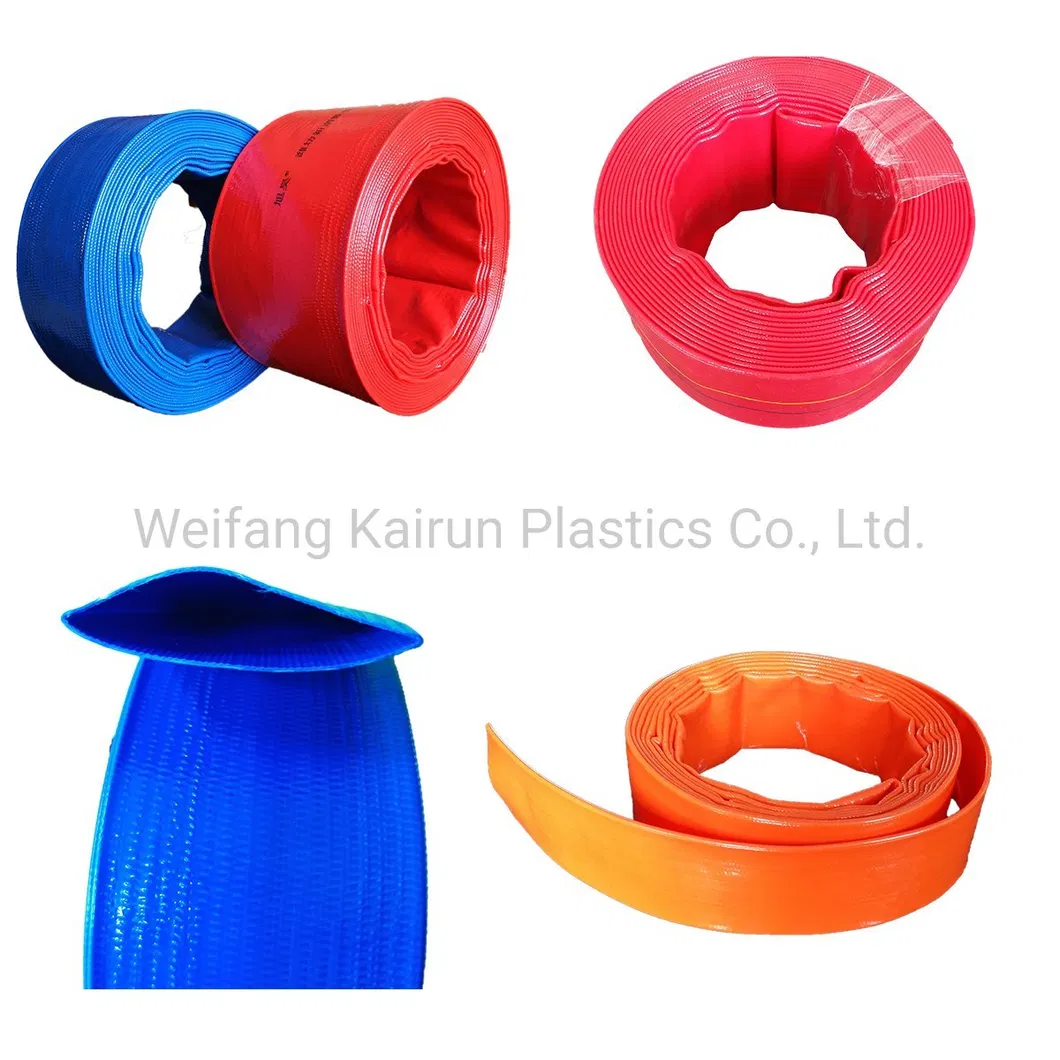

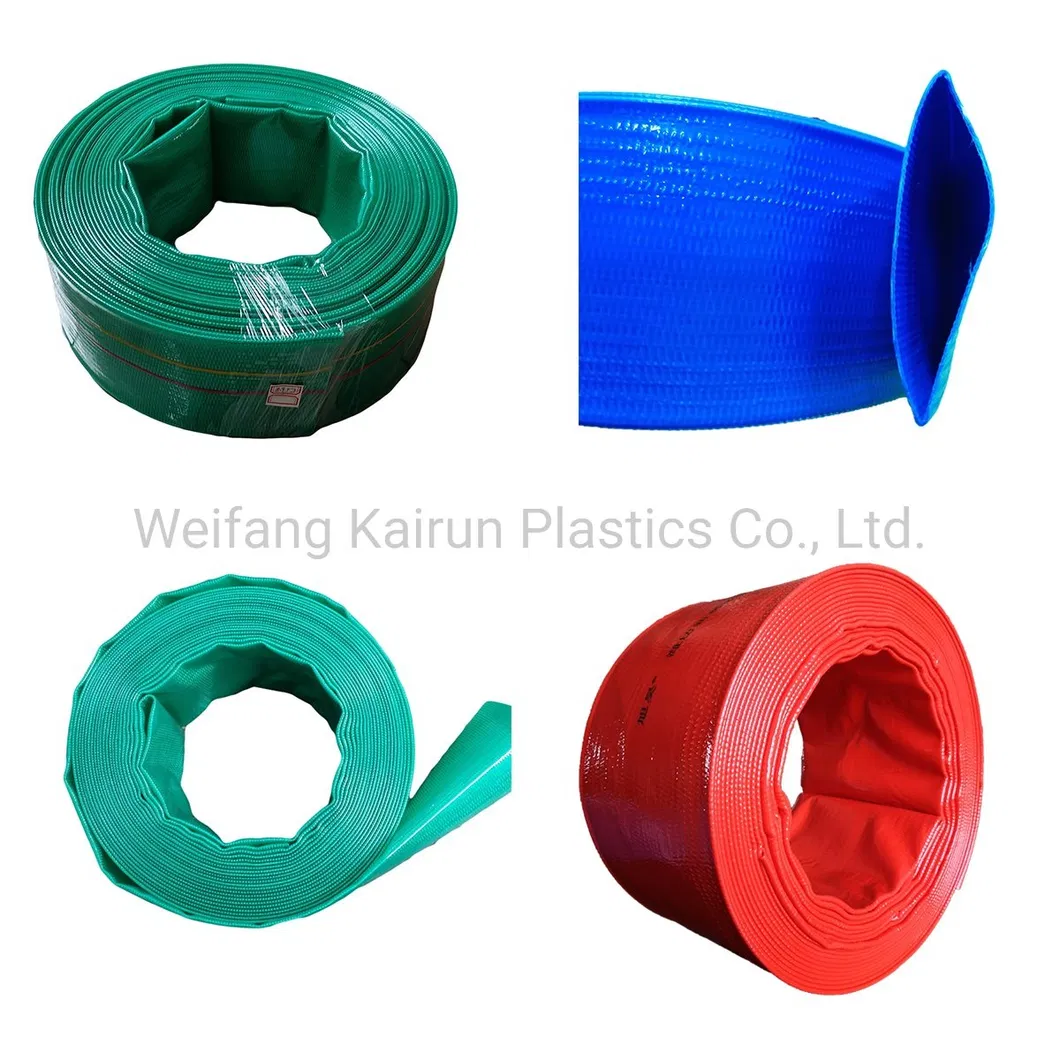

📷 Detailed Photos

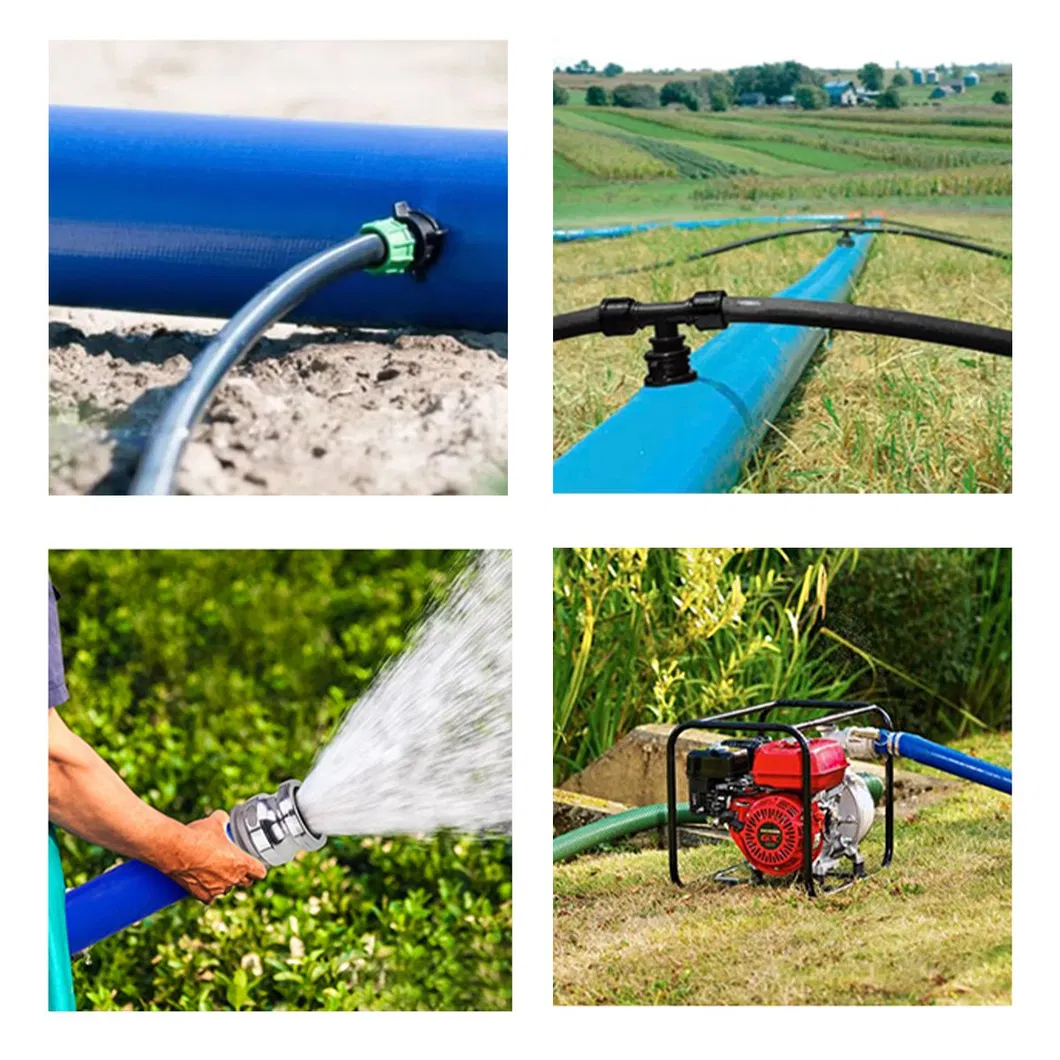

🌍 Product Application

Agriculture: Widely used for irrigation and drip irrigation systems.
Industry: Transferring liquids under high working pressure.
Construction & Mining: Discharge of sludge and wastewater.
Marine: Suitable for marine water delivery services.

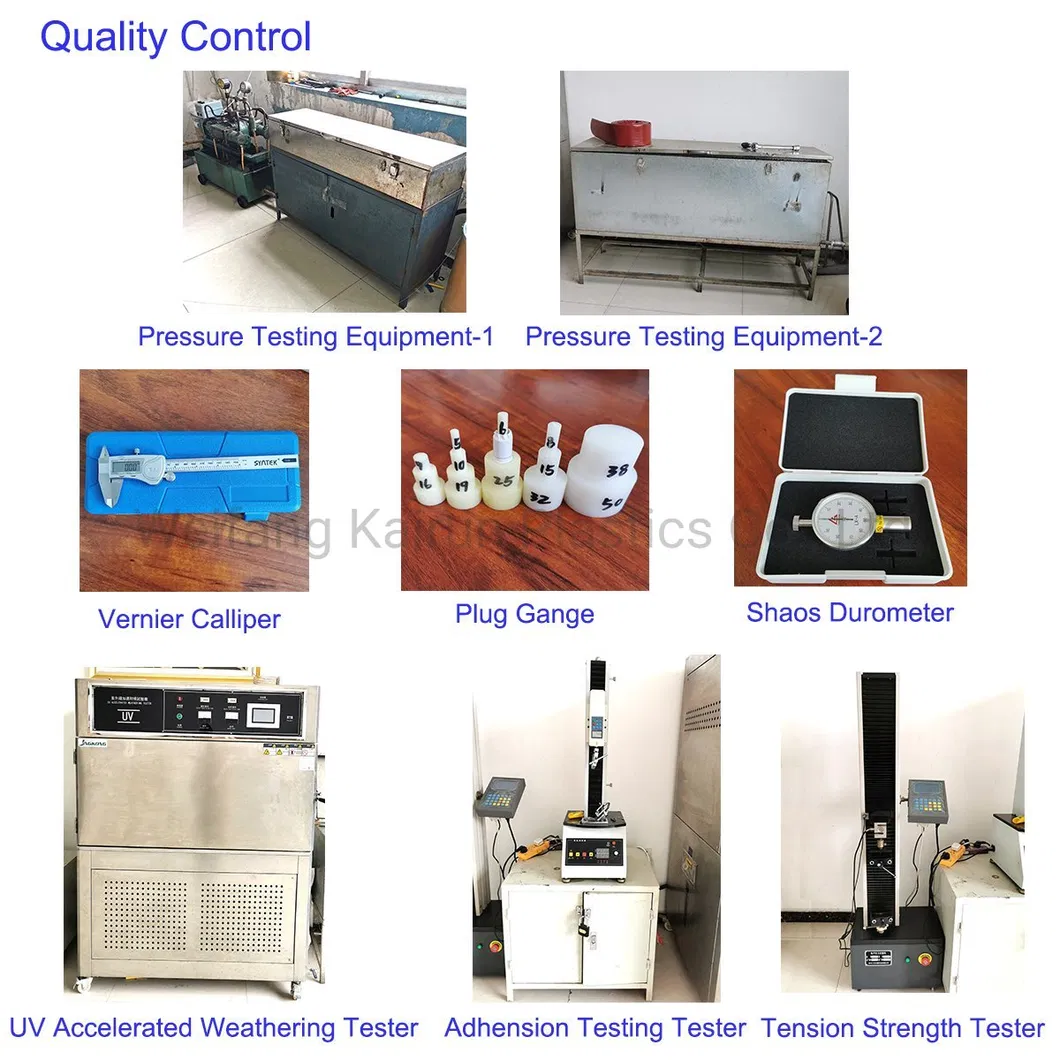

📦 Packaging & Quality Control

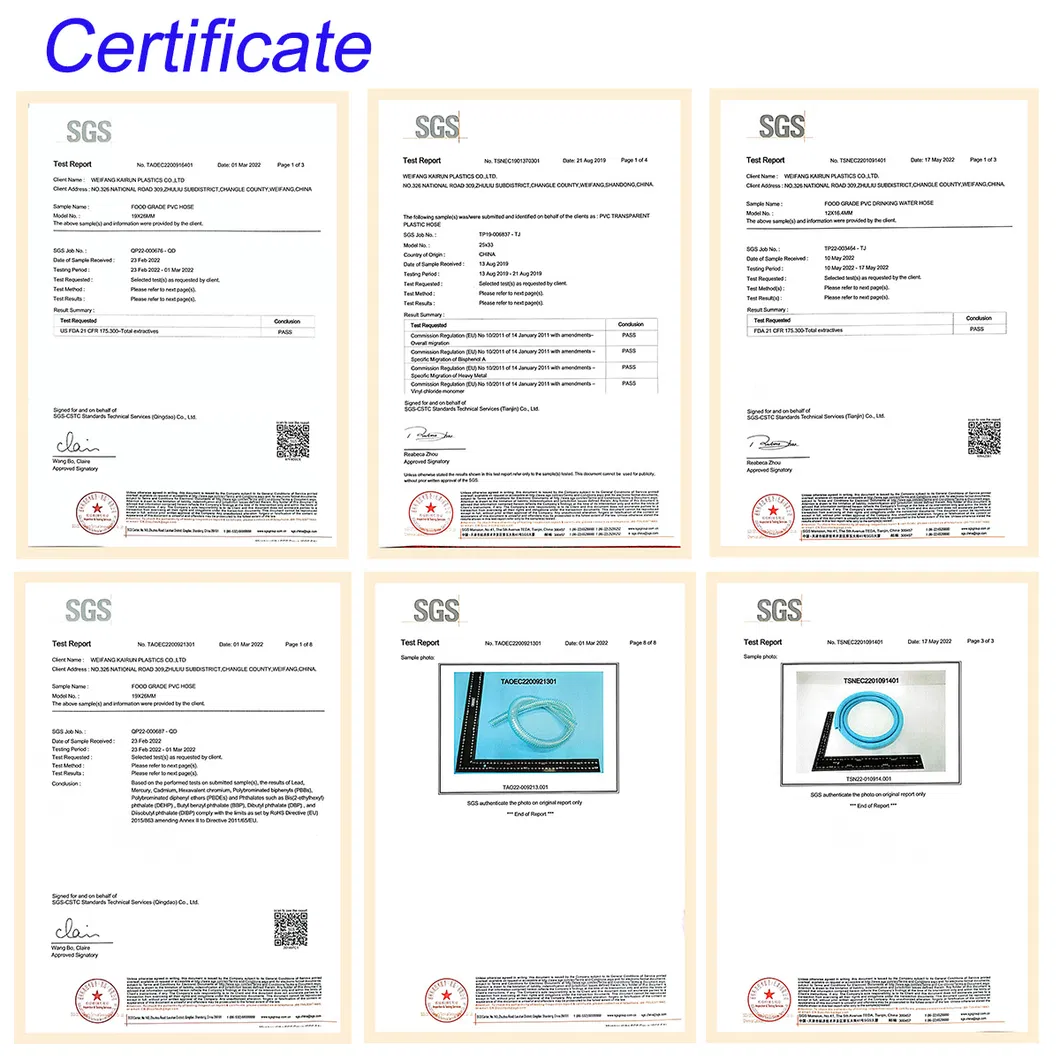

📜 Certifications

❓ Frequently Asked Questions

Q1: Can we have our own brand name on the PVC hose?

A1: Yes, OEM service is available. We can customize the brand name, logo, color, size, and packaging according to your specific requirements.

Q2: What is the typical lead time for orders?

A2: Generally, the lead time is between 10 to 20 days. We strive to deliver all products as efficiently as possible.

Q3: What kind of warranty do you provide?

A3: If any disqualified parts or missing components are found, please contact us immediately. We will provide free product replacements or credit after confirming the case.

Q4: What are the accepted payment terms?

A4: We prefer T/T (30% deposit, 70% against B/L copy) and L/C. For small orders, Western Union and PayPal are also accepted.

Q5: What is the temperature range for these hoses?

A5: These PVC layflat hoses are designed to operate effectively within a temperature range of -5°C to +65°C.

Q6: Are the hoses suitable for high-pressure applications?

A6: Yes, our hoses are reinforced with high-tensile polyester braiding, allowing them to handle working pressures from 2bar up to 15bar depending on the specific model.
