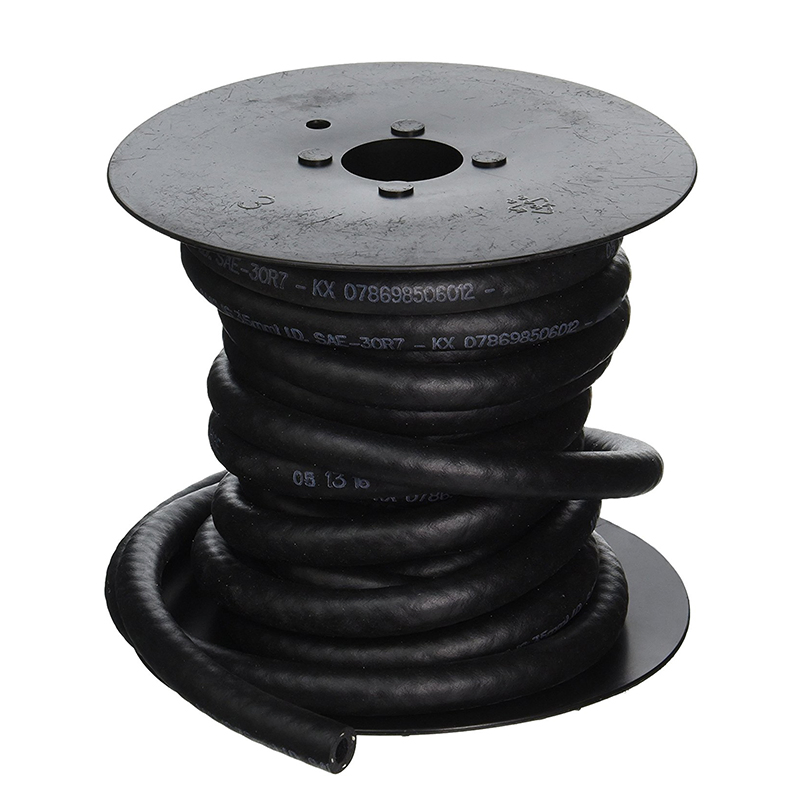

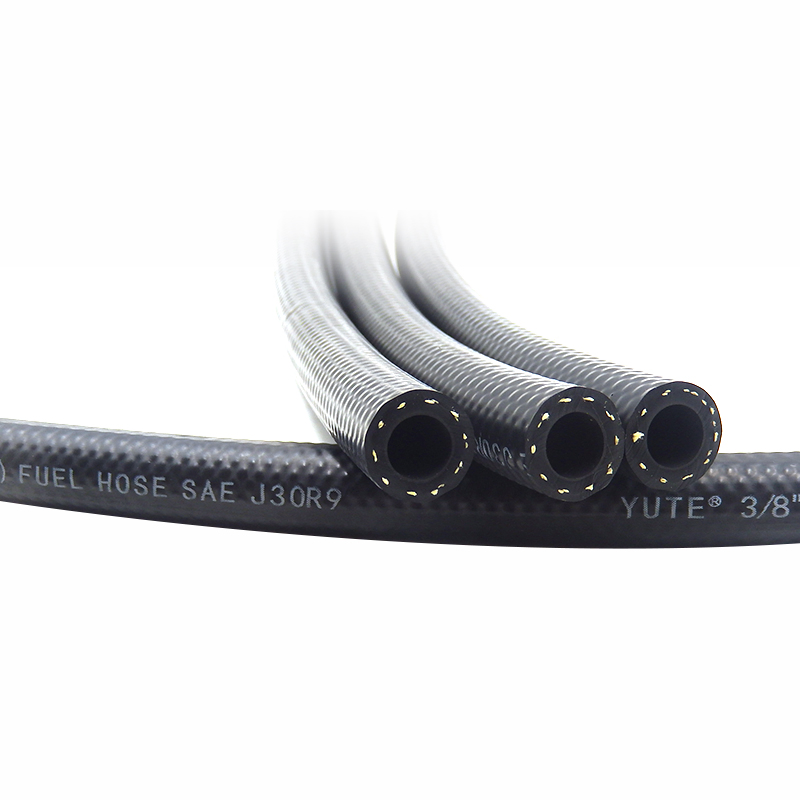

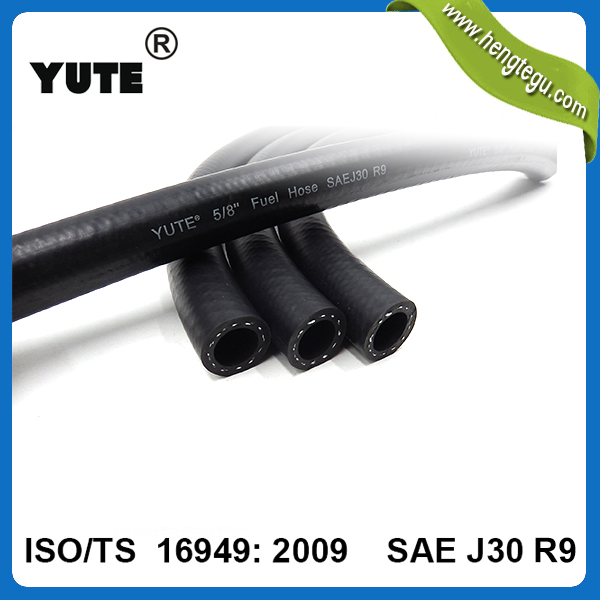

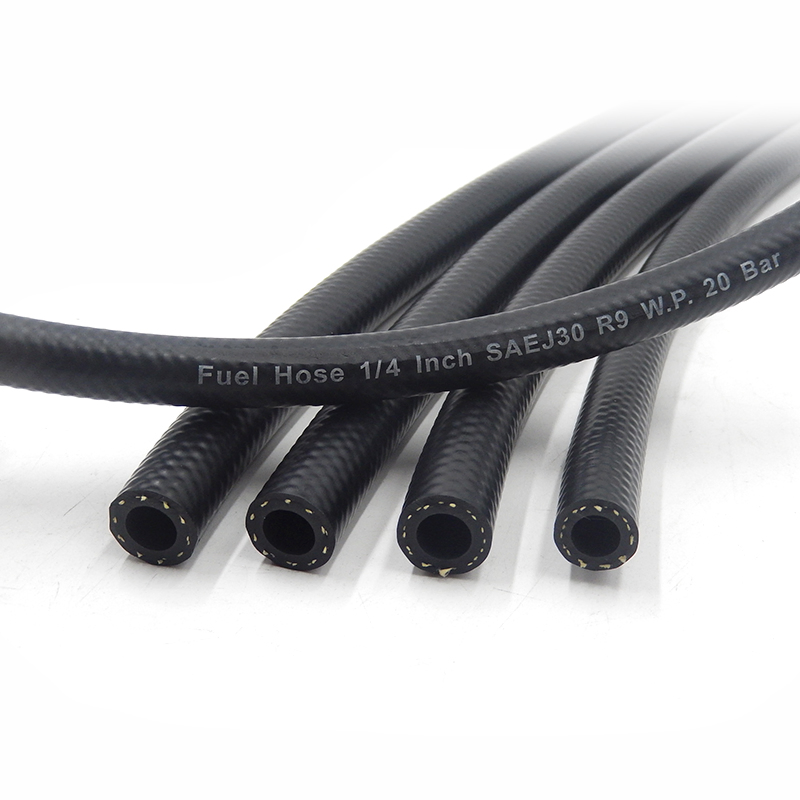

Yute Oil Resistant Black Braided Fiber Flexible Fuel Injection Hose

Basic Info

Model NO.

1/8-1 inch

Aging Time

72 H

Working Pressure

300 Psi

Length

100 Meters

Accept OEM Service

Yes

Delivery Time

30 Days

Payment

L/C, T/T, Western Union etc

Hose Package

Carton

Size

SAE R9

Burst Pressure

1200 Psi

MOQ

2000 Meters

Surface

Smooth

Warranty

5 Years

Wall Thickness

3~5mm

Feature

Low Permeation

Production Capacity

30000 Meters Per Day

Product Description

Applications:
Used in the transportation of gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel injection system or the crankcase of internal combustion engines.

Construction Details:

Permeation Barrier: Special rubber with perfect oil- and fuel-resistant performance (FKM)
Tube: Oil- and fuel-resistant synthetic rubber compound (ECO)
Reinforcement: High tensile braided fiber (AR)
Cover: Oil-, ozone-, and heat-resistant synthetic rubber compound (FKM)

Working Temperature

-40 ºC~+135ºC (-40 ºF~ +275 ºF)

Standard Compliance

SAE J 30R9, DIN 73379 3E

Sizes and Performance Parameters

NO	I.D		O.D Reference		Working Pressure		Burst Pressure		Weight (Approx)
NO	inch	mm	inch	mm	MPa	Psi	MPa	Psi	kg/m	lbs/ft
1	1/8	3.2±0.2	0.35	9±0.3	2.06	300	8.27	1200	0.078	0.12
2	5/32	4±0.2	0.4	10±0.3	2.06	300	8.27	1200	0.092	0.14
3	3/16	4.8±0.2	0.43	11±0.3	2.06	300	8.27	1200	0.108	0.16
4	1/4	6.3±0.3	0.5	12.7±0.3	2.06	300	8.27	1200	0.134	0.2
5	5/16	8.0±0.3	0.56	14±0.3	2.06	300	8.27	1200	0.147	0.22
6	3/8	9.5±0.3	0.63	16±0.4	2.06	300	8.27	1200	0.182	0.27
7	15/32	12±0.3	0.75	19±0.5	2.06	300	8.27	1200	0.238	0.35
8	1/2	12.7±0.4	0.78	20±0.5	2.06	300	8.27	1200	0.262	0.39
9	5/8	16±0.4	0.94	24±0.5	1.03	150	4.12	600	0.351	0.52
10	3/4	19±0.4	1.13	28.8±0.5	1.03	150	4.12	600	0.515	0.77
11	1	25.4±0.5	1.38	35±0.6	1.03	150	4.12	600	0.637	0.95

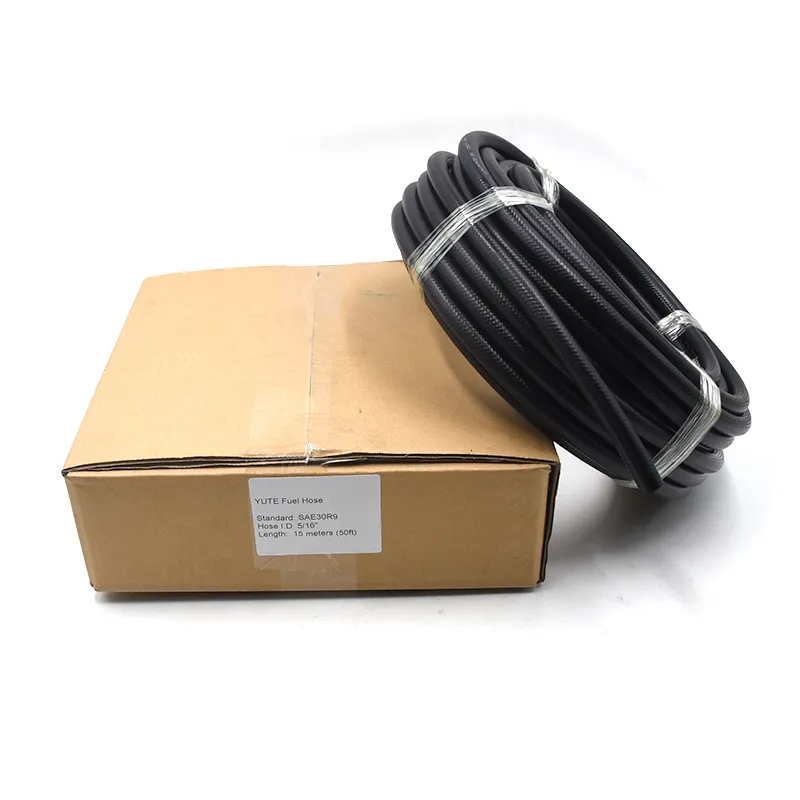

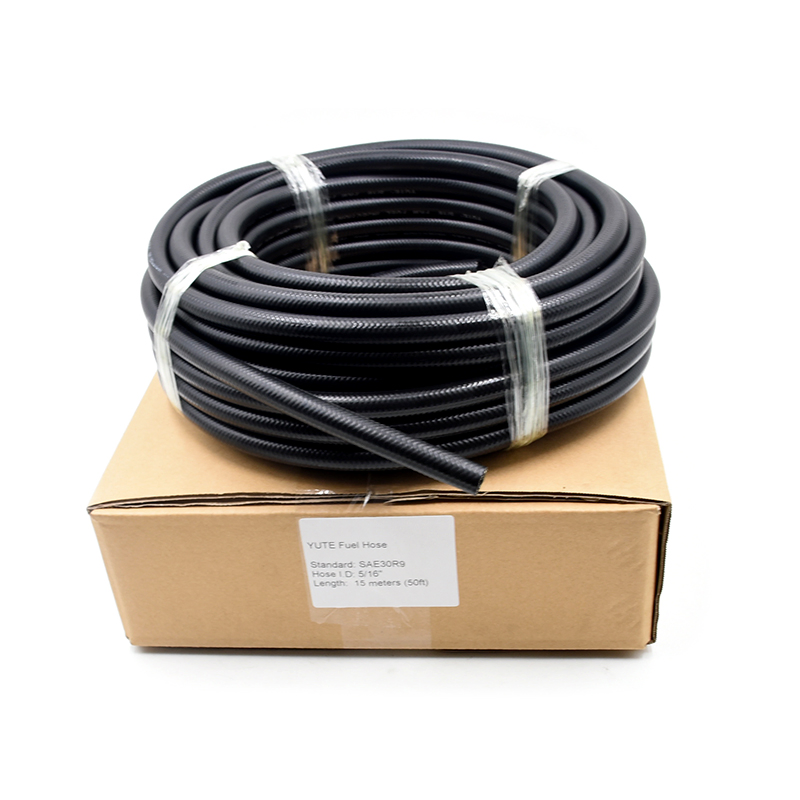

Packaging & Display

Related Products & Trade Show

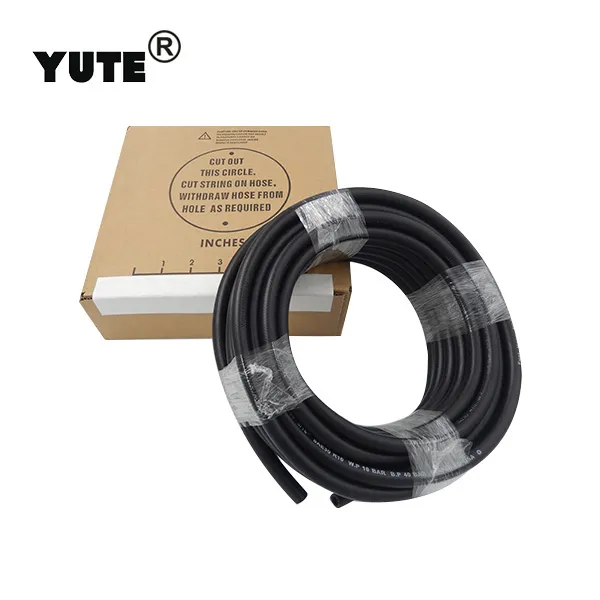

SAE R7 Fuel Hose

Professional Advantages

As a national high-tech enterprise, we specialize in high-quality rubber hose manufacturing. Our products include Air Brake Hoses, Hydraulic Brake Hoses, Fuel Hoses, and Radiator Hoses, widely used in Automotive and Industrial applications. We are IATF 16949 certified.

Development Ability: Customized products based on samples or drawings.
OEM Service: Production based on client-specific designs.
Quality Assurance: 100% inspection before packing with traceability codes on each roll.
Customer Focus: Dedicated service and professional client relationships.

Frequently Asked Questions

What is the temperature range for this fuel injection hose?

The hose is designed to operate reliably between -40 ºC and +135ºC (-40 ºF to +275 ºF).

Is this hose compatible with ethanol-blended gasoline?

Yes, it is specifically designed for the transportation of gasoline, ethanol-extended gasoline, and diesel fuels.

What standards does the fuel hose comply with?

Our fuel injection hoses meet SAE J 30R9 and DIN 73379 3E international standards.

What materials are used in the construction?

It features an FKM permeation barrier, an ECO tube, AR high-tensile braided fiber reinforcement, and an FKM cover for ozone and heat resistance.

What is the maximum working pressure?

The standard working pressure is 300 Psi, with a burst pressure rating of 1200 Psi.

Do you offer customization or OEM services?

Yes, we provide full OEM services and can develop customized products based on your specific drawings or samples.
