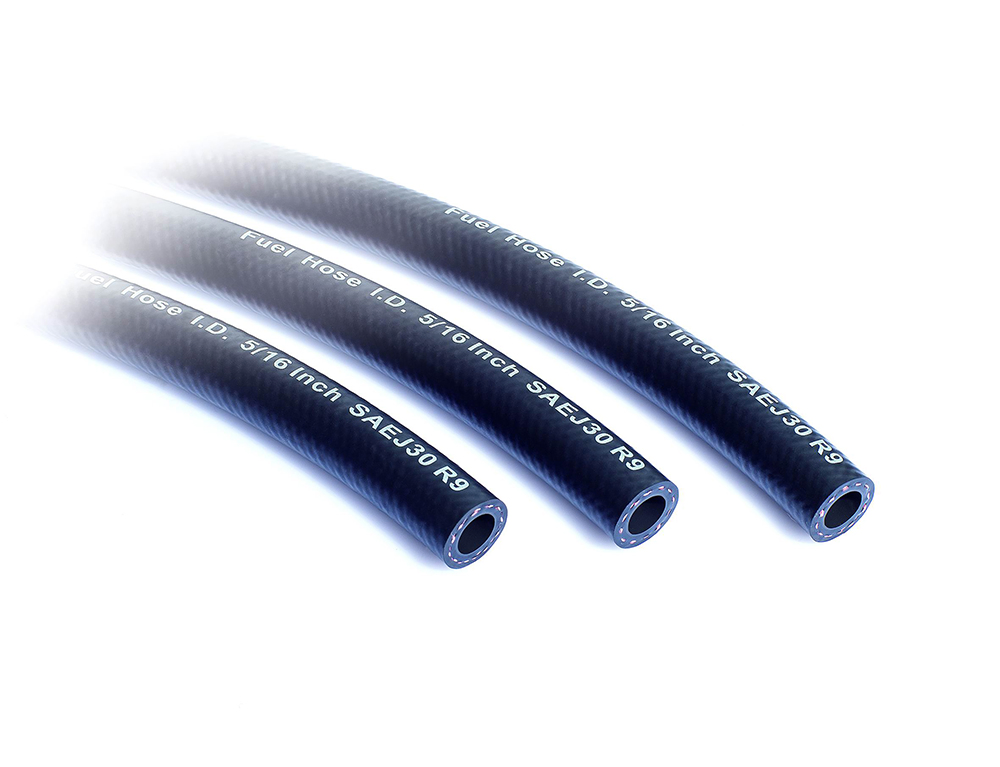

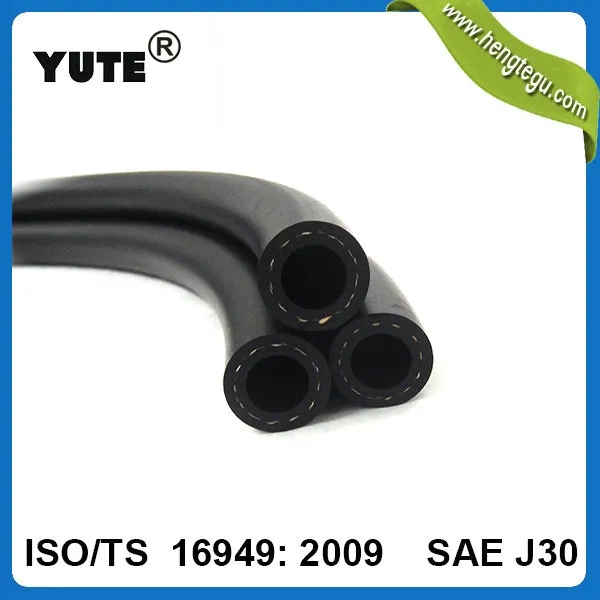

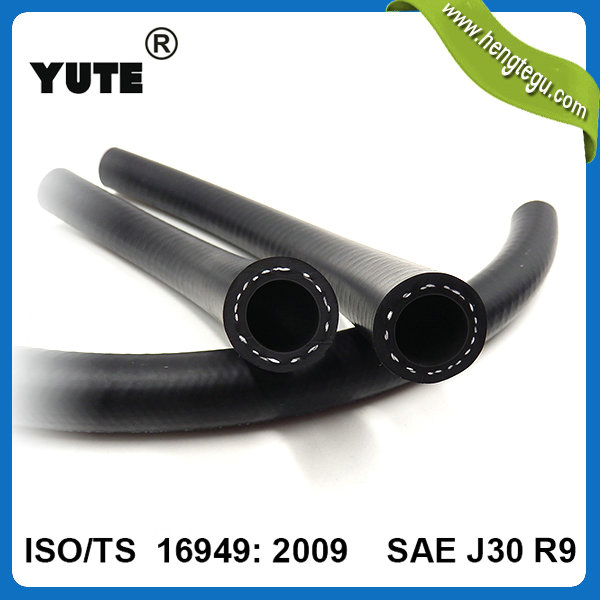

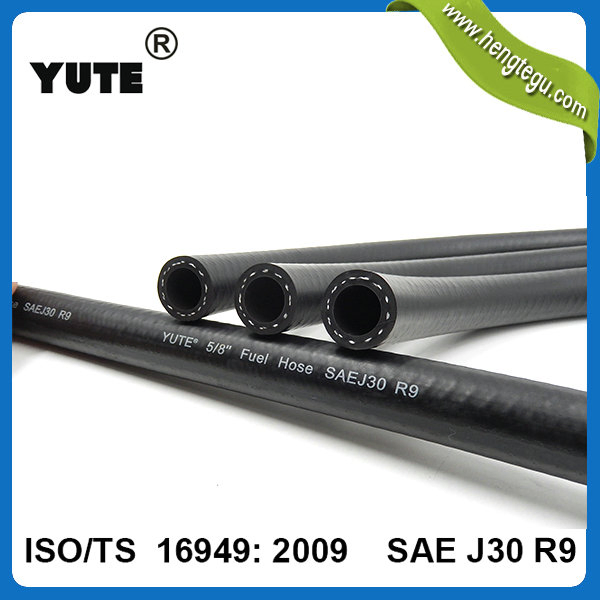

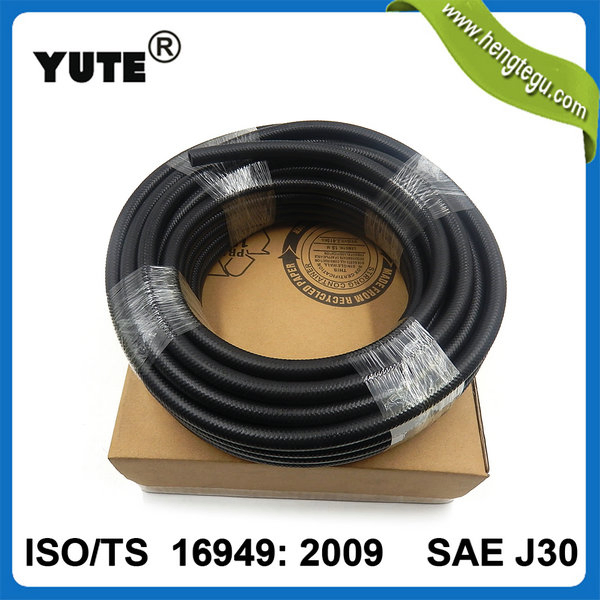

Premium SAE J30r9 Fuel Injection Hose 3/8"

🔹 Basic Specifications

Model NO.

3/8"

Standard

SAE J30r9

Size Range

1/4"; 5/16"; 3/8"

Working Pressure

300 P.S.I

Burst Pressure

900 P.S.I

Temperature

-40~135 Degree Centigrade

Color

Black

Cylinder

Multi-Cylinder

Aging Time

72 H

Package Size

20.00cm * 20.00cm * 5.00cm

Gross Weight

5.000kg

Capacity

30000 Meters Per Day

⚙️ Product Overview

Applications:

Designed specially for auto and truck fuel injection systems.
Compatible with gasoline, diesel, bio-diesel, E-85, methanol, ethanol, ethanol extended gasoline, and gasohol fuels.
Temperature rating: -40° F to 275° F (-40° C to 135° C).
Meets SAE 30R9 specification.

Note: Do not submerse in gasoline.

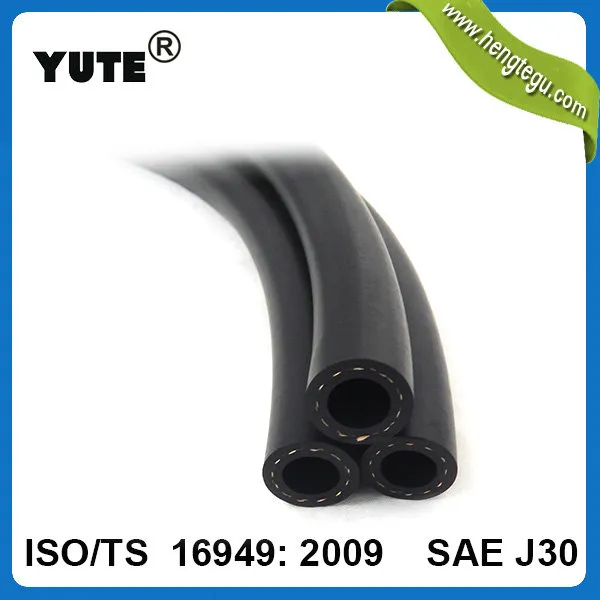

Construction Materials:

Tube: FKM
Buffer: ECO / CSM
Reinforcement: Aramid Spiral
Cover: ECO / CSM

📊 Size & Technical Data

Part NO.	I.D		O.D		Working pressure		Burst pressure
Part NO.	inch	mm	inch	mm	PSI	MPa	PSI	MPa
6001	1/8	3.2	0.35	9	225	1.55	900	6.2
6003	3/16	5	0.43	11	225	1.55	900	6.2
6005	1/4	6	0.5	13	225	1.55	900	6.2
6007	5/16	8	0.6	14	225	1.55	900	6.2
6009	3/8	9.5	0.63	16	225	1.55	900	6.2
6011	1/2	12.7	0.8	20	225	1.55	900	6.2
6013	5/8	15.9	24	0.95	225	1.55	900	6.2
6015	3/4	19	28	1.1	225	1.55	900	6.2
6017	1	25.4	30	1.2	225	1.55	900	6.2

🤝 Our Services

Provide OEM Manufacturing based on requirements.
Accept sample orders for quality verification.
Fast response: Inquiries handled within 12 hours.
Shipment tracking until product delivery.
Comprehensive testing and feedback support.

❓ FAQ

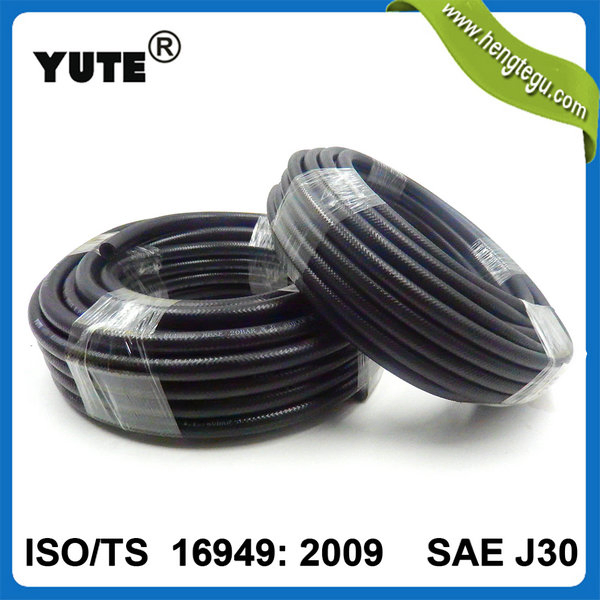

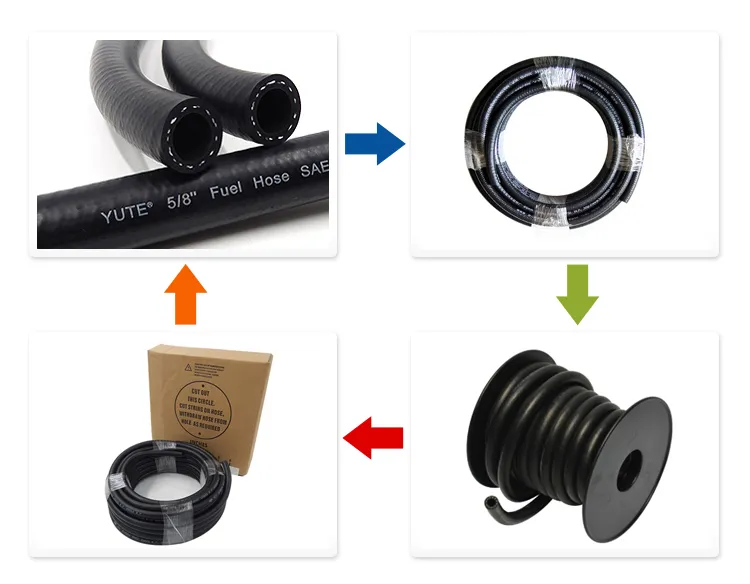

Q1 What is your terms of packing?

Generally, we pack our goods in neutral PVC film and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2 What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3 What is your terms of delivery?

We support multiple delivery terms including FOB, CIF, EXW, CFR, and DDU.

Q4 How about your delivery time?

Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5 Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings to meet your specific requirements.

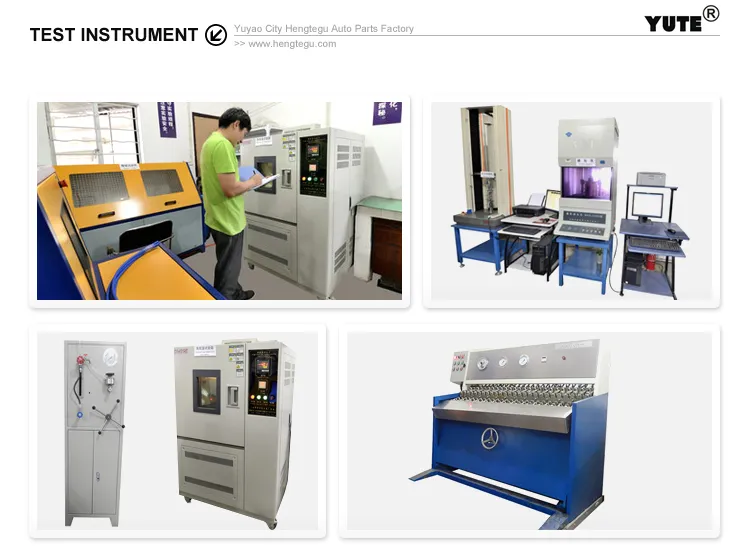

Q6 Do you test all your goods before delivery?

Yes, we perform 100% testing on all products before delivery to ensure the highest quality standards.
