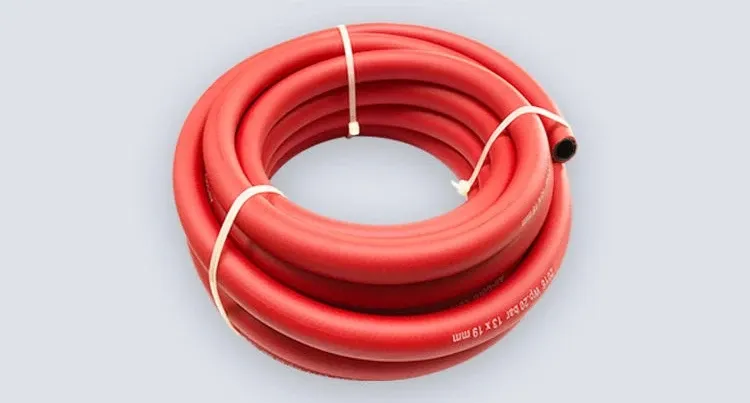

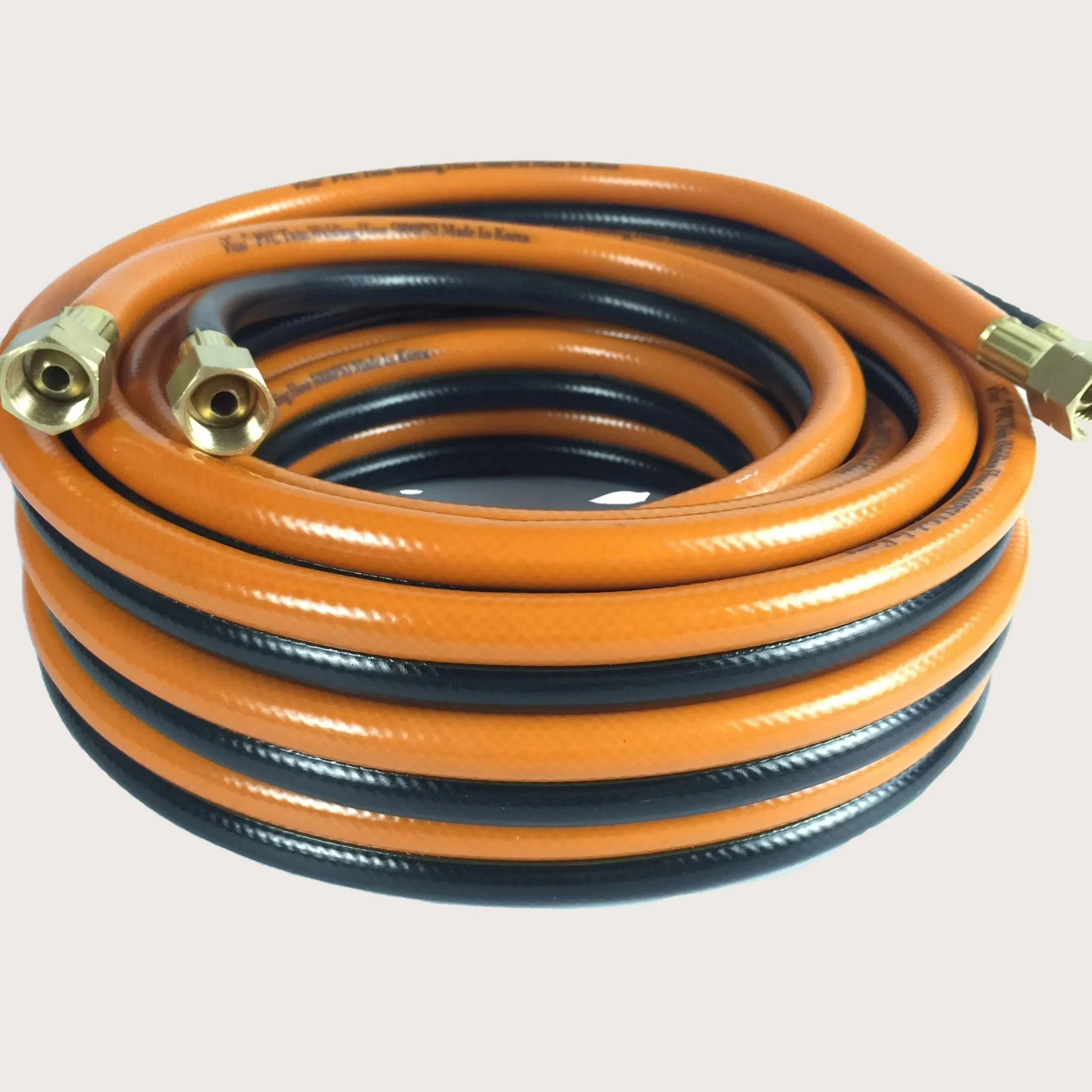

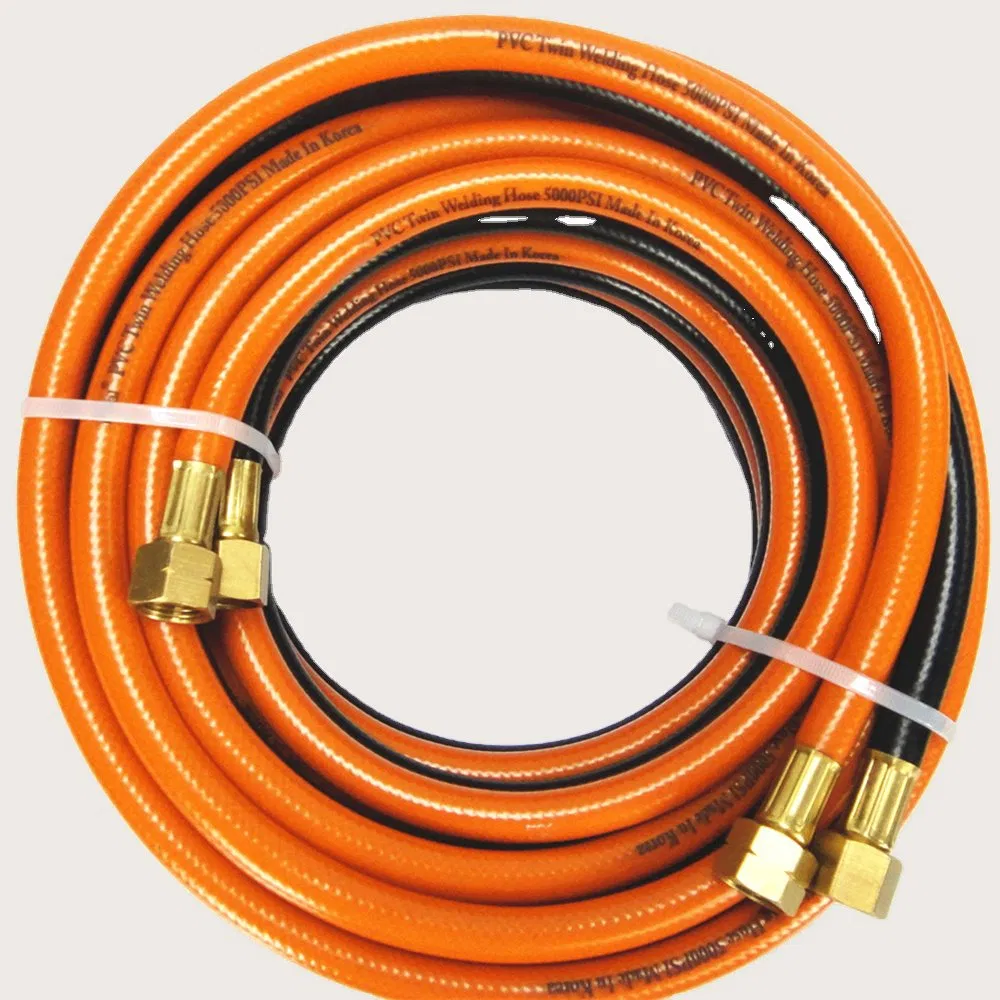

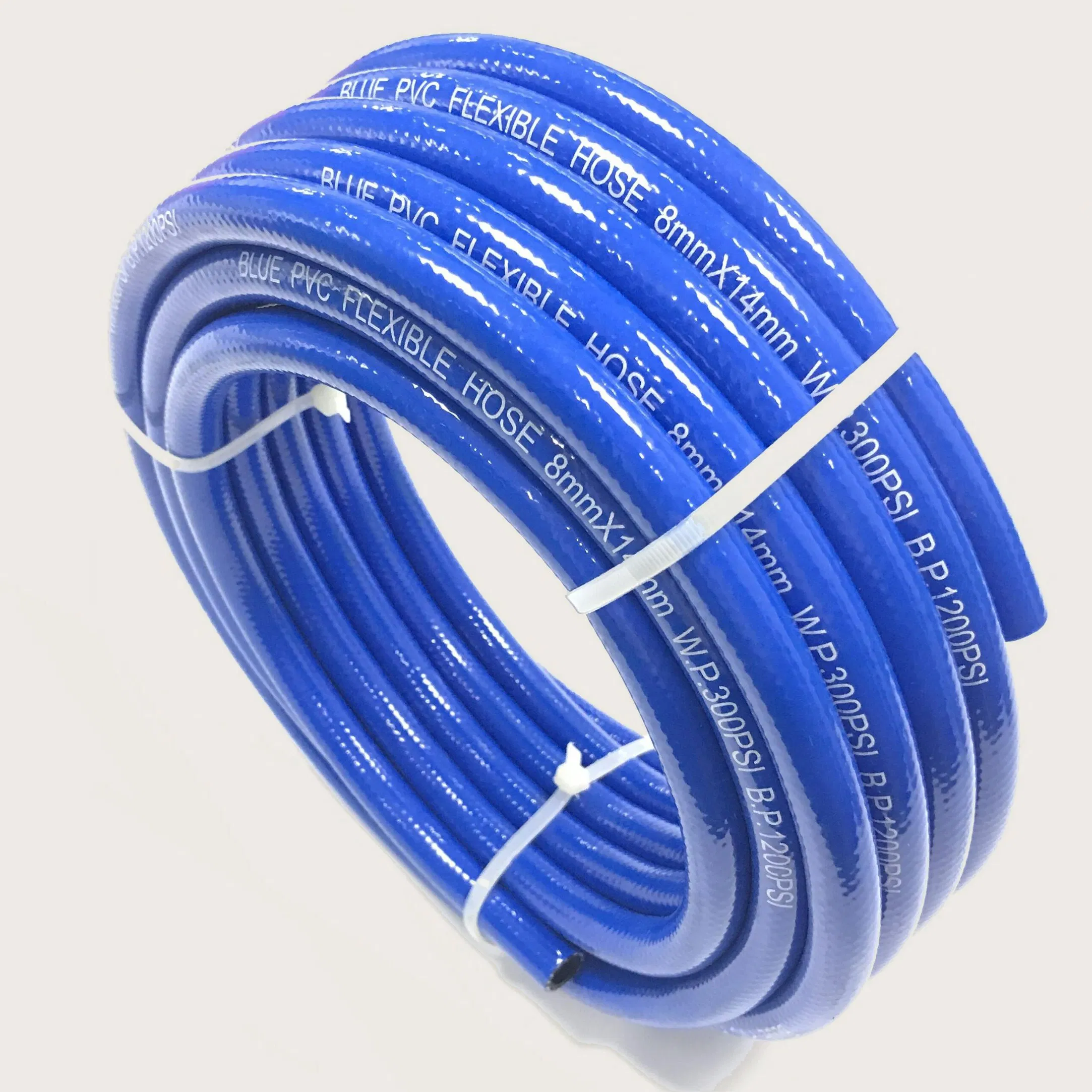

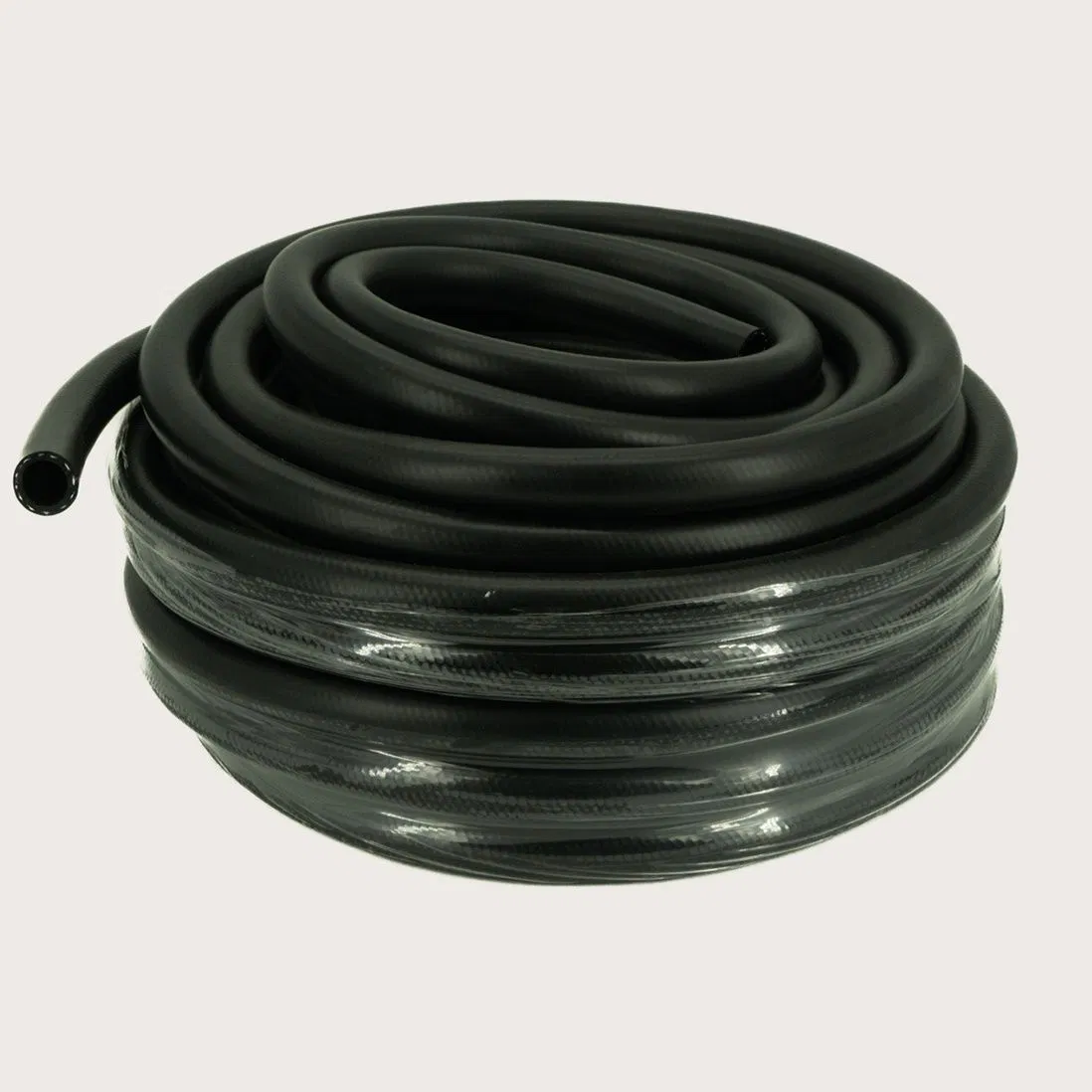

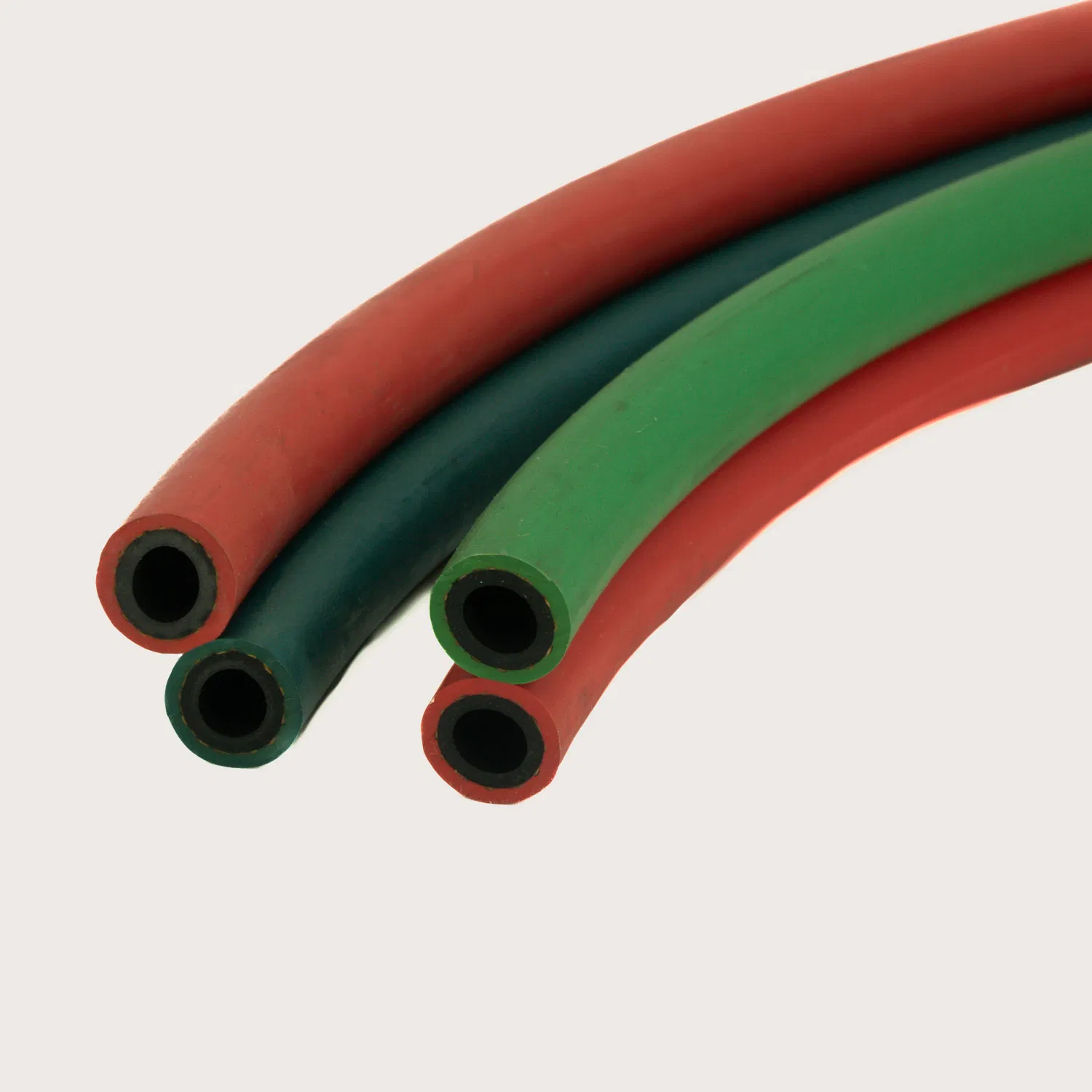

PVC Air Hose Pipe High Pressure 1/4'' 5/16'' 3/8'' 1/2'' 3/4'' 1'' for Water Pump Air Compressor

1 / 5

PVC Air Hose Pipe High Pressure 1/4'' 5/16'' 3/8'' 1/2'' 3/4'' 1'' for Water Pump Air Compressor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

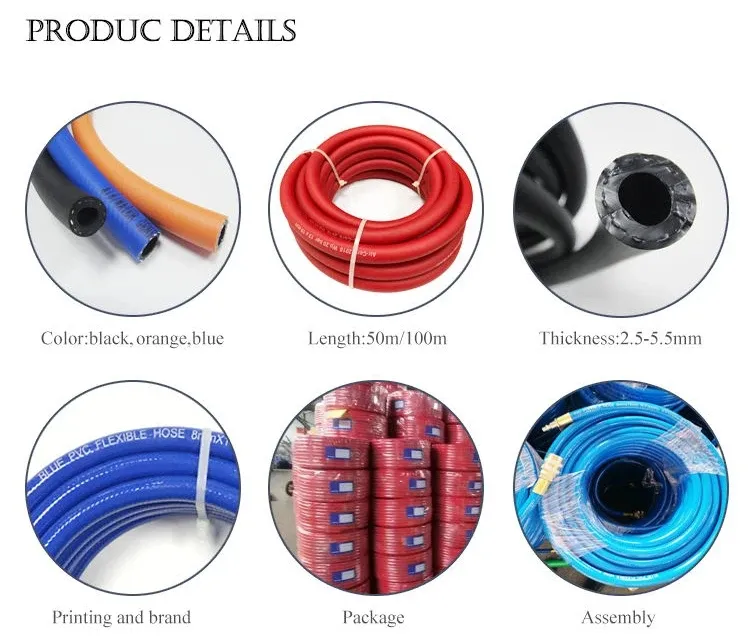

Product Description

📋 Basic Specifications

Model NO.

pvc air hose

Color

Customizable

Shape

Round

Usage

Gas Transfer

Application

Conveying Water, Oxygen

Feature

Anti-UV

Quality Grade

No Toxic Grade

Reinforcement

High Strength Fiber

Working Pressure

20-40 bar

Thickness

5.5mm-10mm

Length

50m/100m

Certification

CE ISO

MOQ

1000 Meters

Specification

1/4"-1"

📦 Packaging & Delivery

Package Size

40.00cm * 40.00cm * 25.00cm

Gross Weight

25.000kg

Transport Package

Reinforced Clear Film Wrapped with Label

ℹ️ Product Description

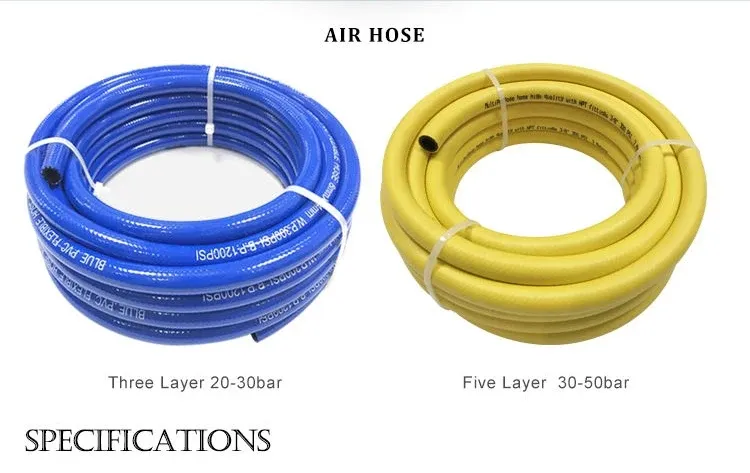

PVC Air Hose Pipe High Pressure 1/4'' 5/16'' 3/8'' 1/2'' 3/4'' 1'' for Water Pump & Air Compressor

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
1/4	6	11.5	20	300	60	900	102	100
1/4	6	12	40	600	120	1800	115	100
5/16	8	14	20	300	60	900	140	100
5/16	8	15	40	600	120	1800	170	100
3/8	10	16	20	300	60	900	165	100
3/8	10	17	40	600	120	1800	200	100
1/2	13	19	20	300	60	900	203	100
1/2	13	20	40	600	120	1800	245	100
5/8	16	24	20	300	60	900	340	50
5/8	16	25	40	600	120	1800	390	50
3/4	19	28	20	300	60	900	450	50
3/4	19	29	30	450	90	1350	510	50
1	25	34	20	300	45	675	560	50
1	25	35	30	450	90	1350	640	50

❓ Frequently Asked Questions

Q1: What is the primary use of this PVC air hose?

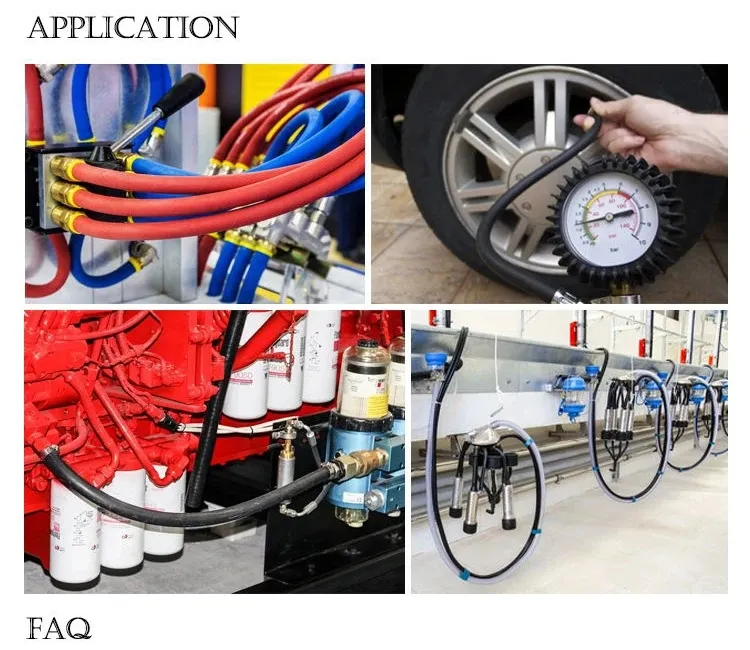

It is specifically designed for gas transfer, air compressors, water pumps, and conveying oxygen in various industrial and agricultural applications.

Q2: What is the maximum working pressure this hose can handle?

Depending on the specific model and size, the working pressure ranges from 20 bar (300 psi) to 40 bar (600 psi).

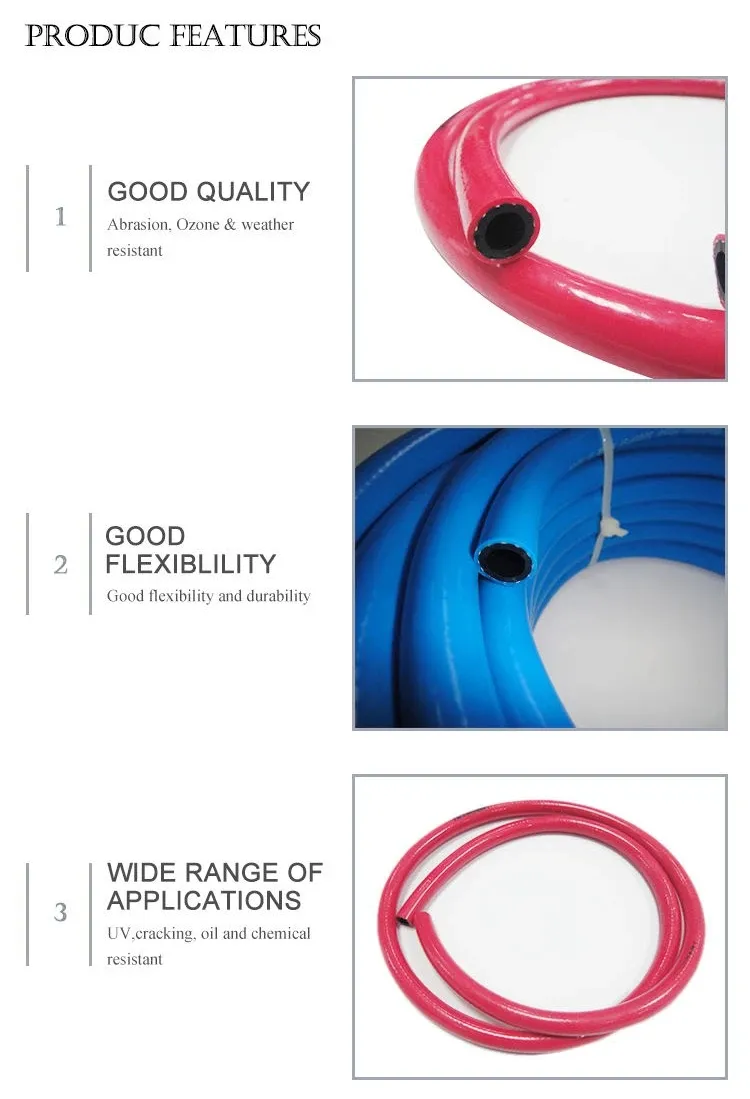

Q3: Is this hose resistant to sunlight and weather?

Yes, the hose features Anti-UV properties, making it durable for outdoor use and resistant to weather-related degradation.

Q4: What material is used for reinforcement?

The hose is reinforced with high-strength fiber to ensure it can withstand high pressure and maintain its shape during use.

Q5: Can I get a sample of the product?

Yes, we provide free samples for quality testing and verification before placing a bulk order.

Q6: What certifications does this PVC hose have?

This product is CE and ISO certified, ensuring it meets international standards for quality and safety.
