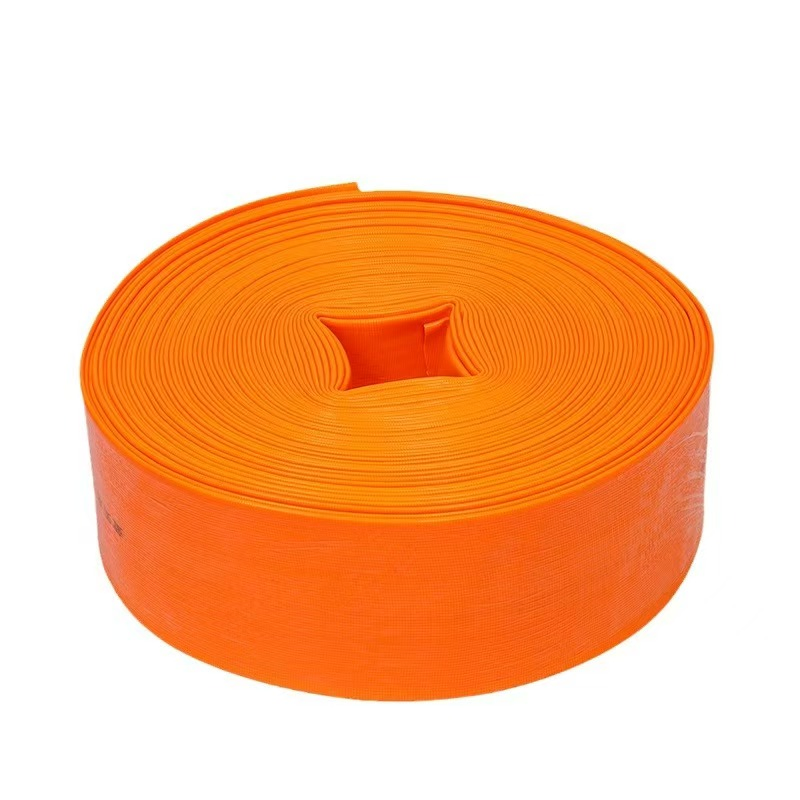

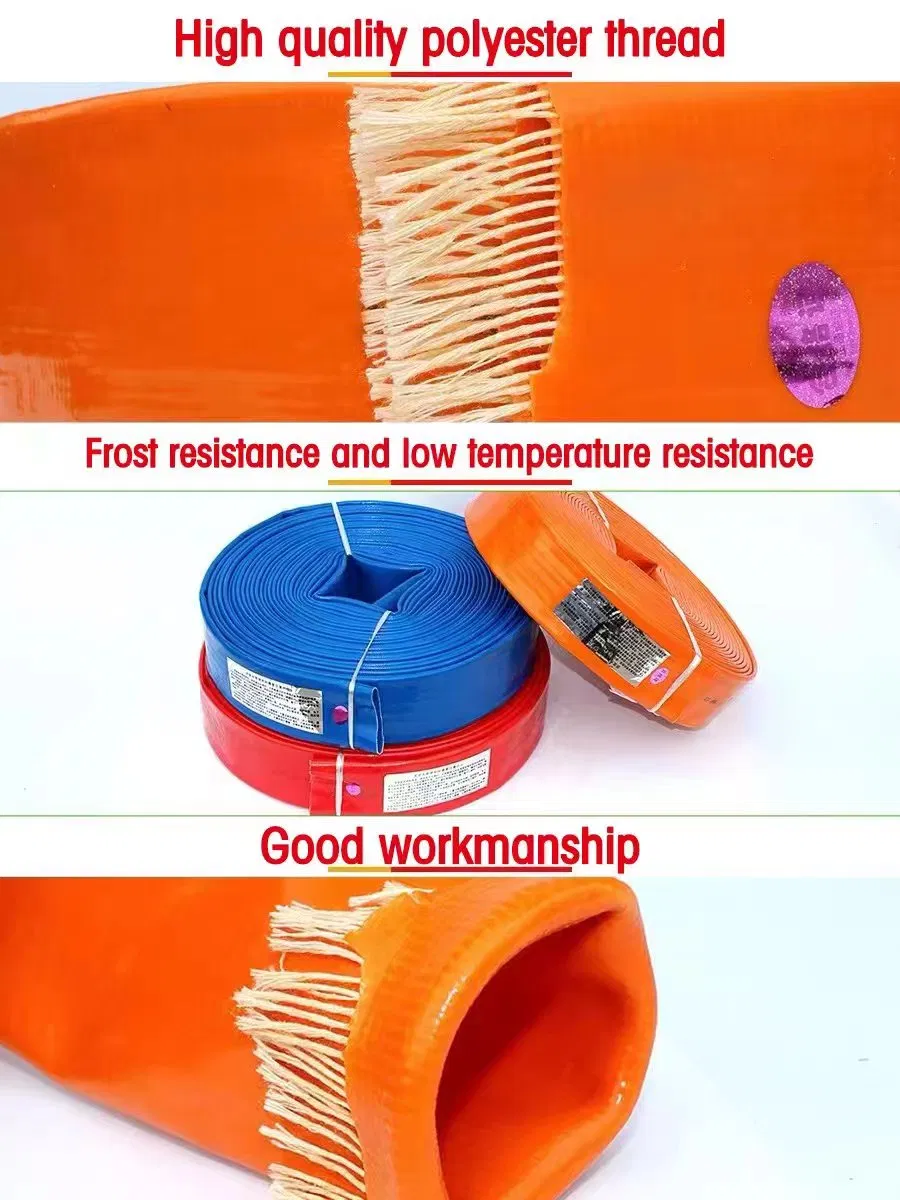

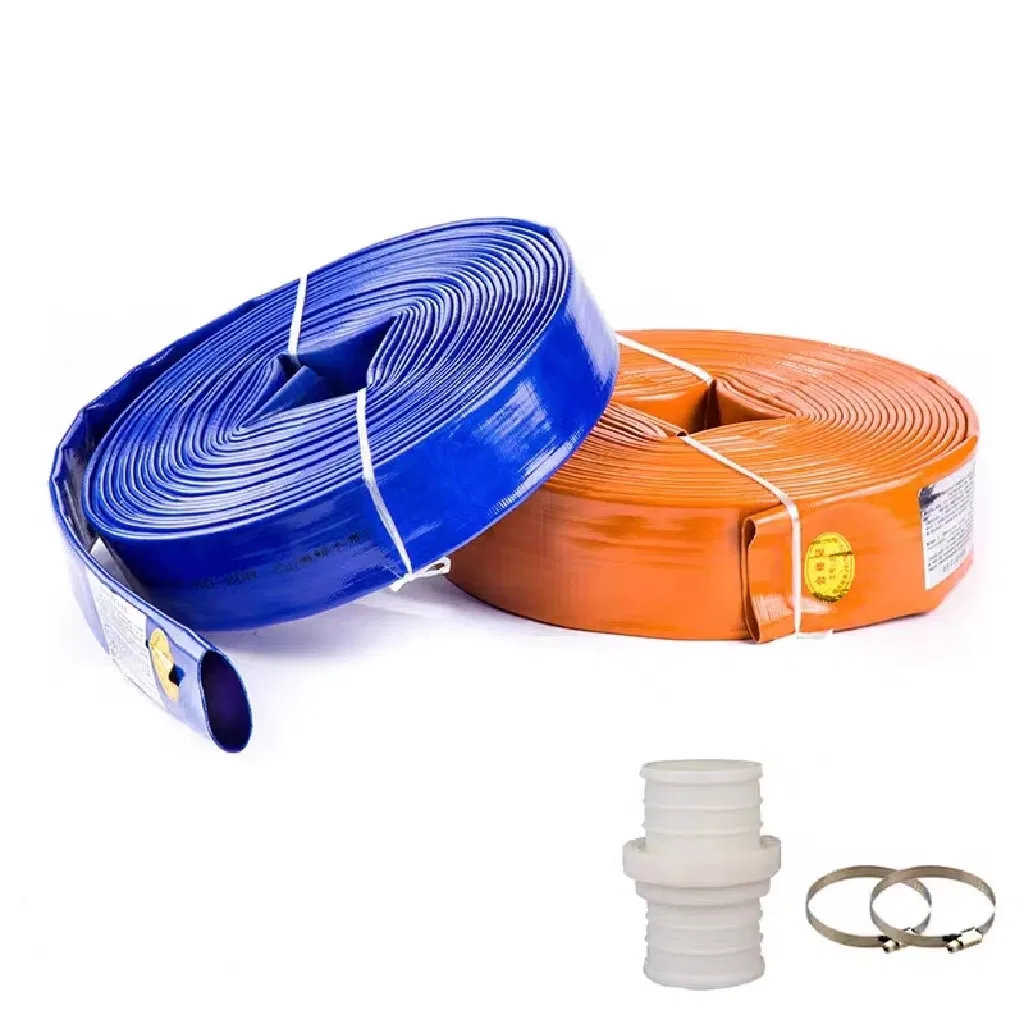

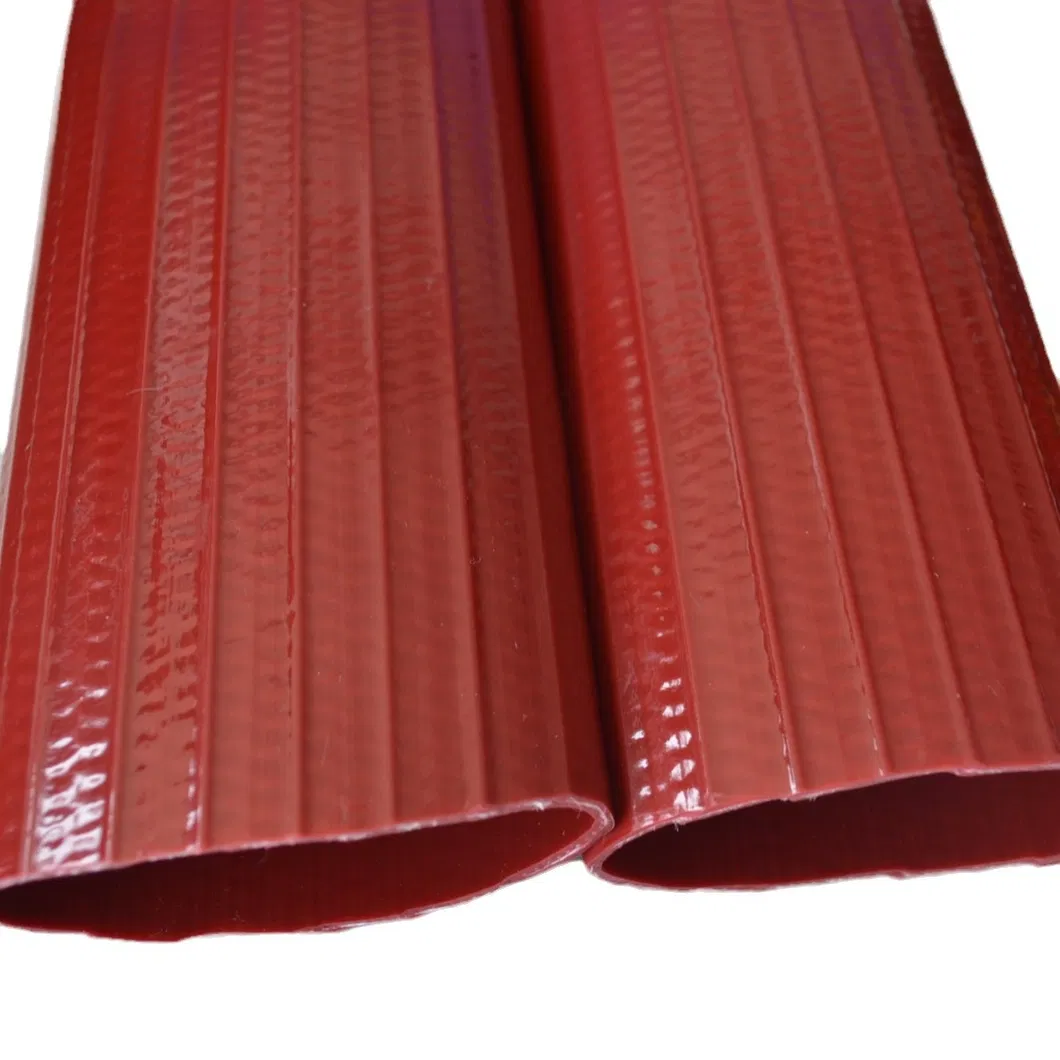

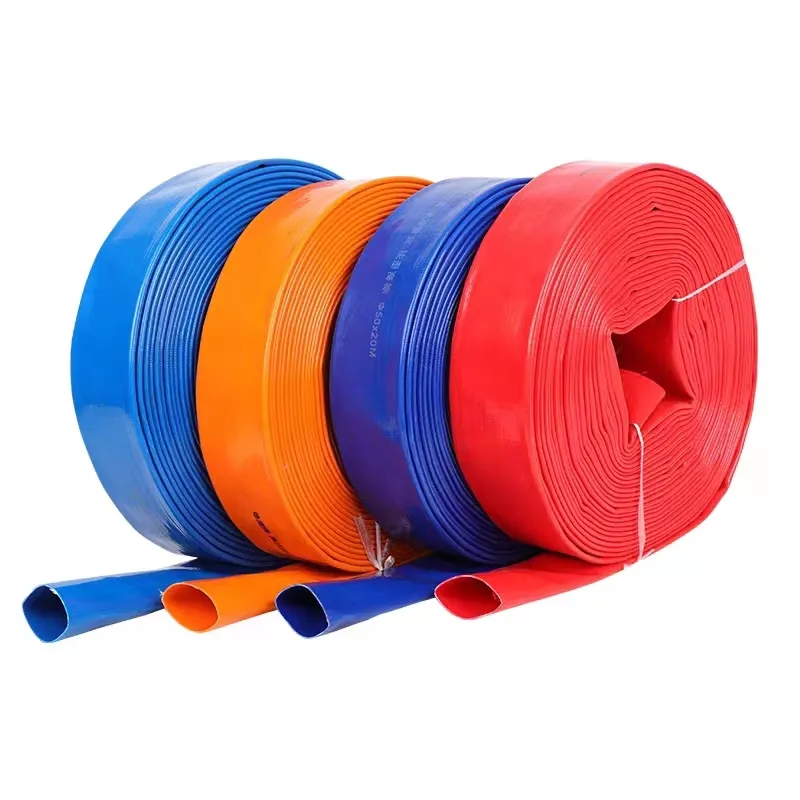

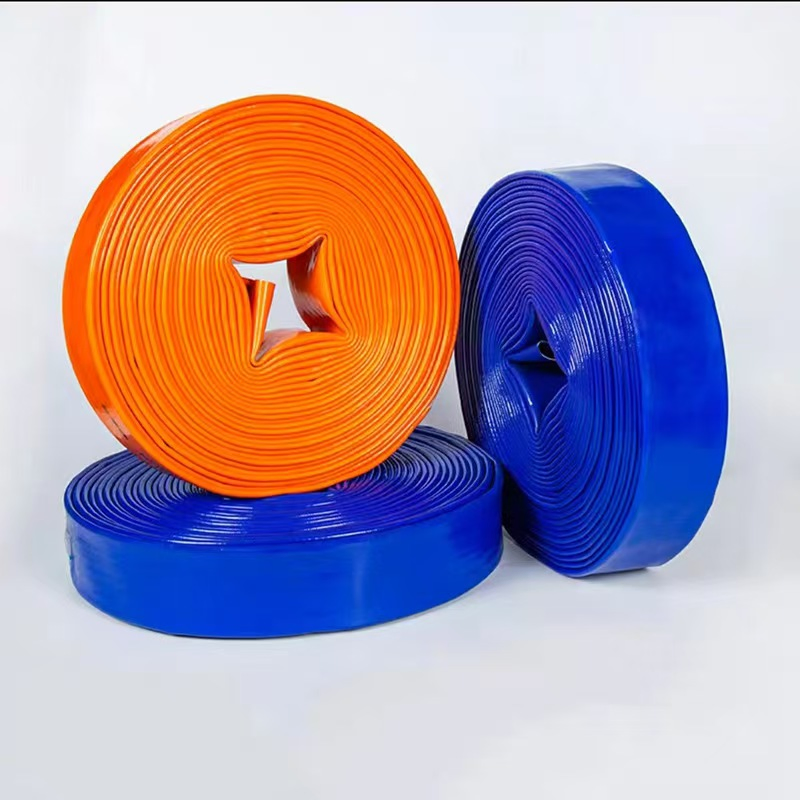

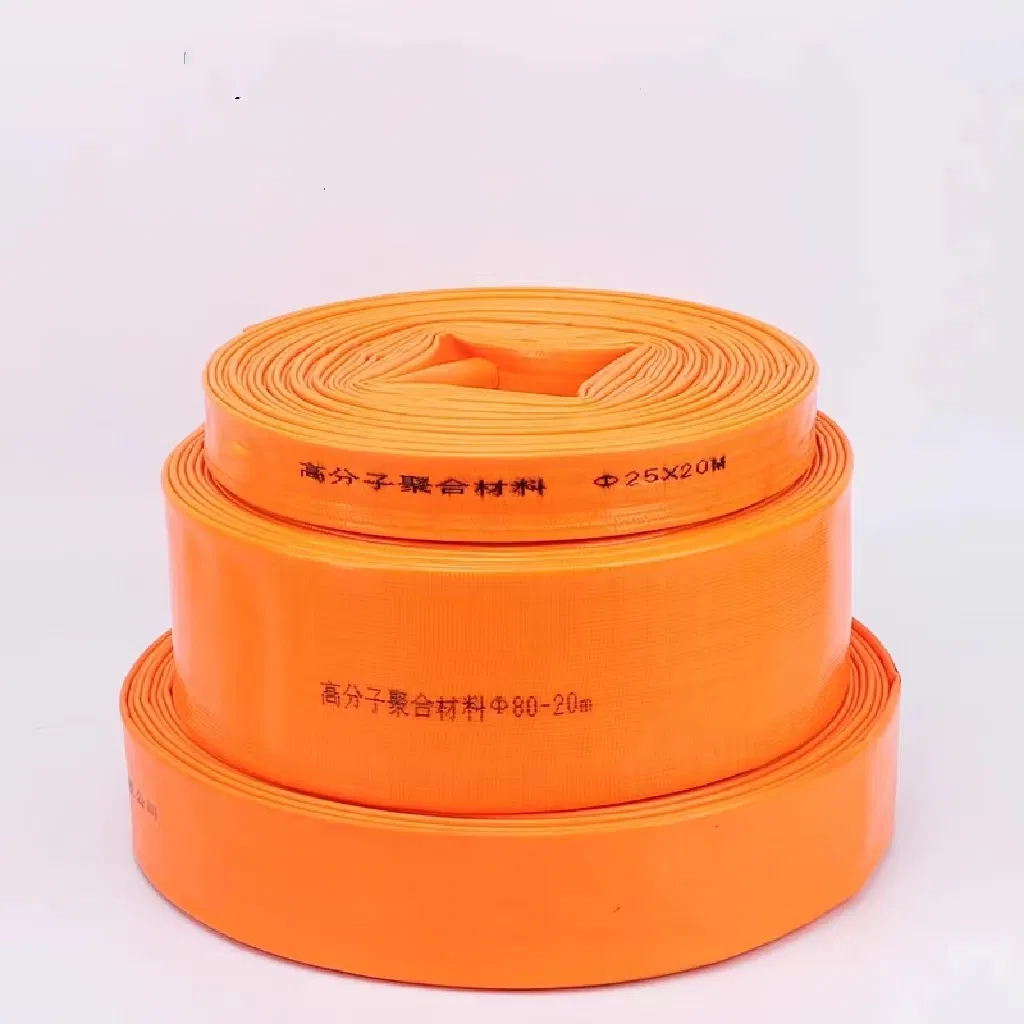

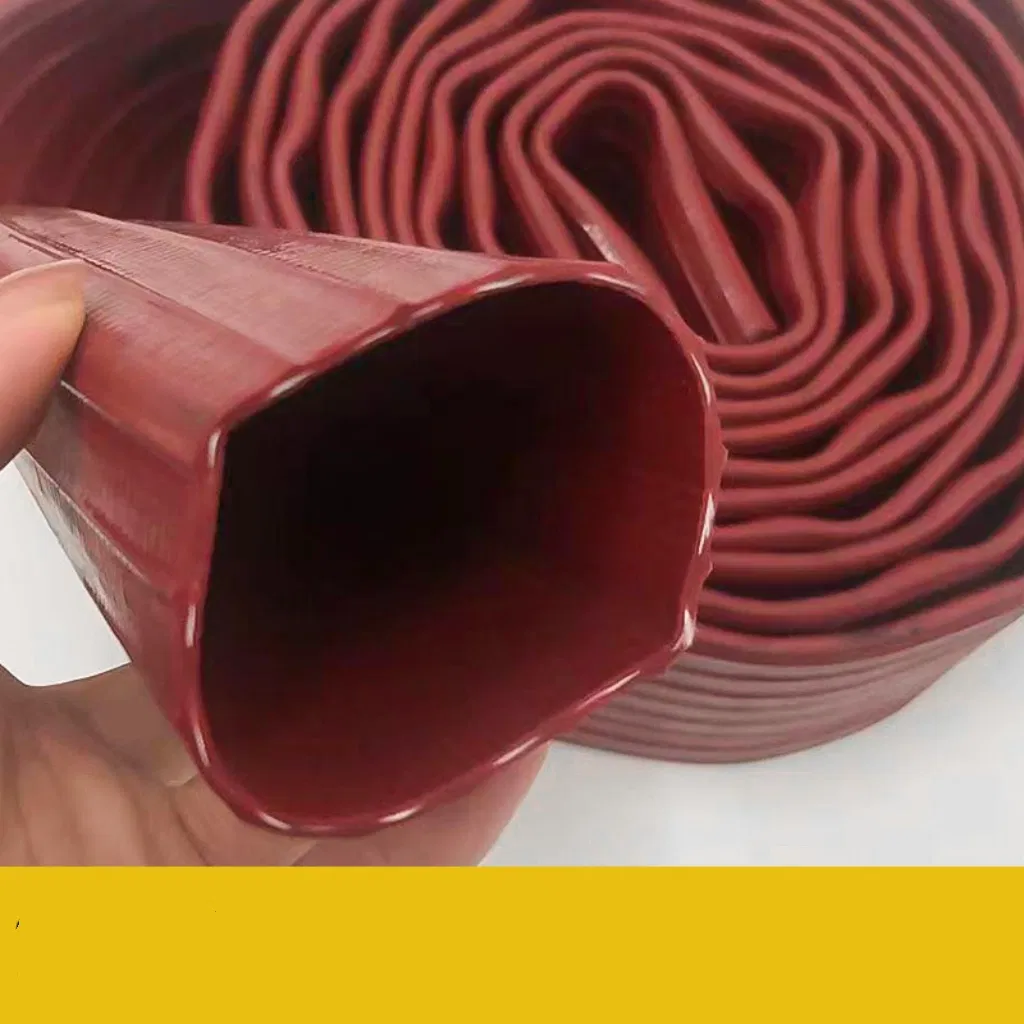

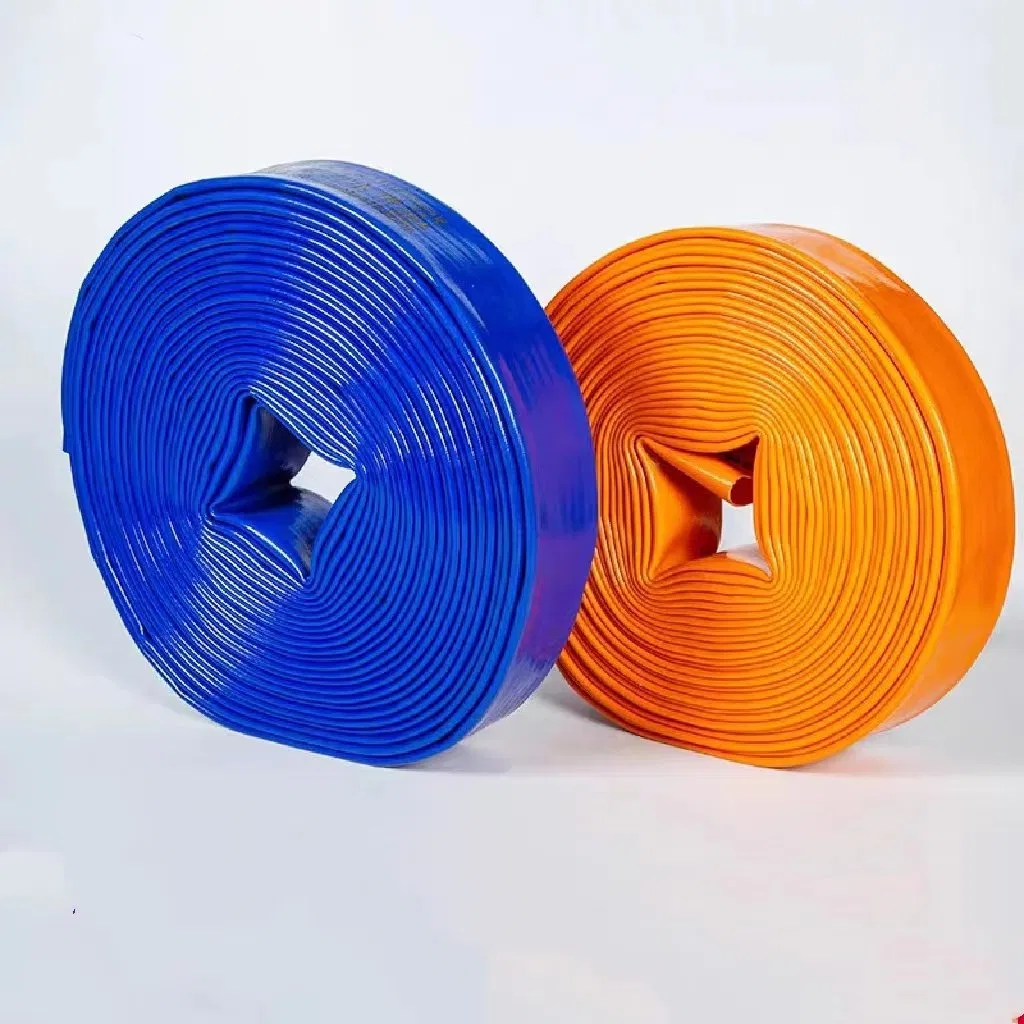

PVC Layflat Hose
Control the source to ensure quality

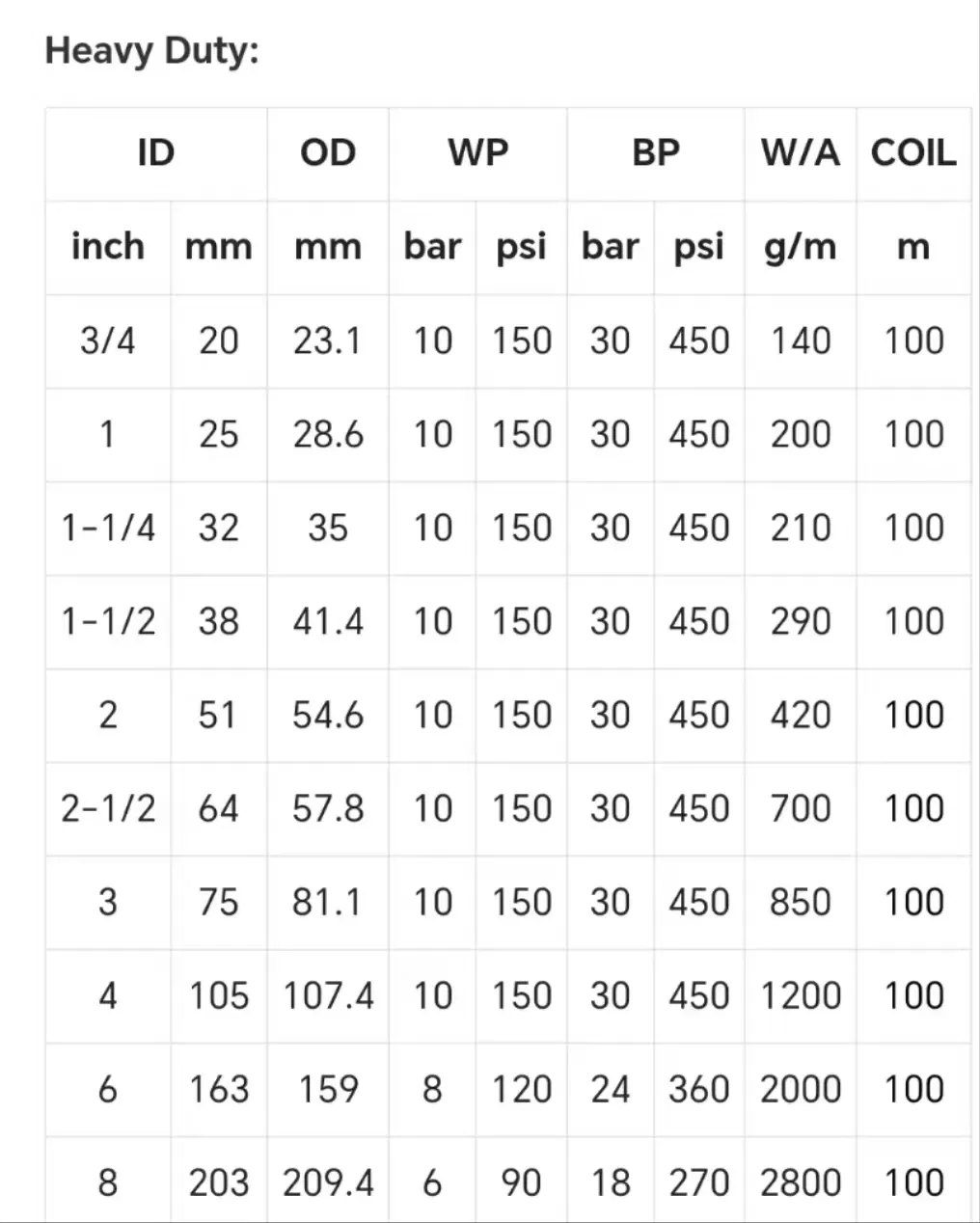

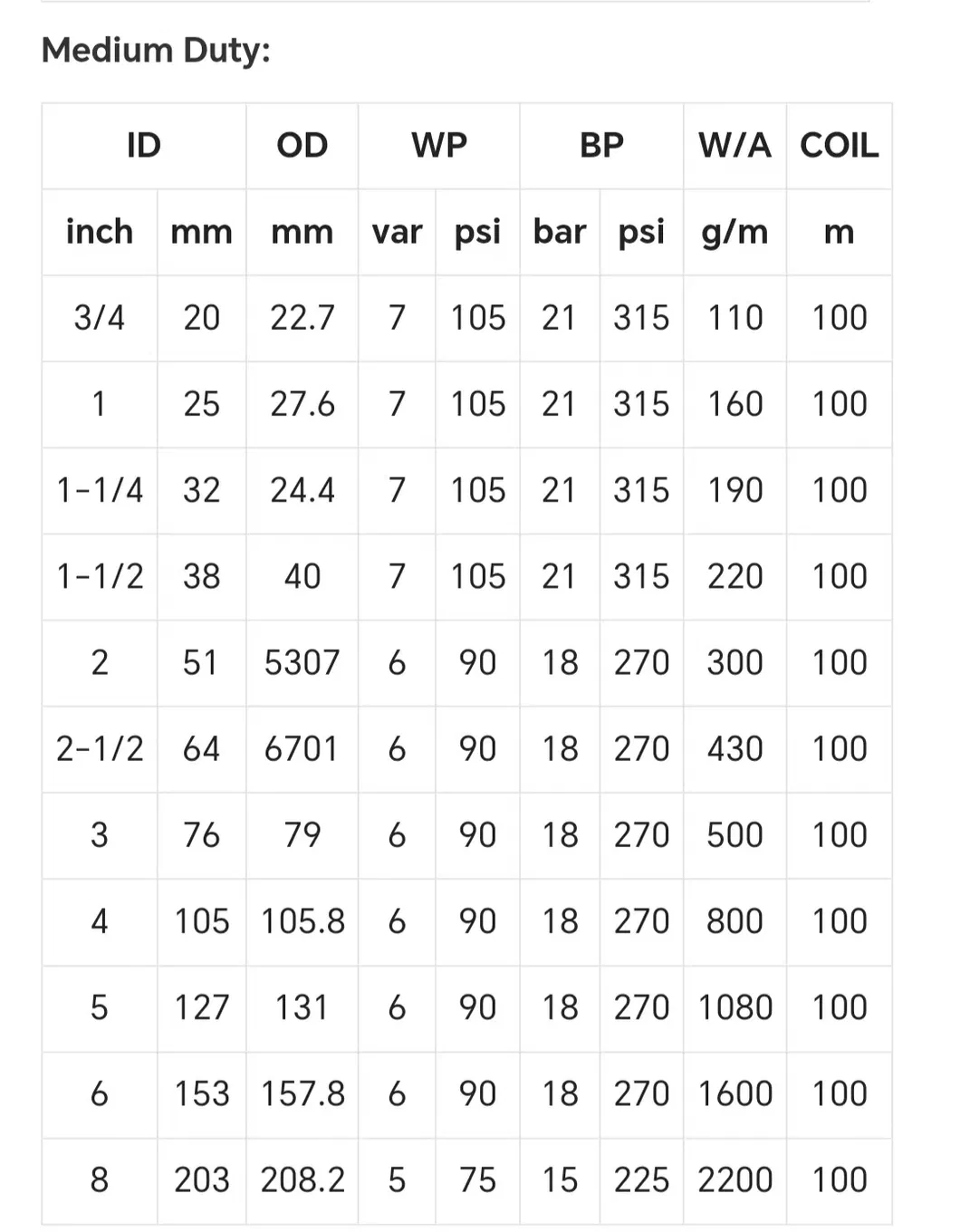

| Specifications of PVC Layflat Hose (Standard) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Inch | I.D. (mm) | O.D. (mm) | m/roll | W.P. (bar) | B.P. (bar) | Weight (kg) | Volume (m³) | |
| 3/4 | 20 | 22.7 | 100 | 8 | 24 | 11.5 | 0.016 | |
| 1 | 26 | 28.6 | 100 | 4 | 12 | 15 | 0.022 | |
| 1-1/2 | 41 | 43.5 | 100 | 4 | 12 | 20 | 0.028 | |
| 2 | 53 | 55 | 100 | 4 | 12 | 23 | 0.032 | |
| 3 | 78 | 80.1 | 100 | 4 | 12 | 36 | 0.057 | |
| 4 | 104 | 106.4 | 100 | 4 | 12 | 55 | 0.036 | |
Enterprise Qualifications and Honors
Our enterprise has passed the ISO9001:2015 quality management system certification and strictly adheres to international standards. We ensure systematic management in R&D, production, and service delivery to safeguard product quality.

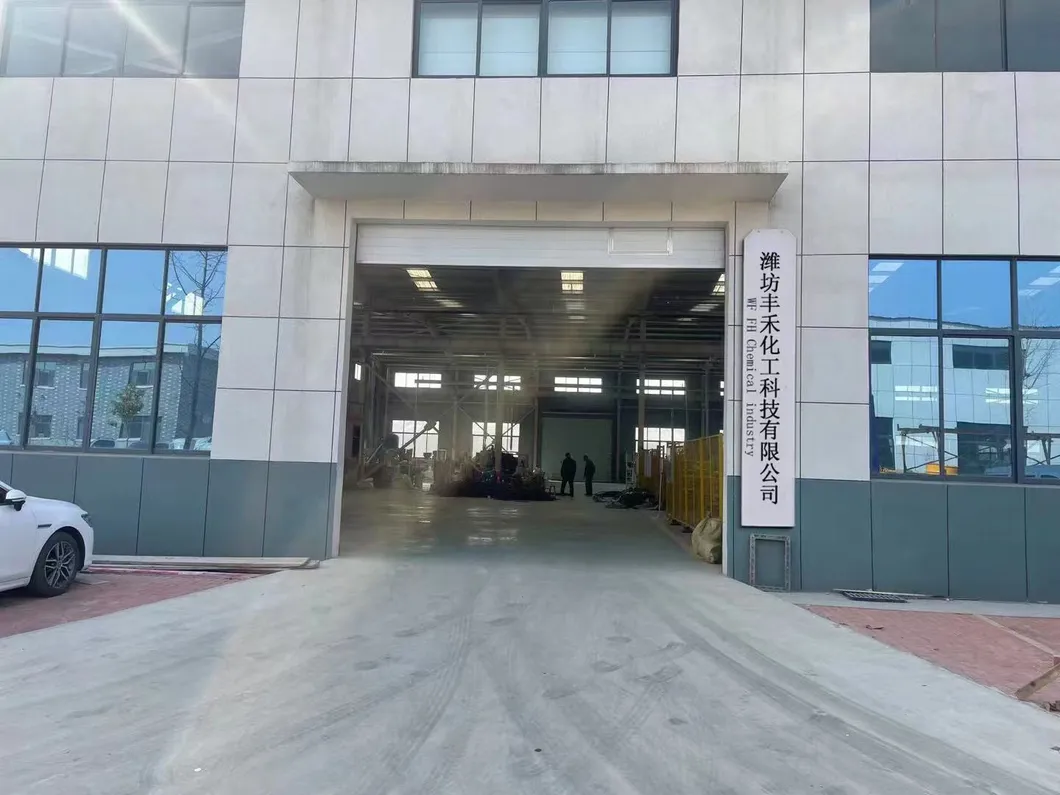

We are a large-scale environmentally-friendly plastic enterprise integrating R&D, production, and sales. With an area of 13,000 square meters and more than 210 production personnel, we possess 10 years of experience and 14 advanced production lines. Our products are exported to Europe, Africa, Southeast Asia, and more than 30 countries. Located near major ports like Qingdao Port and Weifang Port, we ensure efficient global transportation.
