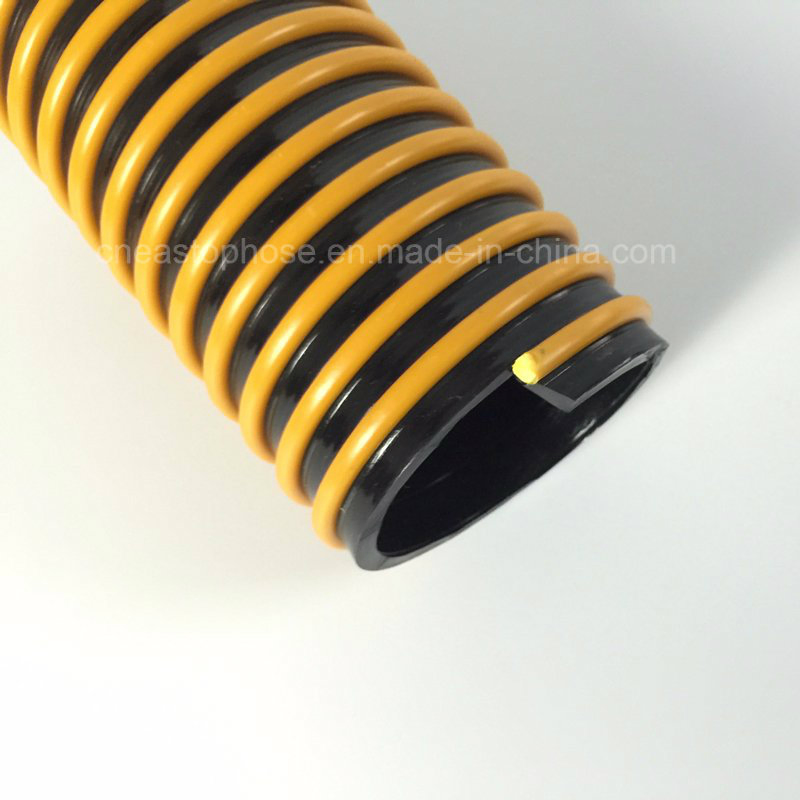

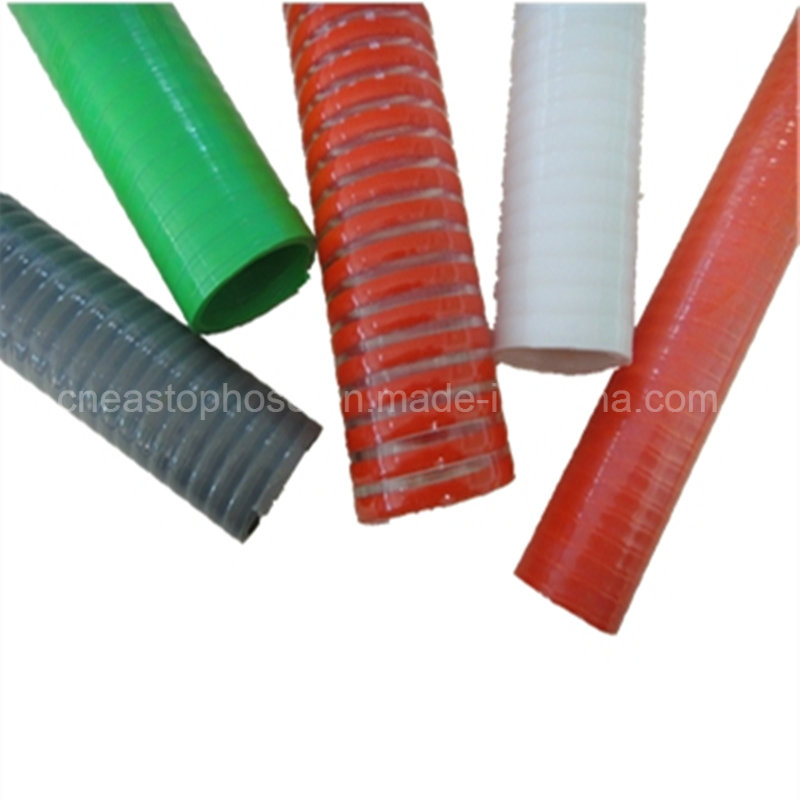

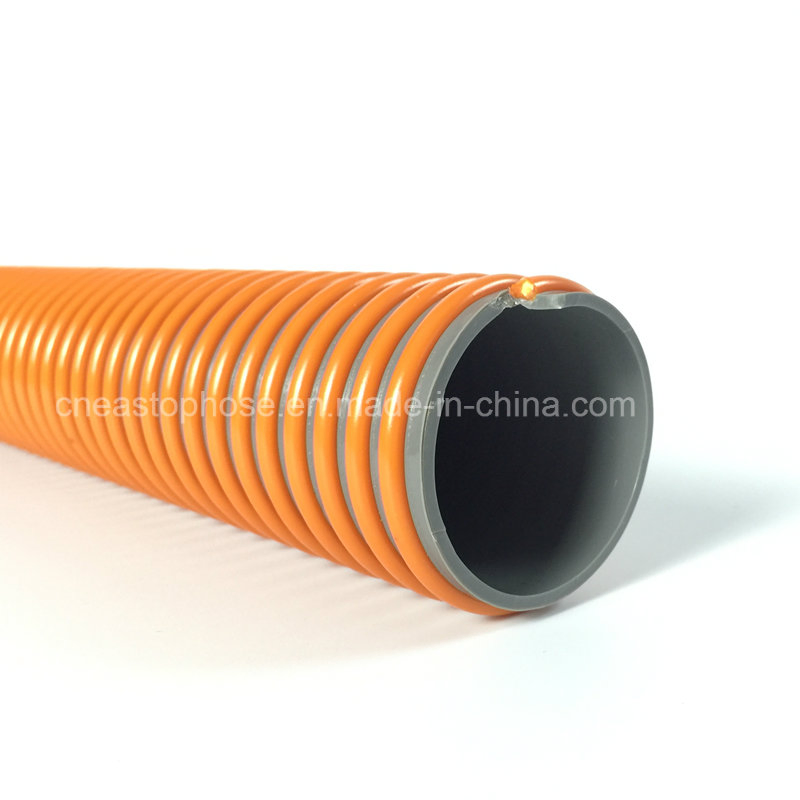

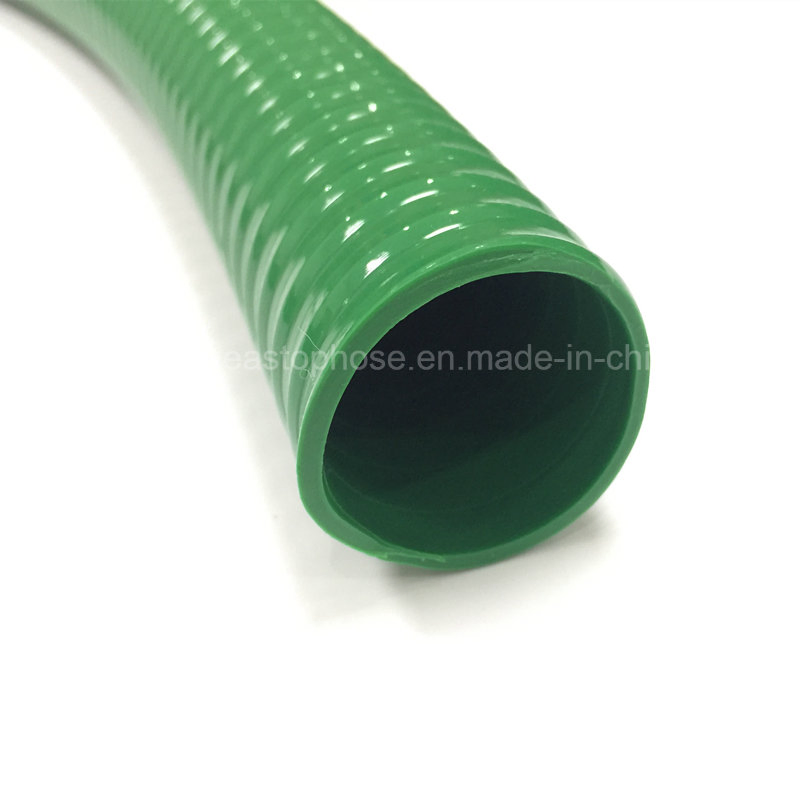

PVC Suction Hose for Irrigation Water Pump with Hard Rigid Reinforcement 1 2 3 4 Inch

i

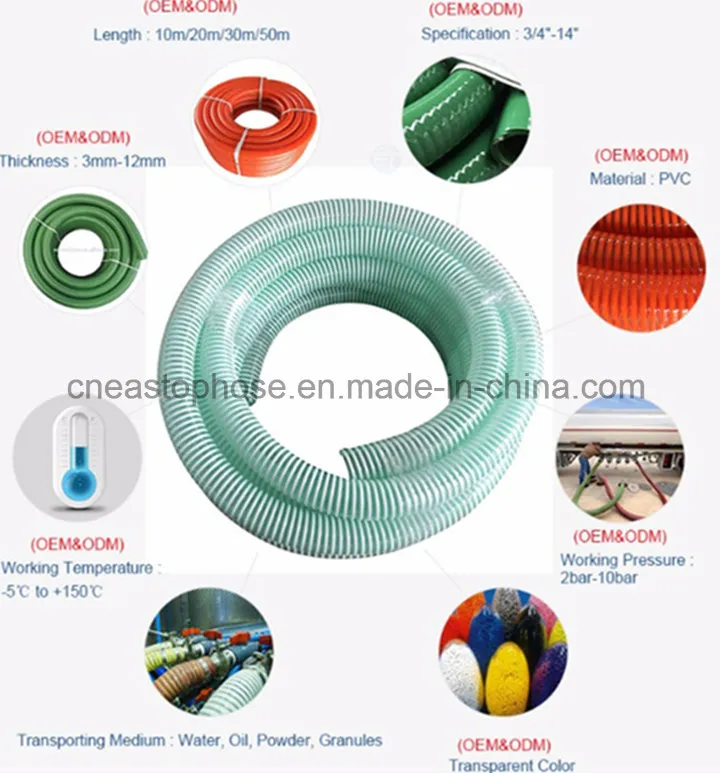

Basic Specifications

Model NO.

suction hose 14

Type

Thermoplastic Pipe

Color

Blue, Orange, Yellow, Red, etc

Usage

Water Supply, Agricultural Irrigation

Thickness

3mm-12mm

Working Pressure

3bar-10bar

Temperature

-5℃ - 65℃

Reinforcement

Integral Helix Rigid PVC

P

Product Description

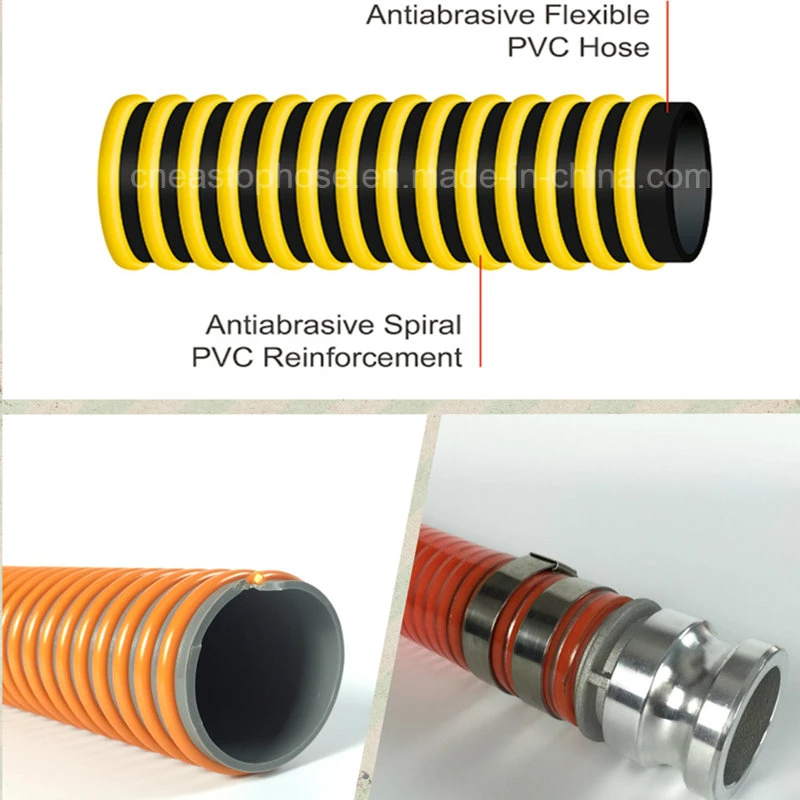

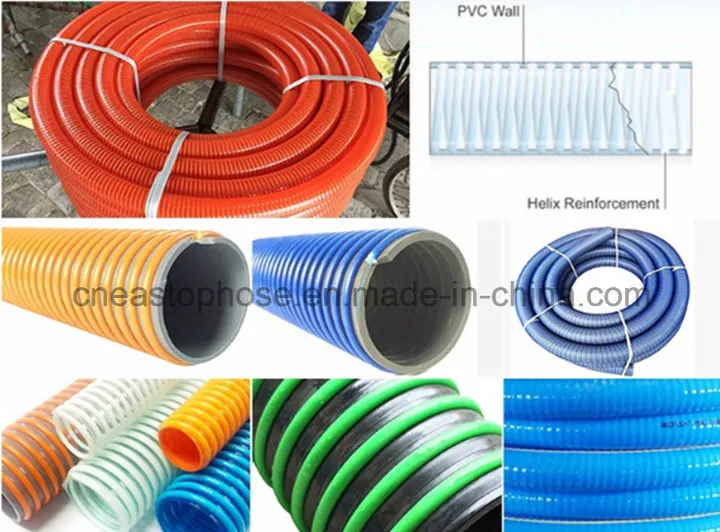

PVC Suction Hose For Irrigation Water Pump with Hard Rigid Reinforcement

Heavy Duty Suction Hose (also known as grit suction hose, sandblast suction hose, and cement suction hose) is designed for heavy-duty suction or transfer of abrasive materials and liquids.

▶ Application Areas

Widely used for heavy-duty suction and delivery of water, oil, grits, cement, slurries, sewage, sand, and gravels. Ideal for surface mines, quarries, construction sites, pump industries, dredging equipment, shipyards, and ports.

▶ Key Features

✓ Excellent flexibility & crush resistance
✓ UV & Oil resistant properties
✓ Smooth inner surface to prevent material blockage
✓ Corrugated surface for superior abrasion resistance
✓ Rigid helix reinforcement for high pressure

T

Technical Data Sheet

Inner Diameter		Outer Diameter		Weight	W.P. (at 23ºC)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
1	25	1.378	35	0.50	8	120	50	150
1-1/4	32	1.654	42	0.60	8	120	50	150
1-1/2	38	1.929	49	0.70	7	100	50	150
2	51	2.520	64	1.05	7	100	50	150
3	76	3.622	92	1.70	6	90	30	90
4	102	4.724	120	2.85	5	75	30	90
6	152	6.732	171	5.00	4	60	30	90

?

Frequently Asked Questions

1. What types of industrial hoses are available?

We offer a wide range including PVC layflat hoses, suction hoses, braided hoses, garden hoses, air hoses, PU hoses, rubber hoses, and various hose couplings and clamps.

2. Are you a factory or a trading company?

We are a dedicated manufacturer of PVC hoses with extensive experience in production and global export.

3. Can the products be customized with our own brand?

Yes, as a professional manufacturer, we provide full OEM services to meet your specific branding and naming requirements.

4. What is the working temperature range for these hoses?

Our standard PVC suction hoses are designed to operate efficiently within a temperature range of -5°C to +65°C.

5. Do your products meet quality standards and certifications?

Yes, our products pass rigorous testing. We can supply certificates and accept third-party testing based on your specific needs.

6. What materials can be transported using these suction hoses?

They are suitable for transferring water, oil, gas, chemicals, powders, grits, cement, slurries, and other abrasive materials like sand and gravel.
