| Inner Diameter(I.D) | Outer Diameter(O.D) | Working Pressure | Burst Pressure | Weight | Length | |
|---|---|---|---|---|---|---|
| inch | mm | mm | bar | bar | kg/roll | m/roll |
| 3/8 | 10 | 16 | 5 | 15 | 17 | 100 |
| 5/8 | 16 | 21 | 4 | 12 | 20 | 100 |
| 3/4 | 20 | 25 | 4 | 12 | 12 | 50 |
| 1 | 25 | 30 | 4 | 12 | 15 | 50 |
| 1-1/4 | 32 | 37 | 4 | 12 | 20 | 50 |
| 1-1/2 | 38 | 46 | 4 | 12 | 40 | 50 |
| 2 | 50 | 57 | 4 | 12 | 45 | 50 |
| 3 | 76 | 84 | 2 | 6 | 85 | 50 |
| 4 | 102 | 113 | 2 | 6 | 100 | 30 |

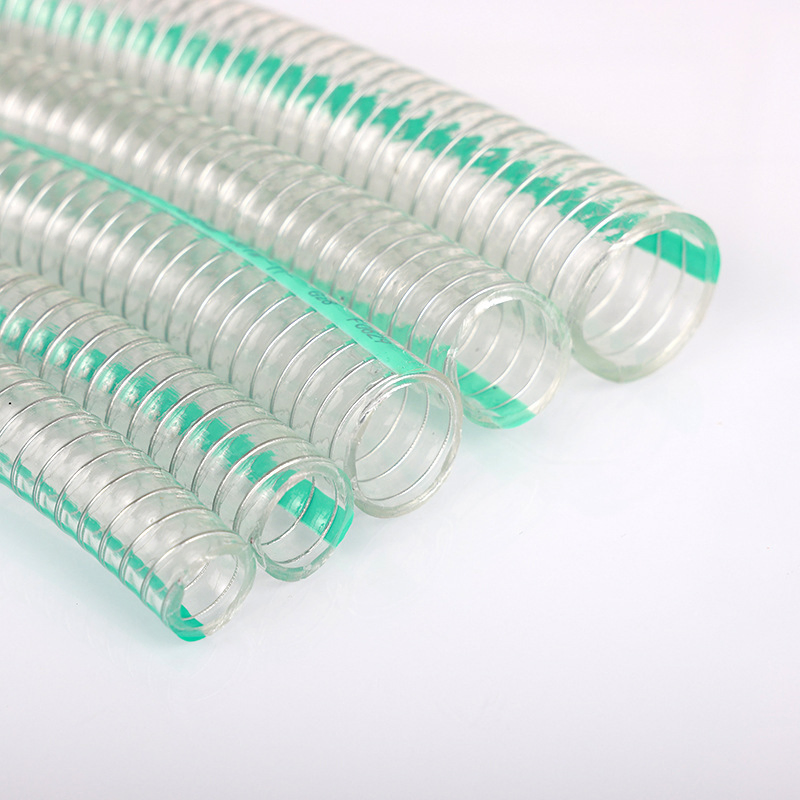

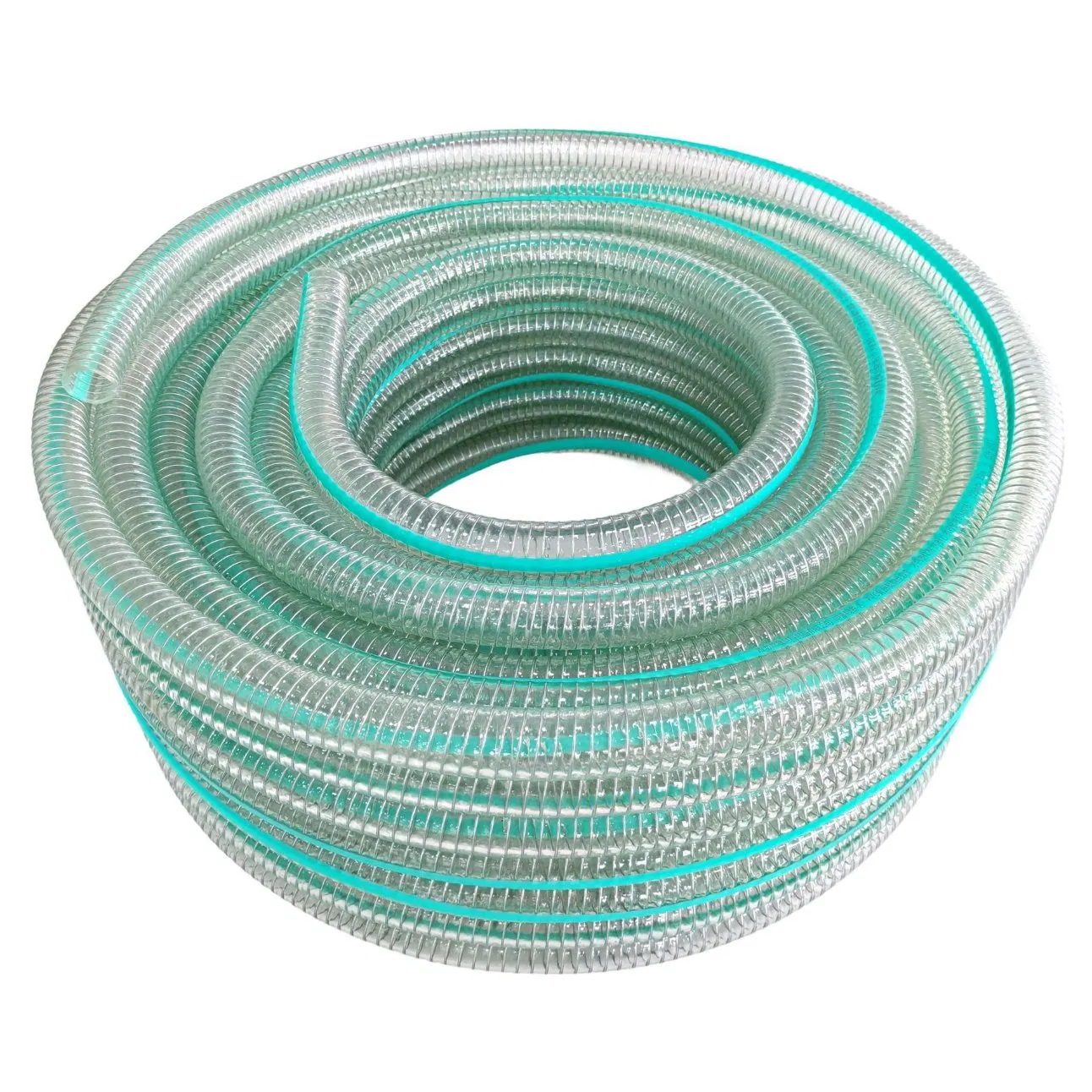

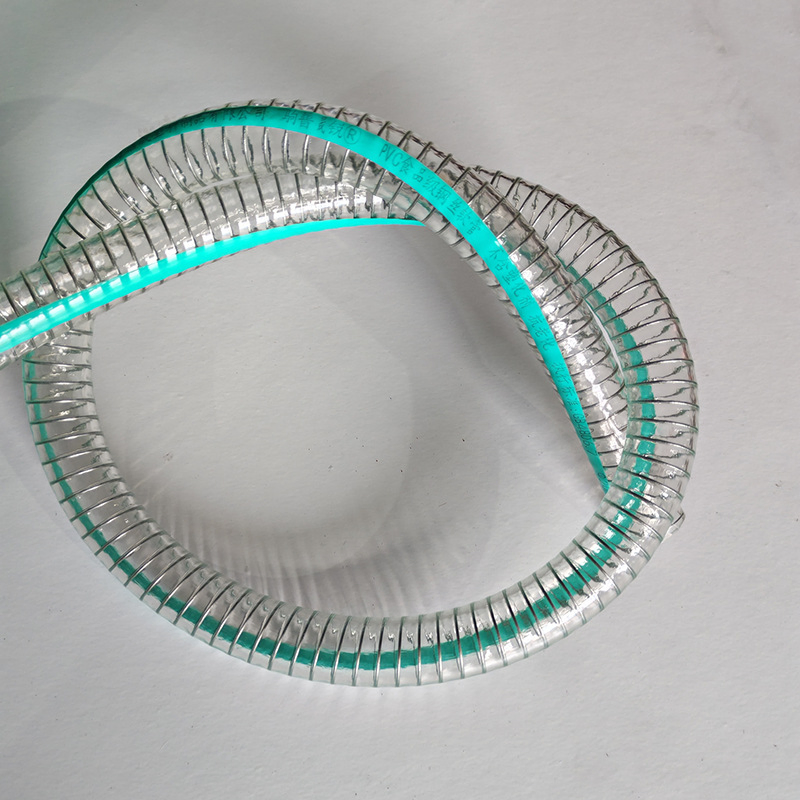

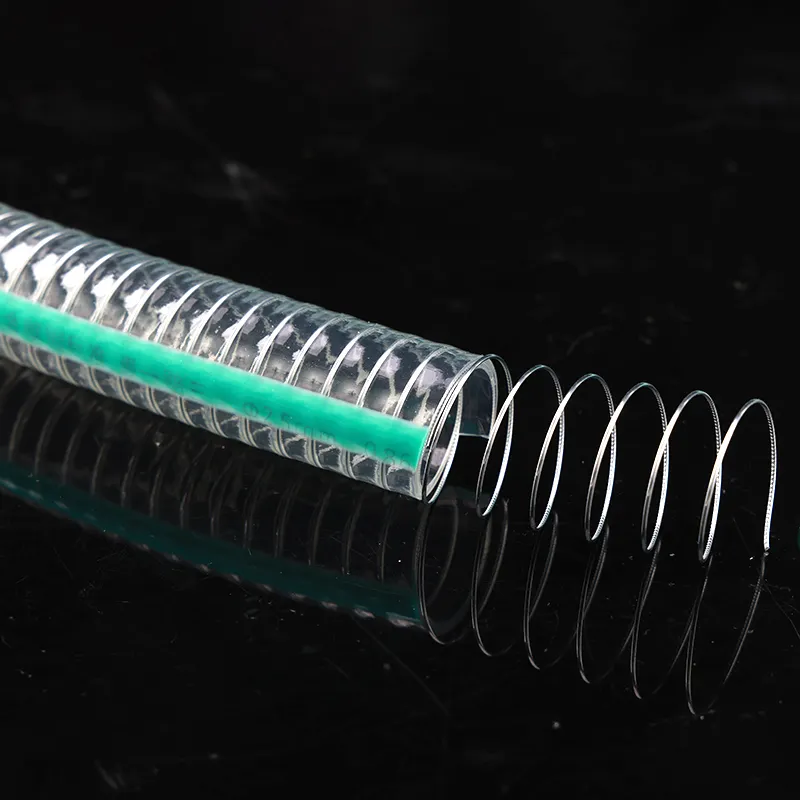

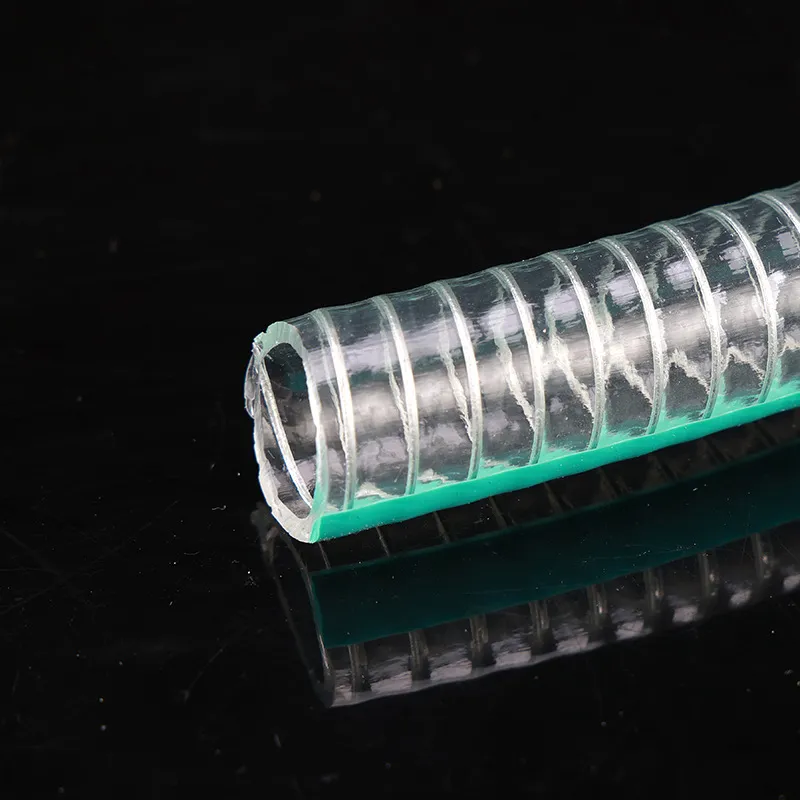

The Food Grade PVC steel wire spiral reinforced hoses are made of high-strength galvanized steel wire and plasticizer-free food-grade PVC material. The hose is ideal for conveying milk, beverages, distilled liquor, beer, jam, and other food items. It can also feature an optional copper wire insertion to avoid static build-up and protect users from electric shock.

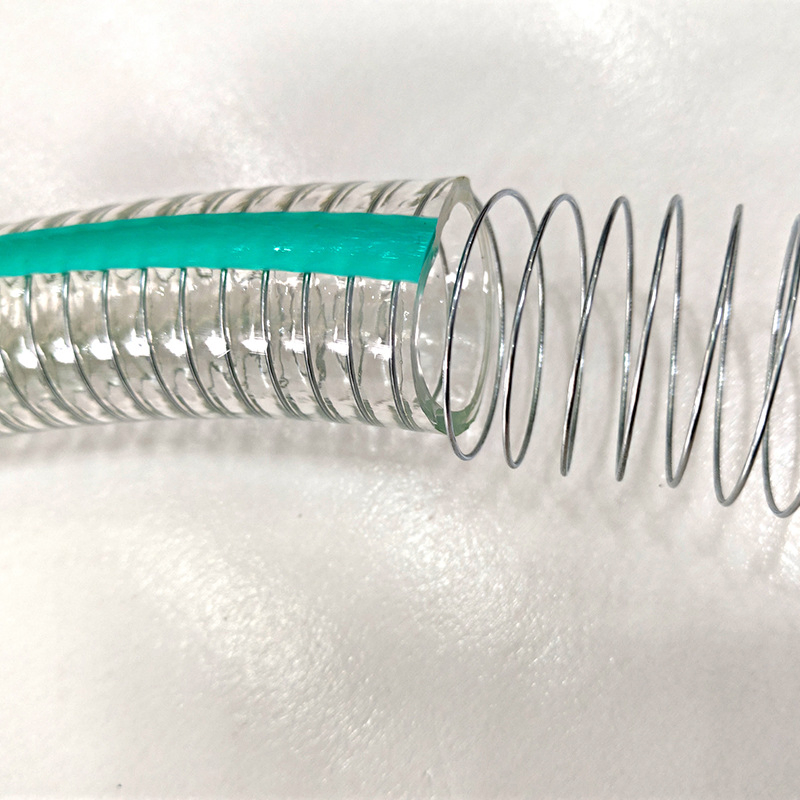

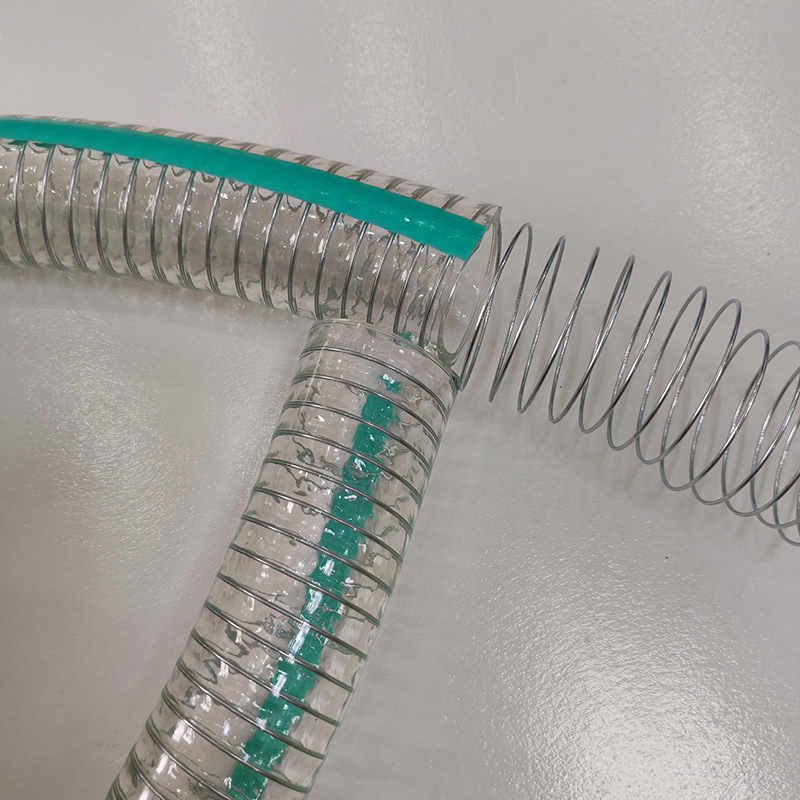

FLEXIBLE: Internal spiral wire prevents deformation under high pressure.

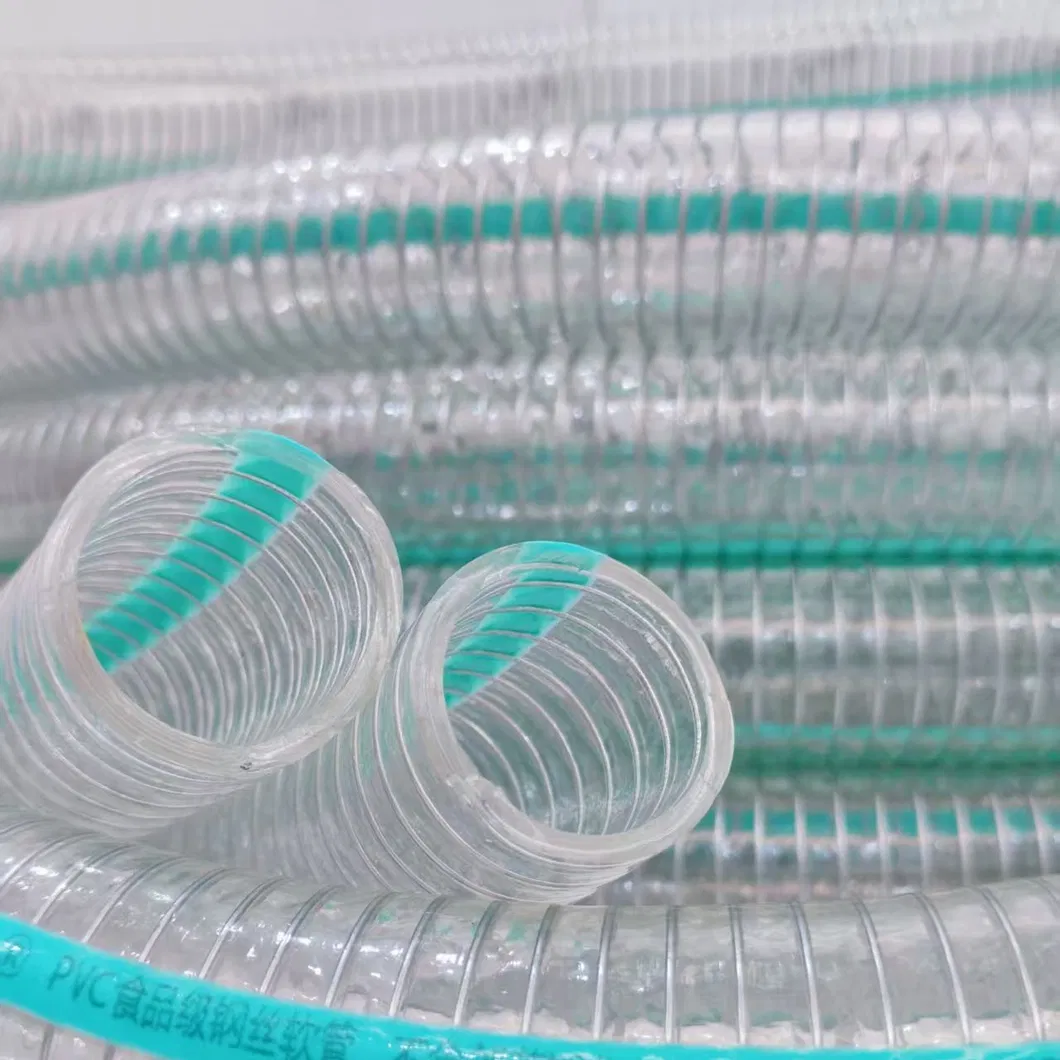

SMOOTH WALLS: Transparent body allows real-time monitoring of flow.

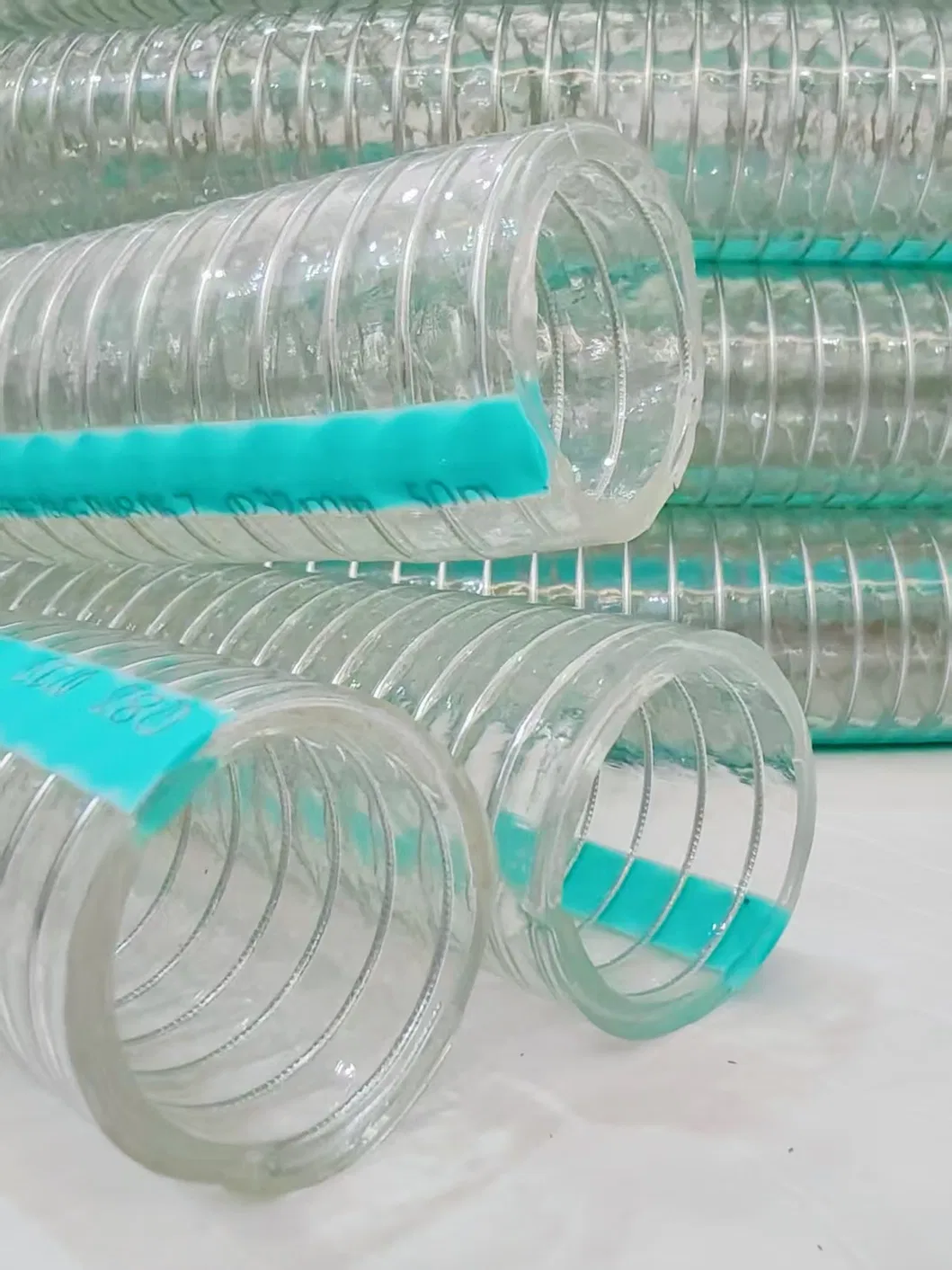

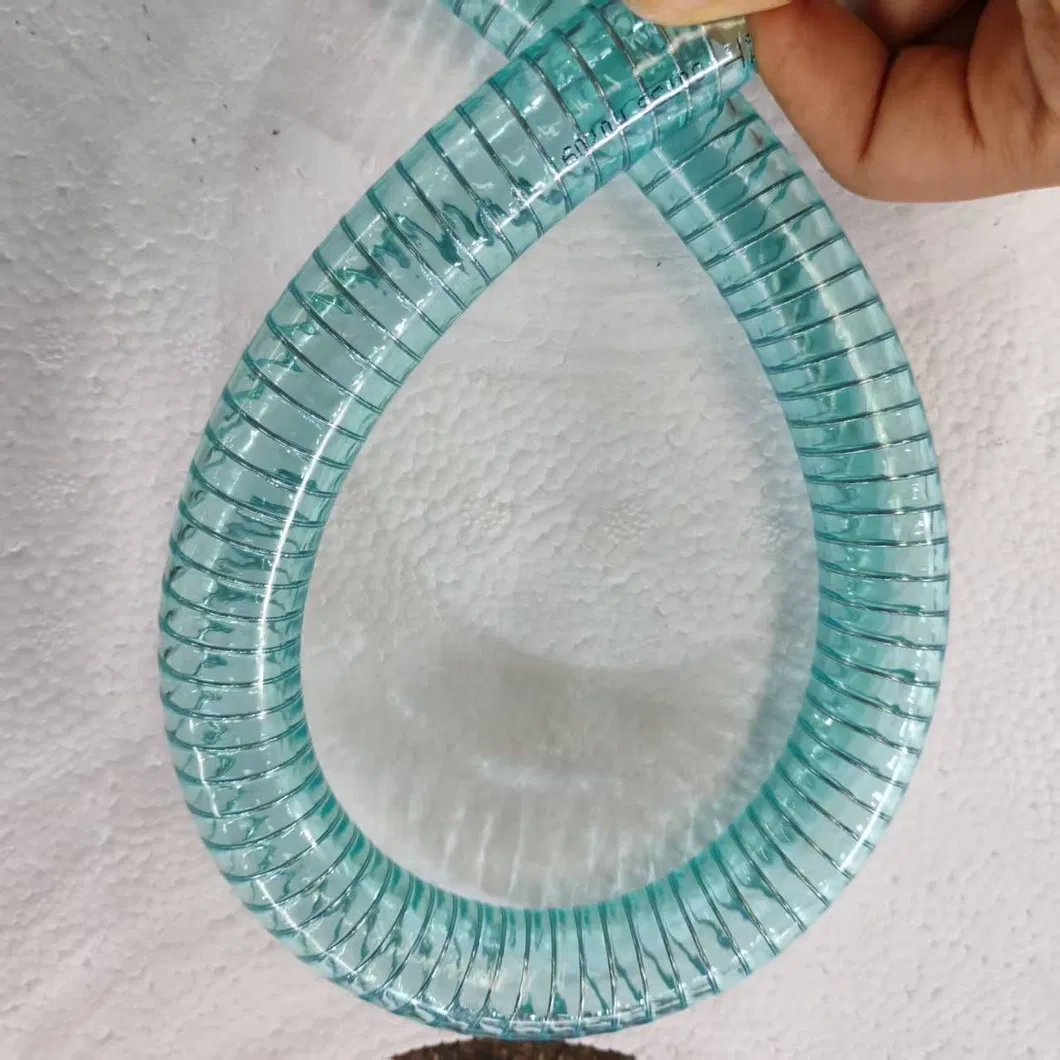

SOFT ALL YEAR: High folding resistance and softness in all seasons.

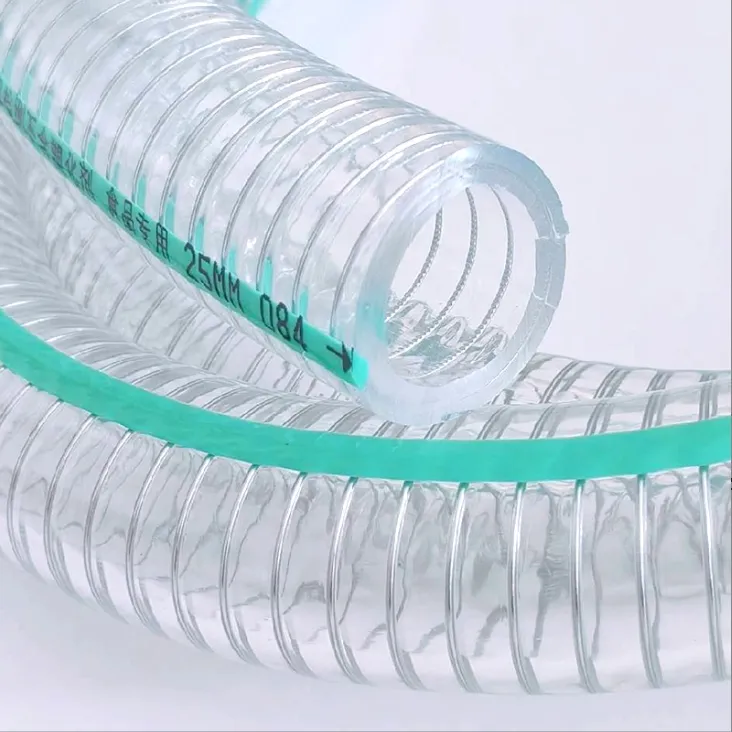

SAFETY: Plasticizer-free material, odor-free and reliable.
