Basic Information
Product Description

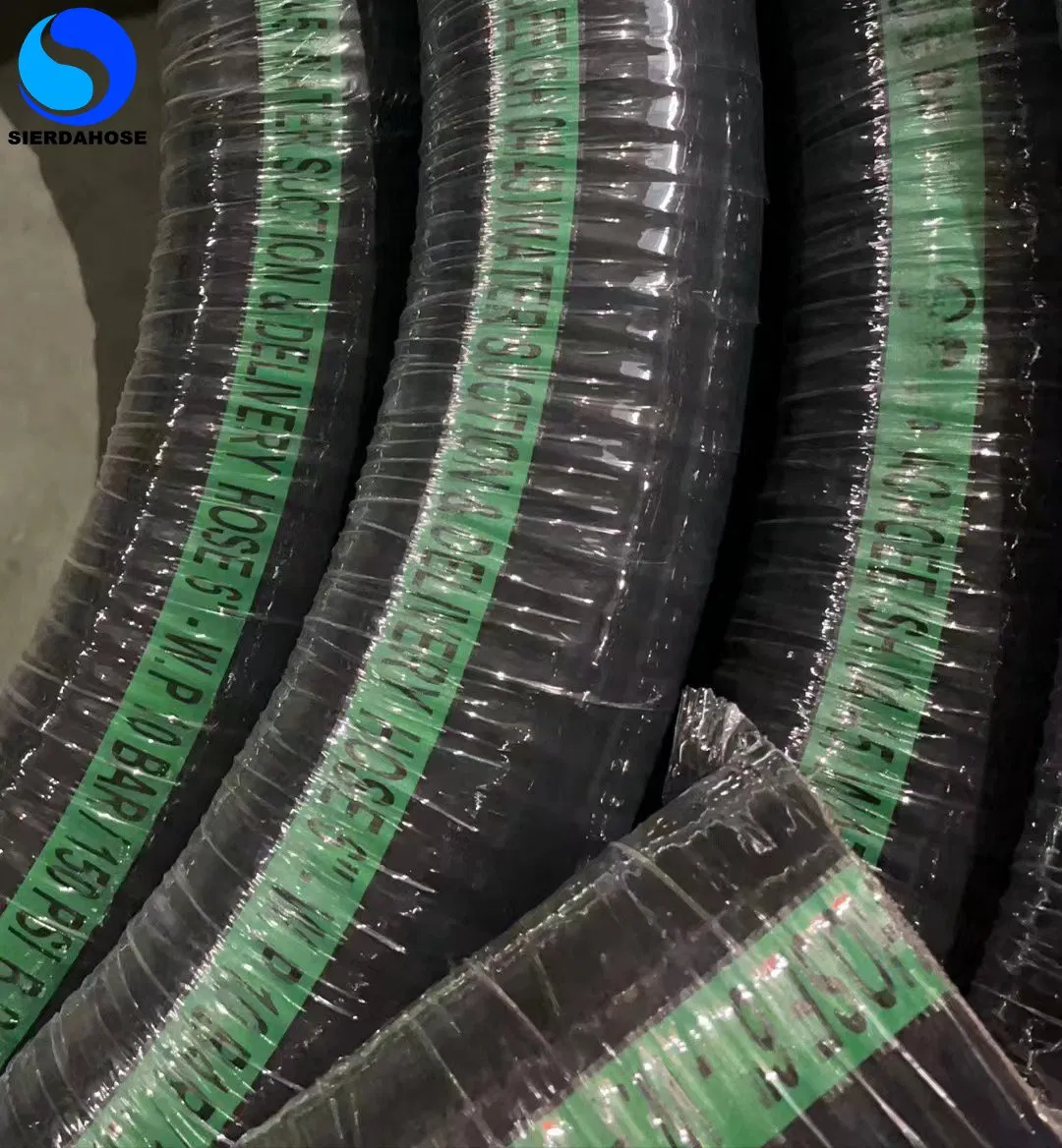

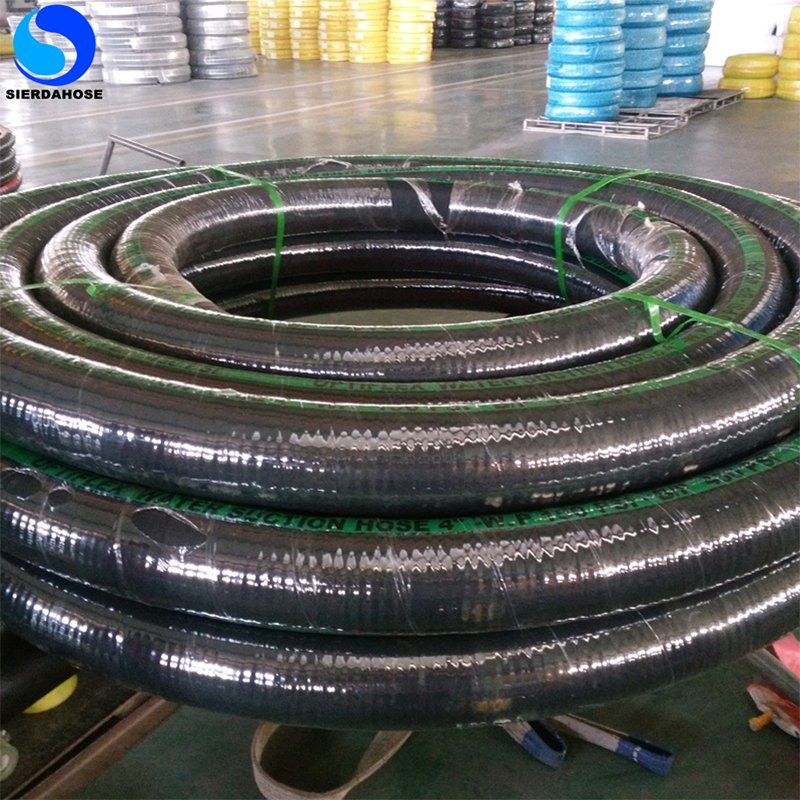

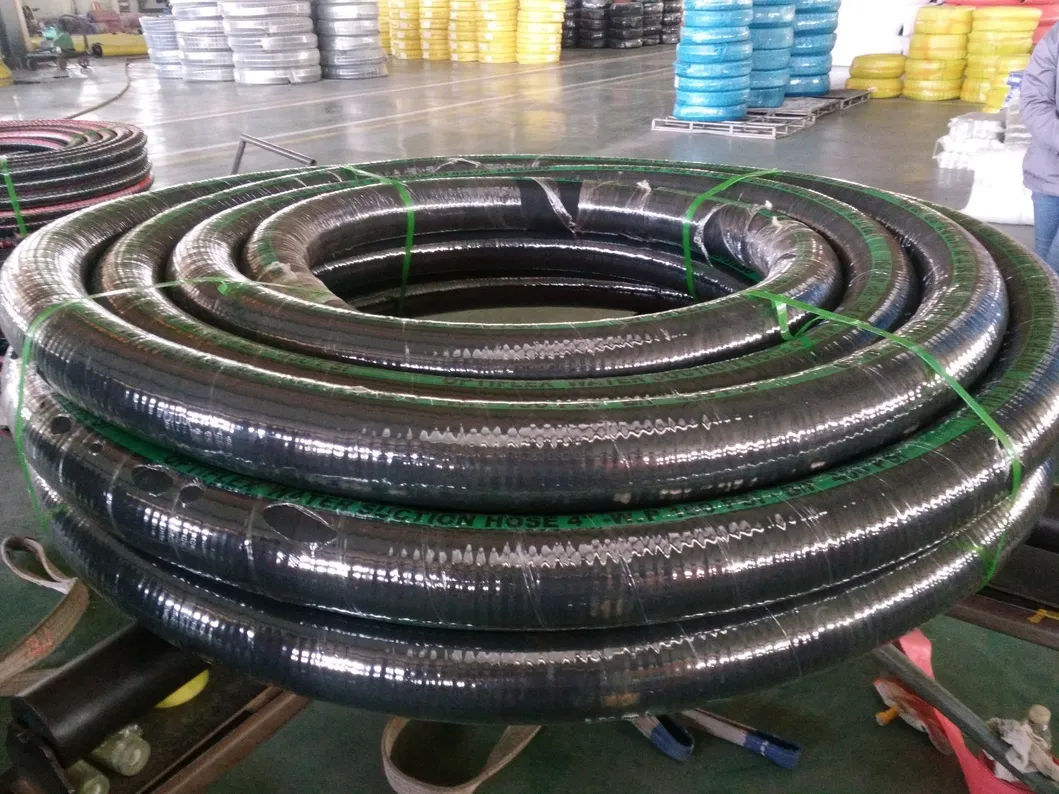

2-12 inch 150PSI Rubber Water Suction & Delivery Hose With Spiral Wire Insert
Inner Tube: Black, smooth, NR, SBR rubber compound.
Reinforcement: Multi Plies High strength synthetic fibre and helix steel wire.
Outer Tube: Black, smooth, cloth impression, SBR rubber compound.
Application: Hardwall hose designed for suction and discharge of water, and non-corrosive fluids used in construction sites and light duty industrial applications. Ideal high pressure water discharge hose for rugged, tough operating conditions.
Temperature Range: -30ºC to +80ºC (-22ºF to +176ºF)

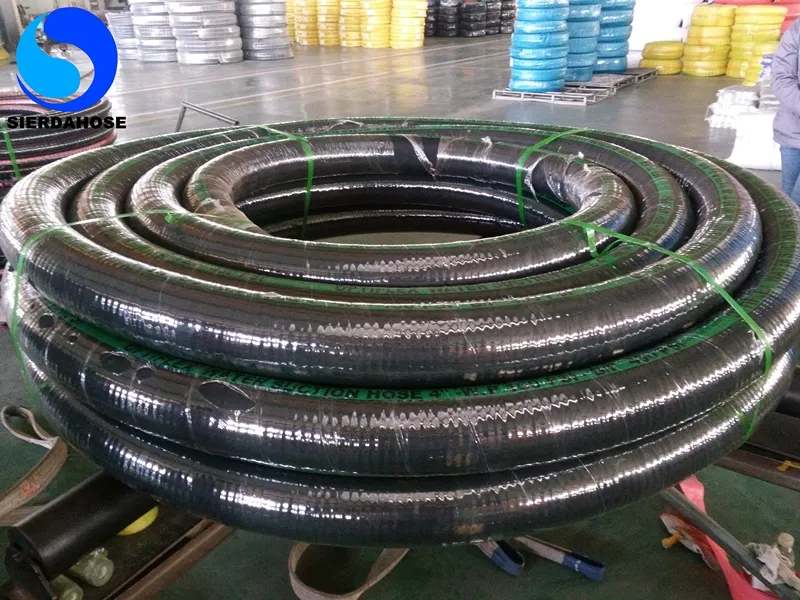

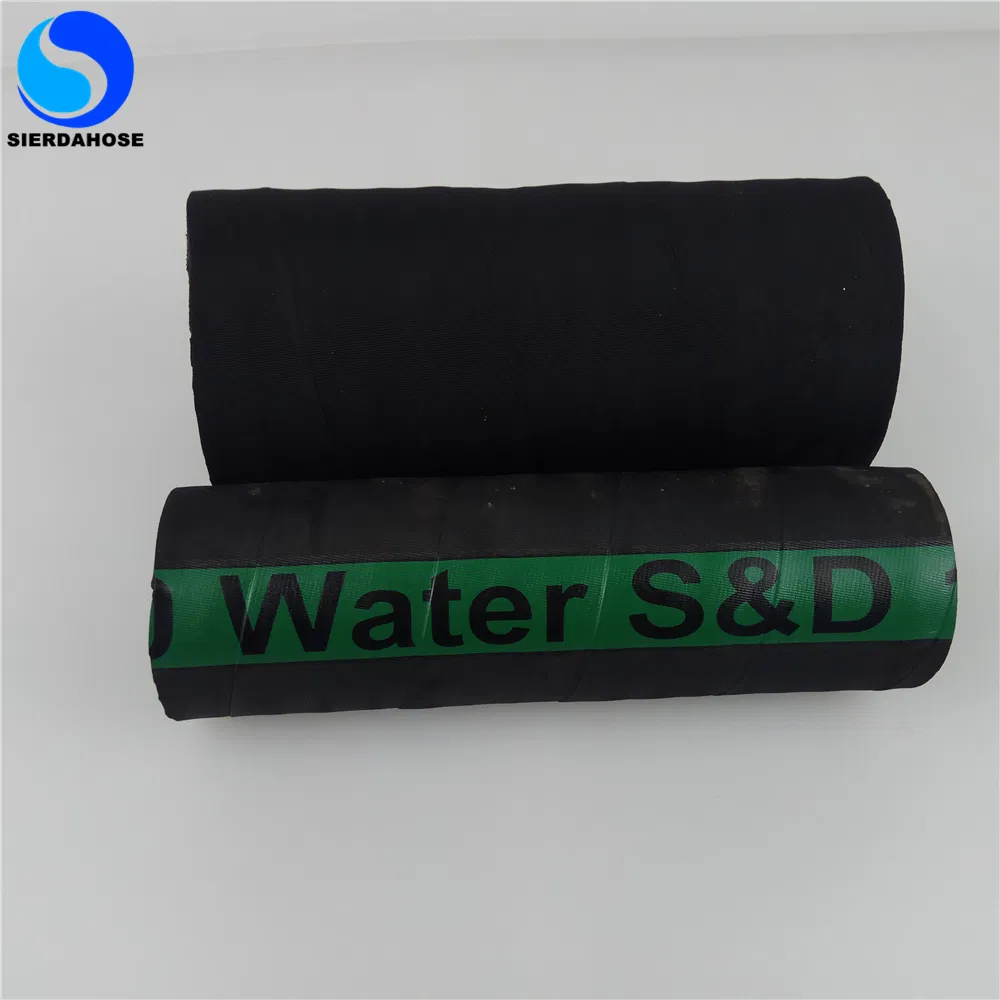

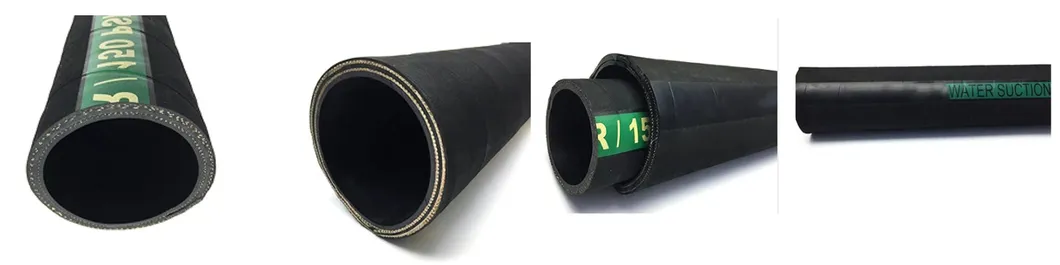

Detailed Photos

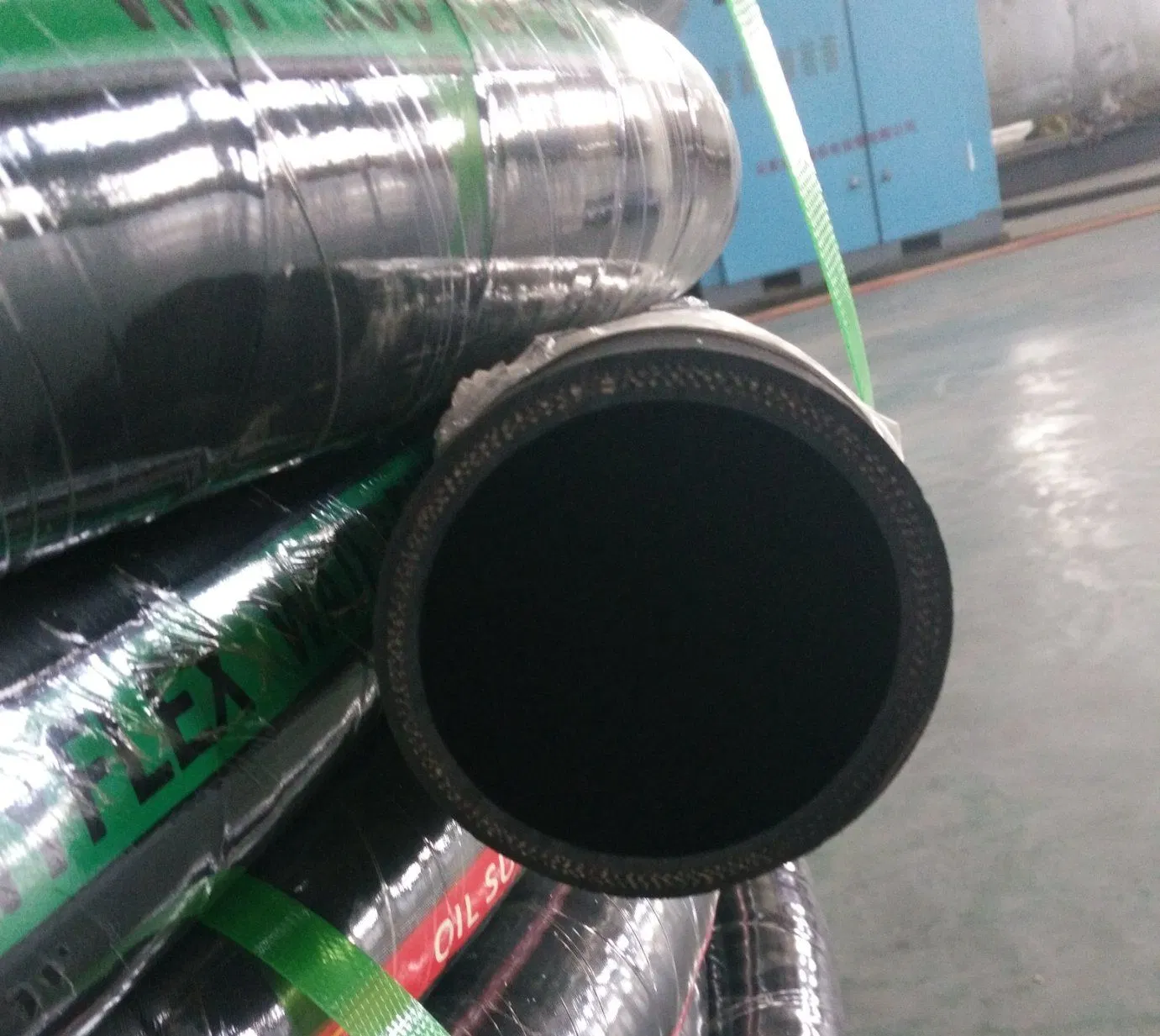

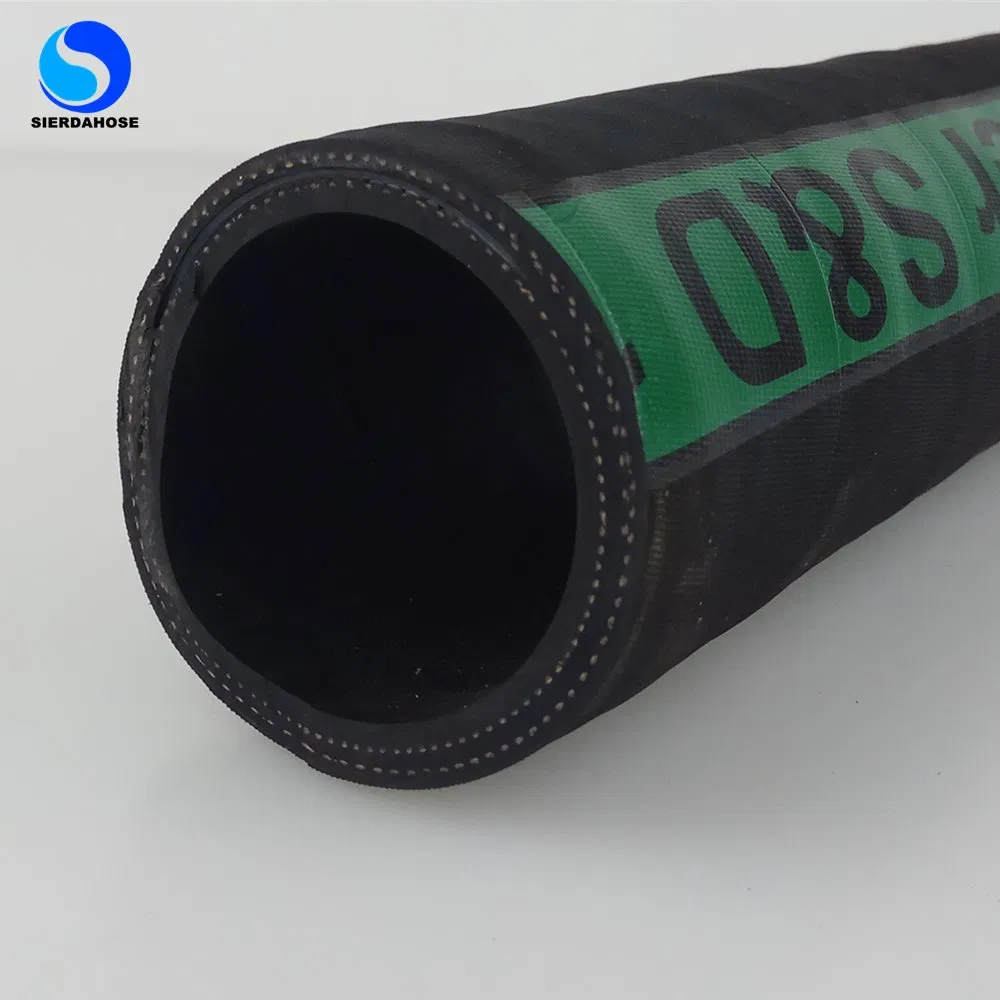

STRONG STRUCTURE: Water suction hose with high strength synthetic fibre and helix steel wire.
SUPERIOR ABILITY: Weather and ozone resistant, anti-aging cover, flexible and lightweight.
MULTIPLE TYPES: Optional inner diameter, thickness, and length available.
Product Parameters
| Code | I.D. | O.D | Work Pressure | Burst Pressure | Max. Length | |||
|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | m | |
| SDWSH-19 | 3/4" | 19 | 30.4 | 10 | 150 | 30 | 450 | 60 |
| SDWSH-25 | 1" | 25 | 36.4 | 10 | 150 | 30 | 450 | 60 |
| SDWSH-50 | 2" | 51 | 64.4 | 10 | 150 | 30 | 450 | 60 |
| SDWSH-76 | 3" | 76 | 90.8 | 10 | 150 | 30 | 450 | 60 |
| SDWSH-101 | 4" | 102 | 119.6 | 10 | 150 | 30 | 450 | 60 |
| SDWSH-152 | 6" | 152 | 171.6 | 10 | 150 | 30 | 450 | 60 |
| SDWSH-203 | 8" | 203 | 224.8 | 10 | 150 | 30 | 450 | 60 |
| SDWSH-304 | 12" | 304 | 332.6 | 10 | 150 | 30 | 450 | 30 |

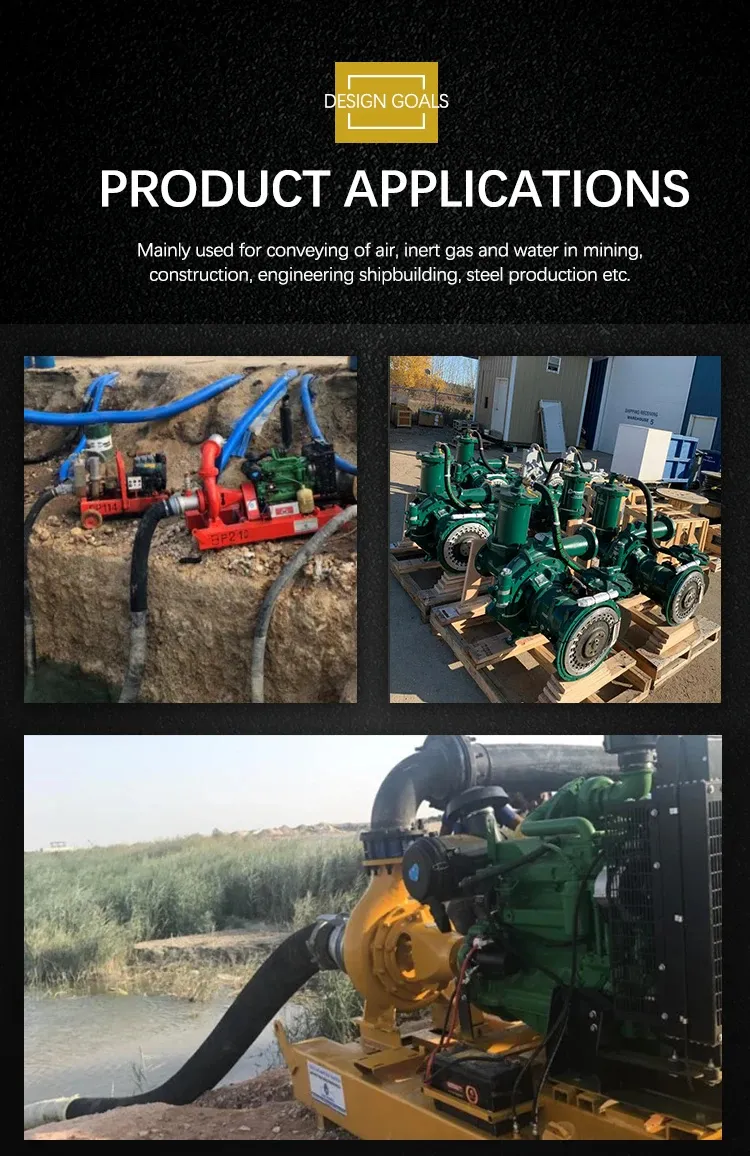

Applications

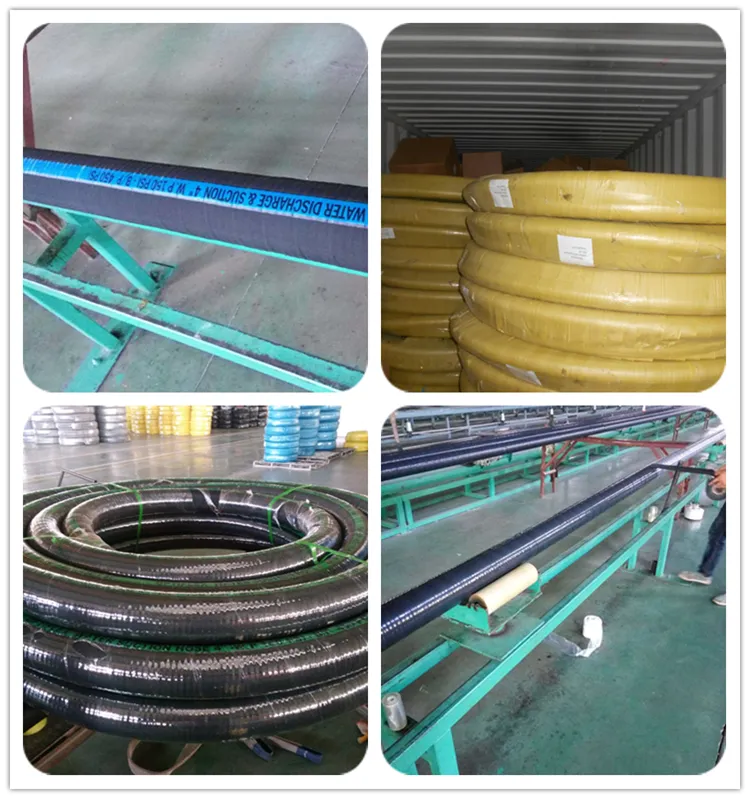

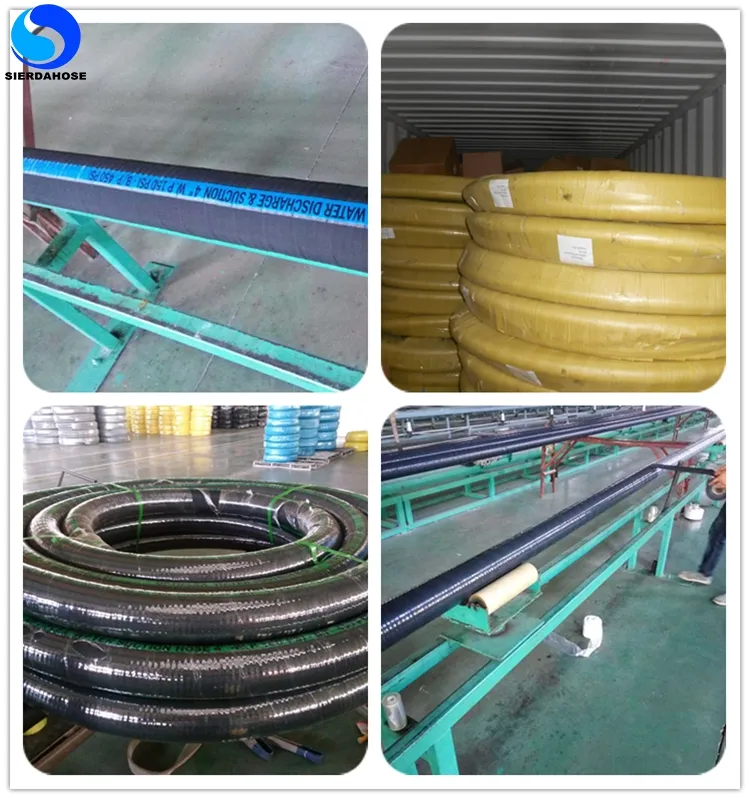

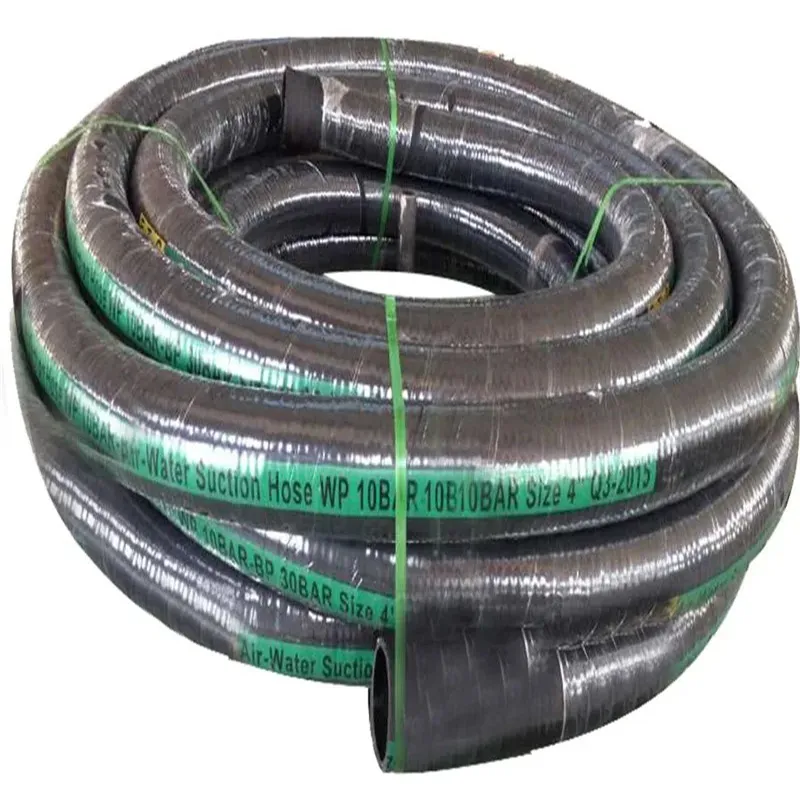

Packaging & Shipping

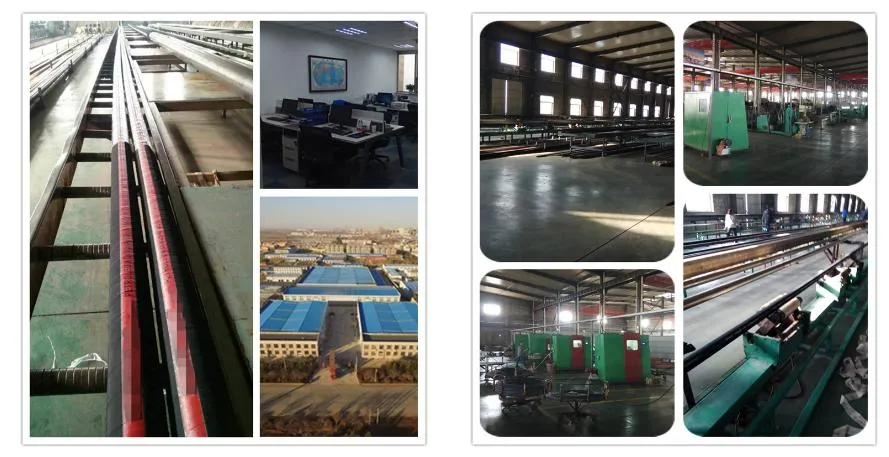

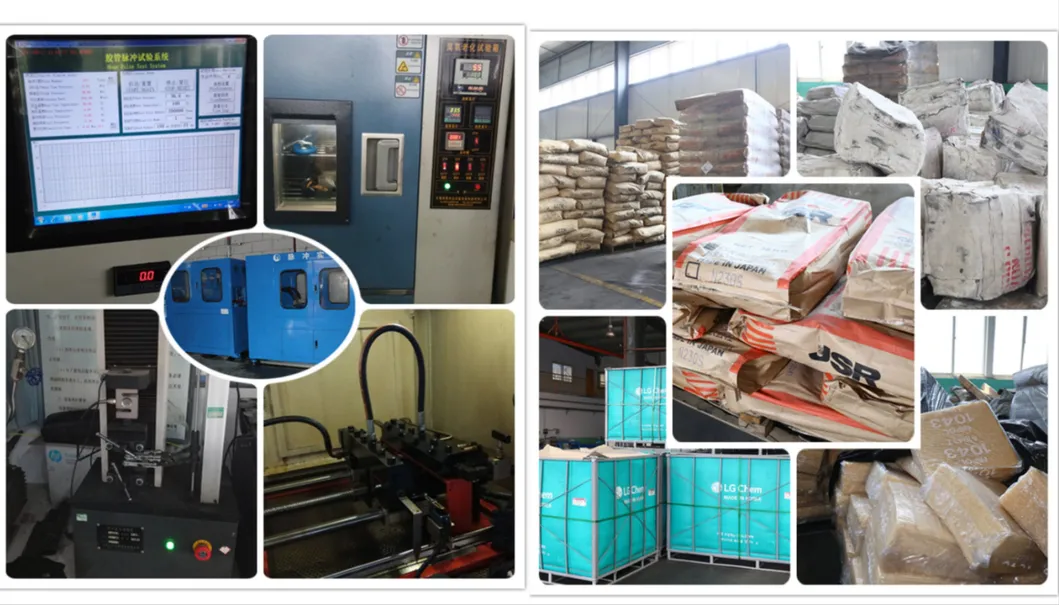

Company Profile
