Basic Information
Working Pressure
25bar, 360psi

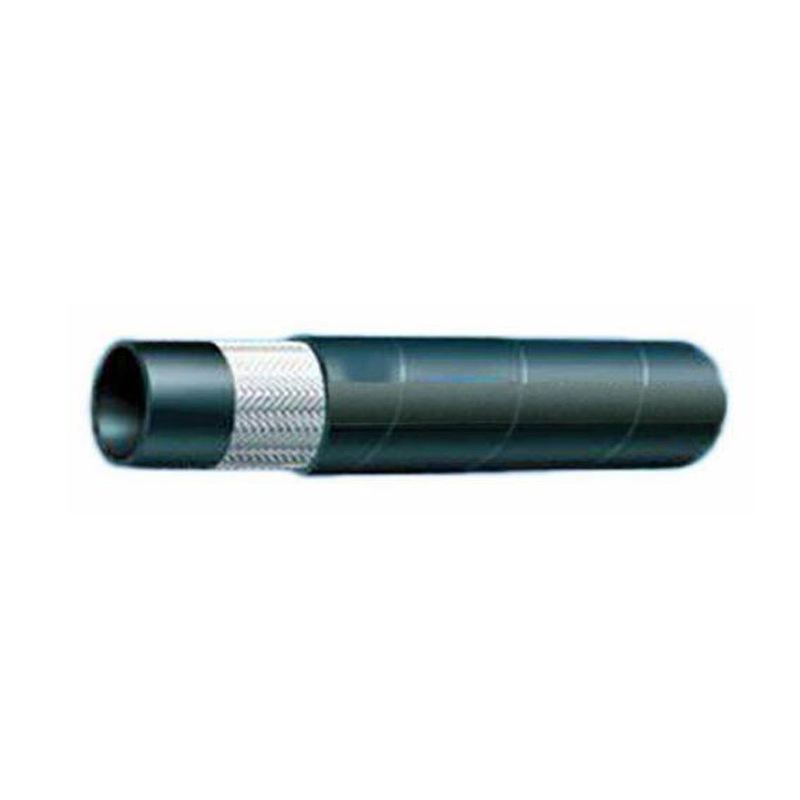

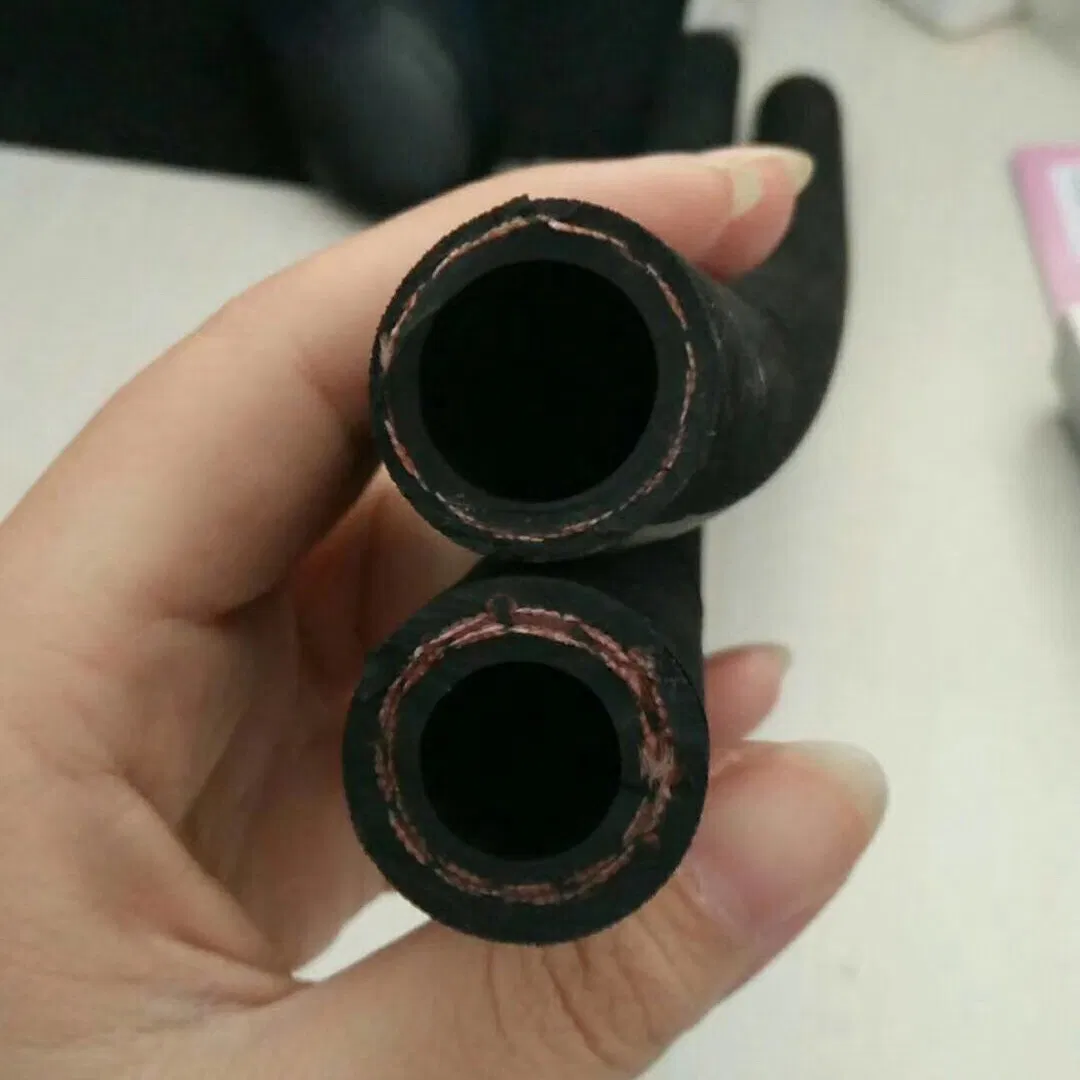

Tube
Oil Resistant Synthetic Rubber
Reinforcement
One Textile Braid
Cover
Abrasion & Weather Resistant
Capacity
700,000 Meters/Month

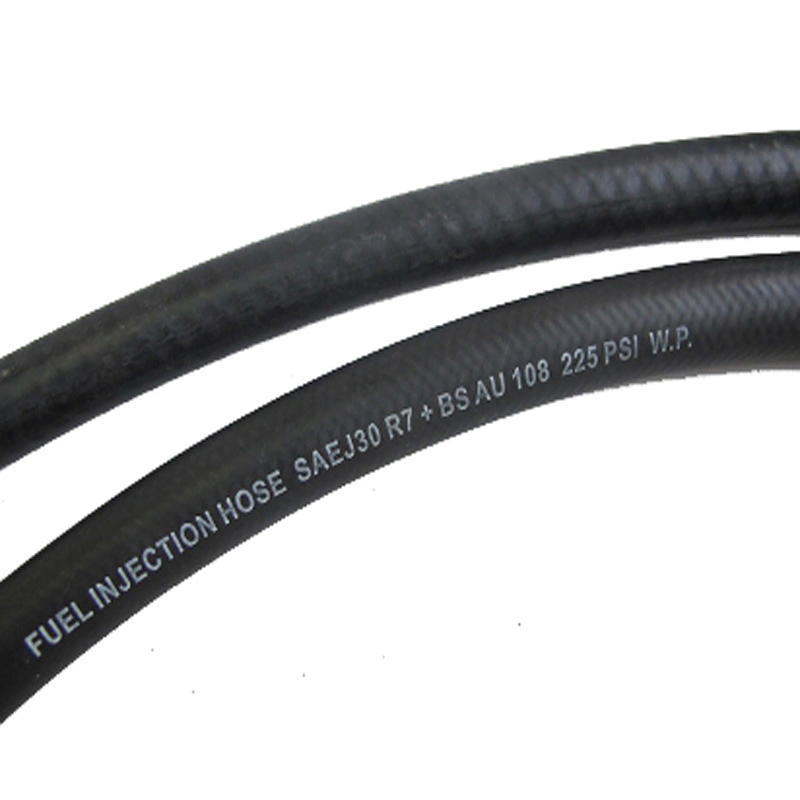

Product Overview
🛡️
KEY PERFORMANCE:
High aging resistance fuel application with push-on fittings. Rated for EN/DIN and new SAE working pressures.
Ideal for fuel systems and internal combustion engine crankcases.
⚙️
Technical Specifications:
• Service Temp: -40°C / +100°C (-40°F / +212°F)
• Max Temp: 121°C (250°F)
• Appearance: Smooth cover (I.D < 25.4mm)
• Colors: Black, Red, Blue, Yellow, Green, Gray
Technical Data Table
| Model No. |
Hose I.D. |
O.D (mm) |
Max W.P. |
Min B.P. |
Min B.R. (mm) |
| DN |
Dash |
Inch |
Bar |
Psi |
Bar |
Psi |
| TB J30 6 | 6 | -4 | 1/4" | 12.7 | 35 | 510 | 140 | 2030 | 76 |
| TB J30 8 | 8 | -5 | 5/16" | 14.3 | 35 | 510 | 140 | 2030 | 76 |
| TB J30 10 | 10 | -6 | 3/8" | 15.8 | 35 | 510 | 140 | 2030 | 76 |
| TB J30 12 | 12 | -8 | 1/2" | 19.6 | 25 | 360 | 100 | 1450 | 127 |
| TB J30 16 | 16 | -10 | 5/8" | 23.6 | 25 | 360 | 100 | 1450 | 150 |
| TB J30 19 | 19 | -12 | 3/4" | 28.3 | 21 | 300 | 84 | 1210 | 180 |
| TB J30 25 | 25 | -16 | 1" | 33.9 | 14 | 200 | 56 | 810 | 240 |
Applications & Industries
🚗
Used in engineering machinery, automotive manufacturing, shipbuilding, aerospace, and hydraulic systems. Suitable for mineral oils, diesel fuel, gasoline, and water-based emulsions.
Product Range
- Hydraulic Hose (Wire Braided/Spiral)
- Industrial Hose (Air/Water/Gas)
- Automotive Brake & Fuel Hose
- PVC Hoses
- Hose Fittings & Couplings
- Hose Crimping Machines
Frequently Asked Questions
Q: Do you produce smooth or cloth wrapped covers?
A: Yes, we can produce both types of covers depending on the customer's specific requirements.
Q: Can you produce products with my own brand?
A: Yes, OEM and ODM services are warmly welcomed. We can apply your branding using printing or embossed technology.
Q: Can we obtain free samples for testing?
A: Yes, we can provide free samples to help you verify the quality before placing a bulk order.
Q: Are different colors available for the hoses?
A: Yes, we currently provide black, gray, red, blue, and yellow hoses to suit various application needs.

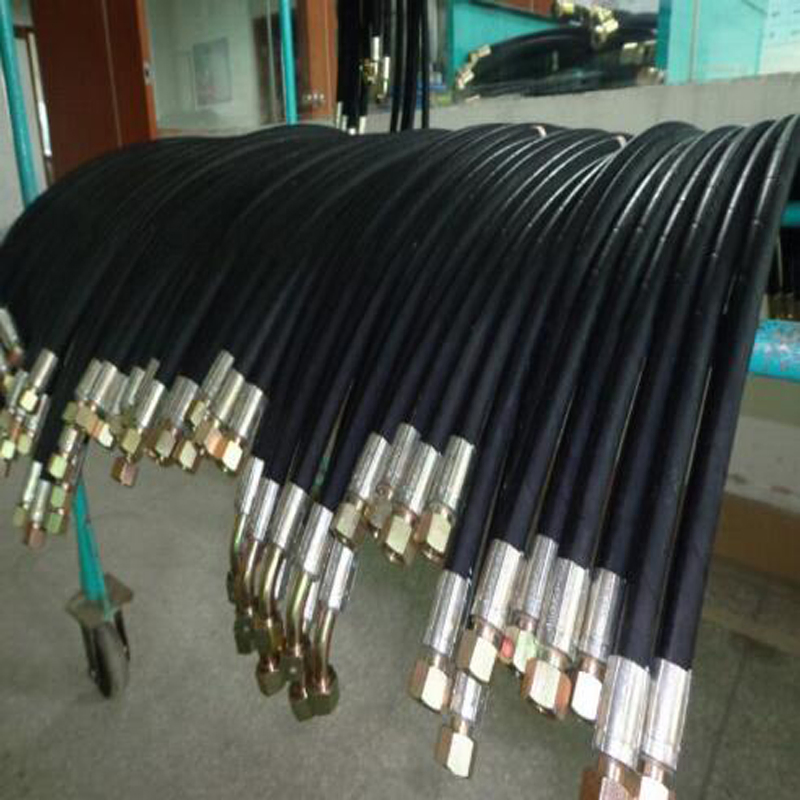

Q: Do you offer hose crimping services?
A: Yes, we can provide complete crimped hose assemblies for our customers.
Q: What is the typical lead time for delivery?
A: Delivery usually takes 5 to 30 days, depending on the order quantity and current stock levels.
