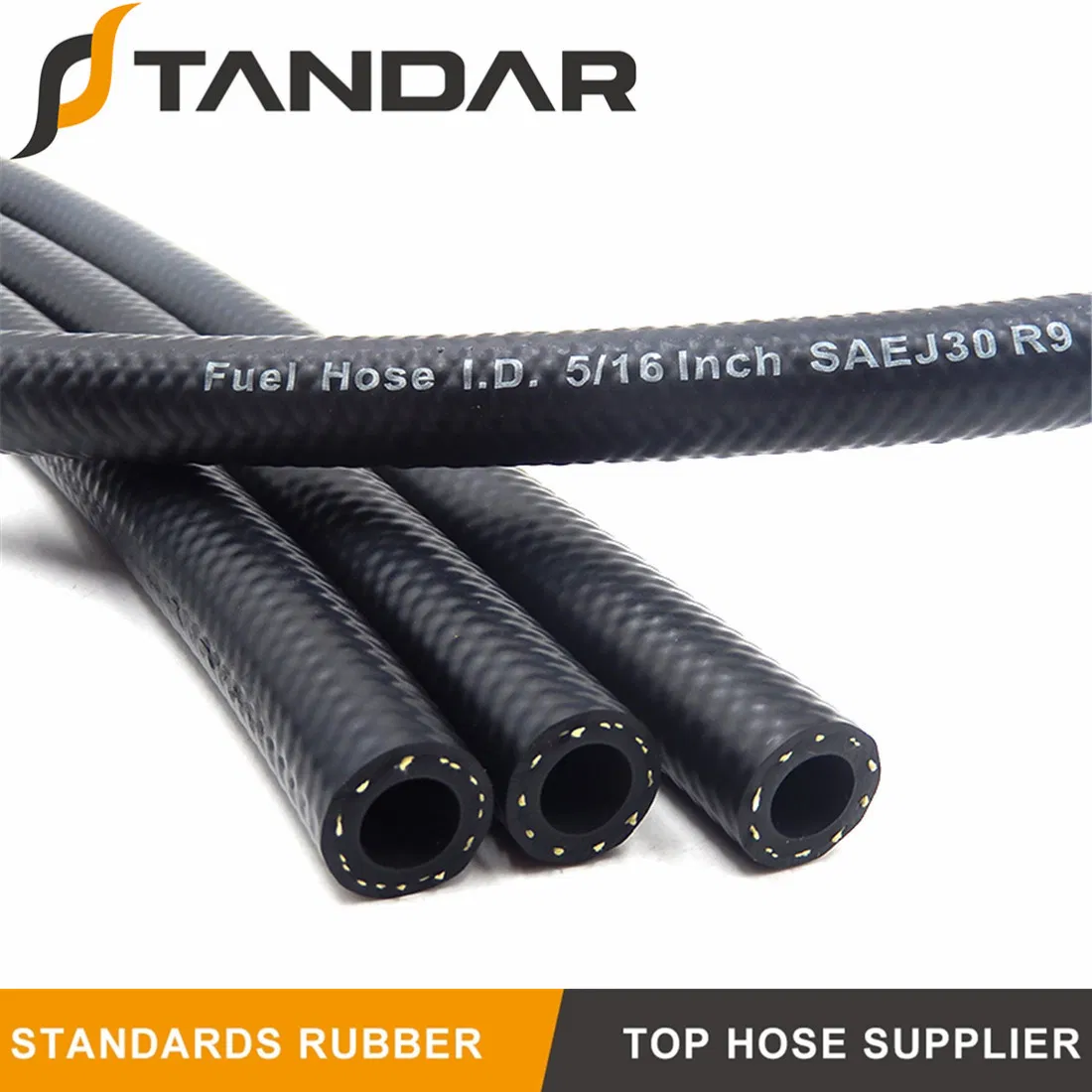

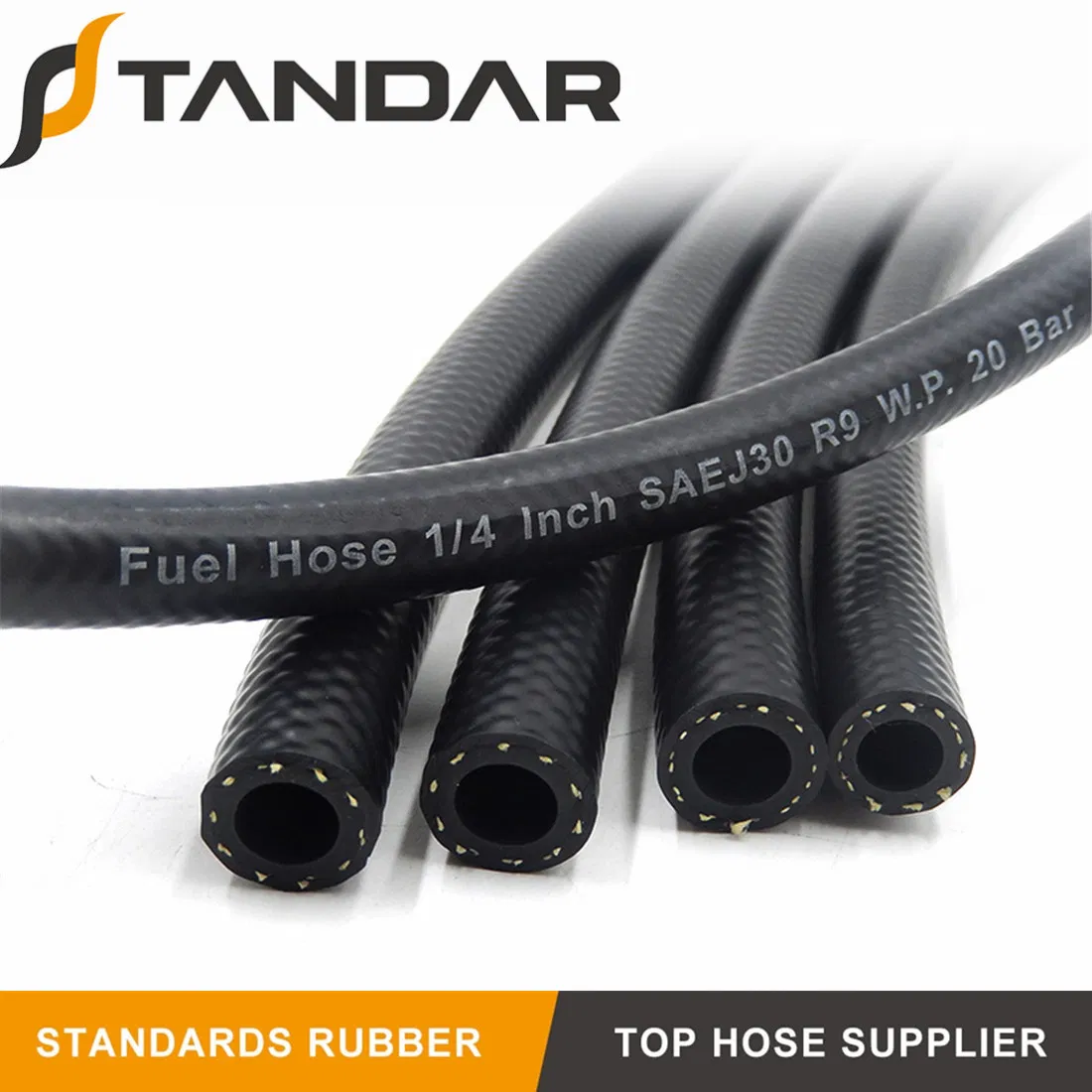

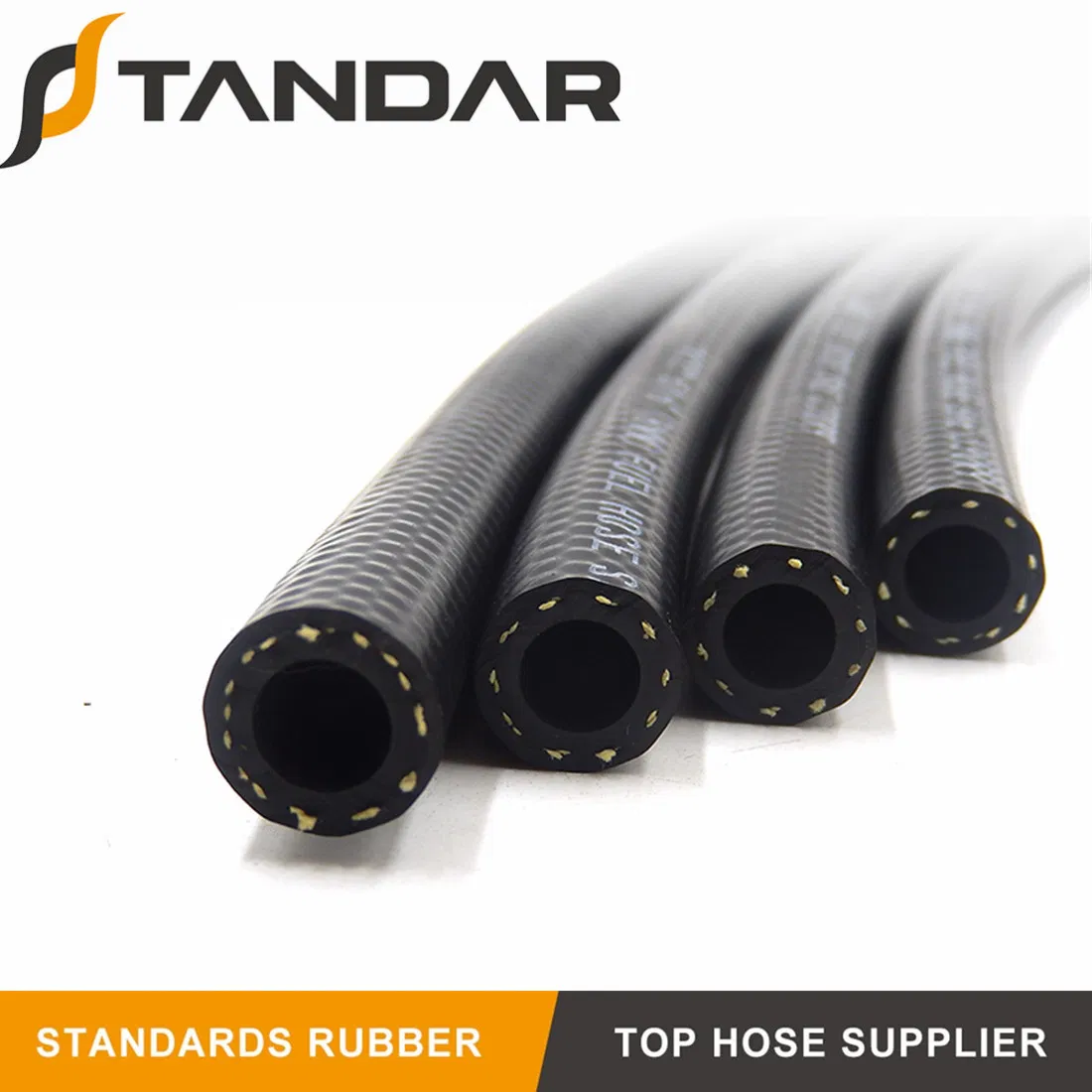

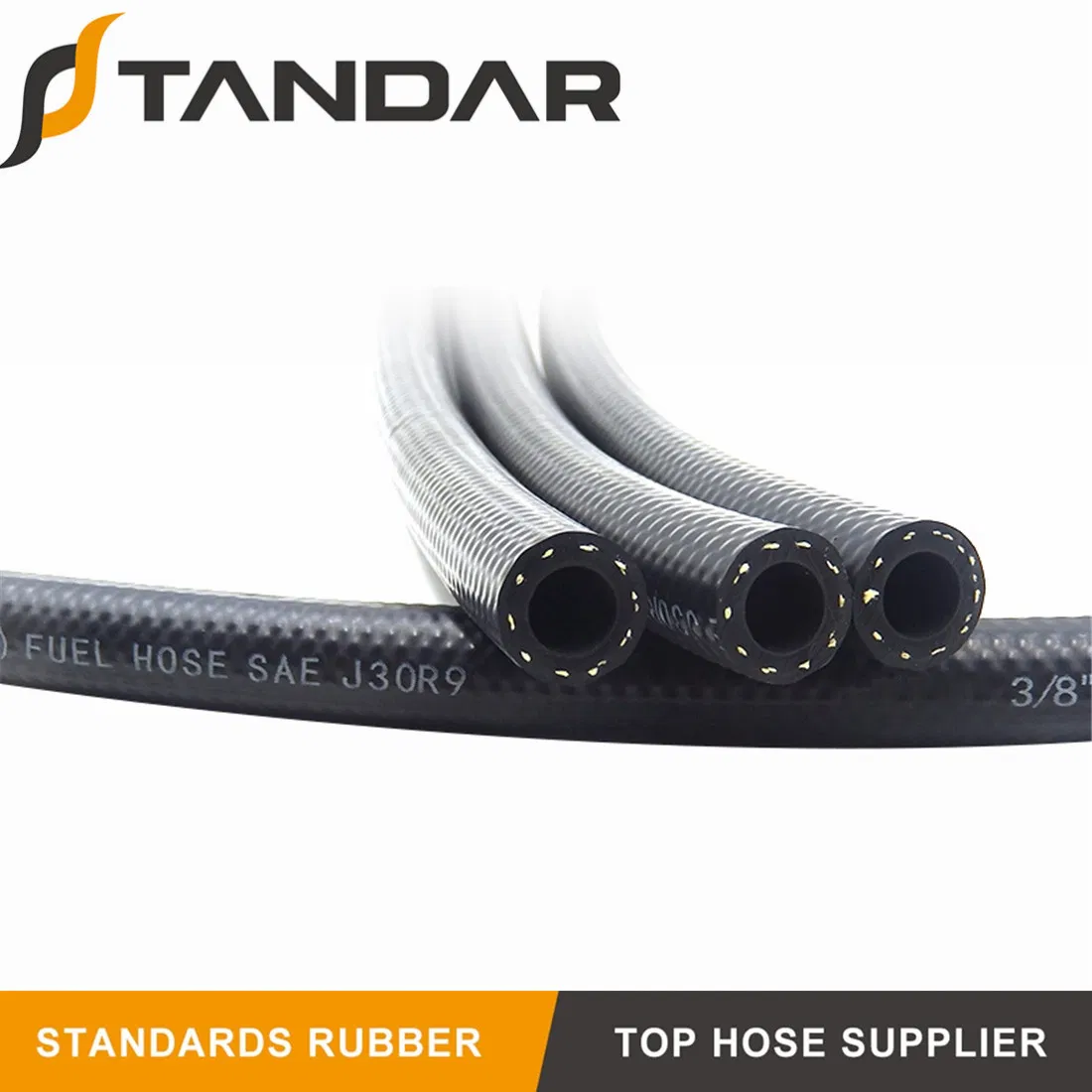

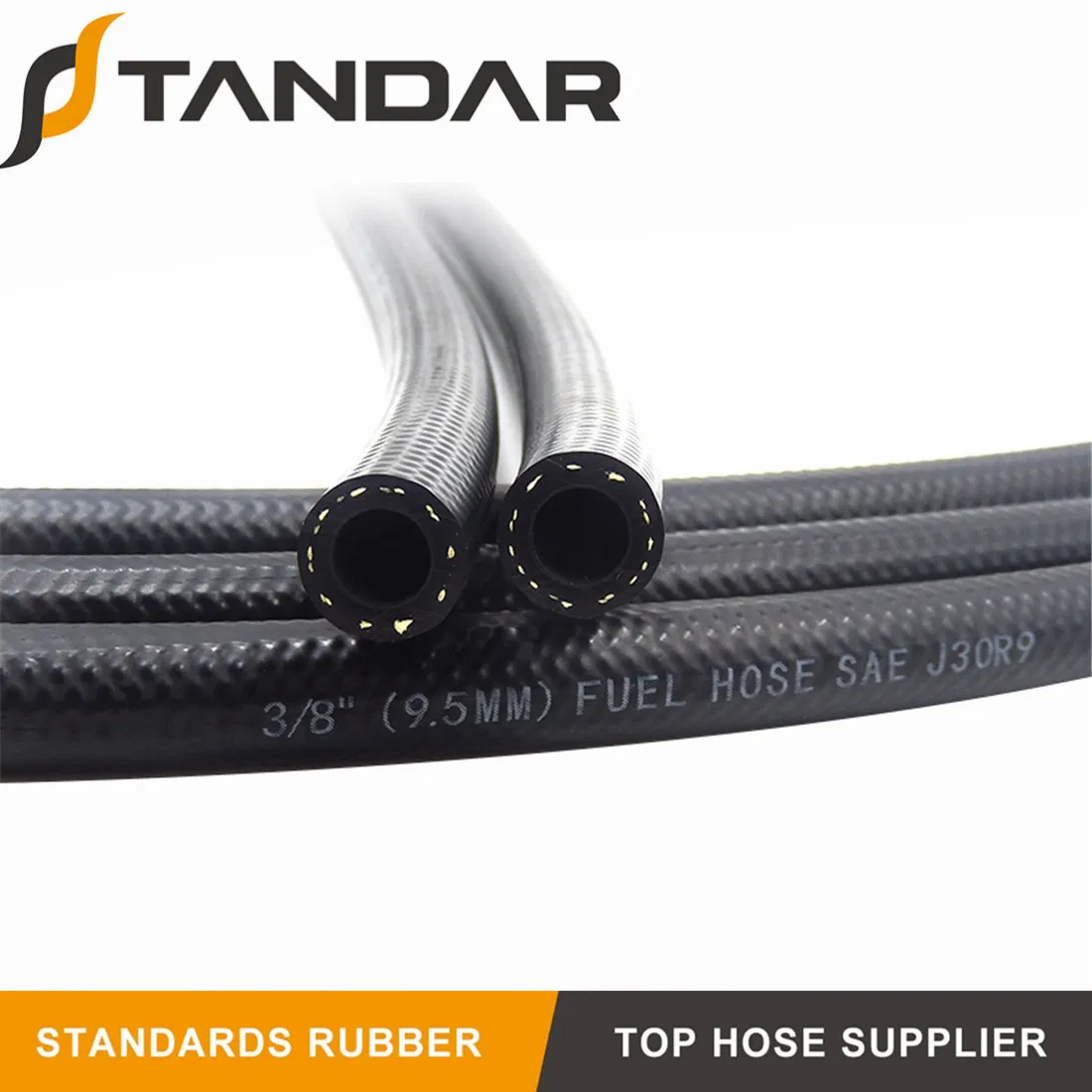

High-performance fuel injection hose designed for extreme durability and chemical resistance within fuel tanks.
Used in the transportation of gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel injection system or the crankcase of internal combustion engines.
| NO. | I.D (Internal Diameter) | O.D (Outer Diameter) | W.P (Working Pressure) | B.P (Burst Pressure) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | Tol (mm) | inch | mm | Tol (mm) | Bar | PSI | Bar | PSI | |
| 1 | 1/8 | 3.2 | ±0.3 | 23/64 | 9 | ±0.3 | 20 | 300 | 80 | 1200 |
| 2 | 5/32 | 4 | ±0.3 | 25/64 | 10 | ±0.3 | 20 | 300 | 80 | 1200 |
| 3 | 3/16 | 4.8 | ±0.3 | 7/16 | 11 | ±0.3 | 20 | 300 | 80 | 1200 |
| 4 | 1/4 | 6.3 | ±0.3 | 1/2 | 12.7 | ±0.4 | 20 | 300 | 80 | 1200 |
| 5 | 5/16 | 7.9 | ±0.4 | 35/64 | 14 | ±0.5 | 20 | 300 | 80 | 1200 |
| 6 | 3/8 | 9.5 | ±0.4 | 5/8 | 16 | ±0.5 | 20 | 300 | 80 | 1200 |
| 7 | 15/32 | 12 | ±0.4 | 3/4 | 19 | ±0.5 | 20 | 300 | 80 | 1200 |
| 8 | 1/2 | 12.7 | ±0.5 | 25/32 | 20 | ±0.6 | 20 | 300 | 80 | 1200 |
| 9 | 5/8 | 16 | ±0.5 | 61/64 | 24 | ±0.6 | 10 | 150 | 40 | 600 |
| 10 | 3/4 | 19 | ±0.6 | 1-9/64 | 28.8 | ±0.8 | 10 | 150 | 40 | 600 |
| 11 | 1 | 25.4 | ±0.8 | 1-3/8 | 35 | ±1 | 10 | 150 | 40 | 600 |
