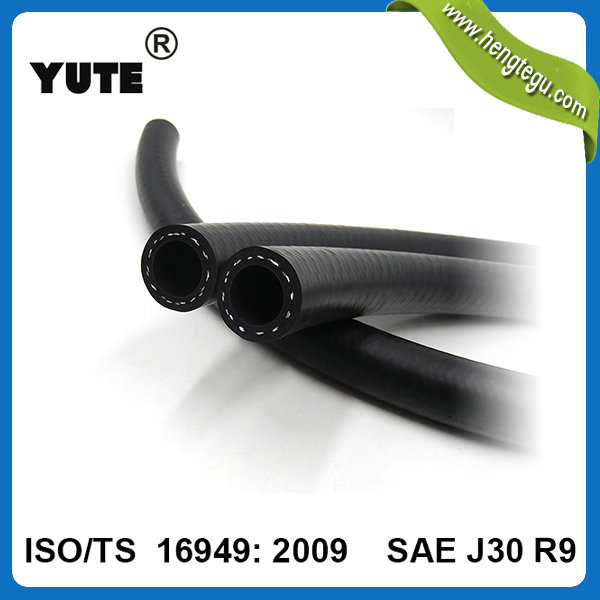

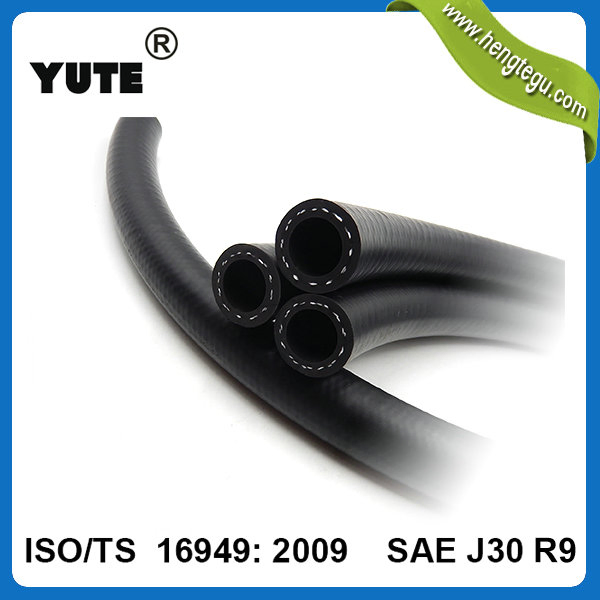

SGS Approved 3/16" FKM Fuel Injection Hose for Auto Parts

1 / 5

SGS Approved 3/16" FKM Fuel Injection Hose for Auto Parts

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

3/16"

Product Name

3/16" FKM Fuel Hose

Standard

SAE J30R9 / DIN 73379 3E

Working Pressure

300 Psi

Burst Pressure

1200 Psi

Temperature Range

-40 to 135 Degree Celsius

Certifications

ISO/TS 16949, SGS, CCC, RoHS

Color

Black

Size Range

1/8" ~ 1"

Capacity

30000 Meters Per Day

Product Overview

SGS Approved 3/16" FKM Fuel Injection Hose

🔹

Applications: Used for transporting gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, and vapors in fuel injection systems or crankcases of internal combustion engines.

🔹

Construction:

Permeation Barrier: High-performance fuel-resistant FKM rubber.
Tube: Oil and fuel resistant synthetic rubber compound (ECO).
Reinforcement: High tensile braided fiber (AR).
Cover: Ozone and heat-resistant synthetic rubber compound (FKM).

Sizes and Technical Parameters

No.	I.D (Internal Diameter)		O.D (Outer Diameter)		W.P (Working Pressure)		B.P (Burst Pressure)
No.	inch	mm	inch	mm	Bar	PSI	Bar	PSI
1	1/8	3.2	23/64	9	20	300	80	1200
2	5/32	4	25/64	10	20	300	80	1200
3	3/16	4.8	7/16	11	20	300	80	1200
4	1/4	6.3	1/2	12.7	20	300	80	1200
5	5/16	7.9	35/64	14	20	300	80	1200
6	3/8	9.5	5/8	16	20	300	80	1200
7	15/32	12	3/4	19	20	300	80	1200
8	1/2	12.7	25/32	20	20	300	80	1200
9	5/8	16	61/64	24	10	150	40	600
10	3/4	19	1-9/64	28.8	10	150	40	600
11	1	25.4	1-3/8	35	10	150	40	600

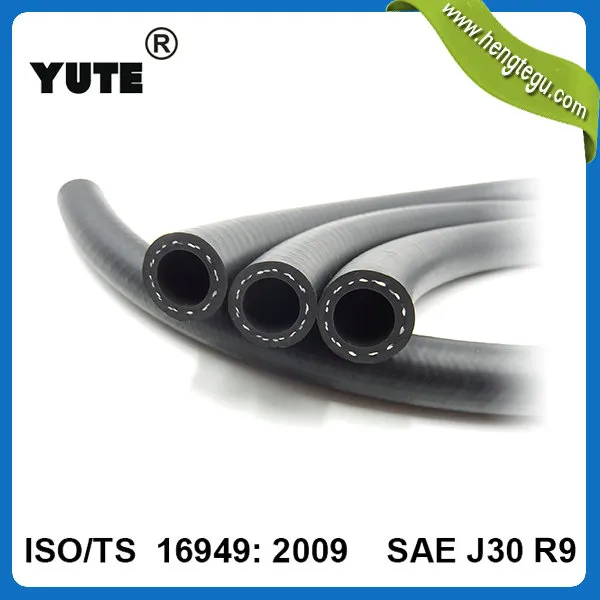

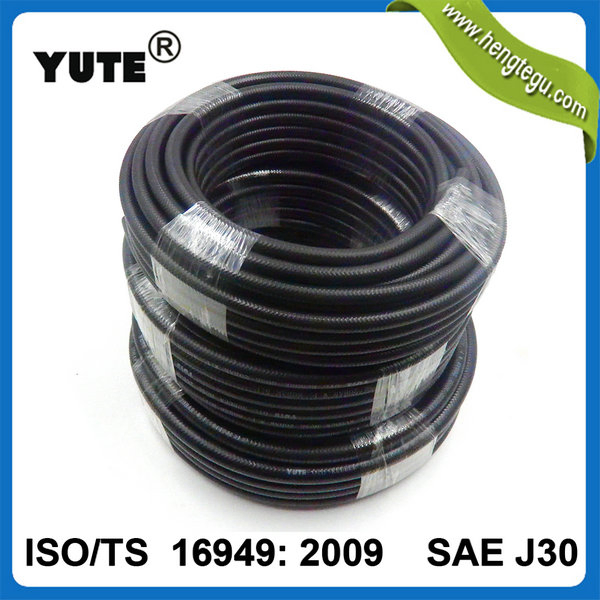

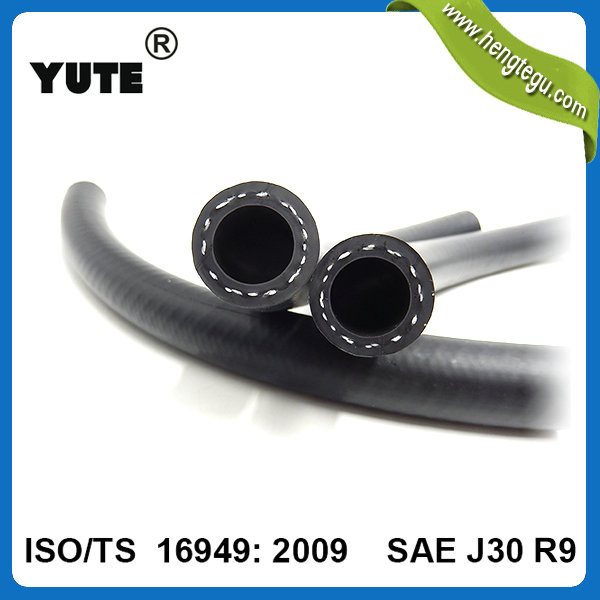

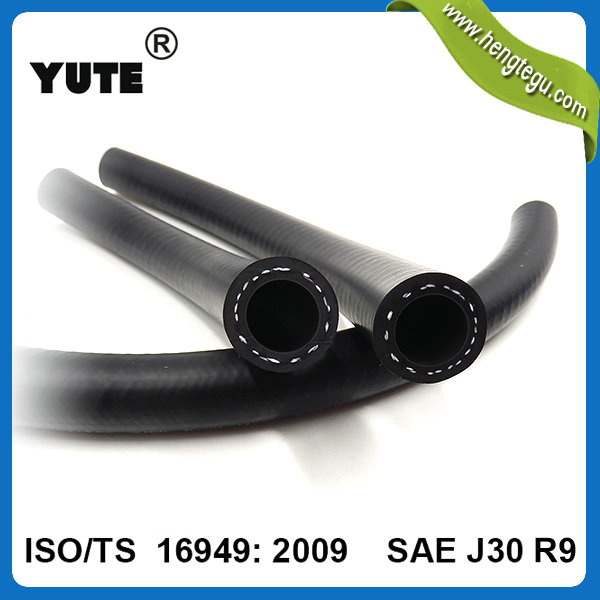

Product Display

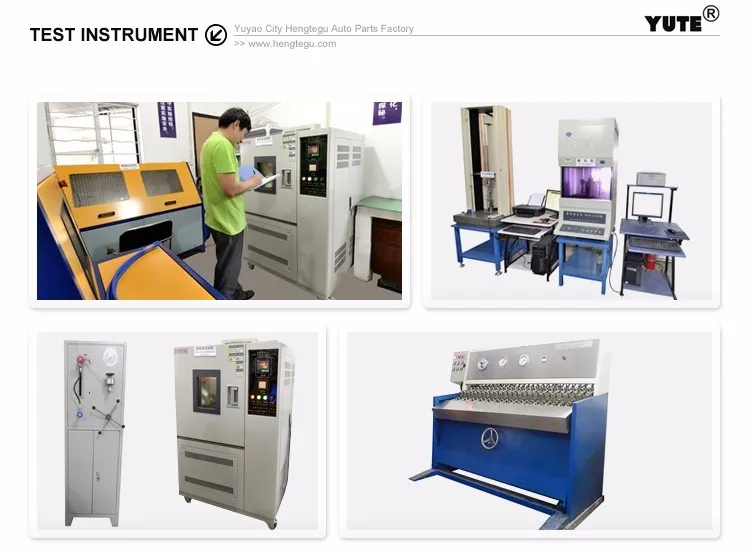

Quality & Certification

Trade Shows & Logistics

Our Services

✅

OEM Manufacturing available.

✅

Sample orders accepted for quality testing.

✅

Rapid inquiry response within 24 hours.

✅

Full logistics tracking and professional after-sales support.

Frequently Asked Questions

❓ What are the main applications for the FKM fuel injection hose?

It is designed for the transportation of gasoline, diesel, ethanol-extended fuels, and vapors in modern fuel injection systems.

❓ What standards does this hose comply with?

The hose meets the rigorous SAE J30R9 and DIN 73379 3E standards, ensuring high safety and performance.

❓ What is the temperature resistance of the hose?

The hose can operate safely in environments ranging from -40°C up to +135°C (-40°F to +275°F).

❓ What is the difference between the Working Pressure and Burst Pressure?

The Working Pressure (W.P.) is the normal operating limit of 300 PSI, while the Burst Pressure (B.P.) is the maximum safety limit of 1200 PSI.

❓ Do you offer customized production?

Yes, we can produce hoses according to your specific technical drawings or physical samples provided.

❓ How is the product packed for shipping?

Generally, goods are packed in neutral PVC film and brown cartons, but custom branded packaging is available with proper authorization.
