Transmission Fluid Oil Cooler Pressure Hose Pipe

Customization:	Available
Material:	Synthetic Rubber
Capability:	Transmission Fluid Systems

Send Inquiry

Product Description

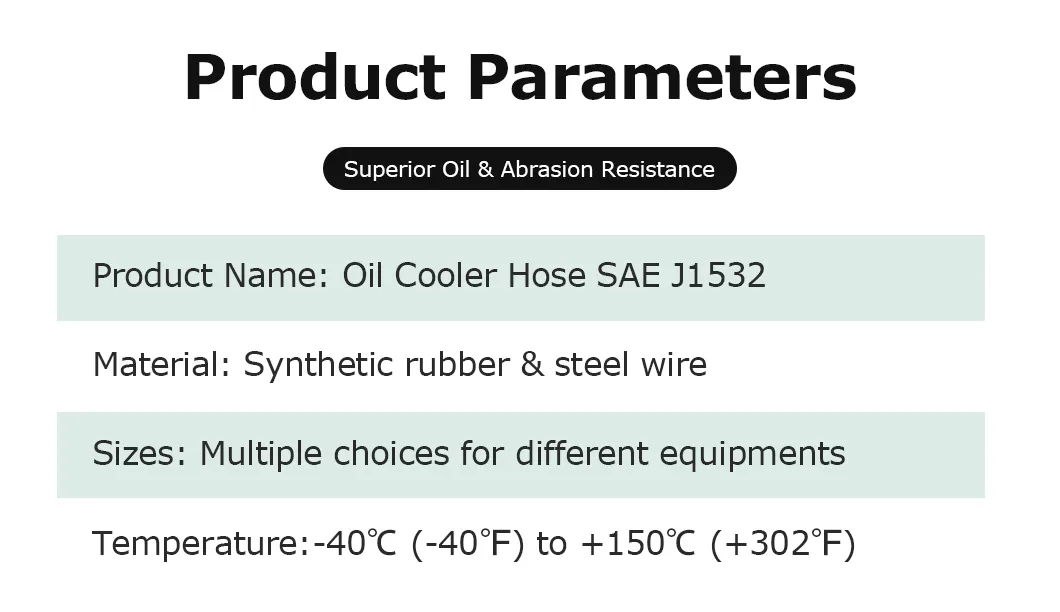

Basic Specifications

Model NO.SAE J1532

Product NameOil Cooler Hose SAE J1532

ColorBlack

TubeSynthetic Rubber

ReinforcementBraided, High-Tensile Steel Wire

CoverSynthetic Rubber

Working Pressure5.2/7 MPa

Burst Pressure17.5-42 MPa

Specification5.56mm-28.5mm

OriginChina

CharacteristicOil & Corrosion Resistance

Capacity500,000 Meters Per Month

Product Overview

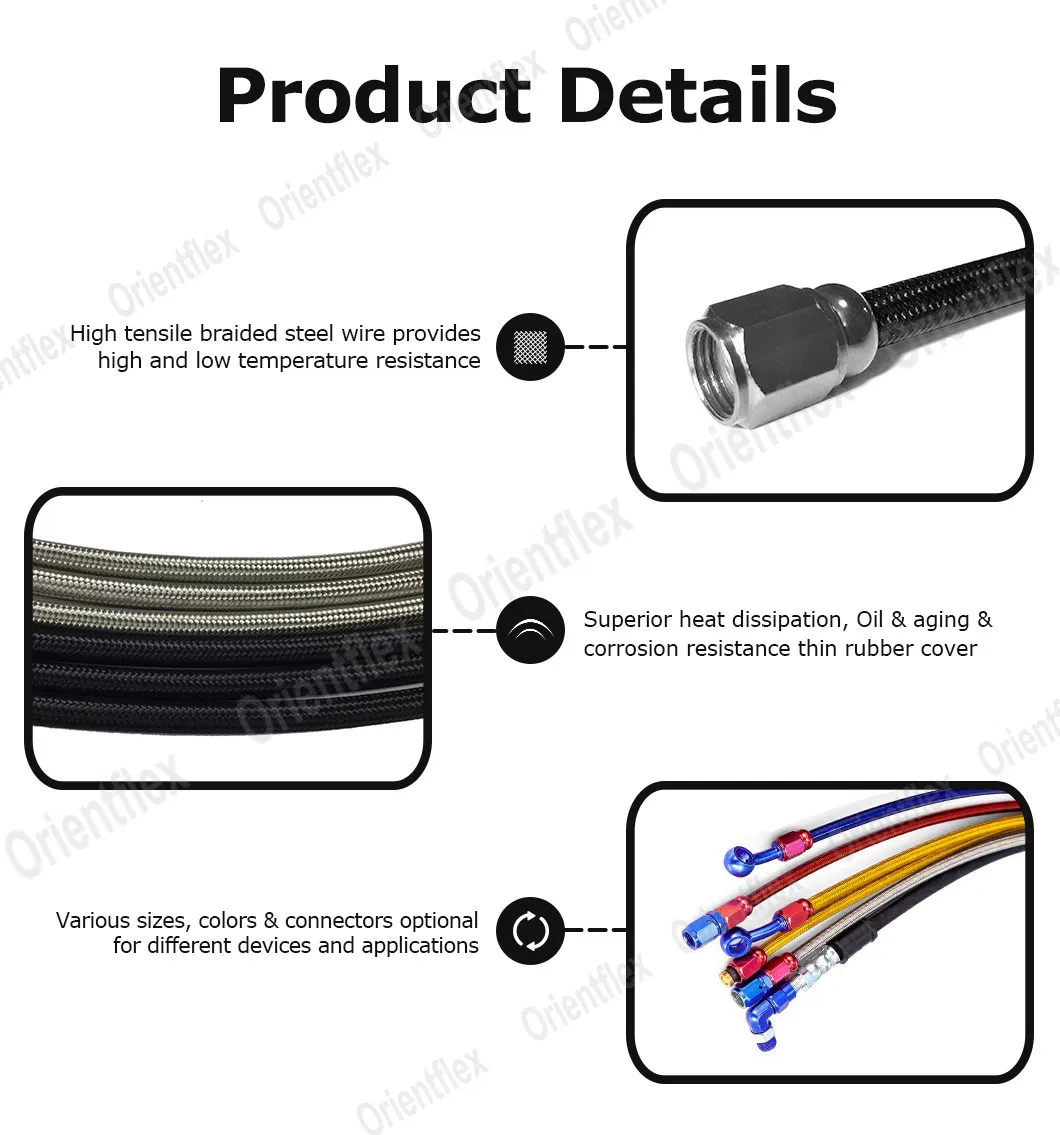

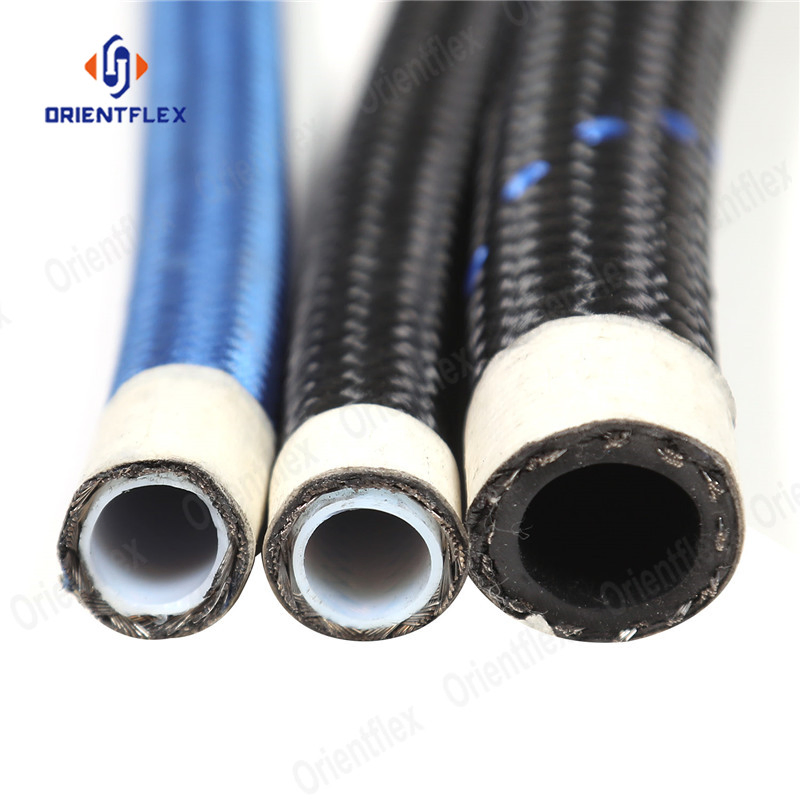

The oil cooler hose circulates oil between the oil cooler and engine, helping to keep the engine from overheating. A failure in this hose can lead to oil leaks or low oil warnings. This hose consists of a synthetic rubber inner tube reinforced with a high-tensile steel wire braid. The external stainless steel overbraid provides exceptional protection against abrasion while remaining lightweight and flexible.

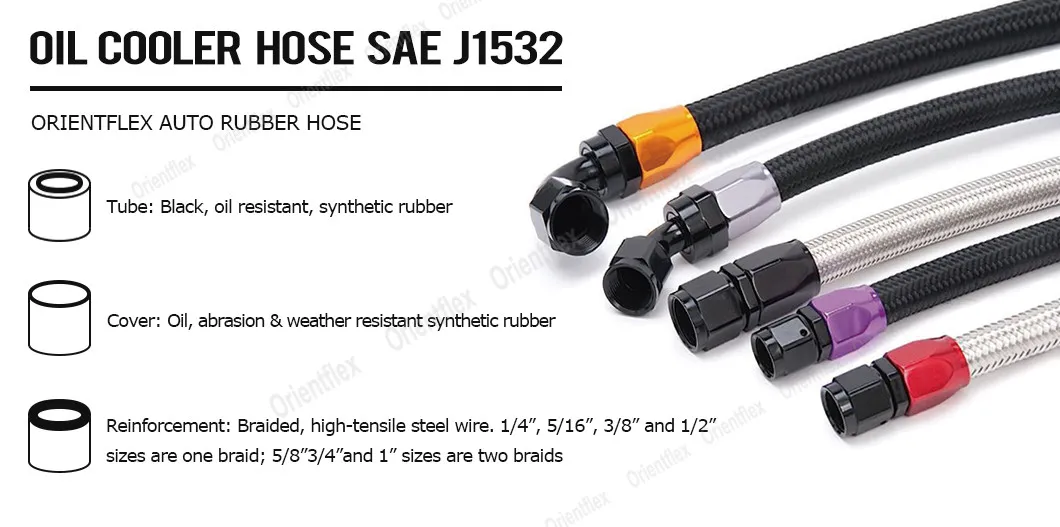

Construction Details:

Tube: Black, oil resistant, synthetic rubber.
Reinforcement: Braided, high-tensile steel wire (Single braid for 1/4" to 1/2"; Double braid for 5/8" to 1").
Cover: Black synthetic rubber, resistant to oil, abrasion, and weather.
Temperature Range: -104 ºF to + 302 ºF (-40ºC to + 150 ºC).

Technical Parameters

Item Code	I.D (mm)	O.D (mm)	W.P (Mpa)	B.P (Mpa)
An04	5.56	11.13	7	42
An06	8.73	13.89	7	42
An08	11.12	16.28	7	35
An10	14.27	20.24	7	35
An12	17.47	23.82	7	26.3
An16	22.22	29.96	5.2	17.5
An20	28.5	35.81	5.2	17.5

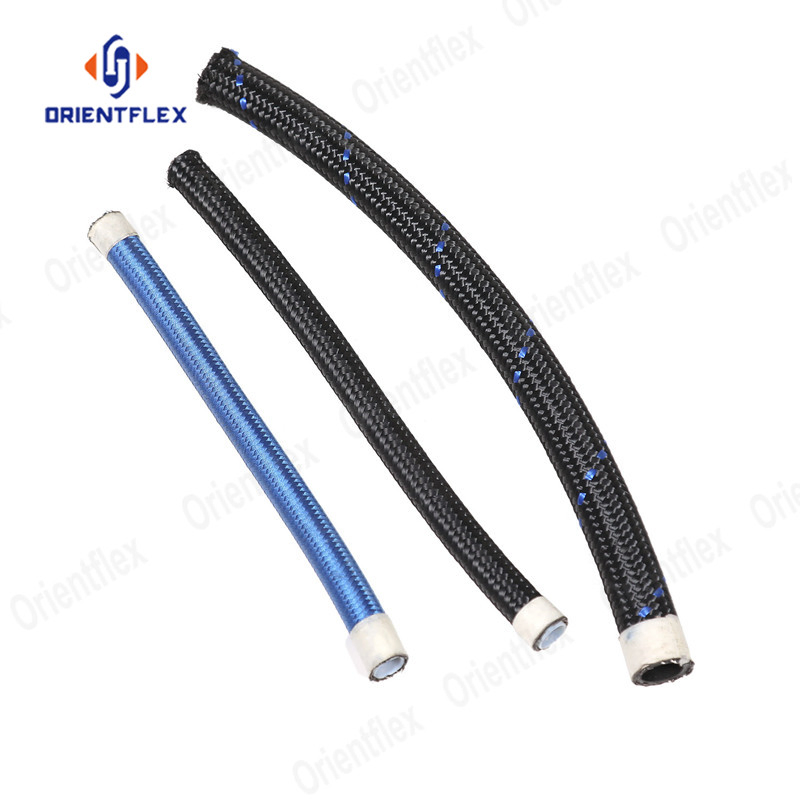

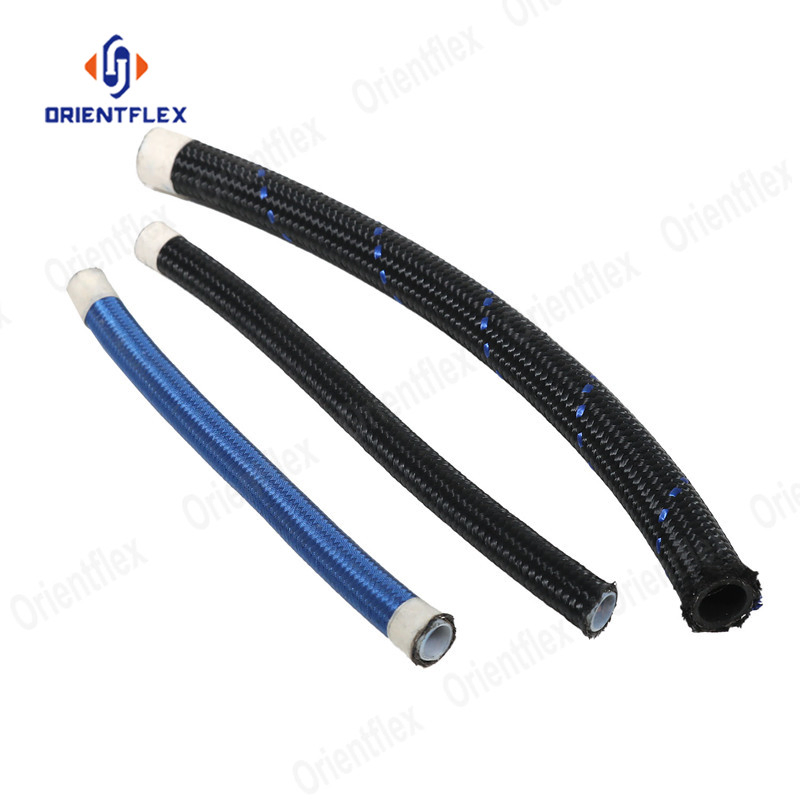

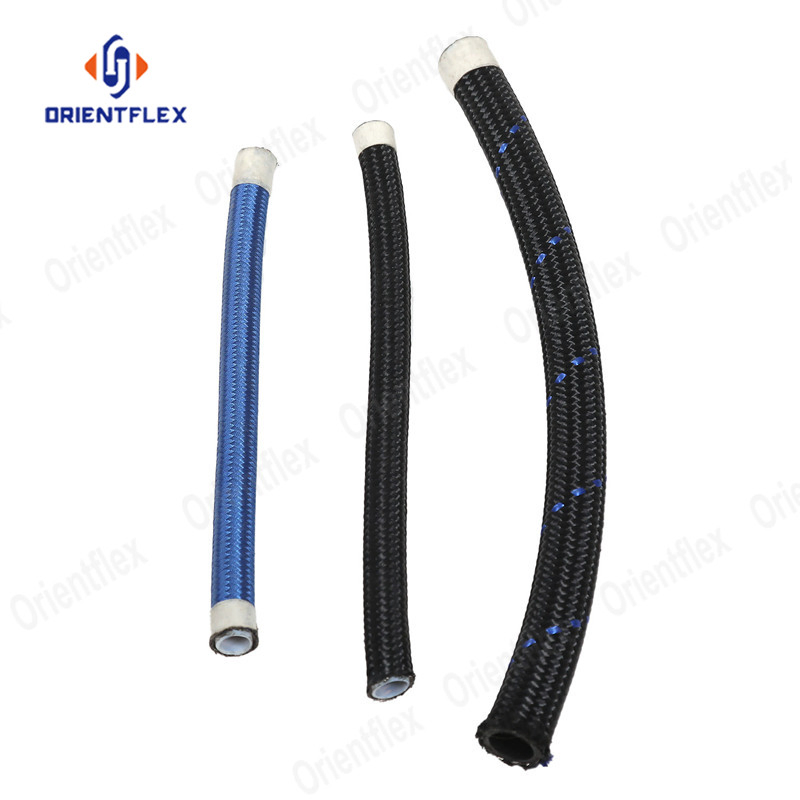

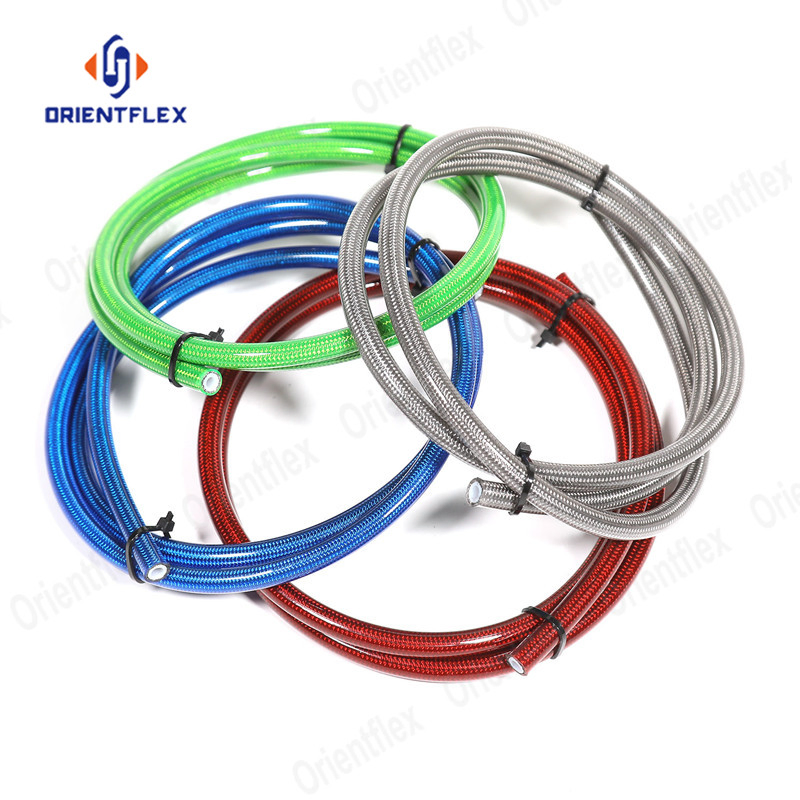

Visual Display

Frequently Asked Questions

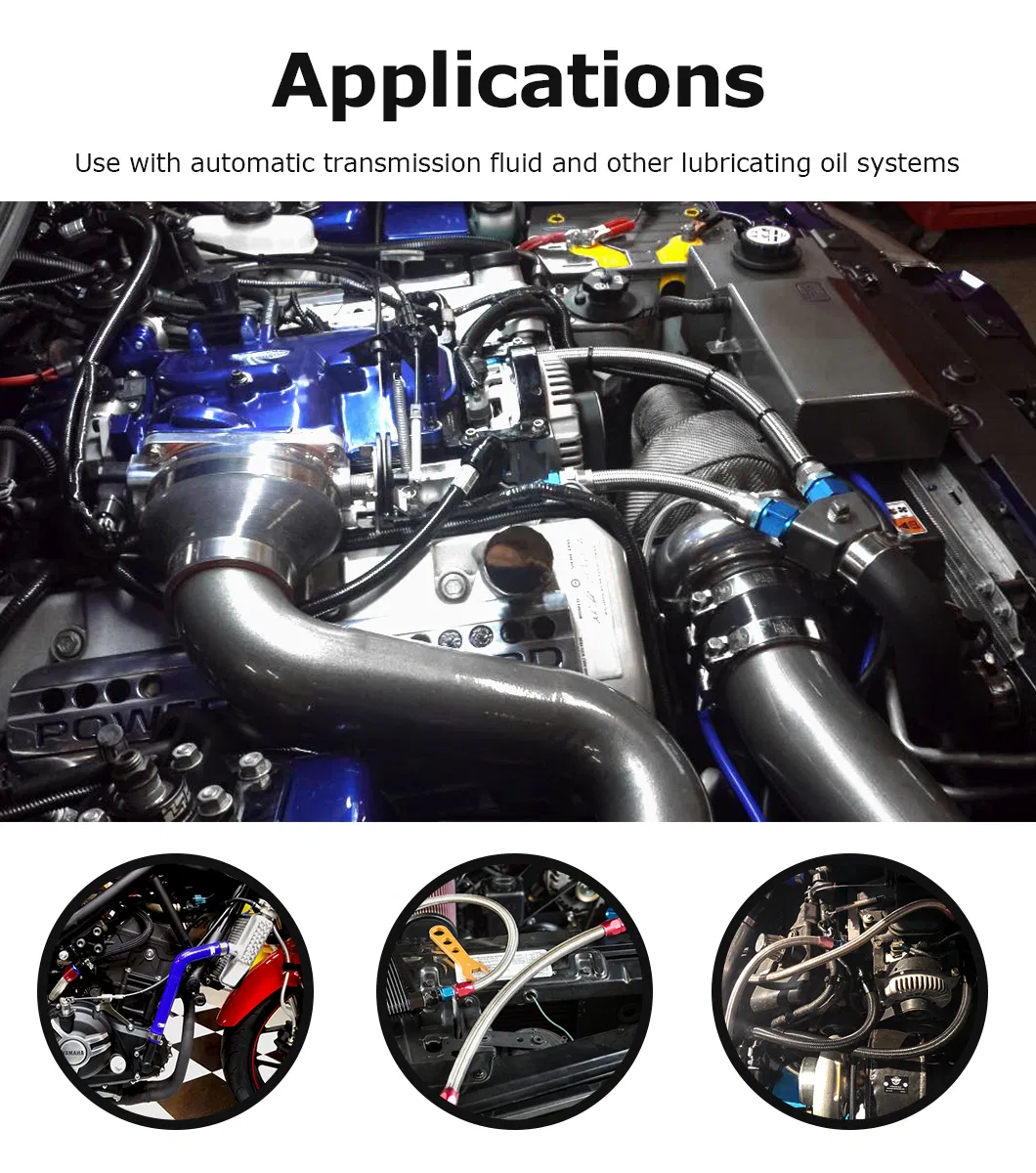

1. What is the primary use of the SAE J1532 oil cooler hose? It is designed to circulate oil between the oil cooler and the engine in automatic transmission systems and other lubricating oil systems to prevent engine overheating.

2. What are the temperature limits for this hose? The hose is built to withstand extreme temperatures ranging from -40ºC to +150ºC (-104 ºF to + 302 ºF).

3. How is the reinforcement layer constructed? The reinforcement consists of braided, high-tensile steel wire. Smaller sizes (1/4" to 1/2") use a single braid, while larger sizes (5/8" to 1") feature a double braid for added strength.

4. Is the hose resistant to environmental factors? Yes, the outer cover is made of a specialized synthetic rubber that provides excellent resistance to oil, abrasion, and various weather conditions.

5. Can the hose length be customized for specific orders? Yes, we provide the hose in lengths tailored to your specific requirements.

6. What is the production capacity for this product? We maintain a high production capacity of approximately 500,000 meters per month to ensure steady supply.
