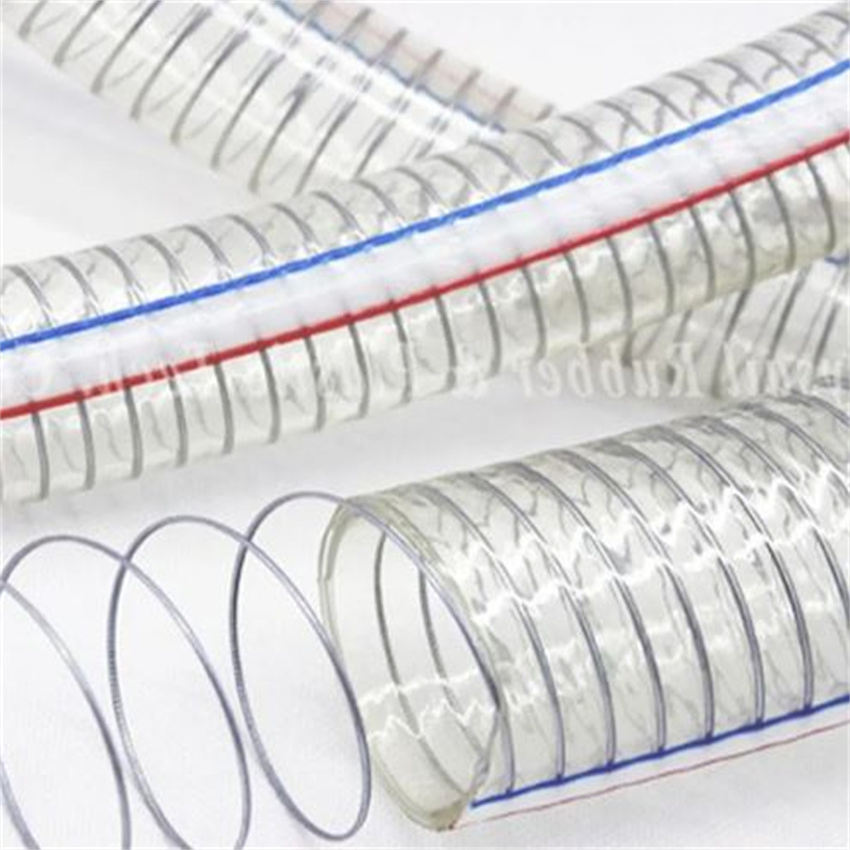

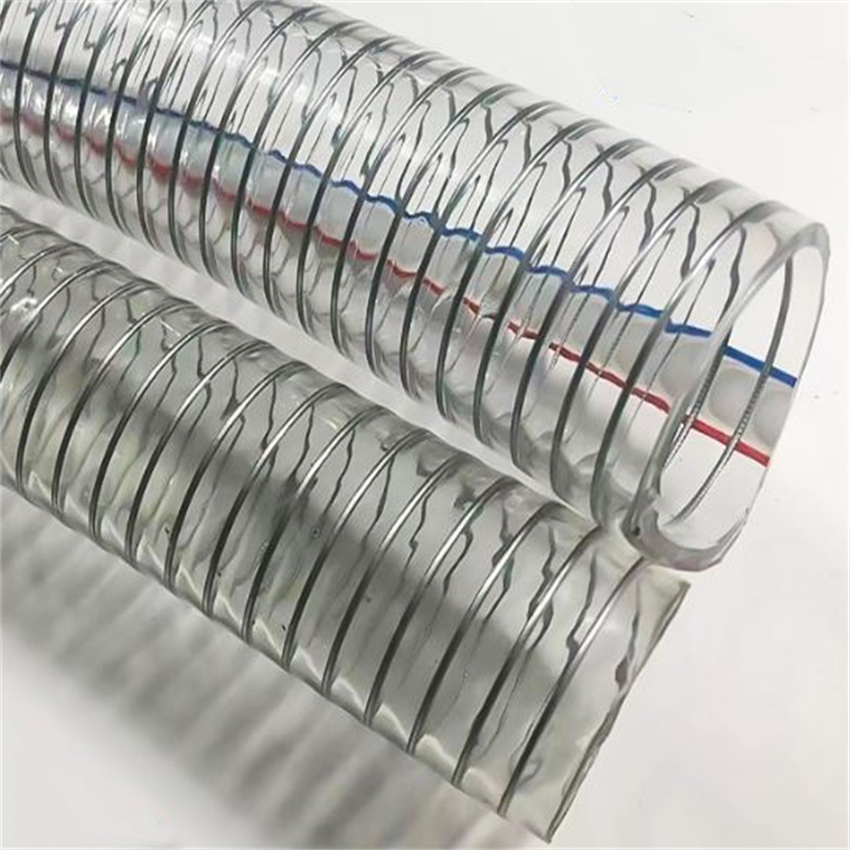

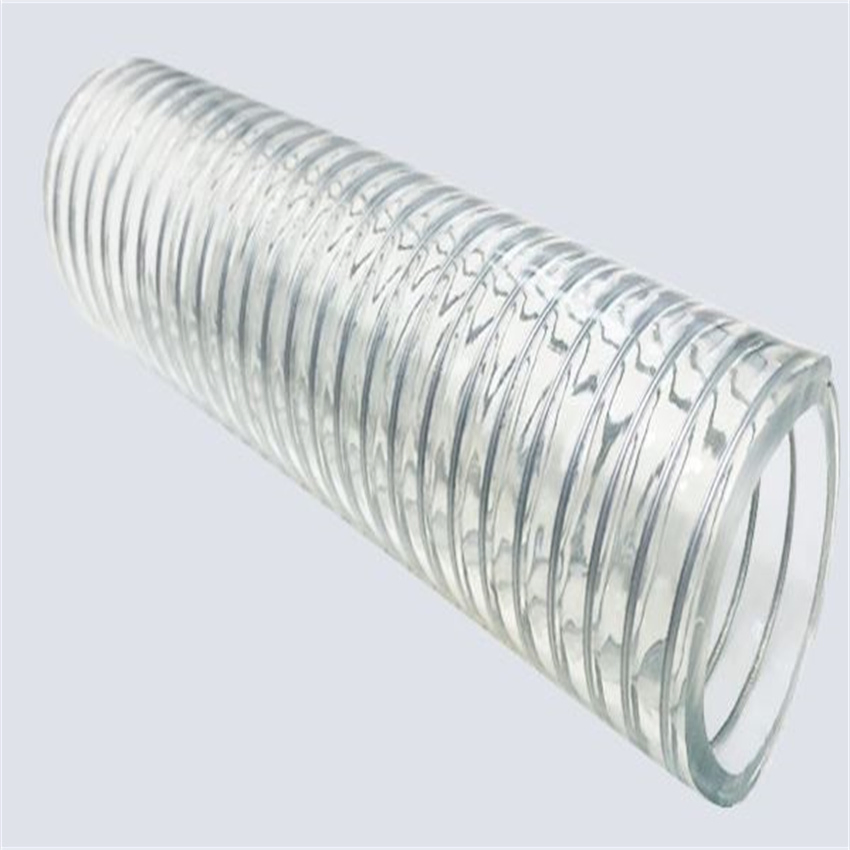

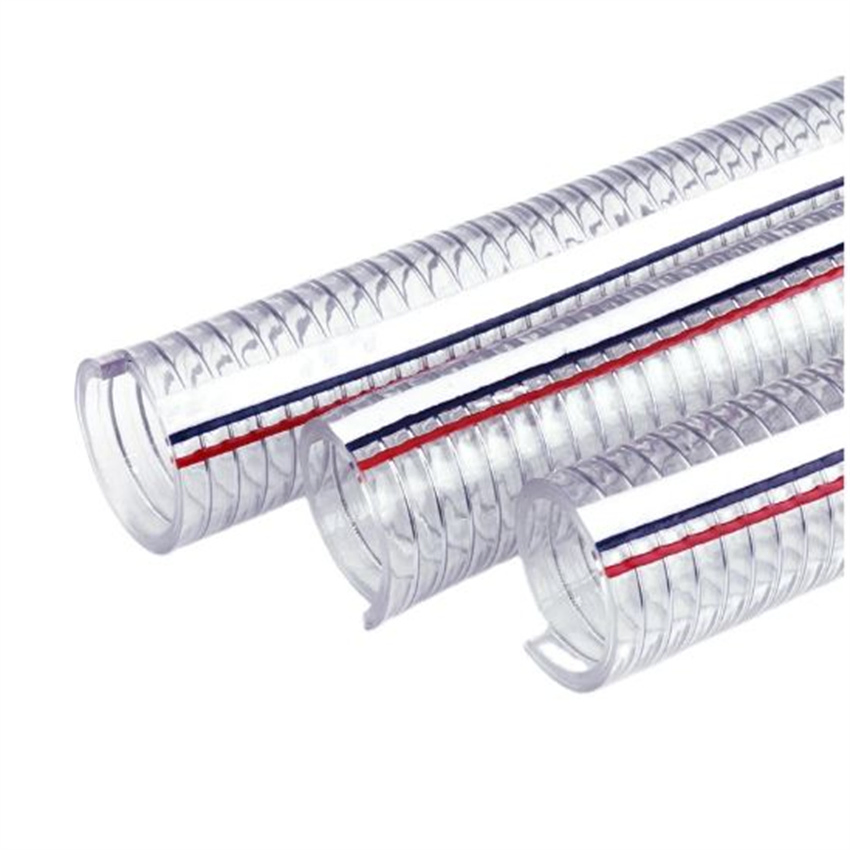

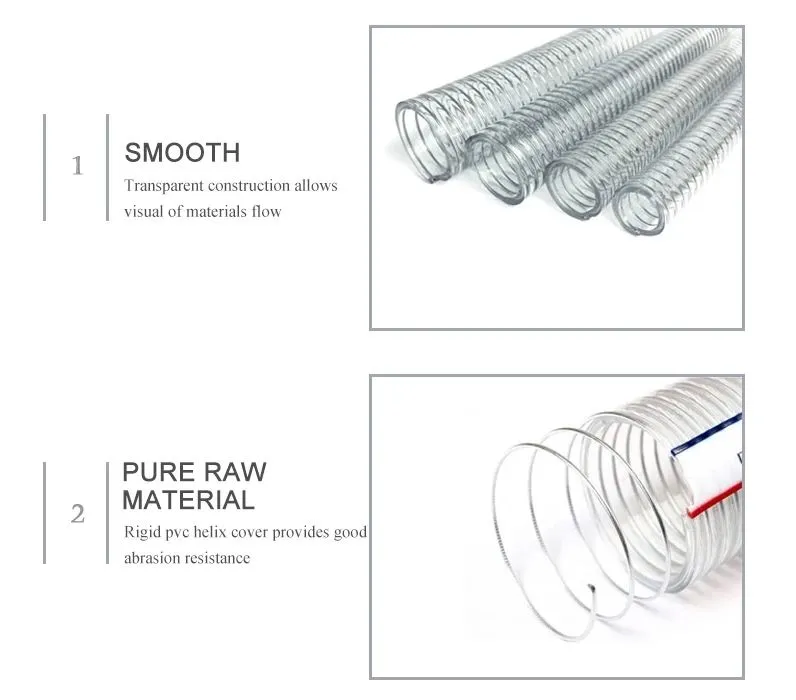

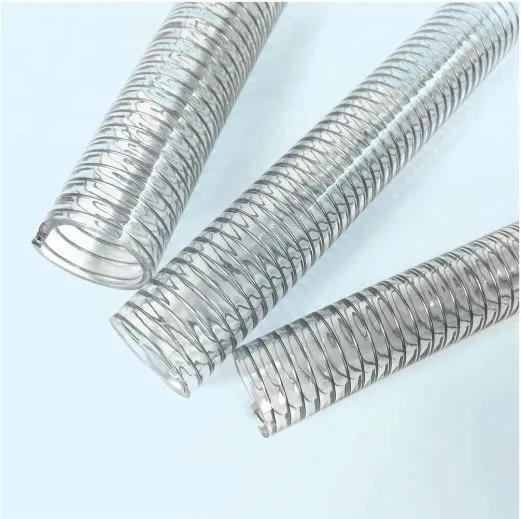

Wire reinforced PVC Hose is suitable for a range of applications including delivery of food, water chemicals or other waste materials. Constructed from clear PVC with a high tensile steel helix and is water resistant, durable, smooth bore, good abrasion, rot and chemical resistance, good crush and kink resistance. Preferable for the suction and delivery of water, and dilute chemicals.

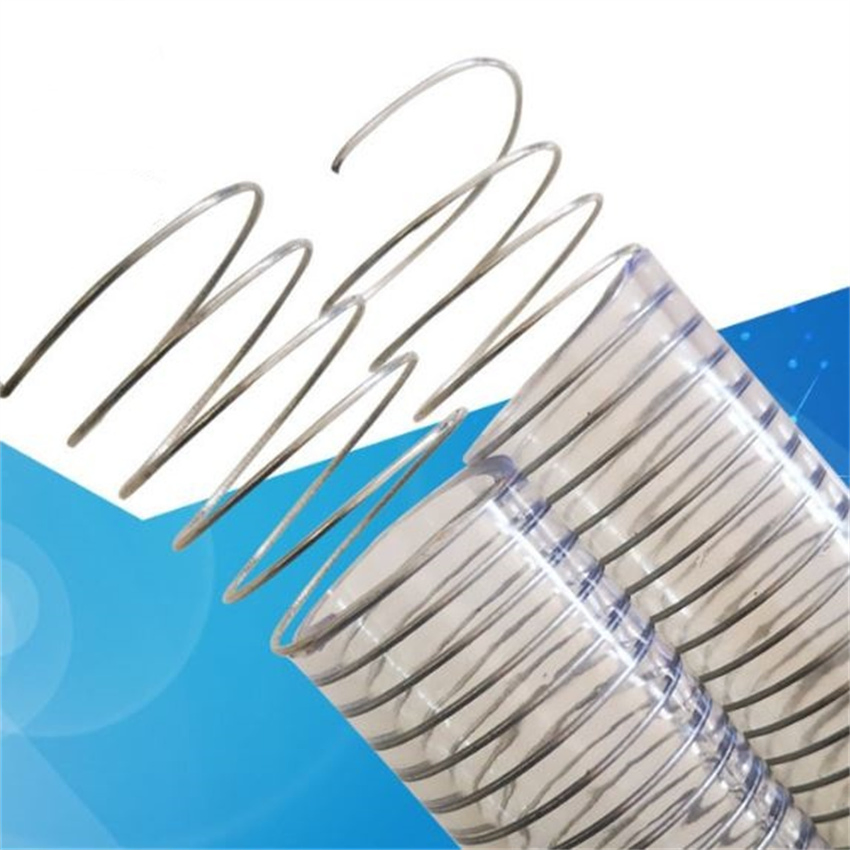

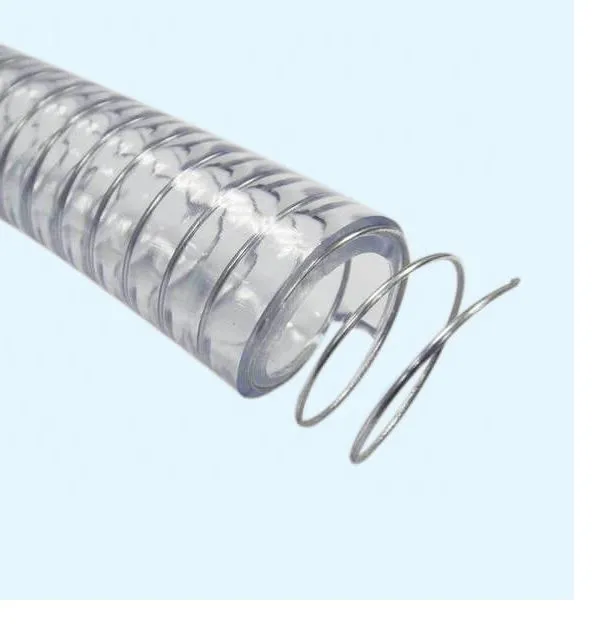

Suction and delivery hoses, otherwise simply known as S&D hoses or suction and discharge hoses, can not only transfer media from one location to another via gravity, but they also use negative pressure to act more like a vacuum without collapsing, crushing or kinking under the pressure. Manufactured from flexible PVC with a high-tensile carbon steel wire helix, this suction and delivery hose is suitable for transferring industrial liquids and food products.
Widely used in water supply & draining for equipment under normal pressure condition in factory equipment farm irrigation, Pneumatic machine air hose, high pressure cleaning equipment, engine parts, heavy machine and construction site, etc.
| Size (inch) | ID (mm) | OD (mm) | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (g/m) | Length (m/roll) | Volume (m³/roll) |
|---|---|---|---|---|---|---|---|
| 1/2'' | 12 | 18 | 8 | 24 | 210 | 100 | 0.045 |
| 5/8'' | 15 | 21 | 6 | 18 | 260 | 100 | 0.075 |
| 3/4'' | 19 | 25 | 6 | 18 | 320 | 50 | 0.050 |
| 1'' | 25 | 31 | 6 | 18 | 450 | 50 | 0.068 |
| 1-1/2'' | 38 | 45 | 6 | 18 | 700 | 50 | 0.182 |
| 2'' | 50 | 58 | 5 | 15 | 1200 | 50 | 0.292 |
| 3'' | 76 | 86 | 4 | 12 | 2000 | 30 | 0.385 |
| 4'' | 102 | 112 | 4 | 12 | 3000 | 30 | 0.648 |
| Size (inch) | ID (mm) | OD (mm) | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (g/m) | Length (m/roll) |
|---|---|---|---|---|---|---|
| 3/8'' | 9 | 14 | 8 | 24 | 150 | 100 |
| 1/2'' | 12 | 17 | 6 | 18 | 170 | 100 |
| 3/4'' | 19 | 24 | 5 | 15 | 250 | 50 |
| 1'' | 25 | 30 | 4 | 12 | 350 | 50 |
| 2'' | 50 | 56 | 3 | 10 | 850 | 50 |
| Size (inch) | ID (mm) | OD (mm) | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (g/m) | Length (m/roll) |
|---|---|---|---|---|---|---|
| 1/4'' | 6 | 11 | 8 | 24 | 115 | 100 |
| 1/2'' | 12 | 18 | 8 | 24 | 210 | 100 |
| 1'' | 25 | 32 | 6 | 18 | 500 | 50 |
| 2'' | 50 | 60 | 5 | 15 | 1350 | 50 |
| 4'' | 102 | 116 | 4 | 12 | 3800 | 30 |

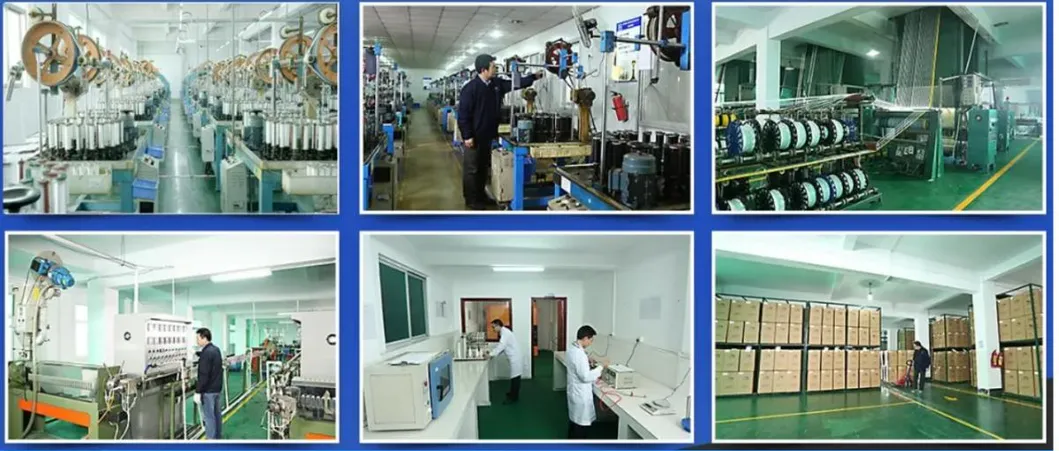

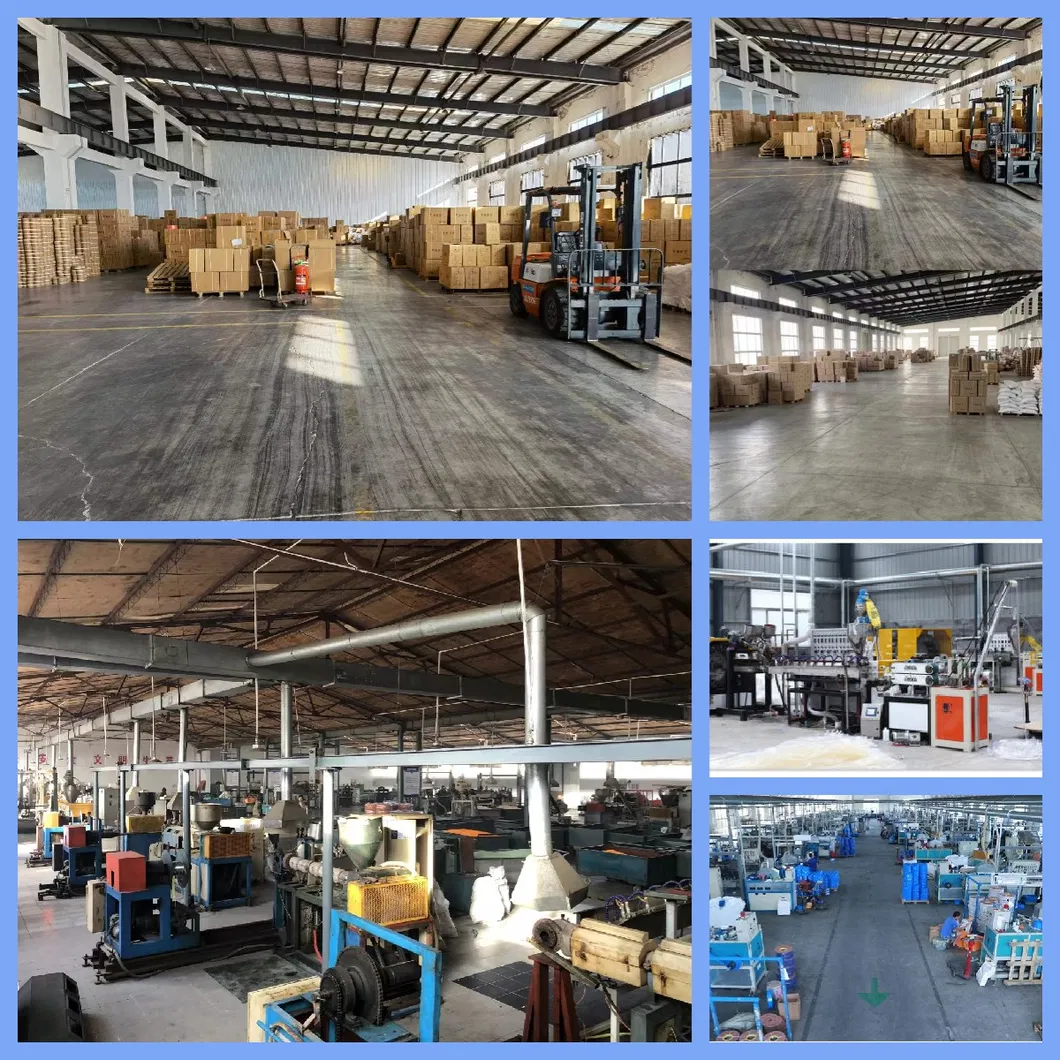

The company has focused on professional hose solutions, integrating production, sales, and scientific research into polymer composite plastic products. Our product range includes pneumatic hoses, high-pressure hoses, air-fluid hoses, garden hoses, fire hoses, steel wire hoses, and hundreds of varieties of dust and ventilation pipes. We adhere to the principles of "quality first, service first, continuous improvement and innovation" and aim for "zero defects, zero complaints" as our quality objective.
