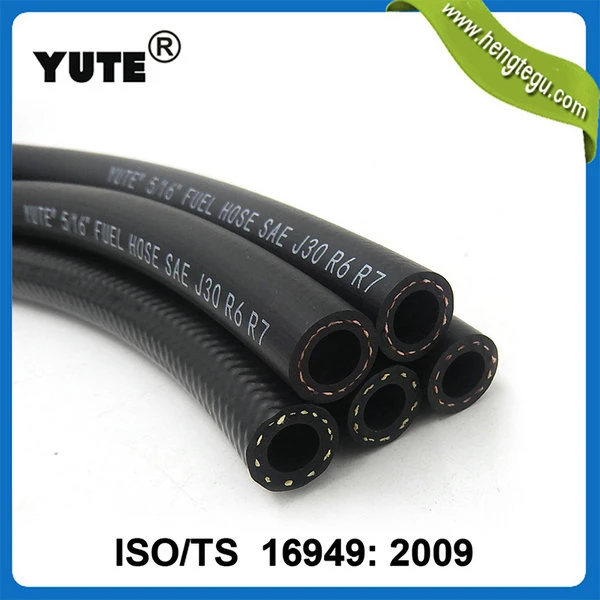

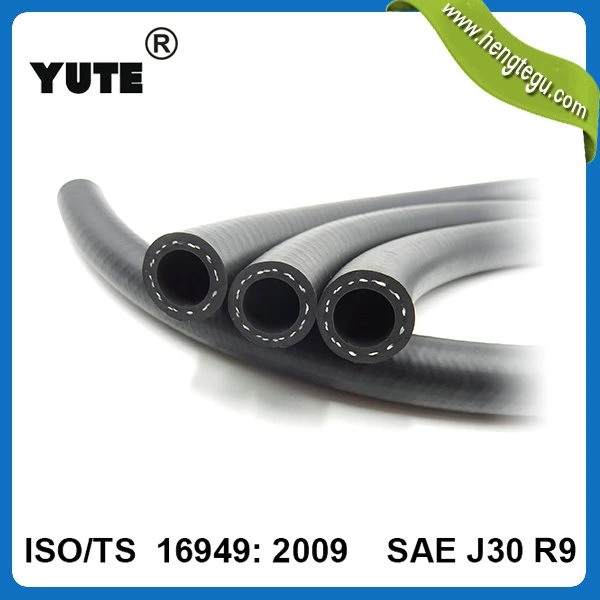

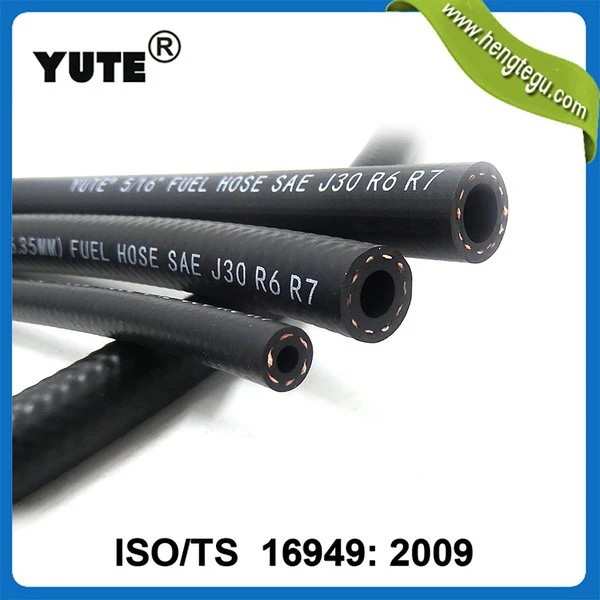

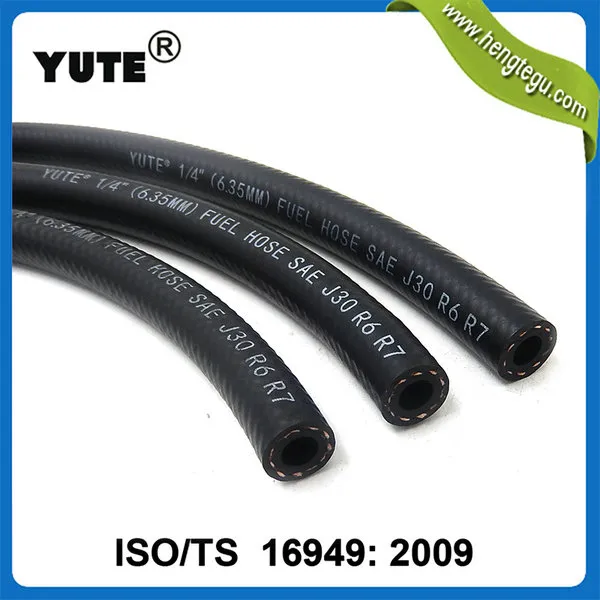

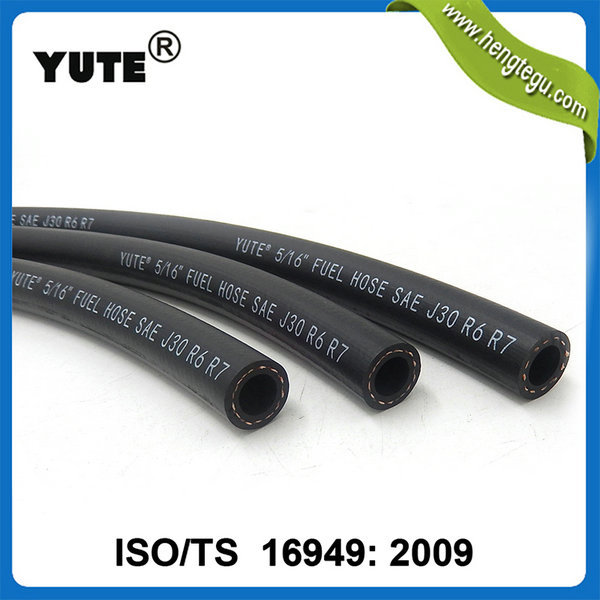

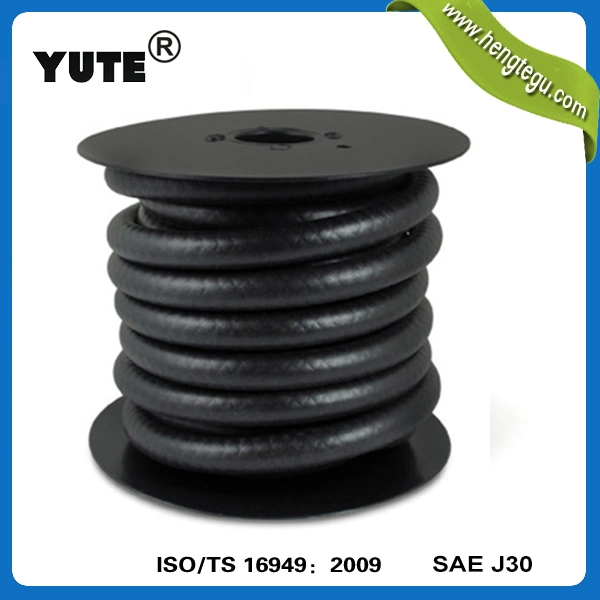

5/8 Inch Gasoline SAE J30 R9 Fuel Injection Hose
Standard Compliance: SAE J 30R9, DIN 73379 3E. All products are tested according to SAE J30 requirements, including oil resistance, high/low temperature tests, and burst pressure testing.
| No. | I.D (Inch) | I.D (mm) | O.D (mm) | W.P (PSI) | B.P (PSI) |
|---|---|---|---|---|---|
| 1 | 1/8 | 3.2 | 9 | 300 | 1200 |
| 2 | 5/32 | 4 | 10 | 300 | 1200 |
| 3 | 3/16 | 4.8 | 11 | 300 | 1200 |
| 4 | 1/4 | 6.3 | 12.7 | 300 | 1200 |
| 5 | 5/16 | 7.9 | 14 | 300 | 1200 |
| 6 | 3/8 | 9.5 | 16 | 300 | 1200 |
| 7 | 15/32 | 12 | 19 | 300 | 1200 |
| 8 | 1/2 | 12.7 | 20 | 300 | 1200 |
| 9 | 5/8 | 16 | 24 | 150 | 600 |
| 10 | 3/4 | 19 | 28.8 | 150 | 600 |
| 11 | 1 | 25.4 | 35 | 150 | 600 |
