Yute 3/8 Inch 9.5mm Fuel Hose for Diesel Injection

1 / 5

Yute 3/8 Inch 9.5mm Fuel Hose for Diesel Injection

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.: 3/8 inch

Product Name: Fuel Hose

Color: Black

Capability: Oil Resistant

Working Pressure: 300 Psi

Burst Pressure: 1200 Psi

Temperature: -40 - +125 Degree

Standard: SAE J30r7

Warranty: 2 Years

MOQ: Accept Small Order

🔍

Product Description

3/8 inch 9.5mm Fuel Hose for Diesel Injection

Applications: Apply to convey gasoline, diesel and lubricating oil or the vapors present in either the fuel system or in the crankcase of internal combustion engines.

Construction:

Tube: Oil -, Fuel-resistant synthetic rubber compound

Reinforcement: High tensile braided fiber

Cover: Suitable oil-, ozone-, and heat-resistant synthetic rubber compound

Temperature: -40ºC~+125ºC (-40 ºF~ +257 ºF)

No.	I.D			O.D			W.P		B.P
No.	inch	mm	Tolerance	inch	mm	Tolerance	Bar	PSI	Bar	PSI
1	1/8	3.2	±0.3	23/64	9	±0.3	20	300	80	1200
2	5/32	4	±0.3	25/64	10	±0.3	20	300	80	1200
3	3/16	4.8	±0.3	7/16	11	±0.3	20	300	80	1200
4	1/4	6.3	±0.3	1/2	12.7	±0.4	20	300	80	1200
5	5/16	7.9	±0.4	35/64	14	±0.5	20	300	80	1200
6	3/8	9.5	±0.4	5/8	16	±0.5	20	300	80	1200
7	15/32	12	±0.4	3/4	19	±0.5	20	300	80	1200
8	1/2	12.7	±0.5	25/32	20	±0.6	20	300	80	1200
9	5/8	16	±0.5	61/64	24	±0.6	10	150	40	600
10	3/4	19	±0.6	1-9/64	28.8	±0.8	10	150	40	600
11	1	25.4	±0.8	1-3/8	35	±1	10	150	40	600

🖼️

Visual Display

❓

Frequently Asked Questions

What is the main application of this fuel hose?

This hose is designed to convey gasoline, diesel, lubricating oil, or vapors in fuel systems and crankcases of internal combustion engines.

What is the working and burst pressure rating?

The standard working pressure is 300 Psi, with a burst pressure rating of up to 1200 Psi for sizes up to 1/2 inch.

Does this hose meet international standards?

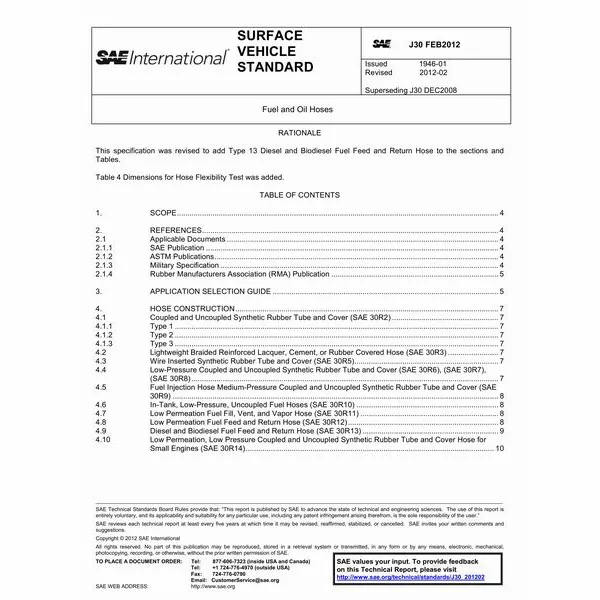

Yes, the fuel hose is manufactured according to the SAE J30R7 standard, ensuring high performance and safety.

What is the temperature resistance of the hose?

The hose can operate effectively in temperatures ranging from -40ºC to +125ºC (-40ºF to +257ºF).

What materials are used in its construction?

It features an oil-resistant synthetic rubber tube, high-tensile braided fiber reinforcement, and an ozone/heat-resistant synthetic rubber cover.

Are custom sizes or OEM services available?

Yes, we provide professional OEM services and offer a range of sizes from 1/8 inch to 1 inch.

Yute 3/8 Inch 9.5mm Fuel Hose for Diesel Injection

Product Description

Basic Information

Product Description

Visual Display

Frequently Asked Questions
