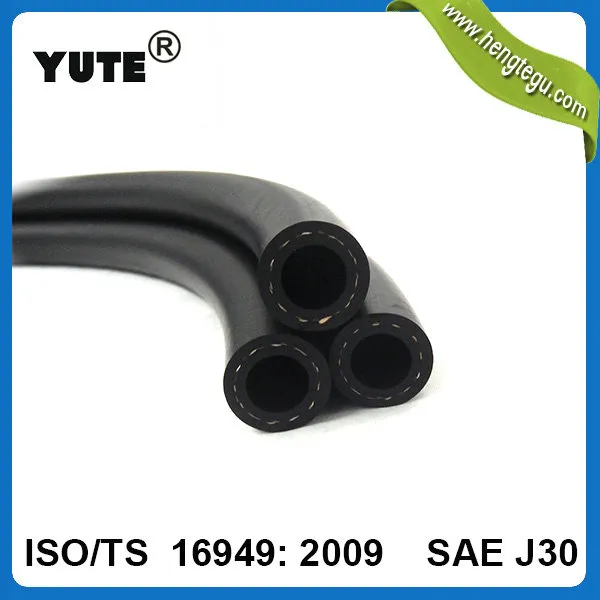

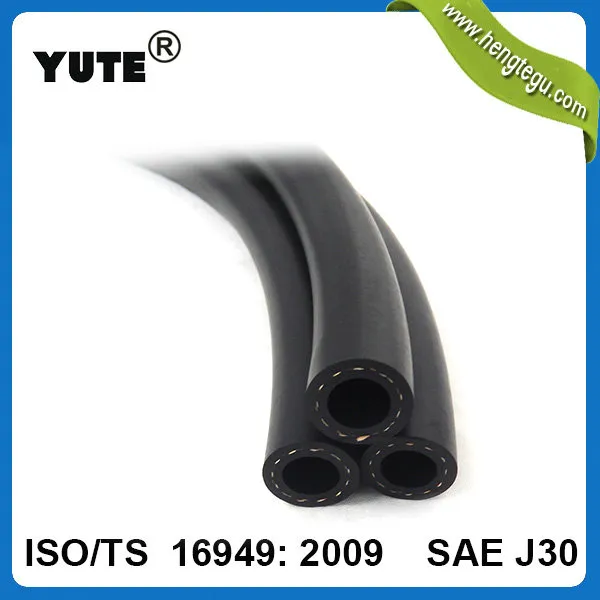

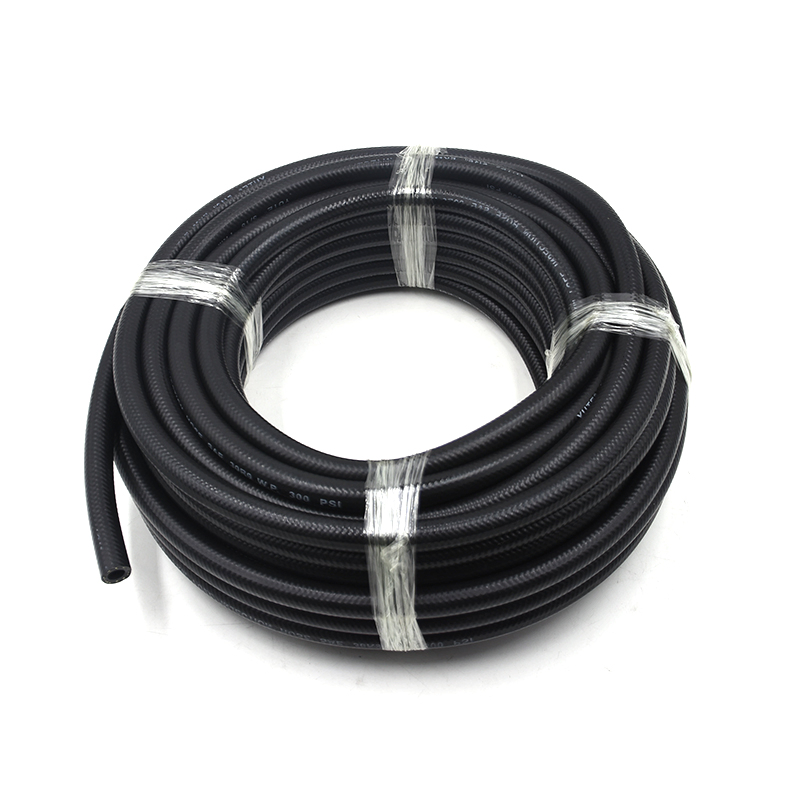

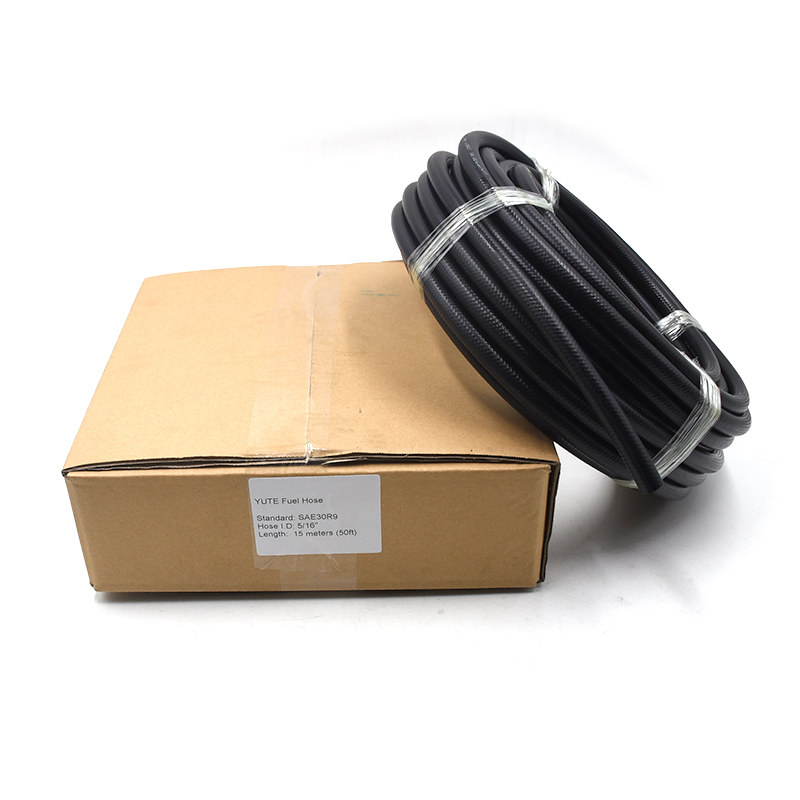

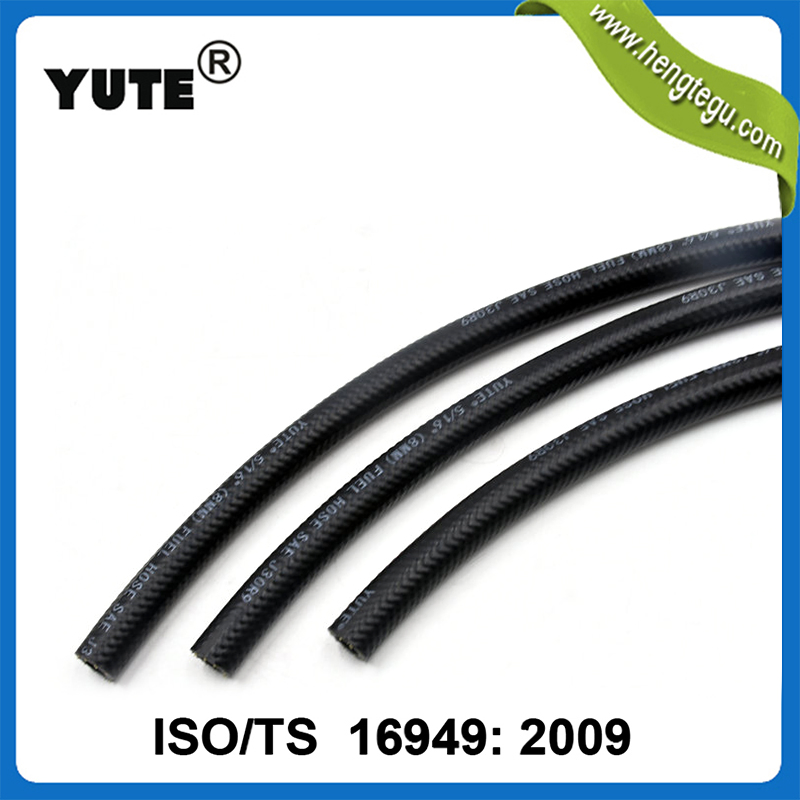

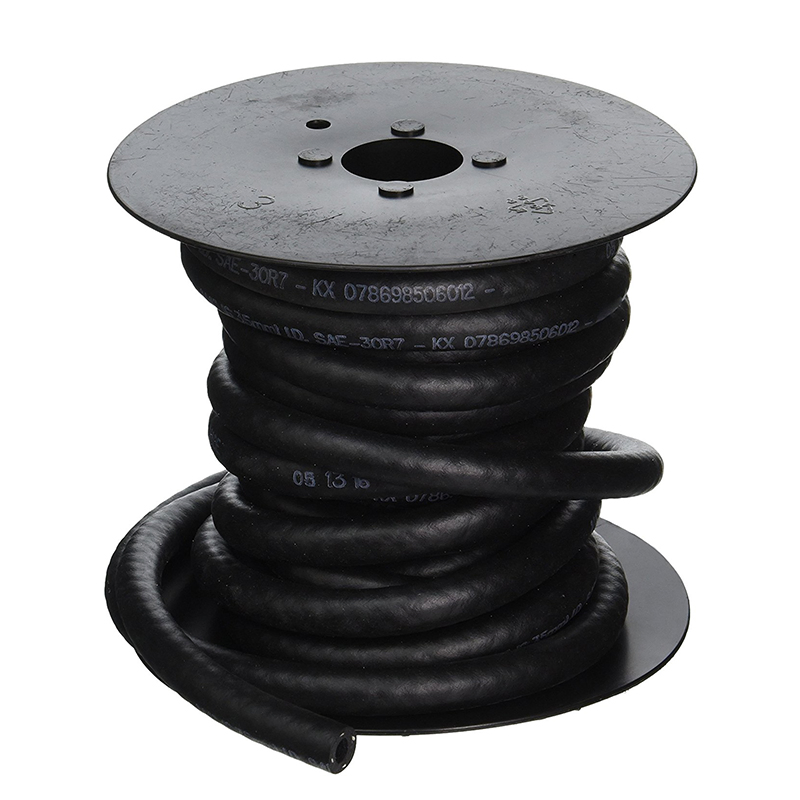

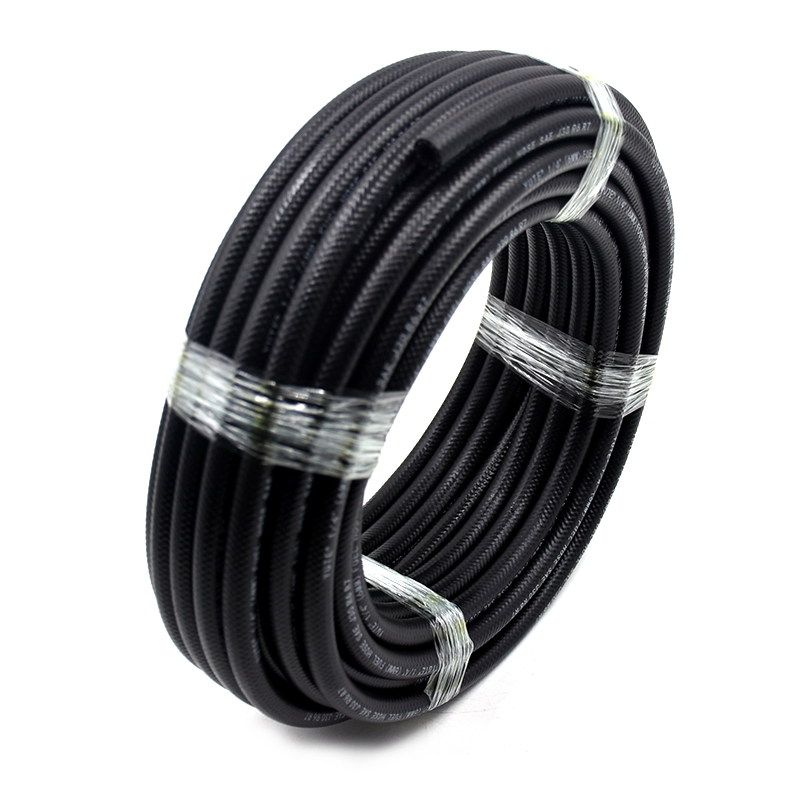

Yute SAE J30r9 Fuel Injection Hose 5/16"

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Model NO.

5/16"

Color

Black

Standard

SAE J30r9

Size Range

1/4"; 5/16"; 3/8"

Working Pressure

300 PSI

Burst Pressure

900 PSI

Temperature

-40~135 °C

Aging Time

72 H

Capacity

30000 Meters Per Day

HS Code

4009420000

Designed specially for auto and truck fuel injection systems.
Compatible with gasoline, diesel, bio-diesel, E-85, methanol, ethanol, ethanol extended gasoline, and gasohol fuels.
Temperature rating: -40° F to 275° F (-40° C to 135° C).
Meets SAE 30R9 specification.
Note: Do not submerse in gasoline.

Tube

FKM

Buffer

ECO/CSM

Reinforcement

Aramid Spiral

Cover

ECO/CSM

Part NO.	I.D		O.D		Working Pressure		Burst Pressure
Part NO.	inch	mm	inch	mm	PSI	MPa	PSI	MPa
6001	1/8	3.2	0.35	9	225	1.55	900	6.2
6003	3/16	5	0.43	11	225	1.55	900	6.2
6005	1/4	6	0.5	13	225	1.55	900	6.2
6007	5/16	8	0.6	14	225	1.55	900	6.2
6009	3/8	9.5	0.63	16	225	1.55	900	6.2
6011	1/2	12.7	0.8	20	225	1.55	900	6.2
6013	5/8	15.9	24	0.95	225	1.55	900	6.2
6015	3/4	19	28	1.1	225	1.55	900	6.2
6017	1	25.4	30	1.2	225	1.55	900	6.2
