1 / 5

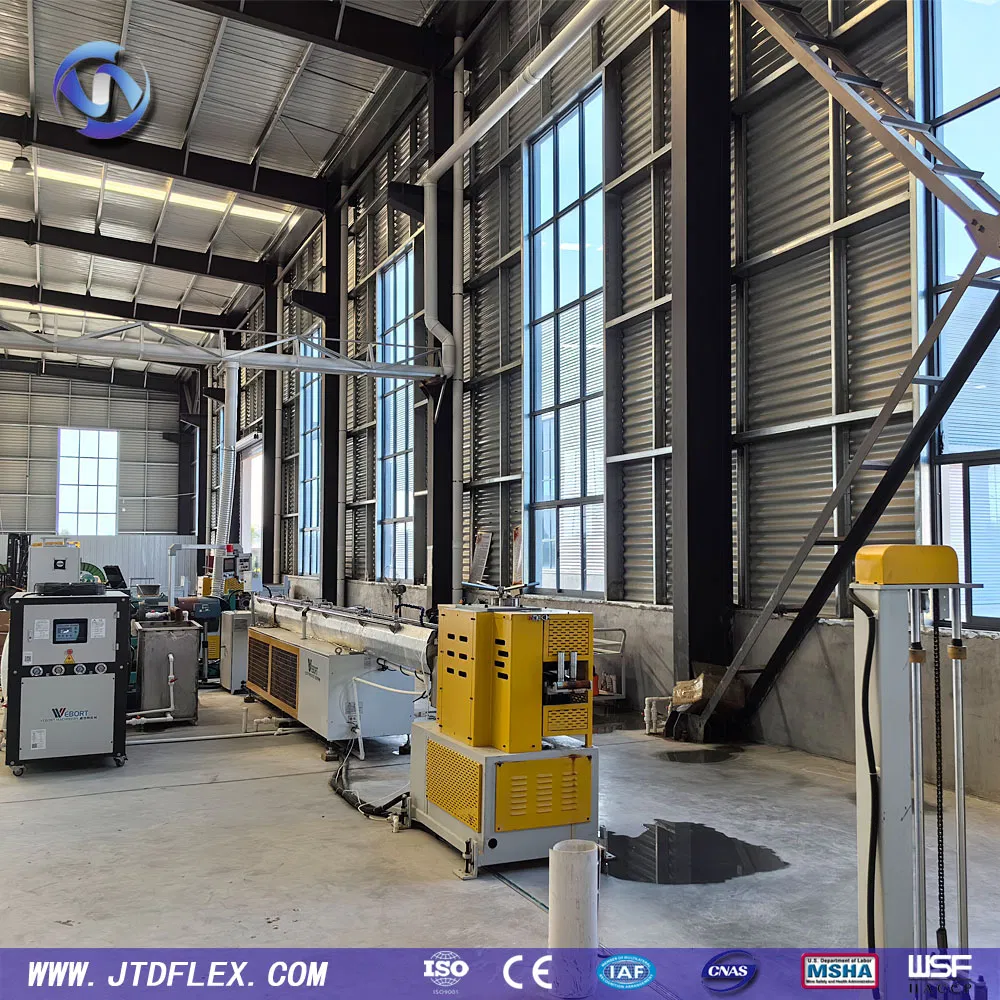

With more than 20 years of experience in hydraulic hose production since 1999. We operate three specialized factories for rubber mixing and production.

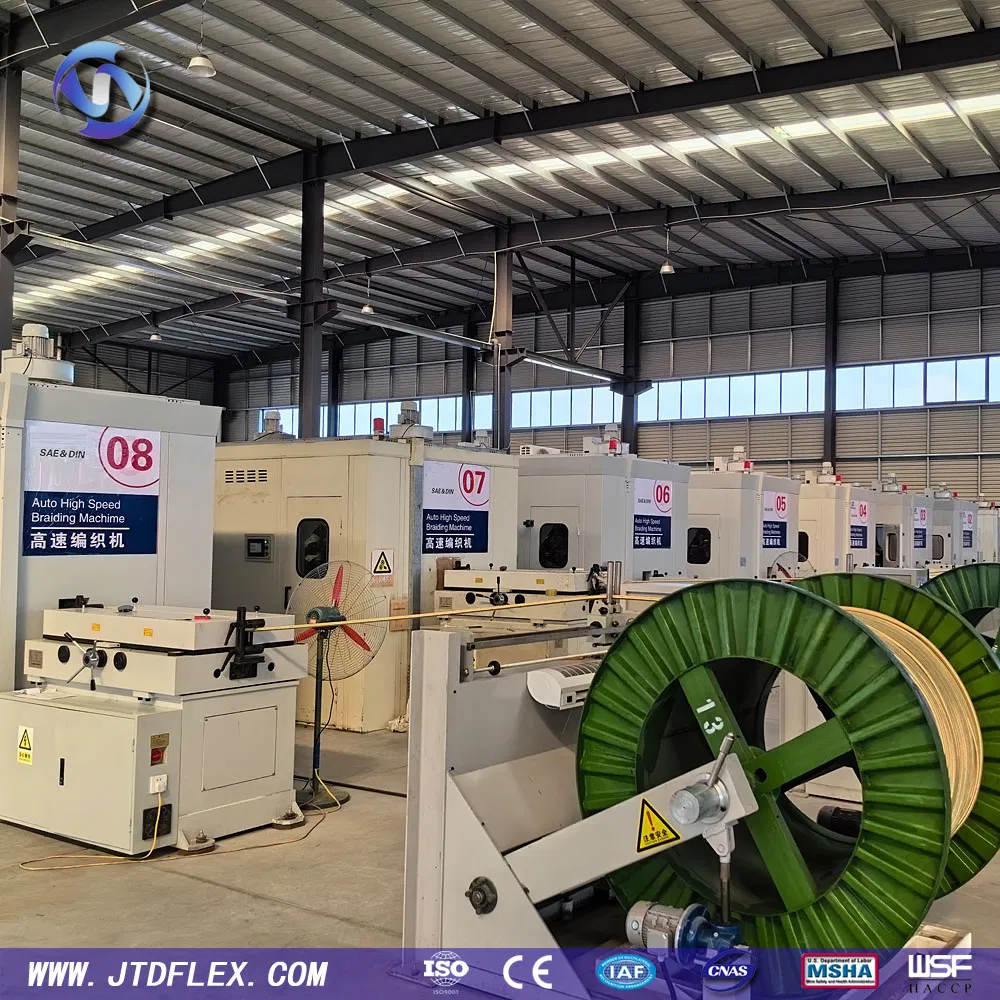

Equipped with 26 high-speed automatic braiding machines. Monthly output is maintained at approximately 800,000 meters, with an annual capacity of 10 million meters.

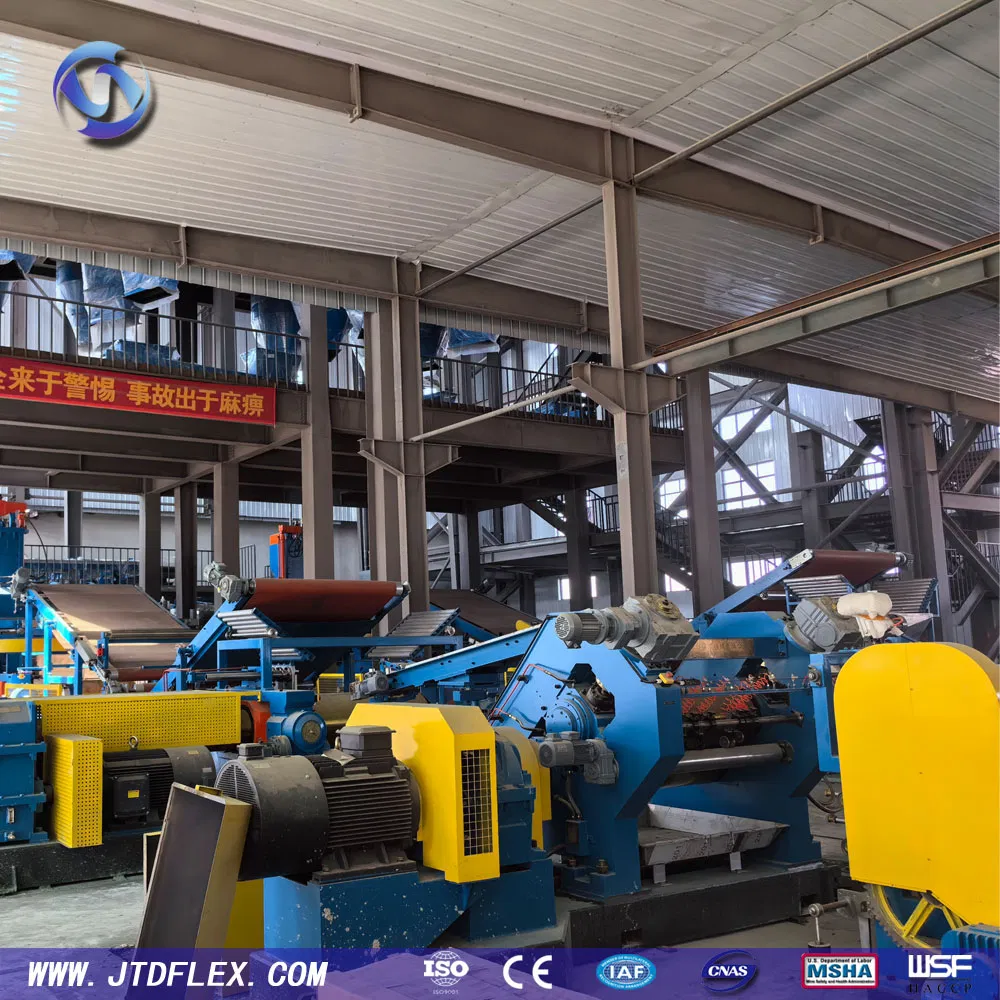

We use premium raw materials and maintain our own rubber mixing center to ensure quality control from the very source.
We respond to quality feedback within 72 hours during the validity period. Customer satisfaction is our core aim.
| DN | Hose I.D | Braids O.D | Hose O.D | Working Pressure | Burst Pressure | Bend Radius | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | MM | MM | MM | MPa | Psi | MPa | Psi | MM | Kg/m | |
| 6 | 1/4 | 6.2-7.0 | 10.8-11.4 | 12.7-13.5 | 22.5 | 3260 | 90.0 | 13050 | 102 | 0.25 |
| 10 | 3/8 | 9.3-10.1 | 14.5-15.1 | 16.7-17.5 | 18.0 | 2610 | 72.0 | 10440 | 127 | 0.36 |
| 13 | 1/2 | 12.3-13.5 | 17.7-18.3 | 19.8-20.6 | 16.0 | 2320 | 64.0 | 9280 | 178 | 0.45 |
| 19 | 3/4 | 18.6-19.8 | 24.6-25.4 | 26.9-27.7 | 10.5 | 1520 | 42.0 | 6090 | 241 | 0.65 |
| 25 | 1 | 25.2-26.4 | 32.1-32.9 | 34.6-35.4 | 8.8 | 1280 | 35.0 | 5075 | 305 | 0.91 |

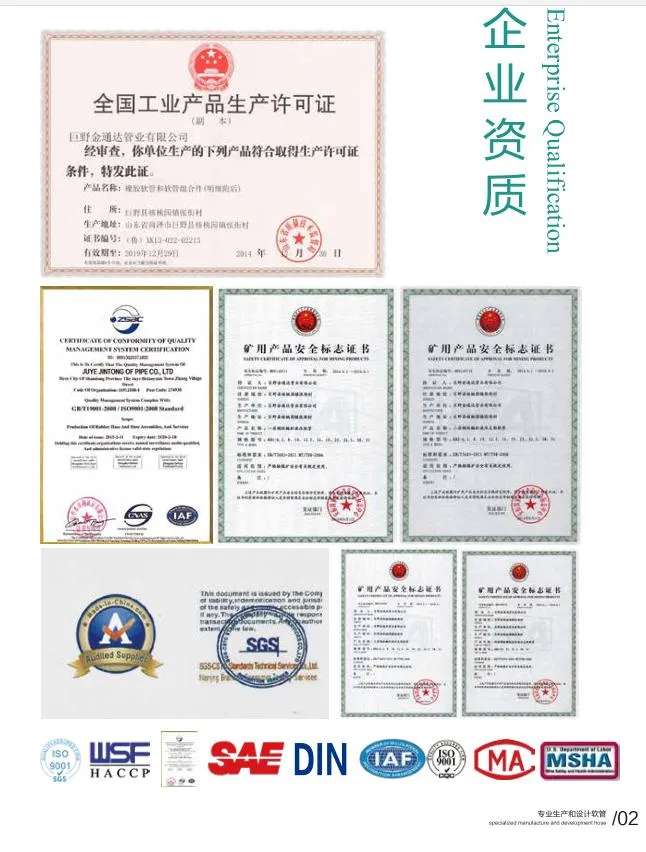

We have obtained numerous international certifications, including ISO, WSF, SAE, DIN, and IAF, ensuring top-quality products that meet global standards.

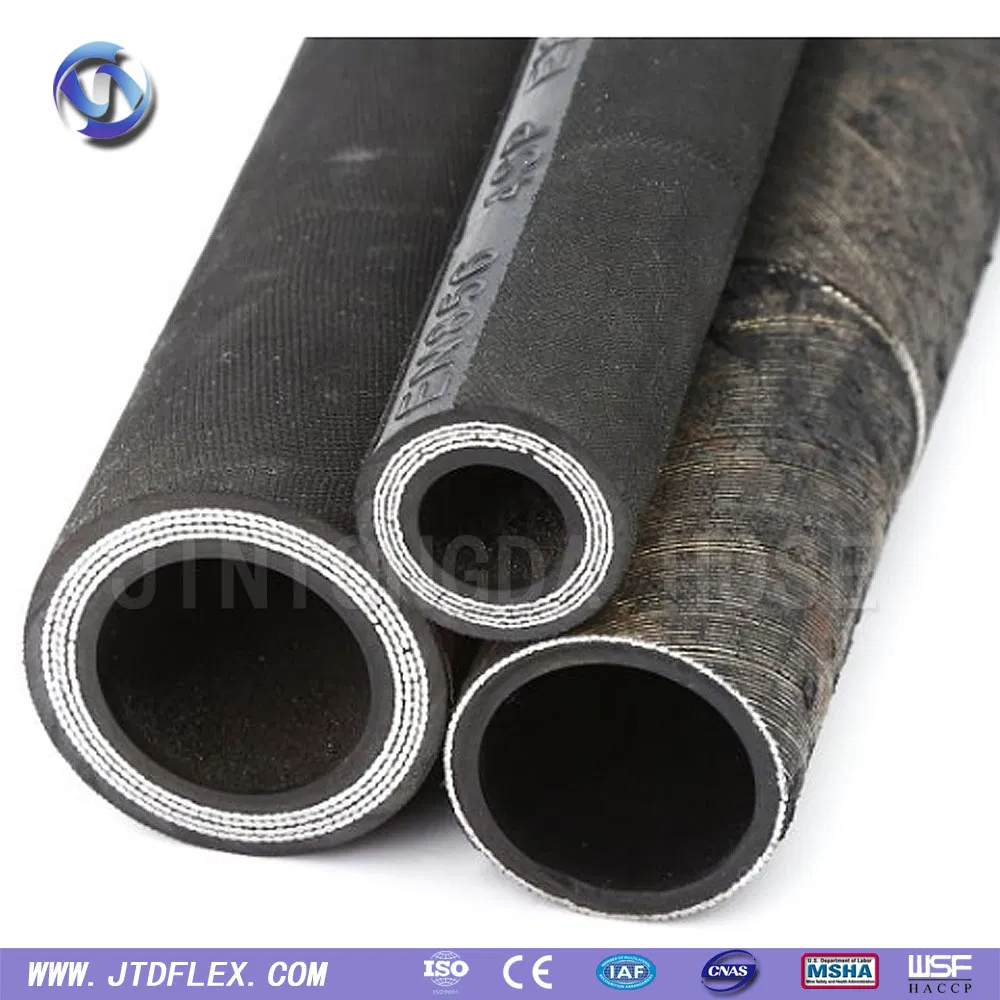

A professional manufacturer of hydraulic and industrial hoses with various specifications since 1999. We integrate Research & Development, Production, and Sales Export, focusing on high-quality products. We specialize in 1SN, 2SN, 4SP, and 4SH products complying with American SAEJ517 and European DIN standards.
A: Generally, we pack our goods in neutral white wearable woven bags. Customized branded boxes are available with proper authorization.
A: T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
A: We support EXW, FOB, CFR, CIF, and DDU terms.
A: Usually, it takes 20 to 60 days after receiving advance payment, depending on the items and order quantity.
A: The hoses are designed to operate efficiently within a temperature range of -40ºC to +120ºC.
A: They are suitable for transporting hydraulic fluids such as alcohol, hydraulic oil, fuel, lubricating oil, and emulsions.
