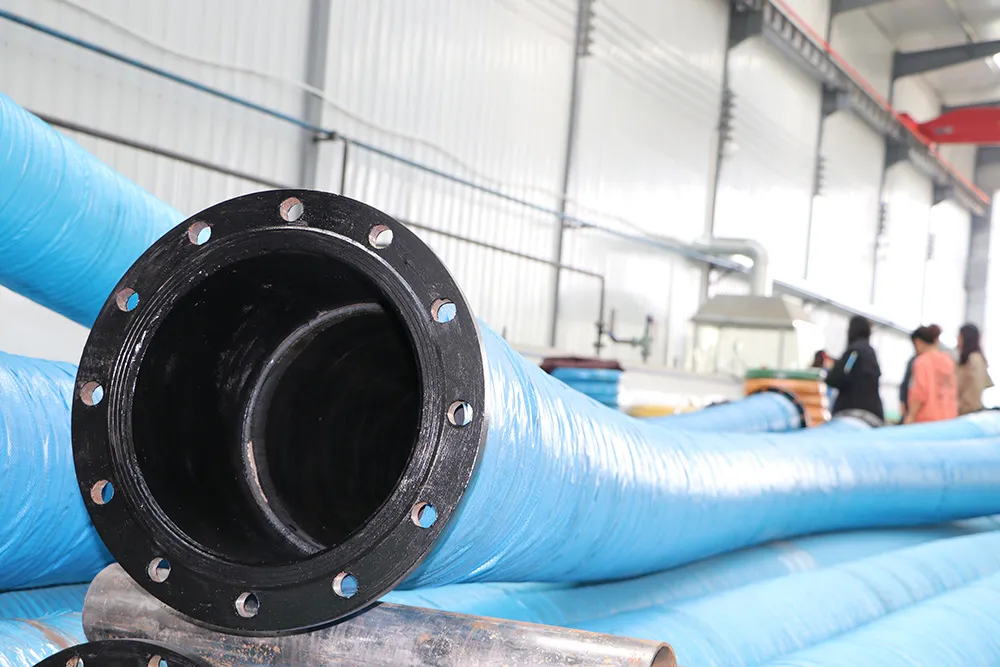

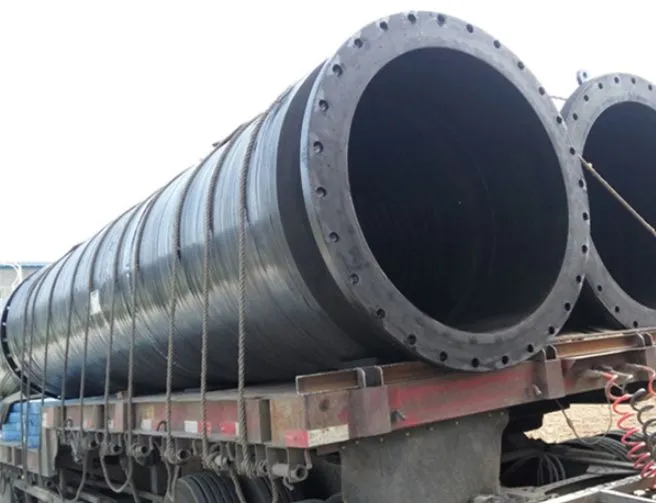

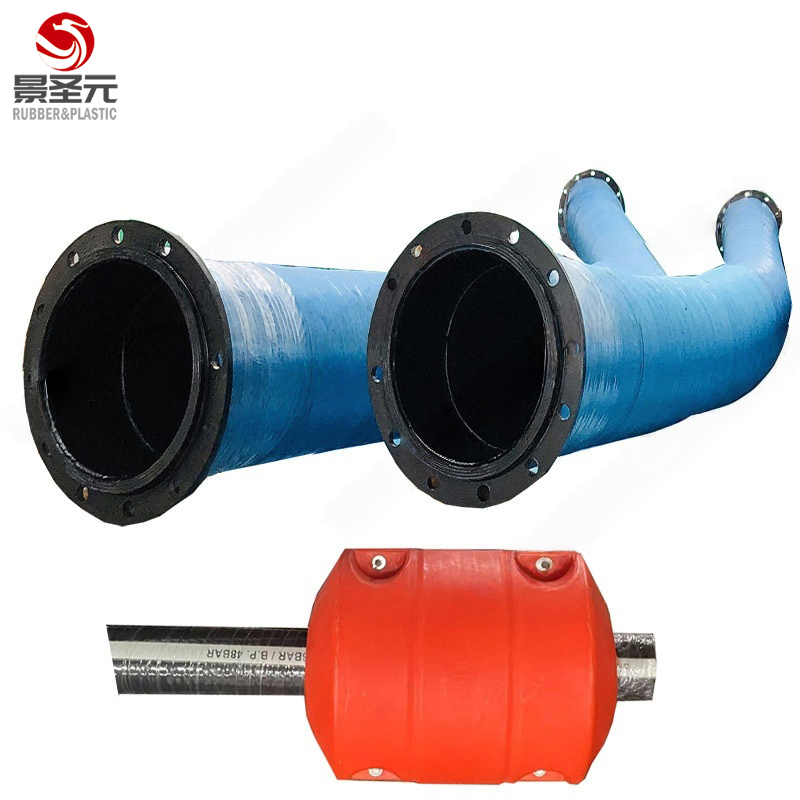

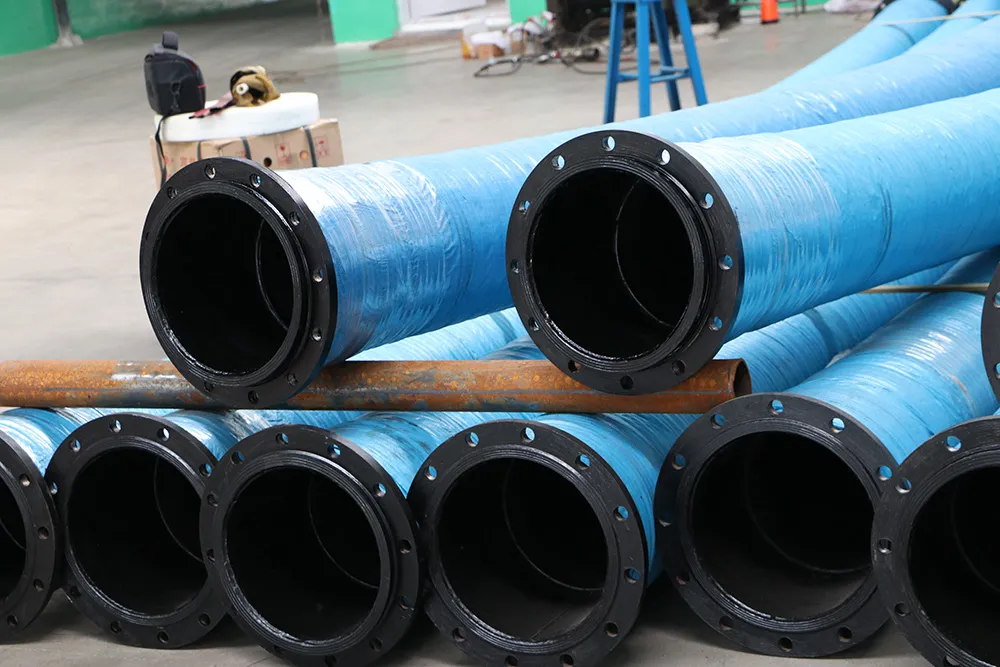

Dredging suction hoses resist the most severe cutting and abrasive action. We can produce heavy-wall hose and high-flexibility tubes up to 60 feet in length, with hose sizes ranging from 4 inch ID up to 60 inch ID.
With features of flexibility, stability, and vibration damping, these hoses are ideal for slurry, mud, silica sand, metal, and dry cement. They are extensively used in mining, dewatering, tailings, and waste management industries.

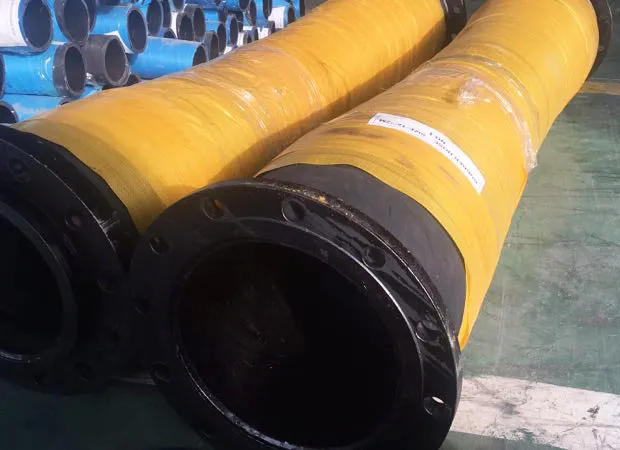

Construction: Abrasive resistant rubber lining, Spring steel helix wire with multiple synthetic textile reinforcement for full vacuum and kink resistance. Outer cover features excellent aging and corrosion resistance.
| Nominal Size (Inch) | Working Pressure (BAR) | Burst Pressure (BAR) | Length (M) | Connection Type |
|---|---|---|---|---|
| 3" | 10/20 | 30/60 | 5.8 / 11.8 | Flange / Camlocks |
| 4" | 10/20 | 30/60 | 5.8 / 11.8 | Flange / Camlocks |
| 6" | 10/20 | 30/60 | 5.8 / 11.8 | Flange / Camlocks |
| 8" | 10/20 | 30/60 | 5.8 / 11.8 | Flange / Camlocks |
| 12" | 10/20 | 30/60 | 5.8 / 11.8 | Flange / Camlocks |
| 16" | 10/20 | 30/60 | 5.8 / 11.8 | Flange / Camlocks |
We are a professional manufacturer and exporter with over 15 years of expertise in the hose industry. We serve a wide range of industries including offshore engineering, oil industry, tunneling, water treatment, chemical, mining, and shipbuilding.
Our main products include Dredging Hoses, Floating Hoses, Marine Oil Delivery Hoses, and Chemical Hoses. We deliver high-quality products and reliable service at competitive prices to both domestic and overseas companies.

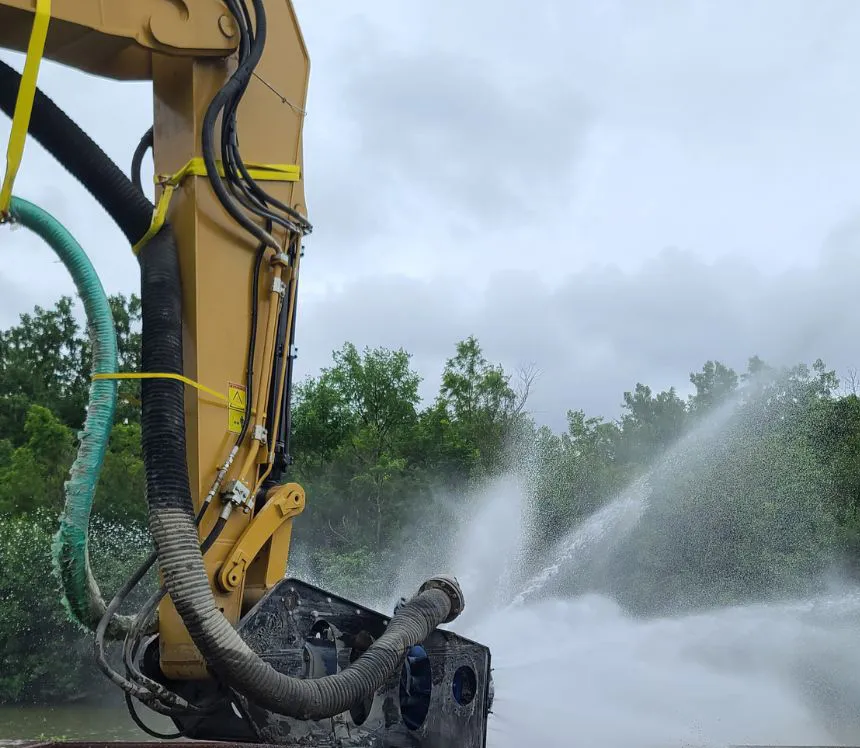

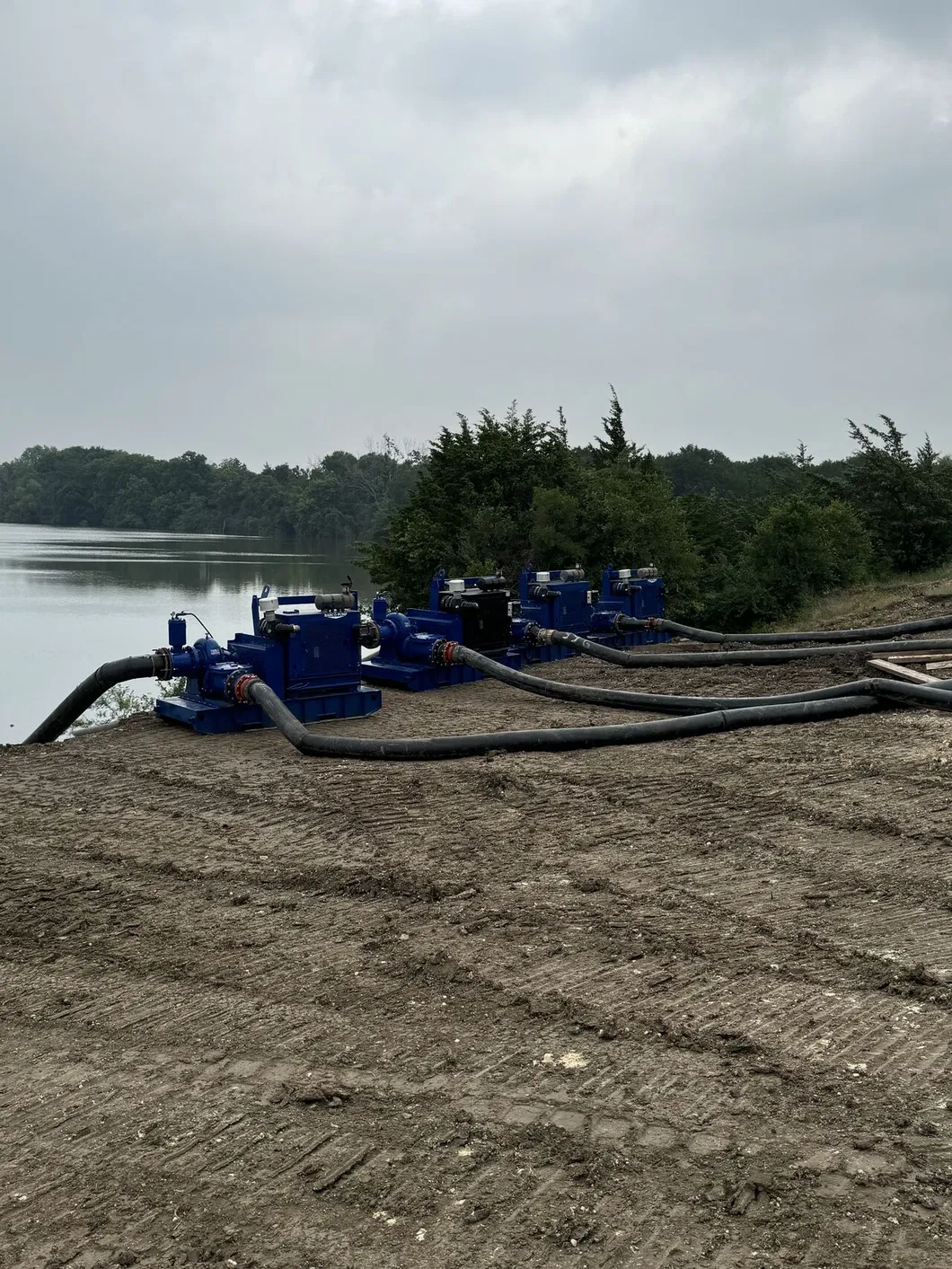

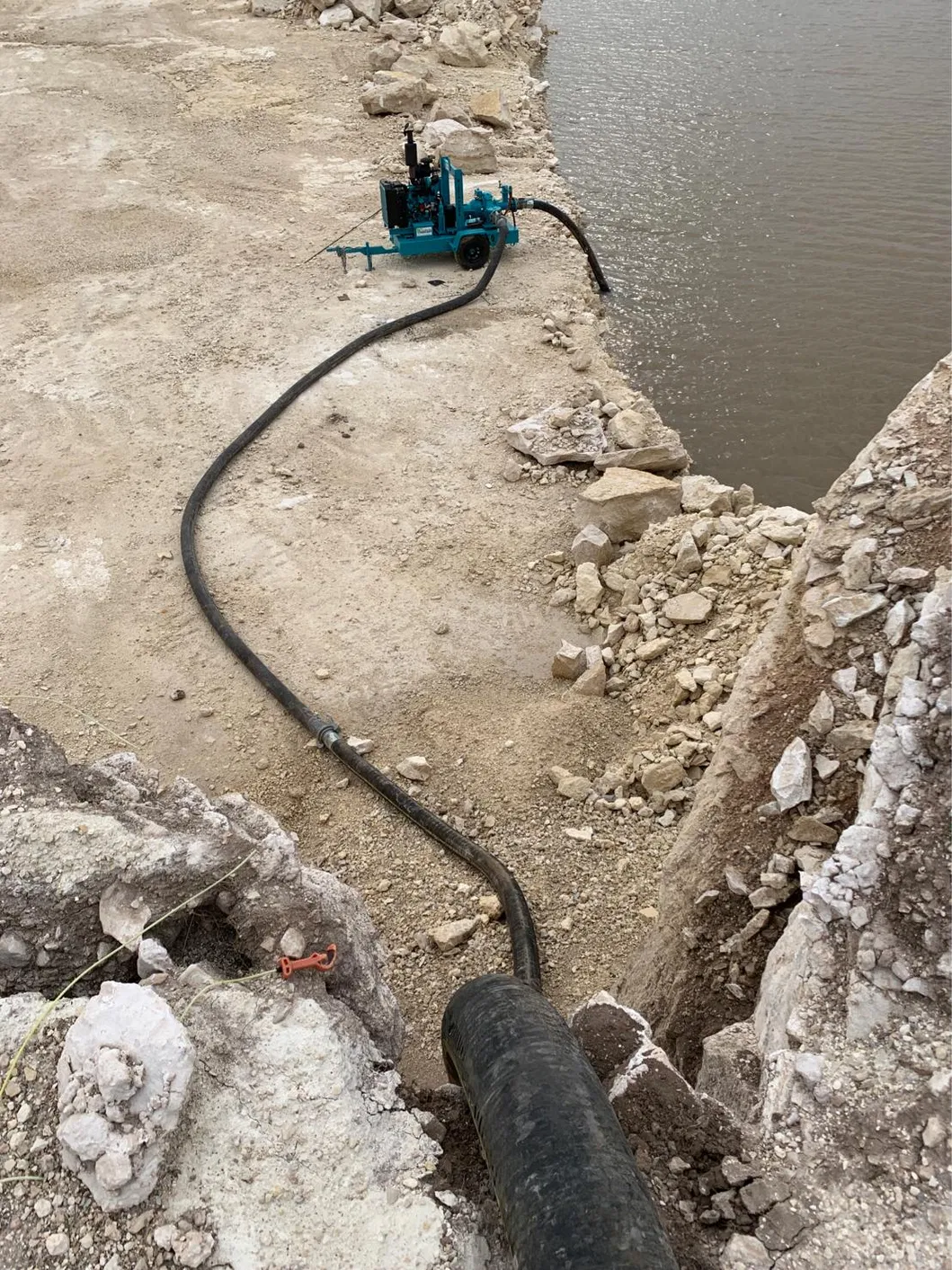

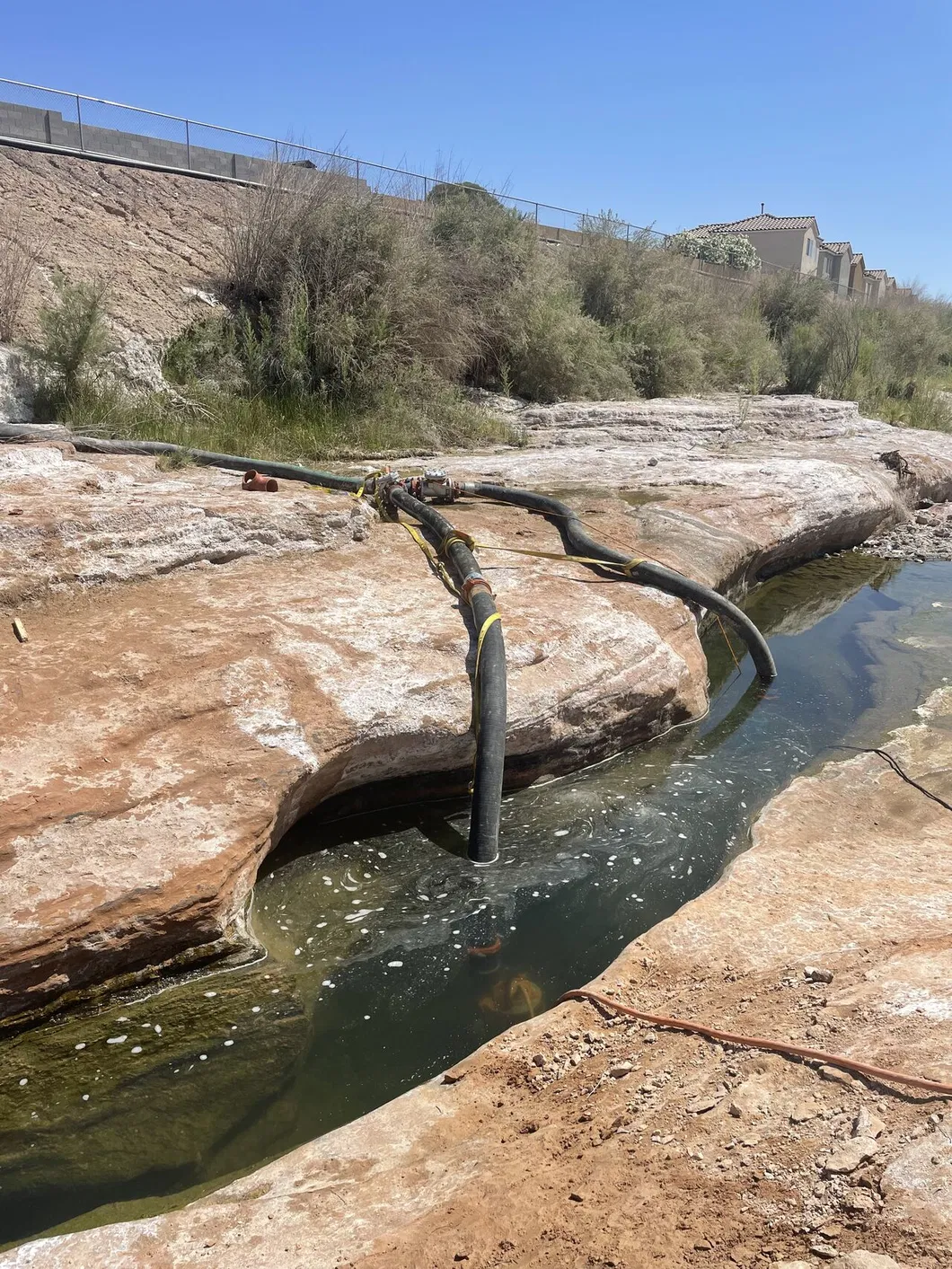

Dredging suction hoses are ideal for pump solutions, dewatering, mining, and water management. They effectively convey slurry, silica sand, mud, and other abrasive materials in dredging and engineering projects.
